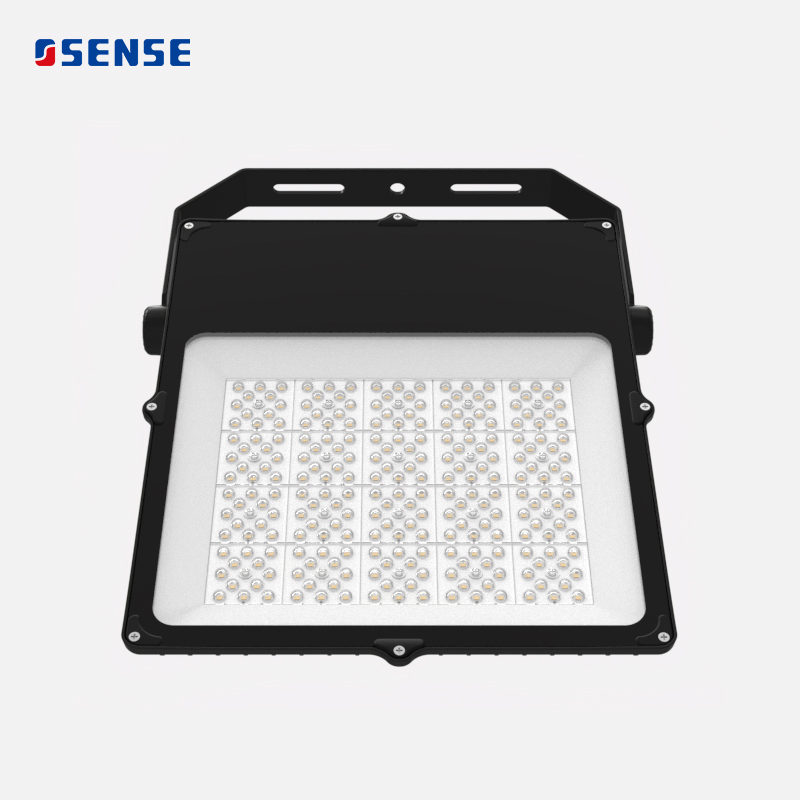

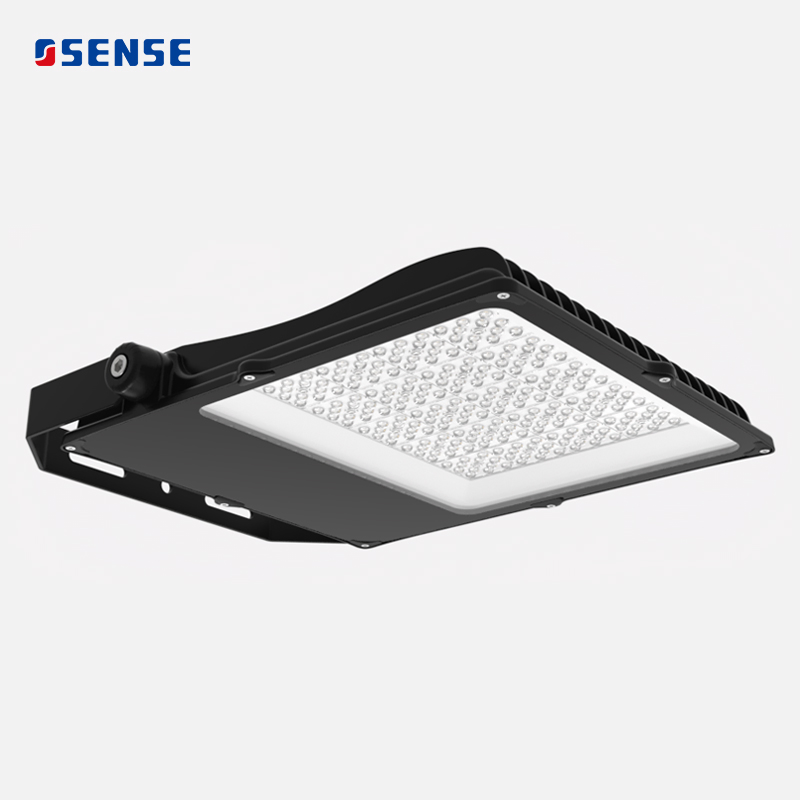

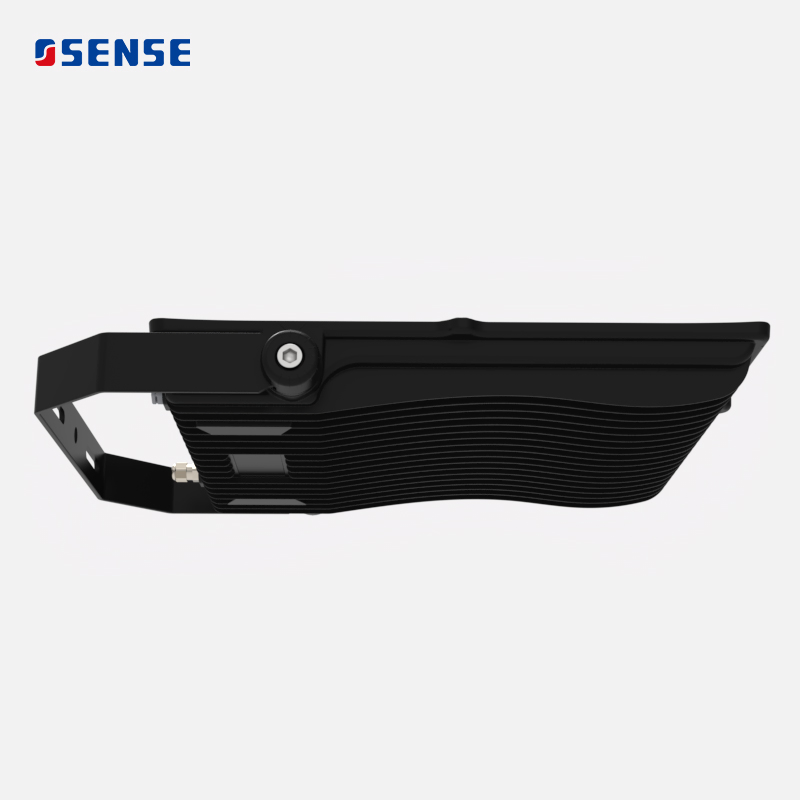

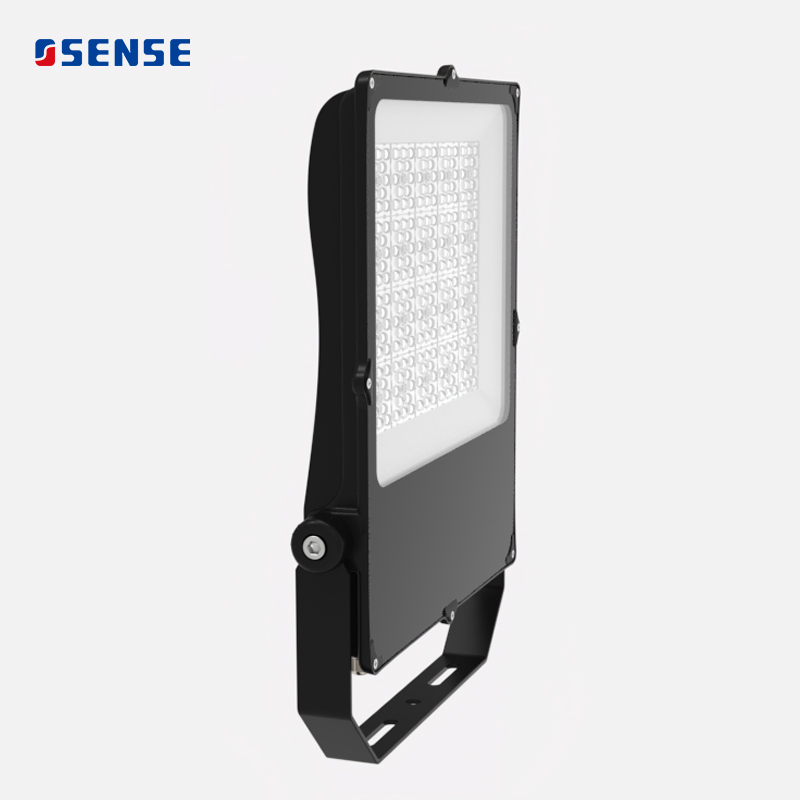

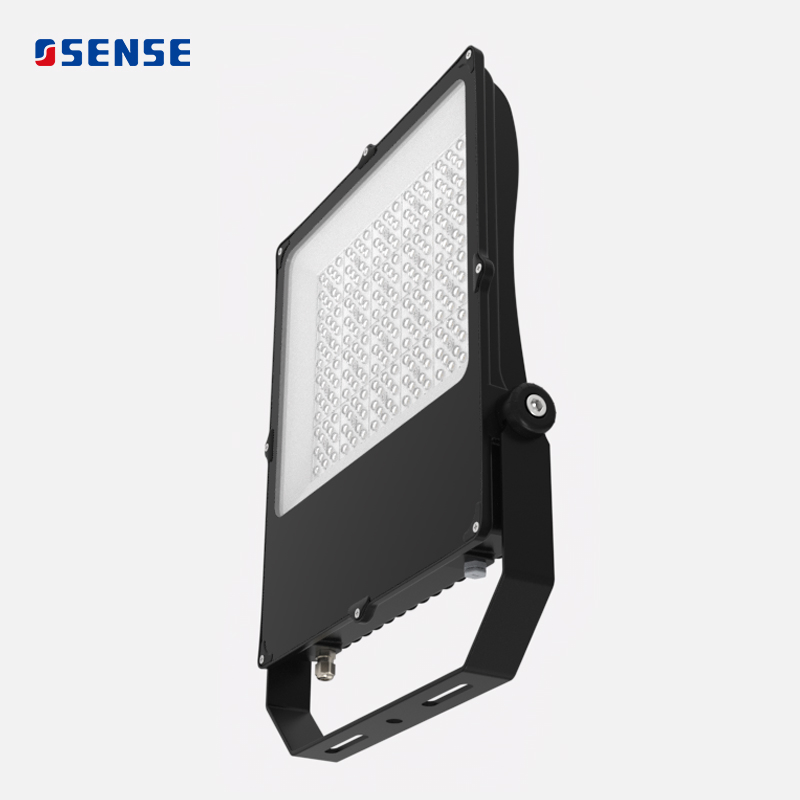

High Mast LED Floodlight Used for Outdoor Billboard Landscape Flood Lighting with Glass Lens
Product Description
📊
Basic Specifications
Model NO.
SWF-CH 100W
Power
≥100W
Projection Distance
>35m
Application
Park, Square, Factory, Garden
IP Rating
IP65
Certification
CCC, CE, EMC, RoHS
Operating Voltage
110-240V
LED Chips Brand
CREE
LED Type
3030
CCT
4000K/5000K/5700K
CRI
>70
Ik Grade
Ik08
Luminous Efficiency
130lm/W
Housing Color
Black or OEM
💡
LED CH Flood Light Features

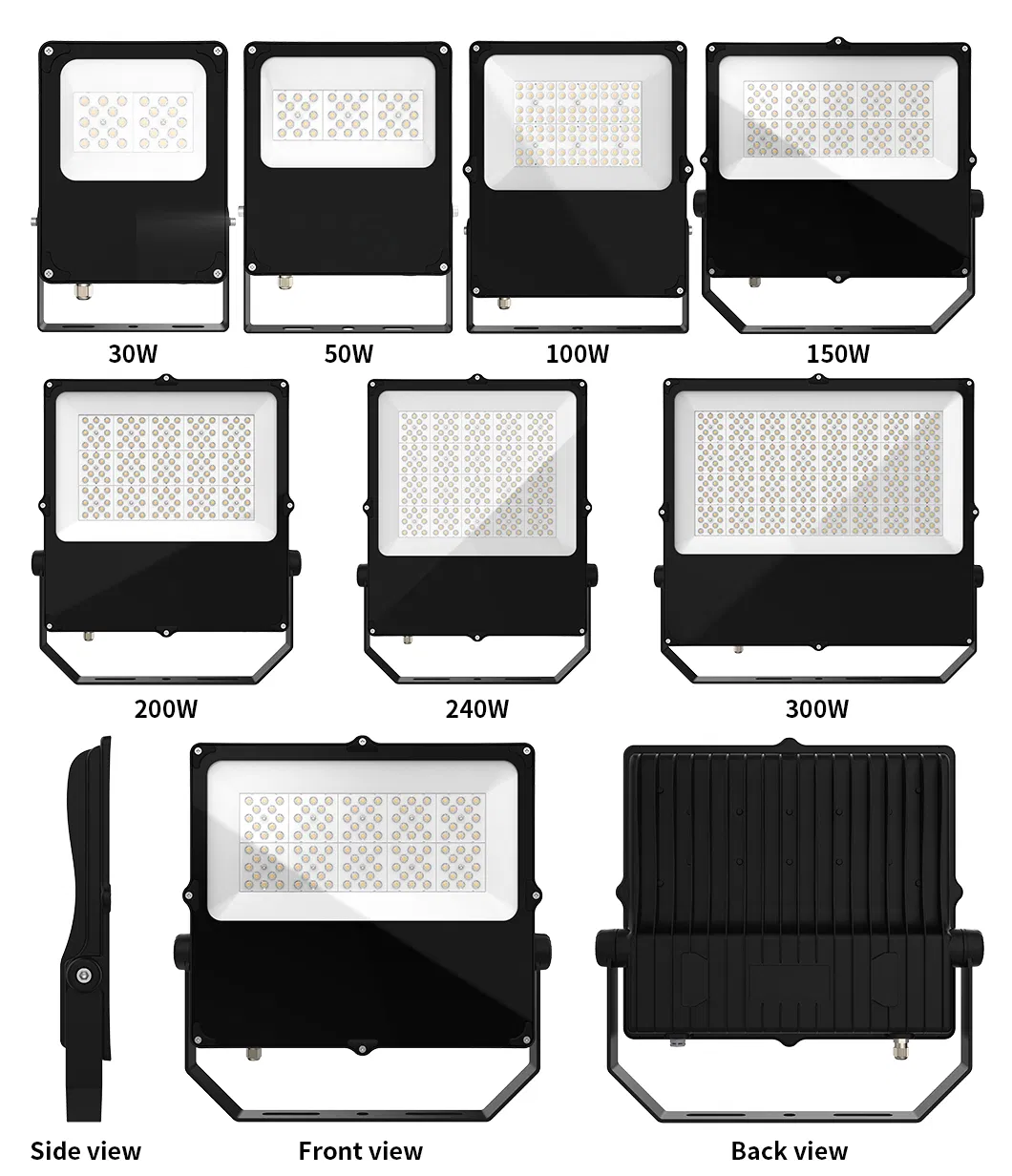

- 30w/50w/100w/150w/200w/240w/300w options available
- High thermal conductivity ADC 12 Aluminum for superior heat dissipation
- 0 degree angle installation capability with low glare design

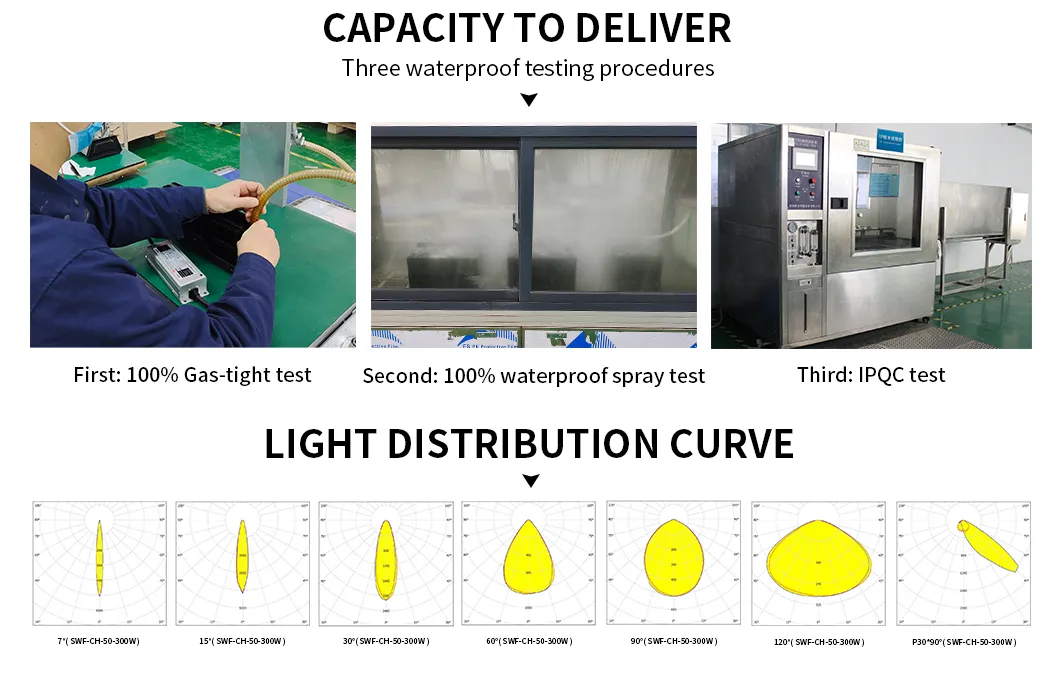

- Diverse light distribution angles: 15°/30°/60°/90°/polarized designs
- Optional DALI/1-10V/0-10V dimming and microwave induction functions
- Glass + PC lens design ensuring high luminous efficiency
⚙️
Technical Parameters
General & Electric Information
| GENERAL INFORMATION | ELECTRIC INFORMATION | ||
|---|---|---|---|
| Mounting Module | Bracket system | Electrical Class | Class I |
| Operating Temp | -30ºC / +45ºC | Nominal Voltage | 100-240VAC / 180-528VAC |
| Lens Options | 7°/15°/30°/60°/90°/120°/P30*90° | Power Factor | ≥0.92 |
| Standards | EN 60598, IEC 60598, GB 7000.1 | THD | ≤20% |
Housing & Optical Details
| HOUSING AND MATERIALS | OPTICAL INFORMATION | ||
|---|---|---|---|
| Housing Material | ADC 12 die-casting aluminum | LED Color Temp | 4000K, 5000K, 5700K |
| Optic | PC + Glass | CRI | ≥70 (80/90 optional) |
| Finish | Powder spraying / Electrophoresis | LED Brand | CREE / Nichia |
| Impact Resistance | IK08 (IK09/IK10 optional) | LED Lifetime | >50,000h - L70B50 |
🖼️

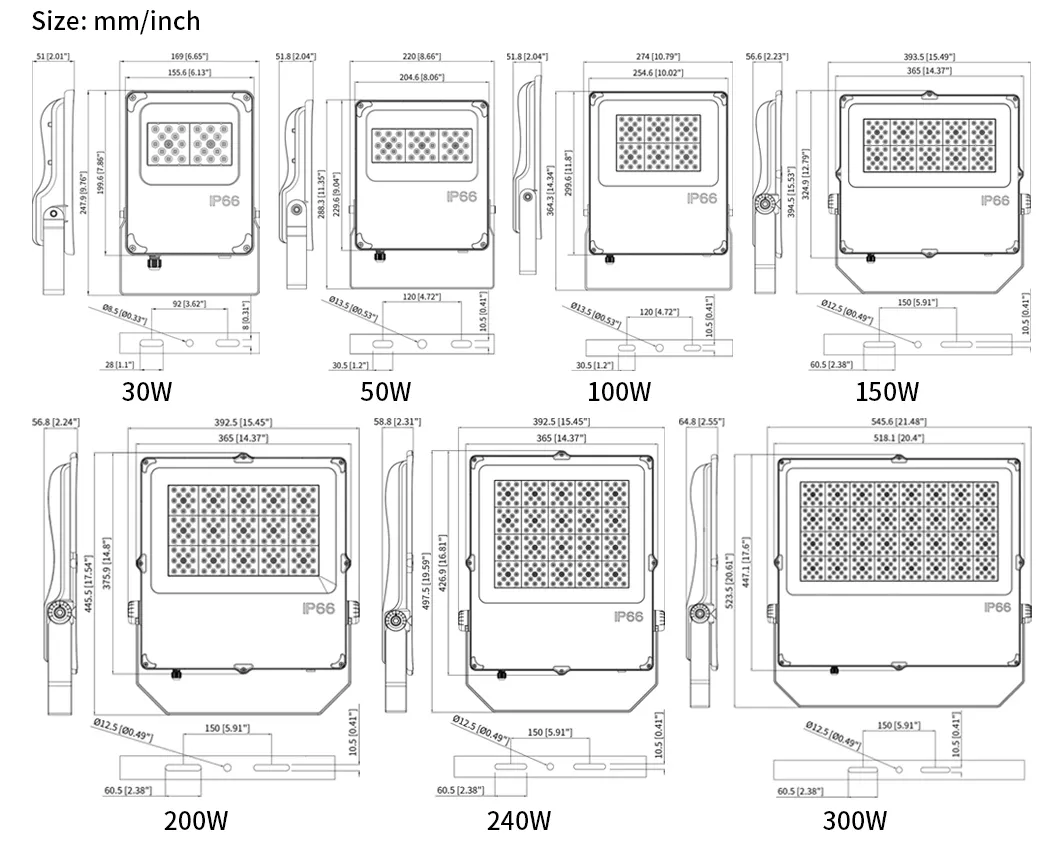

Product Details Display
❓
Frequently Asked Questions
Are you a manufacturer?
Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
What certifications do your products have?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. We also provide IP65/IP66/IP67, IK08/IK09/IK10, and LM79/LM80/IES reports.
Can I have our LOGO on the products and packages?
Yes, we provide comprehensive OEM services for our customers, including custom branding on products and packaging.
What is the warranty period for your products?
We offer a 5-7 year warranty depending on the specific requirements and application needs of the customer.
What is the typical lead time for orders?
Lead times are 3-7 days for samples and 10-20 days for mass production, depending on the order quantities.
How do you handle faulty products?
Our products undergo strict quality control (defect rate < 0.1%). Within the warranty period, we provide replacements for small quantities or repair/replace batch defects based on the situation.
