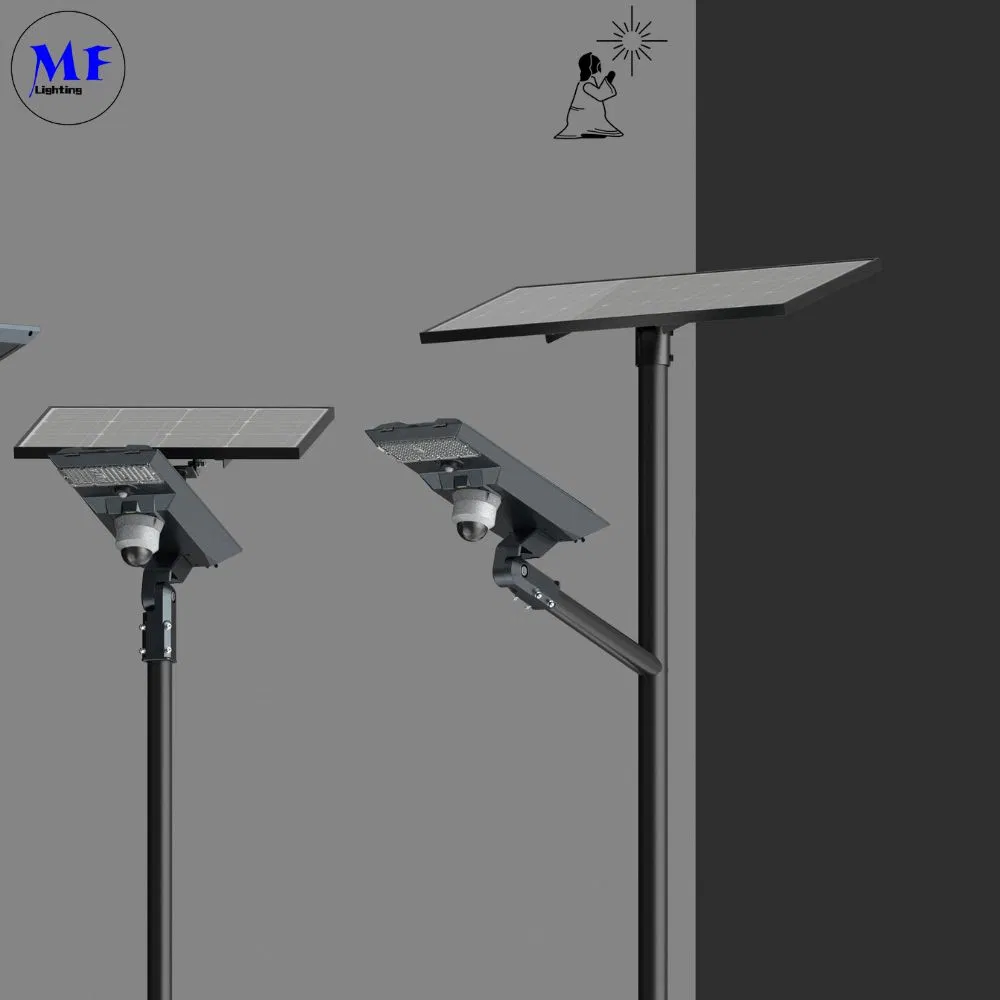

20W 5th Separated Outdoor All in One Aluminum Park Garden Lamp LED Solar Light Integrated Solar Power LED Parking Lot Street Light

1 / 5

20W 5th Separated Outdoor All in One Aluminum Park Garden Lamp LED Solar Light Integrated Solar Power LED Parking Lot Street Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

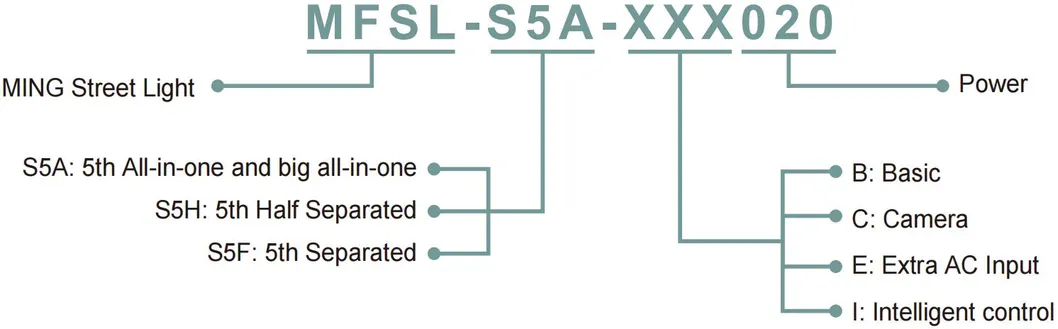

Model NO.

MFSL-S5F- BX020

Light Source

LED Lamp

Lamp Body Material

Die Casted Aluminum

Color Temperature

3000-6500K

Power Range

20W - 120W

IP Rating

IP66

Illumination Time

12 Hours /Day

Charging Time

6 Hours

Working Temp.

-10℃~+50℃

Solar Panel

Monocrystalline Silicon

💡 Product Description

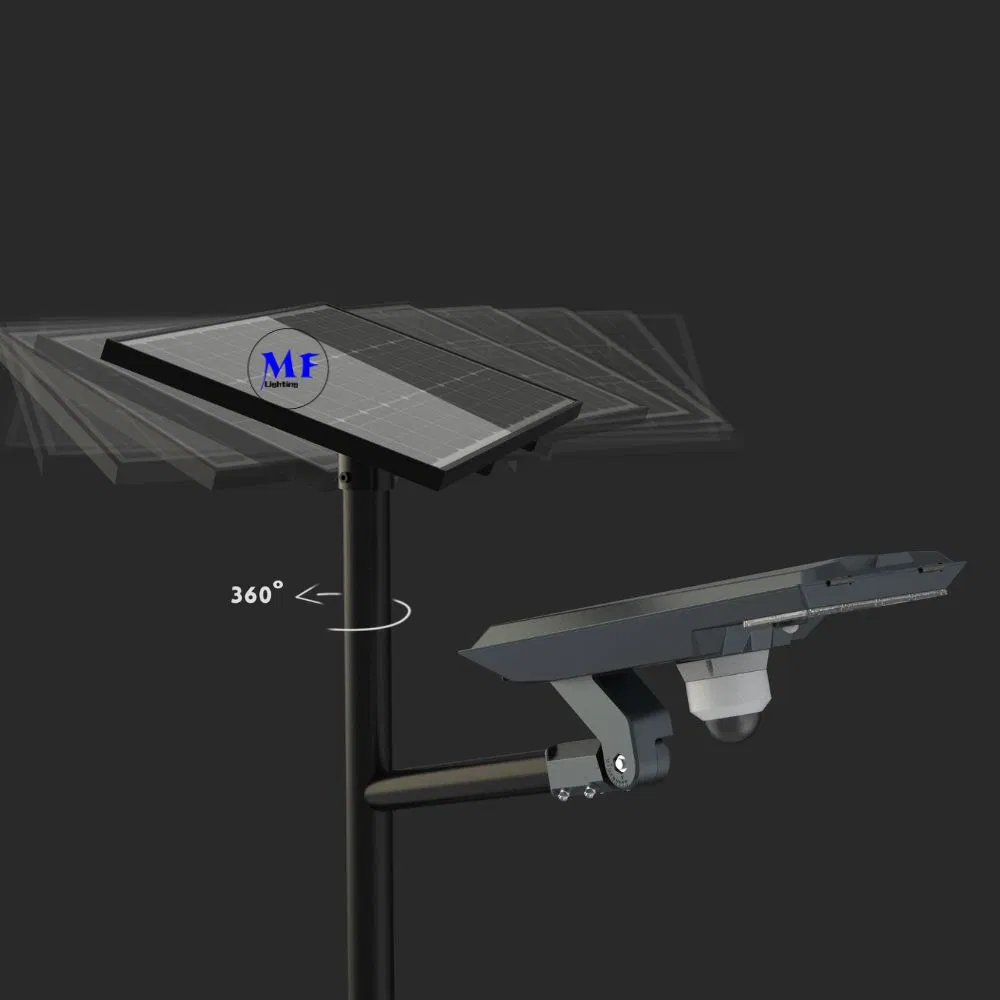

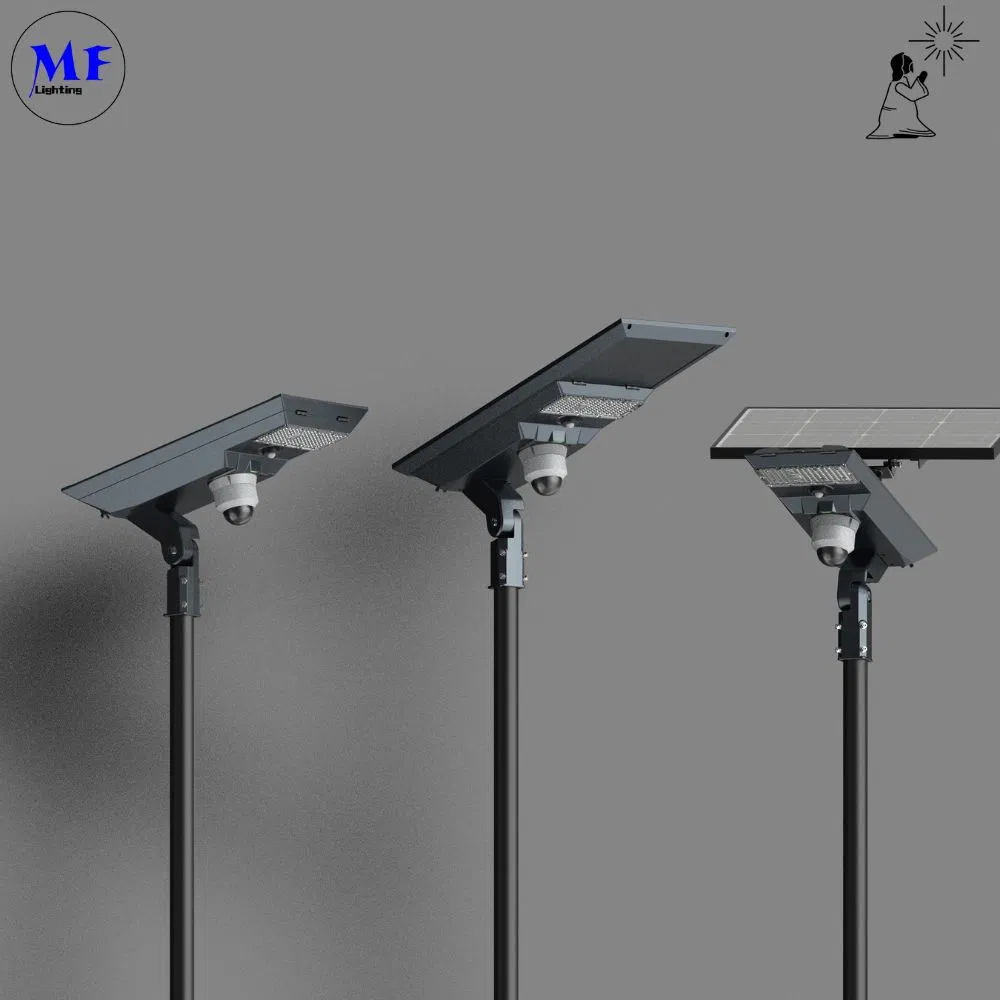

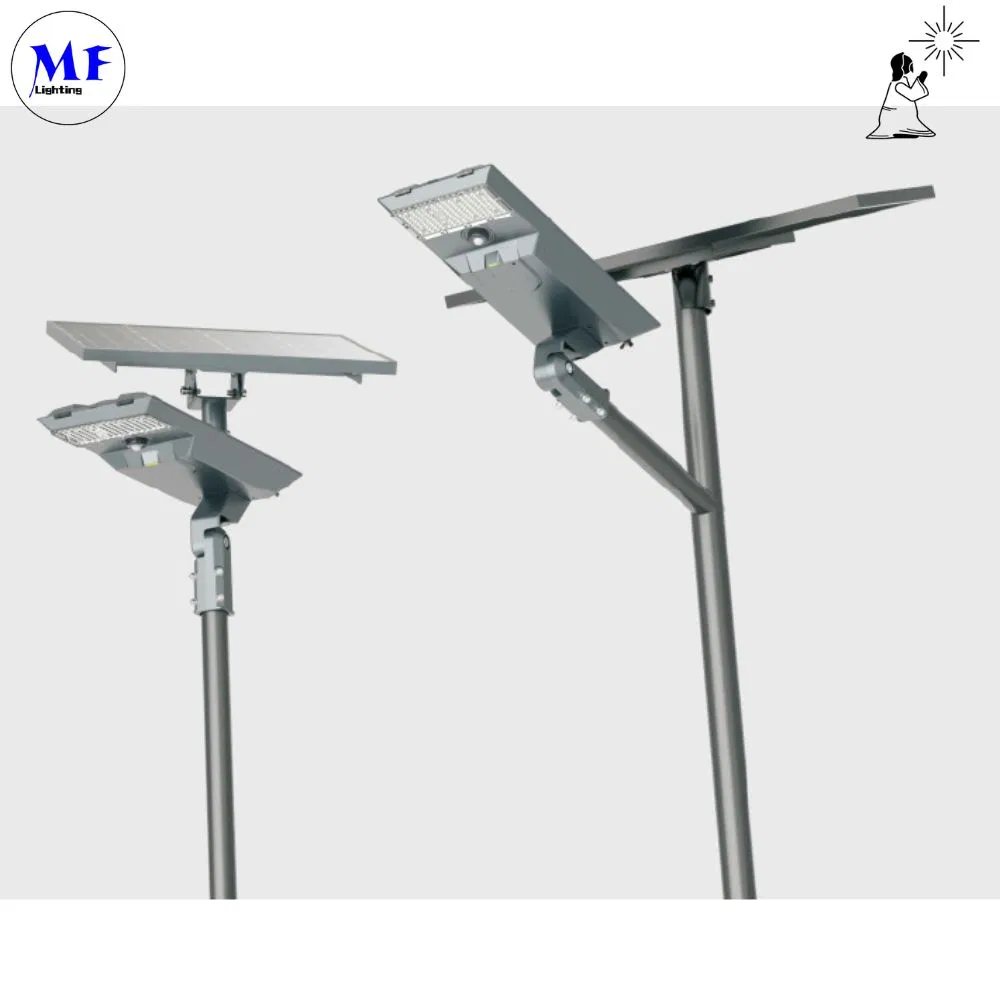

20W 5th Separated Outdoor All in One Aluminum Park Garden Lamp LED Solar Light

Key Features

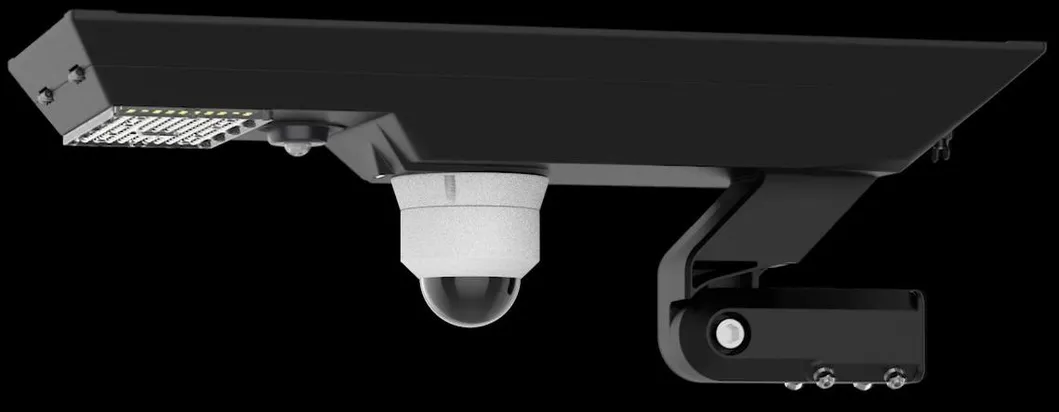

🌟 Integrated Die-casting cavity

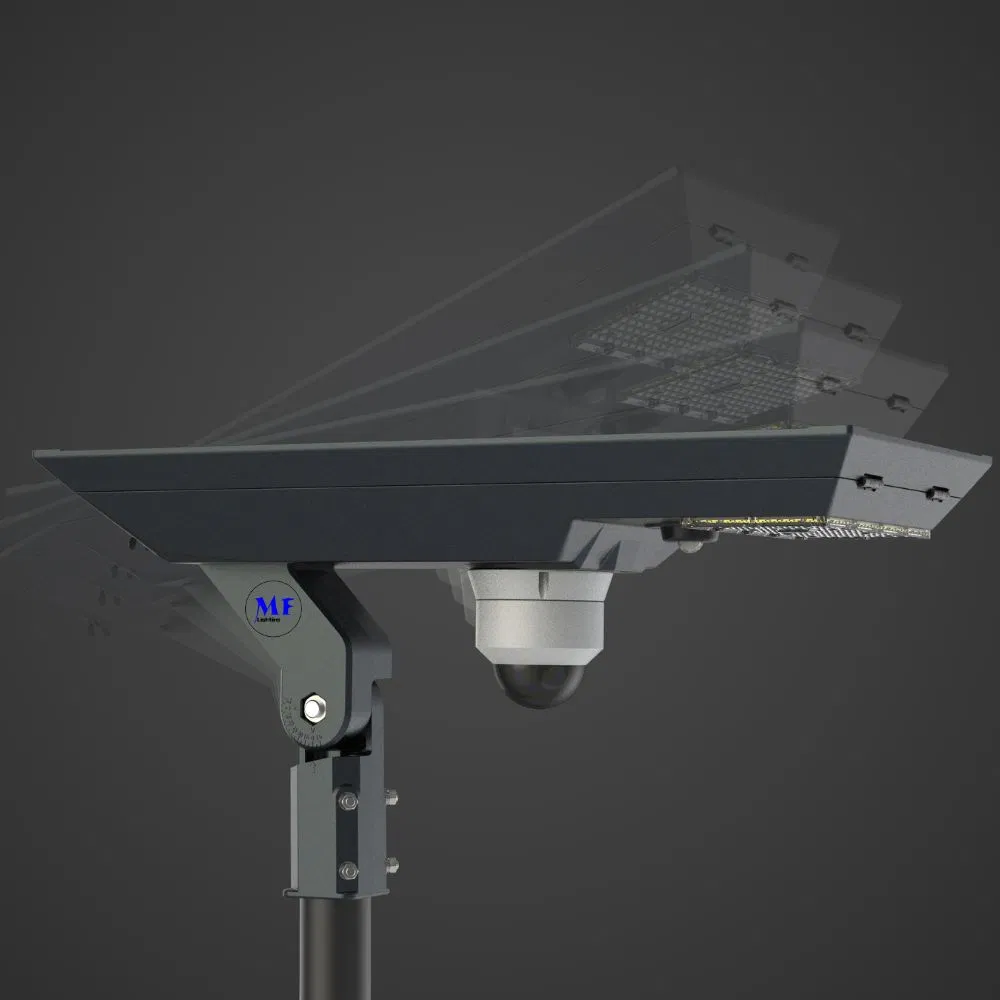

The integrated die-casting molding structure and tool-free access is of integral prevention and makes it easier to install and maintain. Adjustable angle and vertical or horizontal installing available.

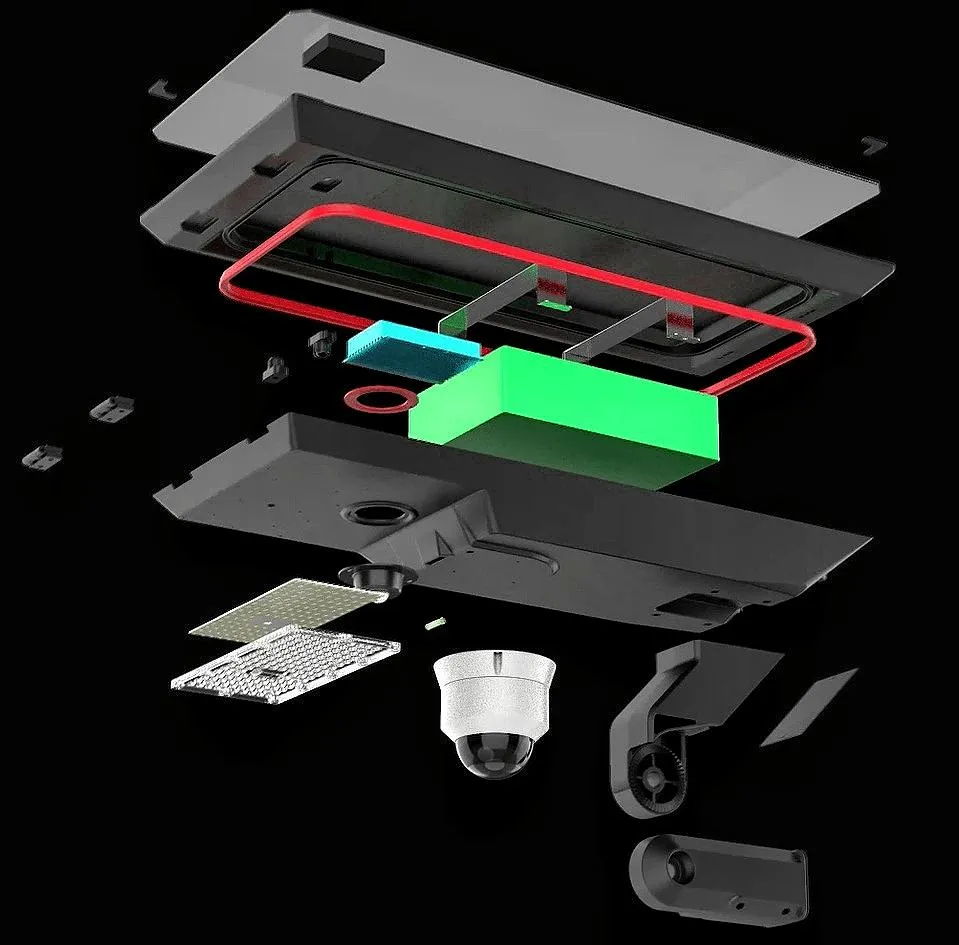

🌟 New generation LEDs

New generation high bright SMD, combined with integrated lens and lower current, which increases lumen flux by 10% and decreases light attenuation.

🌟 Secondary optical design

Specially for solar street light, which maximally balances uniformity and illumination, while decreasing dispersion.

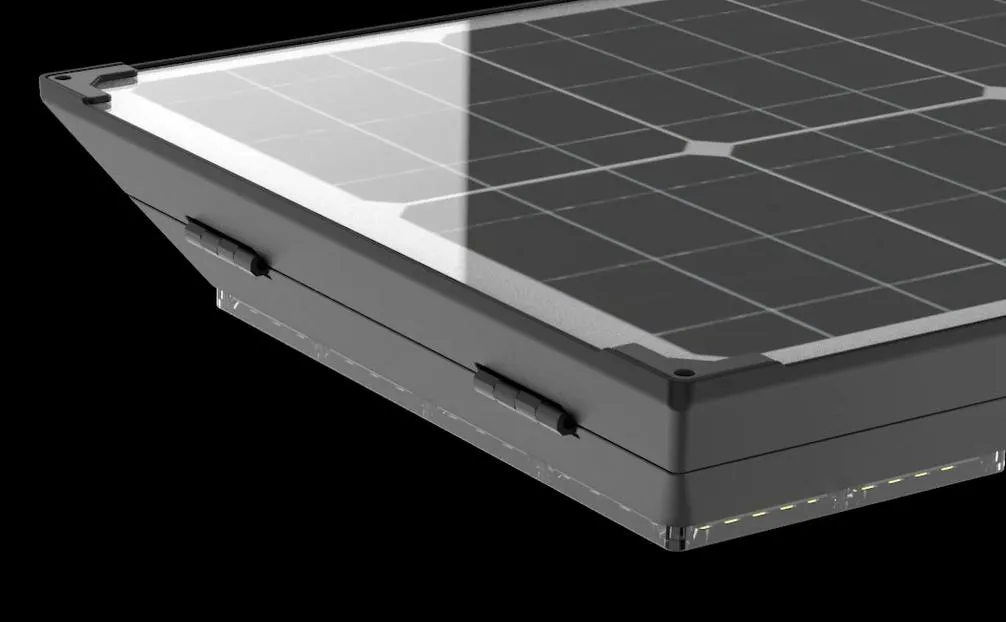

🌟 Battery & Solar Panel

High energy density A-level batteries (LiFePO4 optional) with temperature control protection. Top quality monocrystalline silicon wafer for upgraded light transmittance and power generation.

📋 Product Parameters

Parameter	Specification
Color Temperature	4000K / 5000K / 5700K (±300K)
CRI	≥70
Beam Angle	155°/70° (TM3), 155°/75° (TM2)
Material	ADC12, AL6063, PC
Discharge Time	12 hours/day, 3 days + 4 days low brightness
Control System	PWM / MPPT / AC input
Luminous Efficiency	100 lm/W (Bespoke ≥175lm/W)
Installation Height	4 ~ 8m

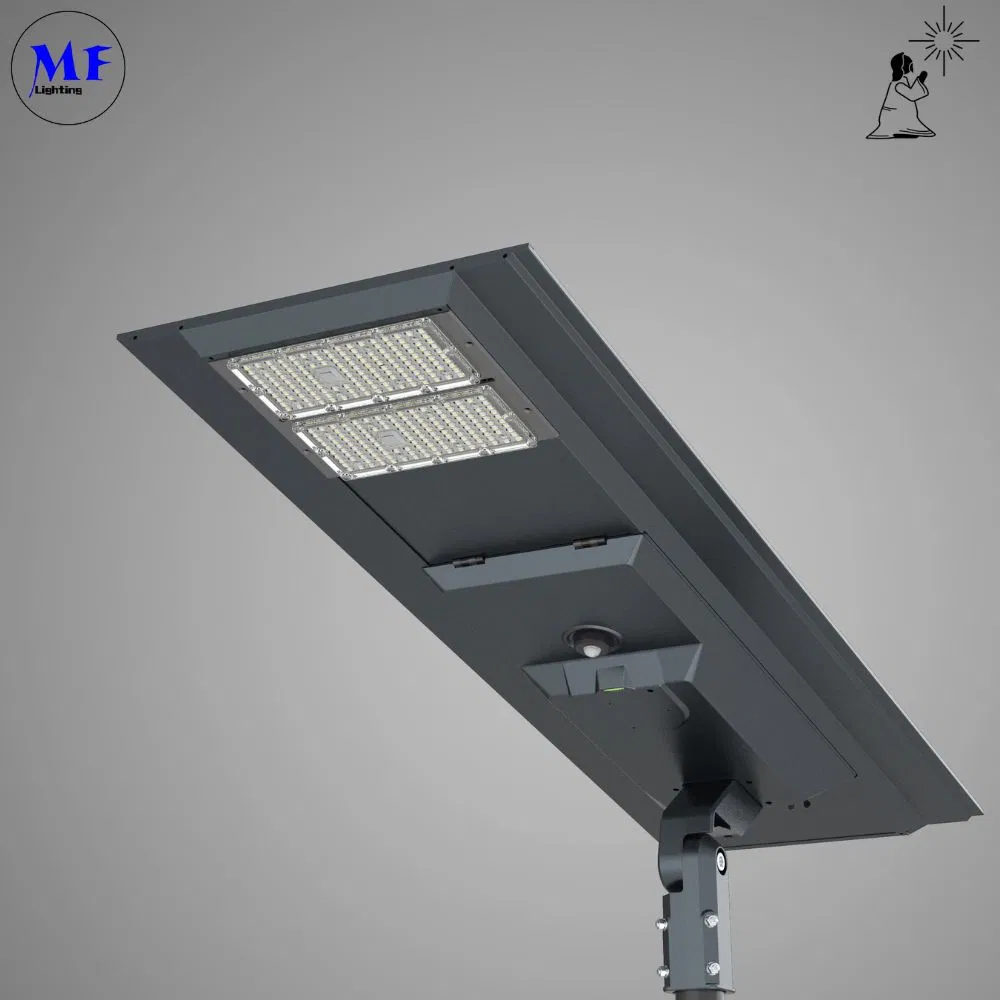

📸 Detailed Photos

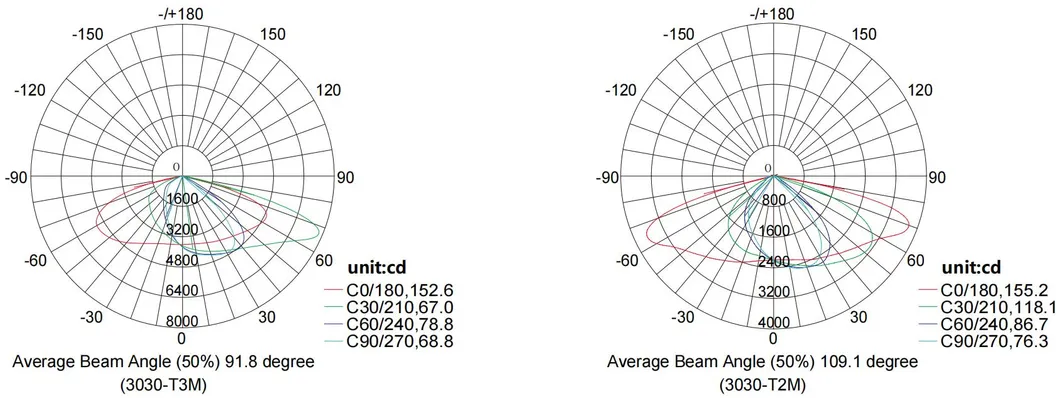

Light Distribution Curve

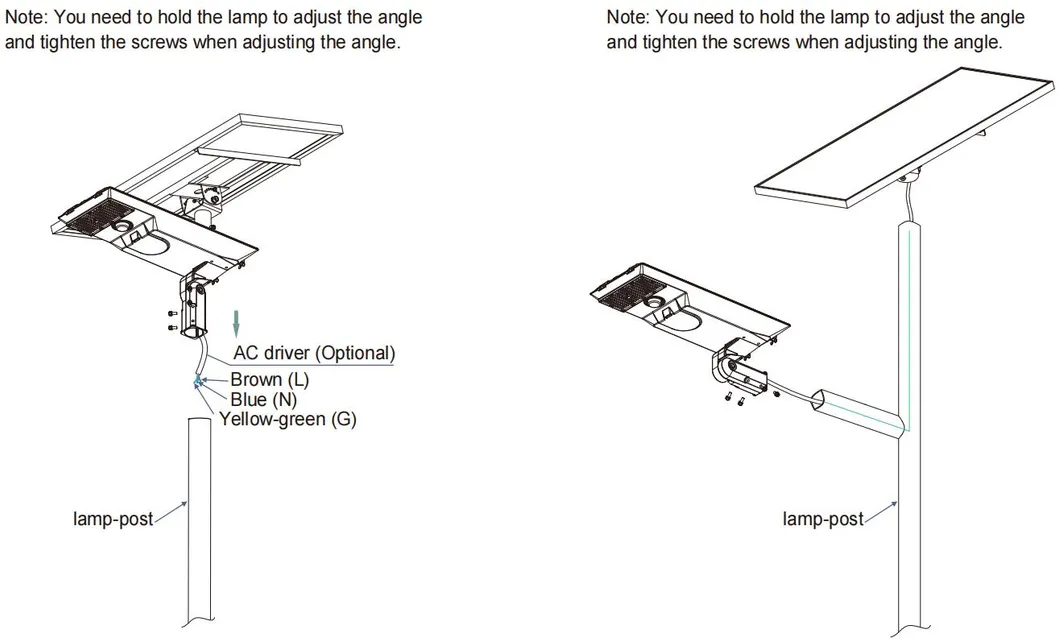

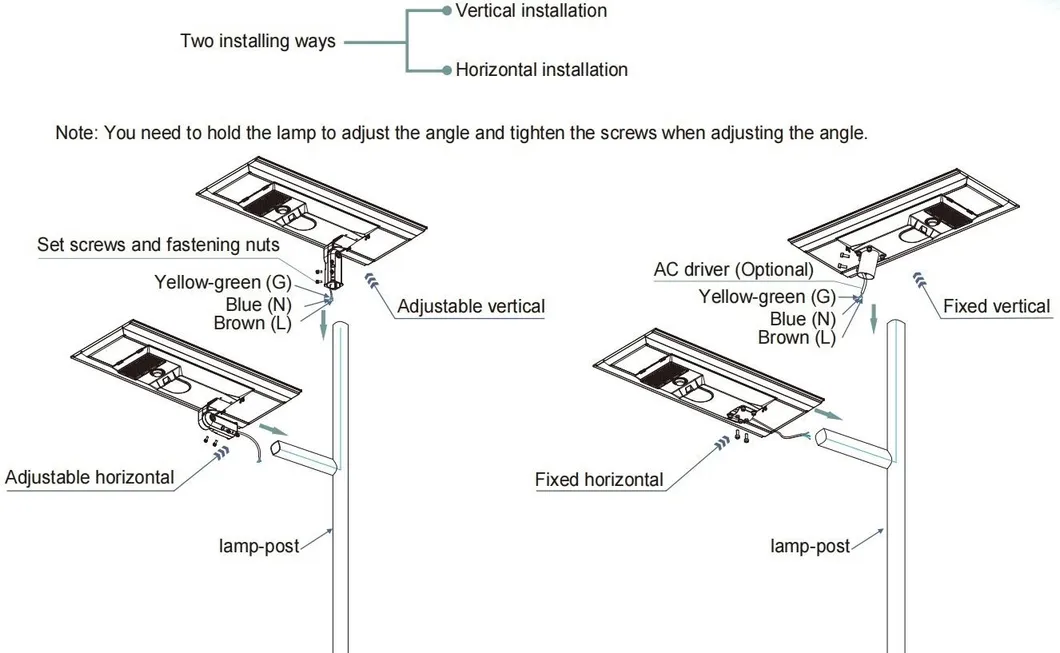

🛠️ Installation Instructions

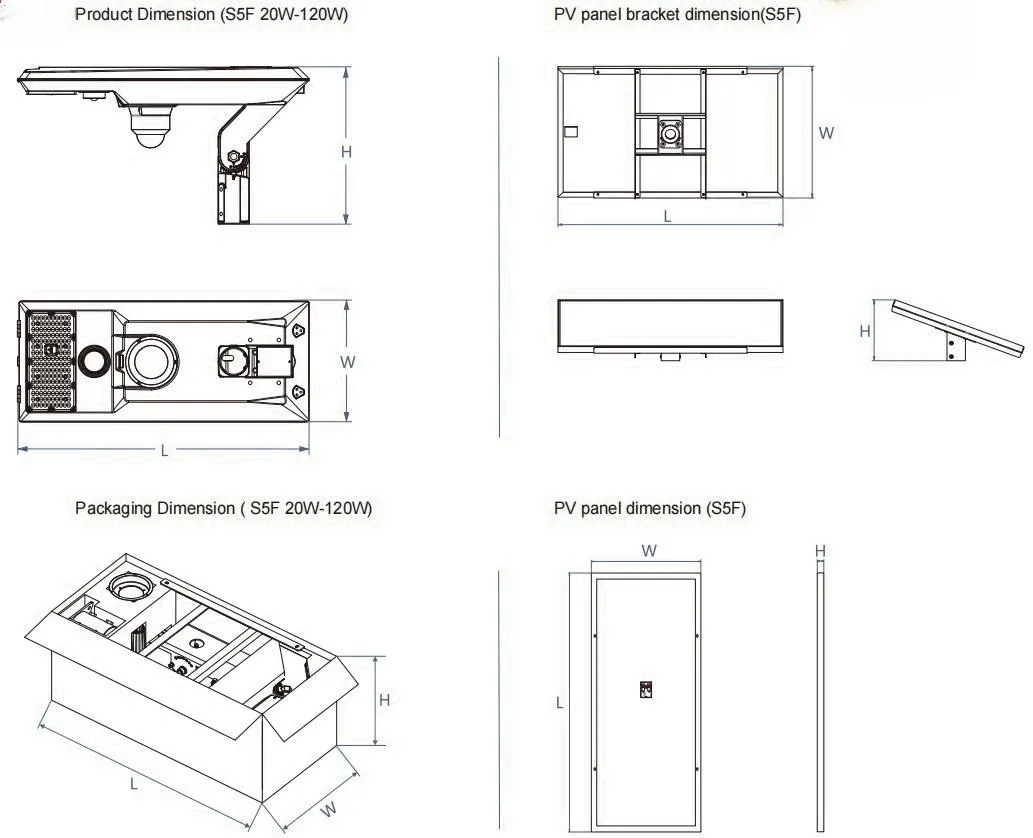

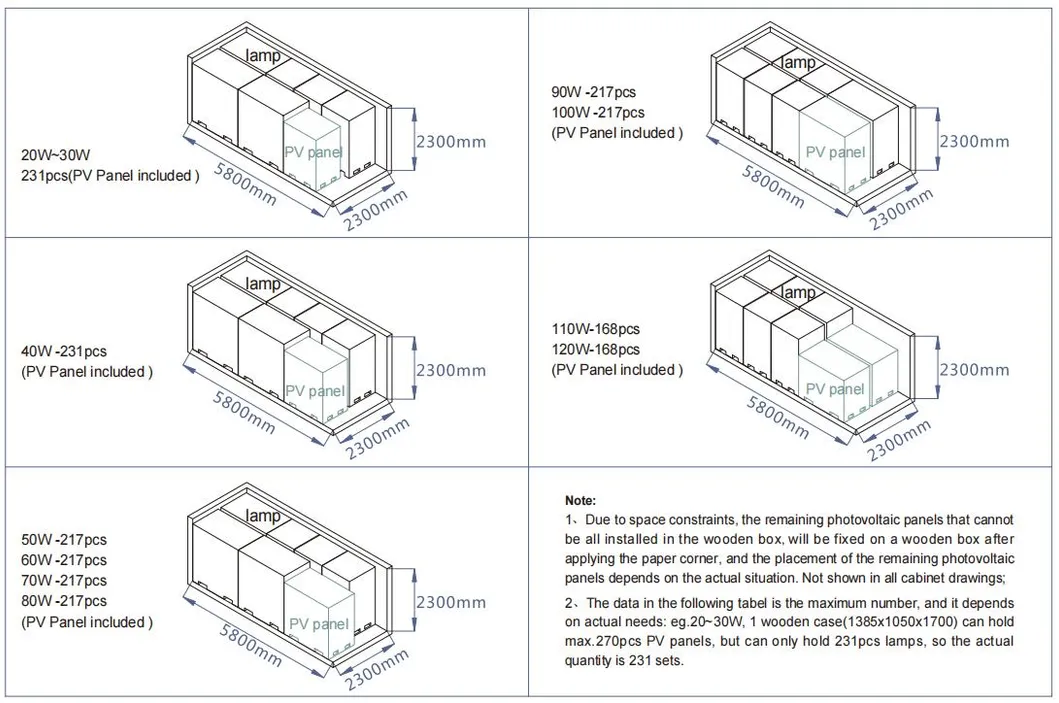

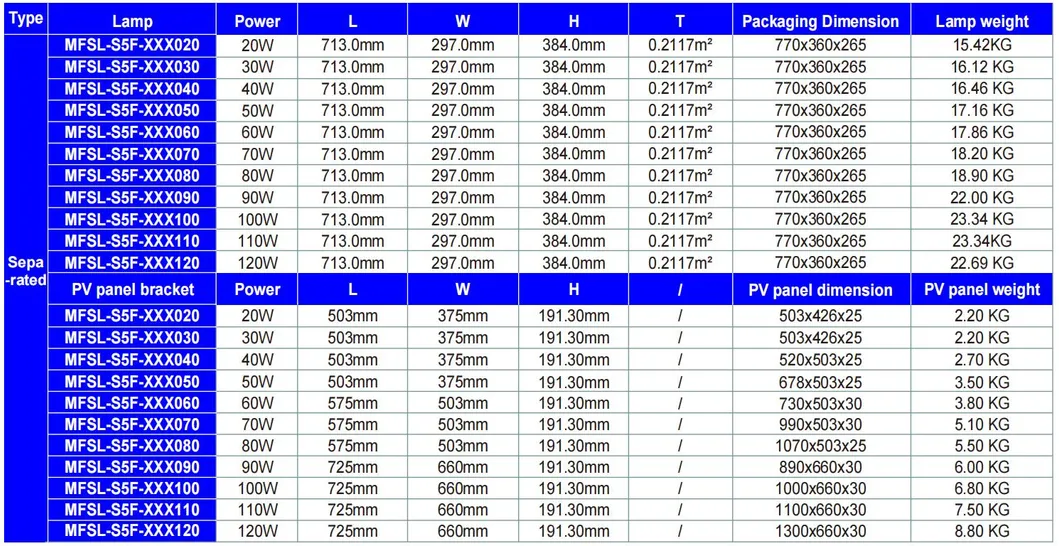

Dimensions & Packaging

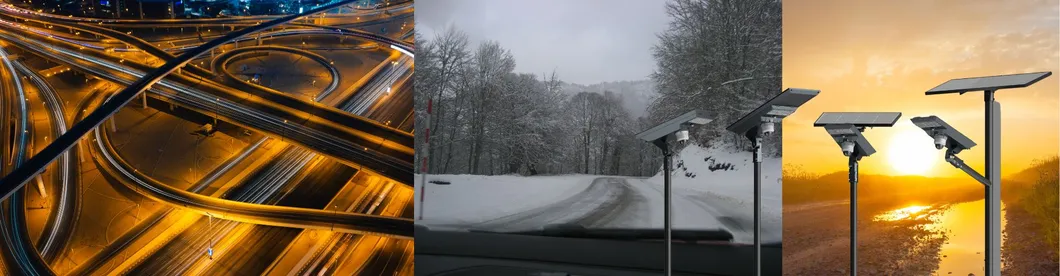

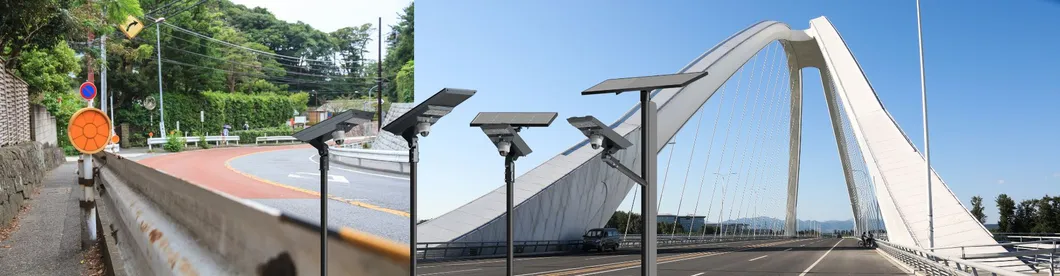

🌍 Applications

✔Roadways and Highways: Improving visibility and safety for drivers.

✔Urban and Residential Areas: Enhancing security for sidewalks and public spaces.

✔Parking Lots: Clear visibility for vehicles and pedestrians.

✔Parks and Recreational Areas: Safe environment for night-time activities.

✔Industrial Zones: Sufficient lighting for operational safety.

✔Smart City Initiatives: Integration with smart lighting systems.

Advantages of LED Street Light

⭐Energy-efficient (up to 50% saving)

⭐Long lifespan (up to 10x longer)

⭐Environmentally friendly (no toxic materials)

⭐Low maintenance costs

⭐Instant light output (no warm-up)

⭐Highly durable & vibration resistant

❓ Frequently Asked Questions

1. What is the waterproof rating of this solar light?

This solar street light features an IP66 rating, ensuring it is fully protected against dust and powerful water jets, making it ideal for harsh outdoor environments.

2. How long does the battery last on a full charge?

The light provides 12 hours of illumination per day. With its high-capacity battery, it can support 3 days of full brightness plus 4 additional days of low brightness during rainy or cloudy weather.

3. What are the available control methods?

The system supports multiple control ways, including PIR motion sensing, Microwave induction, Time control, and Remote control for maximum energy efficiency.

4. What is the recommended installation height for these lights?

The recommended installation height is between 4 to 8 meters, depending on the power wattage and specific application requirements.

5. Does it support smart city integration?

Yes, it can be optionally equipped with CCTV cameras, 2G/4G intelligent control systems, and smart sensors to integrate with smart city initiatives.

6. What type of solar panel is used?

It uses high-quality Monocrystalline Silicon wafers, which offer superior light transmittance and higher energy conversion efficiency compared to traditional panels.
