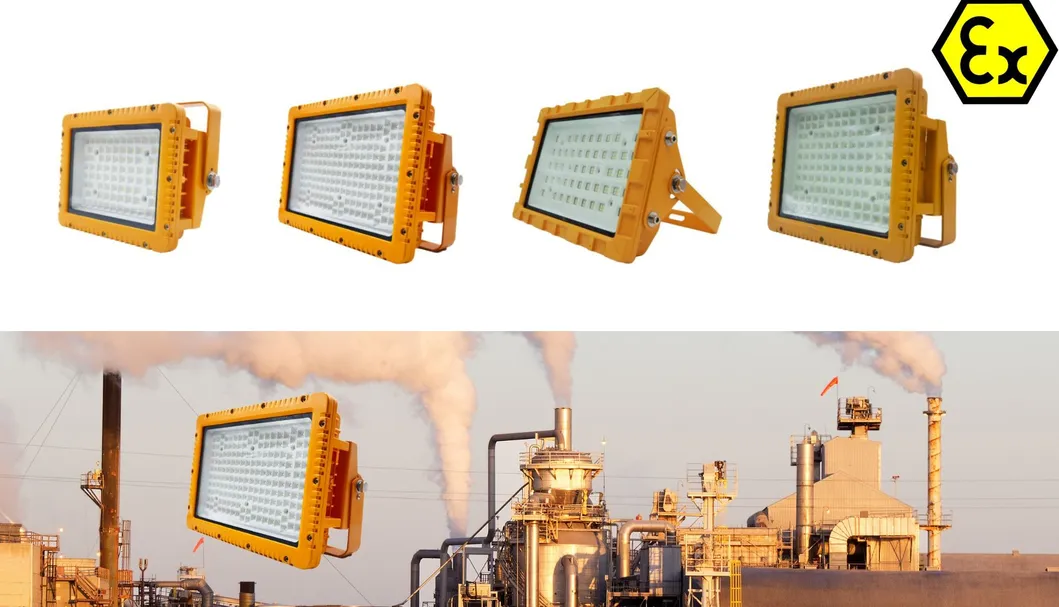

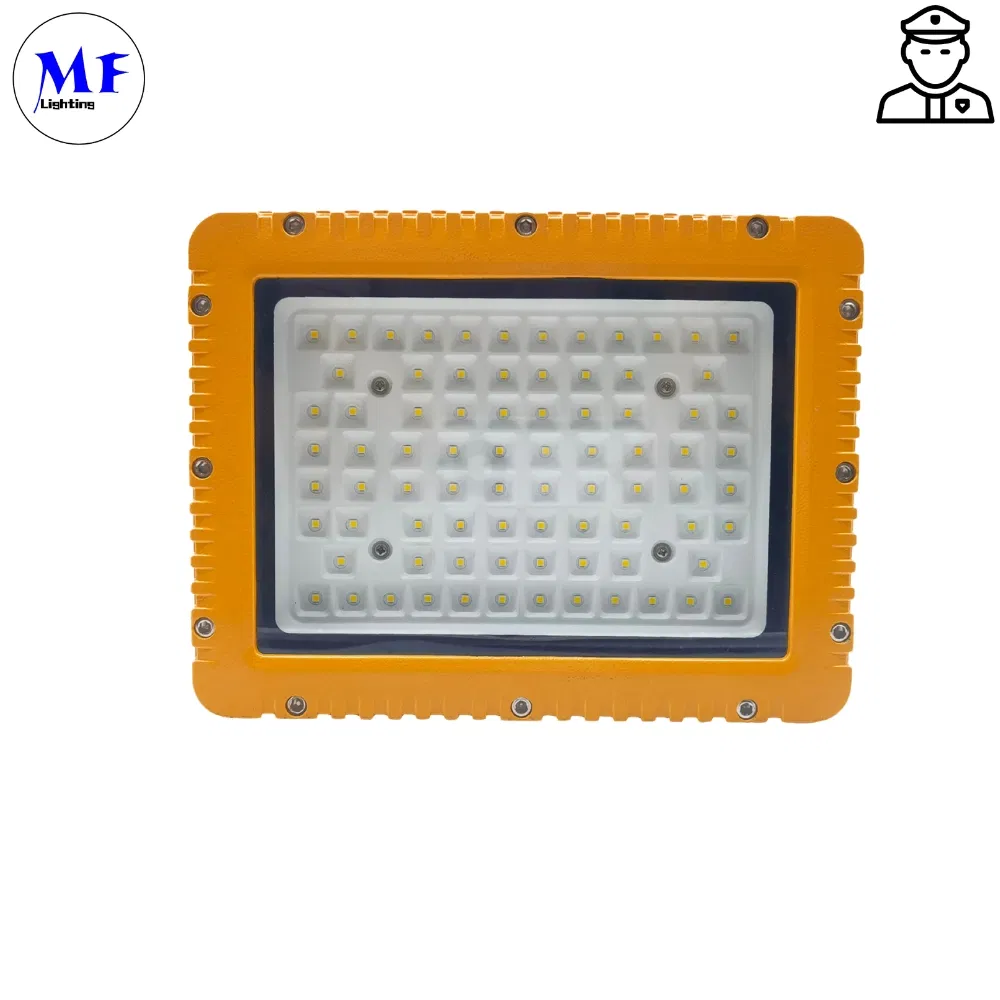

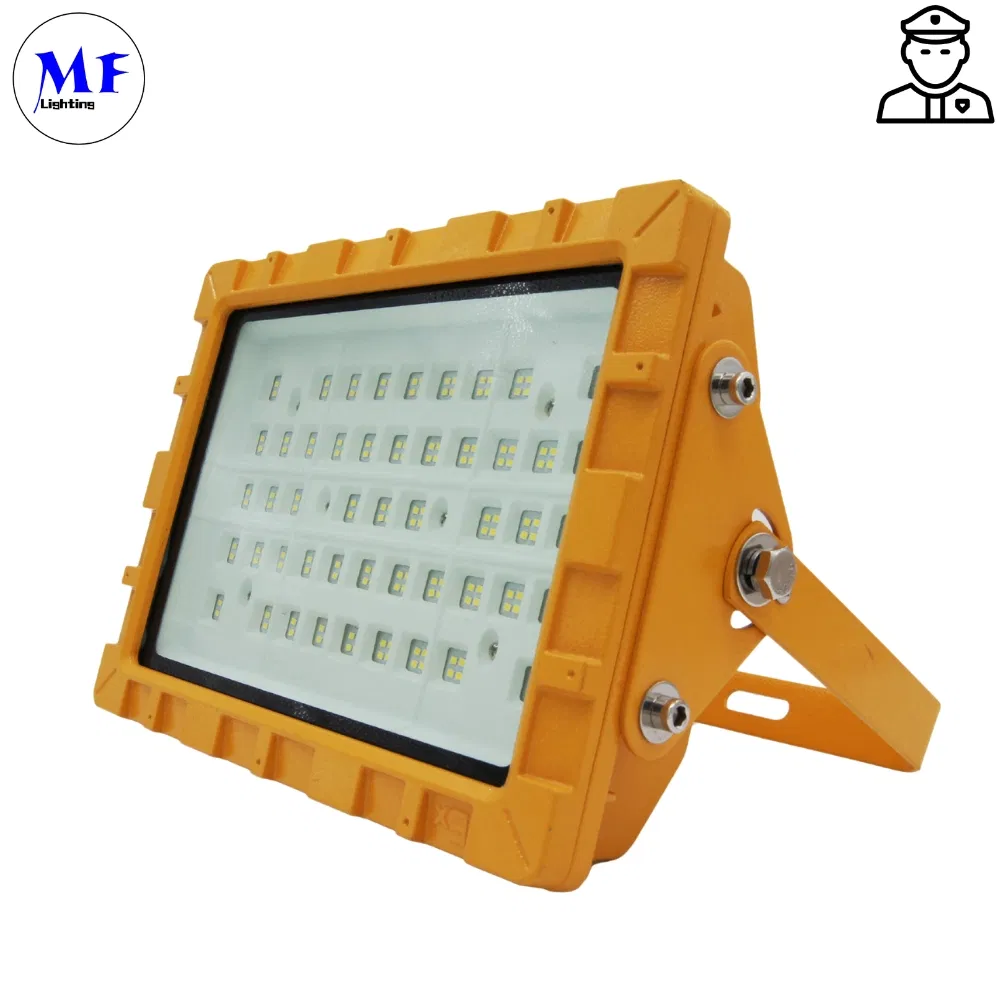

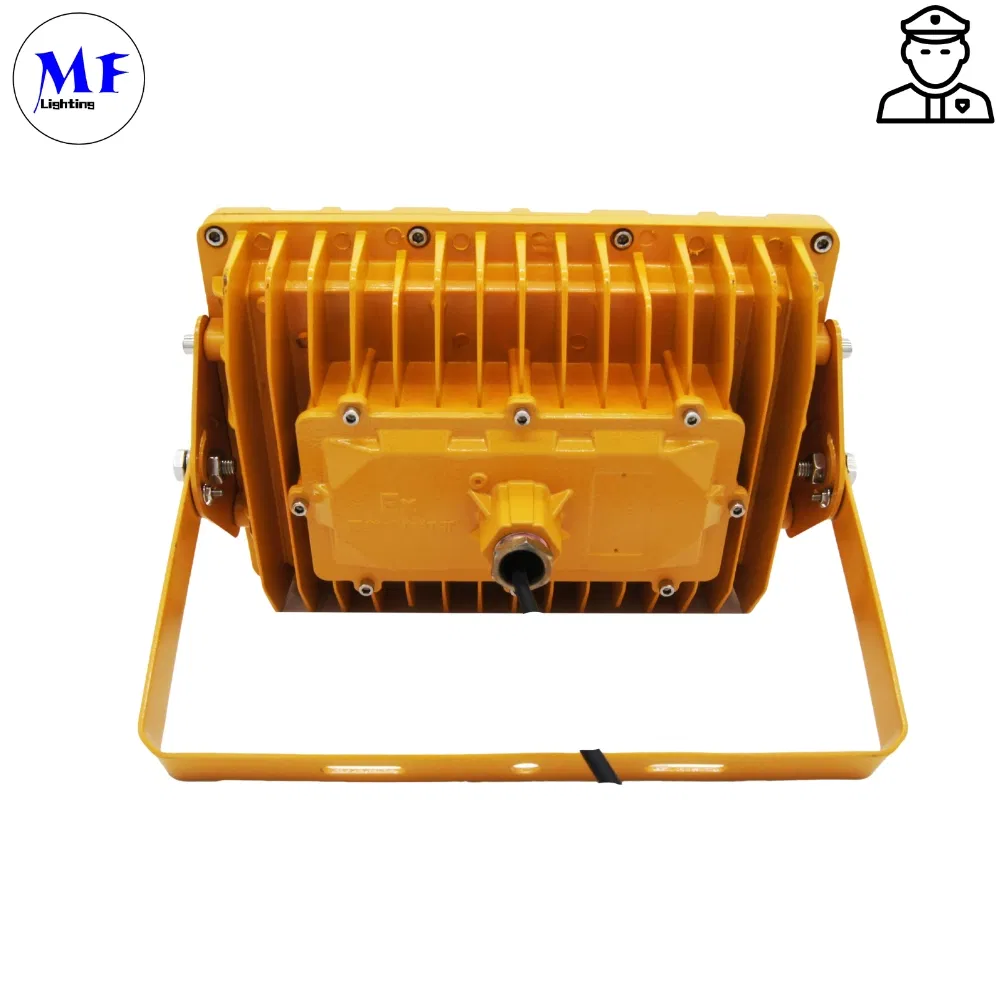

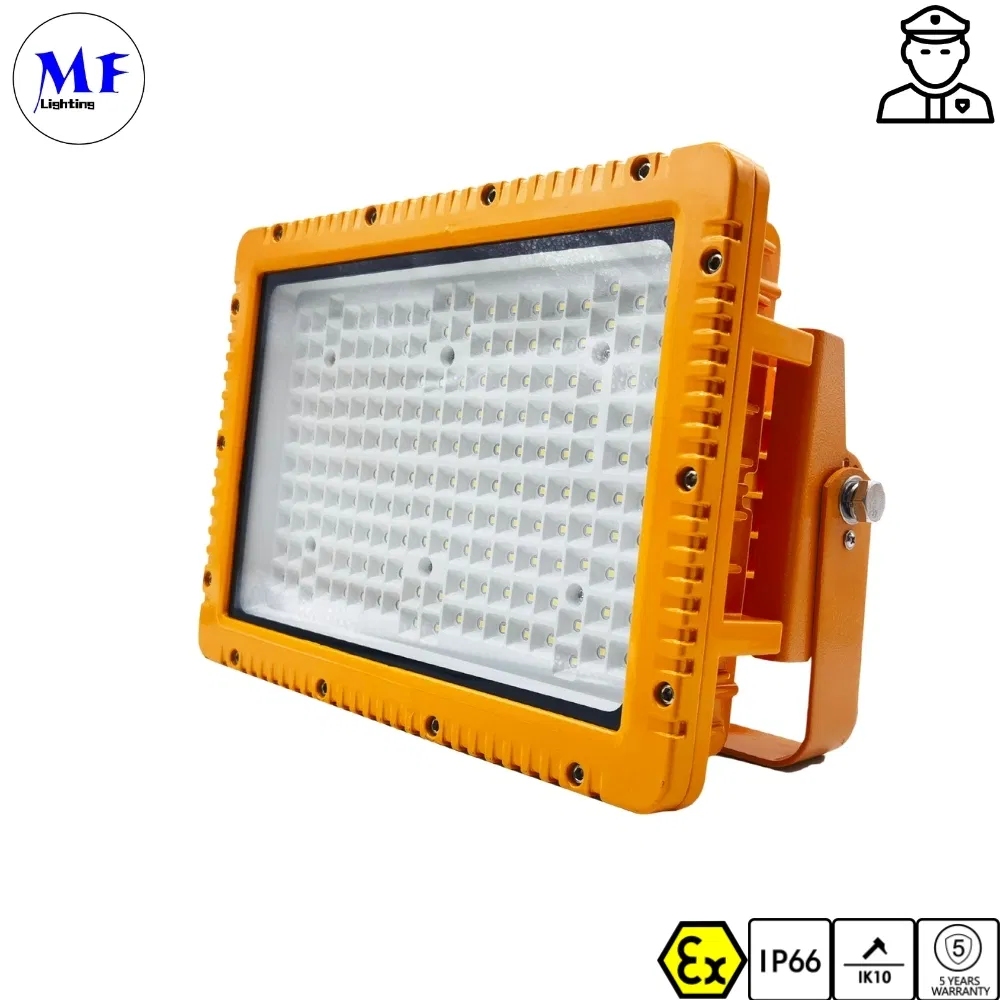

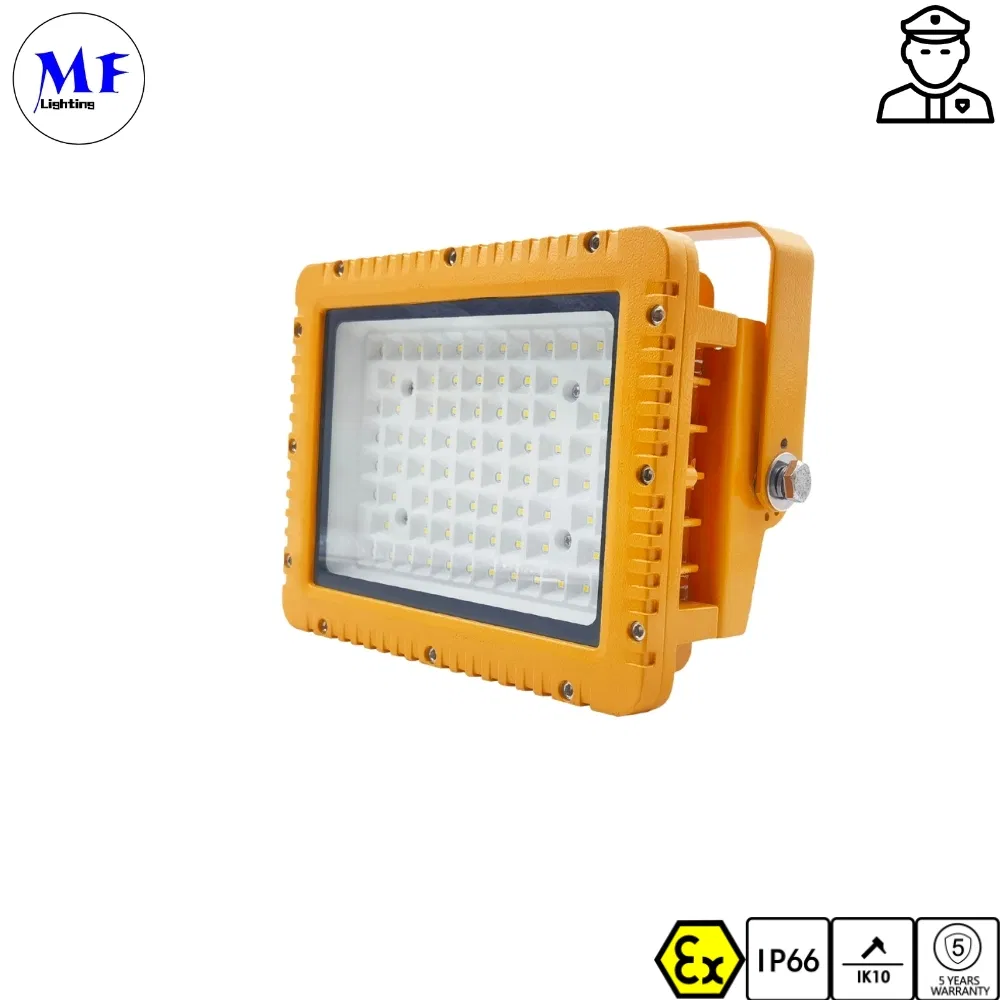

Atex Ex Iecex Ik10 IP66 Dustproof Explosion Explosive Proof 50W 80W 100W 150W 200W 240W LED Flood Light for Marine Offshore and Storage Yard
Product Description
📊 Basic Information
Model
Security Man 5
Base Type
E26
Irradiated Area
≥30m²
Input Voltage
AC200-250V / DC12-48V
Power Range
30W - 240W
Color Temp
2000K-7000K
LED Brand
CREE / Lumen / Atmospherics
CRI
>80ra
Luminous Flux
140lm/W
IP / IK Rate
IP66 / IK10
Warranty
5 Years
Lifespan
>50,000 hours
✨ Key Features
Working Temperature: -40°C ~ +55°C
High quality SMT LED technology
Heavy-duty and high impact resistance
Replaceable LED board and drivers
Integrated junction box for driver
Dimmable and battery backup available
Marine rating powder coated finish
Various installation ways

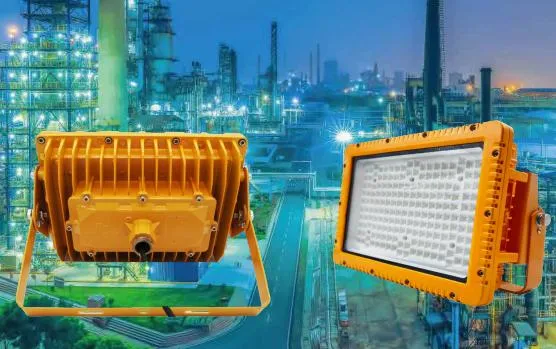

🛡️ Certifications & Characteristics
Marking ATEX: II 2 G Ex eb mb IIC T6...T4 Gb | II 2 D Ex tb IIIC T80°C...T100°C Db IP66
Marking IECEx: Ex eb mb IIC T6...T4 Gb | Ex tb IIIC T80°C...T100°C Db IP66
North American (UL844): Class I, Div 2; Class II, Div 1 & 2; Class III
Marine Rating: UL 1598, UL 1598A, ABS
📋 Technical Specifications
| Product Number | Wattage | Voltage | Lumens | Warranty | Emergency |
|---|---|---|---|---|---|
| EX-30W/50W/60W | 30W-60W | AC200-250V/DC12-48V | 4200-8400 | 5 Years | 3 Hours |
| EX-80W/100W | 80W-100W | AC200-250V/DC12-48V | 11200-14000 | 5 Years | 3 Hours |
| EX-150W/180W/200W | 150W-200W | AC200-250V/DC12-48V | 21000-28000 | 5 Years | 3 Hours |
| EX-240W | 240W | AC200-250V/DC12-48V | 33600 | 5 Years | 3 Hours |

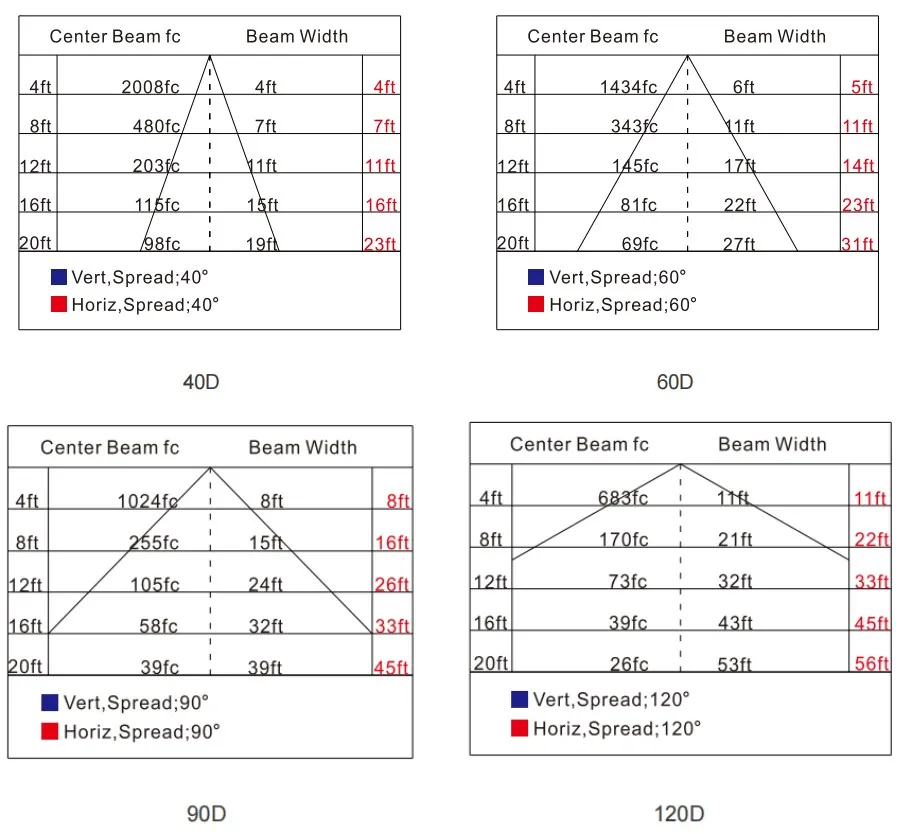

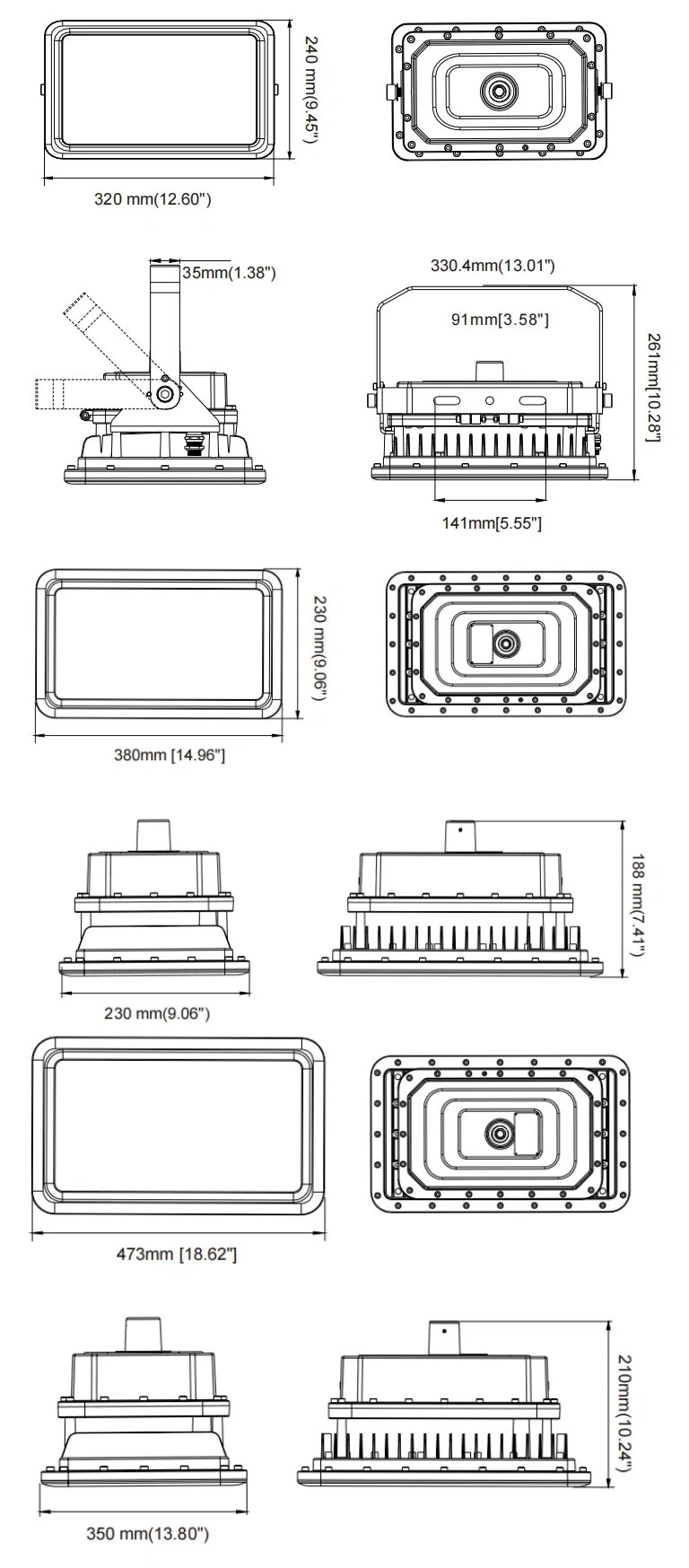

📐 Light Distribution & Dimensions

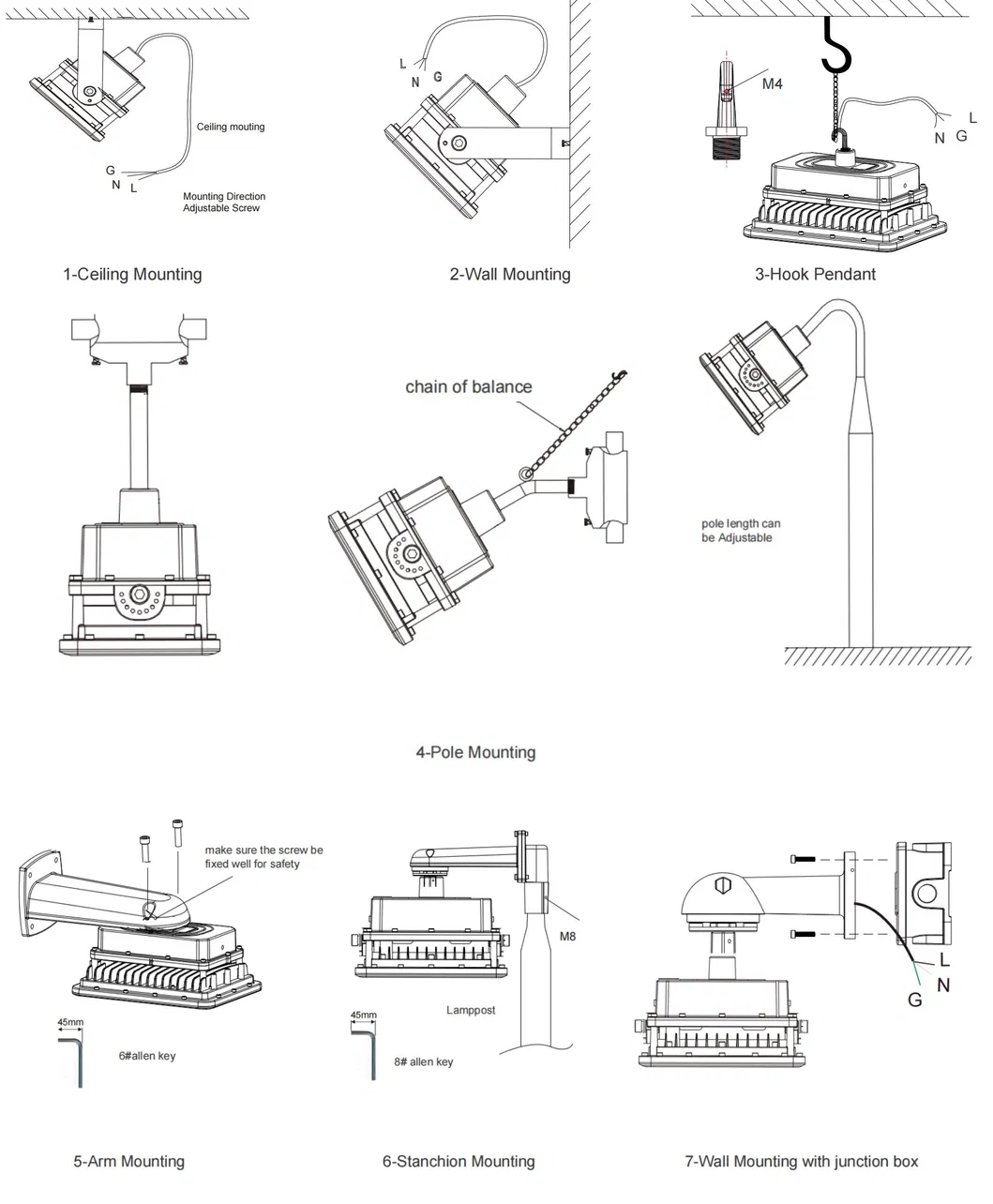

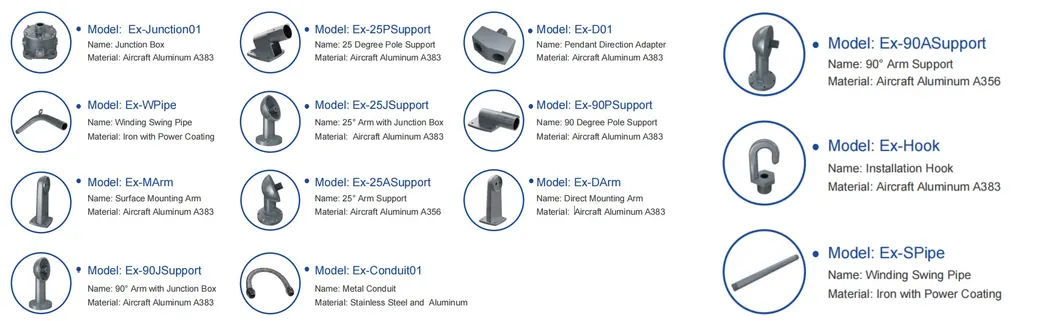

🔧 Mounting Options

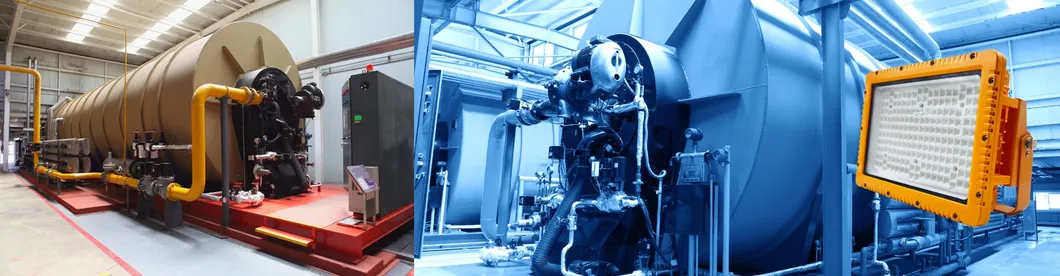

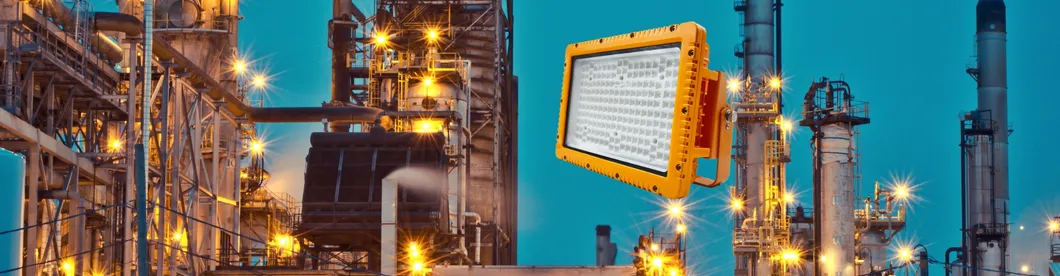

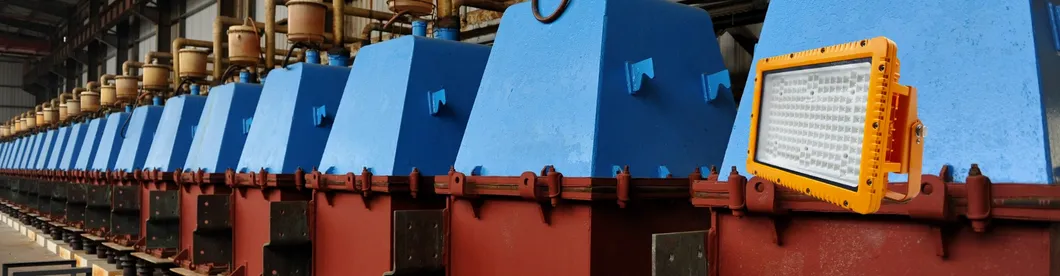

🏭 Industrial Applications
Oil and Gas Industry: Refining, loading, transportation, storage, and LNG industry.
Chemical Industry: Paint facilities, chemical production, and storage.
Metal Treatment: Steel/aluminum factories, pumping stations, and fabrication.
Marine & Aerospace: Ocean platforms, structures, clean rooms, and vessel operations.
Food & Alcohol: Flour production, distilling, and high-dust environments.

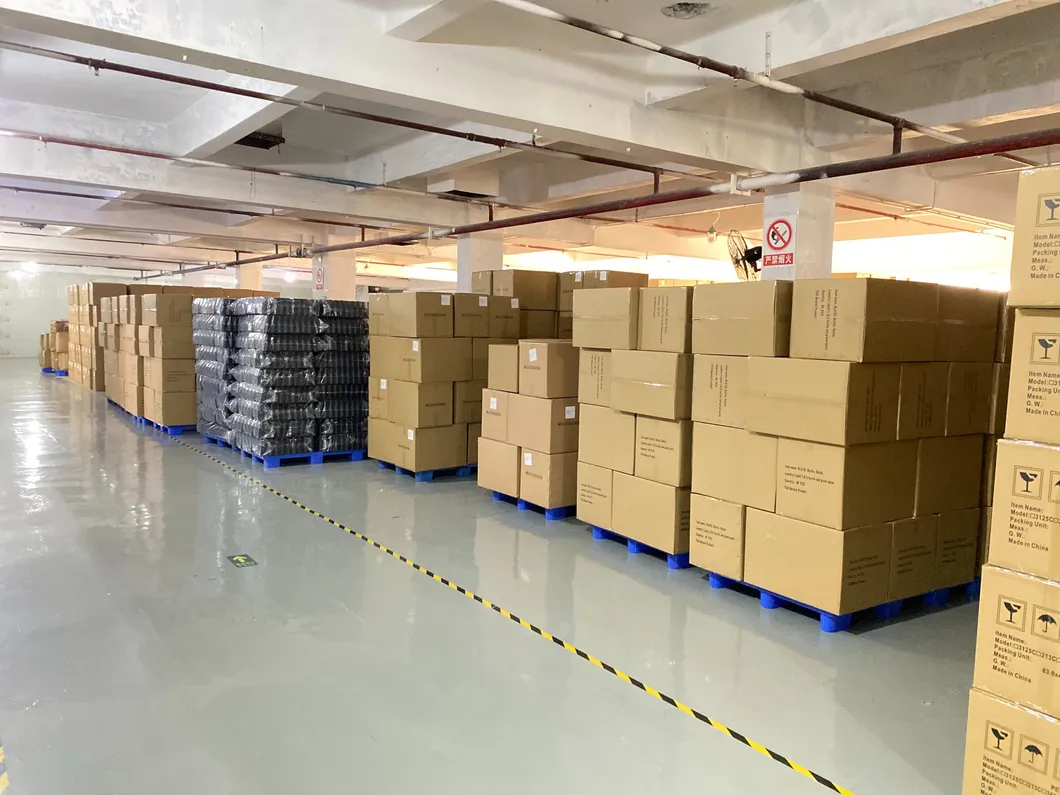

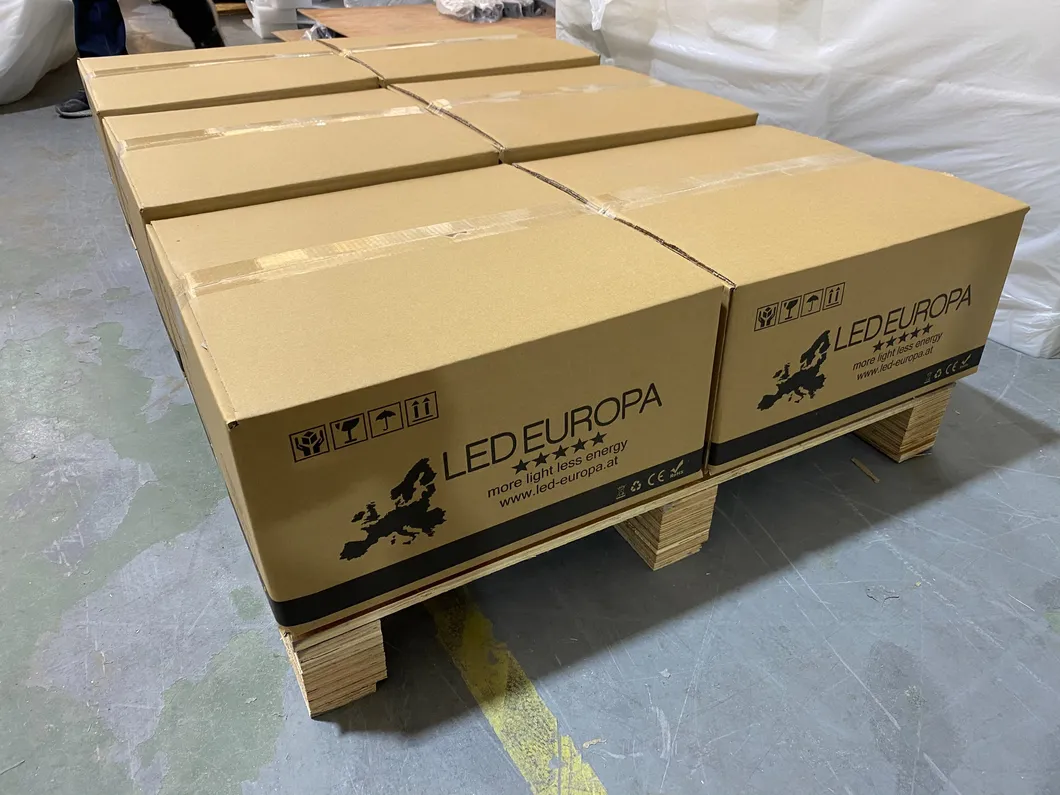

📦 Packaging Information
| Quantity/Carton | Packing Size (mm) | N.W (KG) | G.W (KG) |
|---|---|---|---|
| 1 Piece | 460 * 490 * 290 | 12.5 | 15.0 |
❓ Frequently Asked Questions
What are the explosion-proof ratings for this LED flood light?
This light is certified with ATEX and IECEx markings (Ex eb mb IIC T6...T4 Gb) and North American UL844 ratings for Class I Division 2, Class II, and Class III environments.
Is this light suitable for marine and offshore environments?
Yes, it features a marine-rating powder-coated finish and is compliant with UL 1598A and ABS standards for ocean vessel and platform operations.
What is the operating temperature range?
The product is designed to operate reliably in extreme conditions ranging from -40°C to +60°C.
Can the LED components be serviced or replaced?
Yes, the LED board and drivers are replaceable, and it includes an integrated junction box for easy maintenance.
What is the warranty and expected lifespan?
We provide a 5-year warranty, and the LED chips have a rated lifespan of over 50,000 hours.
What is the ingress protection (IP) and impact (IK) rating?
The light has an IP66 dustproof and waterproof rating and an IK10 high impact resistance rating.
