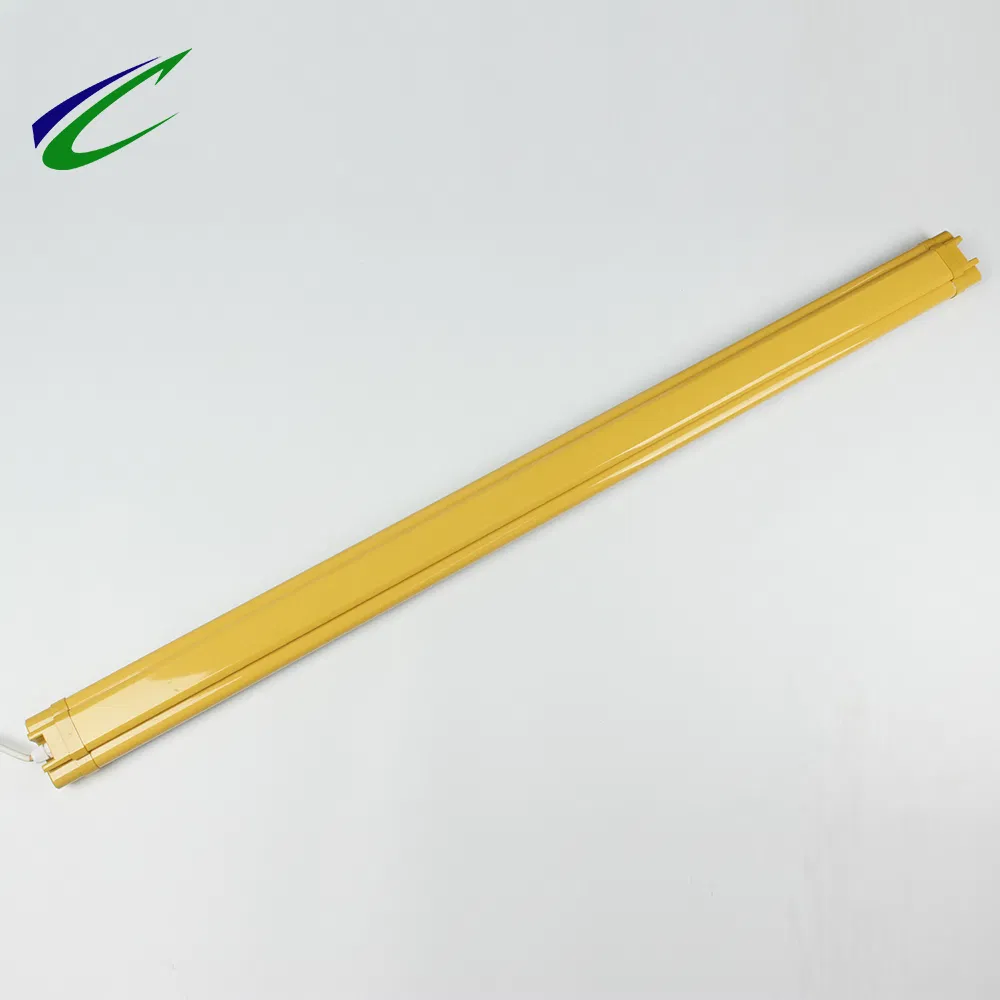

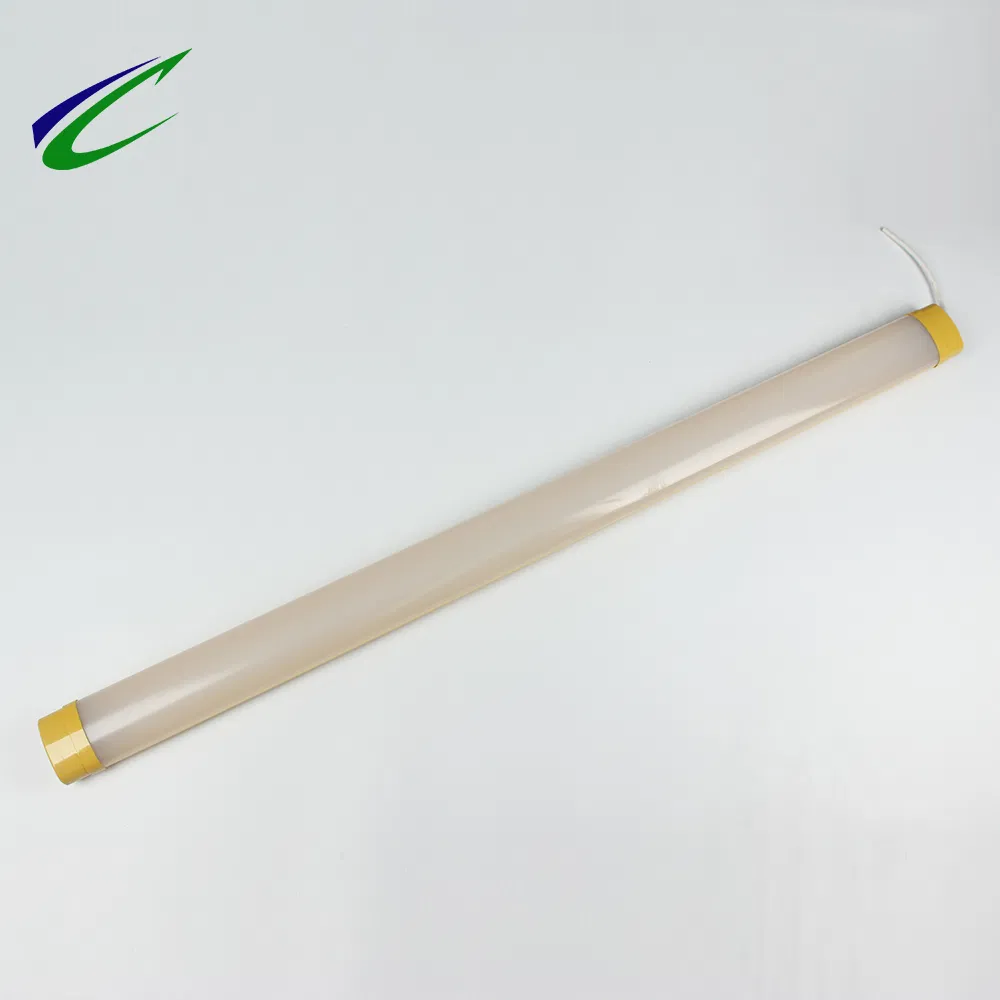

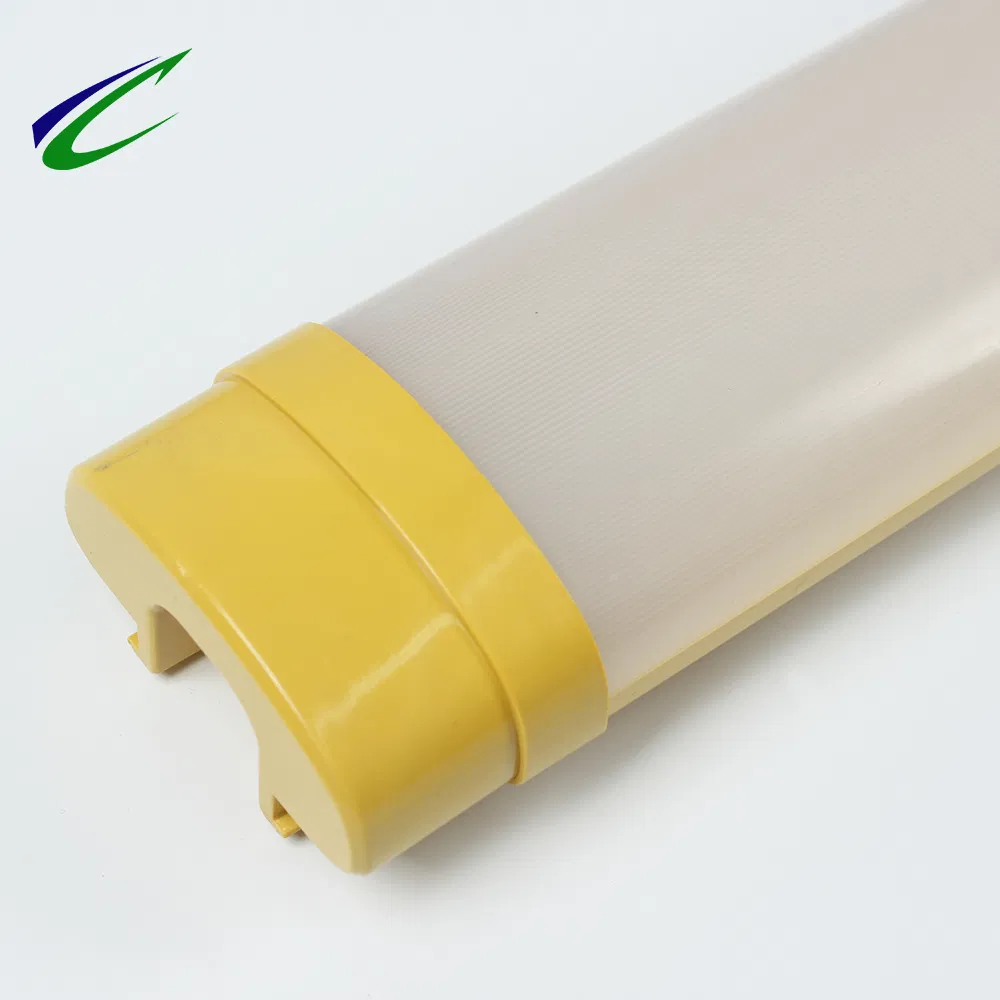

LED Linear Light 60cm 120cm 150cm 180cm IP65 2700-6500K Outdoor Lighting Fixtures Fixed Luminaire Integration Light Explosion-Proof Dust-Proof
Product Description
i
Basic Information
| Product Name | LED Tri-Proof Light |
| Feature | Anti-corrosion, Dust-Proof, Waterproof |

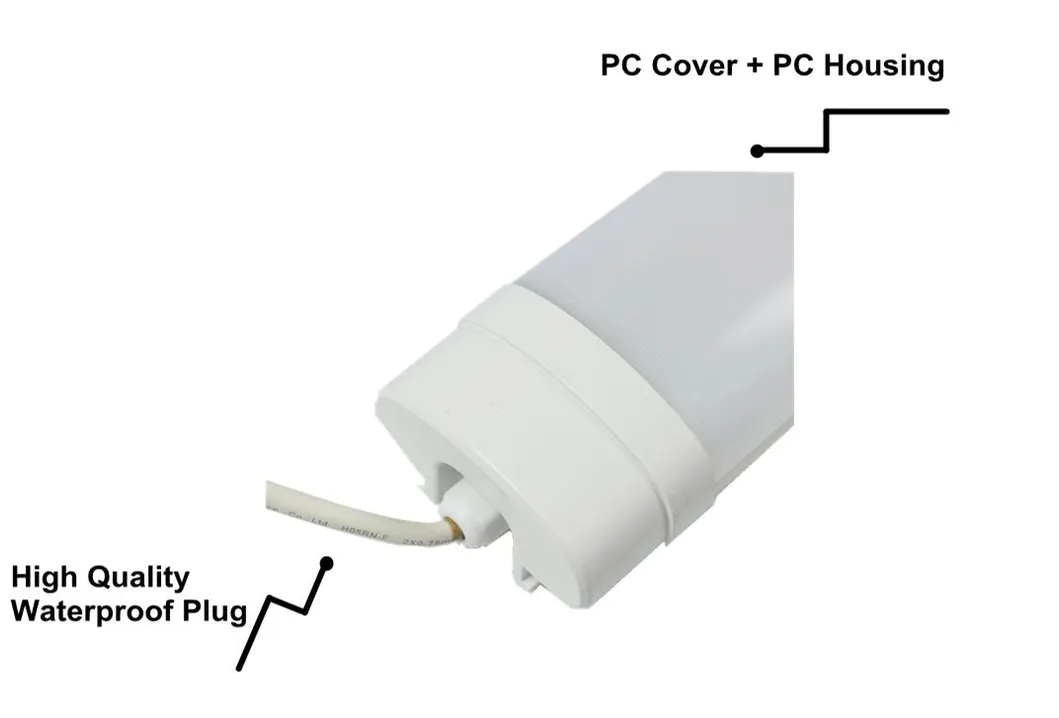

| Material | PC Cover + PC Housing |
| Power | 70W |
| Color Temperature | 2700-6500K |
| CRI | Ra > 80 |
| Protection Grade | IP65 / IK08 |
| Lifetime | 50,000 hours |
| Specification | 151.8 * 8.2 * 4.7cm |
| Origin | China |
📦
Packaging & Delivery
| Package Size | 160.00cm * 9.00cm * 5.00cm |
| Package Gross Weight | 2.000kg |
| Standard Package | 10 PCS/ 1 carton box; 2 head box + shrink plastic bag; 0.25M cable |
★
Product Description
✔
Key Features

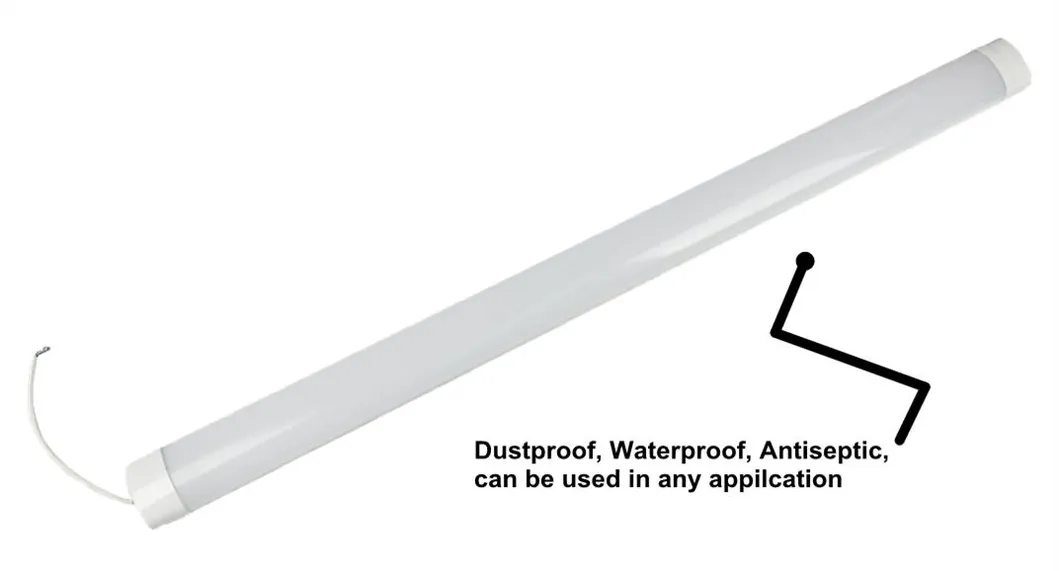

- Two color extrusion for PC housing and PC cover offering IP65 protection against moisture and dust, and an impact rating of IK08.
- Integrated design without clips ensures electrical safety.

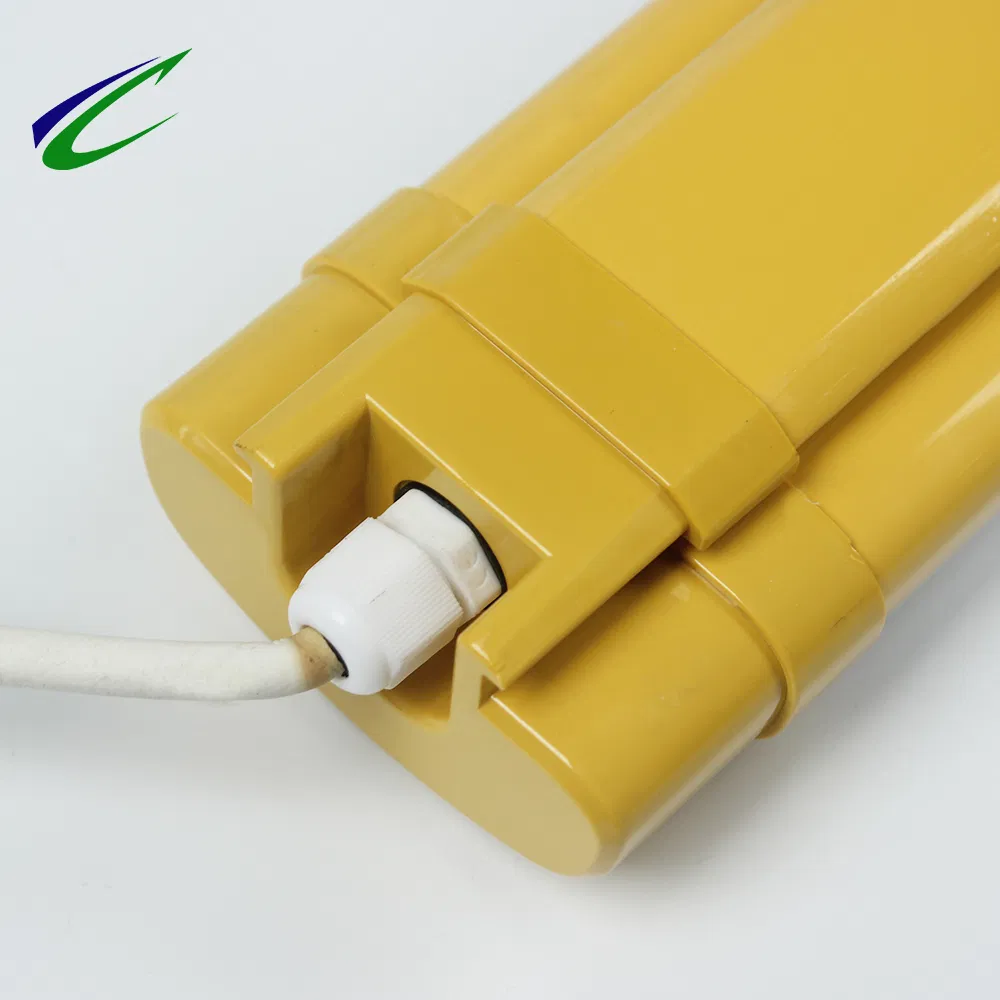

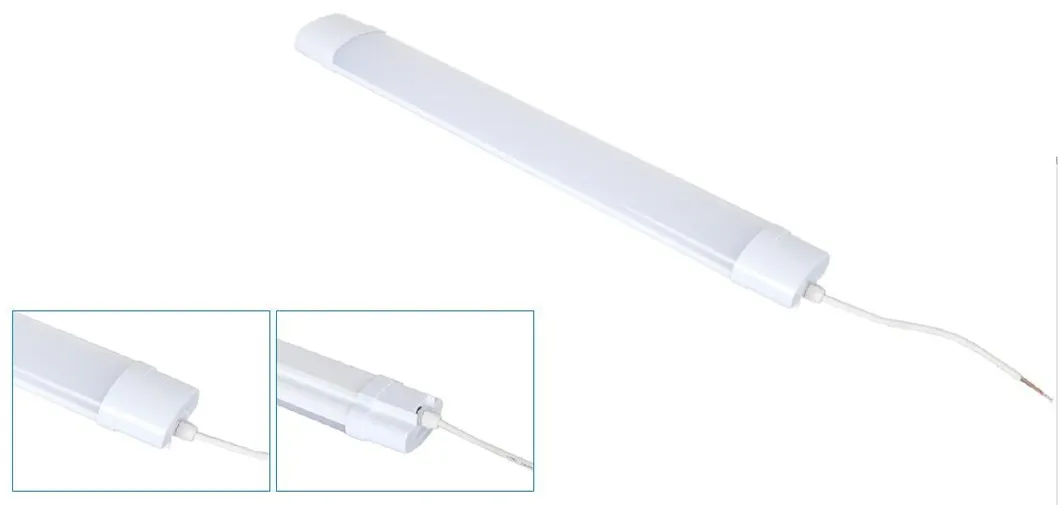

- Easy for wire connection at one end side of the fitting and convenience for series wiring.
- LED-based provides energy efficient solution and reduces maintenance costs.
- High power factor >0.9 with flicker rate less than 3% (no flicker in camera).
📍
Applications

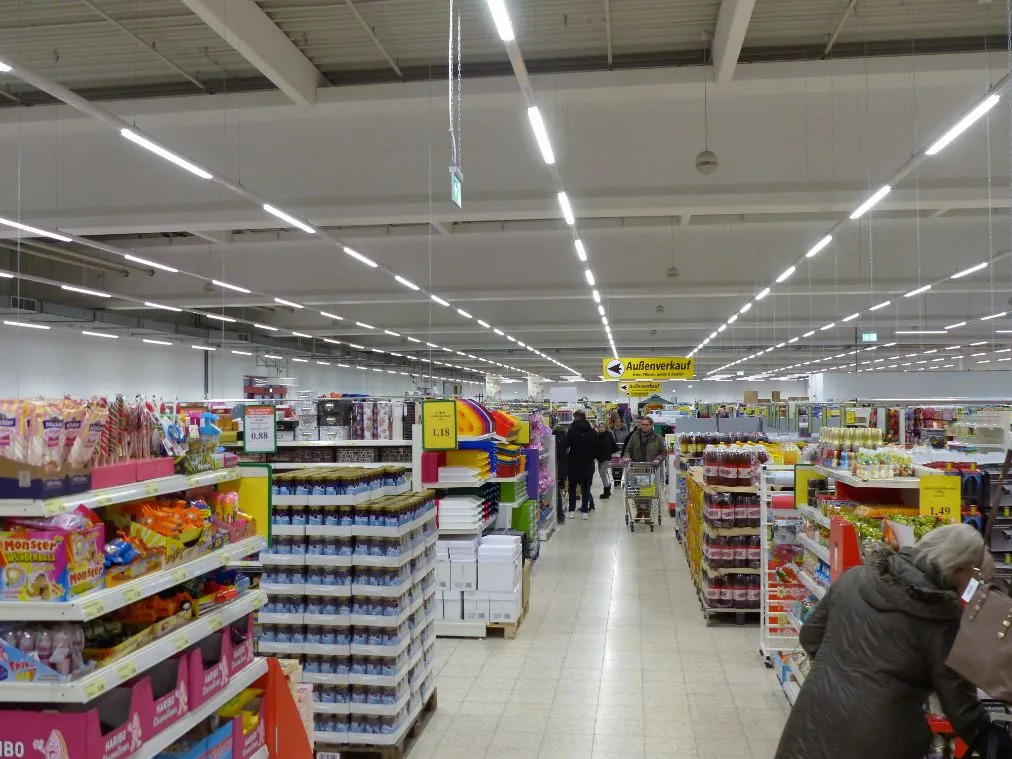

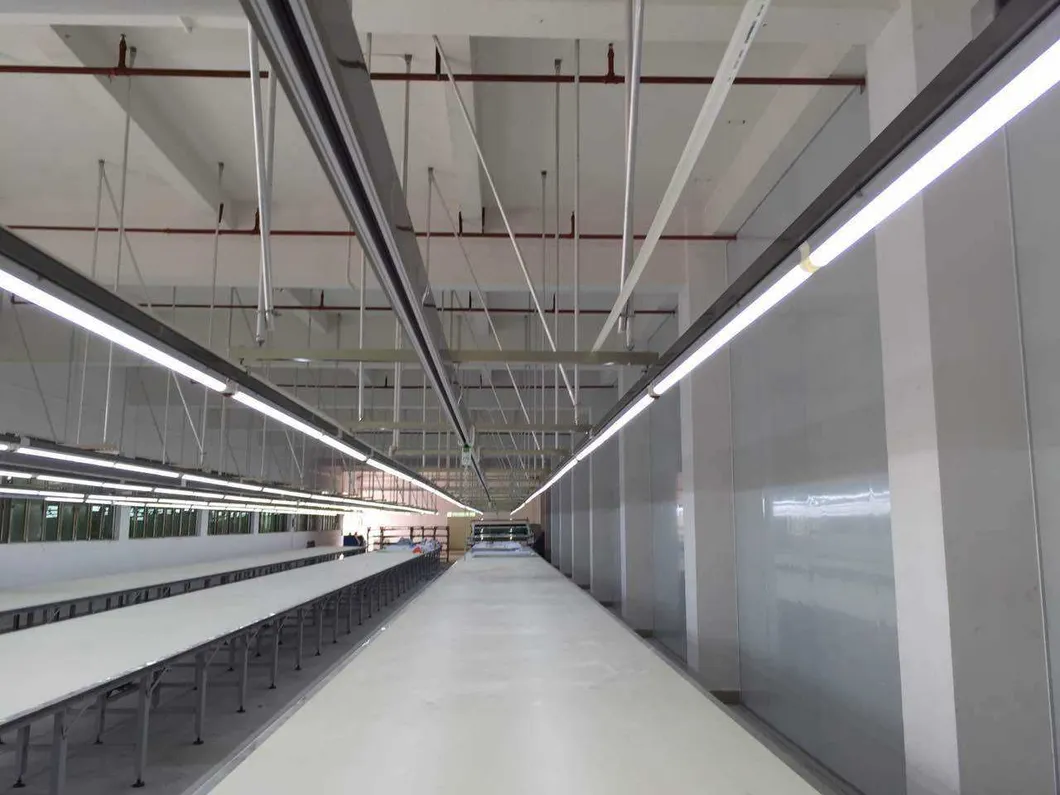

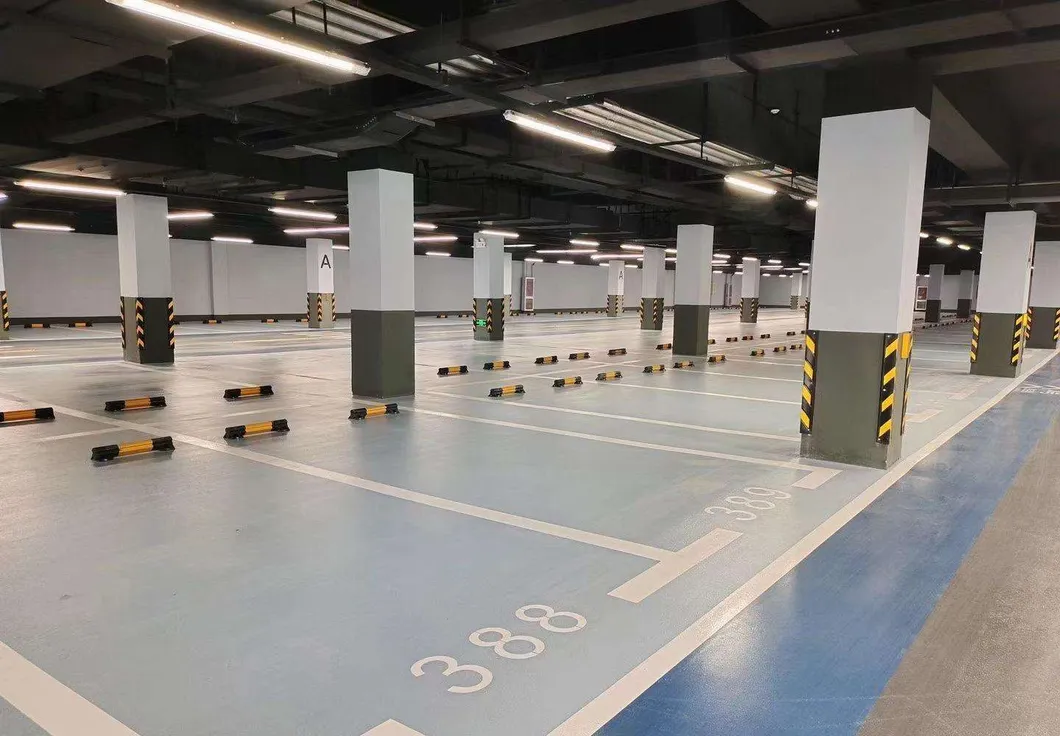

Ideal for various environments including: Car parks, Industrial areas, Offices, Corridors, Supermarkets, Shops, Bakeries, Storage areas, Hospitals, Schools, and Galleries.
⚙
Technical Specifications
| Model | Voltage/Frequency | Power | CCT | Lumen | Dimension |
|---|---|---|---|---|---|
| DY-6006-SMD18W | 220-240V ~ 50/60Hz | 18W | 2700-6500K | 1800lm | 610*82*47mm |
| DY-6012-SMD36W | 220-240V ~ 50/60Hz | 36W | 2700-6500K | 3600lm | 1217*82*47mm |
| DY-6015-SMD45W | 220-240V ~ 50/60Hz | 45W | 2700-6500K | 4500lm | 1518*82*47mm |
| DY-6006-SMD30W | 220-240V ~ 50/60Hz | 30W | 2700-6500K | 3000lm | 610*82*47mm |
| DY-6015-SMD60W | 220-240V ~ 50/60Hz | 60W | 2700-6500K | 6000lm | 1217*82*47mm |
| DY-6015-SMD70W | 220-240V ~ 50/60Hz | 70W | 2700-6500K | 7000lm | 1518*82*47mm |
?
Frequently Asked Questions
1. What does "Tri-Proof" mean for this LED light?
Tri-proof refers to the light being waterproof, dust-proof, and anti-corrosion, making it suitable for harsh environments.
2. What is the protection rating of this fixture?
This LED Tri-Proof light has an IP65 protection grade against moisture and dust, and an IK08 impact rating.
3. Can these lights be wired in a series?
Yes, the design allows for easy wire connection at one end and is specifically designed for convenient series wiring.
4. What is the expected lifespan of the LEDs?

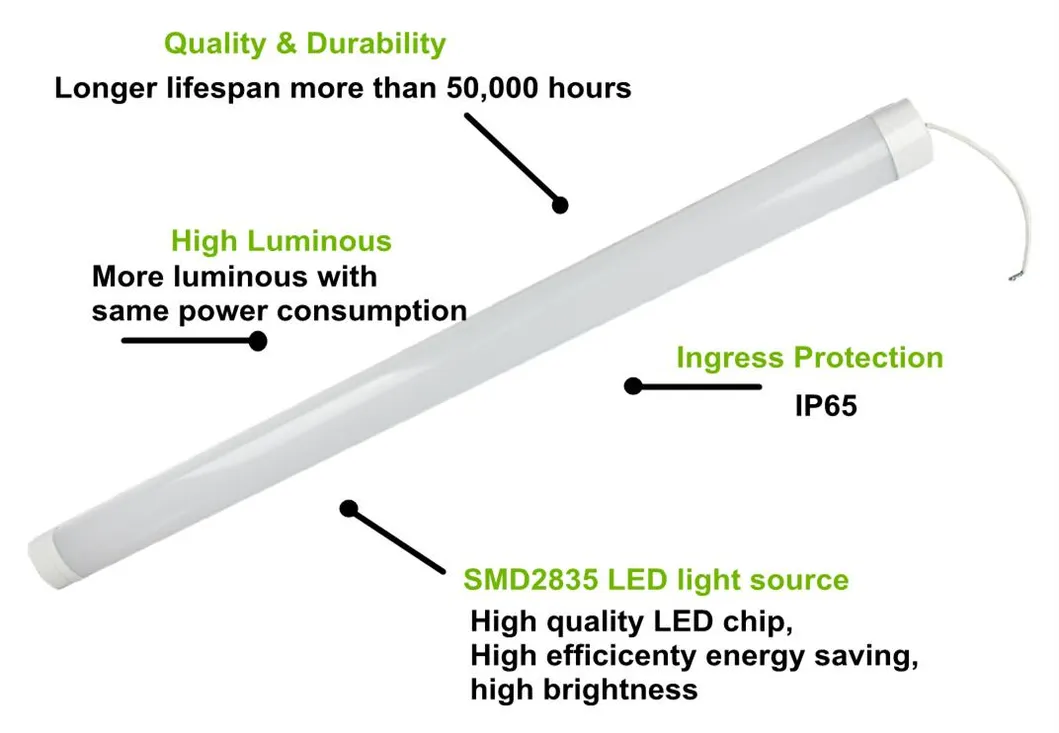

The LED lamp beads (SMD2835) have a long lifetime of approximately 50,000 hours.
5. Does the light flicker when viewed through a camera?
No, the driver flicker rate is less than 3%, ensuring a flicker-free experience even when captured on camera.
6. What materials are used for the housing?
The fixture is constructed using high-quality PC (Polycarbonate) for both the cover and the housing for maximum durability.
