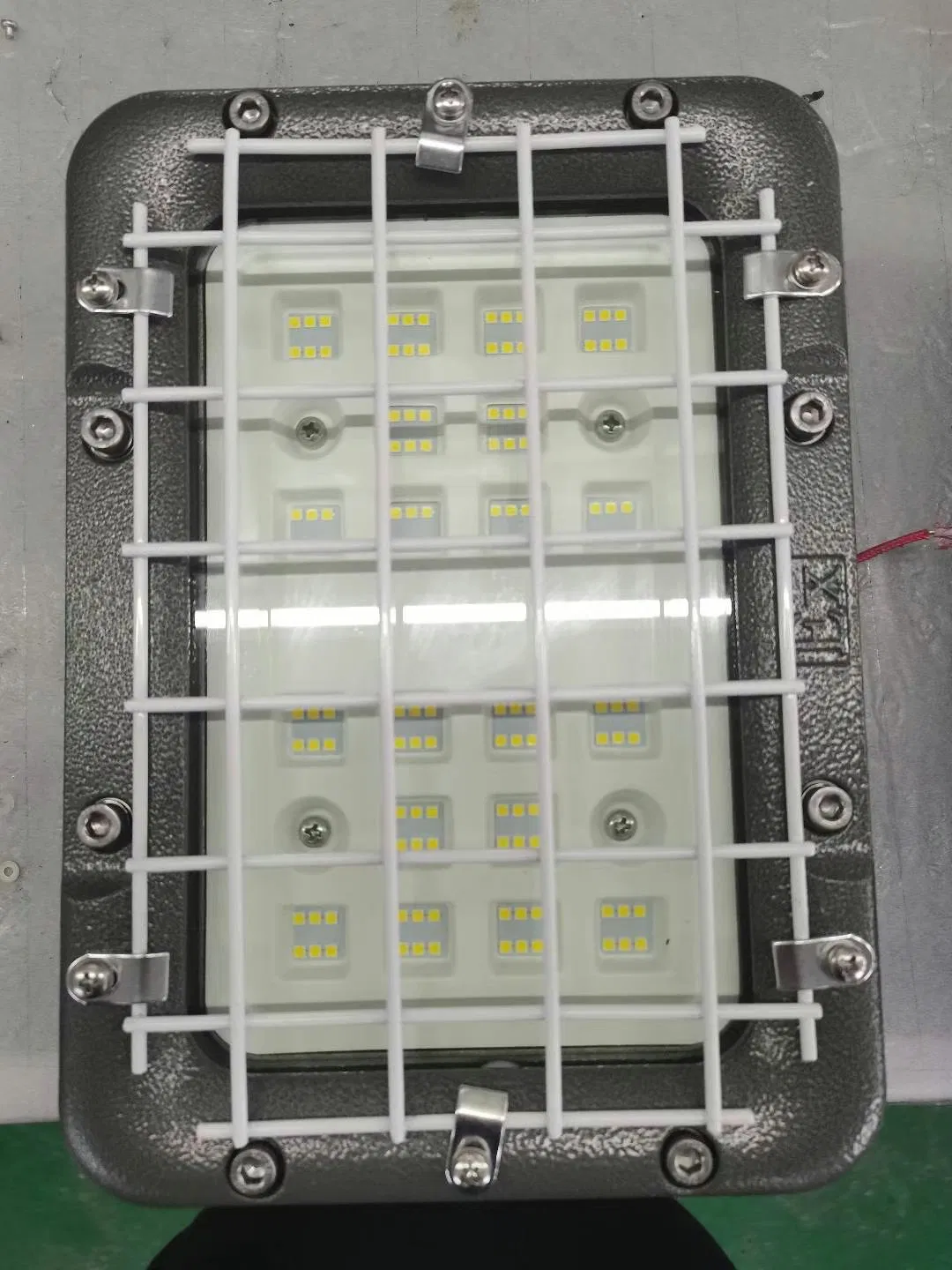

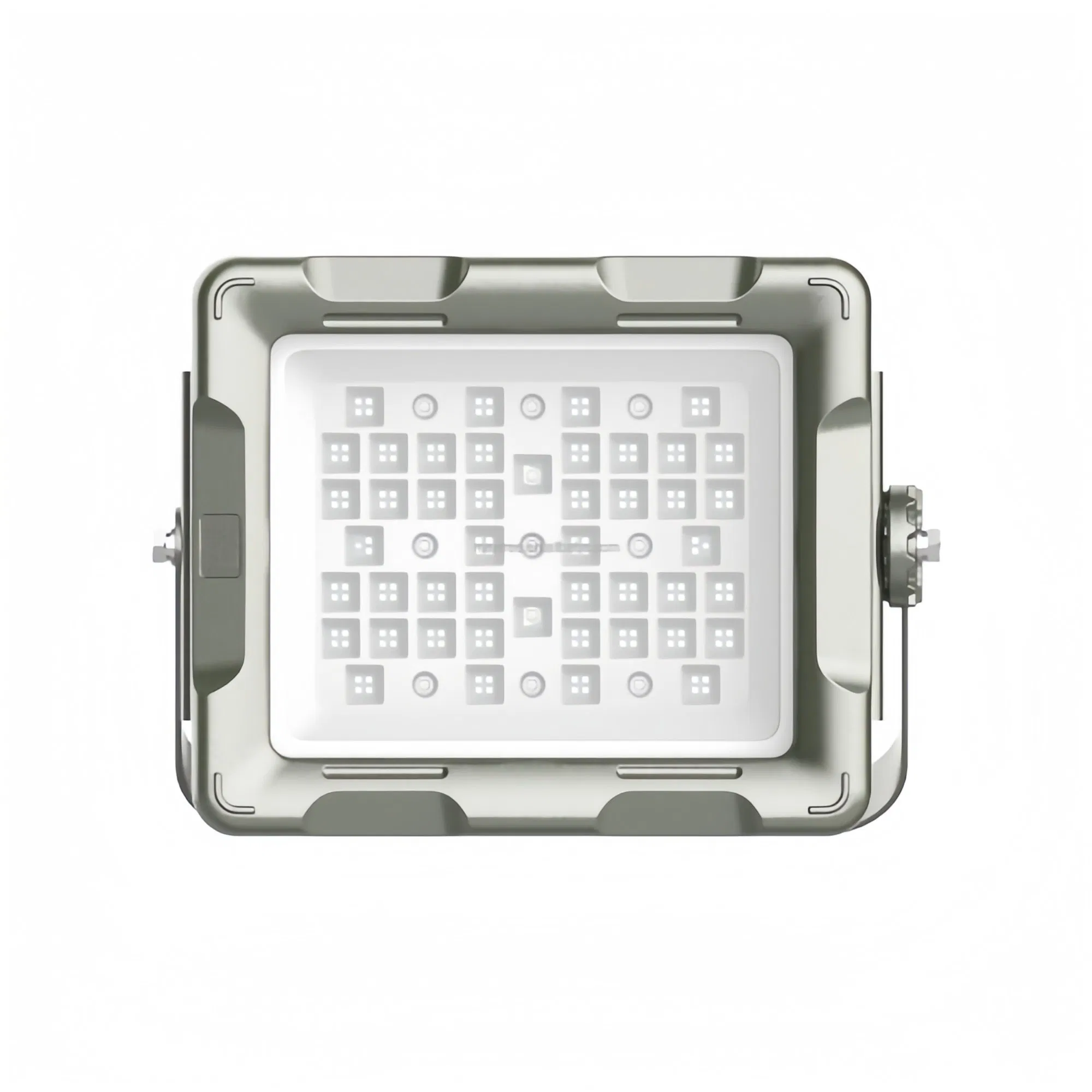

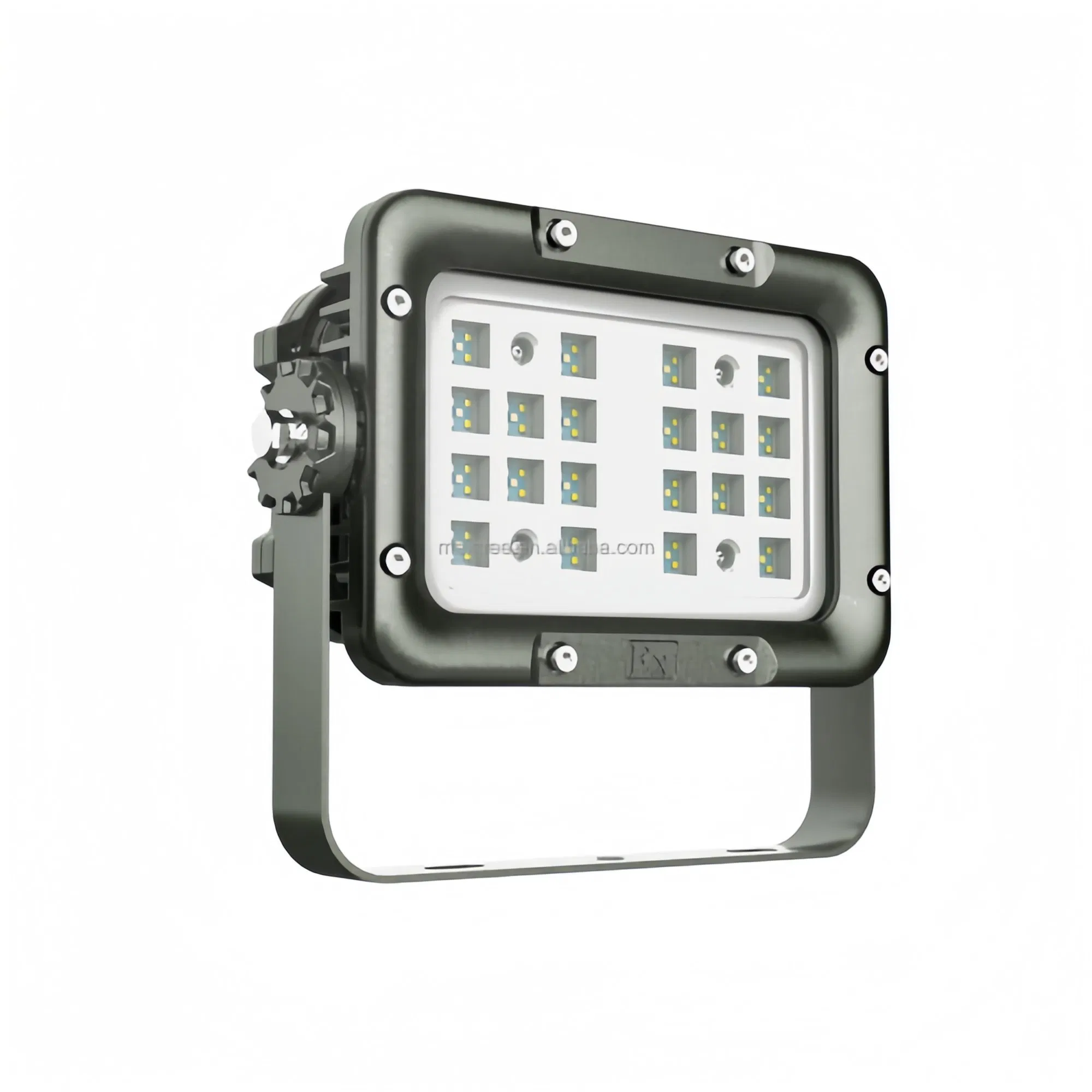

ATEX Fireproof Square Type IP66 Explosion Proof LED Floodlight for Outdoor Garden Lighting IP66 Ik10
Product Description
Model NO.
MXEL-8260
Base Type
LED
Irradiated Area
≥30m²
Input Voltage
220v
Power
70-120W
Color Temperature
Cool White
LED Chips Brand
CREE
Certification
CE, ATEX
Light Effect
120-200lm/W
IP Grade
IP66
IK Grade
IK10
Size
315X690X95mm
Weight
13.5kg
| ITEM | WATT | LUMEN | VOLTAGE | CCT |
|---|---|---|---|---|
| MXEL 8260 | 30W | 3600lm | AC220V 50/60Hz | 3000K / 4000K / 5000K / 6500K |
| 40W | 4800lm | |||
| 60W | 7200lm | |||
| 80W | 9600lm | |||
| 100W | 12000lm | |||
| 120W | 14400lm | |||
| 150W | 18000lm | |||
| 200W | 24000lm | |||
| 240W | 28800lm | |||
| 300W | 36000lm |
Customization Support: Support for custom wattage, driver, LED chip, optics, beam angle, CCT, dimming, RGB, RGBW, sensor (motion, voice, light), shell color etc.
🎯

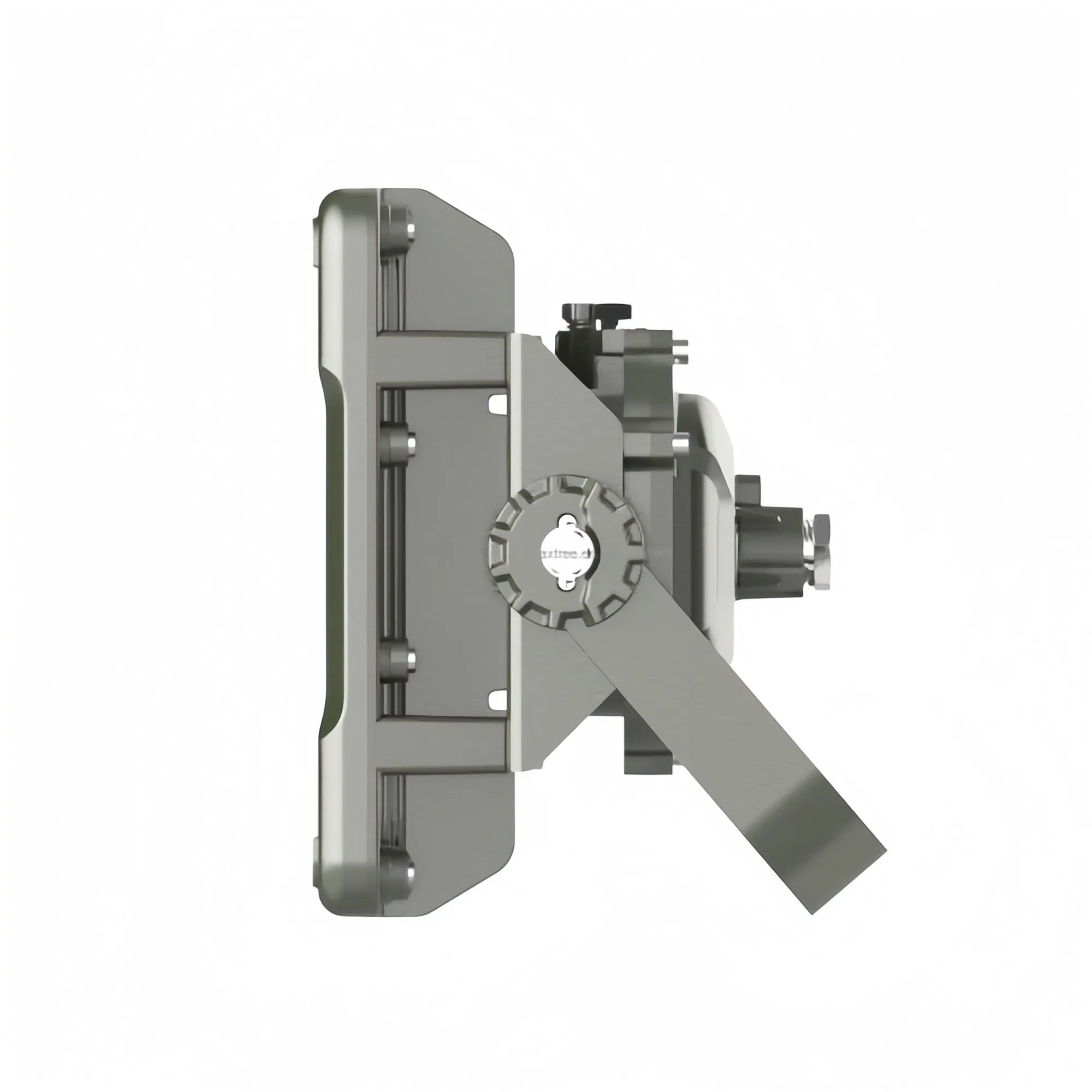

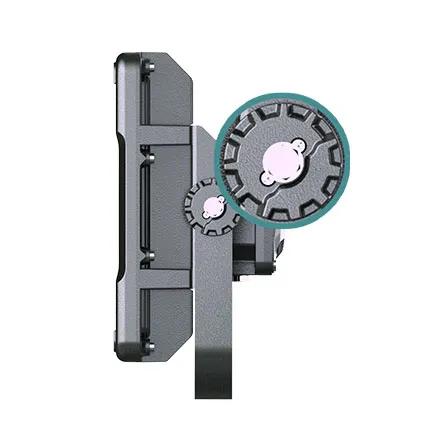

Tailor the lighting direction to specific points with the flexibility of an adjustable angle, ensuring precise illumination where needed.
🌡️

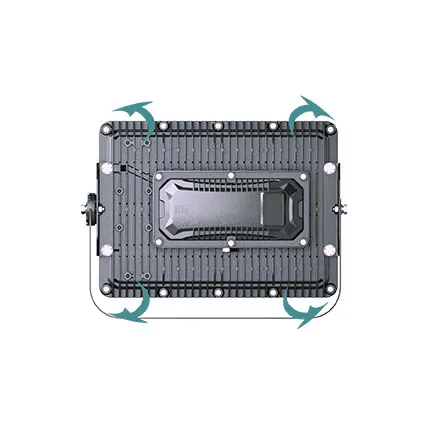

Incorporating an extensive and efficient heat dissipation structure across a broad area, our design promotes stable operation by effectively managing thermal conditions.
🔍

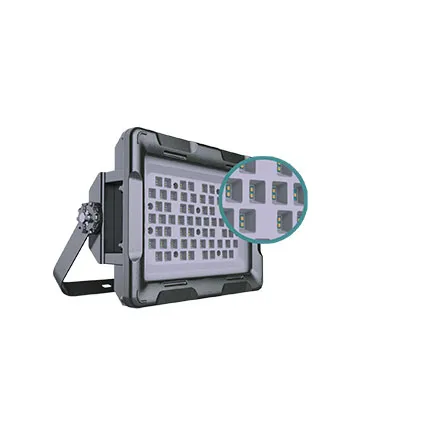

Implementing an individualized lens for each LED chips unit, our design minimizes light waste, ensuring efficient and targeted illumination.
🛡️

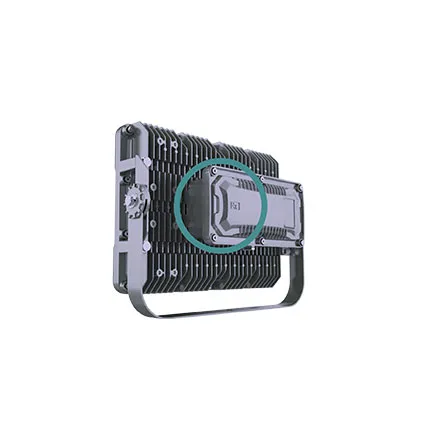

Featuring an isolated high-intensity flame-proof aluminum housing specifically designed for the LED driver, our system prioritizes safety and reliability.
- 🚀 Oil and Gas Facilities
- 🧪 Chemical Processing Plants
- ⛏️ Mining Operations
- ⚠️ Industrial Zones with Hazardous Materials
- 🚢 Marine Environments
- 💧 Wastewater Treatment Plants
- 🛣️ Railway and Highway Tunnels
What is the explosion-proof rating of this LED floodlight?
This product is ATEX certified and suitable for Zone 1 / Div 1 hazardous environments, providing high safety standards for explosive atmospheres.
What is the expected lifespan and warranty?
The light features high-quality CREE LED chips with a lifespan of over 50,000 hours. We provide a 5-year warranty for this series.
Is the light suitable for extreme outdoor conditions?
Yes, it has an IP66 waterproof rating and IK10 impact protection. It can operate in ambient temperatures ranging from -40ºC to +55ºC.
Can the mounting angle be adjusted?

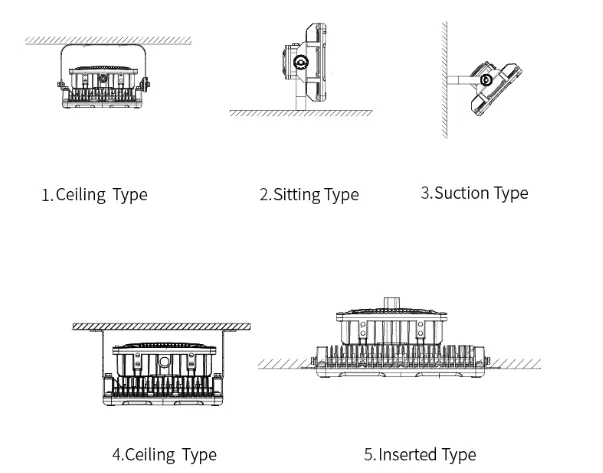

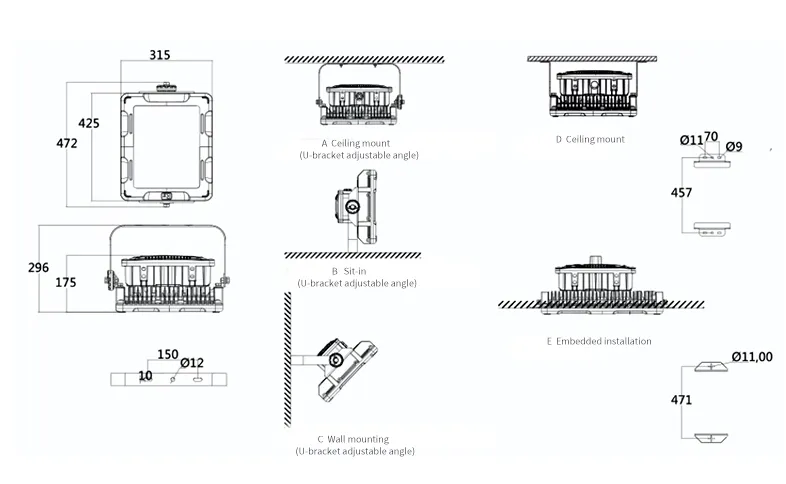

Absolutely. The light supports bracket, wall, and ceiling mounting with an adjustable angle to precisely direct illumination.
Are there different wattage options available?
Yes, we offer a wide range of wattages from 30W up to 300W, and we also support custom wattage requirements for specific projects.

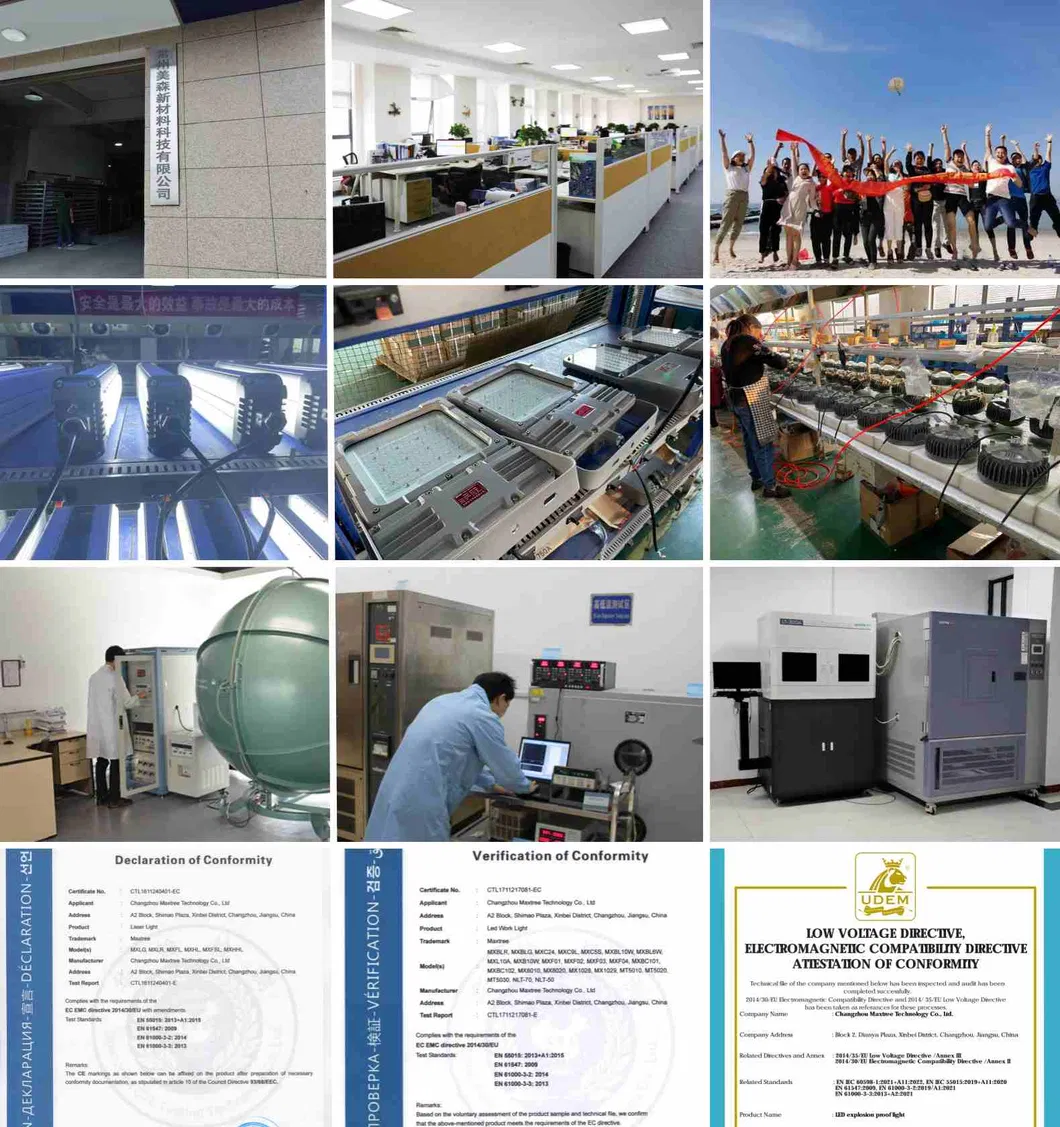

How do you ensure the quality before shipment?
We always provide a pre-production sample before mass production and conduct a final inspection before every shipment to guarantee quality.
