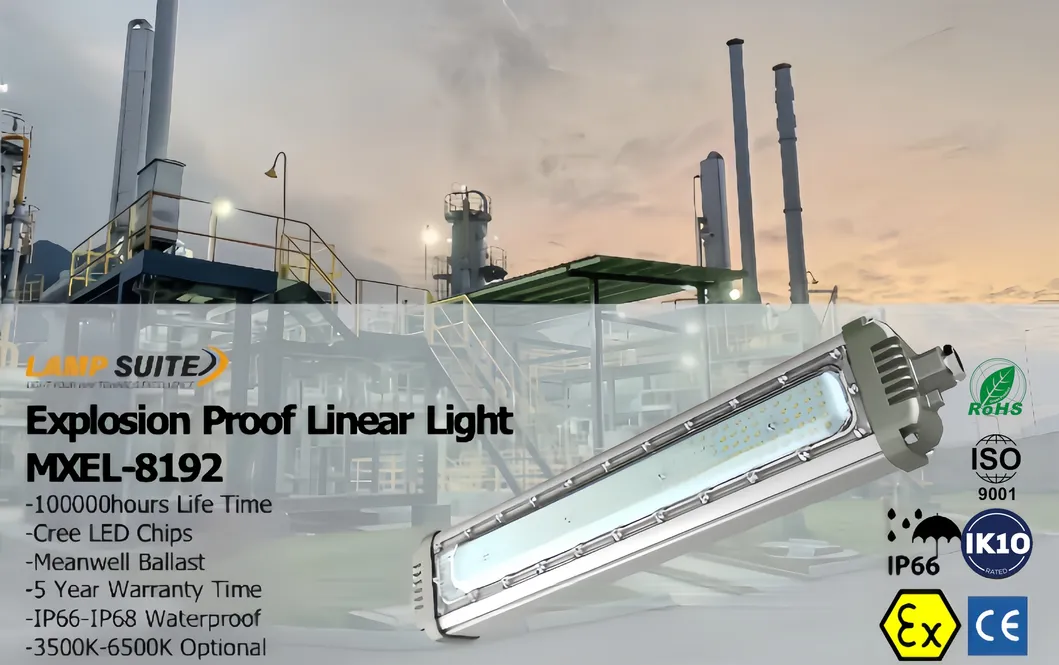

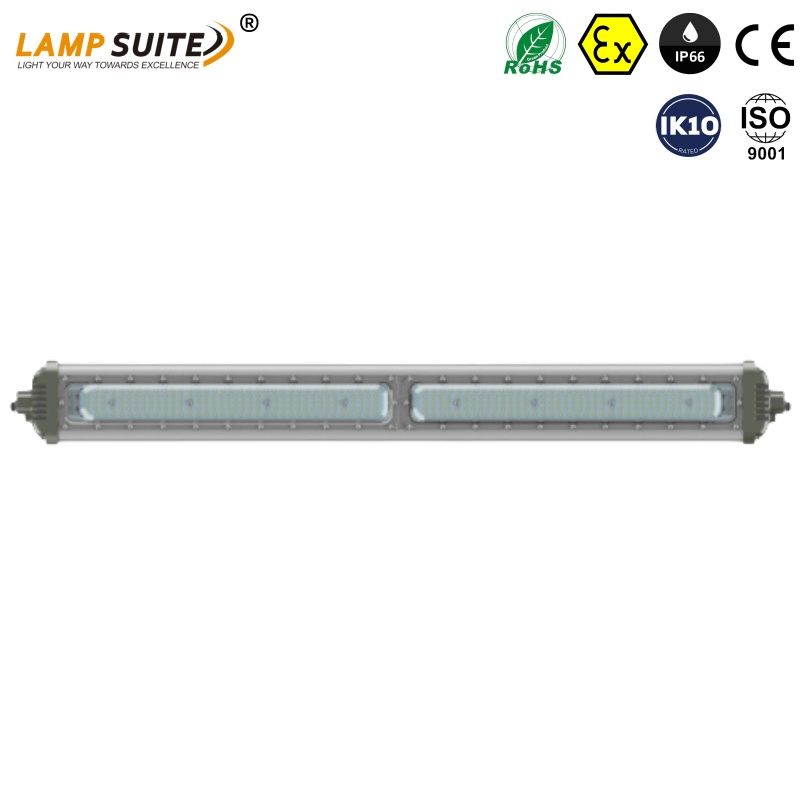

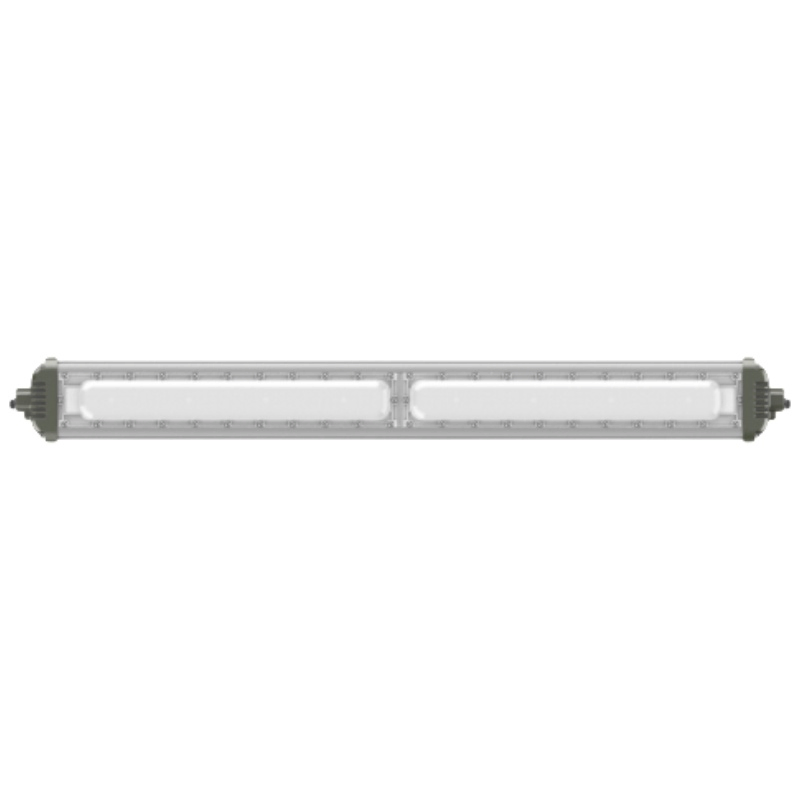

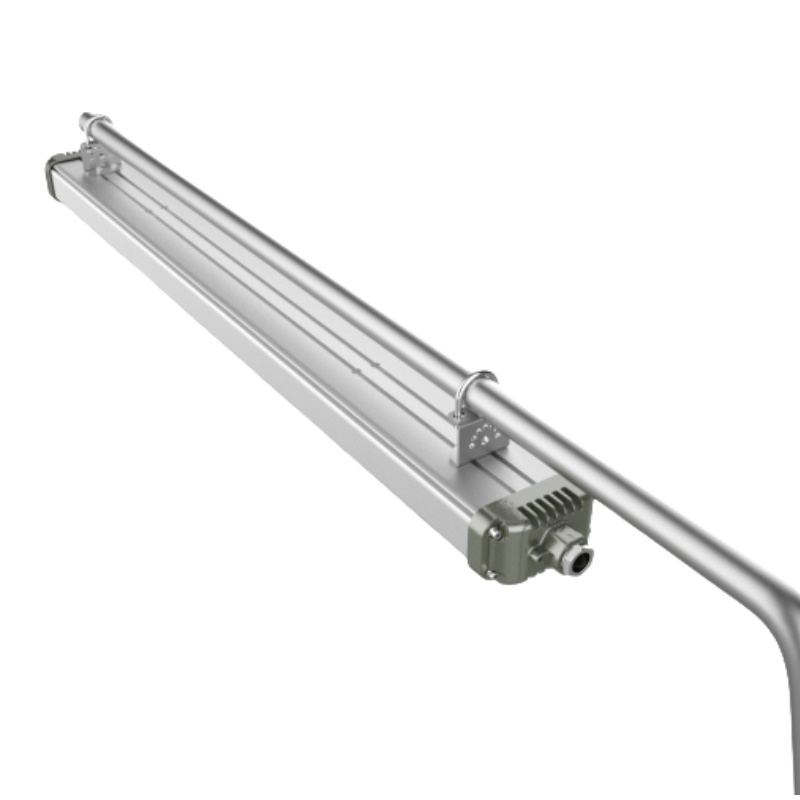

ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
Product Description
i
Overview & Basic Info
Model NO.MXEL-8192
Irradiated Area≥30m²
Input Voltage220v
Power20-120W
Color TemperatureWarm White / 3000K-6500K
LED Chips BrandCREE
CertificationCCC, CE, RoHS, ATEX, ISO9001
Explosion-ProofExnriict6GB
IP GradeIP66
Life Hour≥ 100,000 hours
Beam Angle120°
Anti CorrosionWF2
📋
Product Parameters
| MODEL | RATED POWER | LED QTY | SIZE | WEIGHT |
|---|---|---|---|---|
| MXEL-8192-300 | 20-30W | 70pcs | 335 x 125 x 77mm | 1.7Kg |
| MXEL-8192-600 | 40-60W | 120pcs | 635 x 125 x 77mm | 3.2Kg |
| MXEL-8192-1200 | 70-120W | 240pcs | 1143 x 125 x 77mm | 6.2Kg |
🔍
Detailed Description
Our explosion-proof lights are engineered for high-performance in hazardous industrial environments. Featuring multiple mounting options including L-bracket, flange bracket, ceiling mount, and pendant mount, these fixtures provide the ultimate flexibility. The heavy-duty design ensures safety in oil refineries, chemical plants, and mining sites.
Key Technical Features

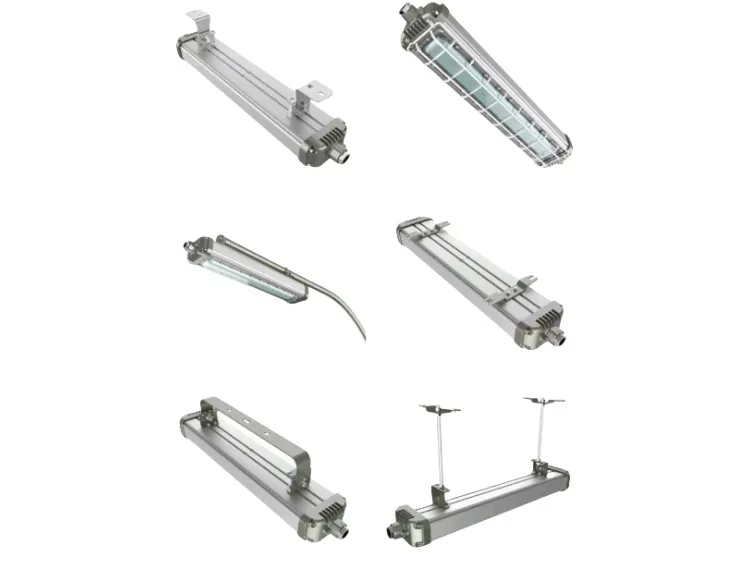

- Flexible Mounting: Supports L-type, flange, ceiling, and pendant installations.

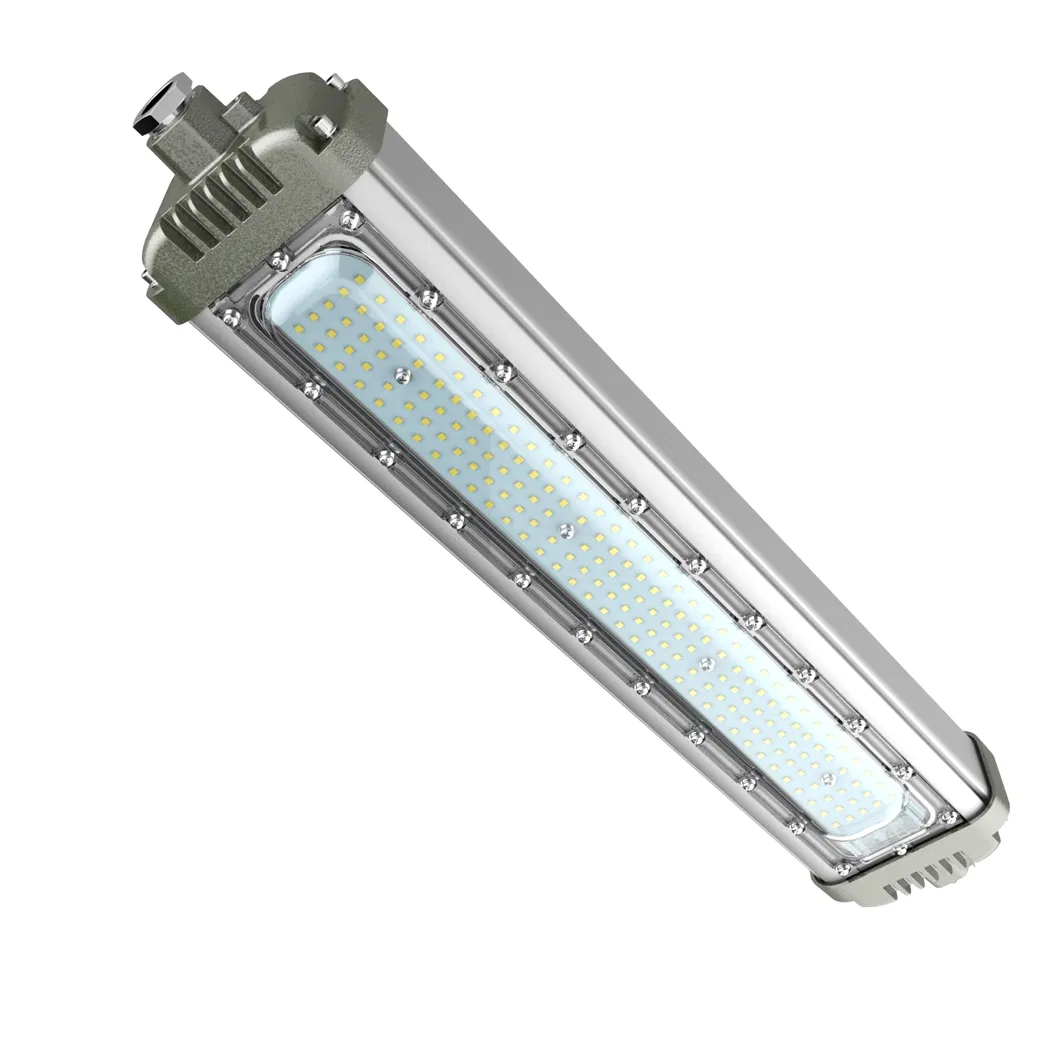

- Tempered Glass: 5mm thick borosilicate tempered glass, impact-resistant with 98% light transmittance.

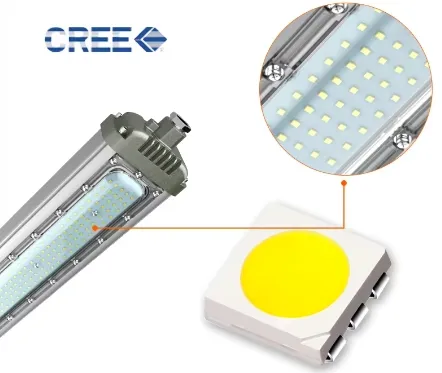

- Premium LED Core: CREE LED chips providing >120 lm/W light efficiency.
- Thermal Management: One-piece extruded aluminum radiator for superior heat dissipation.
- Durability: IP66 waterproof and WF2 anti-corrosion grade for harsh environments.
📏

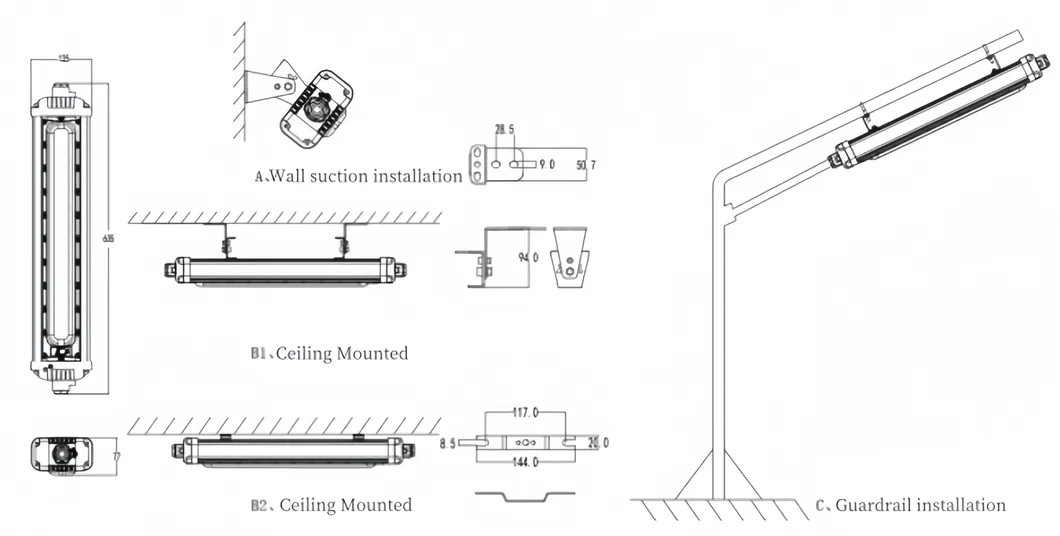

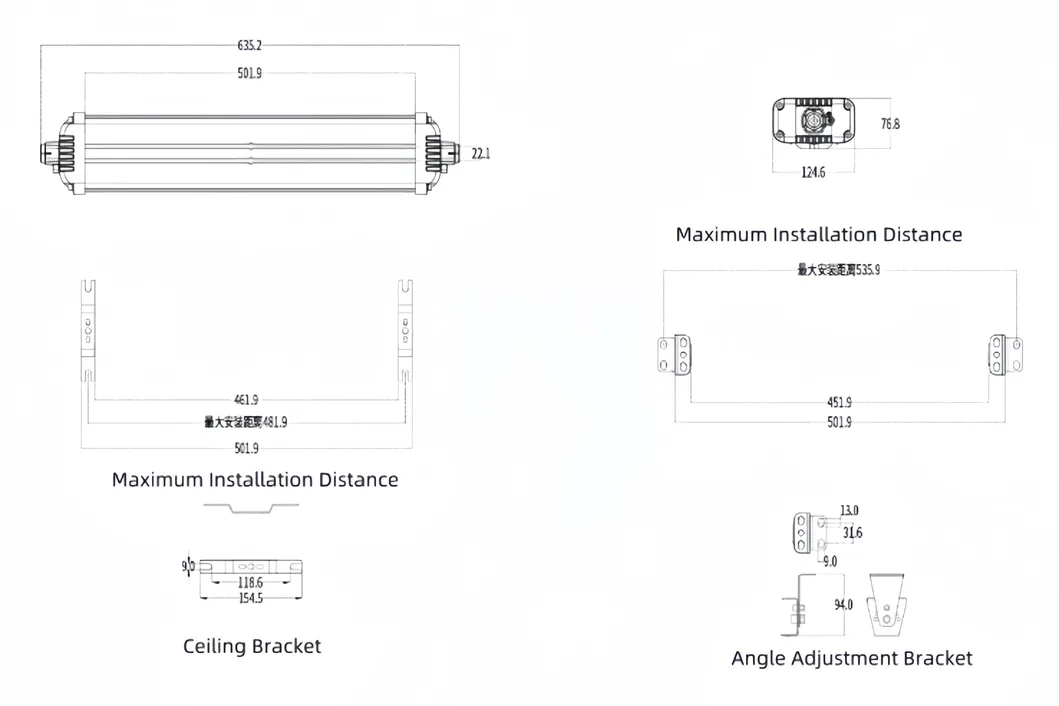

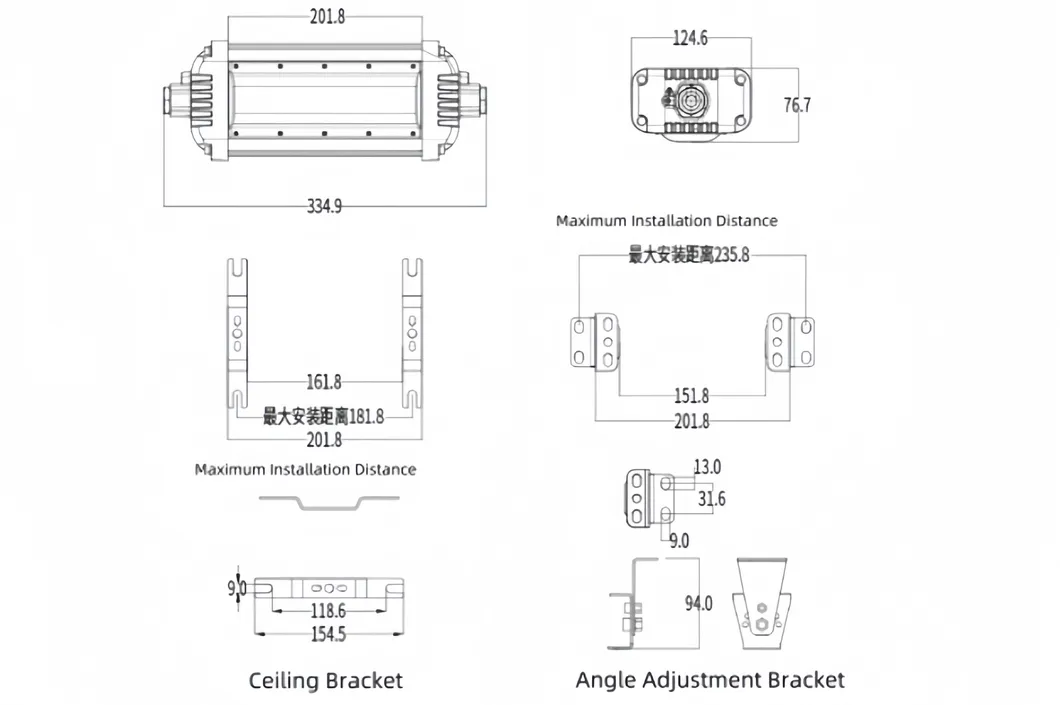

Dimension & Installation
🏭

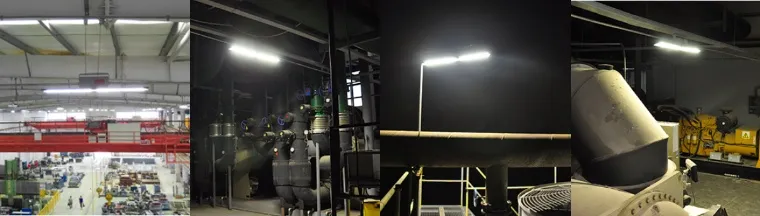

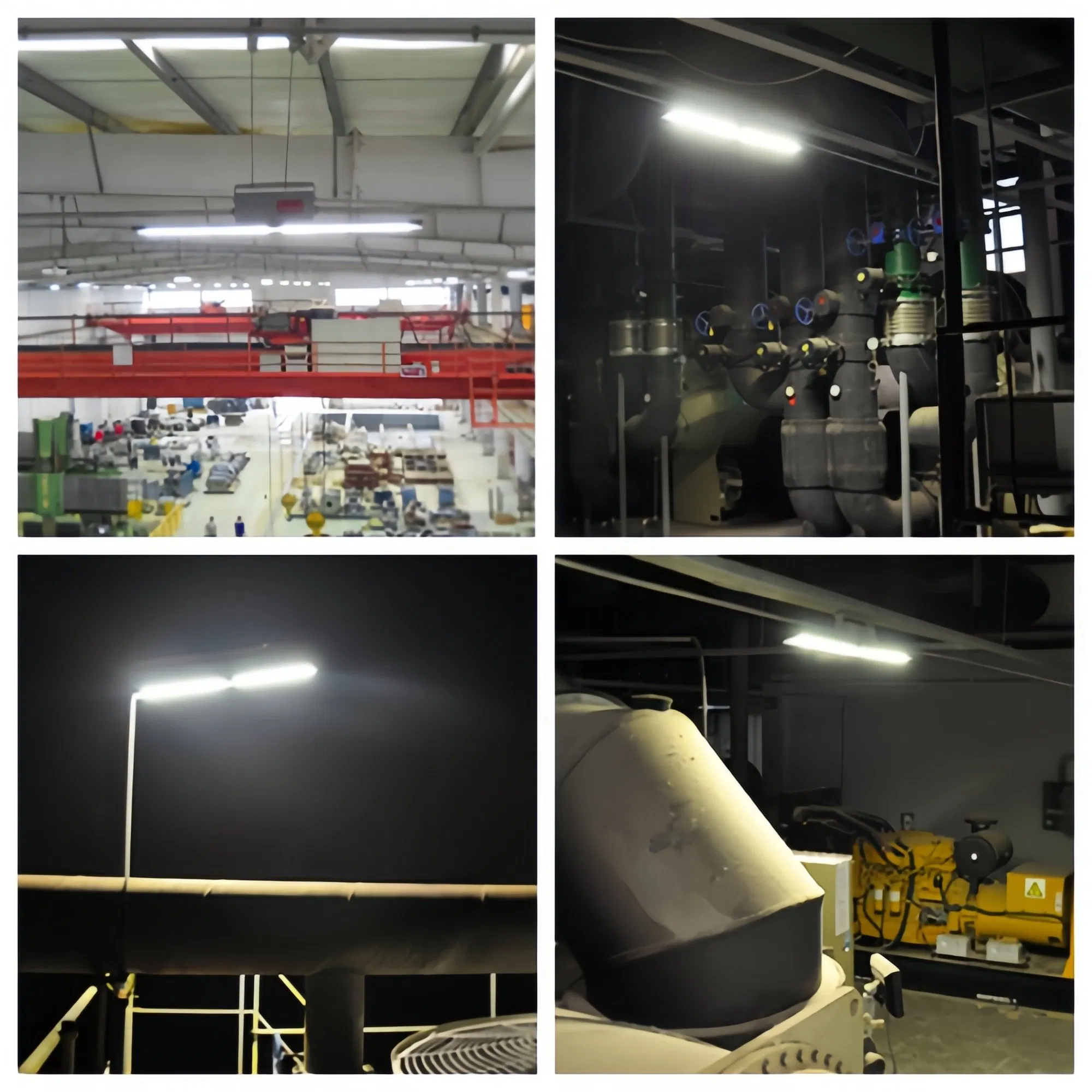

Actual Installation & Applications
Ideal for Gas Stations, Chemical Plants, Oil Platforms, Warehouses, and Marine Environments.
📦
Packaging & Shipping
?
Frequently Asked Questions
Q1. Can I have a sample order for this LED light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable for your evaluation.
Q2. What is the typical lead time for production?
Samples usually require 5-7 days, while mass production for bulk orders typically takes 7-12 days depending on the quantity.
Q3. What certifications do these explosion-proof lights hold?
Our products are fully certified with ATEX, CE, IP66, IK10, RoHS, and ISO9001, ensuring compliance with international safety standards.
Q4. How are the goods usually shipped?
We generally ship via reliable couriers such as DHL, UPS, FedEx, or TNT. Shipping usually takes between 4 to 7 days to arrive at your destination.
Q5. What is the warranty period for your lighting products?
We offer a comprehensive 2 to 5-year warranty on our products. With a lifespan of over 100,000 hours, these lights are built for longevity.
Q6. How do you handle defective products?
Our defective rate is strictly controlled under 0.2%. During the guarantee period, we will replace faulty units with new lights or provide technical repair solutions.
