4 Axis Automatic Soldering Process Automation Tht Components Soldering Technology Solutions Auto Smart Soldering System with Dual Welding Heads
Product Description
Basic Information
Model NO.
BBA-331HX with dual soldering heads
Control
Automatic
Certification
CE
Heating Power
350W
Work Platform
300*300*100mm(X*Y*Z)
Accuracy
+/-0.02mm
Motor Axis
Four Axis
Temperature
50~550 Degree
Application: Electrical & Electronics Industry, Lighting Industry, Auto Industry, Communication Industry, Home Appliances.
Product Description

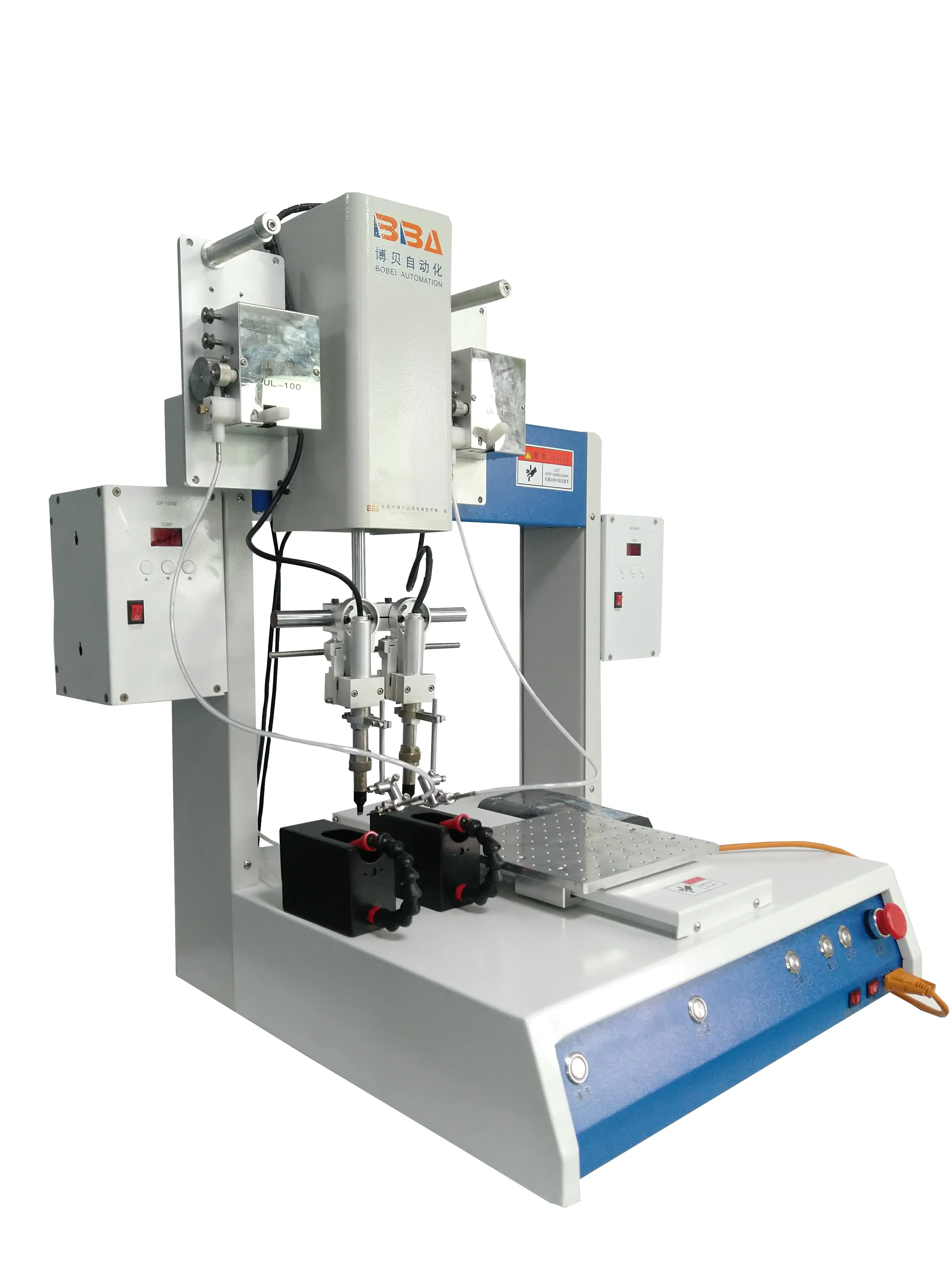

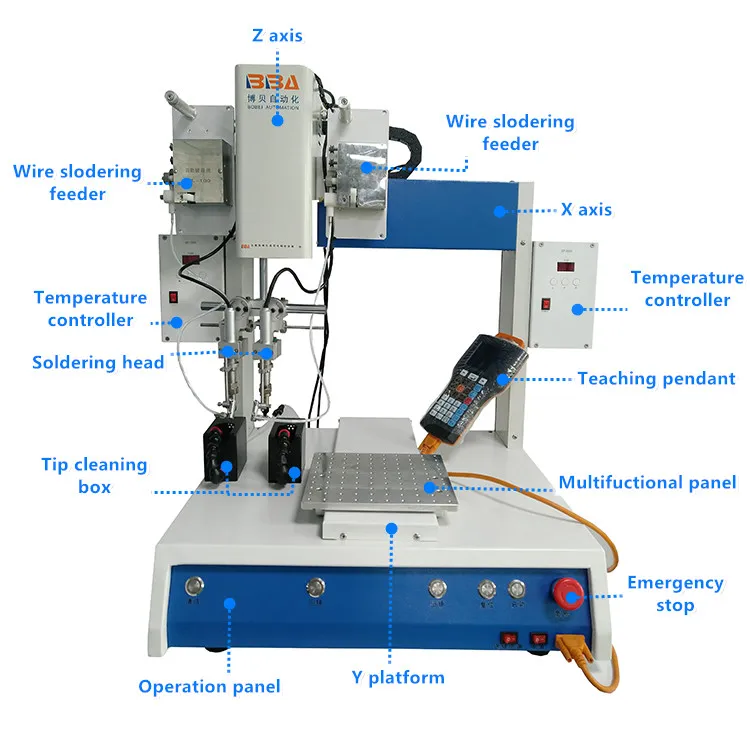

Robotic soldering tin machine with dual soldering heads, Automatic spot/drag welding machine
A Soldering Robot is a fully automated system that performs a designated task, set by a custom program, with the utmost precision and repeatability. Each joint may have its own soldering profile. Base robots use our 150 watt power supply with a superior thermal feedback system. Double tin feeding heads can soldering two soldering joints at the same time to double the soldering efficiency.

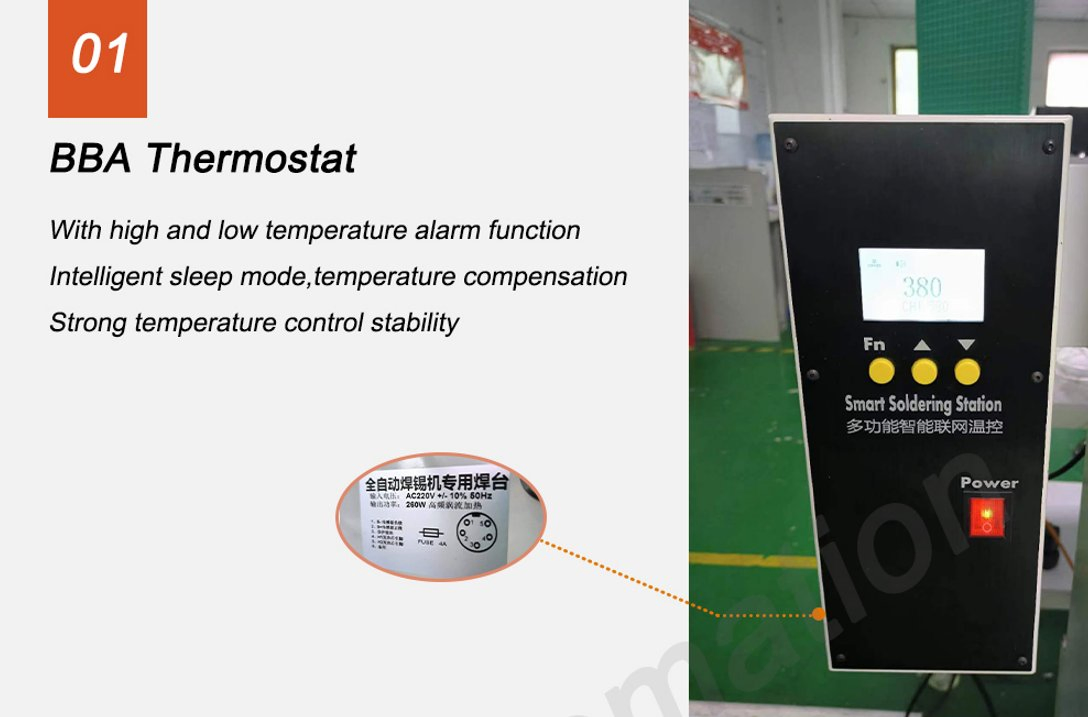

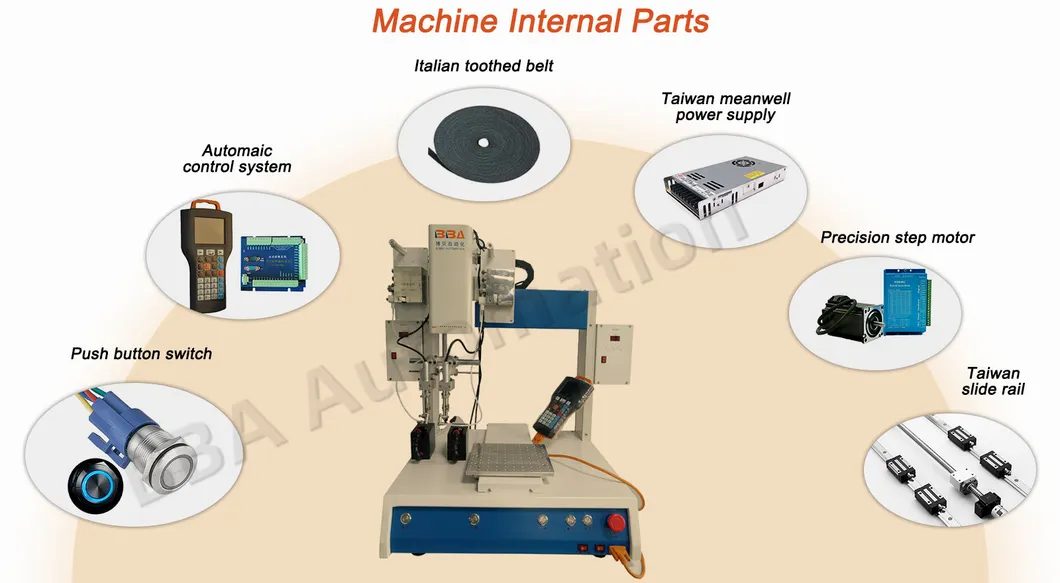

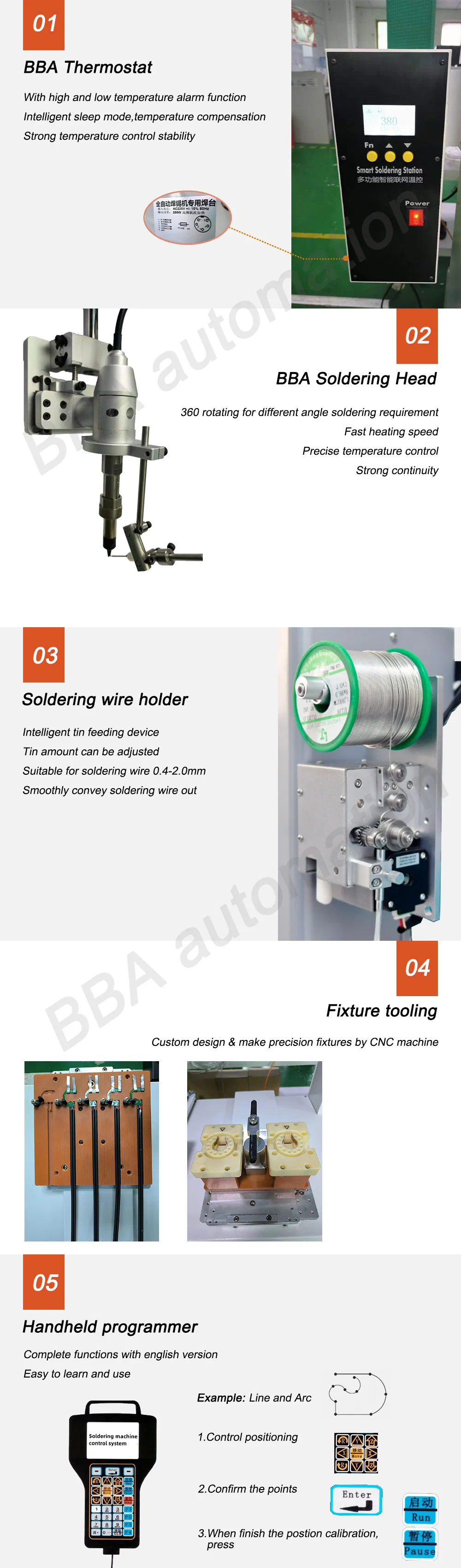

Machine External Accessories
Specifications of Soldering Machine Series
| Model | BBA-331HX | BBA-5331HX | BBA-6331HX | BBA CUSTOMIZED |
|---|---|---|---|---|
| Voltage | AC 110/220V 50/60HZ | To order | ||
| Power | 350W | 350W | 700W | To order |
| X/Y/Z Range | 300/300/100mm | 500/300/100mm | 500/300/100mm | To order |
| Max Speed (X/Y) | 600mm/s | 600mm/s | 600mm/s | To order |
| Accuracy | ±0.02mm (X*Y*Z), ±0.05° (R) | To order | ||
| Weight | 65KG | 90KG | 120KG | To order |

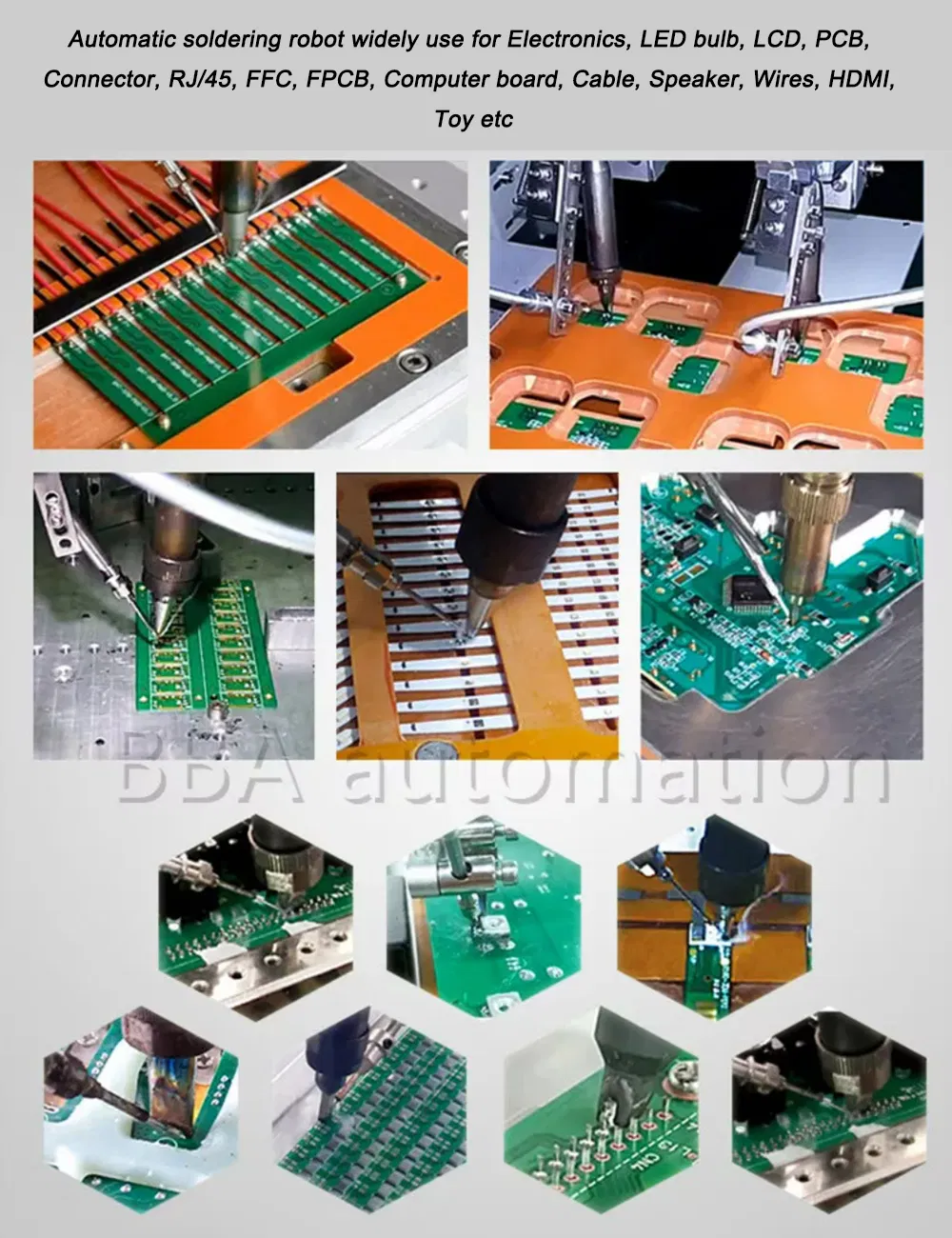

Customer Case
Packaging & Shipping

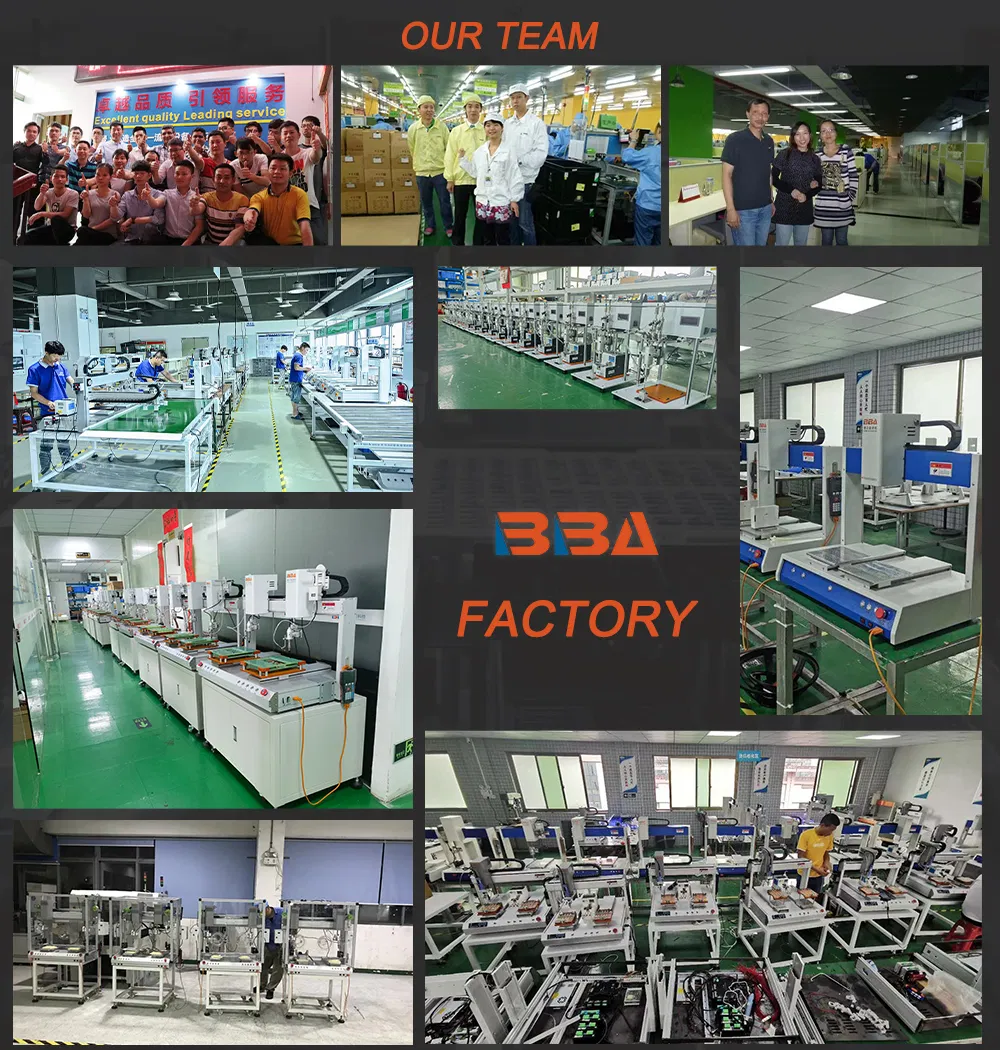

Facilities & Quality Control
Frequently Asked Questions
What are the advantages of dual soldering heads?
Dual heads allow the machine to solder two joints simultaneously, effectively doubling the production efficiency compared to single-head models.
What is the positioning accuracy of this robot?
The machine offers high precision with a repeat positioning accuracy of +/-0.02mm across the X, Y, and Z axes.
Which solder wire diameters are compatible?
The system supports a wide range of solder wire diameters including 0.4, 0.6, 0.8, 1.0, 1.2, 1.6, and 2.0 mm.

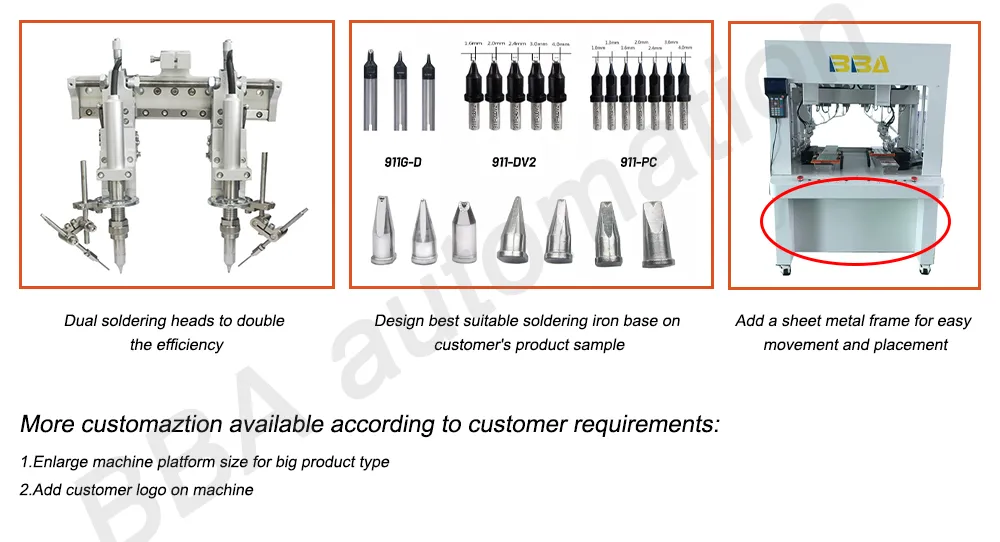

Can the machine be customized for specific needs?
Yes, we offer customization for platform sizes, dual Y-axis configurations, and specialized soldering systems to meet unique production requirements.
What industries typically use this soldering robot?
It is widely used in the electronics, lighting, automotive, communication, and home appliance industries for THT component soldering.
How is the machine programmed?
The robot features a high-capacity file system (256MB) that can store up to 999 files, with each file supporting up to 1000 soldering points, programmed via a user-friendly interface.
