IP66 Waterproof Outdoor LED Street Lampadaires Energy Saving City Road High Quality Factory Price SMD Smart Street Lighting System
Product Description
📊
Basic Specifications
Model NO.YASL-20-TJ-100
MaterialDie Casting Aluminum
Lamp Power100W
Power SupplyAC90-305V
Average Life50000h
IP RatingIP66
CertificationCE, RoHS
Luminous Flux15600-19200lm
ApplicationHighway, Square, Garden, Road
Dimensions738*371*158 mm
💡
Product Description

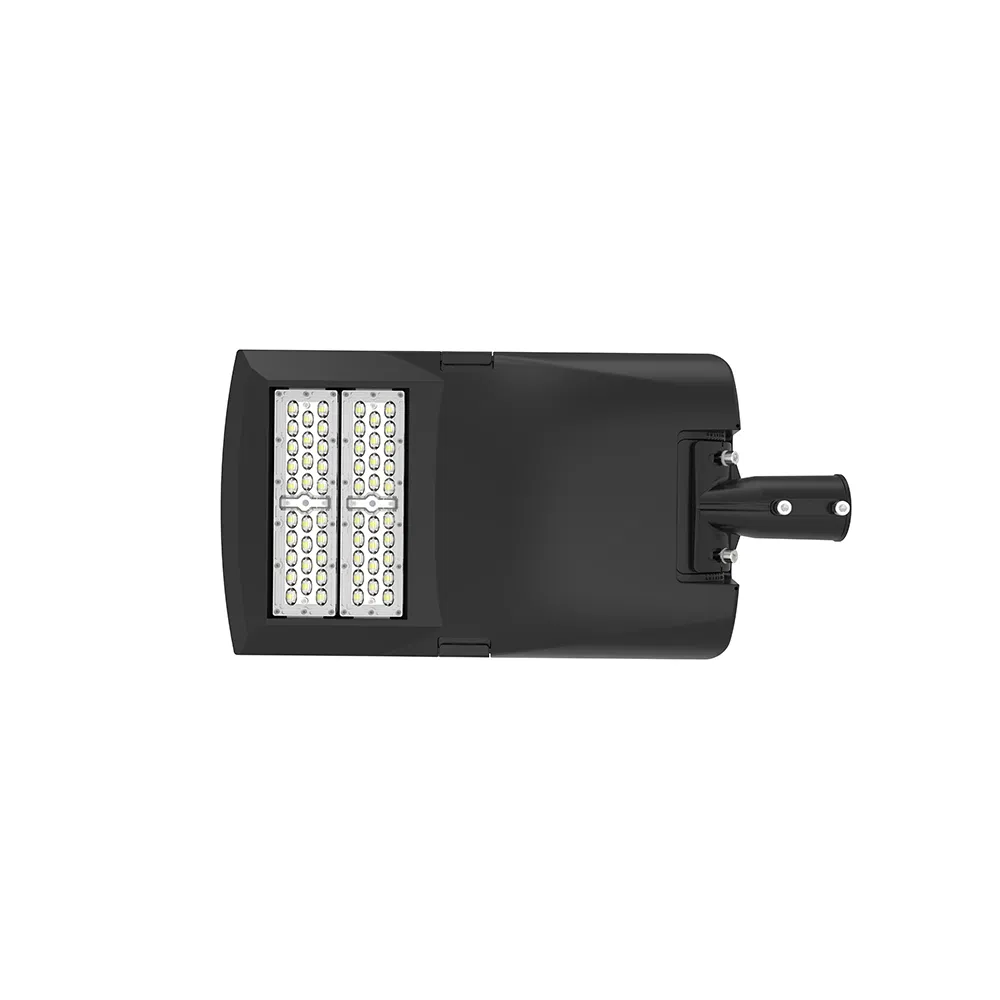

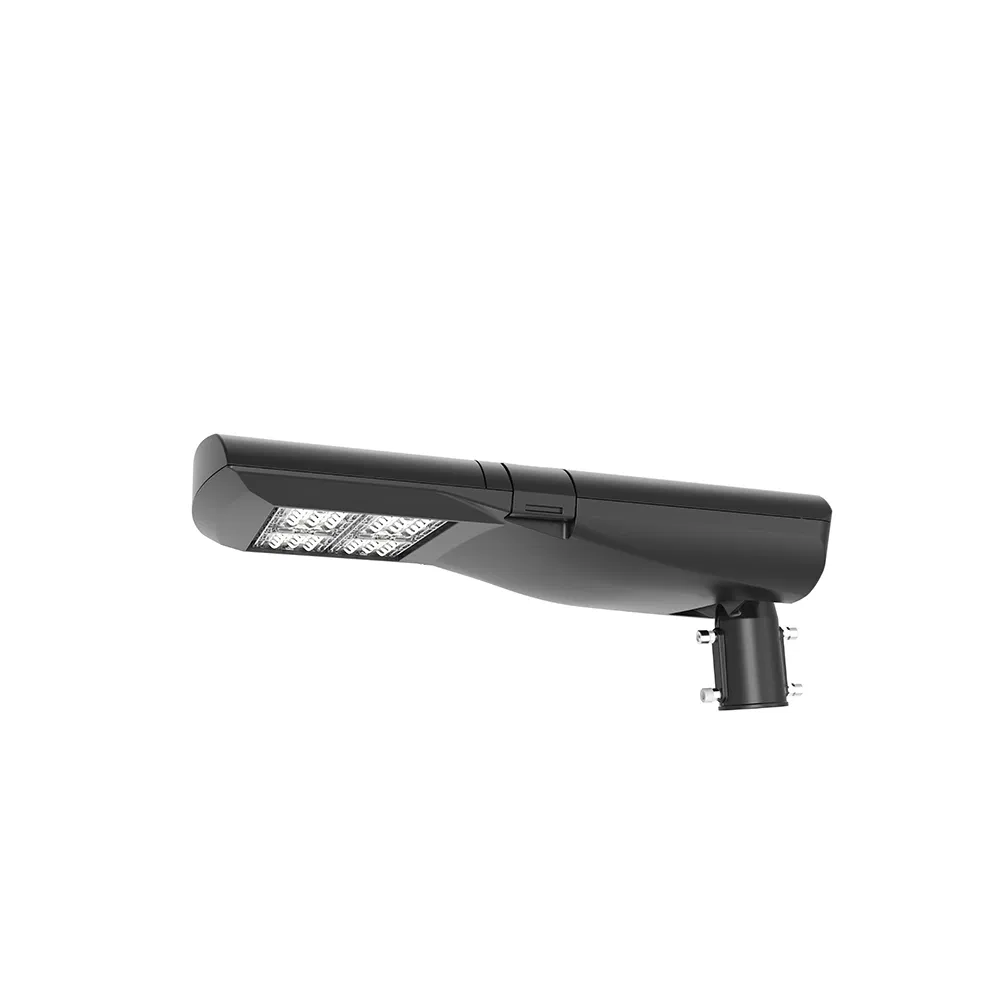

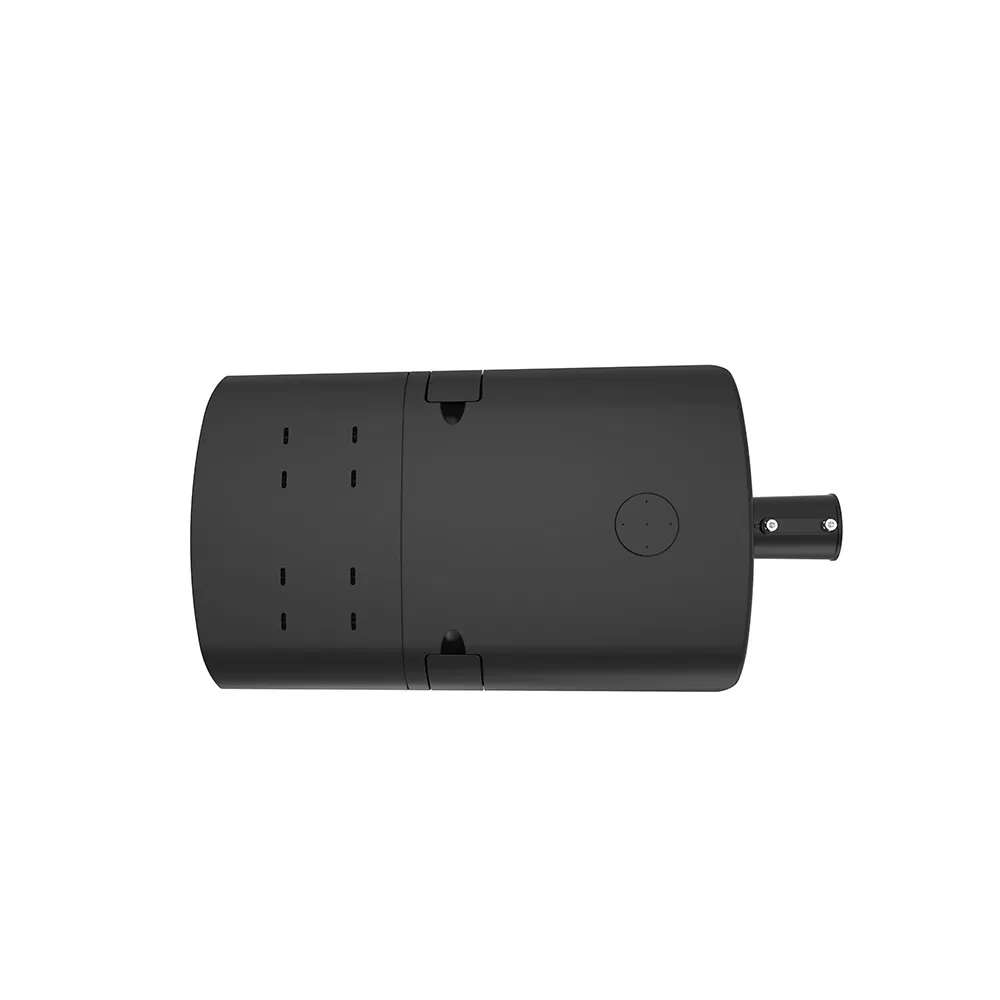

LED Street Lamp Shoebox Lights YASL-20
⚙️
Flexible Installation
Both Horizontal and Vertical mounting available with adjustable angles from -15° to +15°.
Both Horizontal and Vertical mounting available with adjustable angles from -15° to +15°.
🛡️
Durable Housing
Manufactured from high-pressure die-casting aluminum for superior heat dissipation and durability.
Manufactured from high-pressure die-casting aluminum for superior heat dissipation and durability.
⚡
High Efficiency
LED efficiency up to 130 lm/w, capable of producing high luminaire lumens at 4000K.
LED efficiency up to 130 lm/w, capable of producing high luminaire lumens at 4000K.
| Technical Data (YASL-20-100M) | |
|---|---|
| Input Wattage | 120W |
| Color Temperature | 3000~6500K |
| Input Voltage | AC90~305V |
| Power Factor | PF≥0.95 |
| CRI | Ra≥70 |
| Working Temperature | -40~50ºC |
| Protection Level | IK08/09/10 |
| Installation Height | 6-10m |
📸

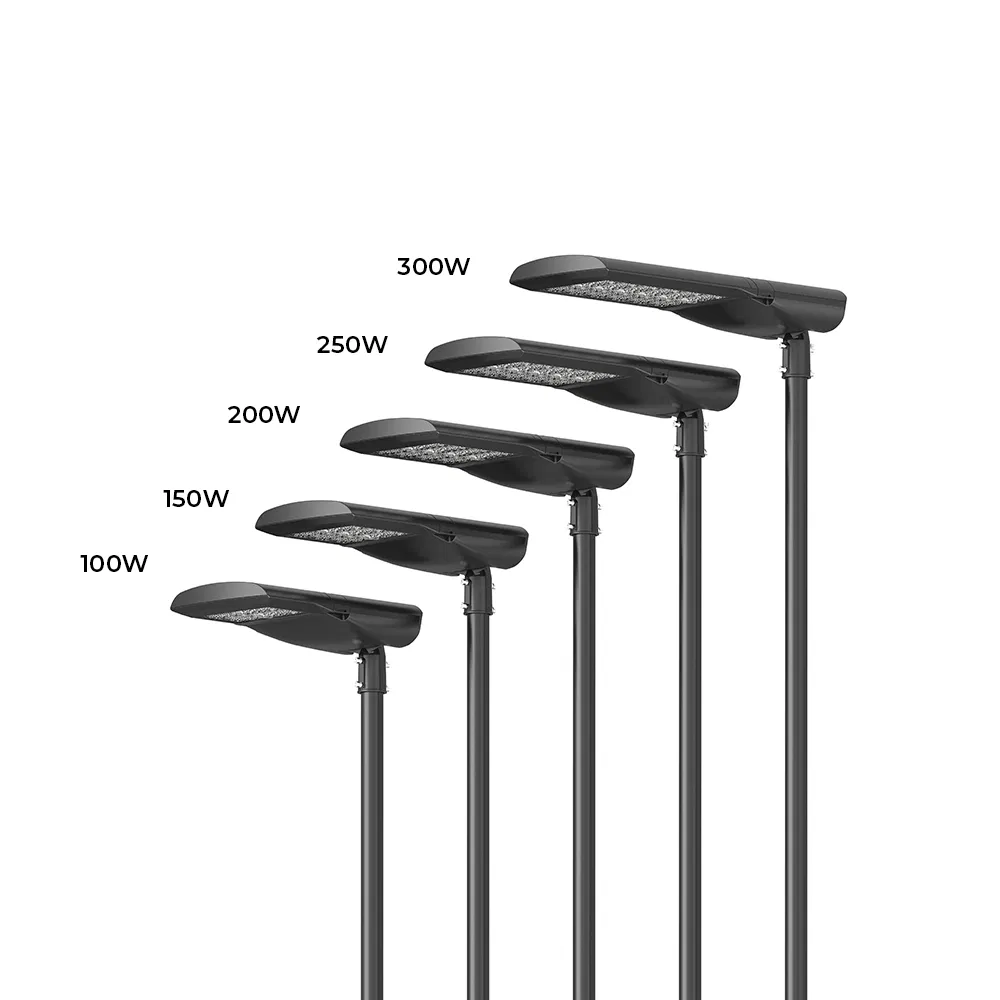

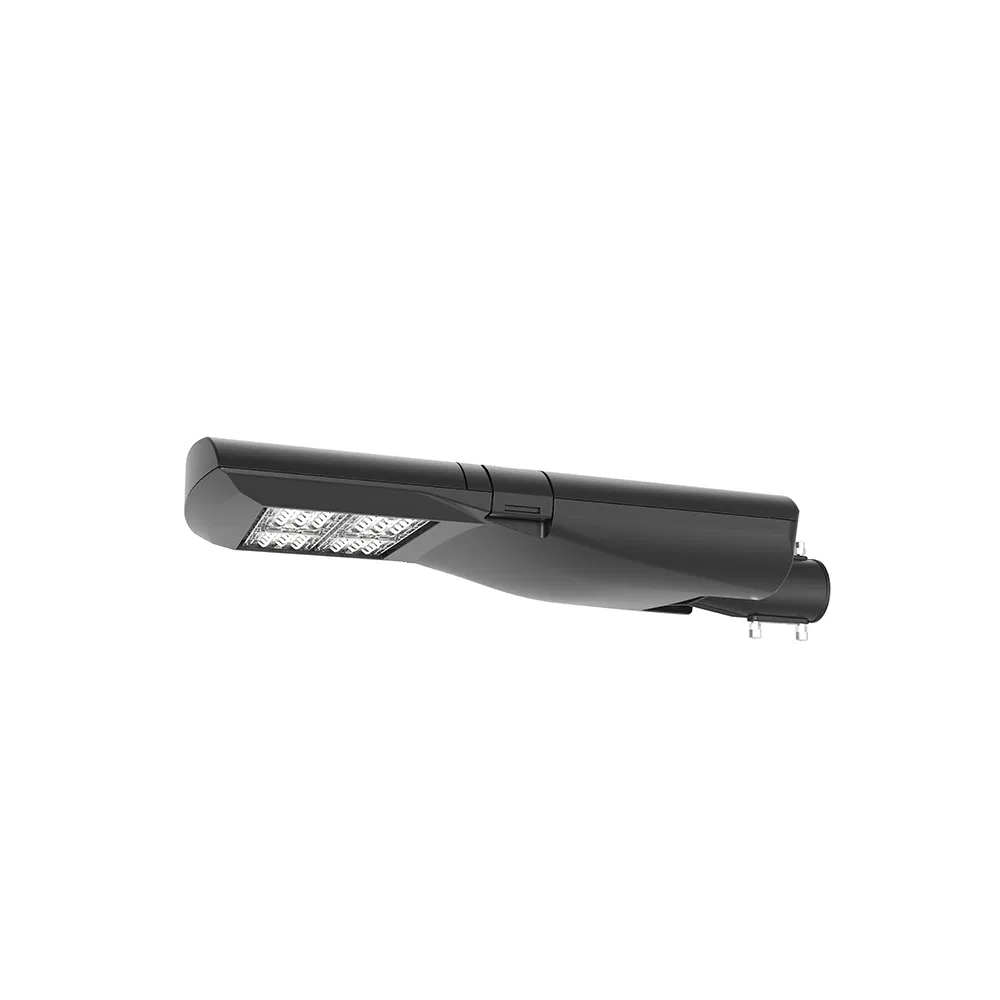

Detailed Visuals
🛡️
Technical Requirements
| Feature | Standard / Requirement | Test Standard |
|---|---|---|
| Housing | Heavy-duty rugged pressure die-cast aluminium alloy | ISO 3522 |
| IP/IK Rating | IP66 / IK08 | IEC 60529 / 62262 |
| LED Type | Osram/CREE High power LED | LM80 and TM21 |
| Lumen Efficacy | ≥ 160lm/W (25°C ambient) | LM-79 |
| Surge Protection | 10KV Standard | - |
🏢

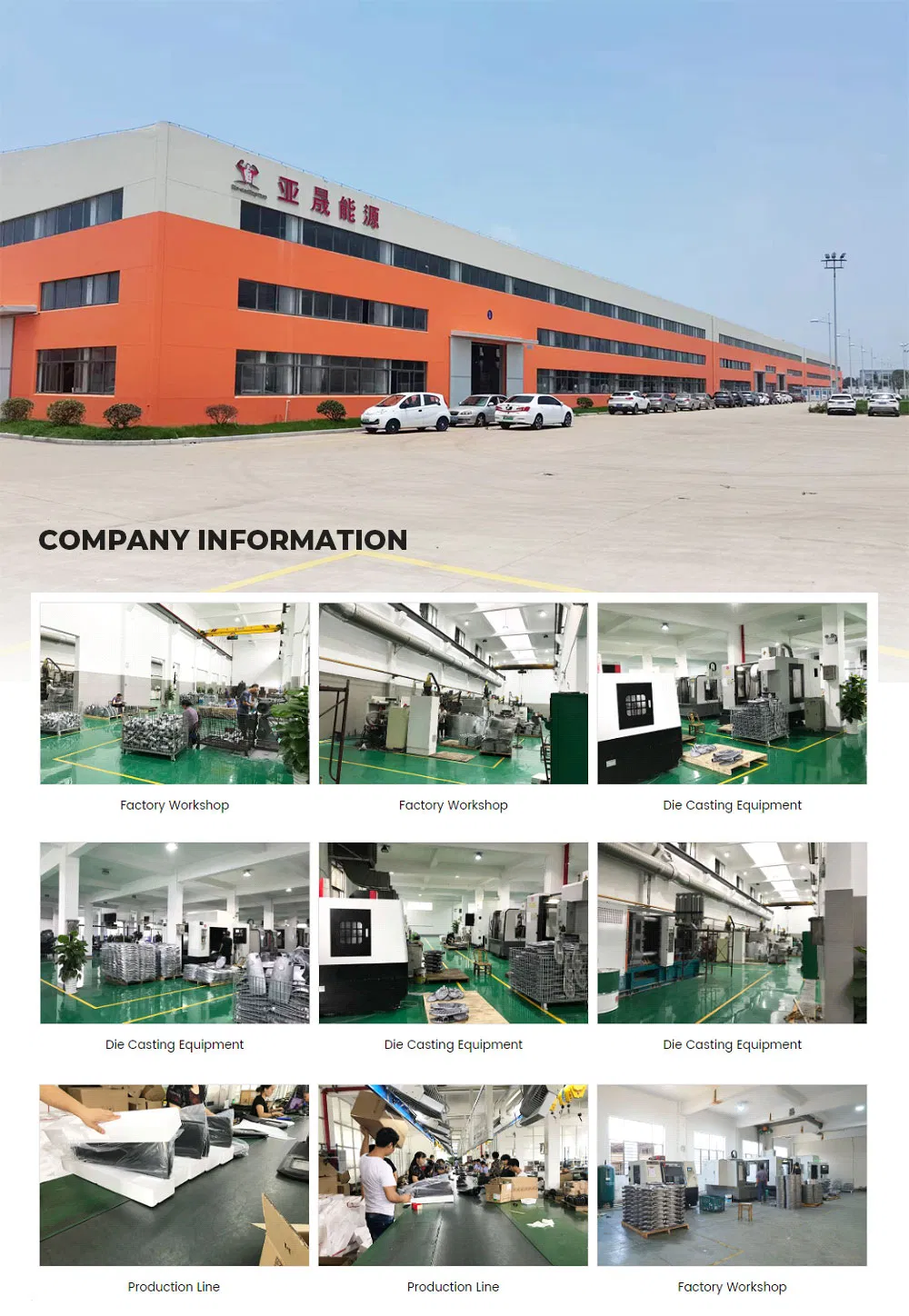

Manufacturing Excellence
Established in 1996, the manufacturer specializes in lighting design, development, production, and testing. Offering a superior range of street lights, high bays, and die-casting products, services include full manufacturing or SKD supply options.
All products are developed with practical technology and reliability in mind, ensuring compliance with EU requirements and undergo rigorous performance testing in recognized laboratories.
❓
Frequently Asked Questions
What is your minimum order quantity (MOQ)?
We accept 1-5 pieces for samples. For mass production, the standard MOQ is 100 pieces, though we can accept smaller quantities for your first order.
What brands of LED chips and drivers do you use?
We can utilize specific LED chips and driver brands based on your project requirements.
What is the warranty period for your street lights?
We offer a 5-year guarantee for our customers, with a rated life of 50,000 hours.
Can I customize the housing with my own logo?
Yes. We offer screen printing (no MOQ) and die-casting logos (MOQ 1000 pieces). Additional costs apply for both options.
How do you handle defective goods?
For occasional defects, we provide free replacements with your next order. If the rate exceeds 1%, we provide free components (drivers, SPD, PCB). Please note we do not cover freight or maintenance costs in the destination country.
Are your fixtures compliant with the latest standards?
Yes, our fixtures pass New EPR and Harmonics requirements.
