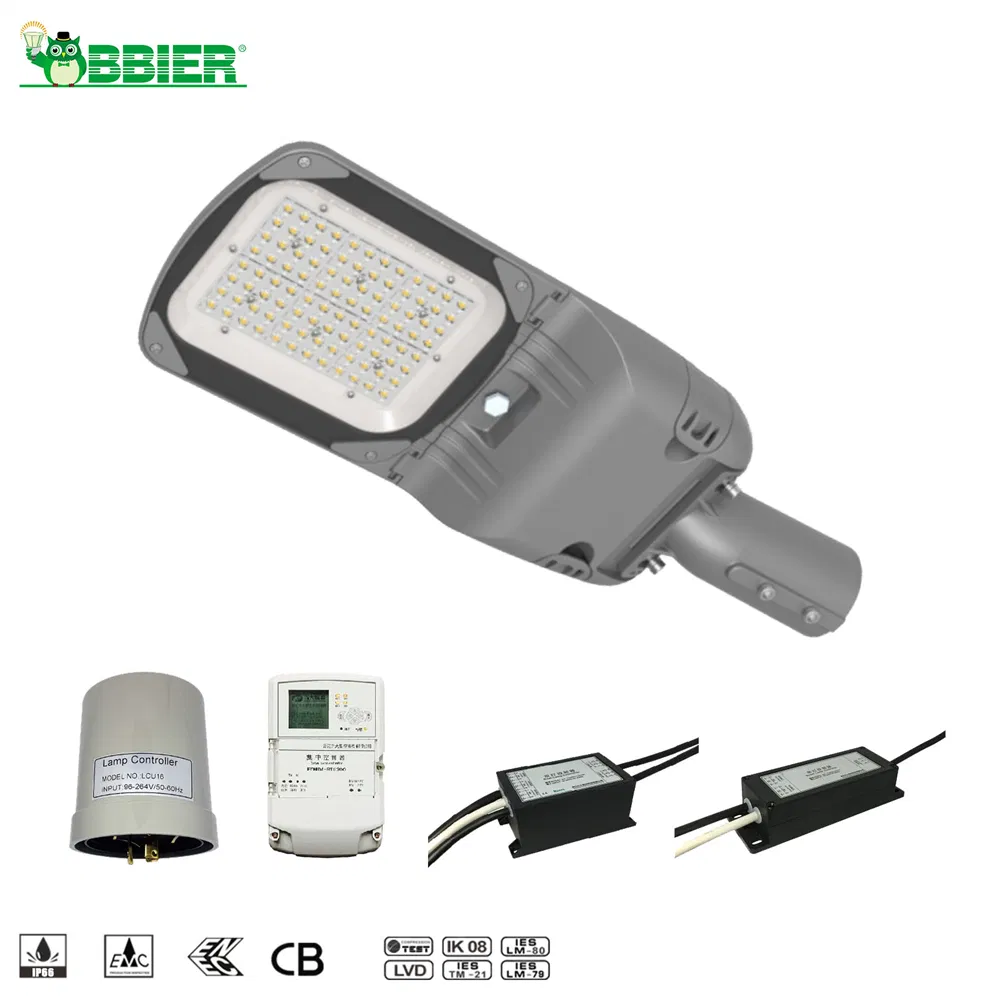

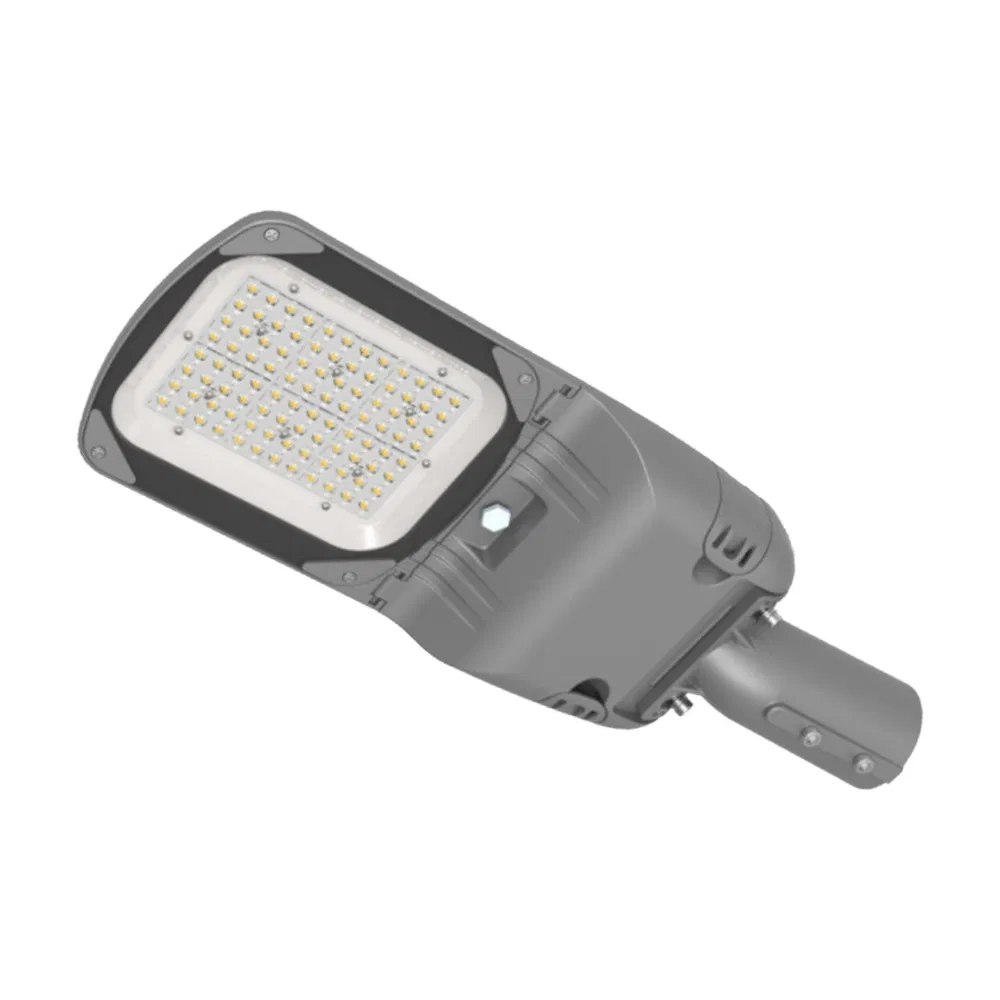

Energy-Saving 240W LED Road Lighting System Smart Waterproof Featuring High-Transmittance Photocell Sensor

📊

Basic Specifications

Model NO.	BB-LD-240W-S3-V
Material	High-grade Aluminum
Power	240W

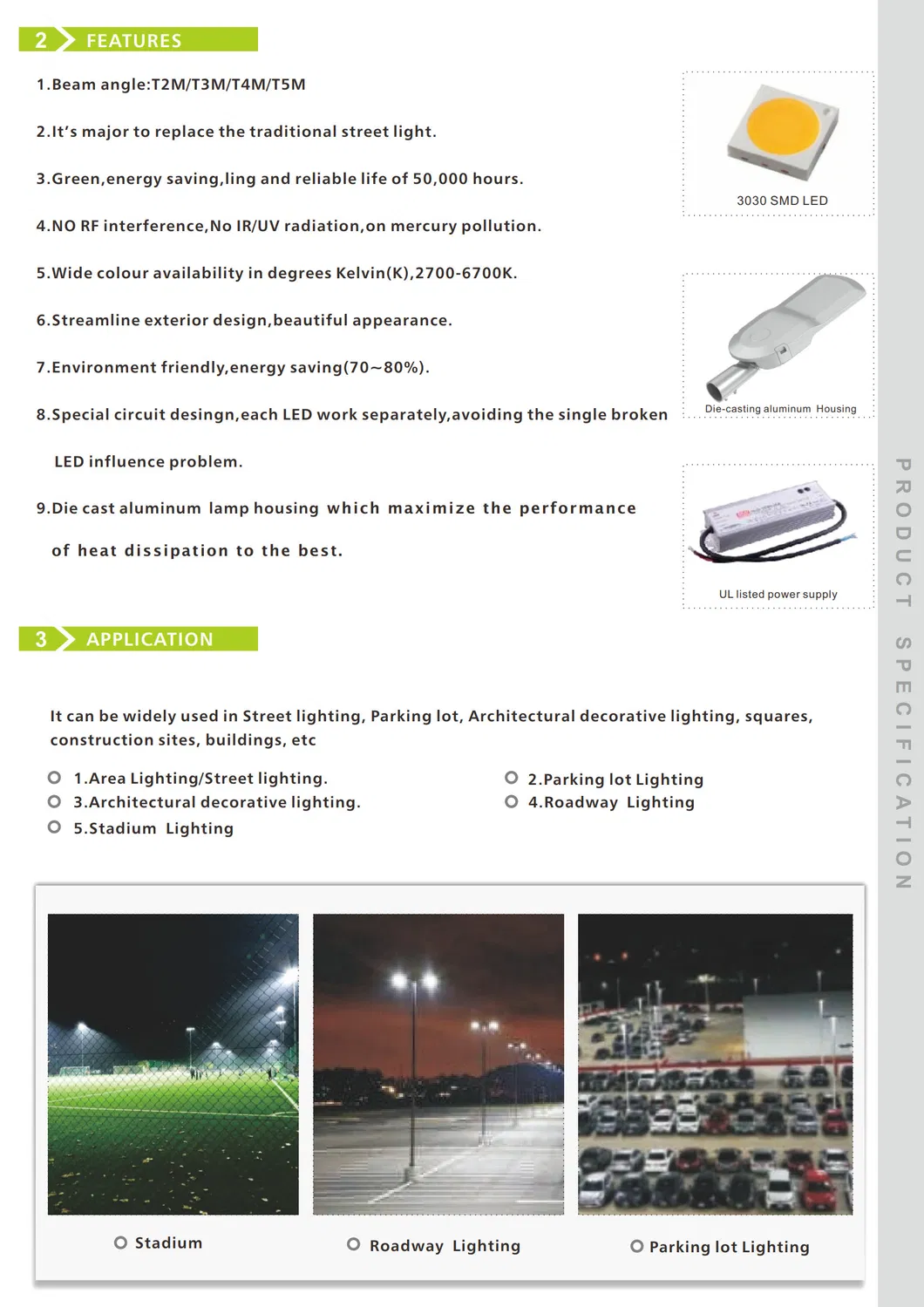

Application	Square, Highway, Parking Lot, Road
IP Rating	IP65 / IP66
Certification	CE, ETL, RoHS, SAA
Input Voltage	100-277VAC / 200-480VAC (50-60Hz)
LED Chips	3030 High Efficiency
Beam Angle	120° (T2M/T3M/T4M/T5M available)
CRI (Ra)	>85
Power Efficiency	>95%
Smart Controls	Timer Control, Motion Sensor, Photocell Sensor
Warranty	5-Year Standard

💡

Product Description

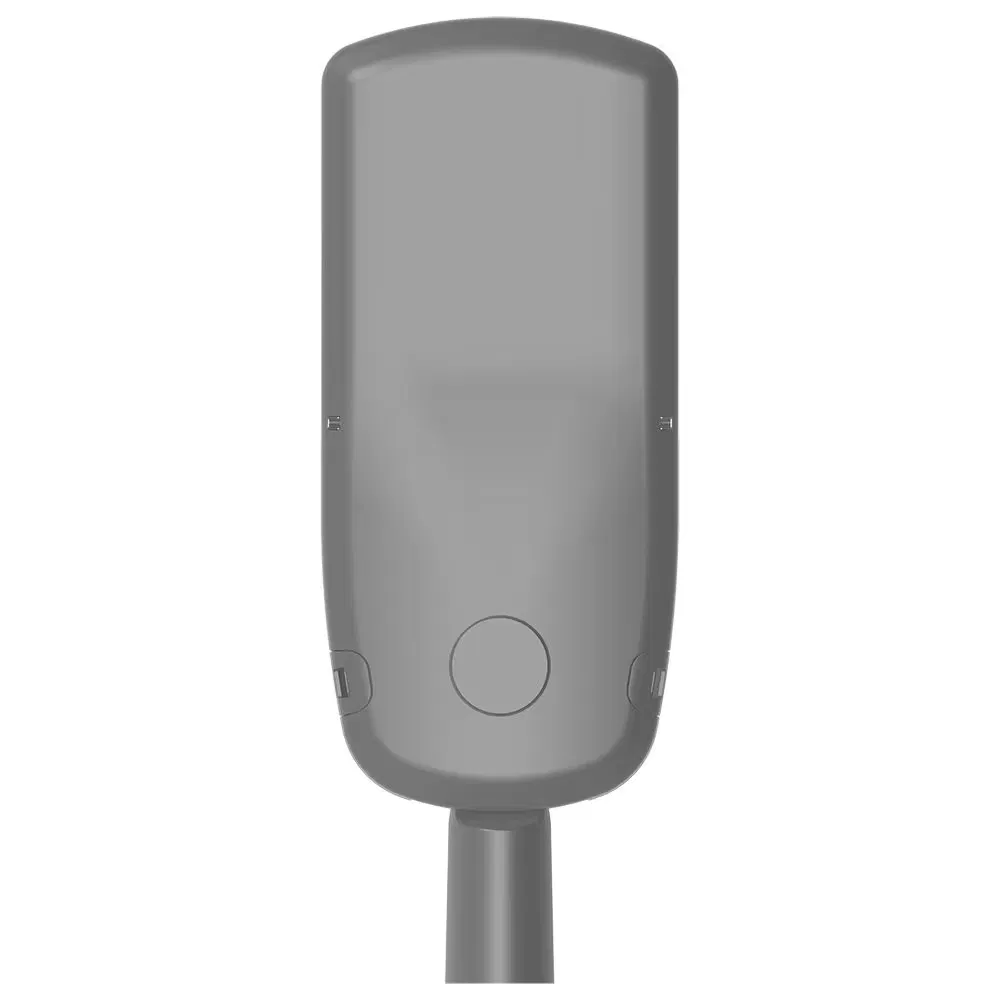

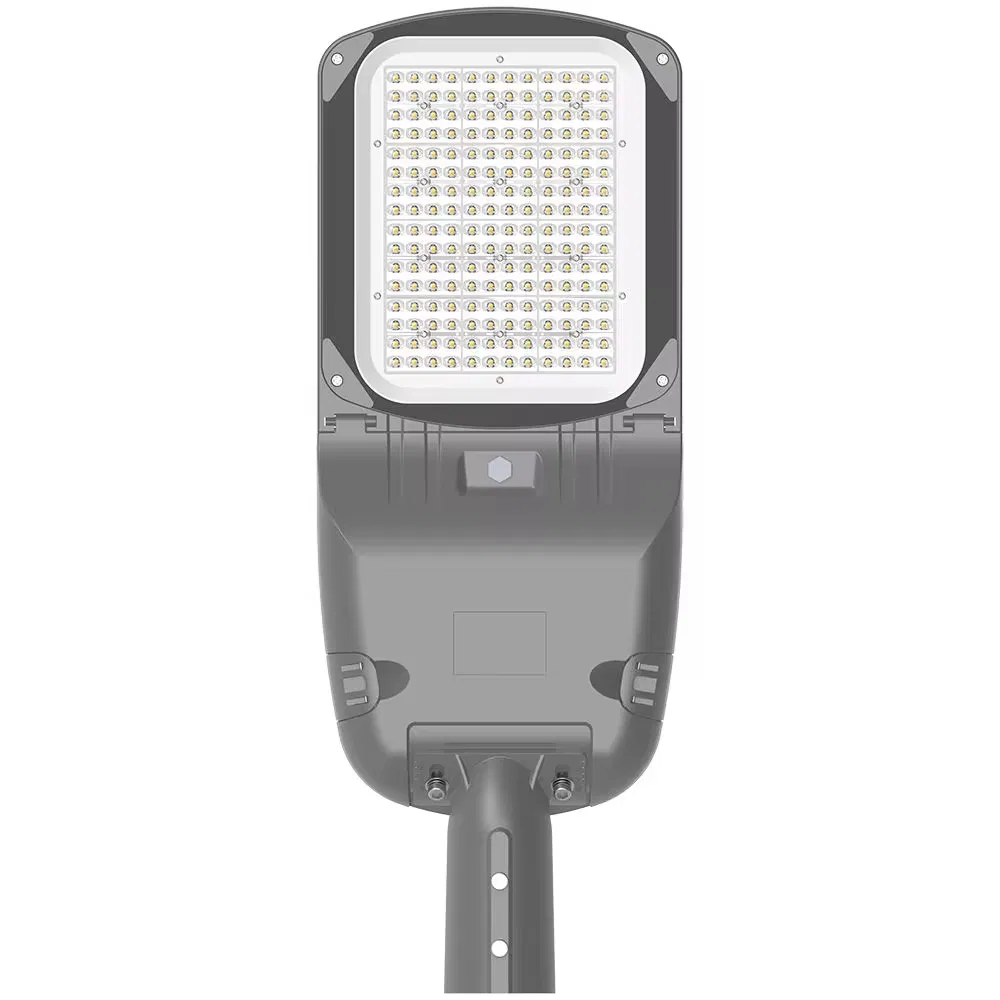

Energy-Saving 240W LED Road Lighting System

This smart waterproof lighting solution features high-transmittance photocell sensors and is designed for maximum efficiency and durability in outdoor environments.

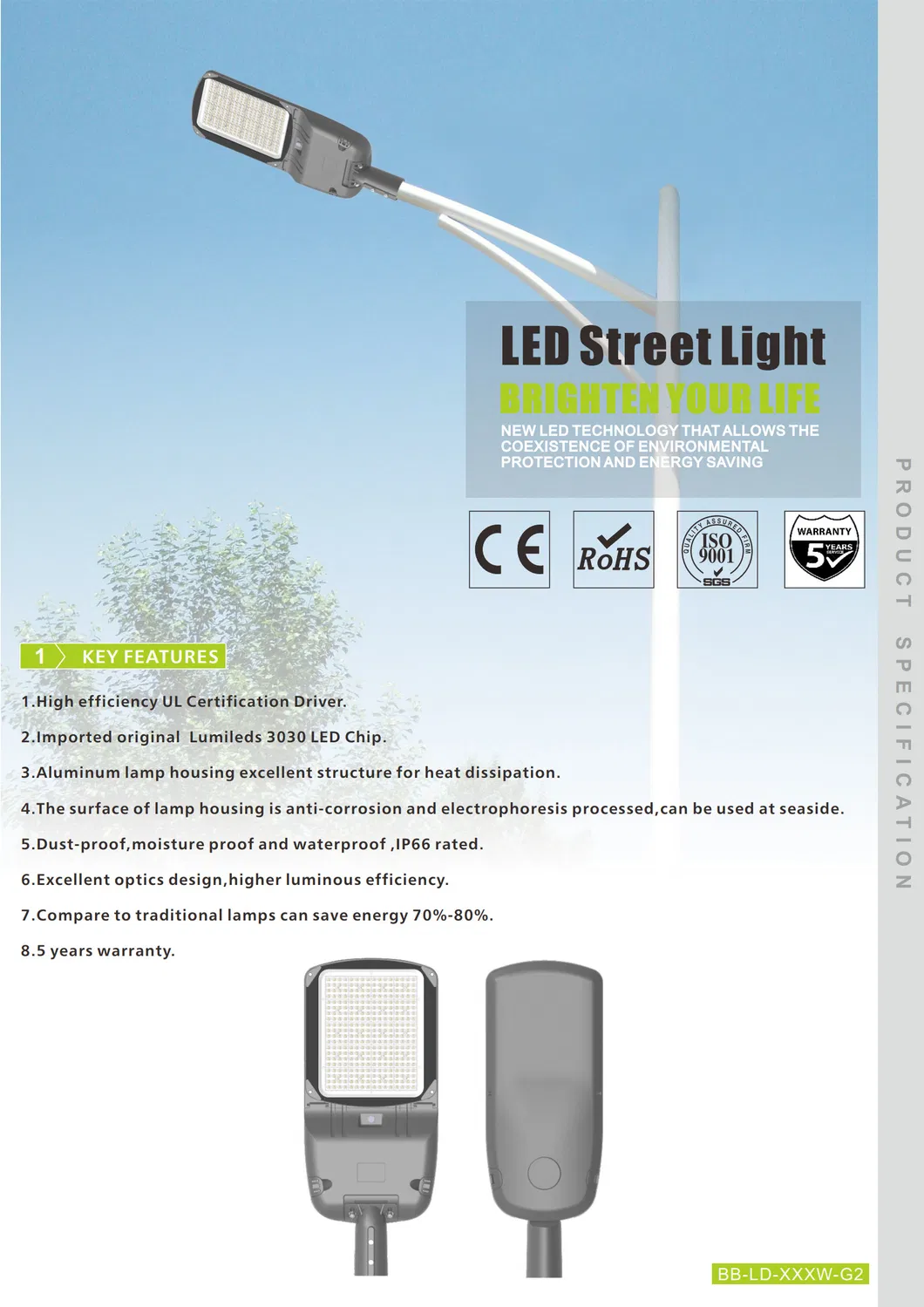

✔ High efficiency UL Certification Driver.

✔ Imported original 3030 LED Chips.

✔ Excellent aluminum structure for heat dissipation.

✔ Anti-corrosion and electrophoresis processed housing.

✔ IP66 rated dust-proof and waterproof performance.

✔ 70%-80% energy savings compared to traditional lamps.

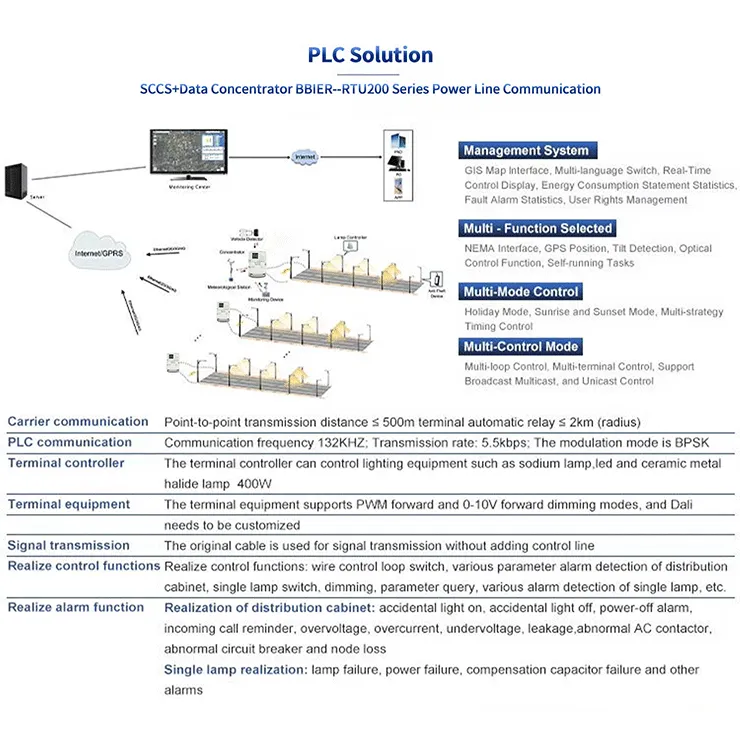

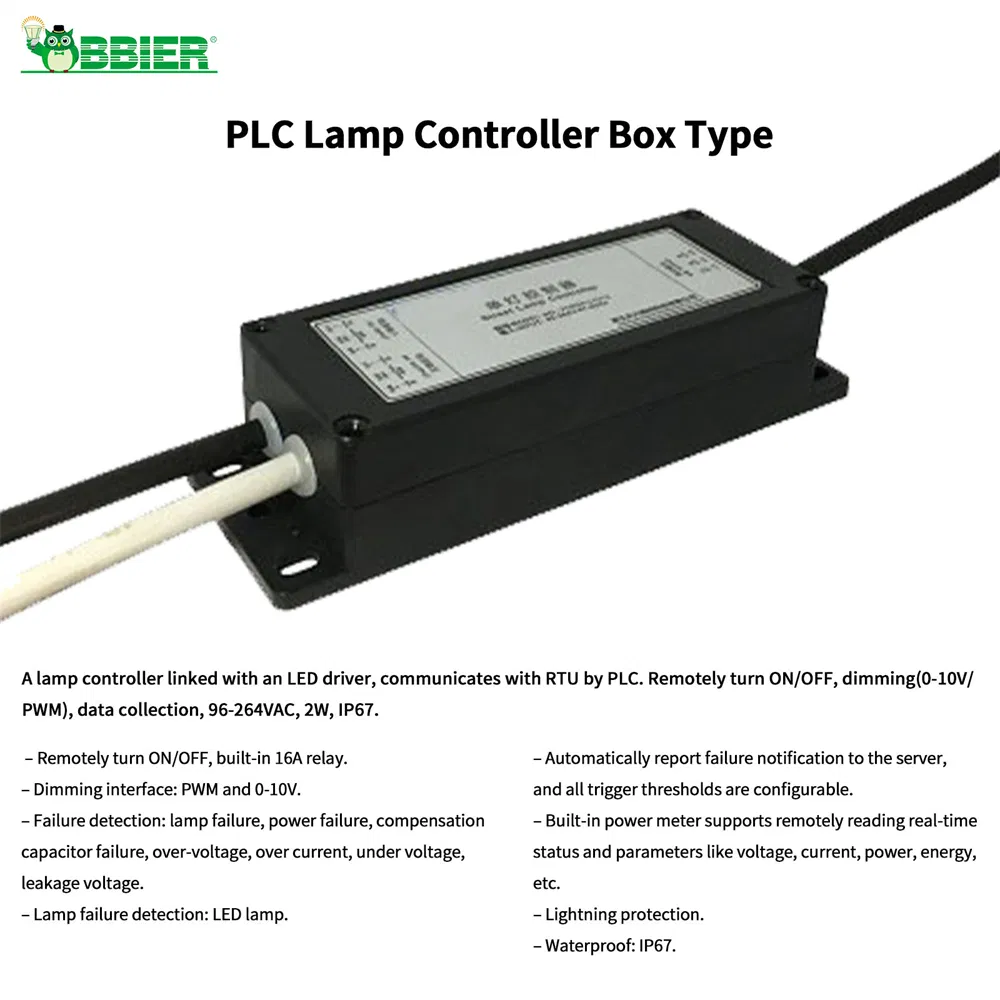

Advanced Smart Features:

Remotely turn ON/OFF with built-in 16A relay.
Dimming interfaces: PWM and 0-10V.
Comprehensive failure detection: lamp failure, power failure, over-voltage, and leakage.
Built-in power meter for real-time data collection (voltage, current, power, energy).

📸

Detailed Product Gallery

📋

Technical Parameters

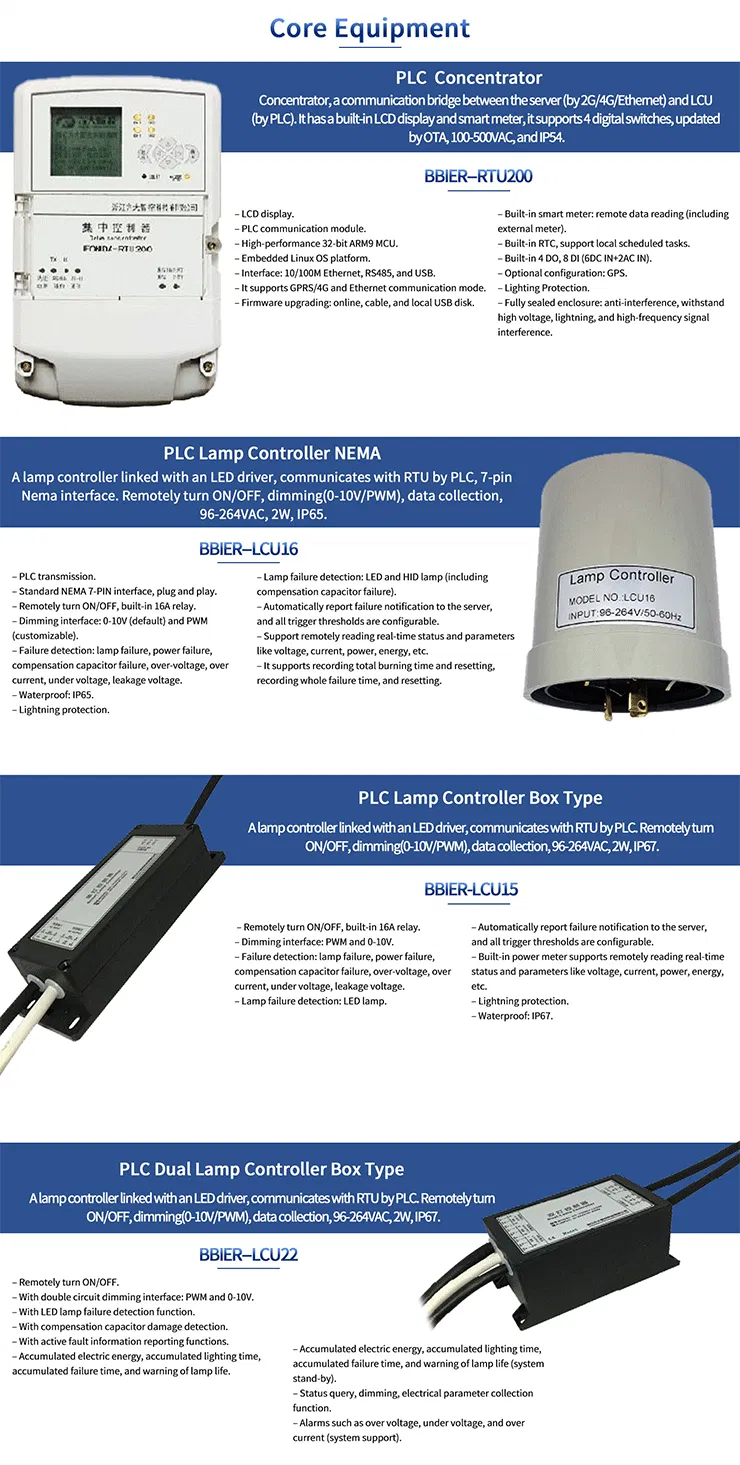

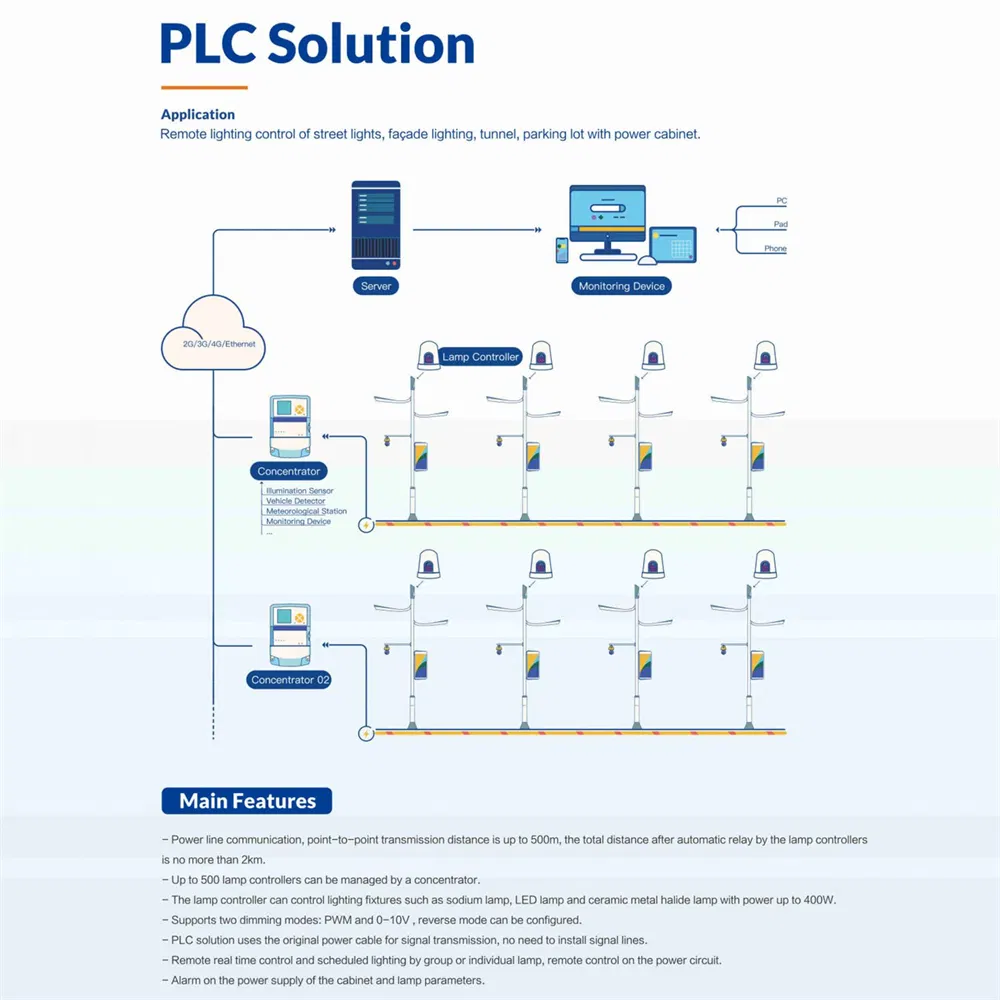

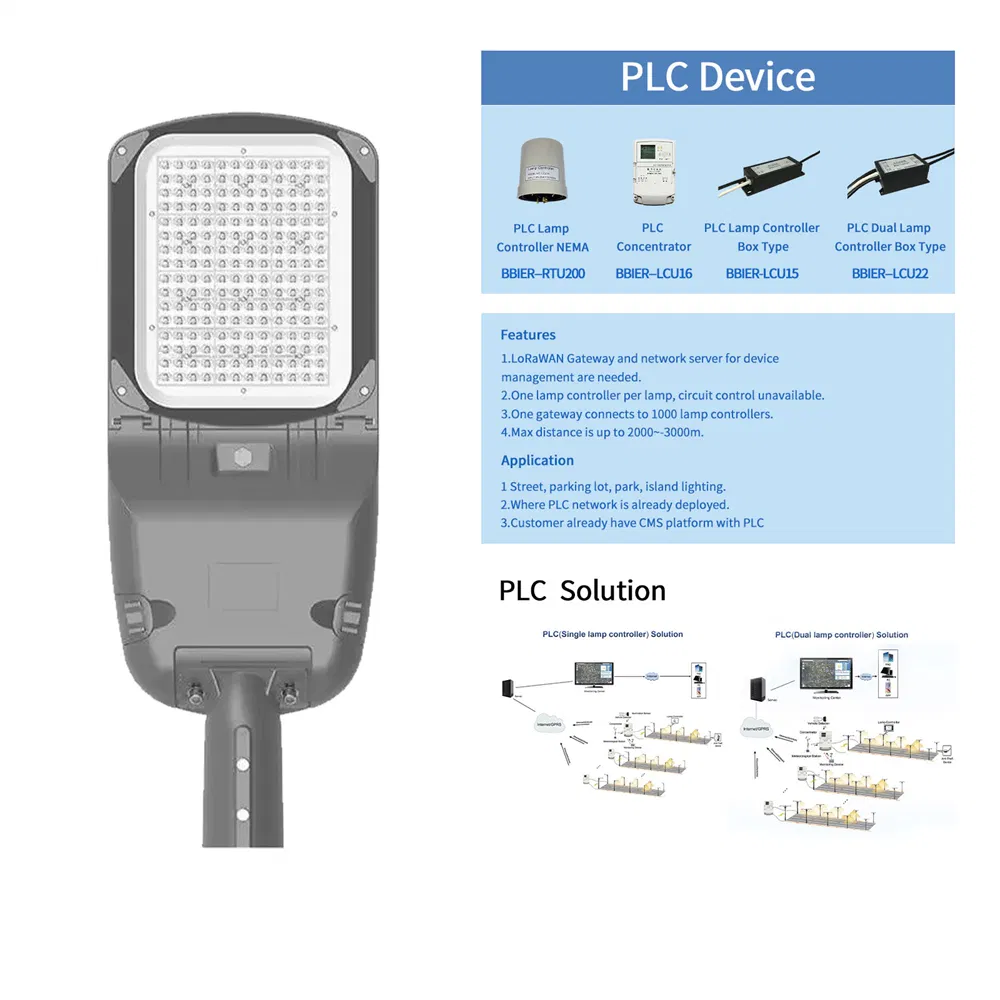

Product Name	Smart Lighting Street Light Centralized Controller
Light Source	SMD LED
Model Number	LCU51LDS-Z
CRI	>80
Certification	EMC, RoHS, CE, FCC, SAA
Dimming Interface	PWM and 0-10V / DALI
Sensor Options	GPS, Tilt detection, Microwave Sensor
Microwave Settings	Brightness 100%, Sensitivity 75%, Hold time 5 min, Illumination 50 LUX

📜

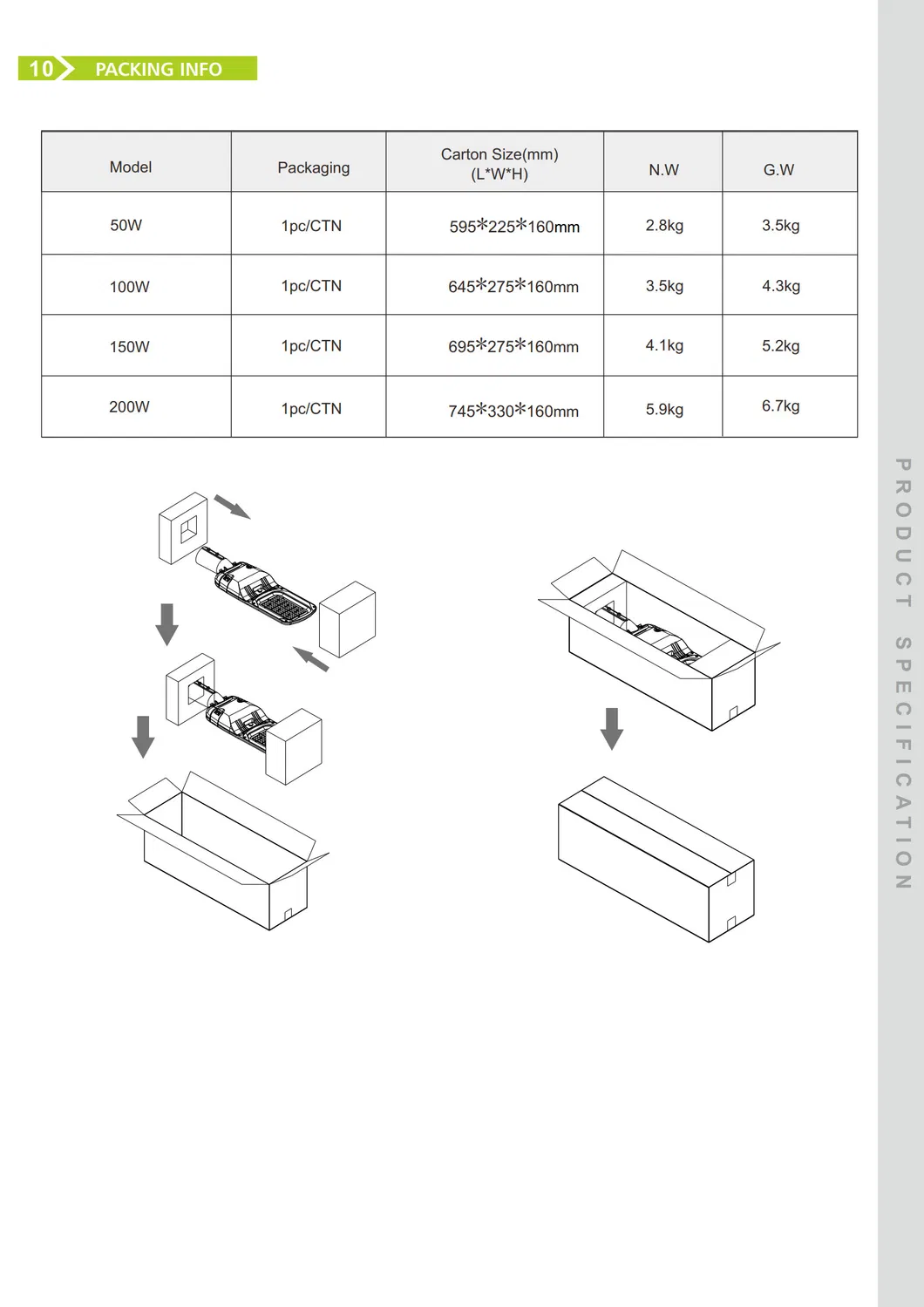

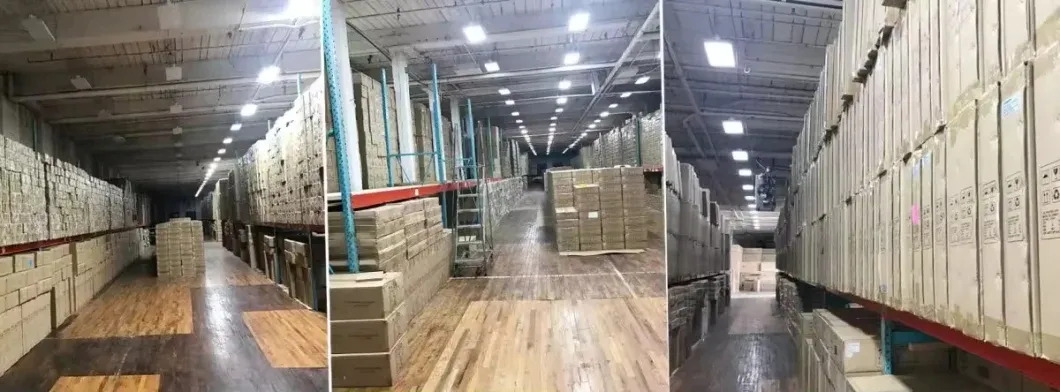

Certifications & Packaging

🔧

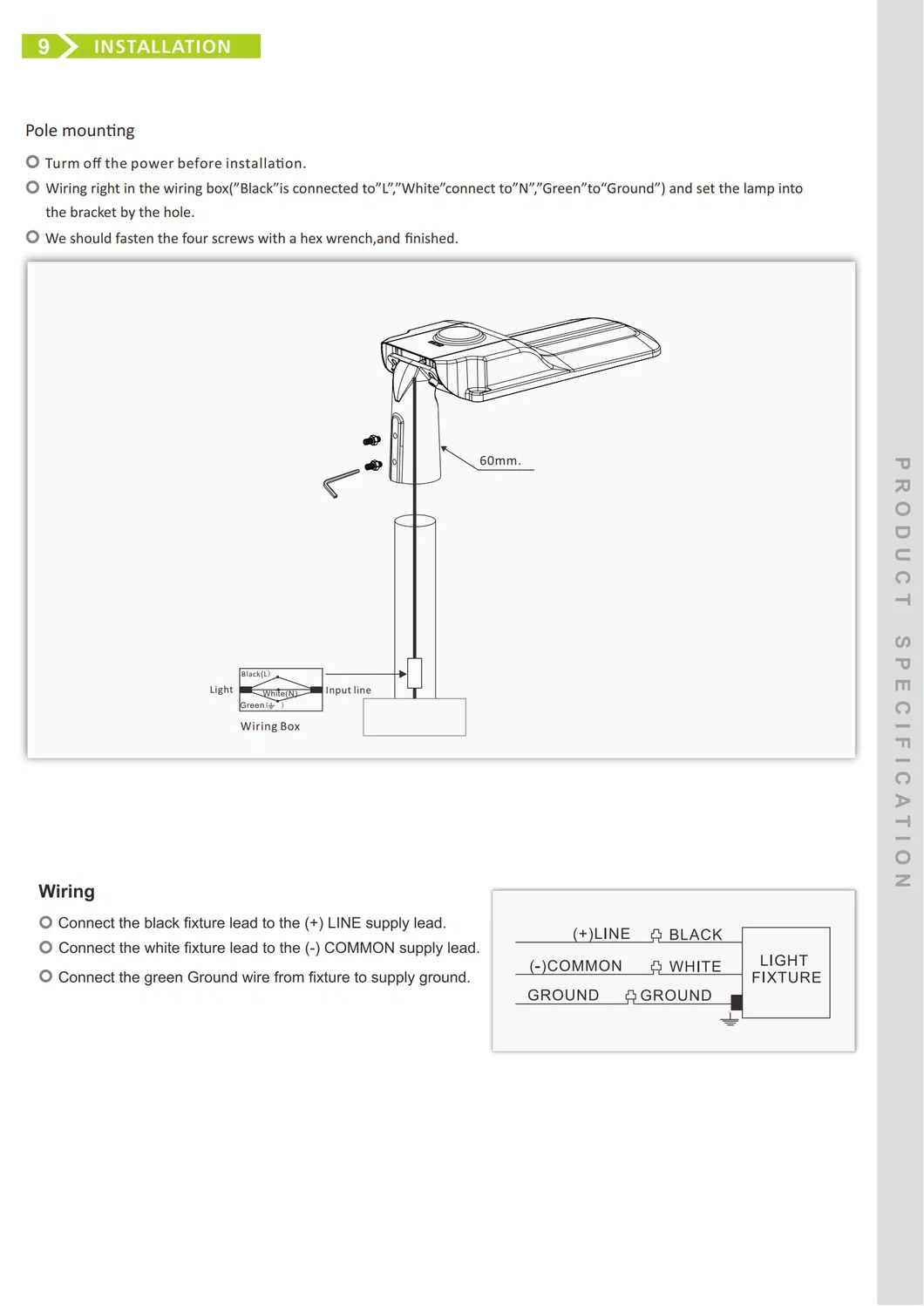

Installation Instructions

🏢

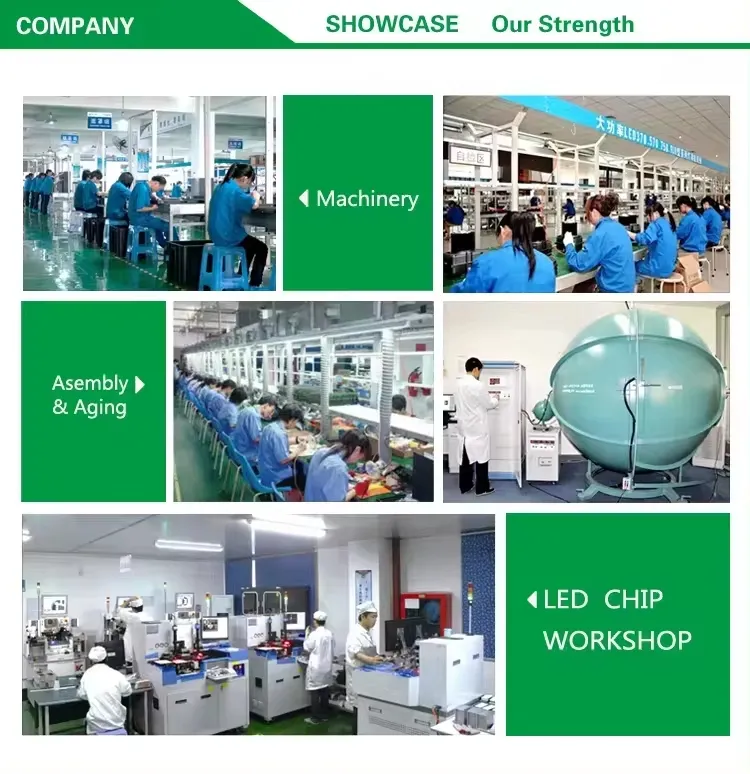

Professional Manufacturing

Our facility is an international photoelectric technology enterprise specializing in developing, designing, and producing high-performance LED products. We provide professional lighting engineering solutions and integrated services with a focus on smart control lighting and energy-saving techniques.

Equipped with a strong R&D team and complete production lines, we have achieved numerous patents in optics, thermal conduction, and structural design. Our monthly production capacity exceeds 10,000 units, ensuring reliable supply for global markets including North America, Europe, and Asia.

❓

Frequently Asked Questions

1. What is the energy-saving capability of this LED system?

This system can save between 70% and 80% of energy compared to traditional lamps, thanks to high-efficiency LED chips and smart driver technology.

2. How durable is the lamp housing?

The lamp features a die-cast aluminum housing that is anti-corrosion and electrophoresis processed, making it suitable for harsh environments, including seaside locations.

3. What smart control options are available?

The lighting system supports remote ON/OFF, PWM and 0-10V dimming, motion sensors, photocell sensors, and real-time electrical parameter monitoring.

4. What is the expected lifespan and warranty?

The system has a reliable life of approximately 50,000 hours and comes with a 5-year standard warranty.

5. Is the product certified for international use?

Yes, the products carry multiple certifications including CE, ETL, RoHS, FCC, and SAA, ensuring compliance with global safety and quality standards.

6. What types of outdoor lighting products do you offer?

We offer a wide range of outdoor solutions including LED Solar Lights, Garden Lights, Stadium Lights, Shoebox Street Lights, High Bay Lights, and Explosion Proof lights.
