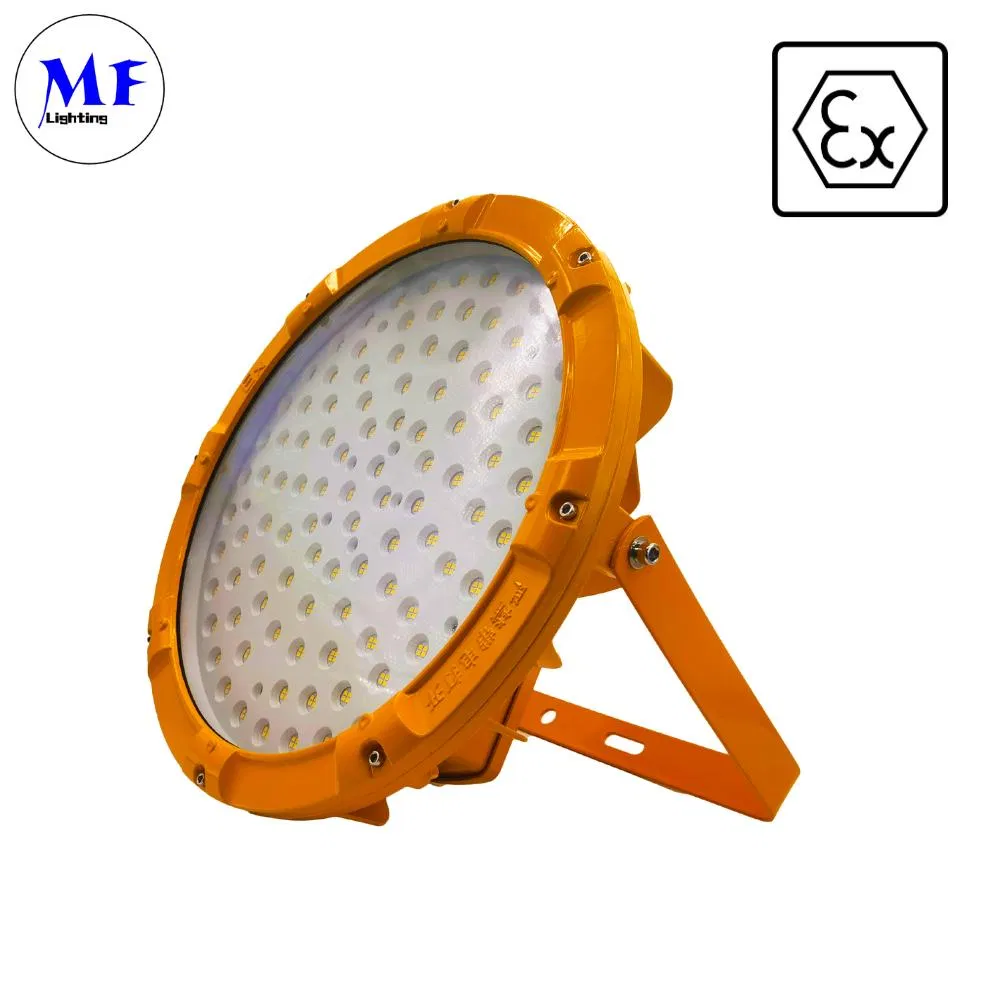

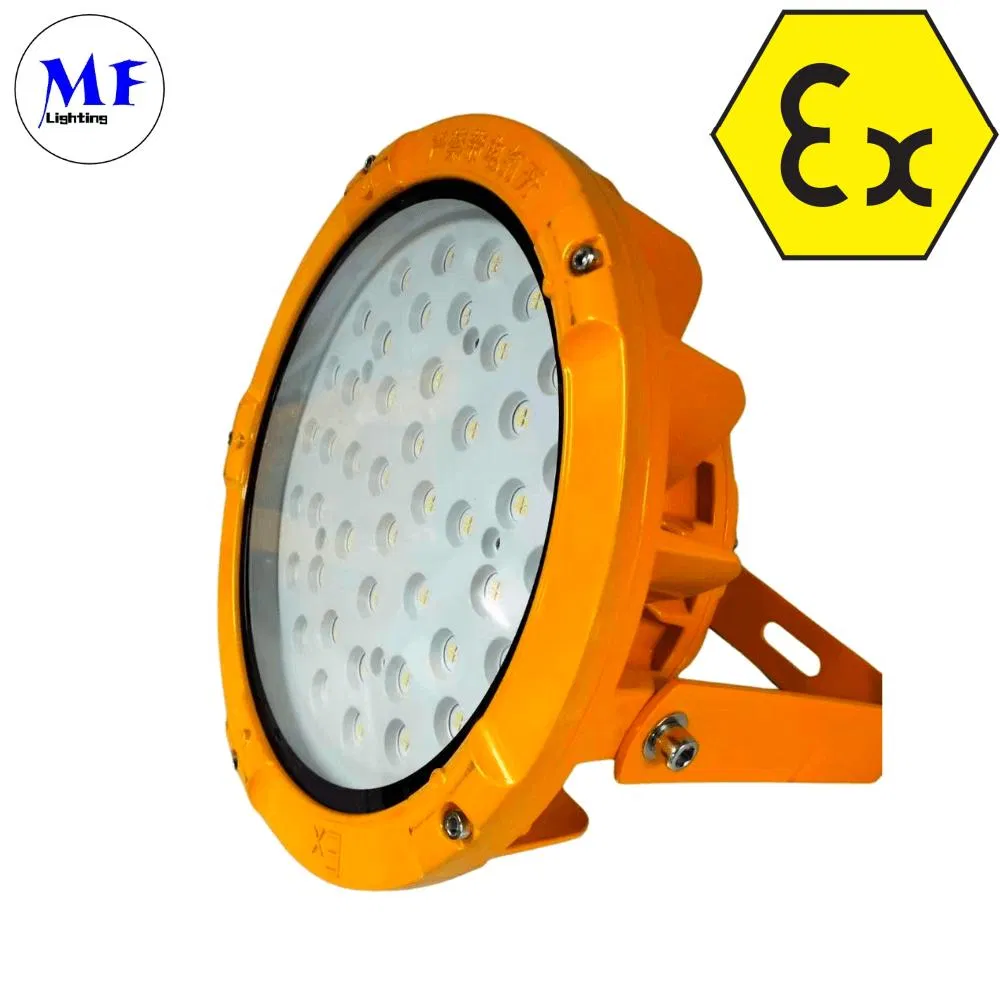

Factory Price 50W/100W/150W/200W/300W Atex Approved LNG Light Oil Gas Industry Light Residential Industrial Filed LED Explosion-Proof Light
Product Description
📋
Basic Information
Model NO.
EX-XXWQ1ZDA
Input Voltage
AC100-277V 50/60Hz
Power
60W-200W
Color Temperature
3000K/4000K/5000K/5700K
LED Brand
Sosen
Certification
ATEX, IECEx, CE, RoHS, ETL
Luminous Flux
140lm/W
IP Rating
IP66
IK Rating
IK10
Warranty
5 Years
⚡
Product Overview
Atex Approved LNG/Gas Station Lighting Residential Industrial LED Explosion-Proof Light
Marking Atex:
II 2 G Ex nr IIC T6 GCIl 2 D Ex tb IIIC T80 Db Ip66
Marking IECEX:
Ex nr IIC T6 GCEx tb IIIC T80 Db Ip66
📊
Specifications
| Item | Power | Color Temp | Voltage | Lumens | Warranty | CRI |
|---|---|---|---|---|---|---|
| EX-50W Q1YZDA | 50w | 2200K-7000K | AC100-277V | 7000 | 5 years | 80 |
| EX-100W Q1YZDA | 100w | 14000 | ||||
| MF-EP01-150W-G1 | 150w | 21000 | ||||
| EX-200W Q1YZDA | 200w | 28000 | ||||
| EX-300W Q1YZDA | 300W | 42000 |
* "Q1,Q2"=Product code, "Y"=D/N (Dimmable/Non-dimmable), "Z"=CCT (2200-7000K), "D"=Beam angle (40°, 60°, 90°, 120°)
🛠️
Installation Instructions

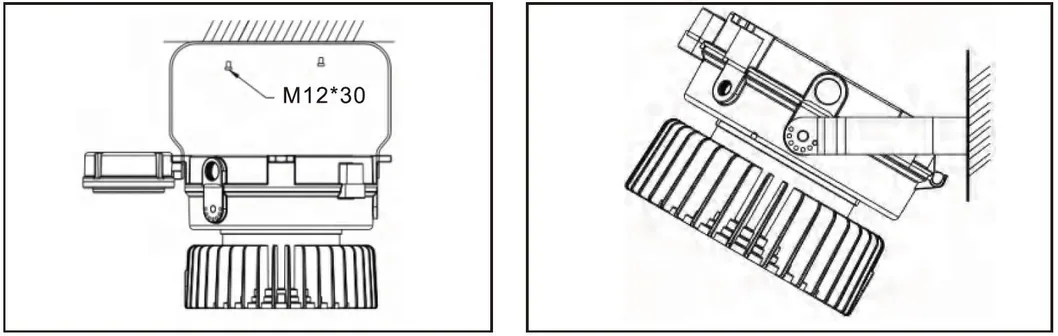

No.1 Bracket Ceiling Mounting & No.2 Bracket Wall Mounting

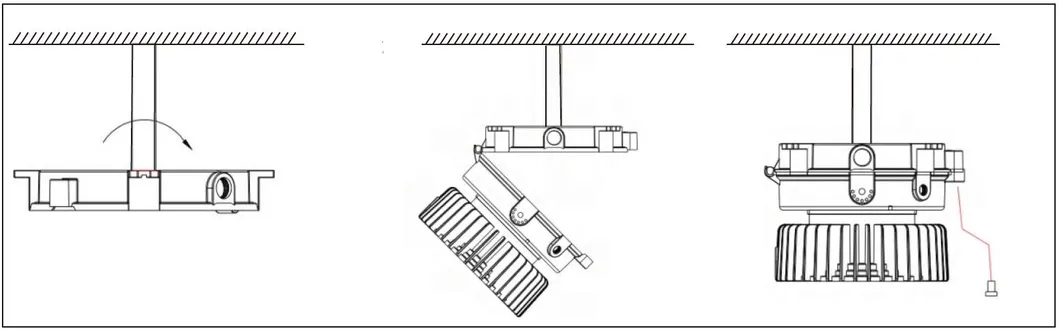

No.3 Pole Mounting
📸

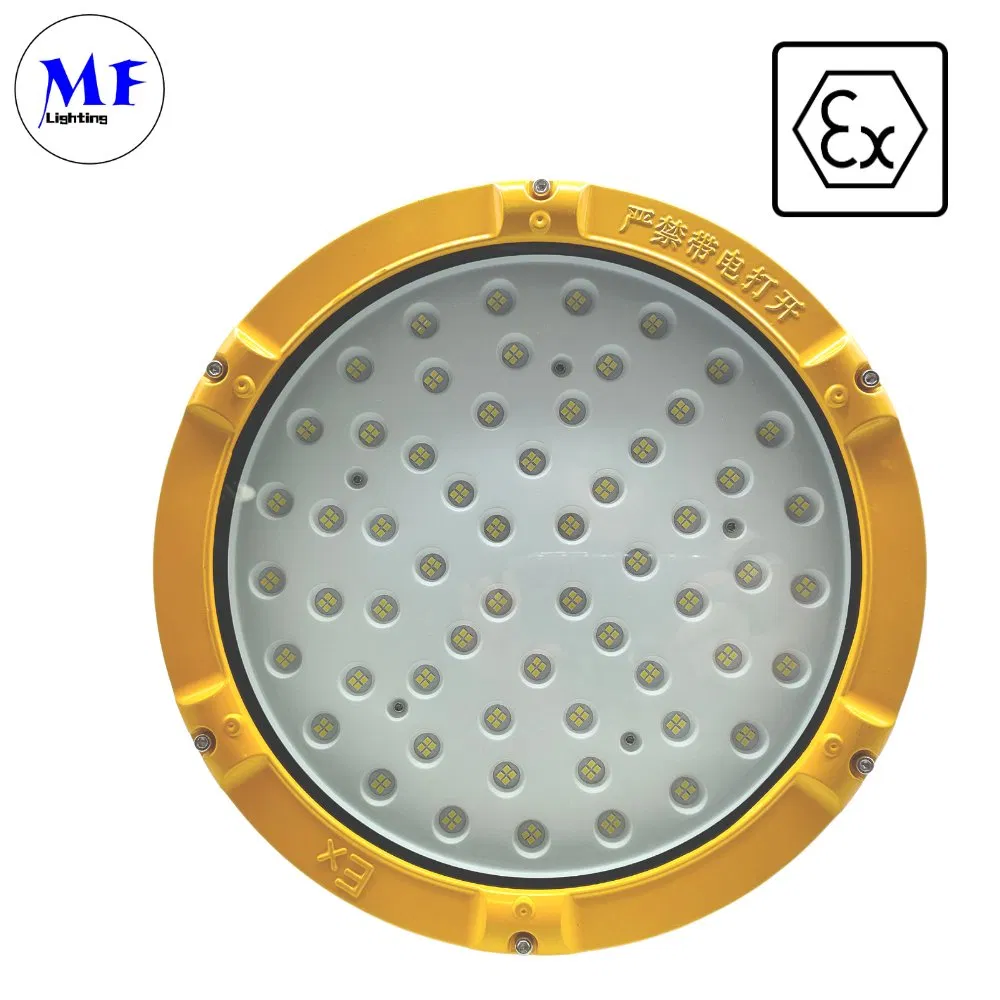

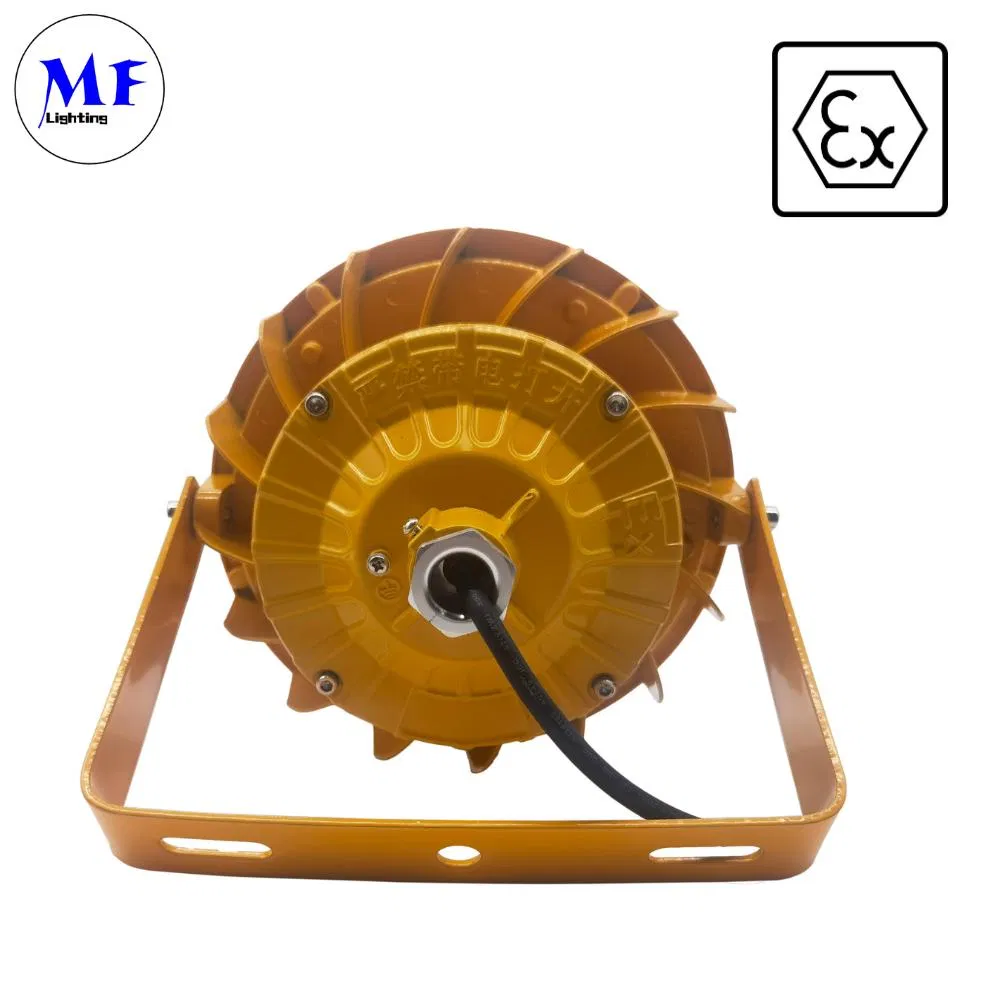

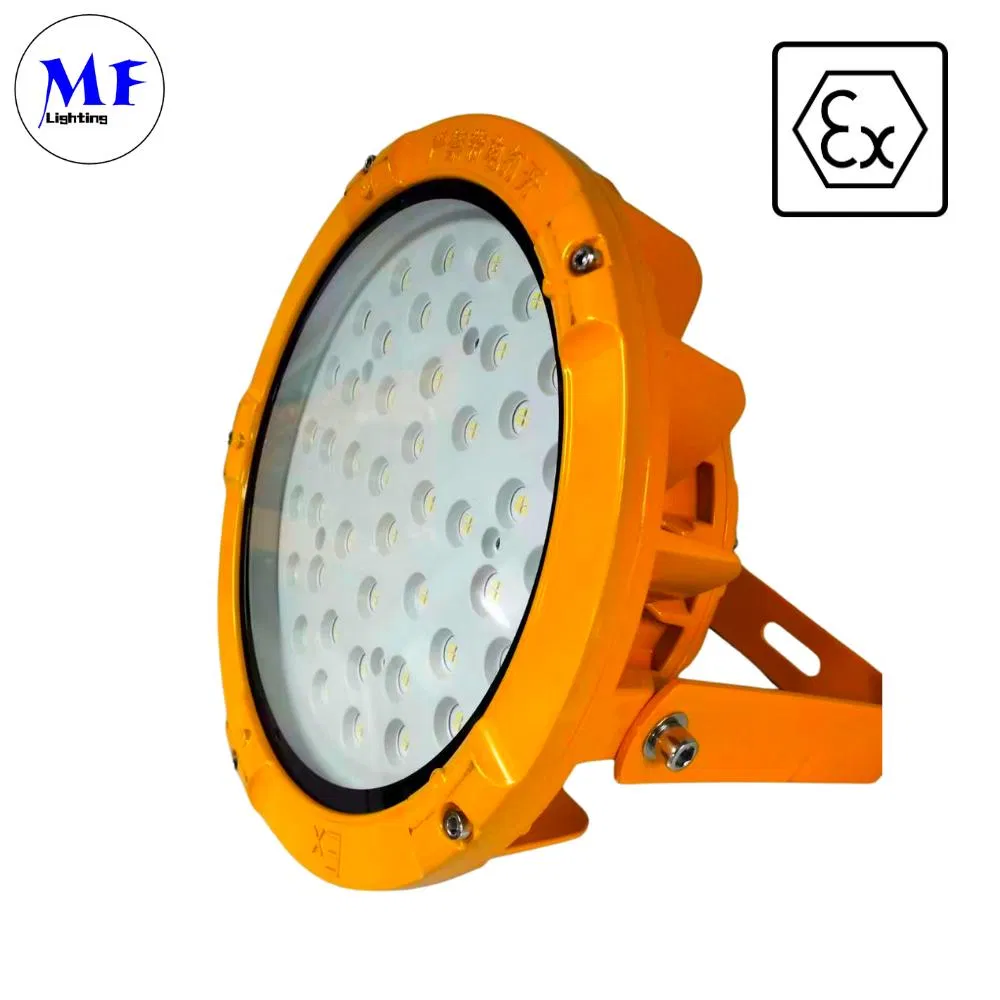

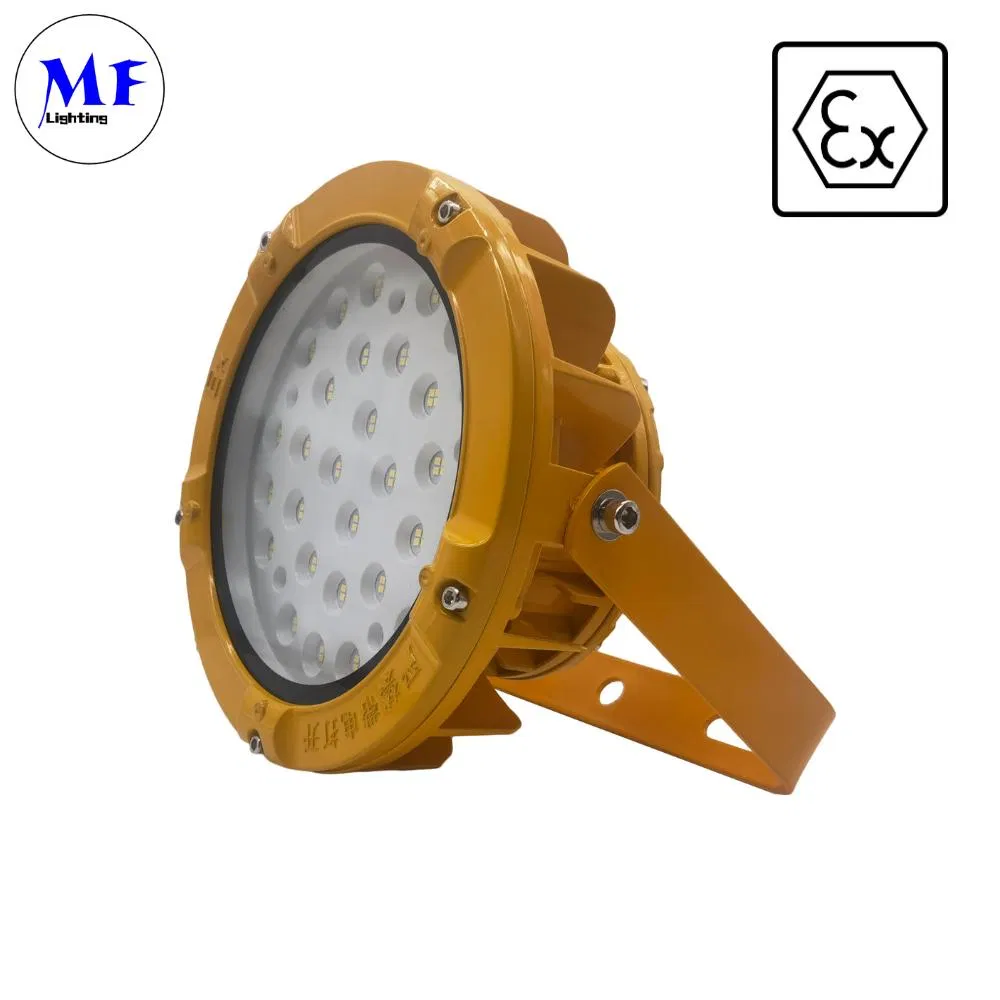

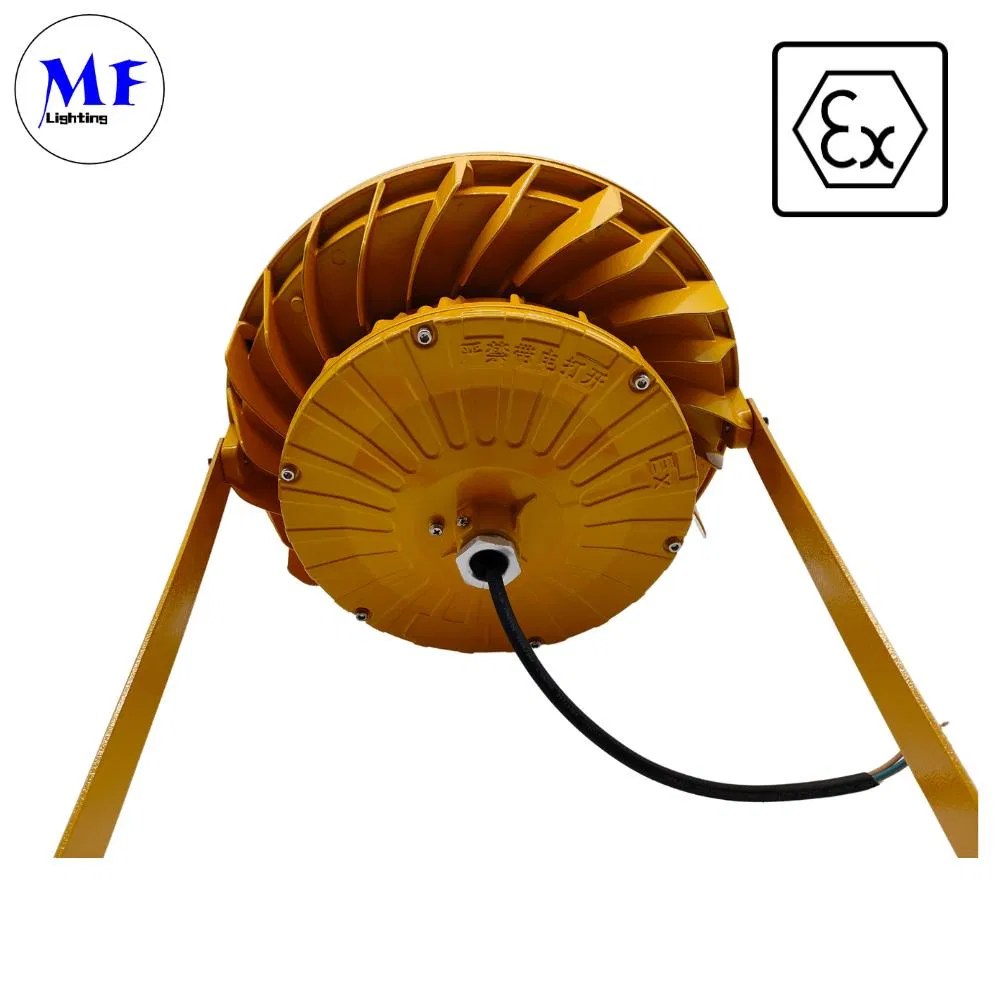

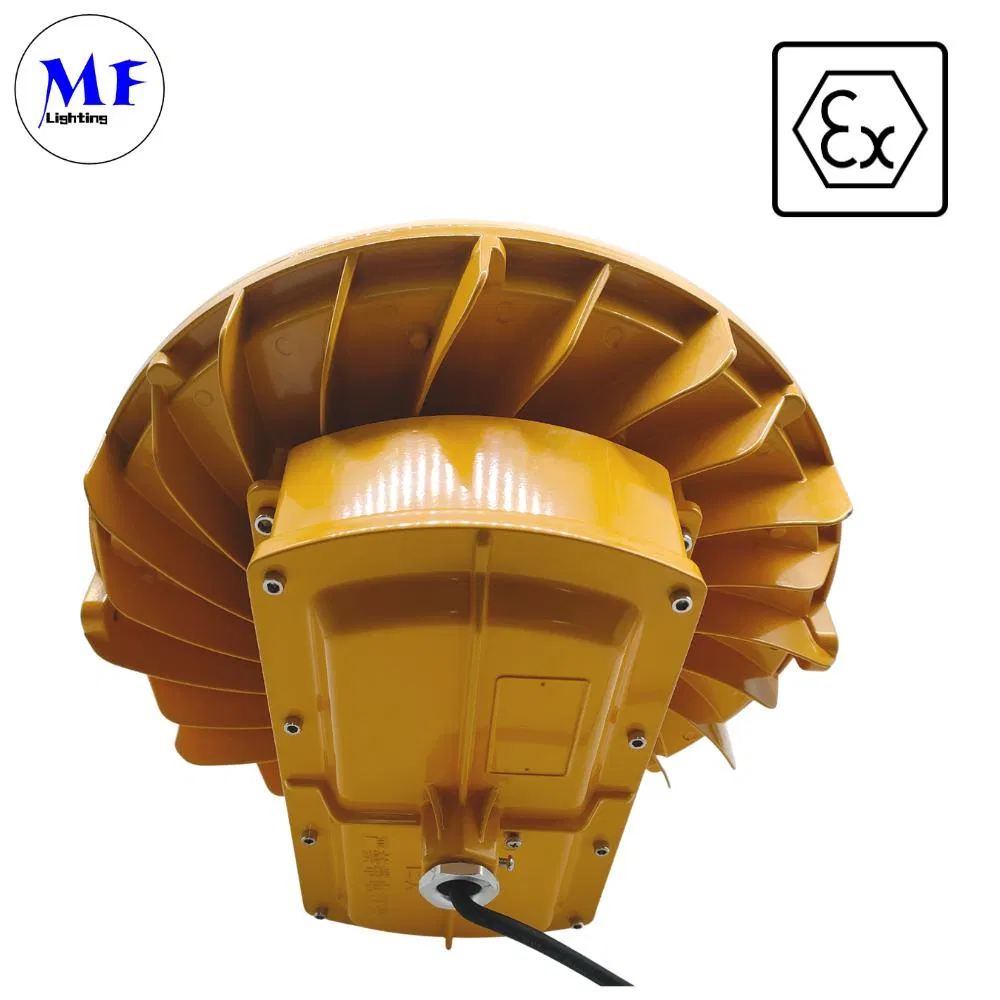

Detailed Photos

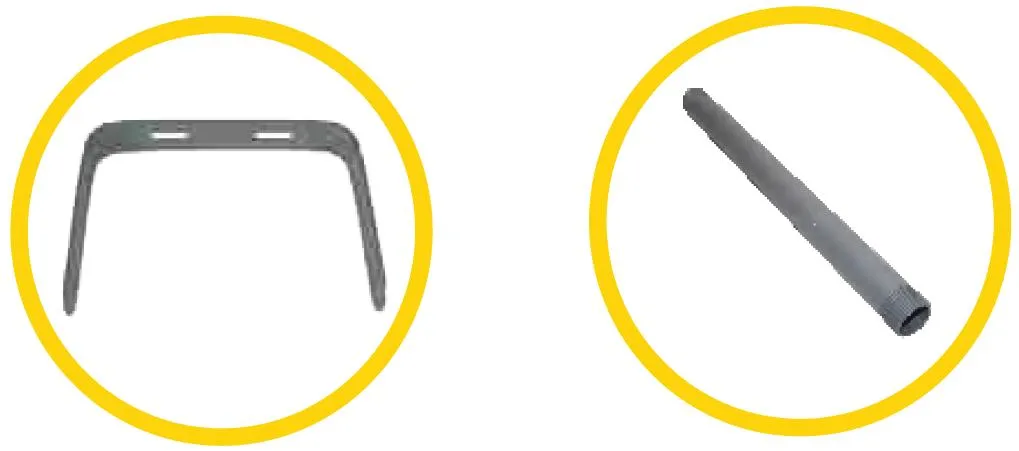

Accessories: Bracket & Straight Pipe
📐

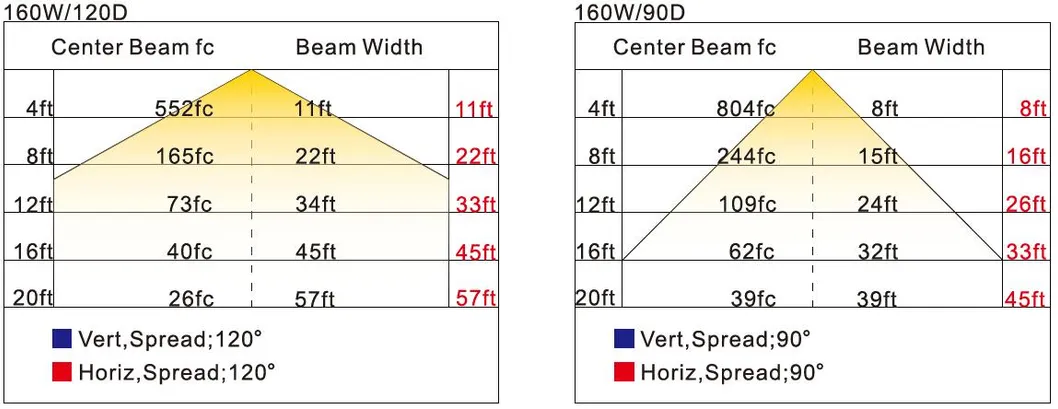

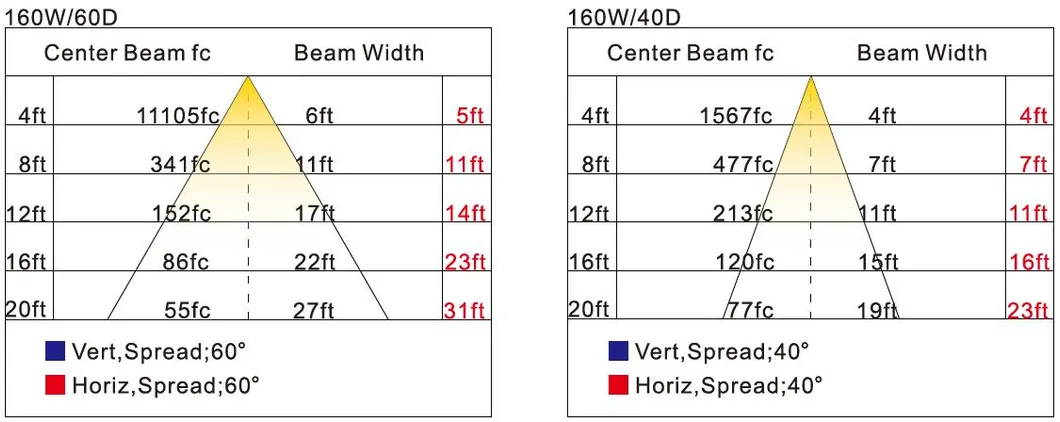

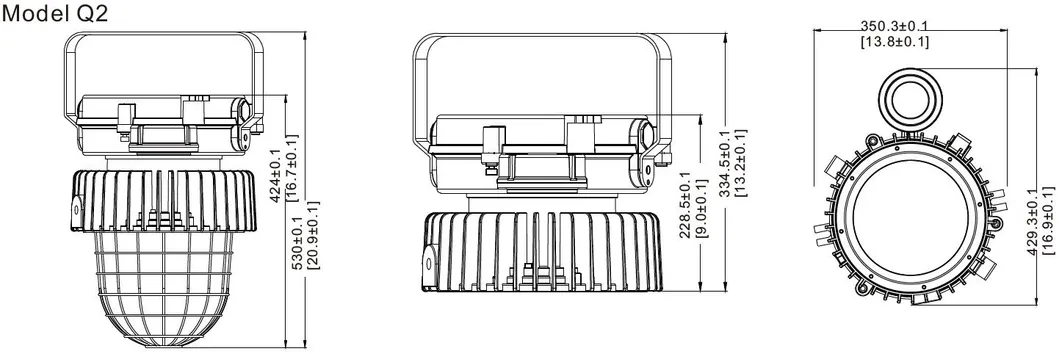

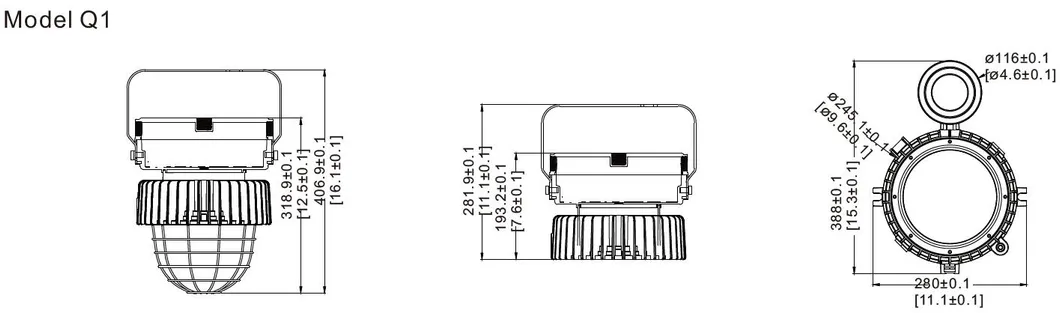

Photometry & Dimensions
📦
Packaging & Shipping
| Item | Qty/Carton | Packing Size (mm) | N.W (KG) | G.W (KG) |
|---|---|---|---|---|
| Q1 | 1 | 530*520*380 | 10.5 | 12.5 |
| Q2 | 1 | L512*W432*H345 | 12.6 | 15.0 |
Available via Sea, Air, Rail, and International Express
🏭

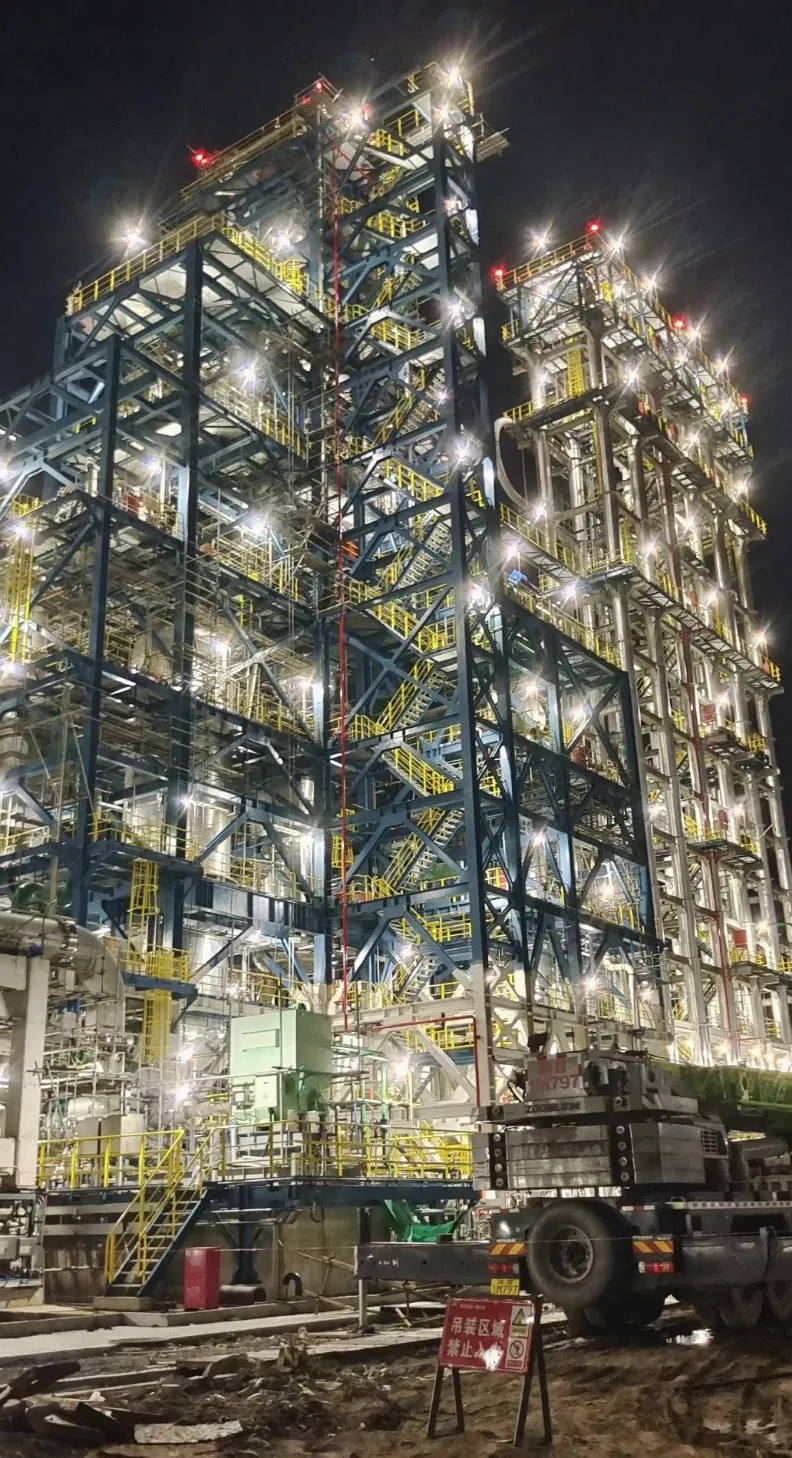

Applications
- Refineries & Fuel Depots: Resistant to flammable gases and vapors.
- Marine Vessels: Durable enough for harsh marine environments.
- Chemical Processing: Withstands corrosive chemicals and conditions.
- Food Processing: Moisture-resistant and handles high-pressure washdowns.
- Mining: High durability for underground operations.
- Wineries: Flicker-free light for accurate color rendering.
❓
Frequently Asked Questions
What is the standard warranty for these explosion-proof lights?
These LED explosion-proof lights come with a standard 5-year warranty, ensuring long-term reliability and performance in demanding environments.
Which certifications do these lights hold for hazardous areas?
Our lights are fully certified with ATEX and IECEx markings (e.g., II 2 G Ex nr IIC T6 Gc), making them safe for use in explosive gas and dust atmospheres.
Are these fixtures suitable for marine or high-humidity use?
Yes, with an IP66 waterproof rating and IK10 impact resistance, these lights are ideal for marine vessels, wineries, and other high-humidity or dusty locations.
What are the available mounting options?
The lights support multiple installation methods, including bracket ceiling mounting, bracket wall mounting, and pole mounting to suit various industrial needs.
Can the color temperature and beam angle be customized?
Yes, we offer a wide range of color temperatures from 2200K to 7000K and various beam angles including 40°, 60°, 90°, and 120° to meet specific project requirements.
What is the operating temperature range?
These fixtures are designed to operate efficiently in extreme conditions, with a tested operating temperature range of -30ºC to 50ºC.
