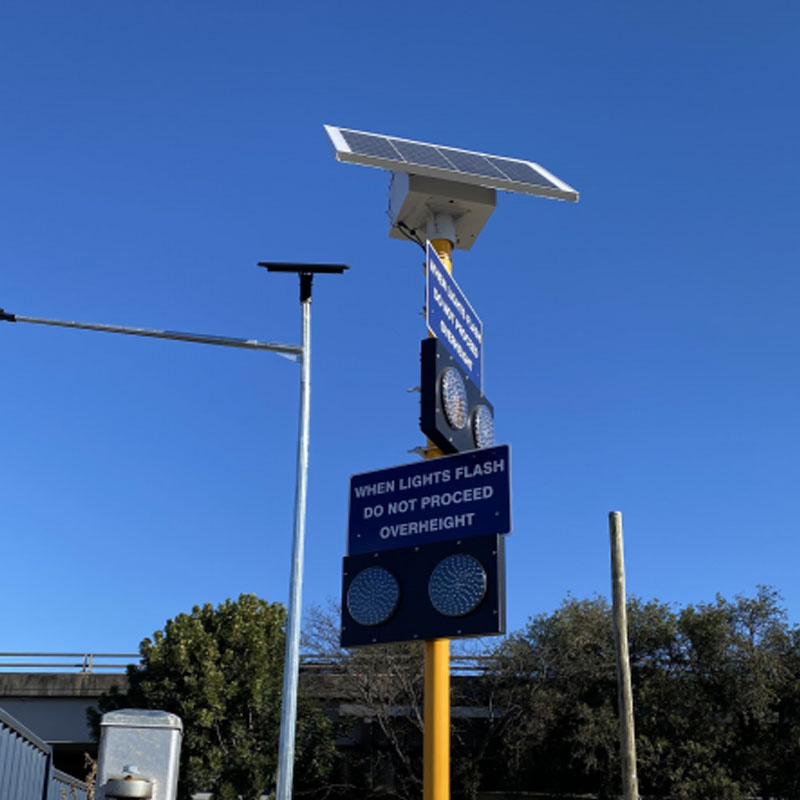

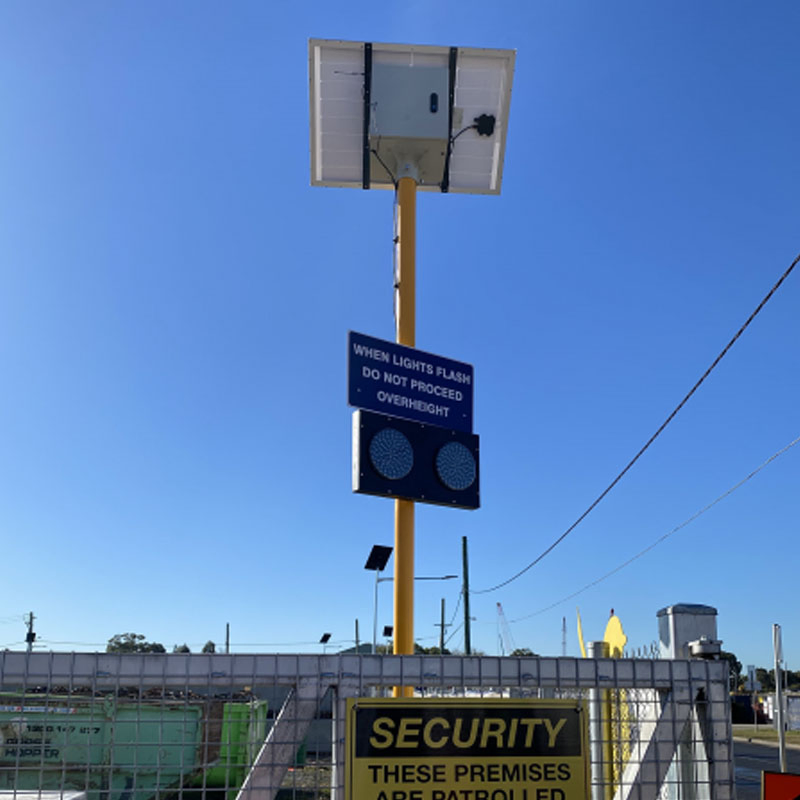

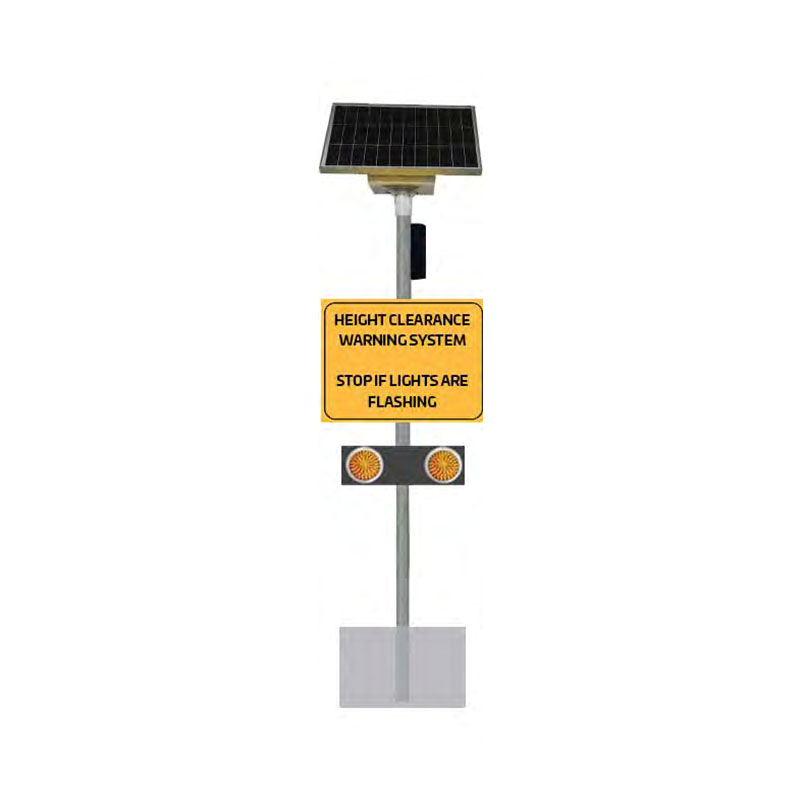

Infrared Vehicle Height Warning System for Municipal Infrastructure
Product Description
Model NO.
CGXZ
Material
Aluminum
Certification
CE, RoHS
Protection
IP67
Solar Panel
80W
Battery Type
Lithium-Ion
Battery Specs
48ah 12V (576wh)
Light Source
SMD LED
Warranty
2 Years
Origin
China

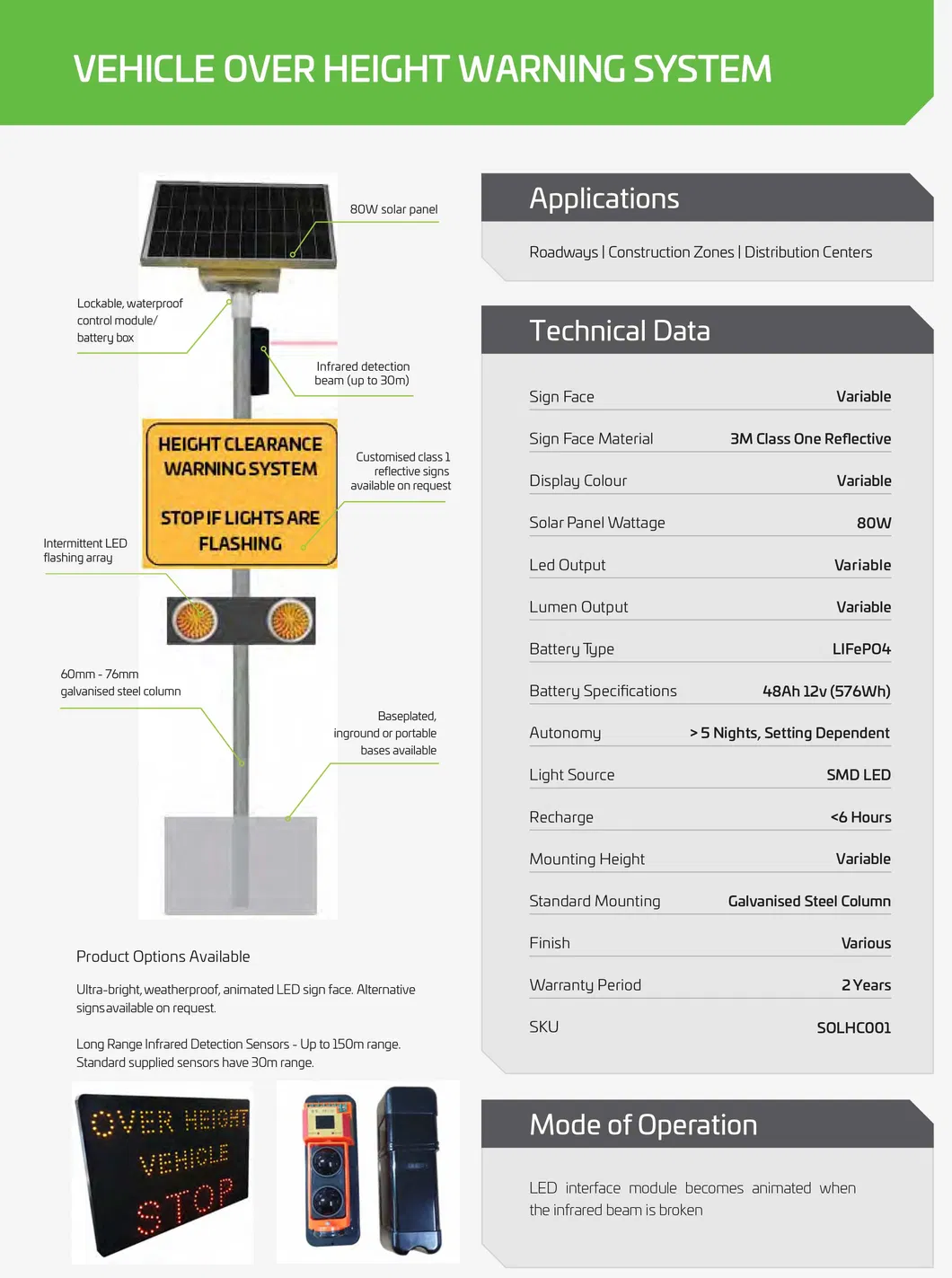

Solar-Powered Vehicle Over Height Warning System
Key Features:
✓
80W Solar Panel: High-efficiency monocrystalline solar panel for off-grid operation, recharging in <6 hours.
✓
Infrared Detection: Long-range infrared beam (up to 150m, standard 30m) triggers LED warning when broken.
✓
SMD LED Warning: Intermittent, ultra-bright LED array with animated display for high visibility.
✓
LiFePO4 Battery: 48Ah 12V battery provides >5 nights of autonomy, ensuring 24/7 operation.
✓
Durable Construction: 60-76mm galvanized steel column with lockable, waterproof control module.
✓
Class 1 Reflective Sign: Customizable 3M Class One reflective sign face for maximum visibility.
Applications:
- Roadways & highways: Prevent vehicle collisions with low bridges and overpasses.
- Construction zones: Protect temporary structures and equipment.
- Distribution centers & warehouses: Safeguard loading bays and doorways.
- Smart cities: Integrate with traffic management systems.
| Solar Panel | 80W monocrystalline silicon |
| Battery | 48Ah 12V LiFePO4 (576Wh) |
| Detection Range | Up to 150m (standard 30m) |
| LED Output | Variable, ultra-bright SMD LEDs |
| Sign Material | 3M Class One Reflective |
| Waterproof Rating | IP65 |
| Mounting | Galvanized steel column (60-76mm) |
| Autonomy | >5 nights (setting dependent) |
How does the system detect over-height vehicles?
It uses an infrared beam; when broken by an over-height vehicle, the LED warning activates immediately.
Can it operate without grid power?
Yes, it is 100% solar-powered and equipped with high-capacity batteries providing over 5 nights of autonomy.
Is it suitable for temporary construction sites?
Absolutely. Portable base options are available for quick deployment and relocation as needed.
What is the maximum detection range?
The standard range is 30m, but optional long-range sensors can extend detection up to 150m.
Does it require professional installation?
No, the system is designed for easy setup with wireless components, minimizing installation time and complexity.
What is the warranty coverage?
We provide a 2-year warranty on the overall system, with 1-year coverage specifically for the battery.
