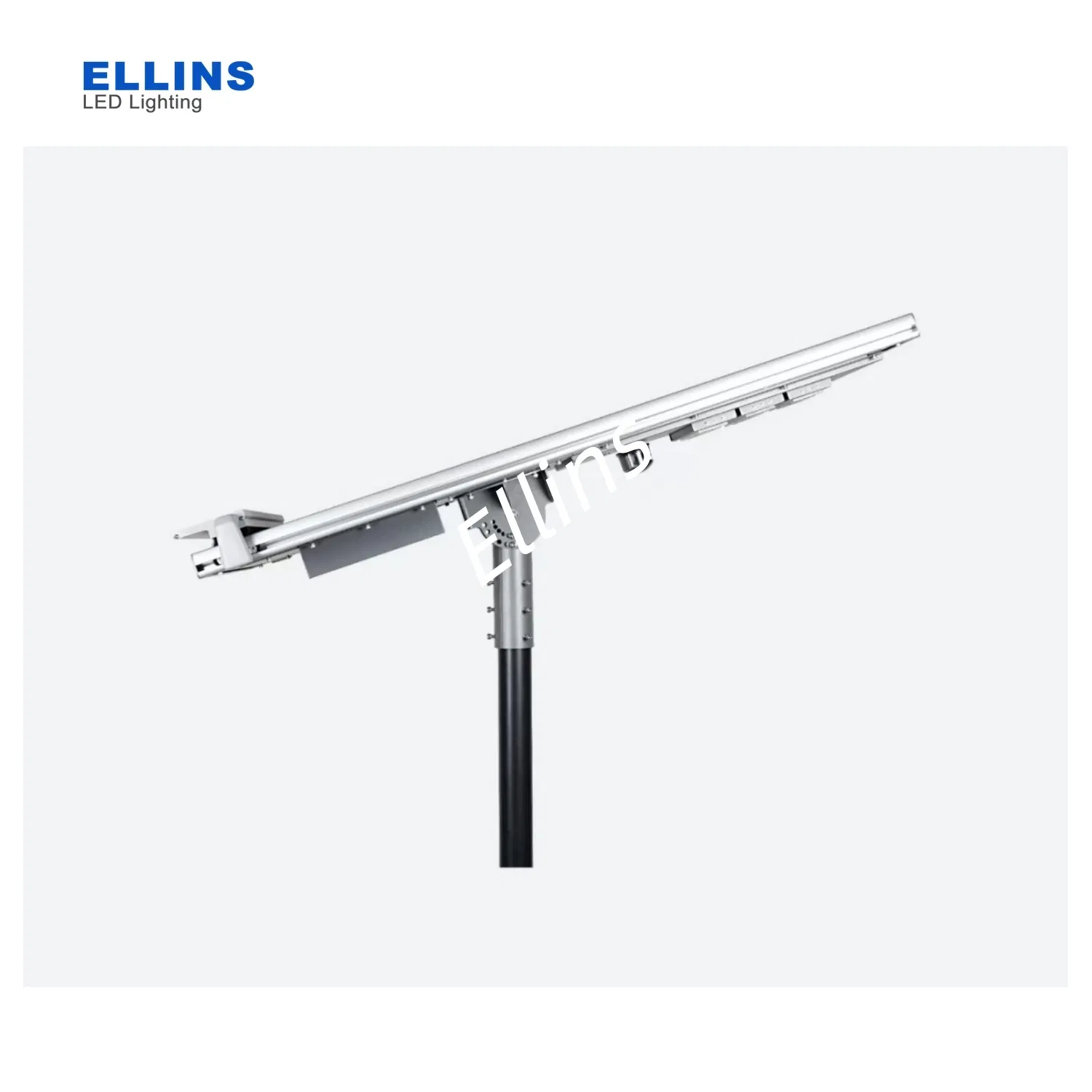

Intelligent Lora All in One Solar Garden Lamp 120W 180W Solar Street Light 200lm/W
Product Description

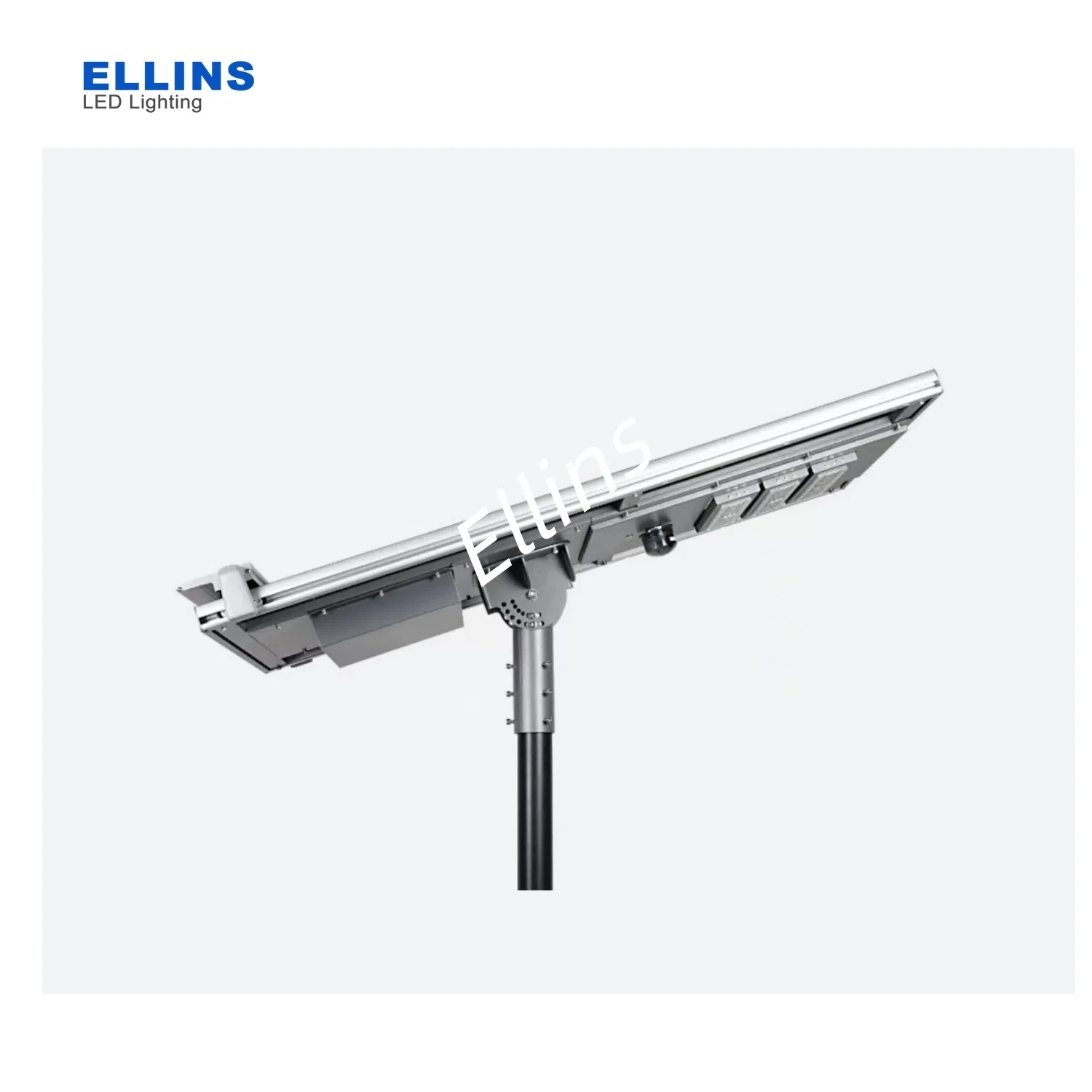

Smart Auto Cleaning All-in-one Solar Street Light - ELS ST3C
Key Features
✔ Integrated Design & Rugged Build
✔ Smart Power Management & Remote Control
✔ High Efficiency 230lm/w Performance
✔ Durable Automatic Cleaning System
Basic Information
| Model NO. | ELS-ST3C |
| Lamp Body Material | Aluminum |
| Power Options | 80W, 100W, 120W, 150W |
| Application | Square, Highway, Garden, Parking Lot |
| IP Rating | IP66 |
| Certification | CE, RoHS |
| LED Chips Brand | Bridgelux |
| LED Source | 210-230lm/W |
| Solar Panel | Monocrystalline (25 Years Lifetime, 21% Efficiency) |
| Lifetime | 100,000 Hours |
Product Parameters
| Parameter | 80W | 100W | 120W | 150W | 180W | 200W |
|---|---|---|---|---|---|---|
| Battery | 72AH | 78AH | 84AH | 96AH | 126AH | 144AH |
| Solar Panel | 80W | 90W | 120W | 150W | 200W | 200W |
| Mounting Height | 7~9m | 9~10m | 9~12m | 9~12m | 9~12m | 9~12m |
| Voltage | 12/24V | |||||
| Lumen | 230lm/w | |||||
| Beam Angle | 140*70° | |||||
Our Advantages
01

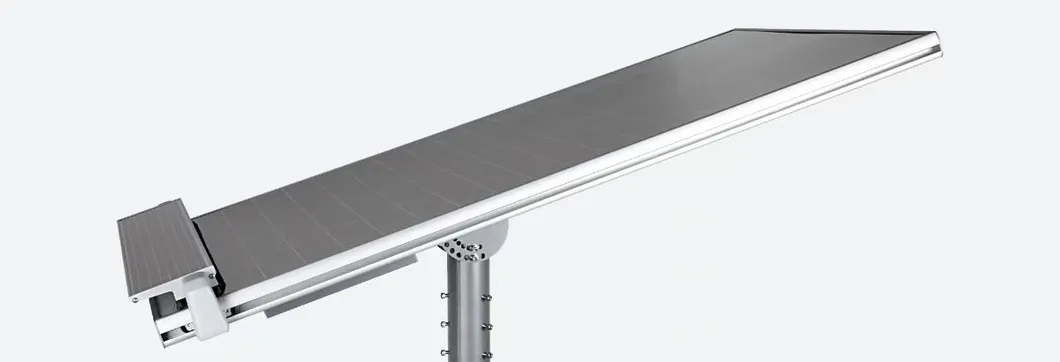

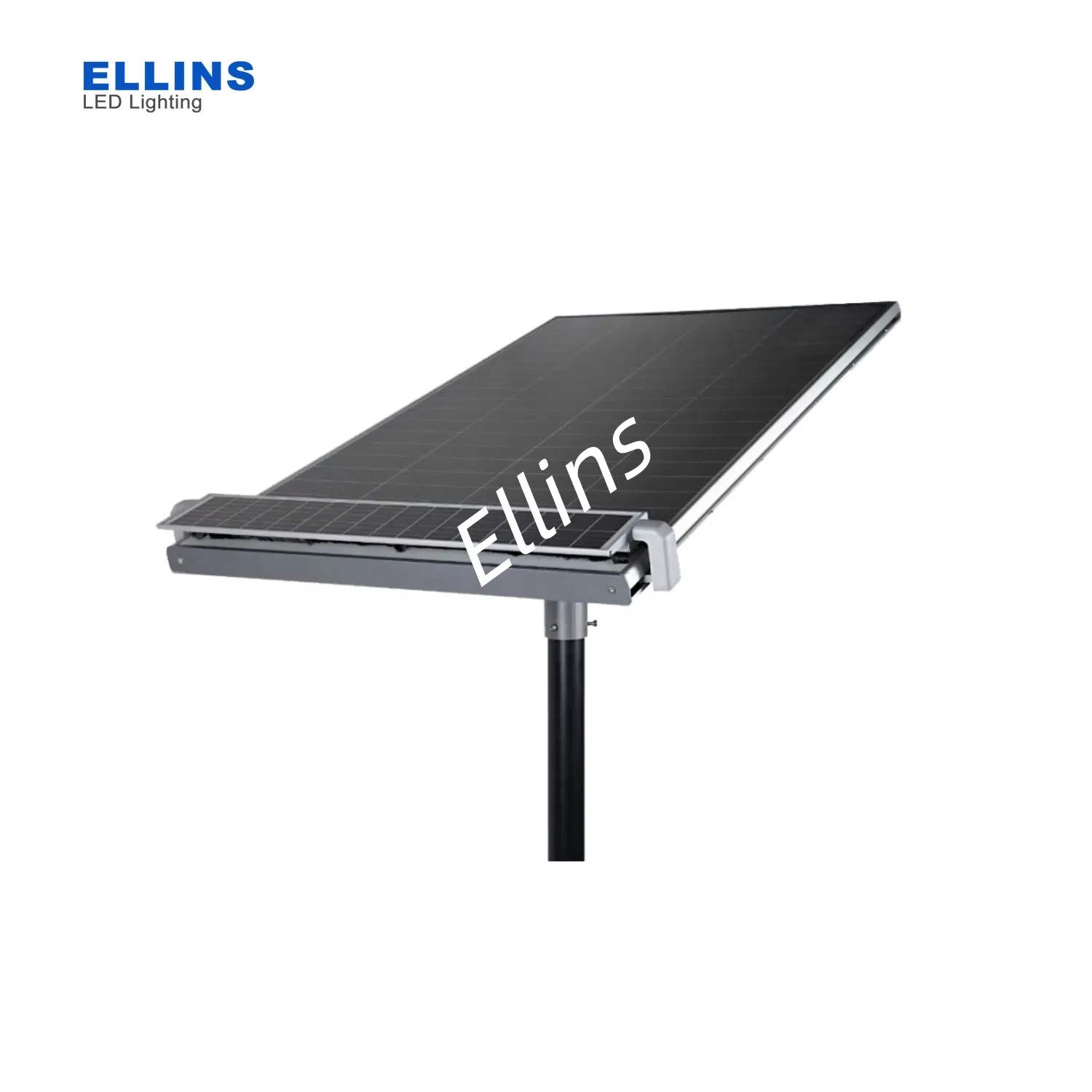

High-efficiency Monocrystalline Silicon Solar Panel
Equipped with an auto-cleaning system. Conversion rate reaches 23%, 20%-30% higher than polycrystalline silicon. Cleaning cycle operates twice a day.
02

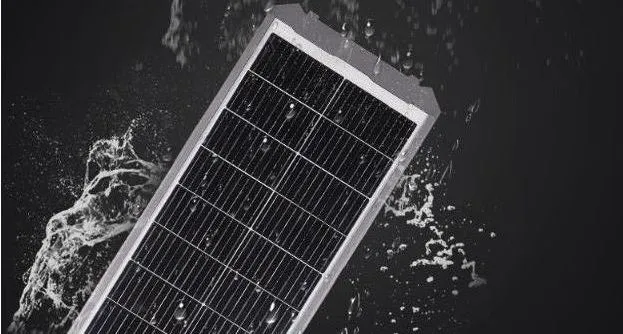

Die-casting Aluminum Housing
IP66 Waterproof, Anti-corrosion, and professional optical lens for road lighting.
03

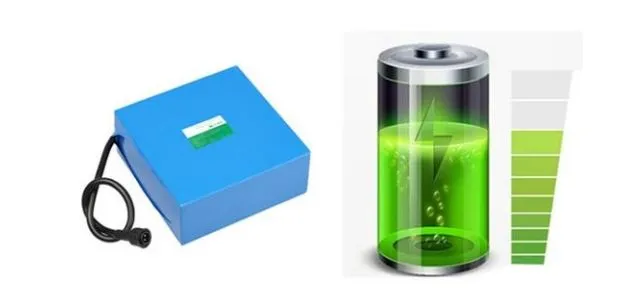

A Class LiFePO4 Battery
Deep cycle more than 5000 times, high temperature resistance, explosion-proof and safe.
04

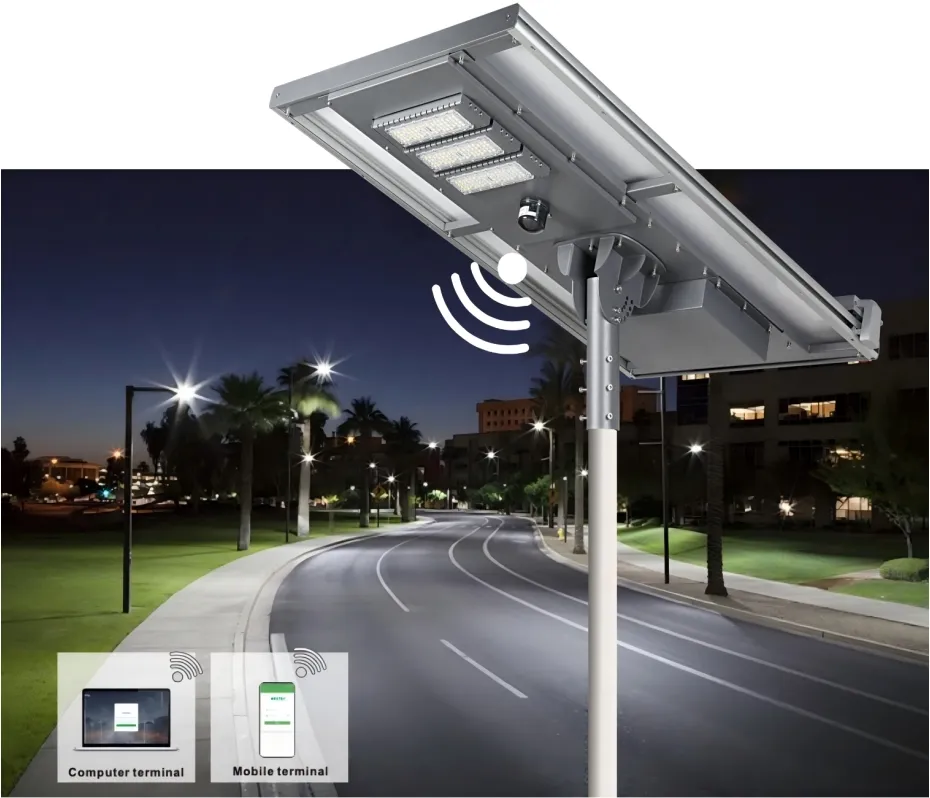

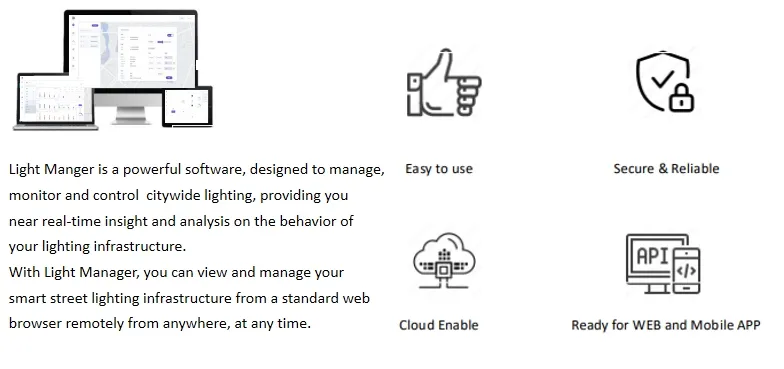

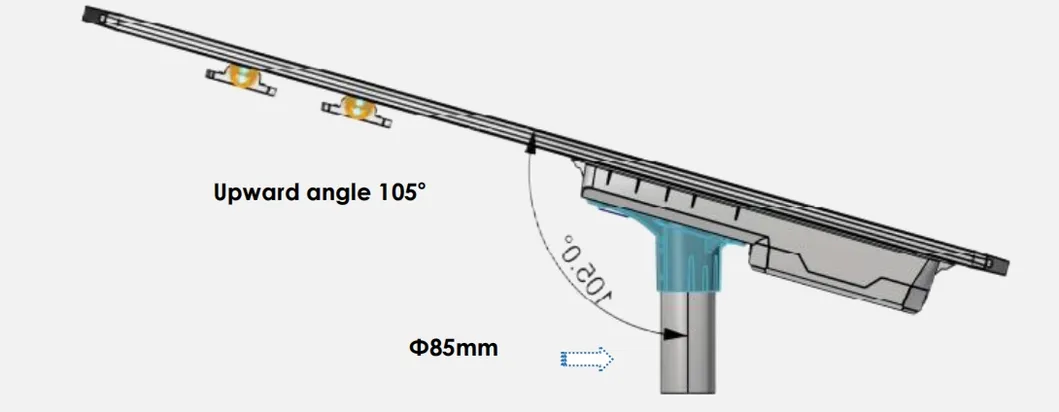

Smart Management & Adjustable Lens
Wireless remote management software for map monitoring, fault management, and timer dimming.

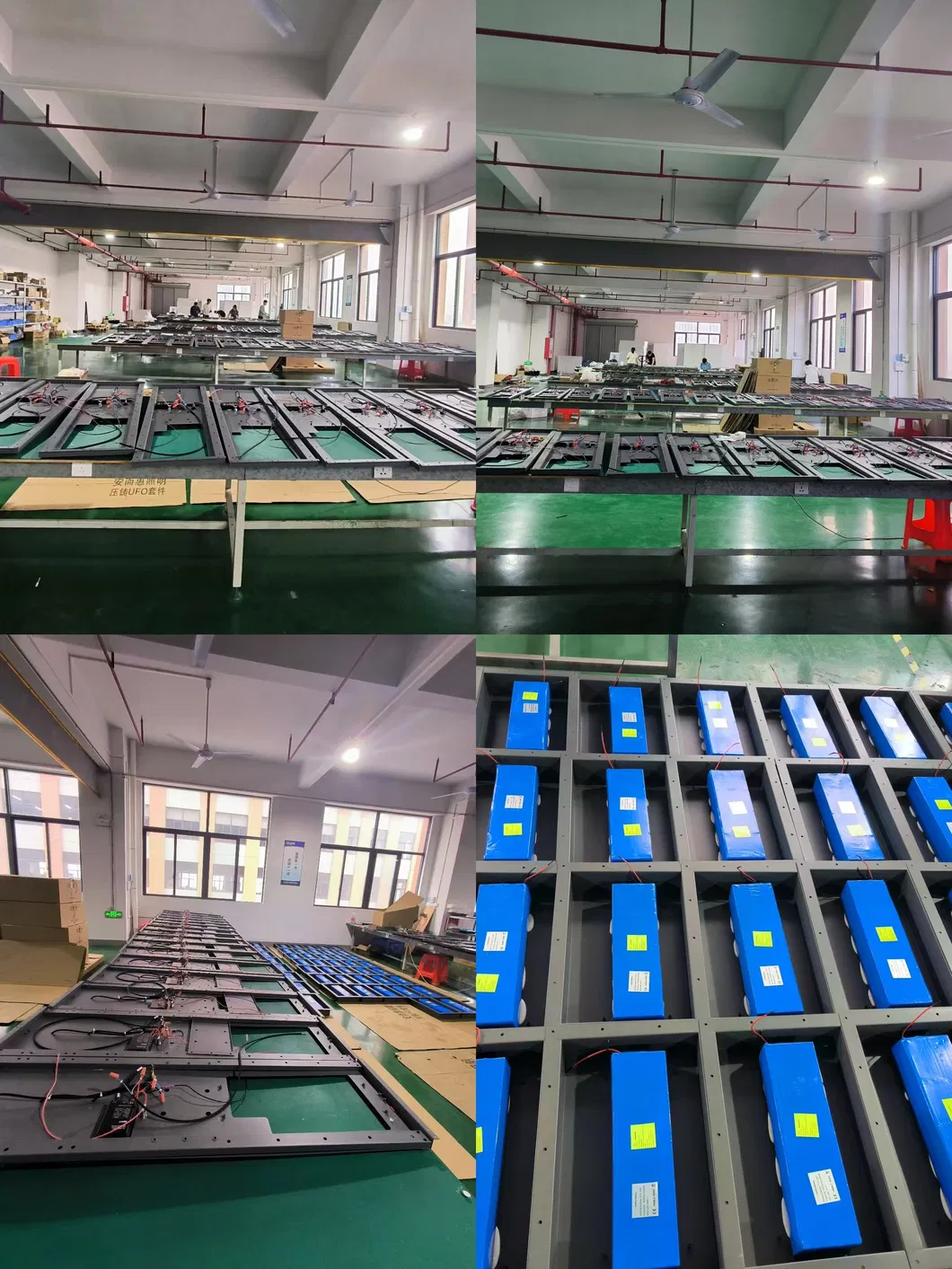

Production & Application

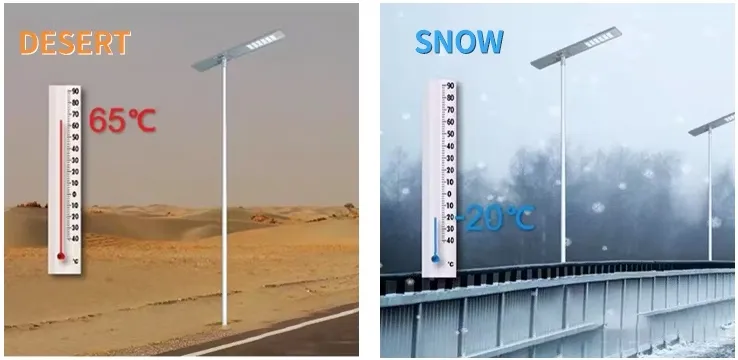

Widely applied in high temperature and diverse environments.
Precautions
- 📍 1. Handle with care during installation; avoid collisions.
- 📍 2. Ensure no tall buildings or trees shield the solar panels from sunlight.
- 📍 3. All installation screws must be tightened securely.
- 📍 4. Internal parts must be replaced with identical specifications.
- 📍 5. Wiring must strictly follow the diagram; observe positive/negative poles.
Certifications
Shipping & Warranty
Shipping: Worldwide delivery via DHL, UPS, FEDEX, EMS, Air, or Sea. Items typically ship within 2-7 business days after payment.
Warranty: 3-5 years manufacturer's limited warranty for defective items. All items are tested before shipping.
Frequently Asked Questions
Q1: How does the automatic cleaning system work?
A: The system is programmed to clean the solar panel twice daily (morning and afternoon), ensuring maximum sunlight absorption by removing dust and debris.
Q2: What is the benefit of using LiFePO4 batteries?
A: LiFePO4 batteries offer a deep cycle of over 5000 times, superior high-temperature resistance, and are explosion-proof, providing a longer and safer lifespan.
Q3: Can the light operate in extreme weather conditions?
A: Yes, the ELS-ST3C is IP66 rated for waterproof protection and can operate in temperatures ranging from -25ºC to +65ºC.
Q4: What is the efficiency of the solar panels used?
A: We use high-efficiency Monocrystalline Silicon solar panels with a conversion rate of up to 23%, which is significantly higher than standard polycrystalline panels.
Q5: Is remote management available for these lights?
A: Yes, it includes wireless remote management software that allows for real-time monitoring, map tracking, fault management, and customized dimming schedules.
Q6: What is the typical lifespan of the LED source?
A: The high-quality Bridgelux LED chips are designed to last up to 100,000 hours with an efficiency of 230lm/W.
