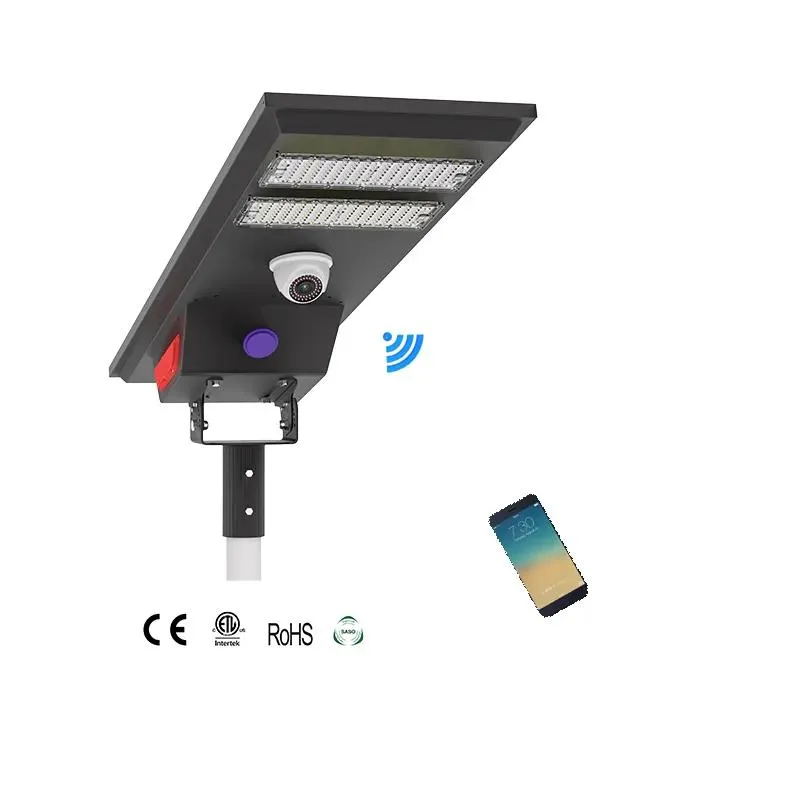

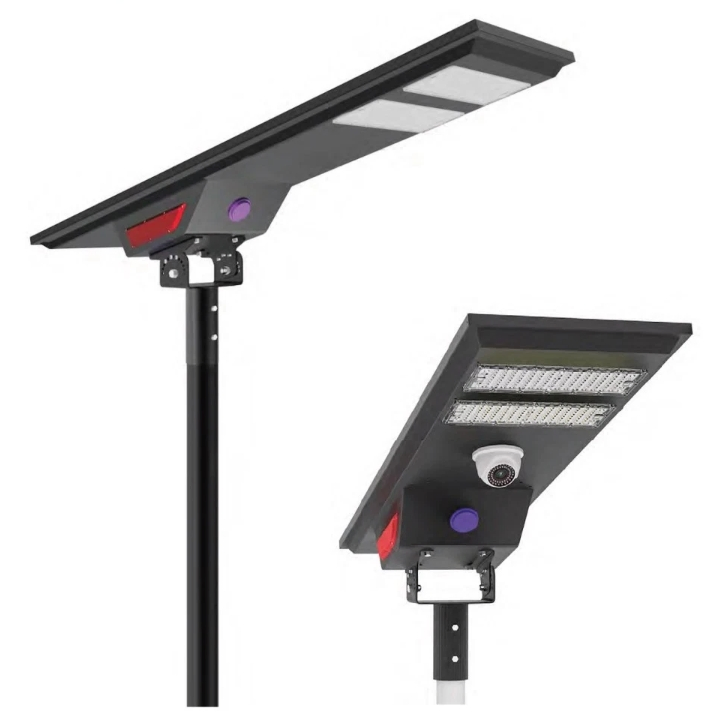

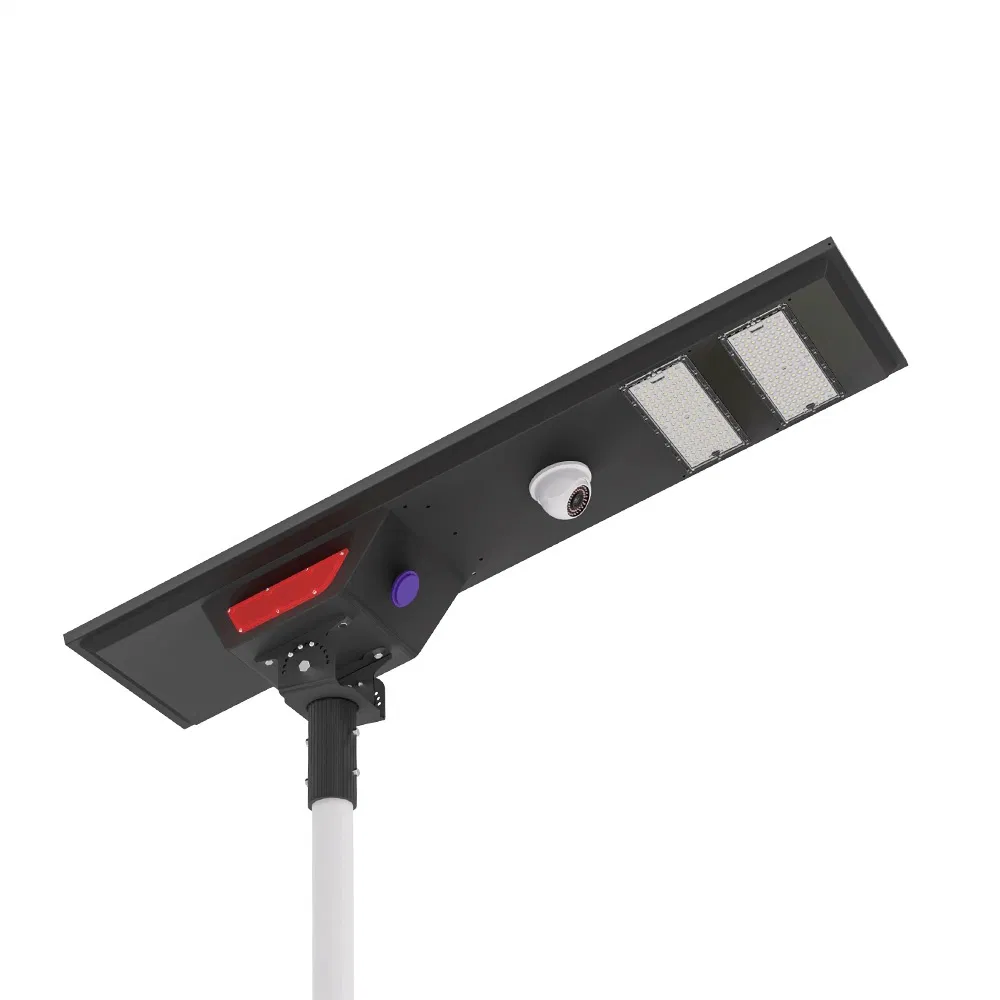

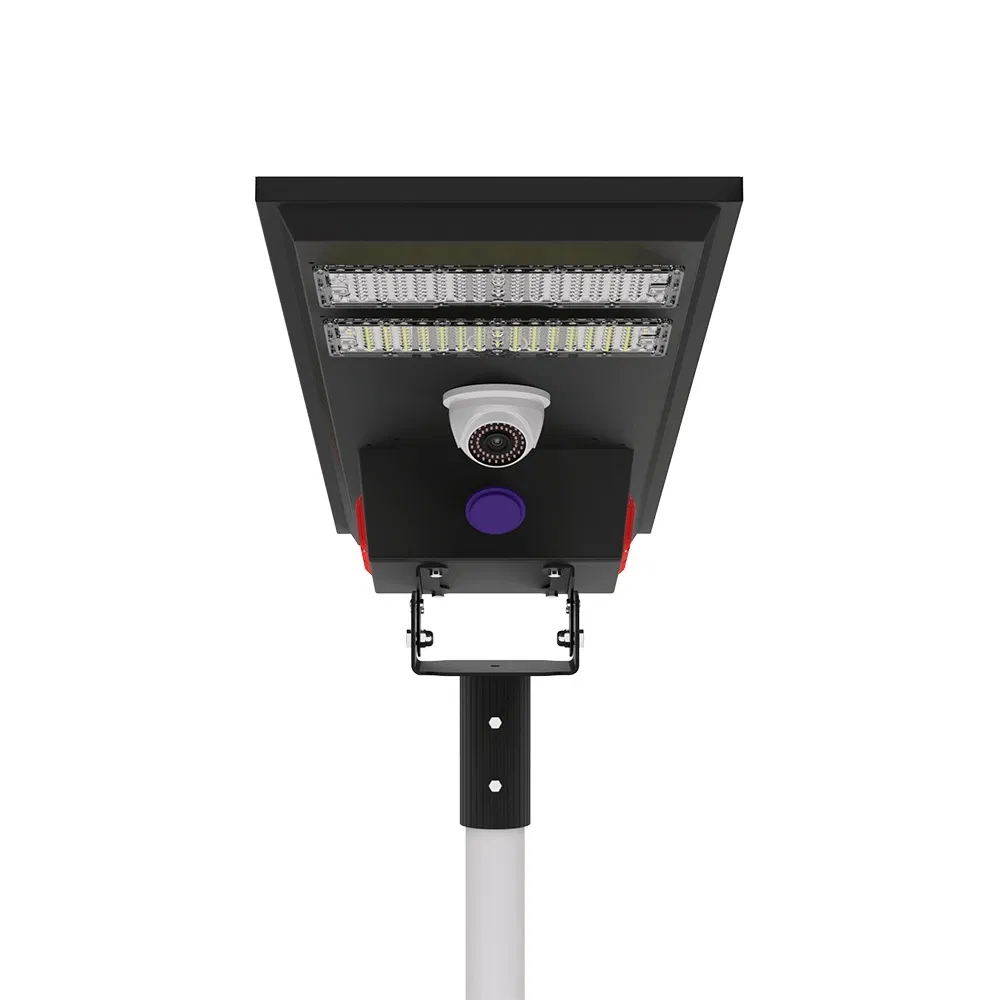

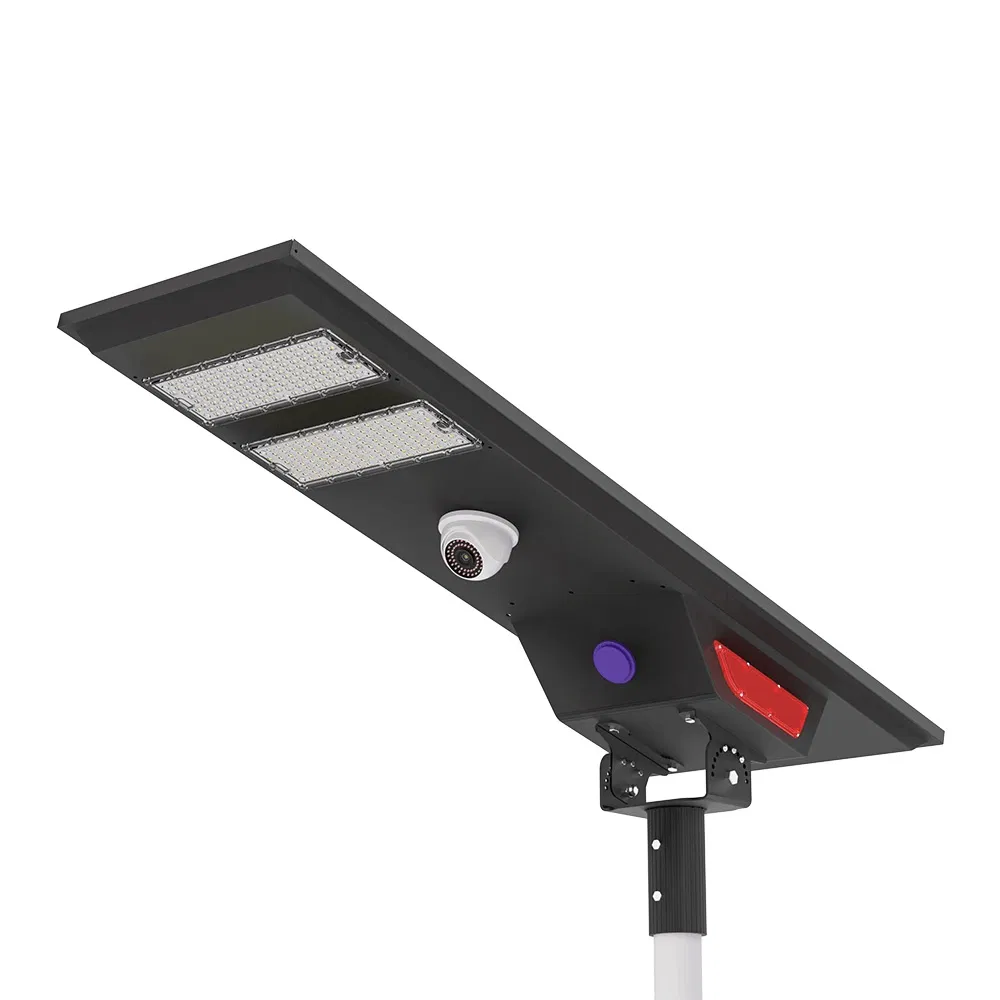

ALL IN ONE LED Solar Street Light
The design of the integrated solar street light/garden light absorbs the inspiration and energy from the universe, and combines today's best green energy portfolio (solar energy, semiconductor LED light source, dedicated battery for street lights). It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc., combines with the simple integrated structure design, perfect achieve higher brightness with lower power consumption, (average 6w power consumption equals 100w incandescent lamp's illumination), long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation.
Working time data is based on charging 8 hours in the sunny summer, measured in north latitude 22°, east diameter 13°. Actual working time may be changed due to different installation area, season, environment, direction etc.

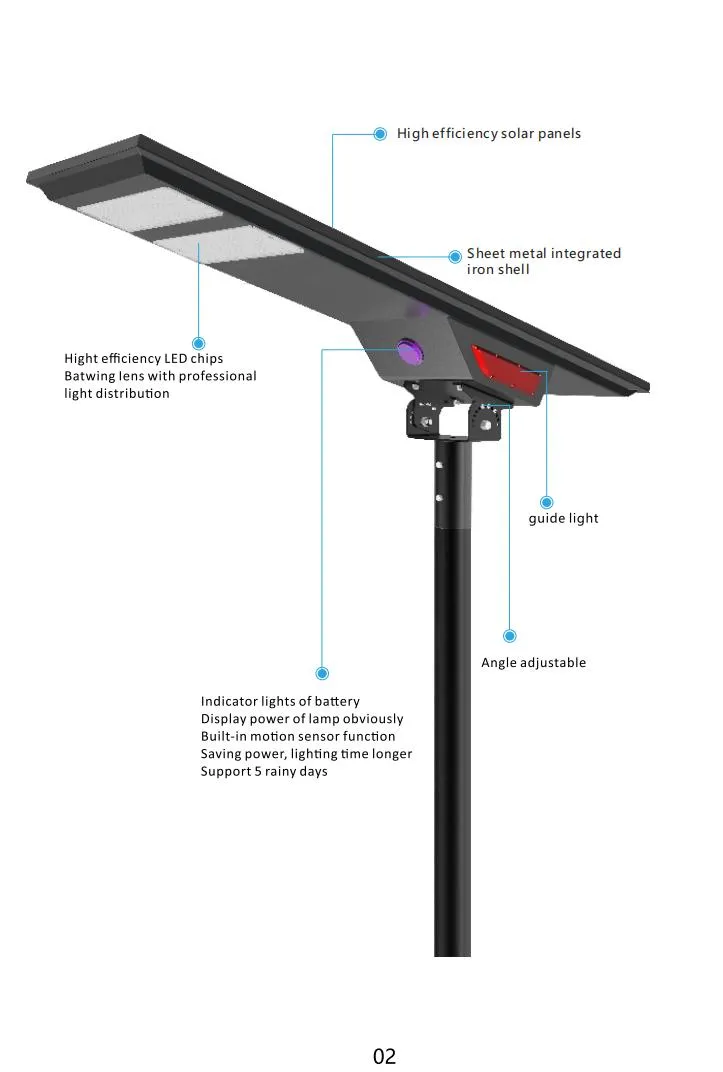

Key Features

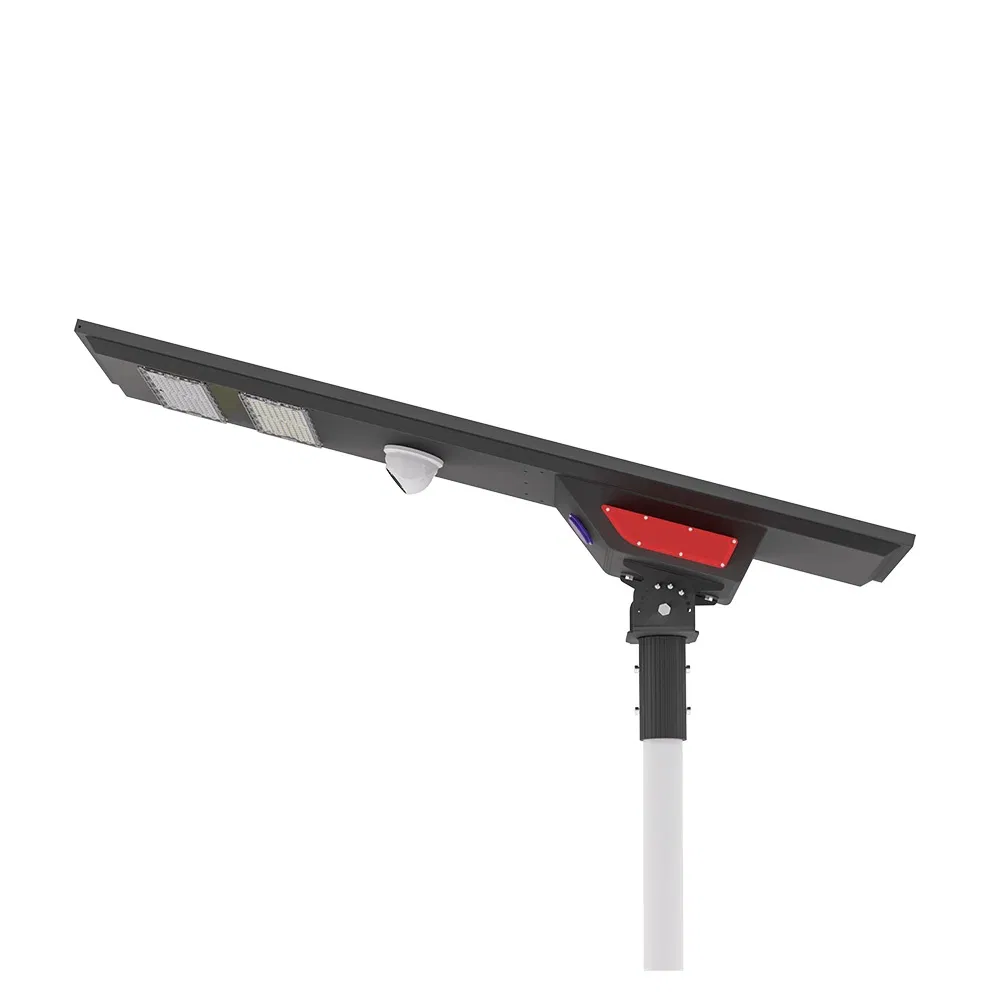

- Rotating angle design: The illumination area and angle of light can be adjusted reasonably according to the width of the road.
- Red light indicator: The red indicator light provides instructions and reminders while adding beauty to the city.
- Intelligent charge and discharge management: Double protection by software and hardware, intelligent equalization technology, cycle charging and discharging more than 2000 times.
| Model |
SS06-40W |
SS06-50W |
SS06-60W |
| Power | 40W | 50W | 60W |
| Solar panel Max power | 18V / 50W | 18V / 65W | 18V / 80W |
| Battery Type | 3.2V / 192WH | 12.8V / 230.4WH | 12.8V / 384WH |
| G.W | 14kg | 16kg | 17kg |

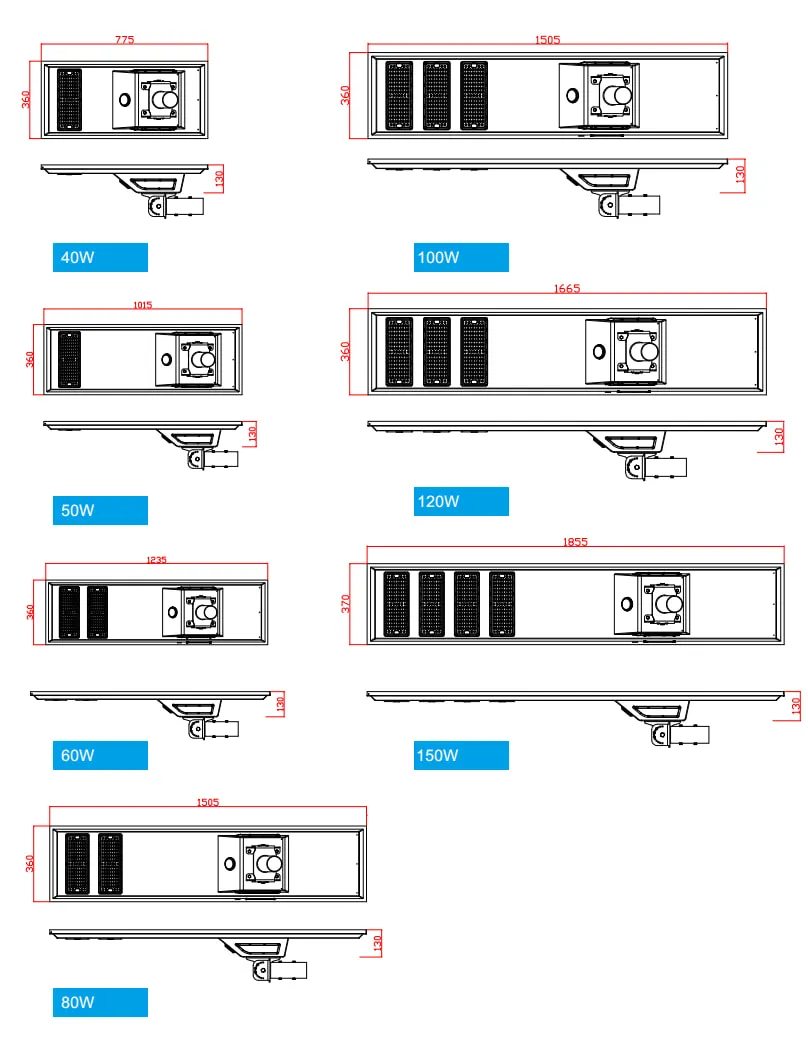

| Product size | 775*360*150mm | 1050*360*150mm | 1235*360*150mm |
| Model |
SS06-80W |
SS06-100W |
SS06-120W |
| Power | 80W | 100W | 120W |
| Solar panel Max power | 18V / 100W | 36V / 110W | 36V / 110W |
| Battery Type | 12.8V / 460.8WH | 25.6V / 512WH | 25.6V / 640WH |
| G.W | 24kg | 26kg | 29kg |
| Product size | 1505*360*150mm | 1505*360*150mm | 1665*360*150mm |
| LED Chip Brand | SMD 3030 |
CCT | 6000-6500K |
| Light Distribution | Batwing lens with polarized light |
Space Between Light | 25-30M |
| Lighting Time | 5-7 rainy days |
Warranty Period | 5 years |
| Working TEMP | -20~+60 |
LED Life Time | 50000h |

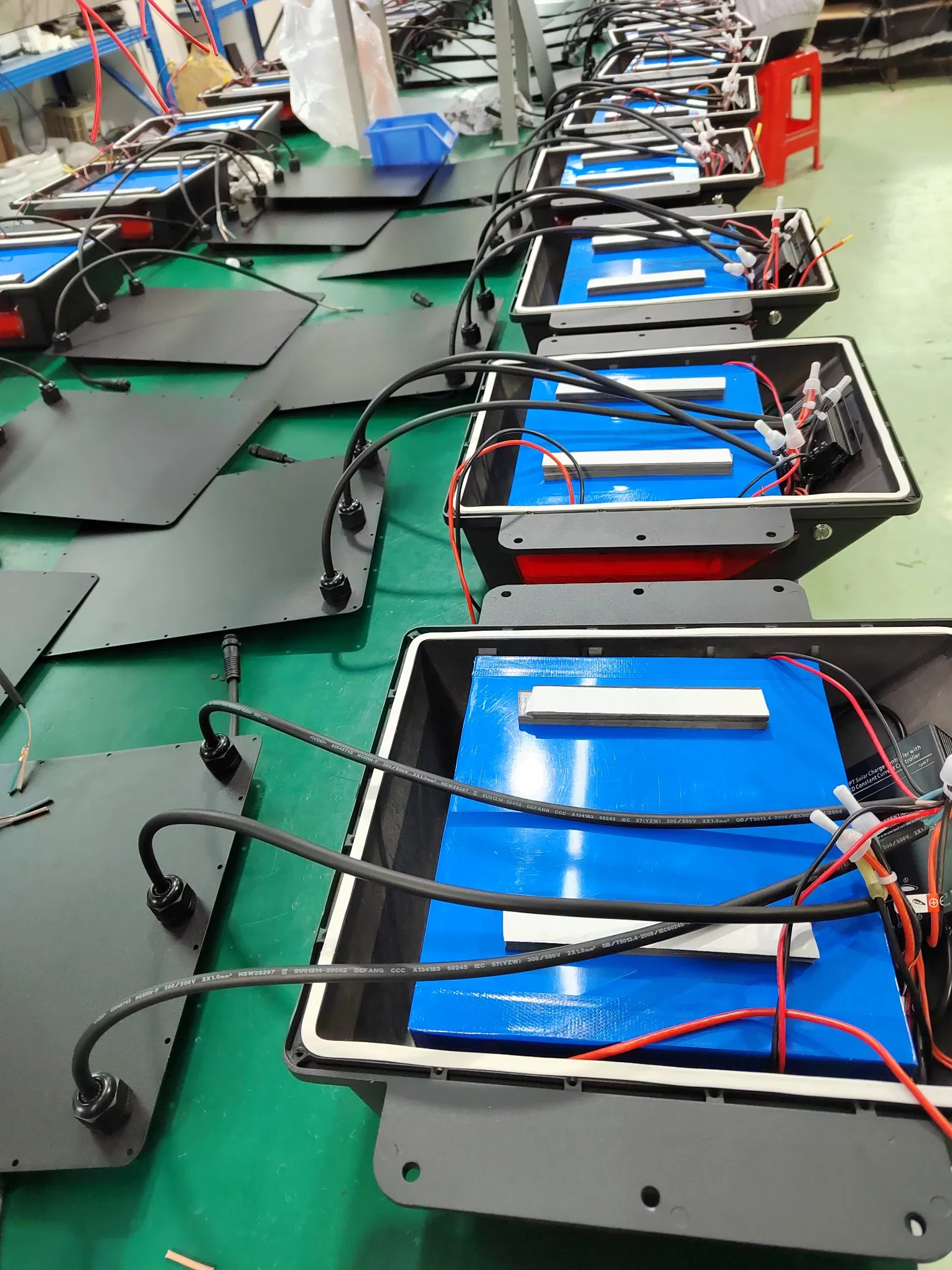

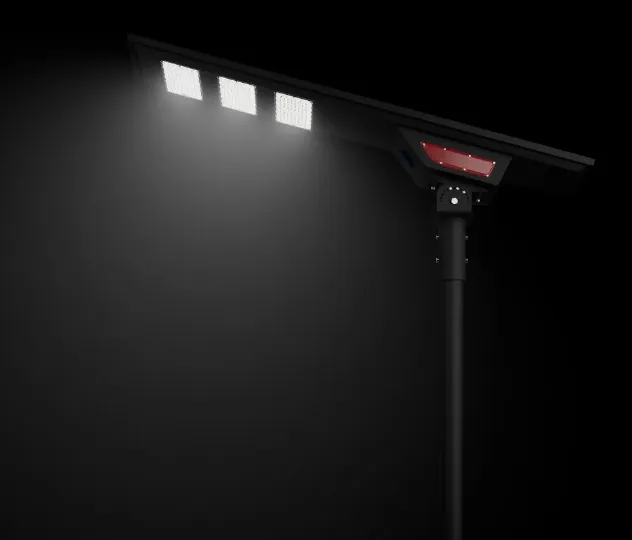

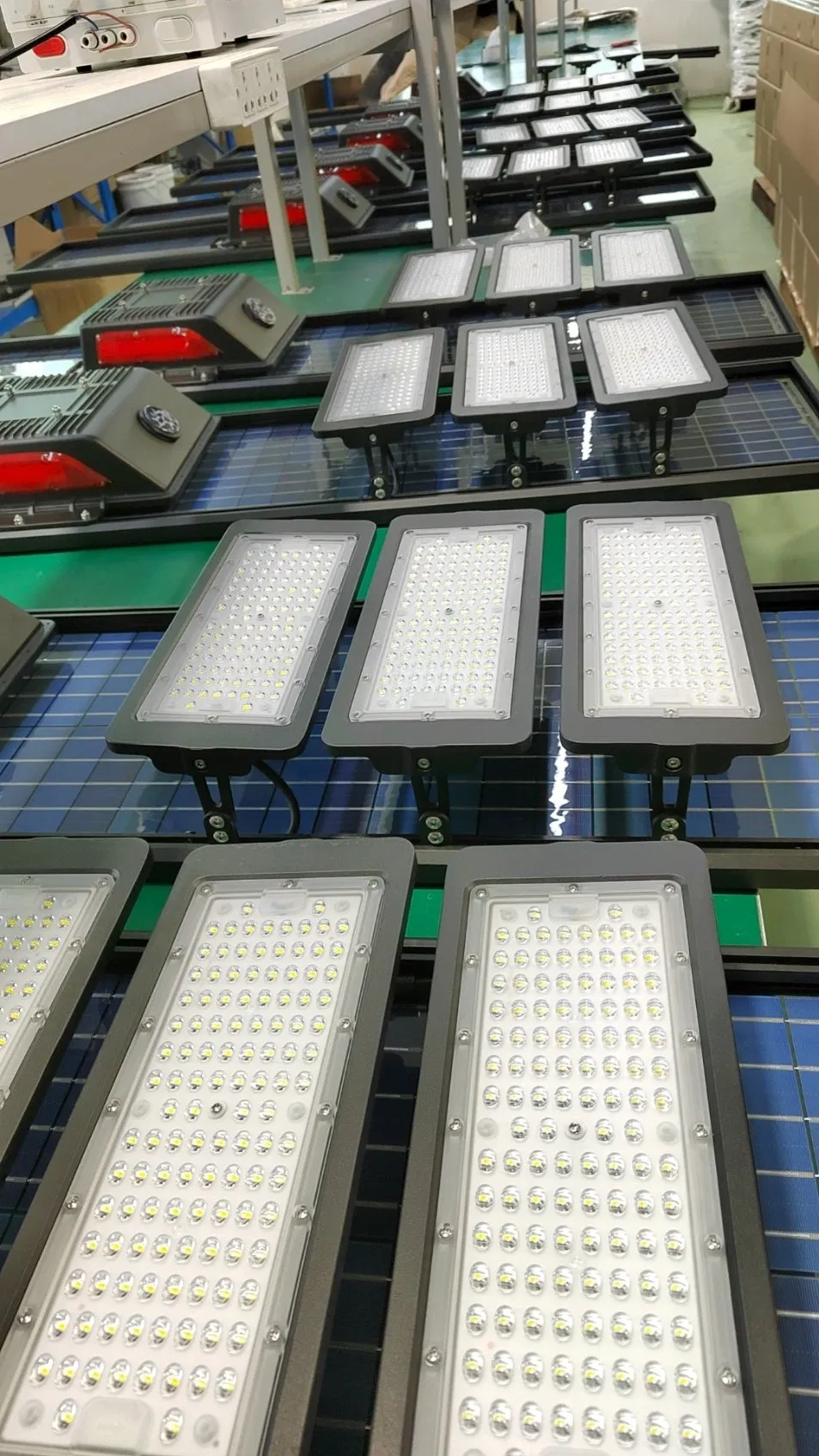

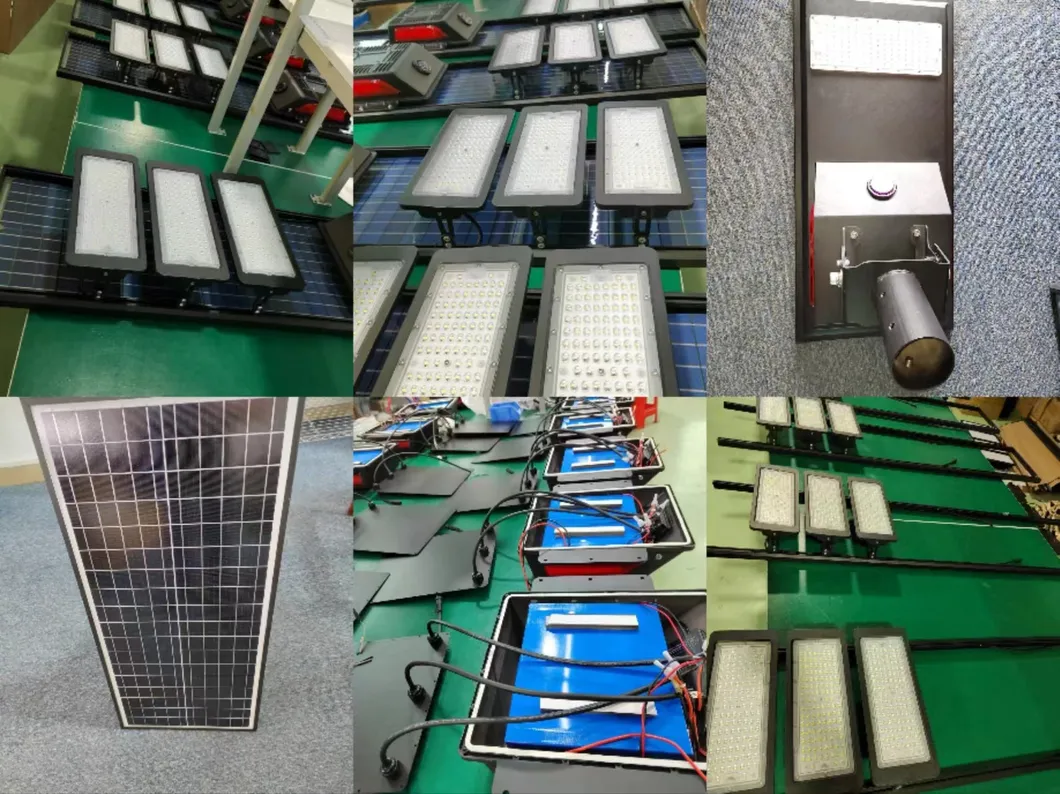

Production & Applications
?
Frequently Asked Questions
What is the main advantage of the "All in One" design?
The integrated design combines the solar panel, LED light source, and battery into a single unit, making it easier to install, maintain, and more efficient in terms of space and energy usage.
How does the PIR motion sensor work?
The sensor detects human movement via thermal infrared induction, allowing the light to increase brightness when someone is nearby and dim down when the area is vacant to save energy.
Is this solar street light waterproof?
Yes, it has an IP65 rating, which means it is protected against dust ingress and low-pressure water jets from any direction, making it ideal for outdoor use in various weather conditions.
How many rainy days can the light operate after a full charge?
The system is designed to provide lighting for 5 to 7 consecutive rainy days, depending on the specific model and battery capacity.
What is the lifespan of the LED and the battery?
The LED light source has a lifespan of approximately 50,000 hours. The intelligent battery management system allows for more than 2,000 charging cycles.
Can the lighting angle be adjusted?
Yes, the rotating angle design allows you to adjust the illumination area and angle according to the specific width and requirements of the road.
