Smart Solar Street Light Controller Wireless Control Systems for RF-Mesh Solution

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	LCU16Z	Lamp Body Material	Aluminum
Lamp Power	100W	Power Supply	AC
Average Life	50000h	Application	Highway, Square, Garden
IP Rating	IP66	Certification	CE, RoHS
Voltage	96-264V	CRI (Ra>)	80
Working Temp	-40 - 45 ℃	Dimming	0-10V/Dali

★

Product Description

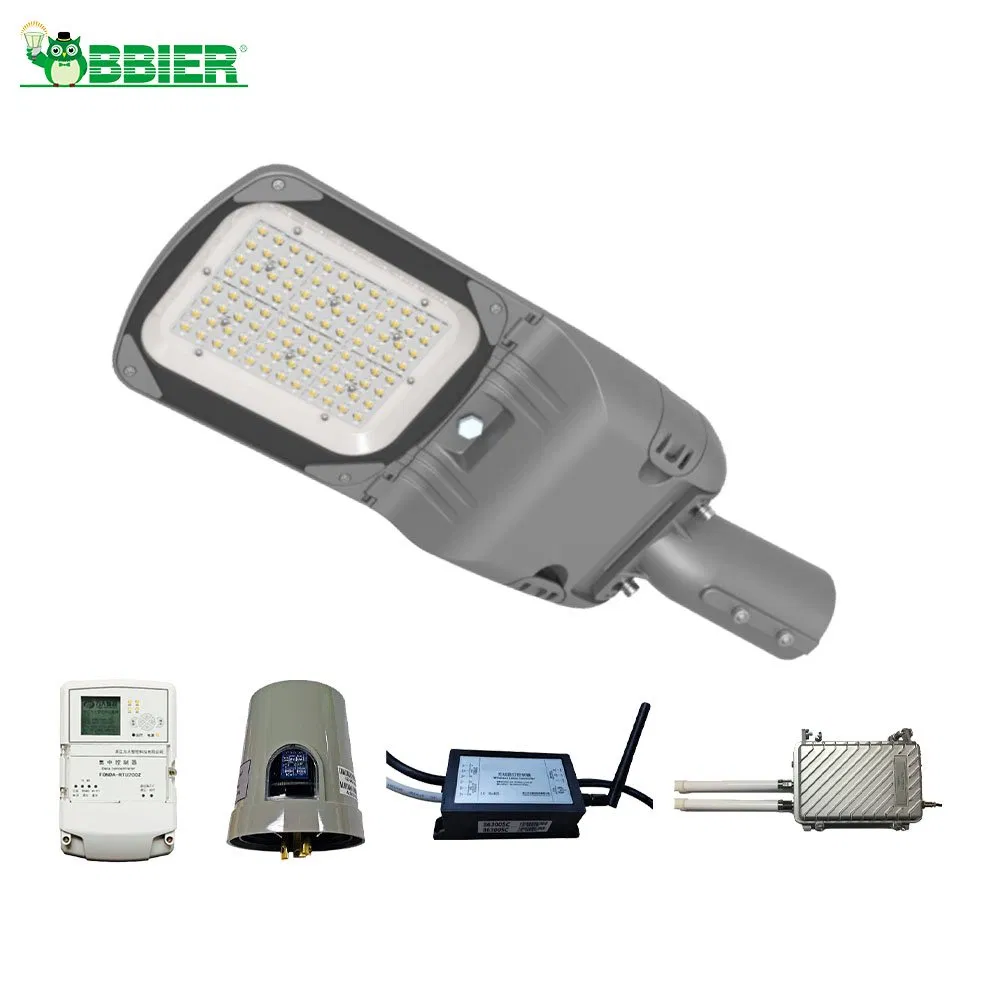

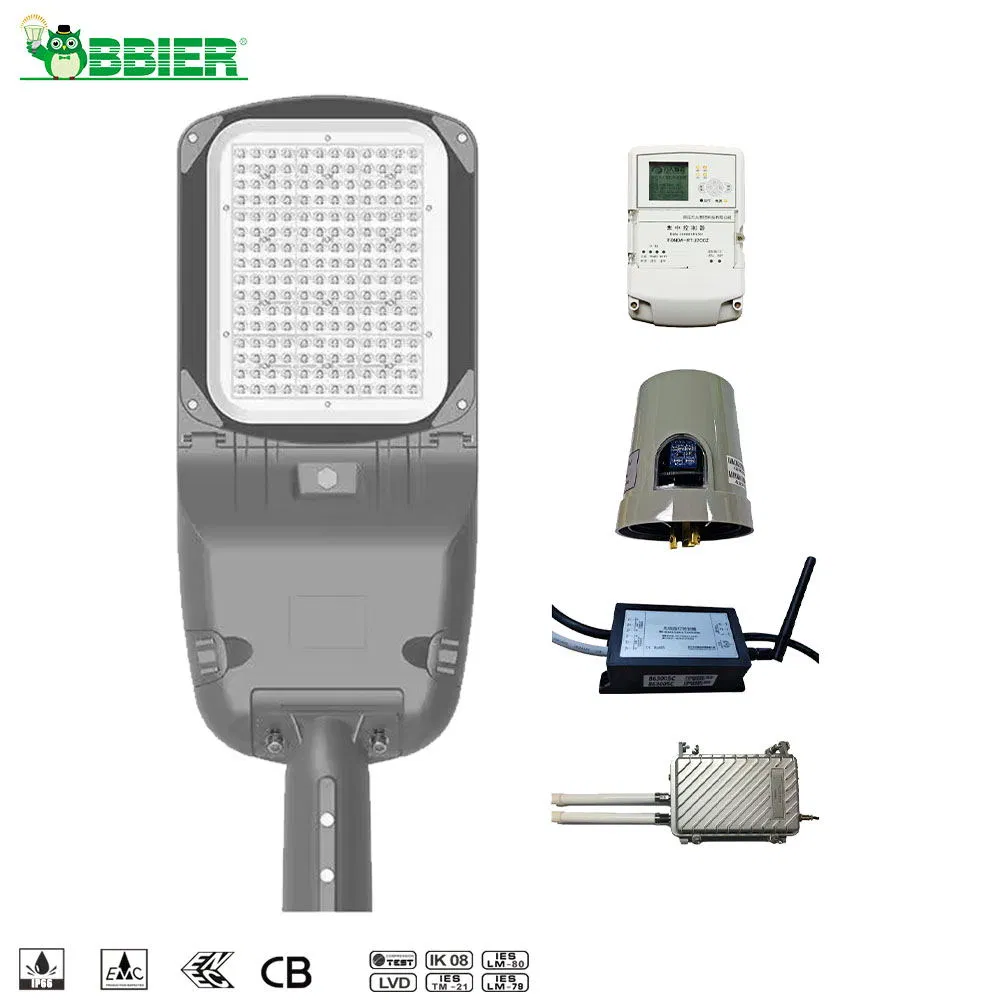

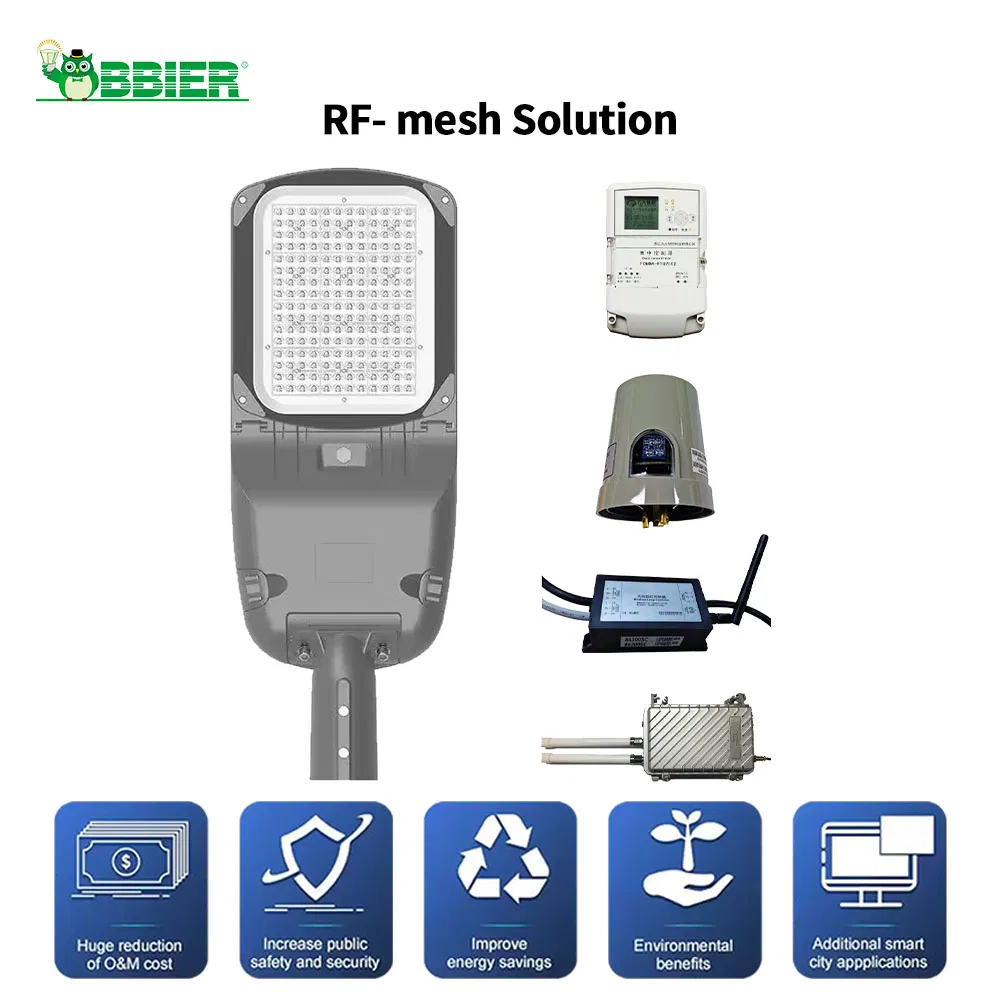

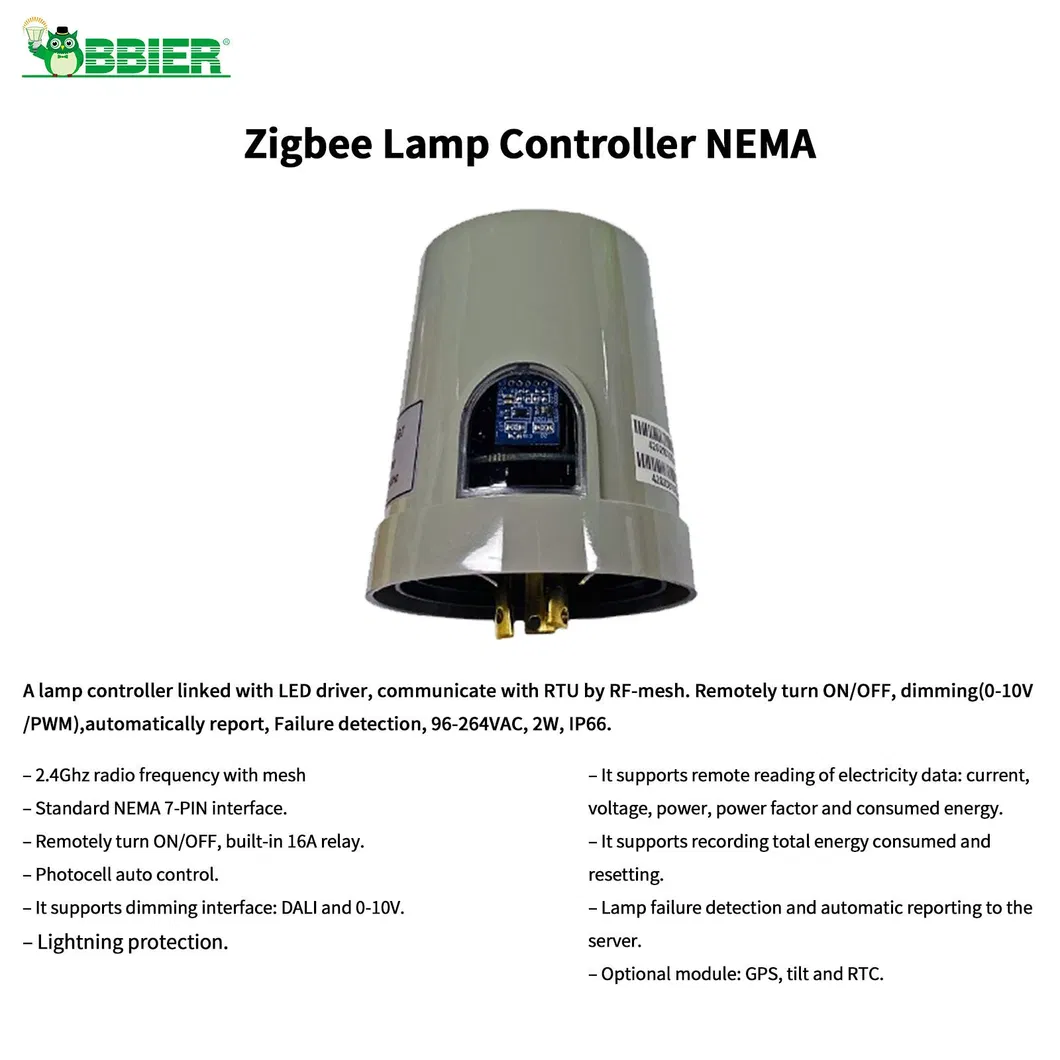

Smart Solar Street Light Controller Wireless Control Systems

A lamp controller linked with LED driver, communicate with RTU by RF-mesh. Remotely turn ON/OFF, dimming(0-10V/PWM), automatically report, Failure detection, 96-264VAC, 2W, IP66.

2.4Ghz radio frequency with mesh technology.

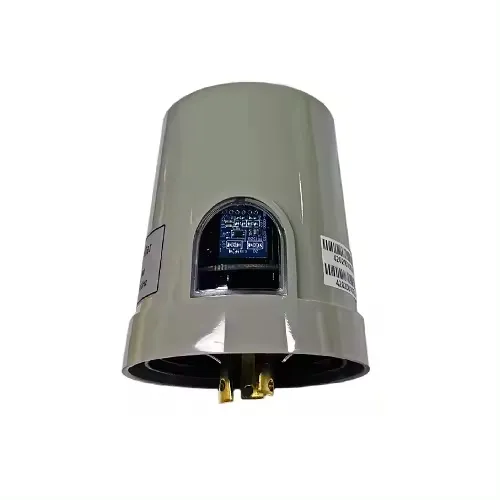

Standard NEMA 7-PIN interface for easy installation.
Remotely turn ON/OFF with built-in 16A relay.
Photocell auto control and lightning protection.
Supports DALI and 0-10V dimming interfaces.
Remote reading of electricity data: current, voltage, power, and energy.
Lamp failure detection and automatic server reporting.
Optional modules: GPS, tilt detection, and RTC.

📷

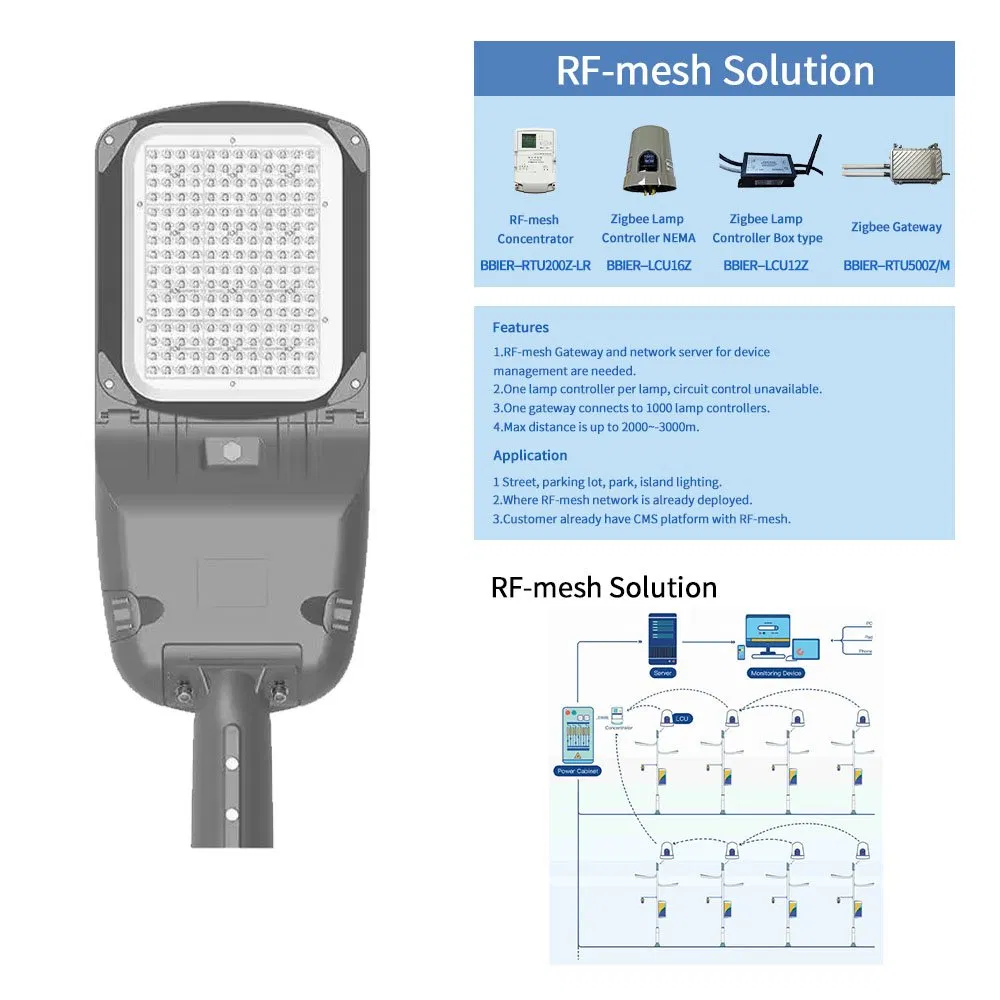

Detailed Photos

⚙

Product Parameters

Parameter	Specification Details
Product Name	Smart Lighting Street Light Centralized Controller
Light Source	SMD LED
IP Rating	IP66
CRI	>80
Certification	EMC, RoHS, CE, FCC, SAA
Dimming Interface	PWM, 0-10V, DALI
Electrical Parameters	Current, Power, Power Factor, Consumed Energy
Optional Sensors	GPS, Tilt Detection
Warranty	3-Year

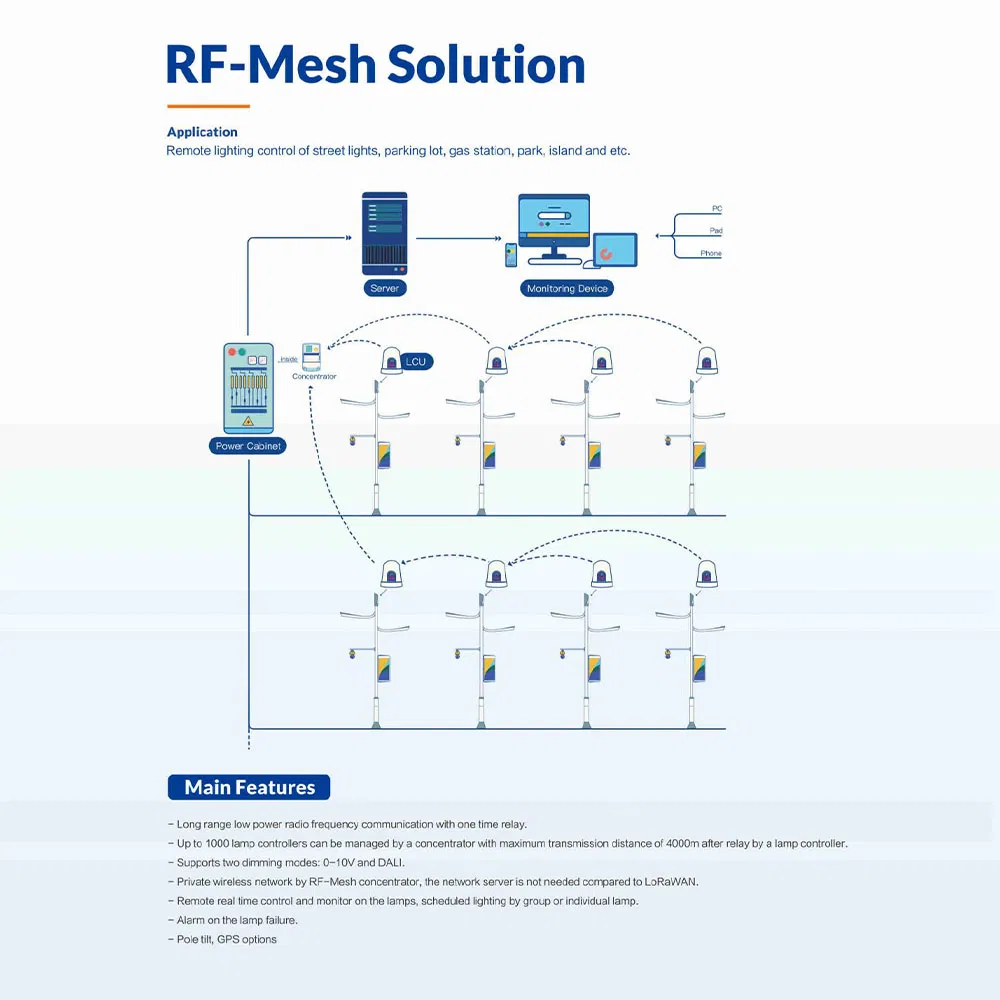

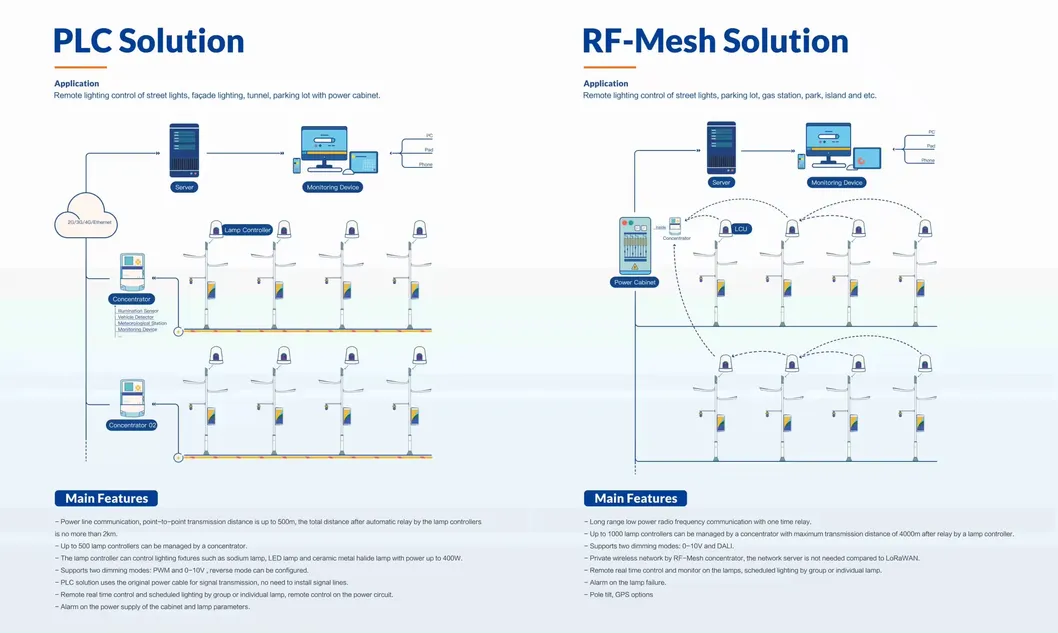

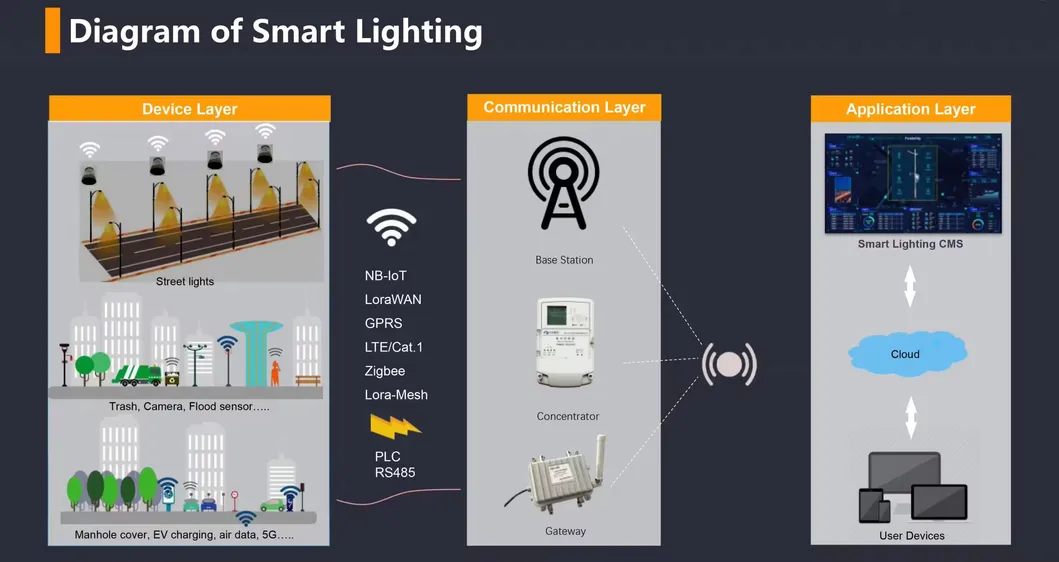

Concentrator Info	Communication bridge between server (2G/4G/Ethernet) and LCU (RF-mesh)

✔

Certifications

📦

Packaging & Shipping

🏢

Professional Expertise

We are an international photoelectric technology industry company specialized in developing, designing, and producing high-quality LED products. Our expertise lies in providing professional lighting engineering solutions and integrated services for global markets.

Our production capabilities include a wide range of outdoor and industrial lighting such as LED Garden lights, High Bay lights, Parking Lot retrofit kits, Wall Packs, and Smart Control systems. With a strong R&D team, we have overcome challenging technological bottlenecks in luminance, heat dissipation, and smart control functions.

Frequently Asked Questions

What communication technology does the controller use?

The controller utilizes 2.4GHz radio frequency with RF-Mesh technology, allowing for stable wireless communication between the lamps and the central RTU.

Does this controller support remote dimming?

Yes, it supports multiple dimming interfaces including DALI, 0-10V, and PWM, allowing for precise remote brightness control.

Can I monitor power consumption remotely?

Absolutely. The system supports remote reading of real-time electrical data such as current, voltage, power factor, and total consumed energy.

Is the controller suitable for outdoor use?

Yes, it features an IP66 rating, making it highly resistant to dust and water, perfect for highway, square, and garden applications.

What happens if a lamp fails?

The controller includes a failure detection system that automatically reports any issues or malfunctions directly to the server for immediate maintenance.

What are the optional sensor modules?

You can choose to equip the controller with additional modules such as GPS for location tracking, tilt detection for pole safety, and RTC for precise timing.
