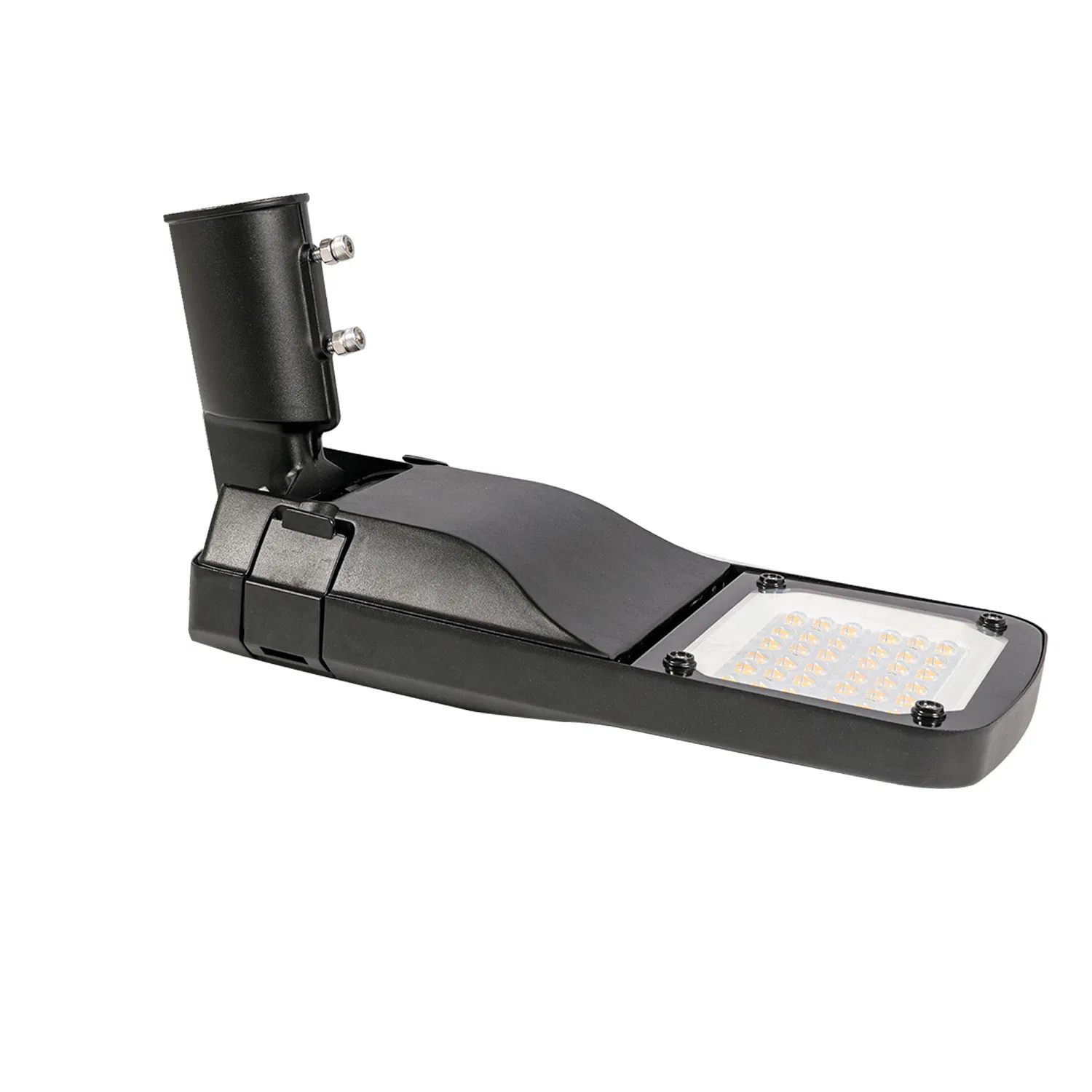

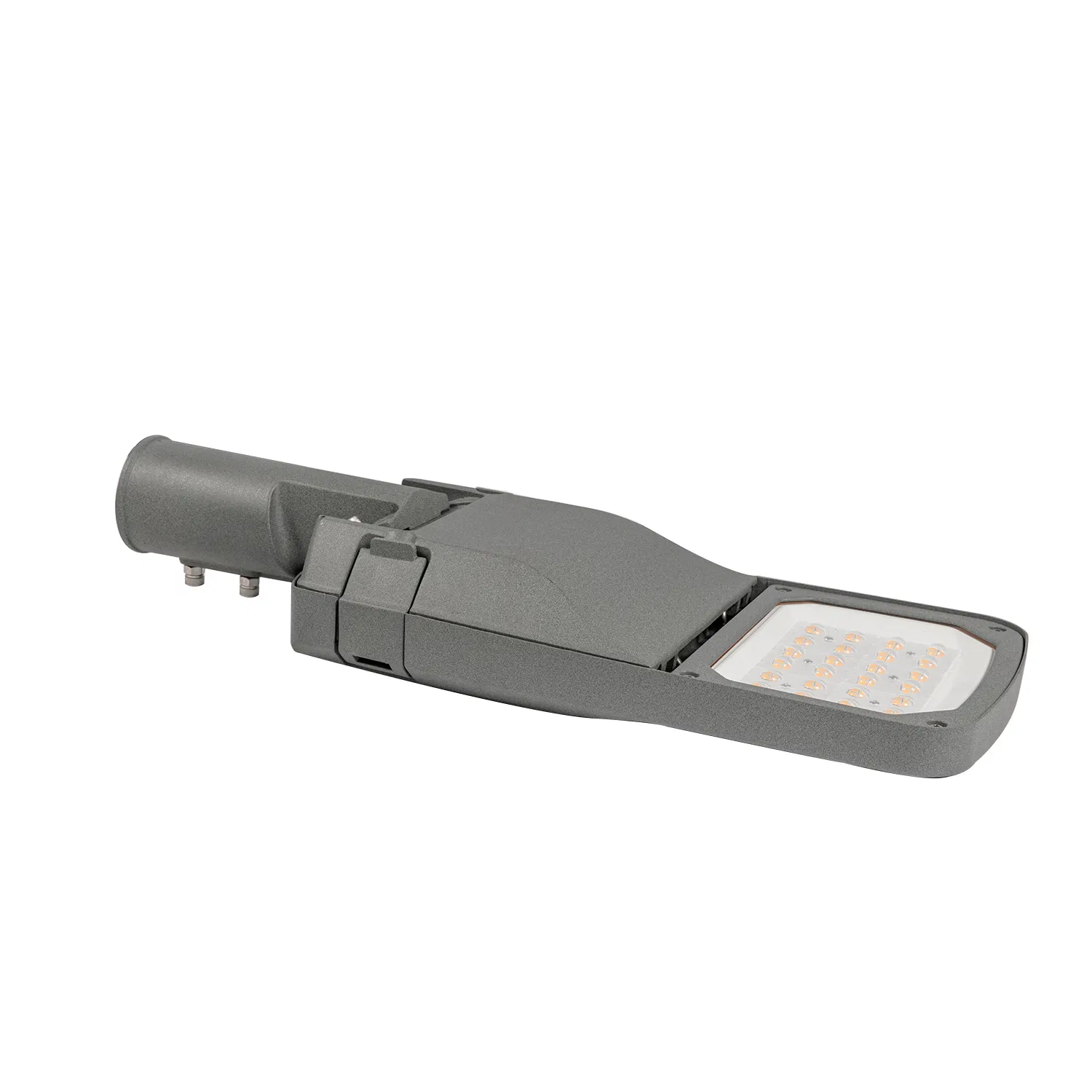

Smart Street Lighting Urban Road Lighting System
Product Description
Basic Information
Model NO.
SL-19-30M
Body Material
Aluminum
Lamp Power
50W
Power Supply
AC
Average Life
>8000h
IP Rating
IP66
Certification
CE, RoHS
Voltage
AC90-305V
Luminous Flux
6500-7000lm
Installation
Horizontal / Vertical
Product Description

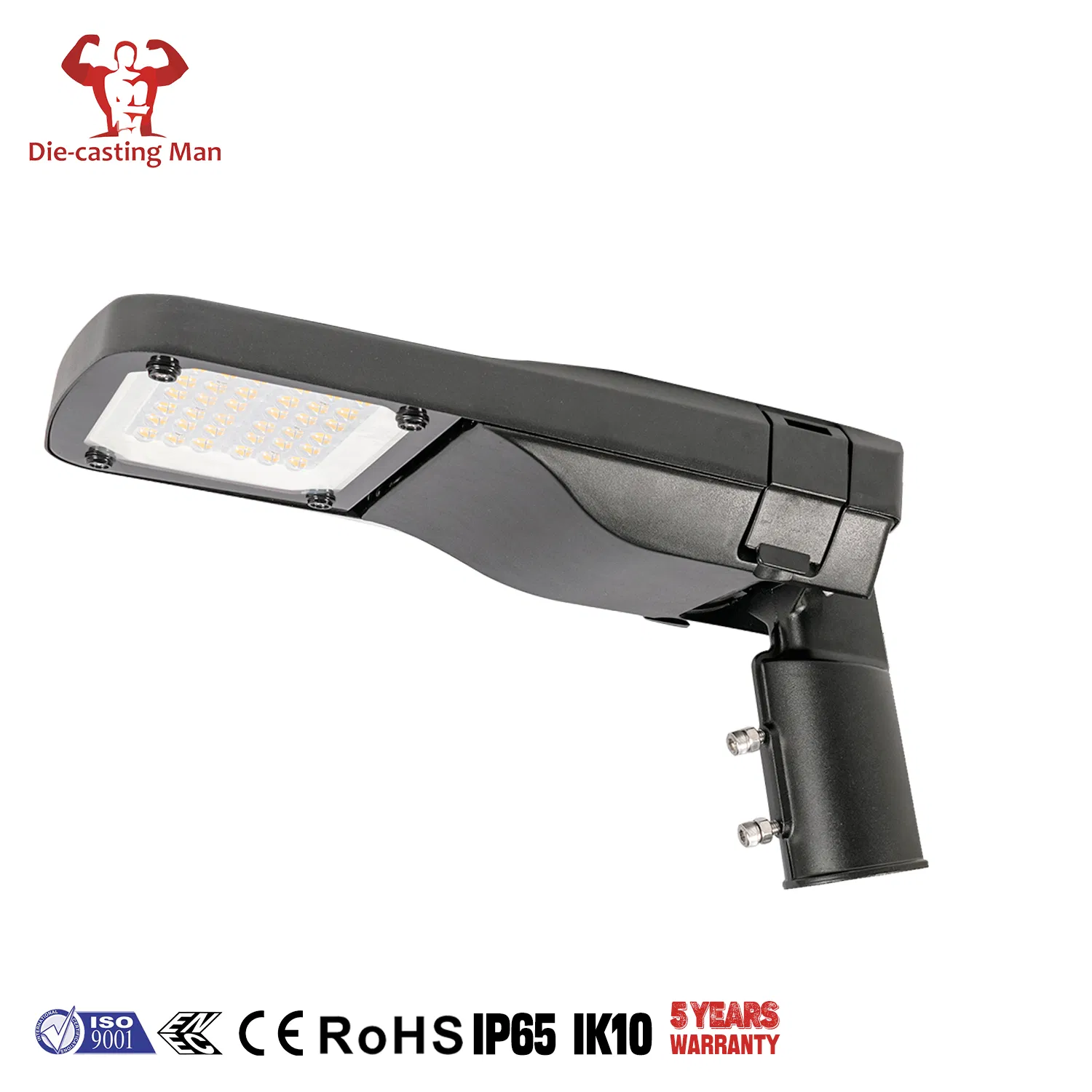

Outdoor YASL-19 Street Lighting and Parking Lot Lights
Type of Protection: IP 66 | Protection Class: II | Impact Protection: IK08

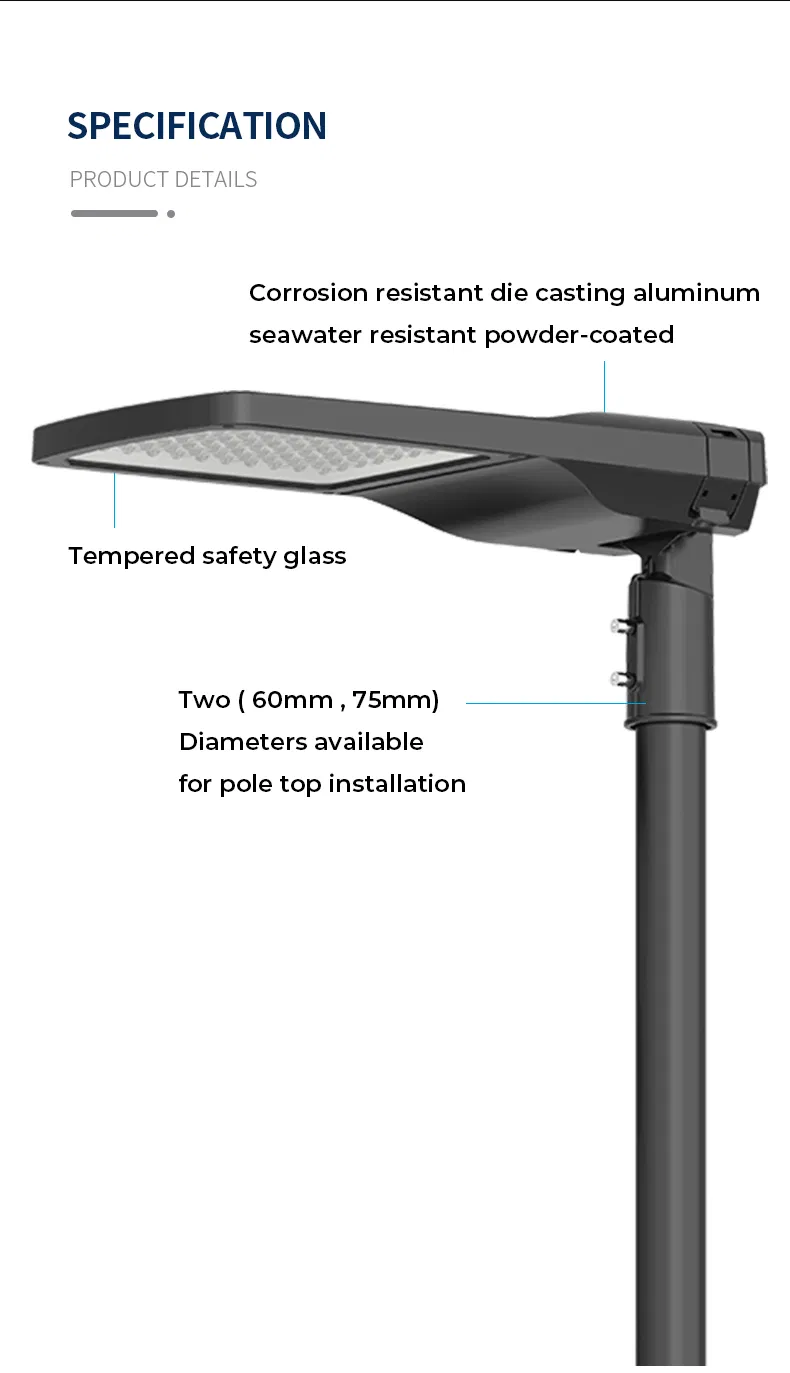

Housing made of corrosion resistant pressure die-cast aluminium (seawater resistant powder-coated). Pole-top fixing with integrated cable routing and stainless steel screws. Tilt angle can be adjusted and locked in 15 degree steps featuring angular scale. Cover clear tempered glass. Tool-free maintenance / replacement with disconnect plug.
Type of Protection: IP 66 | Protection Class: II | Impact Protection: IK08
Housing made of corrosion resistant pressure die-cast aluminium (seawater resistant powder-coated). Pole-top fixing with integrated cable routing and stainless steel screws. Tilt angle can be adjusted and locked in 15 degree steps featuring angular scale. Cover clear tempered glass. Tool-free maintenance / replacement with disconnect plug.
Additional Advantages:

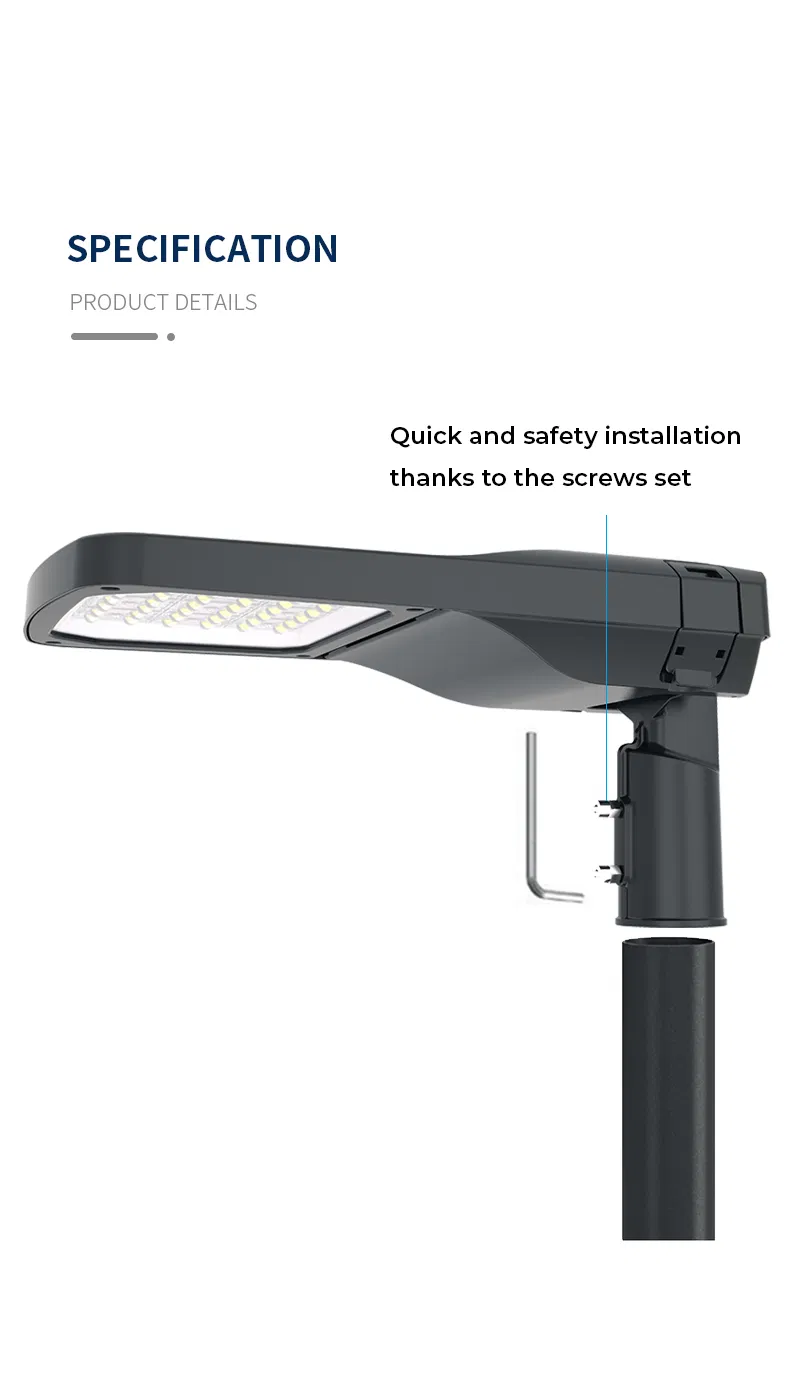

- Installation on the pole as pole-top or side-mounted pole-top luminaire.
- Adjustable and lockable in 15° steps: Both horizontal and vertical installing ways tilted from -15° to +15°.
- Two diameters available for pole top installation (45 mm and 60mm).

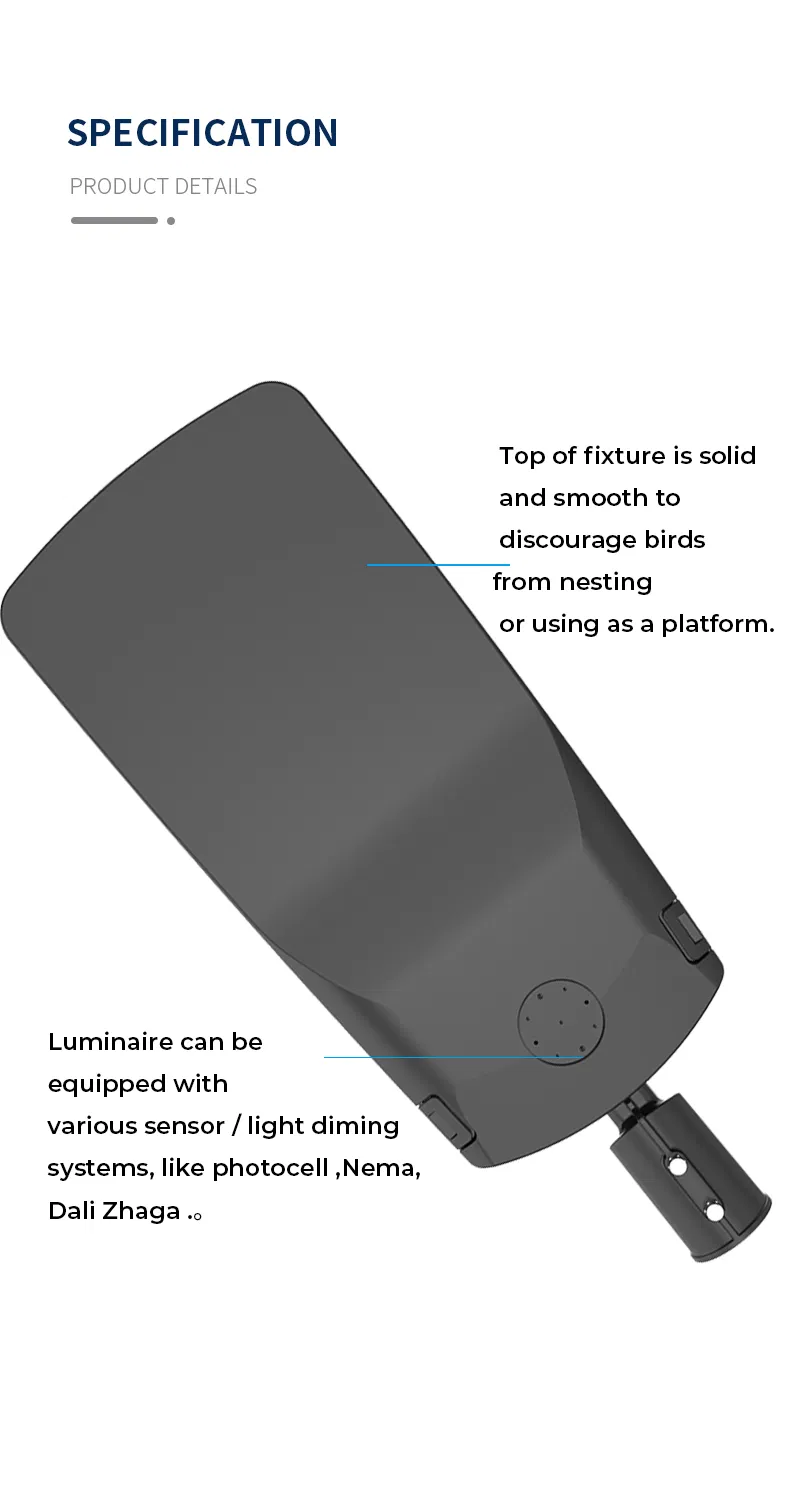

- Smart lighting: Dali, Dali Zhaga, 1-10V, PWM available. NEMA sockets for light management systems.

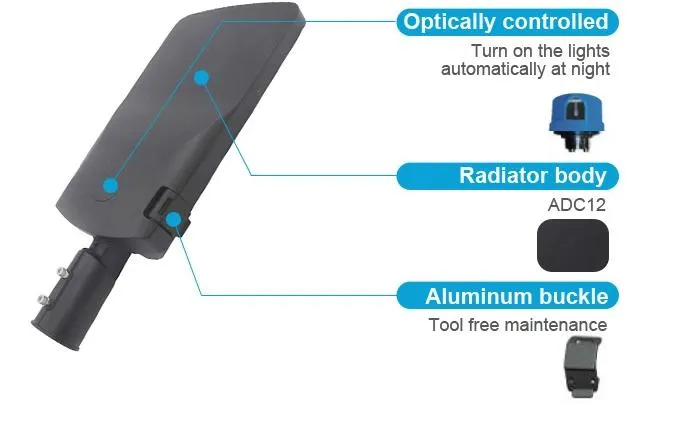

- Tool-free maintenance: Power interruption when the housing is opened.
- Control gear with integrated surge protection up to 10 kV or 20KV.
Product Specifications
| Parameter | Details |
|---|---|
| Product Code | YASL-19-30 |
| Input Wattage | 50W |
| Color Temperature | 2700~6500K |
| Luminous Flux | 6500-7000lm |
| Input Voltage | AC90~305V |
| Power Factor | PF≥0.95 |
| LED Lifetime | 50000h |
| Protection Grade | IP66 / IK08 |

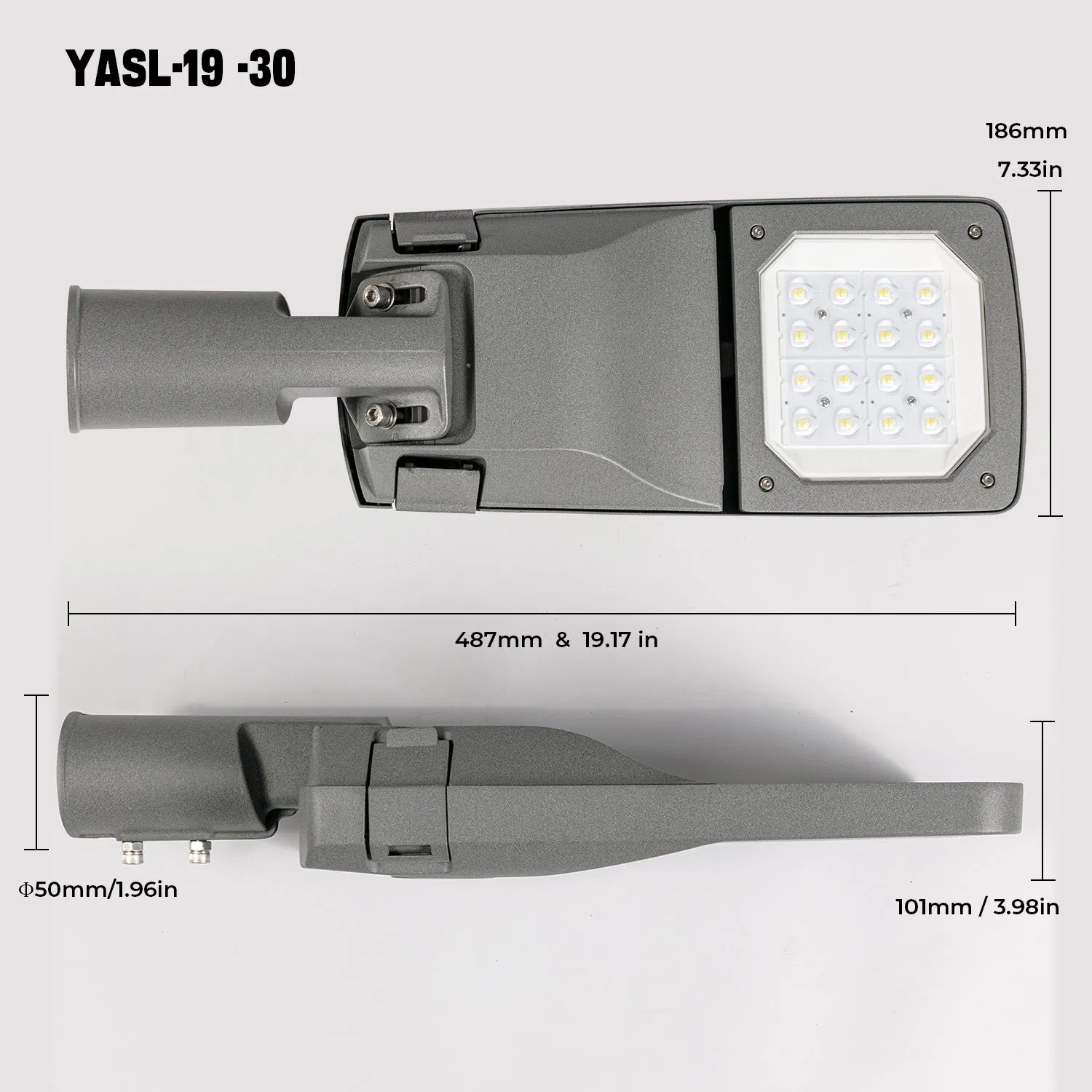

| Installation Diameter | φ45/60mm |
| Packing Size | 580*250*165 mm |

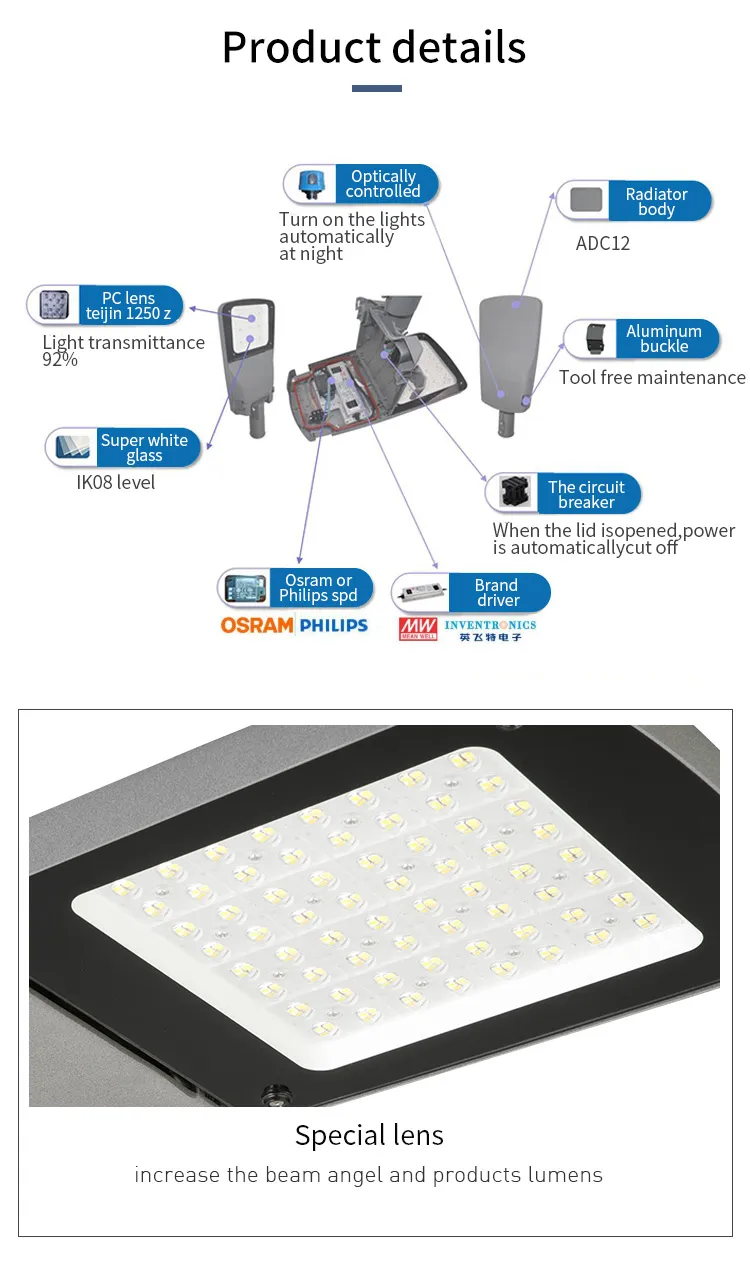

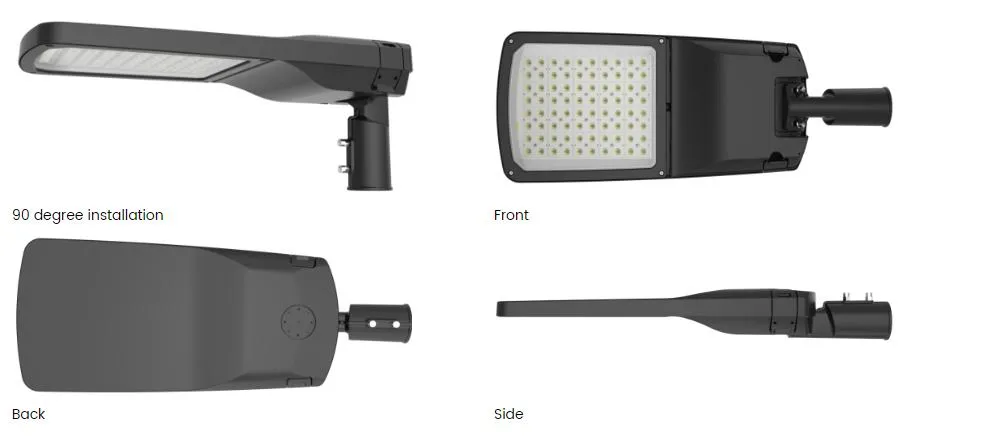

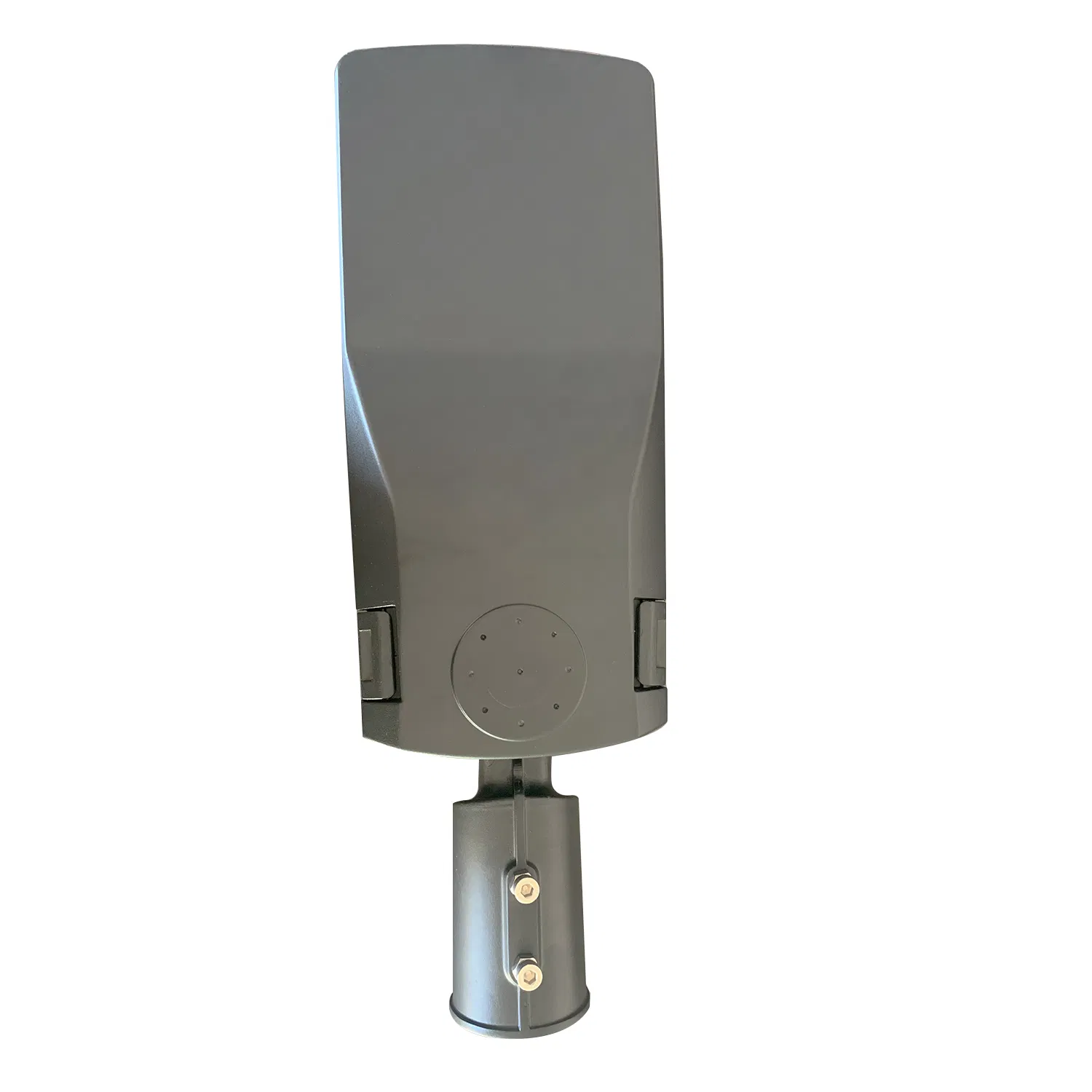

Detailed Photos

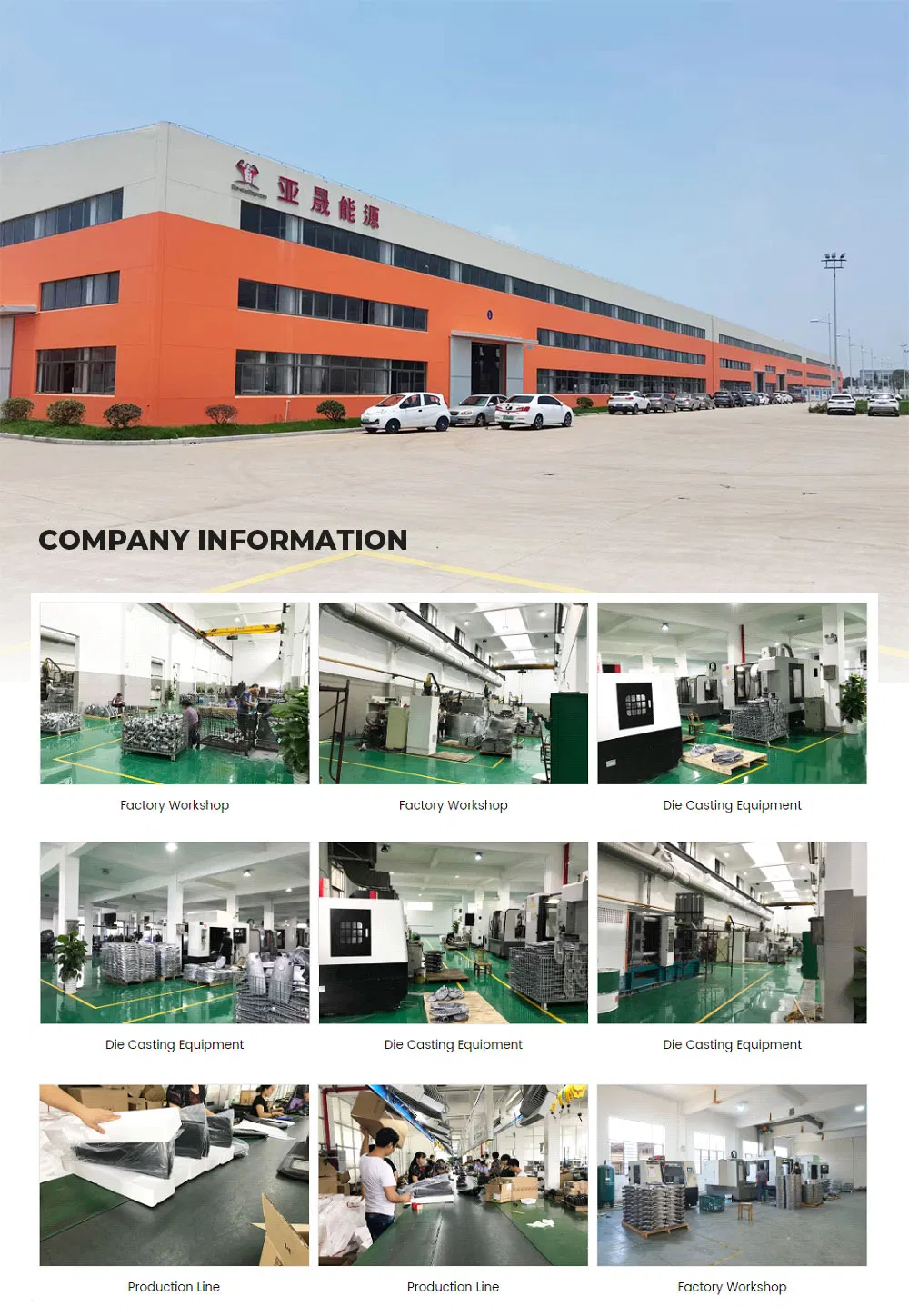

Company Profile
The manufacturer was established in 1996, specializing in lighting design, development, production, and testing. We offer a superior range of products including street lights, high bays, and die-casting OEM products. We provide full service or SKD supply options.
Our team of lighting designers ensures that all products are practical, affordable, and reliable. High quality is our core focus, and all products meet EU requirements, undergoing rigorous performance testing in recognized laboratories.
Frequently Asked Questions
What are your MOQ requirements?
1-5 pieces for samples. 100 pieces for mass production. For your first order, we can accept smaller quantities.
Can you customize LED chips and drivers?
Yes, we can use specific LED chips and driver brands as per your requirements.
What is the product guarantee?
We offer a 5-year guarantee or 50,000 hours of operation for our customers.
Do your fixtures have surge protection?
Yes, they include at least 4kV for L-N and 6kV N/L-PE, depending on the driver brand used. Higher protection up to 10kV/20kV can be requested.
How do you guarantee quality?
We always provide a pre-production sample before mass production and conduct a final inspection before every shipment.
Can I put my logo on the housing?
Yes. We offer screen printing (no MOQ) or die-casting logos (MOQ 1000 pieces). Additional costs apply.
