Solar-Powered Vehicle Over Height Warning System for Roadway Safety
Product Description
i
Basic Information
Model NO.
CGXZ
Material
Aluminum
Certification
CE, RoHS
Protection
IP67
Solar Panel
80W
Battery Type
Lithium-Ion (48ah 12V)
Light Source
SMD LED
Warranty
2 Years
★
Product Description
Solar-Powered Vehicle Over Height Warning System
◈
80W Solar Panel
High-efficiency monocrystalline solar panel for off-grid operation, recharging in less than 6 hours.
◈
Infrared Detection

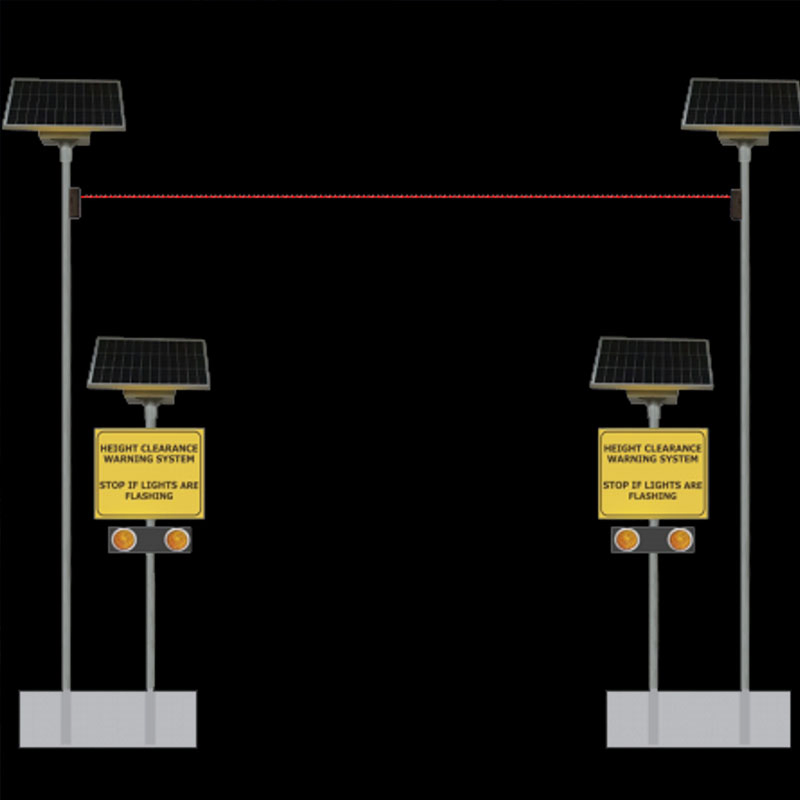

Long-range infrared beam (up to 150m, standard 30m) triggers LED warning when broken by over-height vehicles.
◈
SMD LED Warning
Intermittent, ultra-bright LED array with animated display for maximum visibility in all conditions.
◈
LiFePO4 Battery
48Ah 12V battery provides over 5 nights of autonomy, ensuring reliable 24/7 operation.
◈
Durable Construction

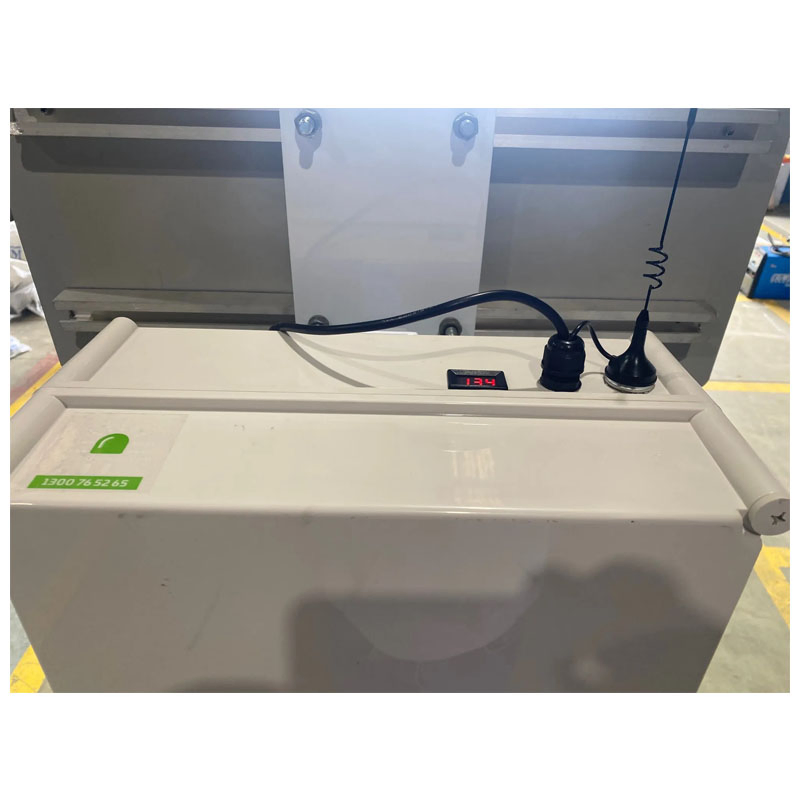

60-76mm galvanized steel column with lockable, waterproof control module for all-weather use.
Applications:
- Roadways & highways: Prevent vehicle collisions with low bridges and overpasses.
- Construction zones: Protect temporary structures and equipment.
- Distribution centers: Safeguard loading bays and internal infrastructure.
- Smart cities: Automated height clearance monitoring integration.
⚙

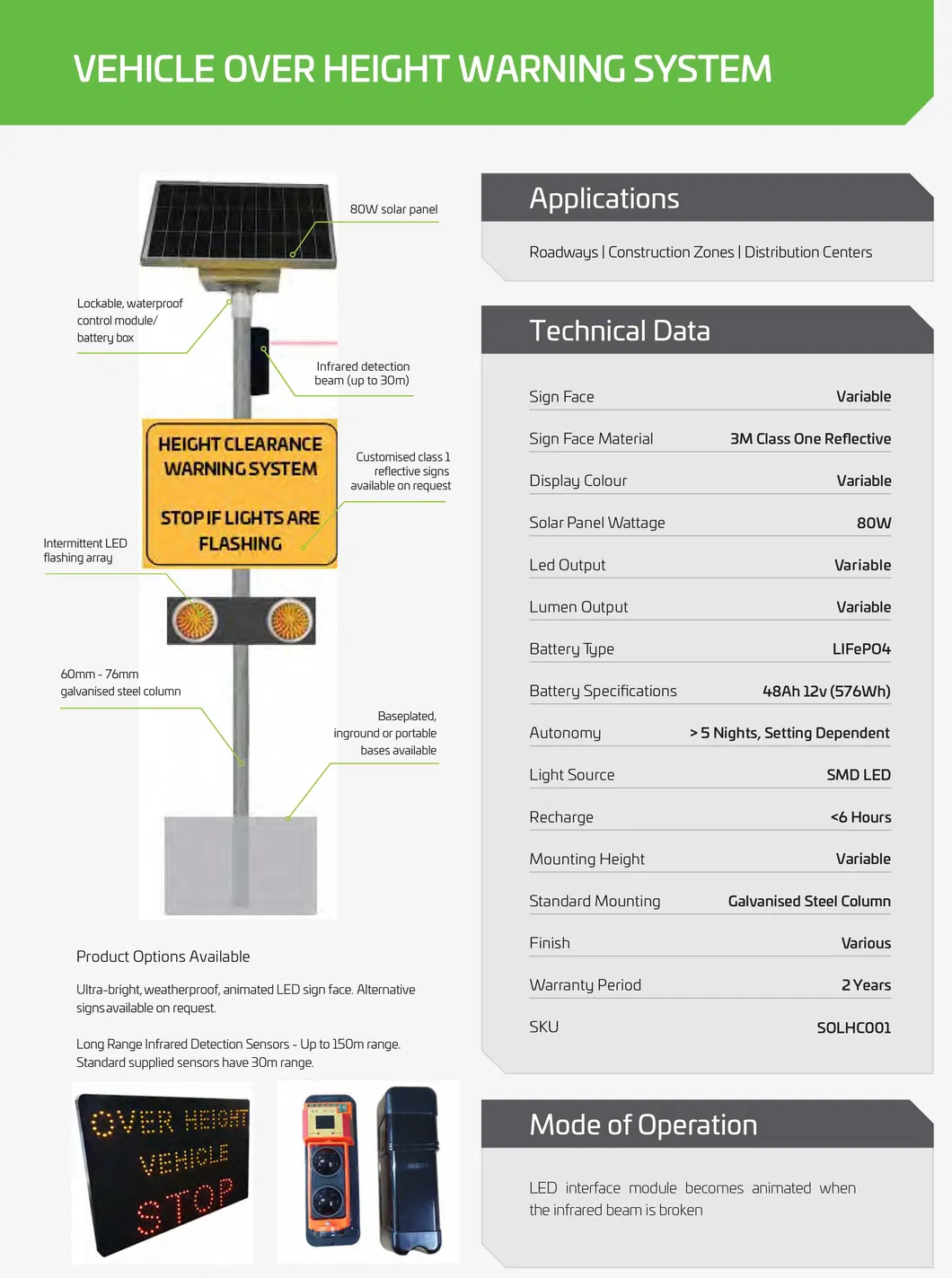

Product Parameters
| Solar Panel | 80W monocrystalline silicon |
| Battery | 48Ah 12V LiFePO4 (576Wh) |
| Detection Range | Up to 150m (standard 30m) |
| LED Output | Variable, ultra-bright SMD LEDs |
| Sign Material | 3M Class One Reflective |
| Waterproof Rating | IP65 / IP67 |
| Autonomy | >5 nights (setting dependent) |
📷

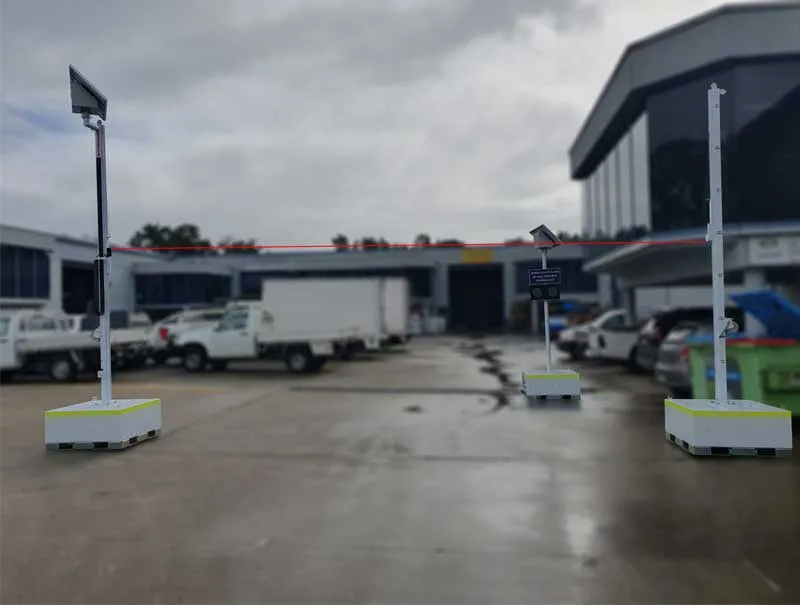

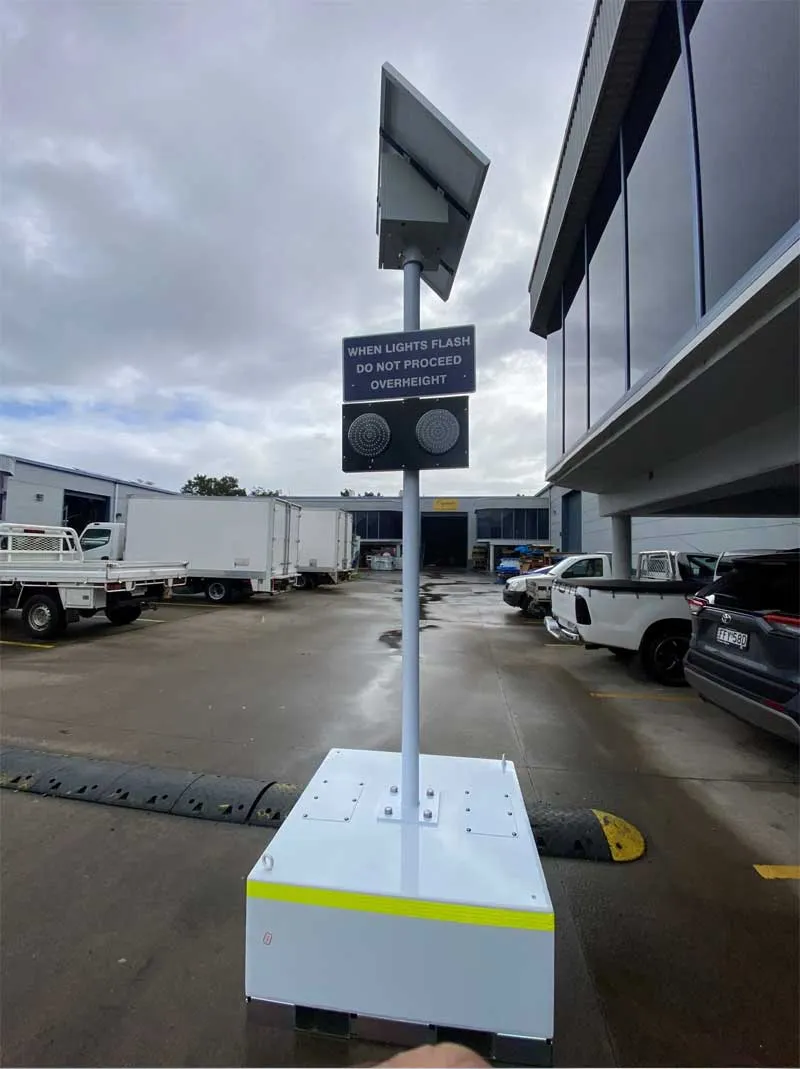

Detailed Photos
?
Frequently Asked Questions

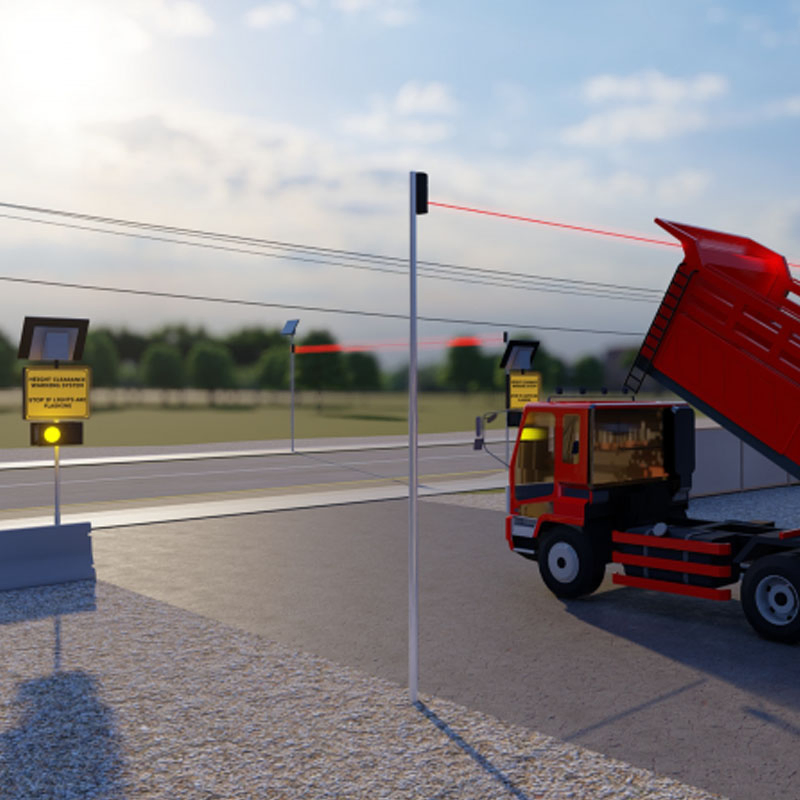

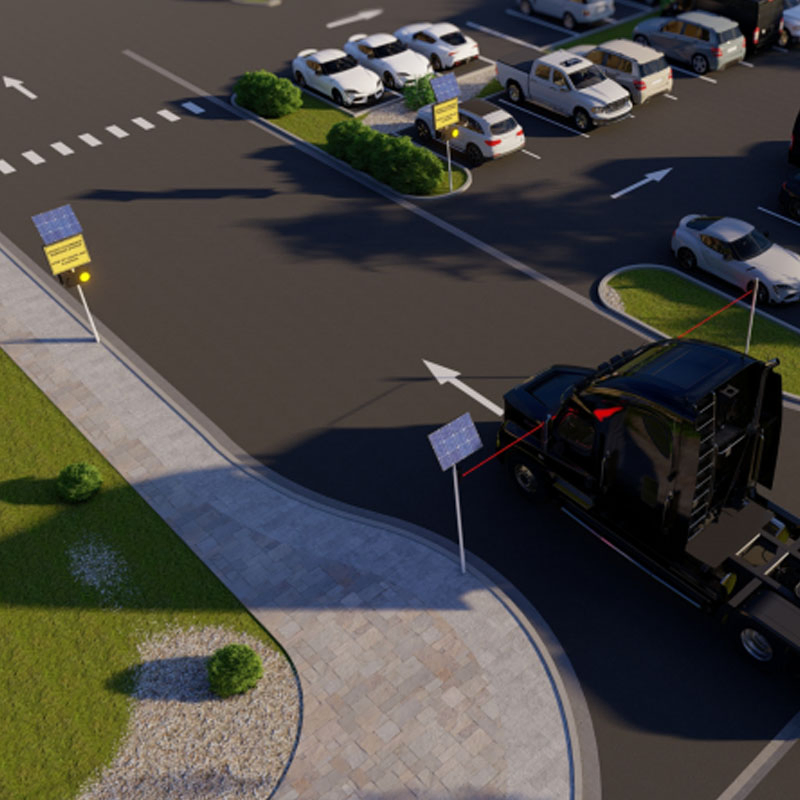

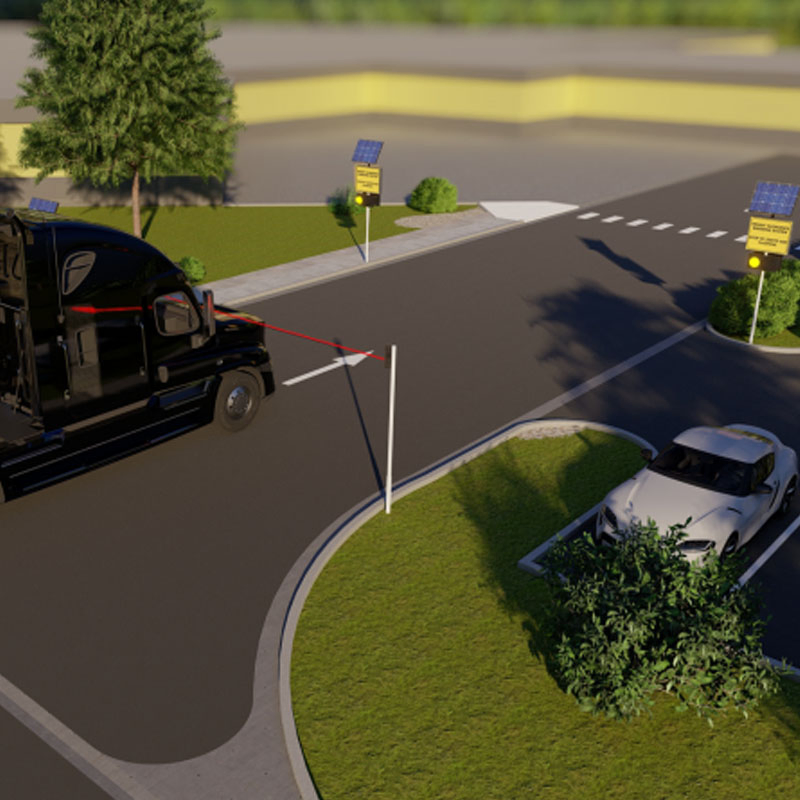

How does the system detect over-height vehicles?
It uses a precision infrared beam installed at the height limit; when the beam is broken by a vehicle, the LED warning system activates immediately.
Can it operate without grid power?
Yes, the system is 100% solar-powered. It features a high-capacity LiFePO4 battery that provides over 5 nights of autonomy even in cloudy weather.
Is it suitable for temporary construction sites?
Absolutely. We offer portable base options that allow for quick deployment and relocation, making it ideal for temporary work zones.
What is the maximum detection range?
The standard detection range is 30 meters, but we offer optional long-range sensors that can cover distances up to 150 meters.
Does it require professional installation?
The system is designed for easy "plug-and-play" setup with wireless components, significantly reducing the need for complex wiring or professional contractors.
What is the warranty coverage?
We provide a comprehensive 2-year warranty on the entire system, with a specific 1-year coverage period for the battery unit.
