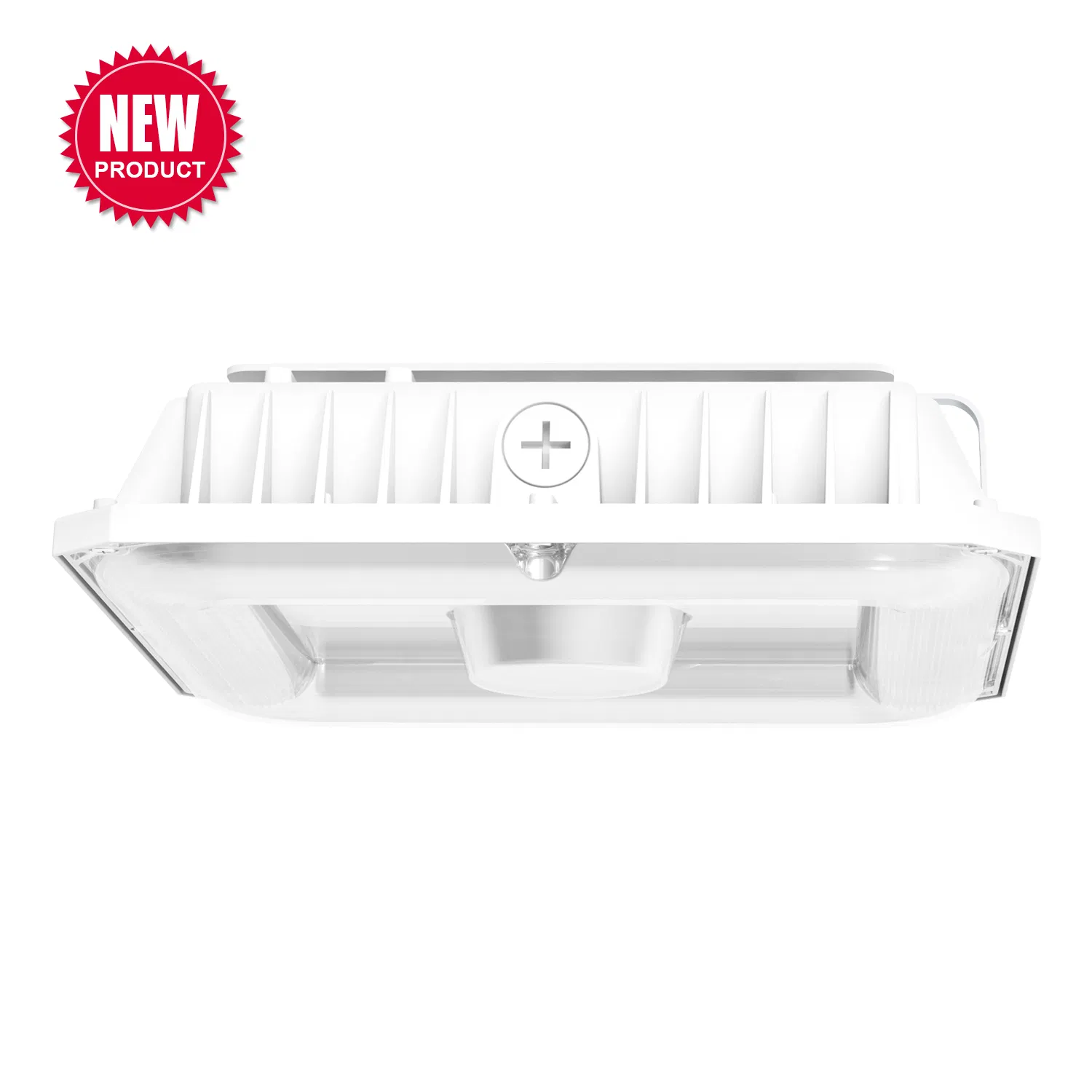

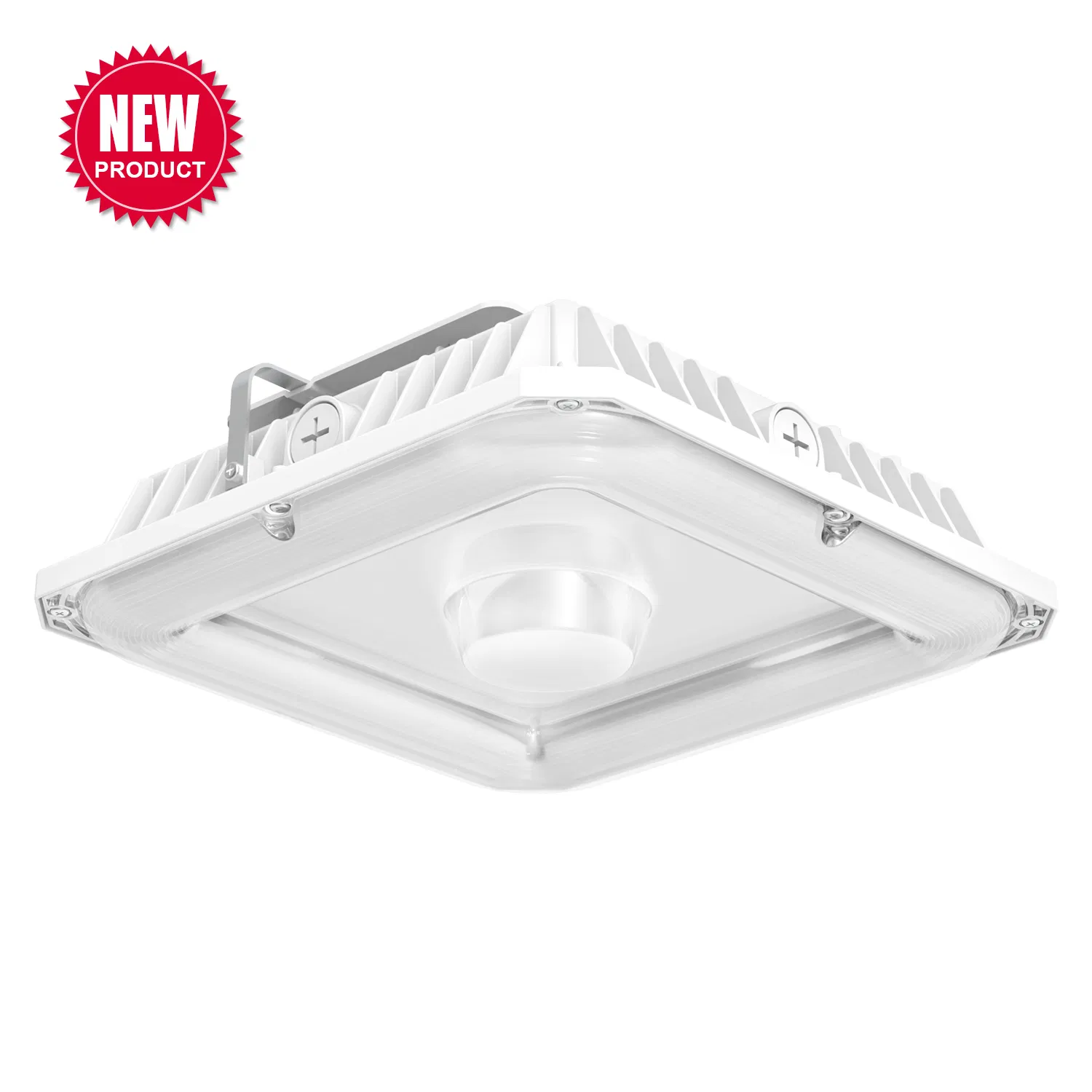

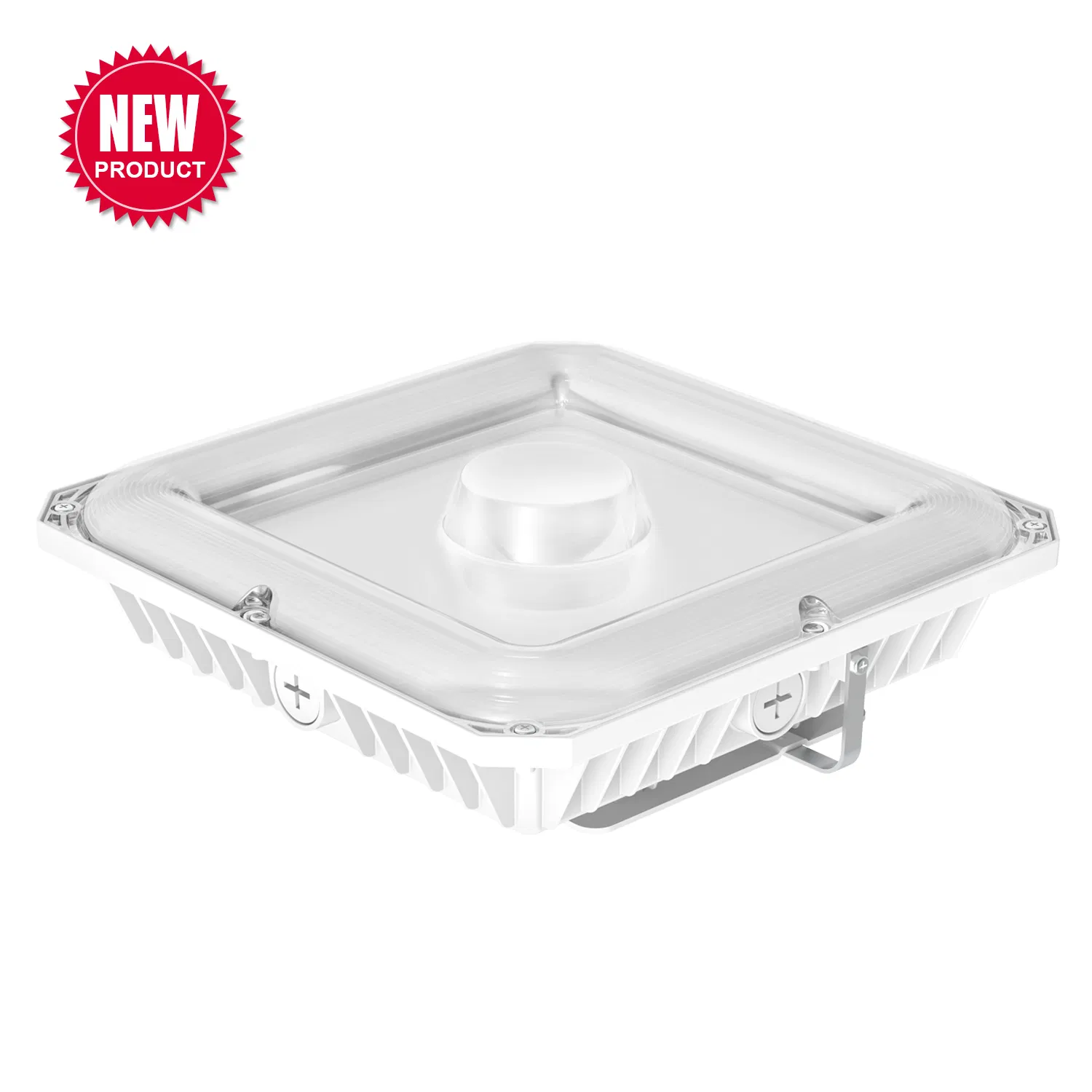

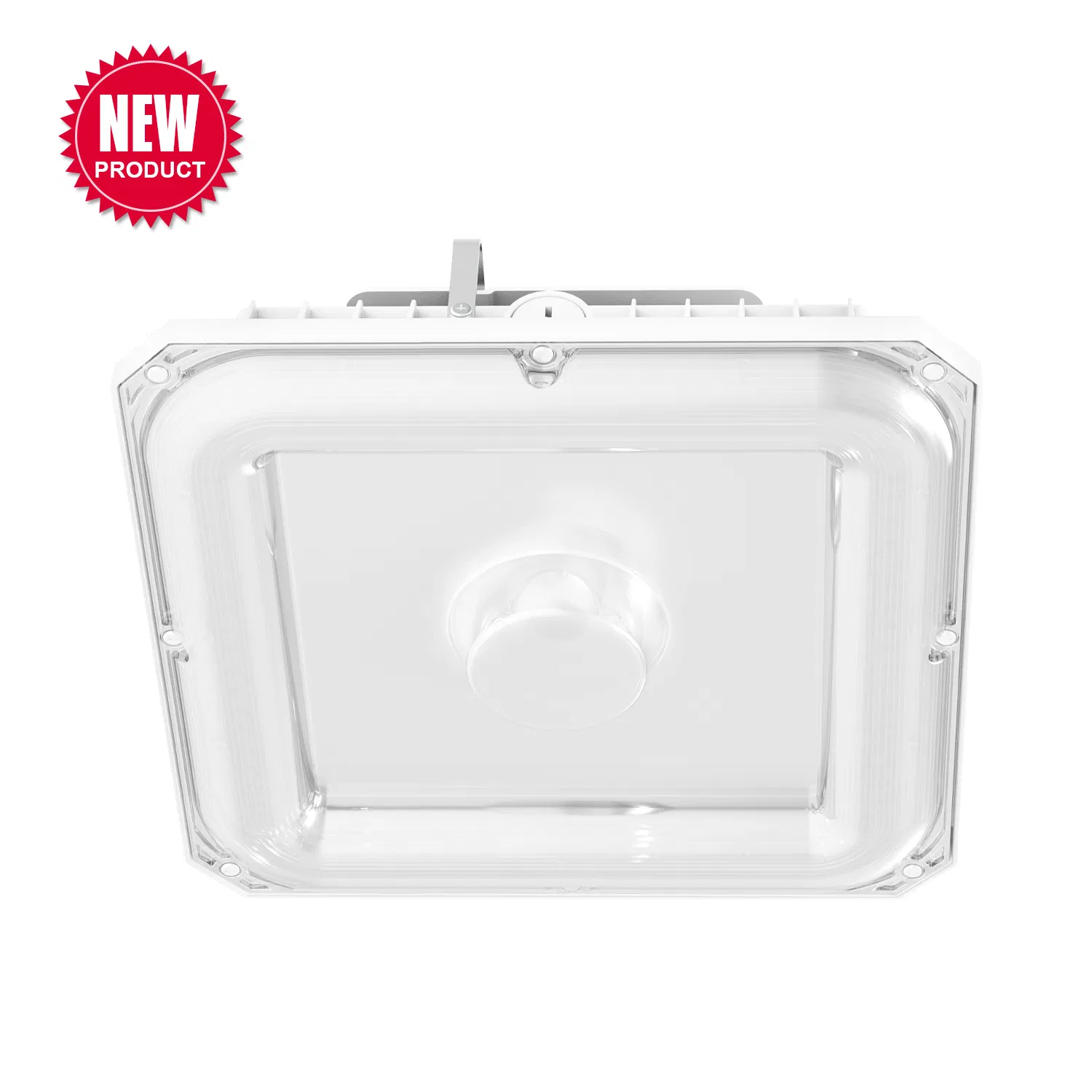

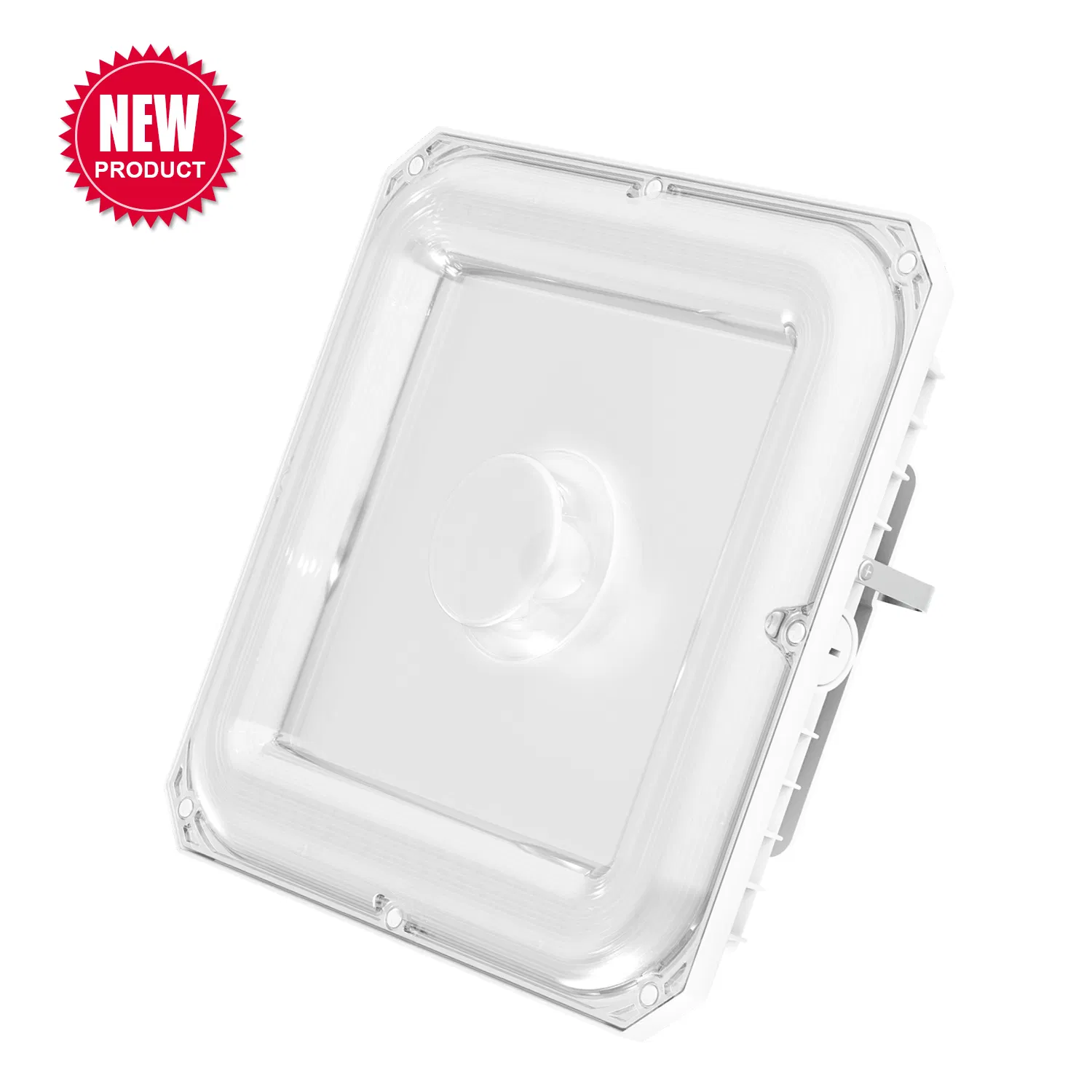

Robust 100W IP65 Waterproof LED Canopy Light for Gas Stations and Outdoor Garages Professional-Grade Outdoor Ceiling
Product Description
Basic Specifications
Product Overview
The 100W LED Canopy Light delivers superior illumination with 13,500 - 14,000 lumens output, ideal for large commercial and industrial spaces. Featuring durable die-cast aluminum housing with IP65 waterproof rating, it withstands harsh weather conditions while resisting rust and corrosion.
The light offers adjustable color temperatures (4500K/5000K/5700K) and power settings (60%/80%/100%) for customized lighting solutions. Powered by high-efficiency SMD3030 chips, it provides flicker-free, uniform light with a 120° beam angle and CRI≥80 for accurate color rendering.
The built-in photocell enables automatic dusk-to-dawn operation, while the reflective lens minimizes glare. With a wide operating range (-30°F to 130°F), >0.9 power factor, and long-term reliability, it ensures energy savings and high performance.
Key Features
- Photocell dusk to dawn automation
- Reflective lens design to optimize lighting efficiency
- Super thin appearance conforming to modern aesthetics
- Cast aluminum thermal management for optimal heat sinking
- Suitable for recessed or surface mounted installation
- IP65 rating for reliable outdoor and damp location use
- High output 135-140LM/W SMD3030 chips

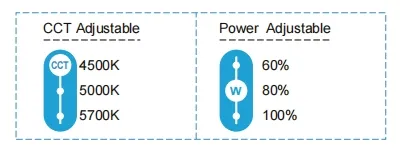

- Adjustable CCT: 4500K/ 5000K/ 5700K
- Adjustable power: 60%/ 80%/ 100%
- Instant start, no noise, no flickering
Technical Parameters
| Model | MF-CPG-100W Square |
| Lumen Output | 14000Lm (±10%) |
| Efficacy | 140LM/W |
| Beam Angle | 120° |
| LED Quantity | 280PCS SMD3030 |
| Voltage | AC100-277V |
| Power Factor (PF) | >0.9 |
| Working Temp | -40 ~ 40ºC |

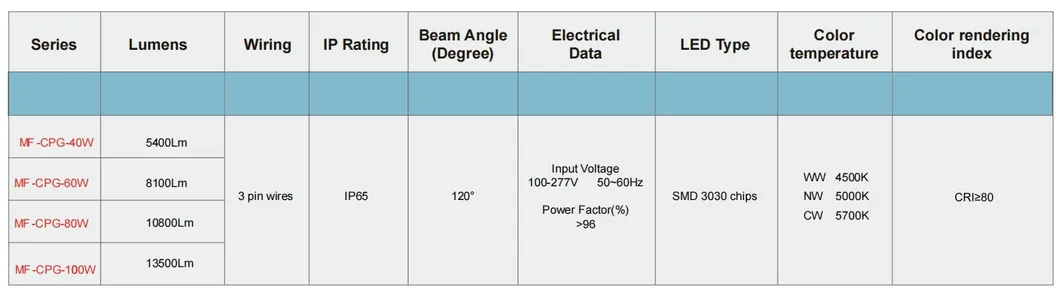

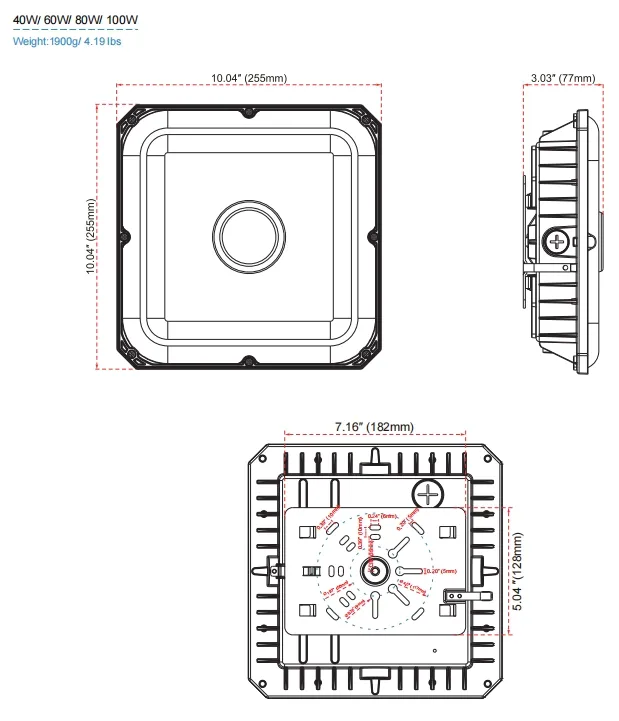

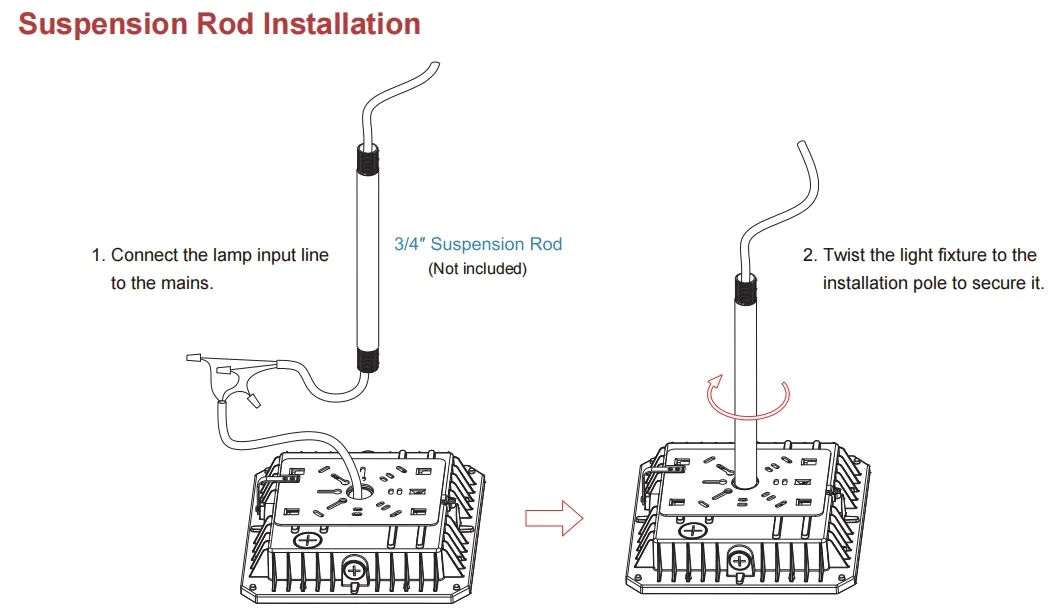

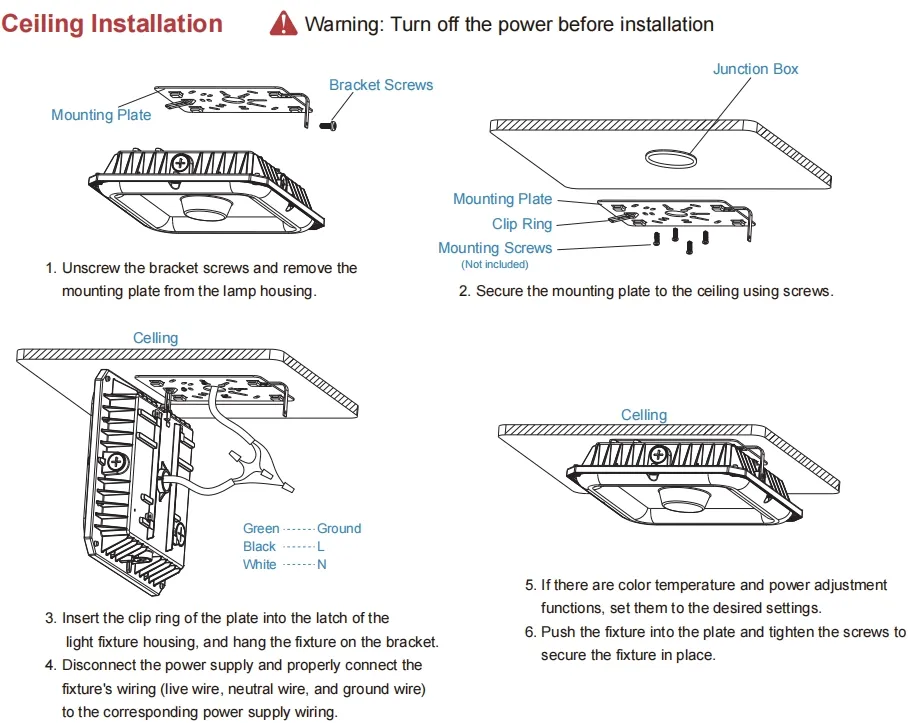

Dimension & Installation

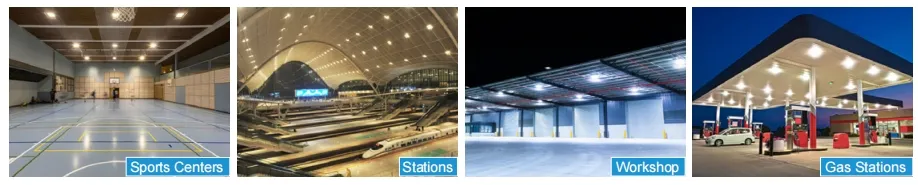

Wide Applications
13,500-lumen output and 120° beam angle provide uniform, high-intensity illumination for large storage areas and loading docks.
IP65 waterproof rating and corrosion-resistant housing deliver bright, shadow-free lighting for pumps and convenience stores.
Adjustable power settings and dusk-to-dawn photocell offer optimal visibility and energy savings for 24/7 parking facilities.
Maintains consistent brightness in bus depots and train stations with resistance to vibration from heavy vehicles.

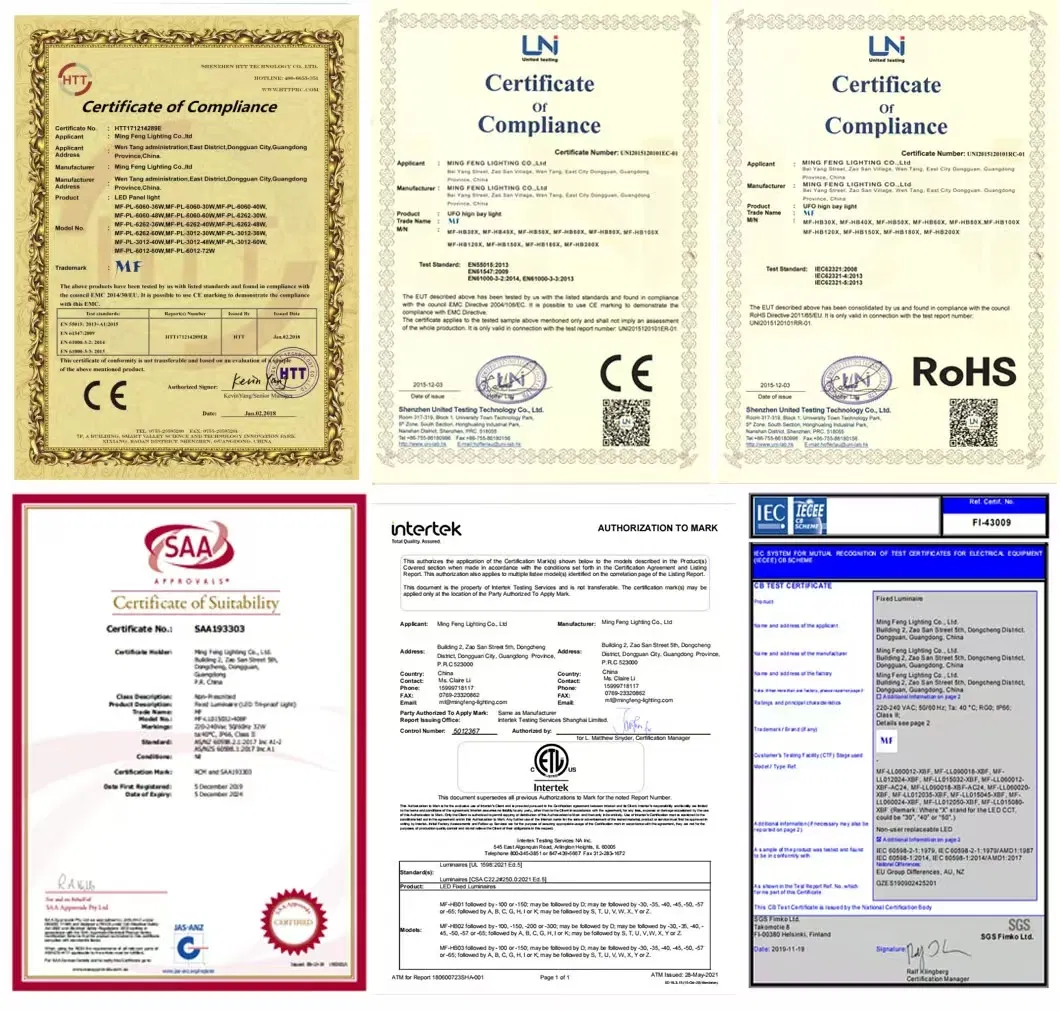

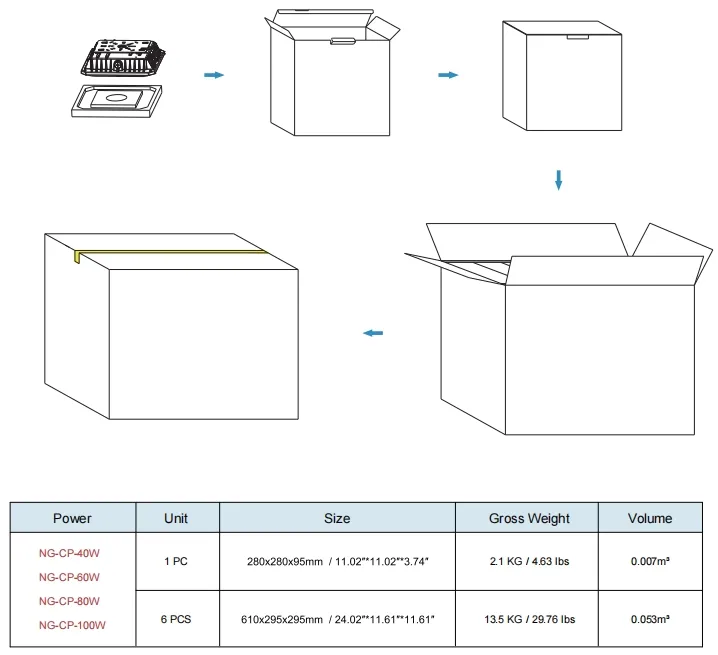

Certifications & Shipping
