Casting Aluminum Parking Garage LED Canopy Light LED Petrol Station Light
Product Description
📋
Basic Information
Model NO.GL-GS-01A1
Power240W 200W 150W 100W
Lifespan≥50000H
IP RatingIP65
CertificationCE, EMC, LVD, RoHS
Beam Angle120°
LED ChipsSMD3030

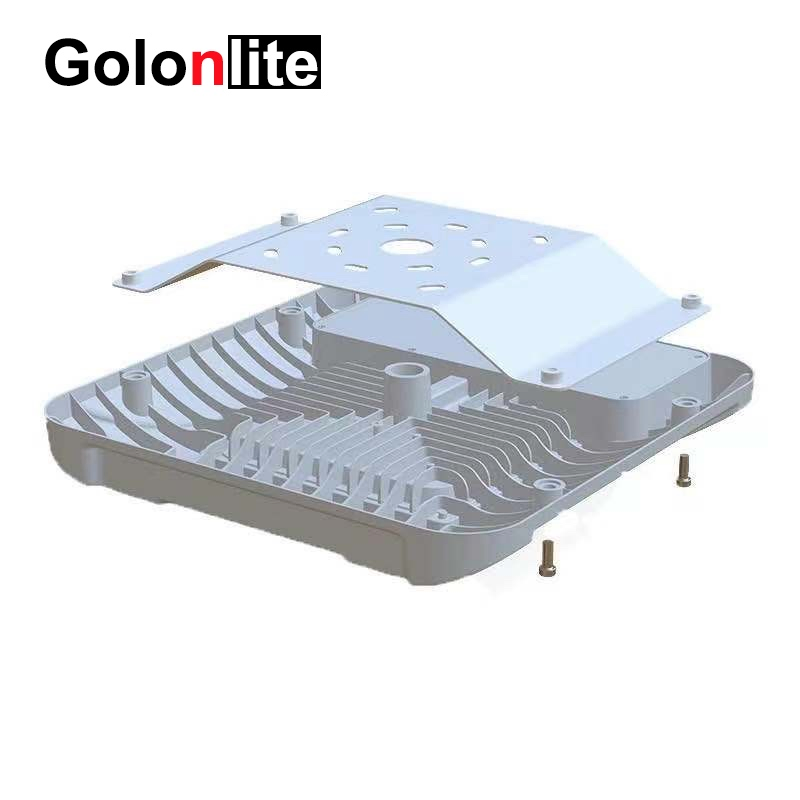

MaterialDie Casting Aluminum
DriverMeanwell / Sosen Driver
Power FactorPF>0.93
💡
Product Description

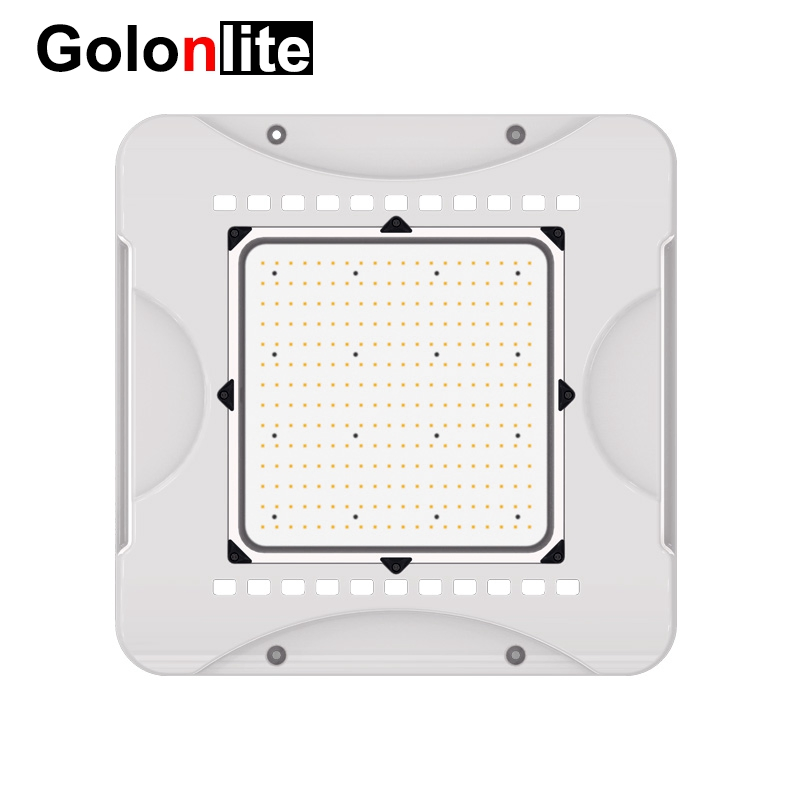

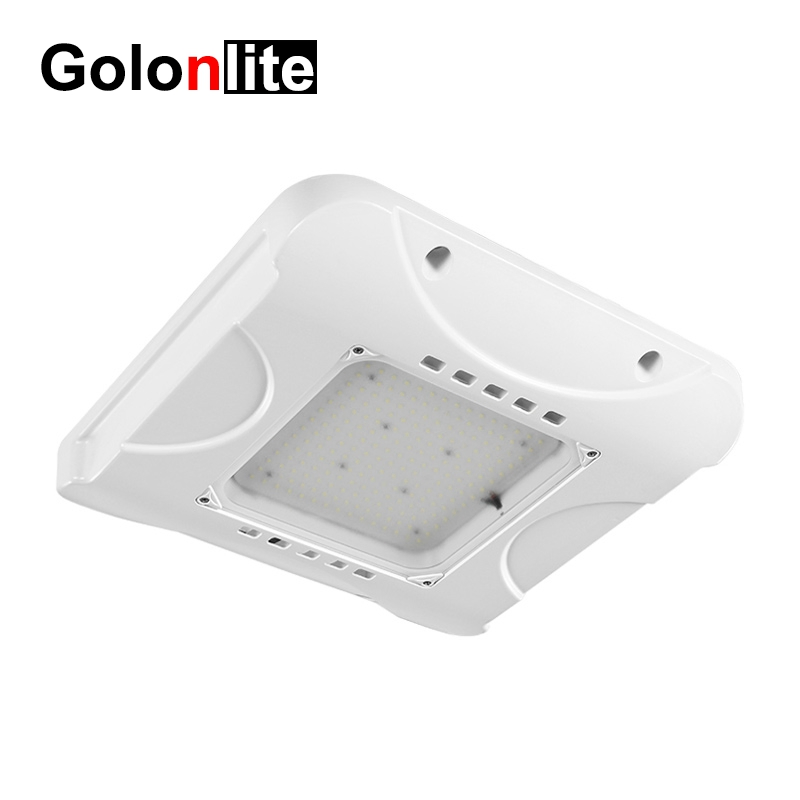

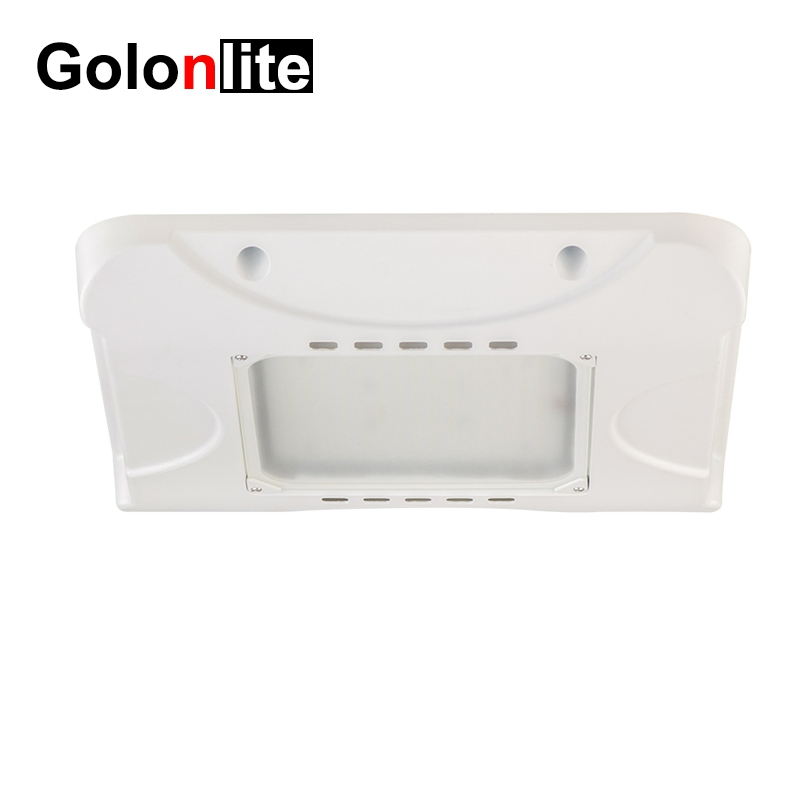

Casting Aluminum Parking Garage LED Canopy Light
High-quality LED petrol station light with 130Lm/W efficiency, designed for durability and superior illumination in demanding environments.
| Specification | Details |
|---|---|
| Luminous Efficiency | 130Lm/W |
| CCT(K) | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | > Ra80 |
| Input Voltage | 100-277VAC 50/60Hz |
| Sensor Options | Microwave sensor / Dimmable |
| Lens | 120° anti-glare frosted lens |
| Installation | Recessed, Ceiling, Surface mounting, Pendent mounting |
⭐

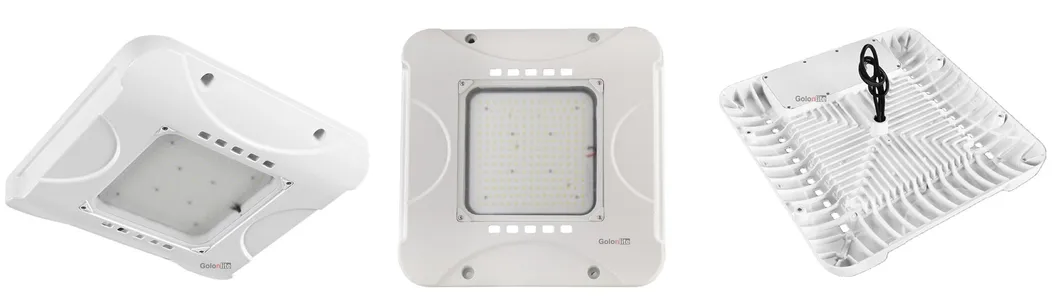

Key Features

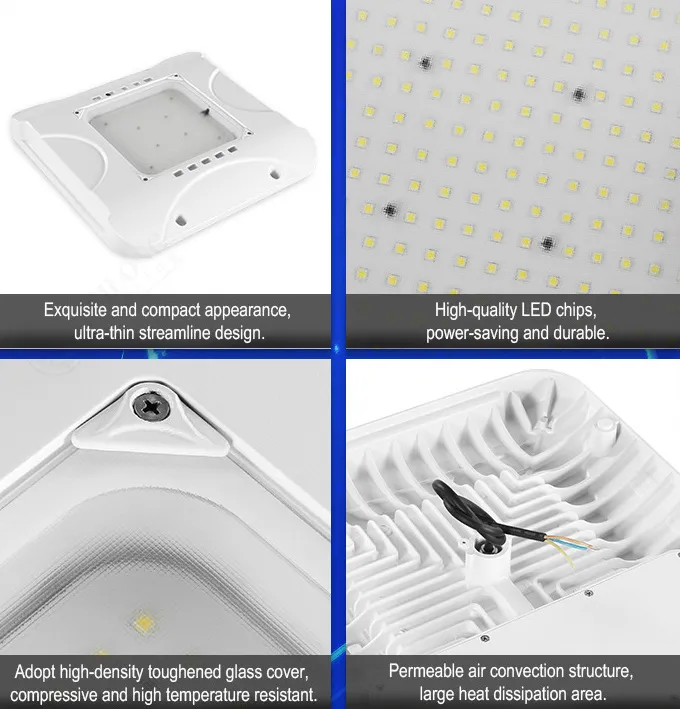

- Full white high purity die casting aluminum housing.
- Super bright: 130Lm/W high lumens efficiency.
- Equipped with 3030 LED chips, Ra80.
- High performance Meanwell / Sosen driver.
- 5 years warranty for reliable performance.

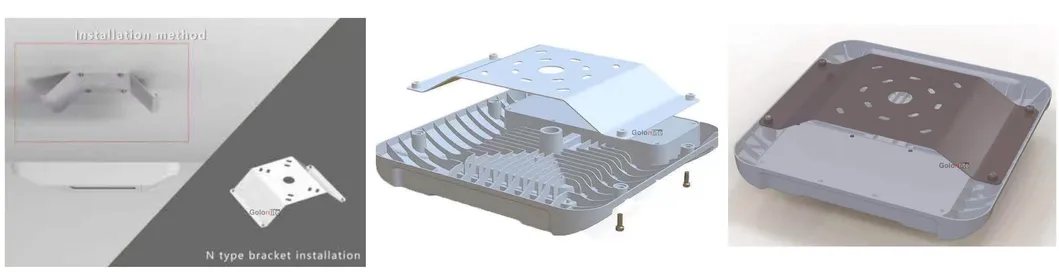

- Dual installation: Surface ceiling + Pendent mounting.
🏗️

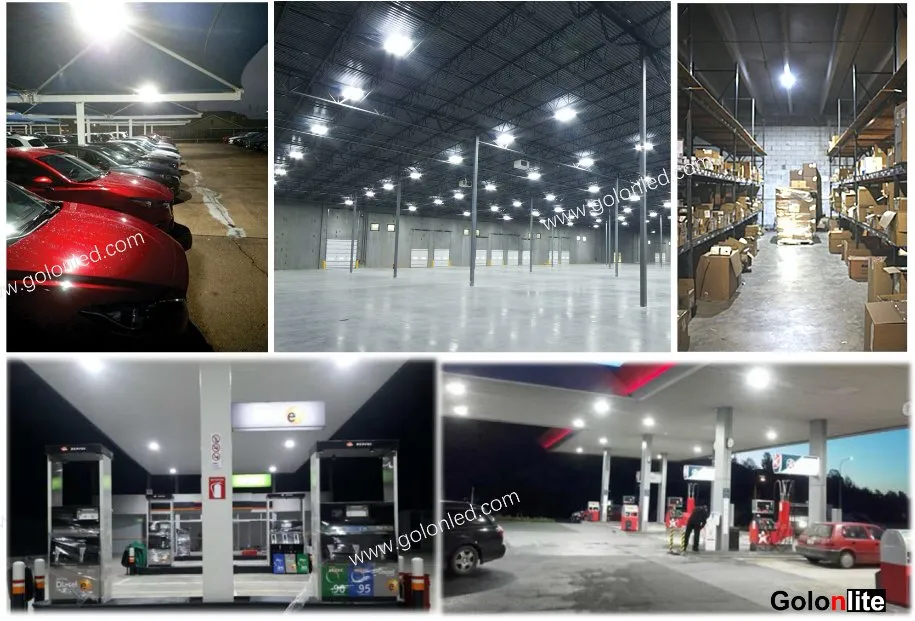

Applications & Installations
Widely used in various industrial and commercial settings:
Gas & Petrol Stations
Toll Stations
Parking Garages
Warehouses & Workshops
Service Stations
Factories & Corridors
📊

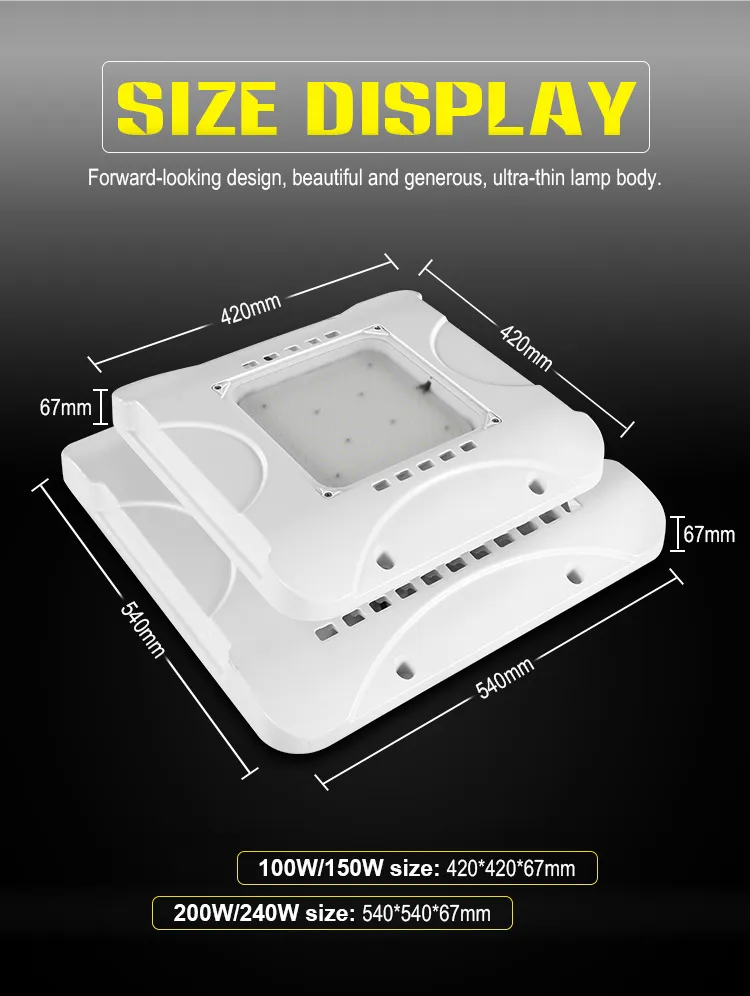

Model Comparison
| Model | Power | Lumens | Replacement | Lamp Size |
|---|---|---|---|---|
| GL-GS-01A1 | 240W | 31200Lm | 1500W | 540*540*67mm |
| GL-GS-01A2 | 200W | 26000Lm | 1000W | 540*540*67mm |
| GL-GS-01A3 | 150W | 19500Lm | 400-500W | 420*420*70mm |
| GL-GS-03A4 | 100W | 13000Lm | 250-500W | 420*420*70mm |
🏭
Manufacturing Excellence
Experienced leading manufacturer since 2010, providing engineering and lighting solutions with factory fair prices and fast delivery.
❓
Frequently Asked Questions
What is the lifespan of these LED canopy lights?
The lights are designed with high-quality SMD3030 chips and Meanwell/Sosen drivers, offering a lifespan of ≥50,000 hours.
Are these lights suitable for outdoor use in rain?
Yes, these lights have an IP65 waterproof rating, making them perfect for petrol stations and outdoor parking areas.
What kind of warranty is provided?
We provide a comprehensive 5-year warranty on our LED canopy lights, covering performance and quality.
Can I get a lighting simulation for my project?
Yes, we offer free Dialux lighting studies and IES files to help you design the perfect lighting solution.
What traditional lamps can these LEDs replace?
Depending on the wattage (100W-240W), they can replace 250W to 1500W Halogen, Metal Halide, or HID lamps.

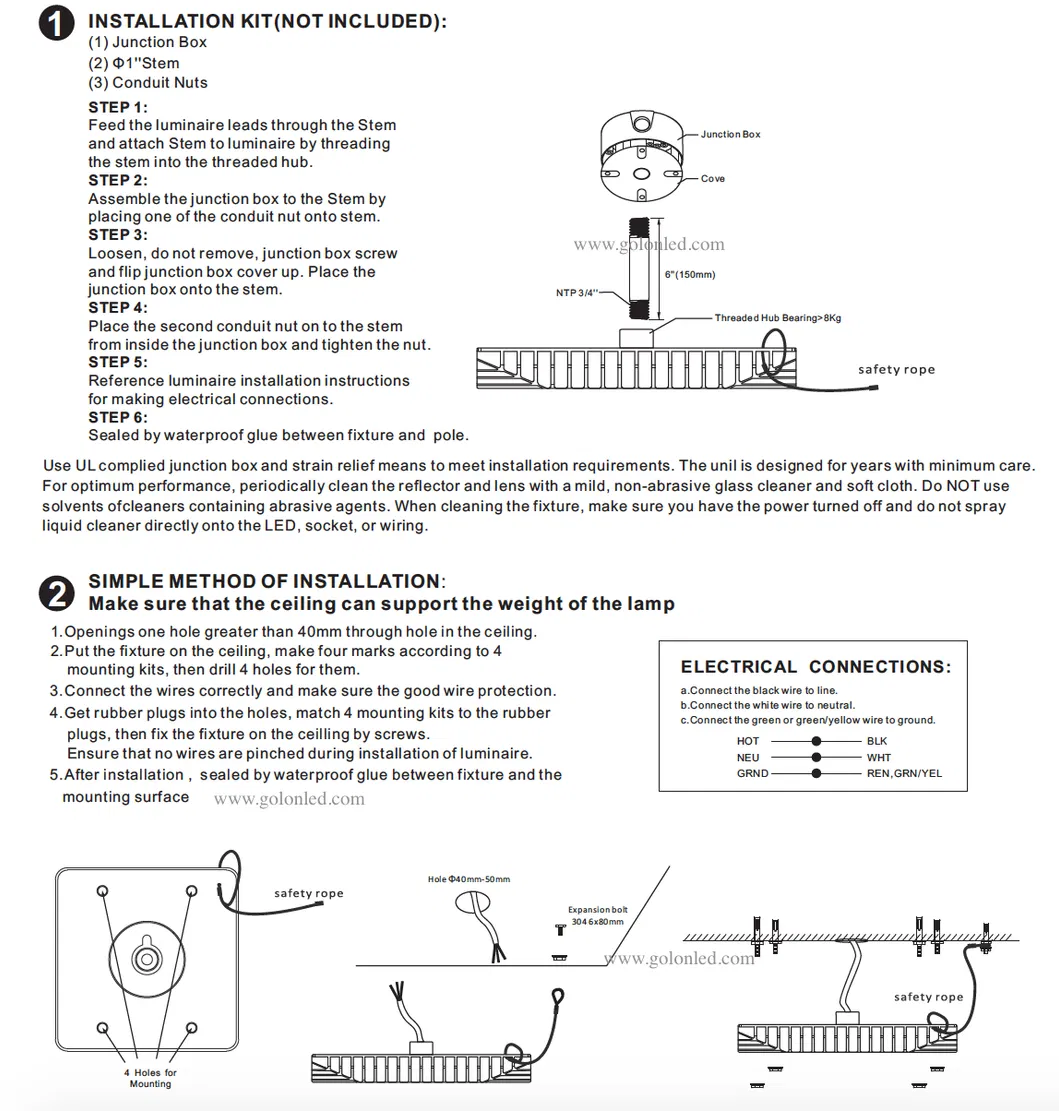

What are the available installation methods?
The lights support multiple installation ways, including recessed mounting, surface ceiling mounting, and pendent mounting.
