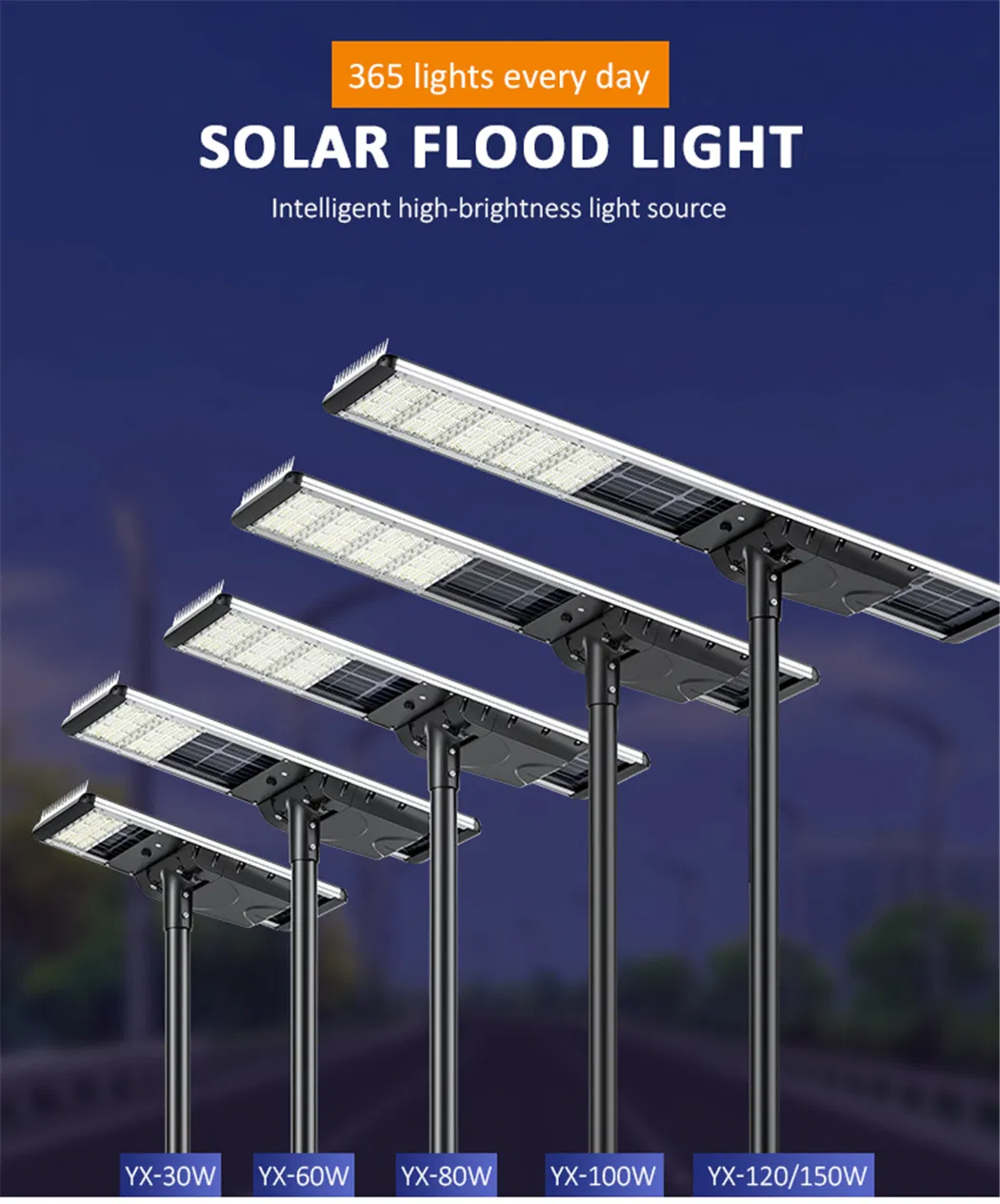

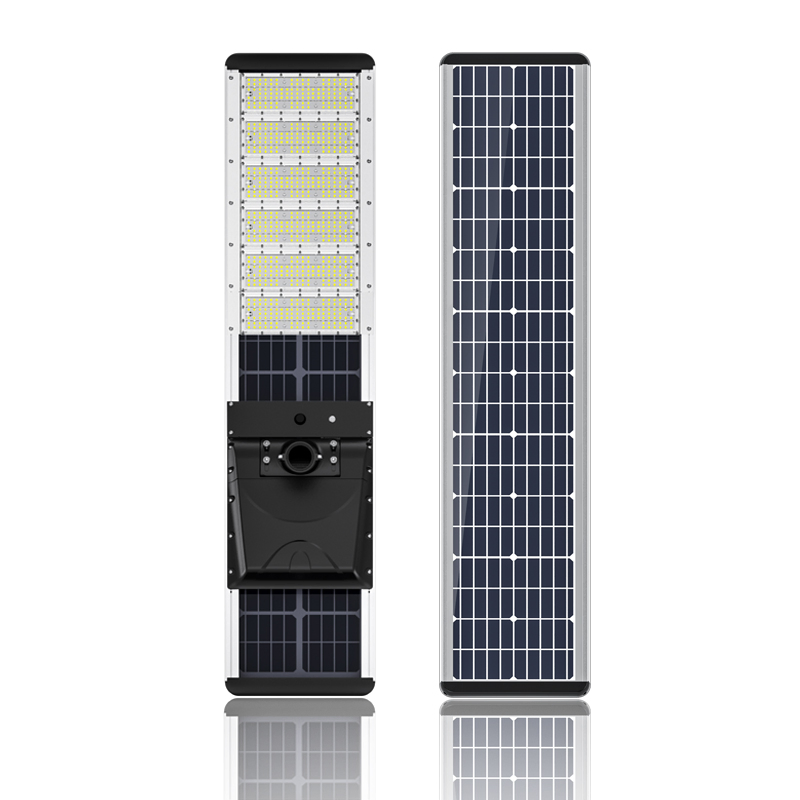

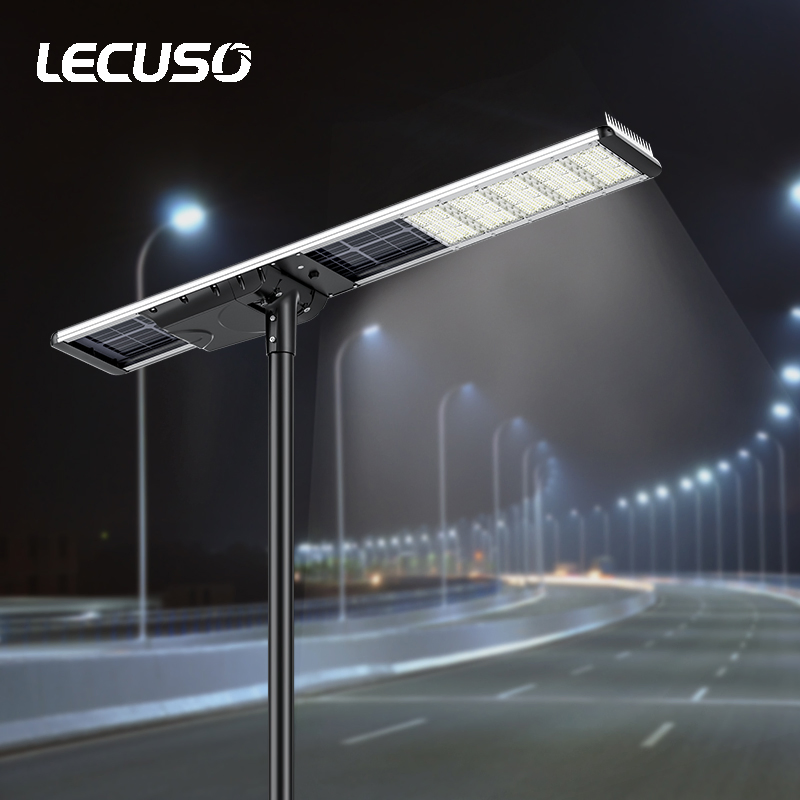

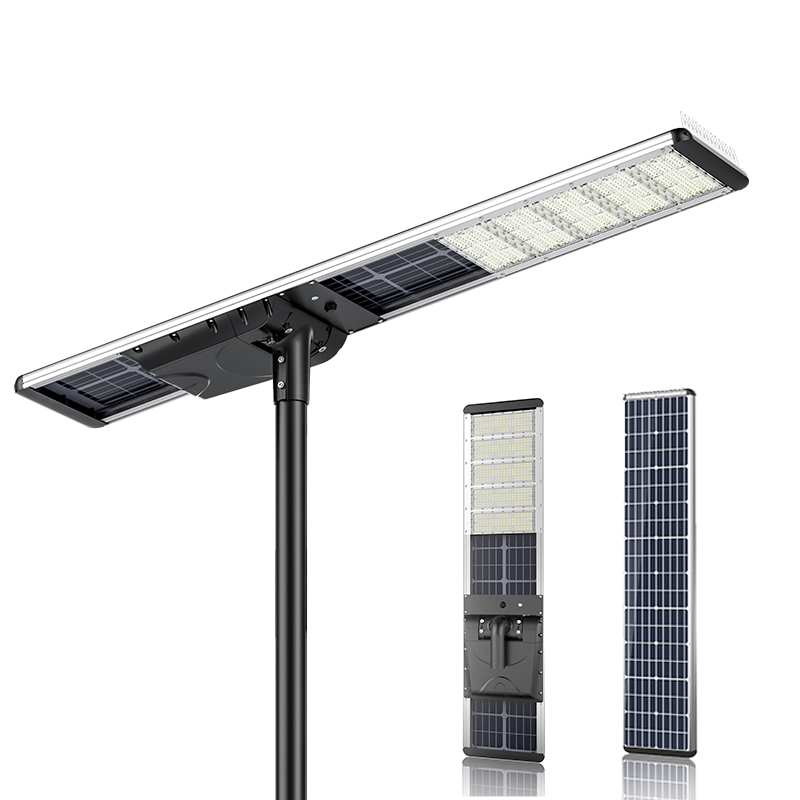

Commercial 120W 150W 180W Solar Street Light Integrated Powered LED 100W MPPT Solar Street Light Controller
Product Description
i
Basic Information
Model NO.
LCS-XY-08
Light Source
LED Lamp
Lamp Body Material
Aluminum
Light Type
Solar
Color Temperature
Cool White
Power
20W-150W
Cell Type
LiFePO4 Battery
IP Rating
IP65
Voltage
12/24V
Certification
CE, RoHS
⚙
Product Parameters
| Specifications | 30W | 60W | 80W | 100W | 120W | 150W |
|---|---|---|---|---|---|---|
| 3030 LED chip | 120PCS | 240PCS | 360PCS | 480PCS | 600PCS | 720PCS |
| Luminous Flux | 6600LM | 13200LM | 17600LM | 22000LM | 26400LM | 33000LM |
| LiFePO4 Battery | 12.8V 18AH | 12.8V 30AH | 12.8V 42AH | 12.8V 54AH | 12.8V 60AH | 25.6V 36AH |
| Mono Solar Panel | 18V 60W | 18V 80W | 18V 100W | 18V 120W | 18V 150W | 18V 160W |
| Install Height | 4-5M | 6-7M | 7-8M | 8-10M | 9-12M | 9-12M |
| Material | Aluminum Alloy + PMMA | |||||
| Working Temp | -25~+60°C | |||||
✔
Key Advantages
✦
High strength die-cast aluminum housing, wind resistance level 16.
✦

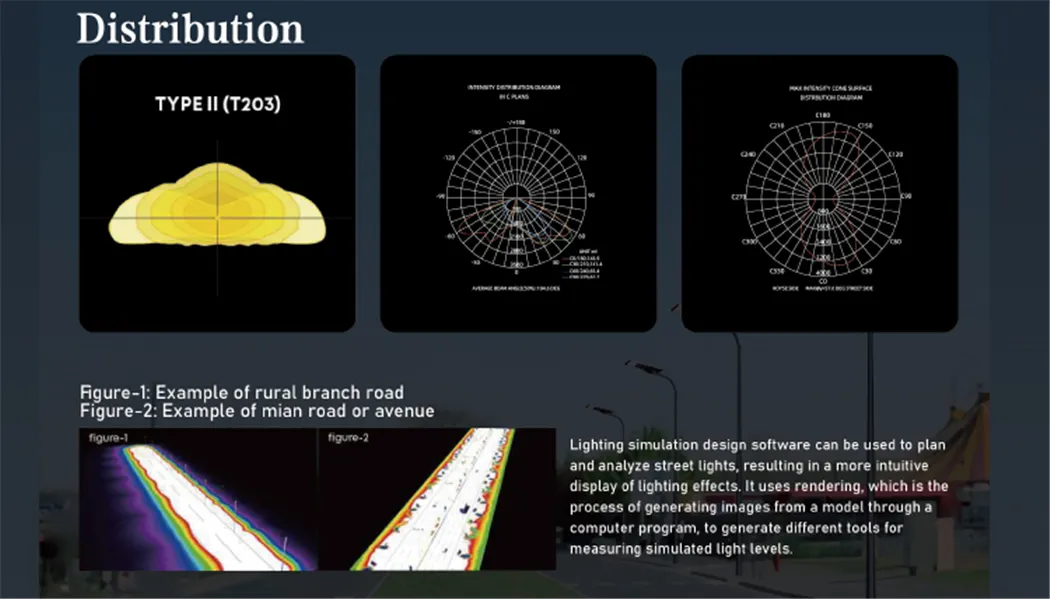

Famous brand 3030 LED chips with 150° wide lighting angle for maximum coverage.
✦

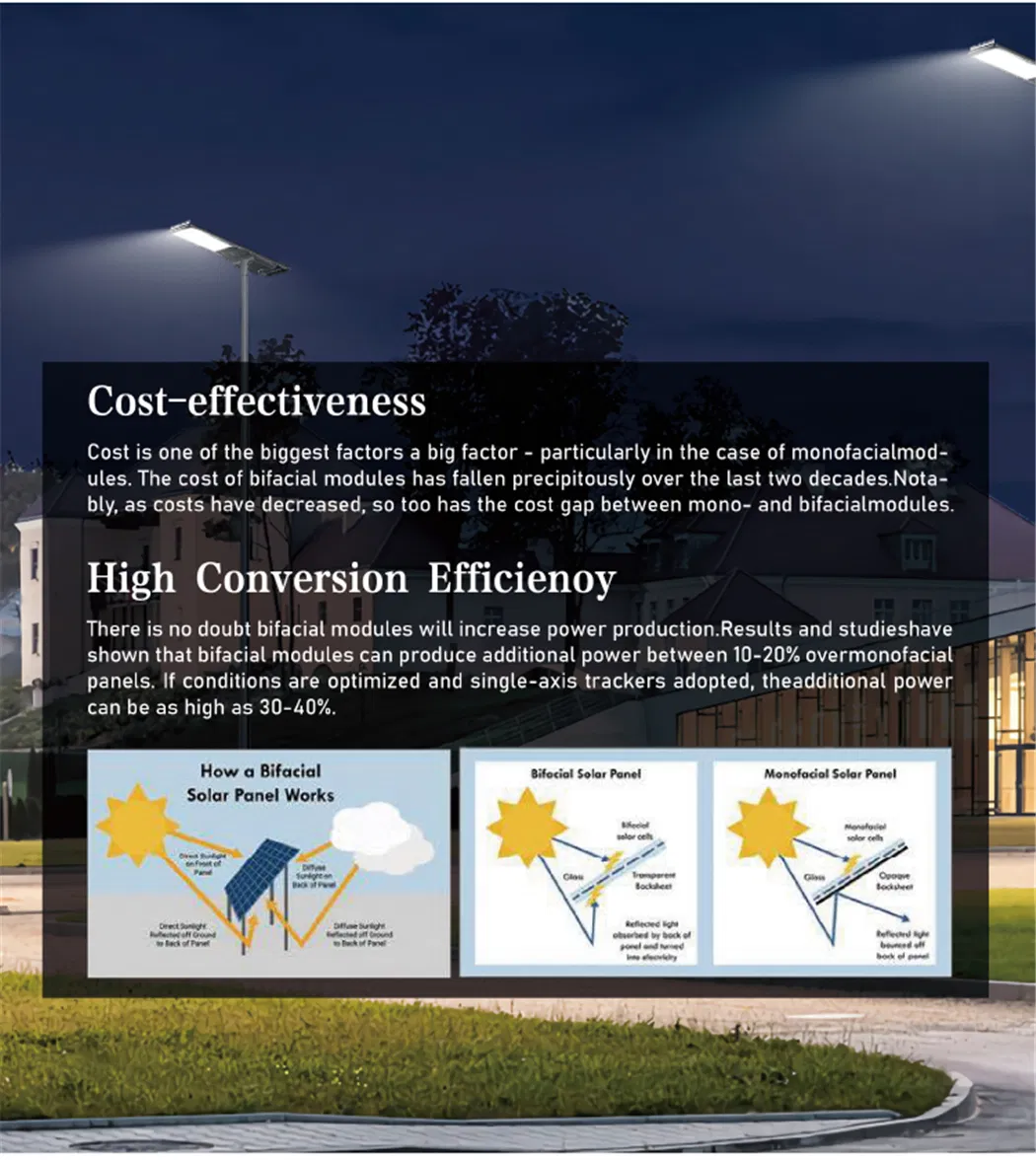

Bifacial solar panels improve power generation efficiency by over 30%.
✦
Built-in motion sensor and intelligent controller to ensure work even in cloudy weather.
✦

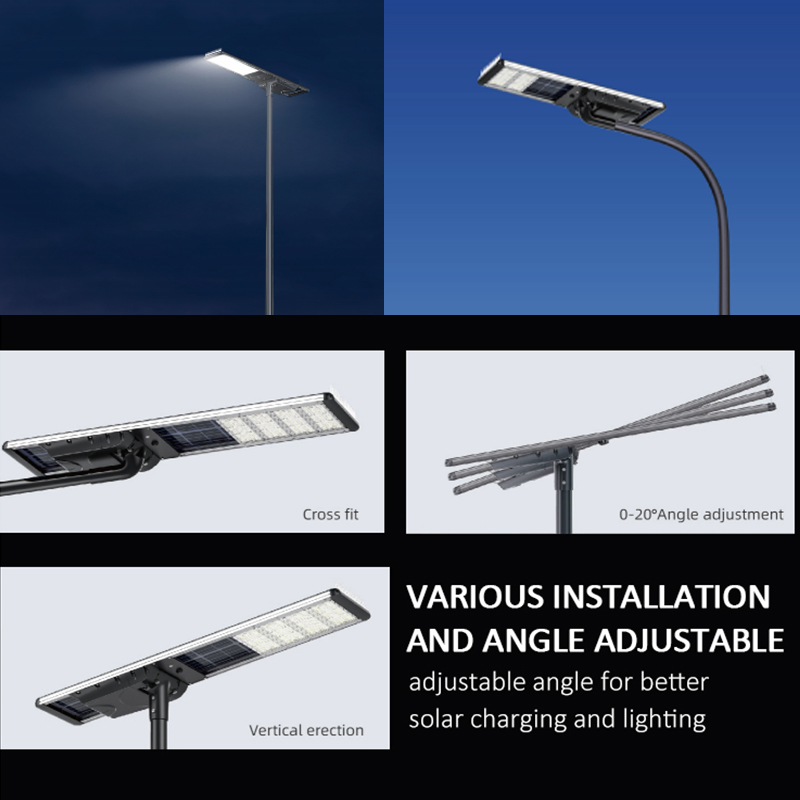

Easy installation with no wiring required; supports multiple installation methods (0-20° adjustable).
◈

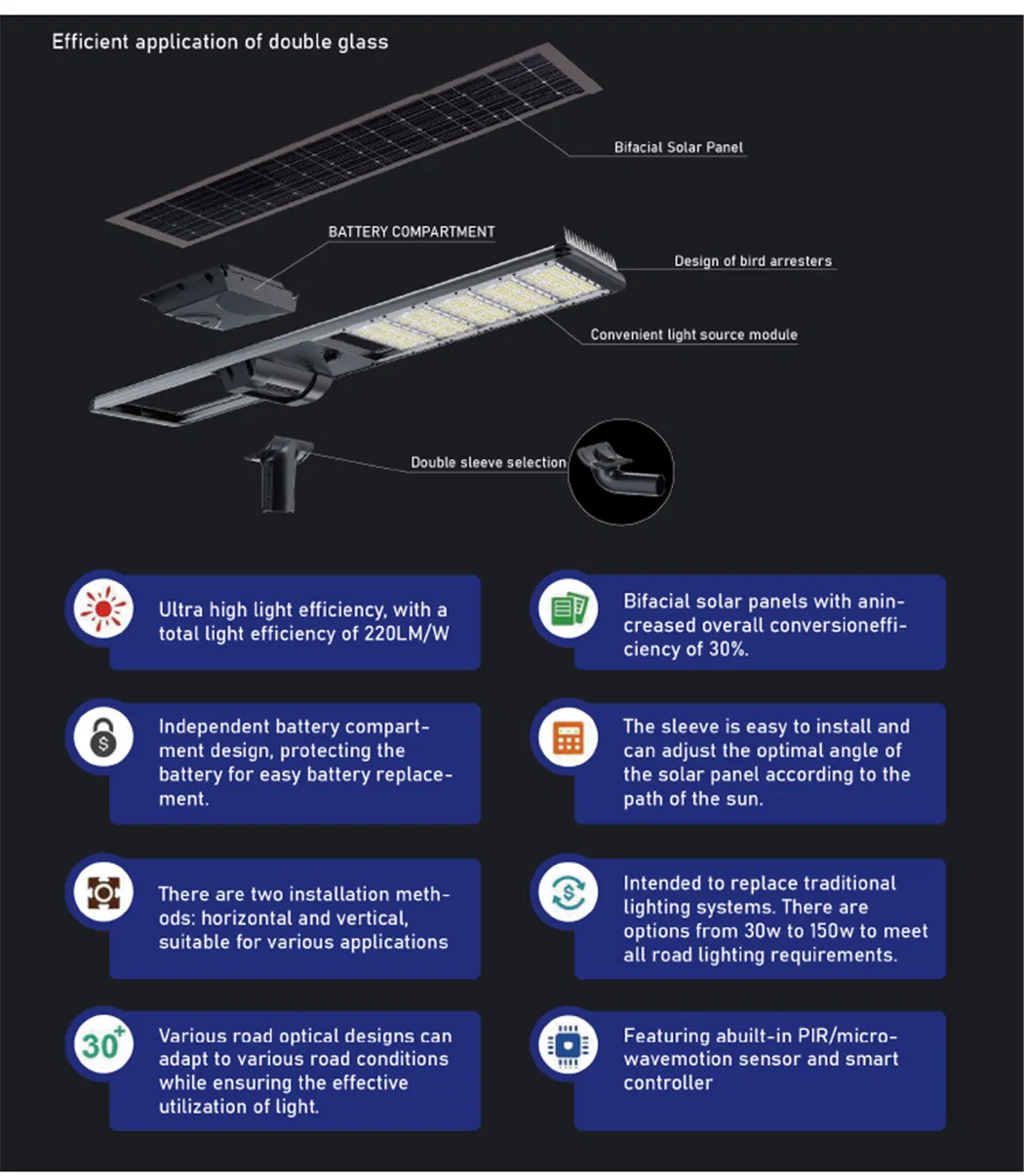

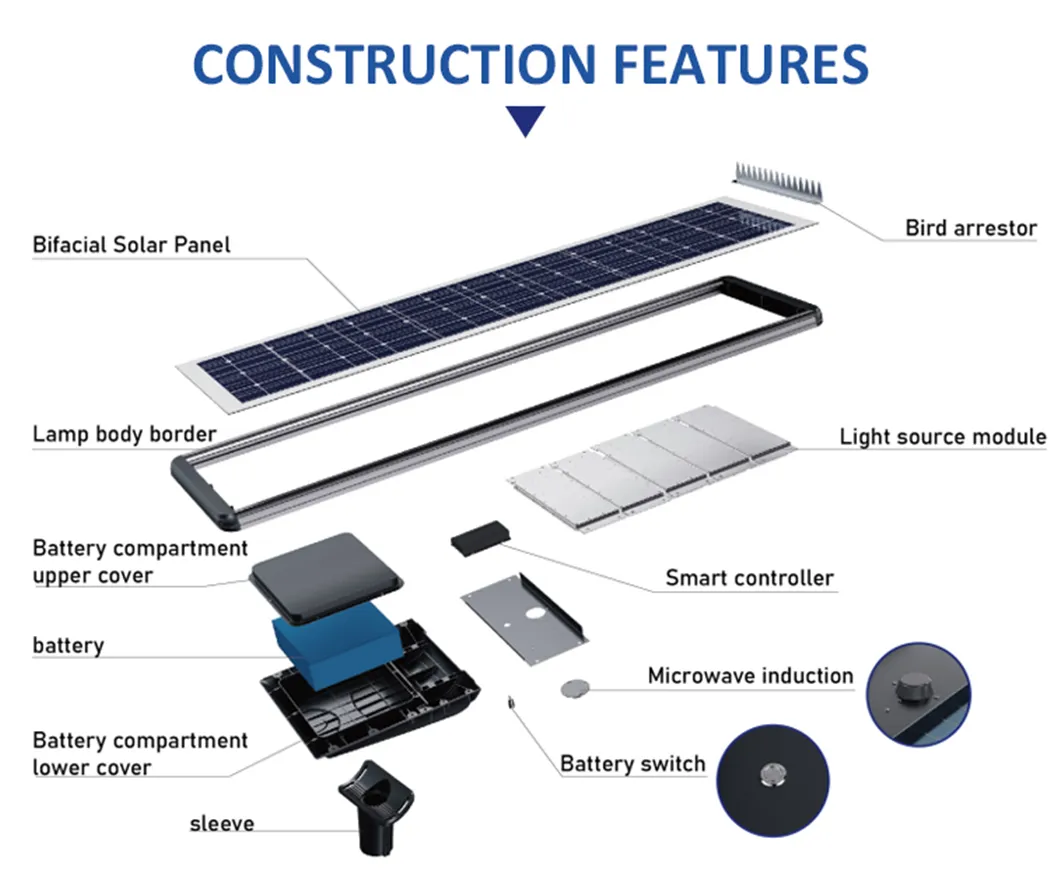

Product Details
★

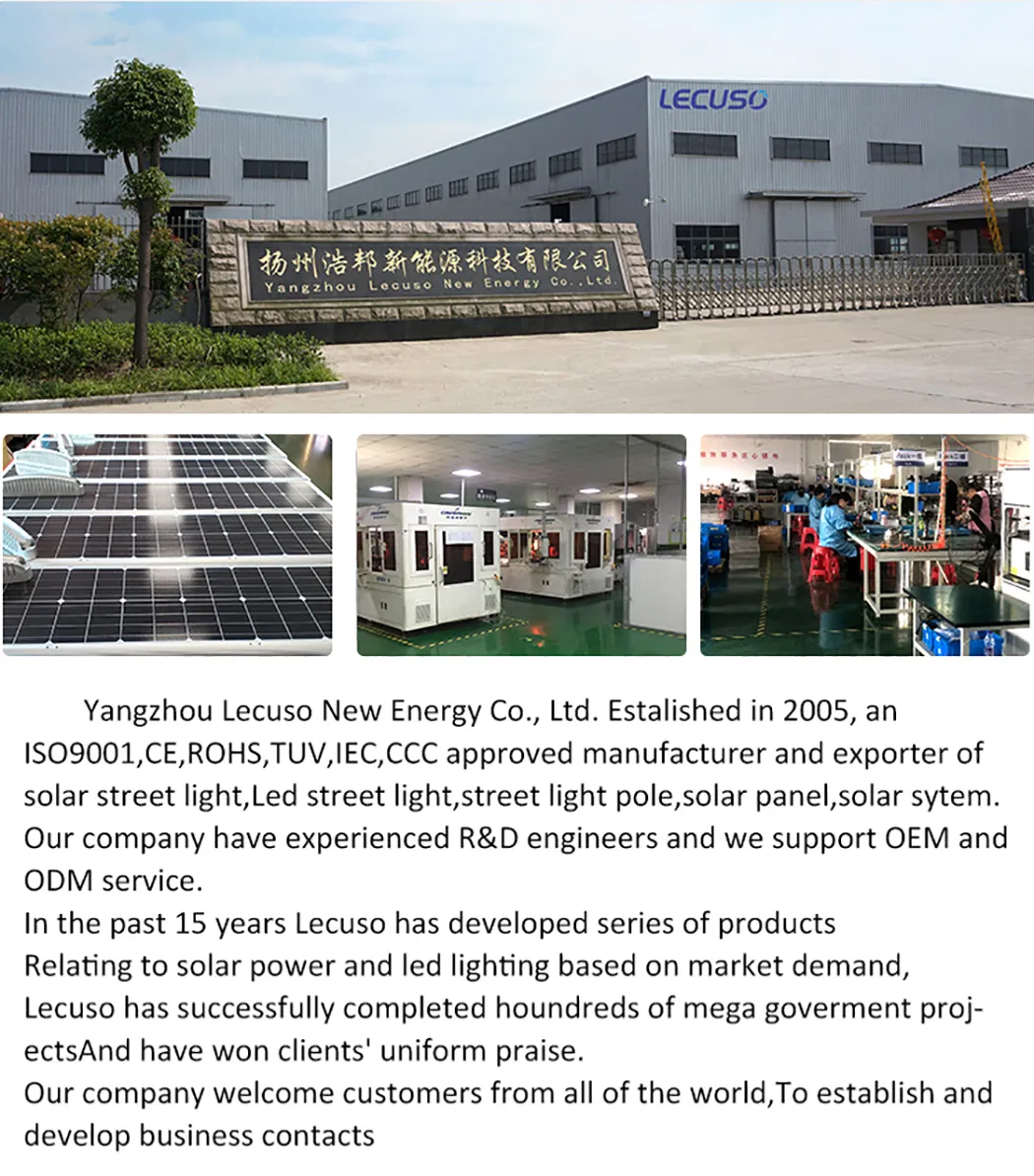

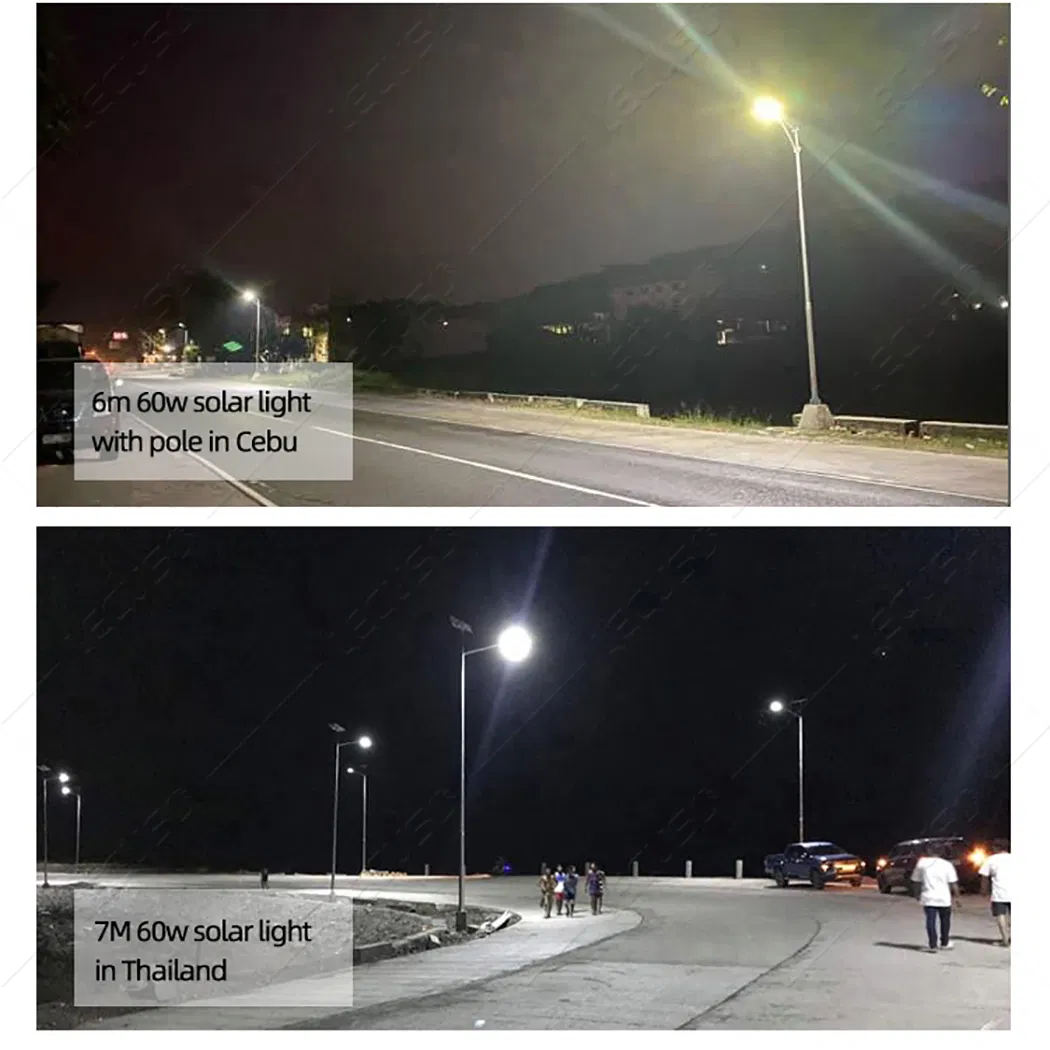

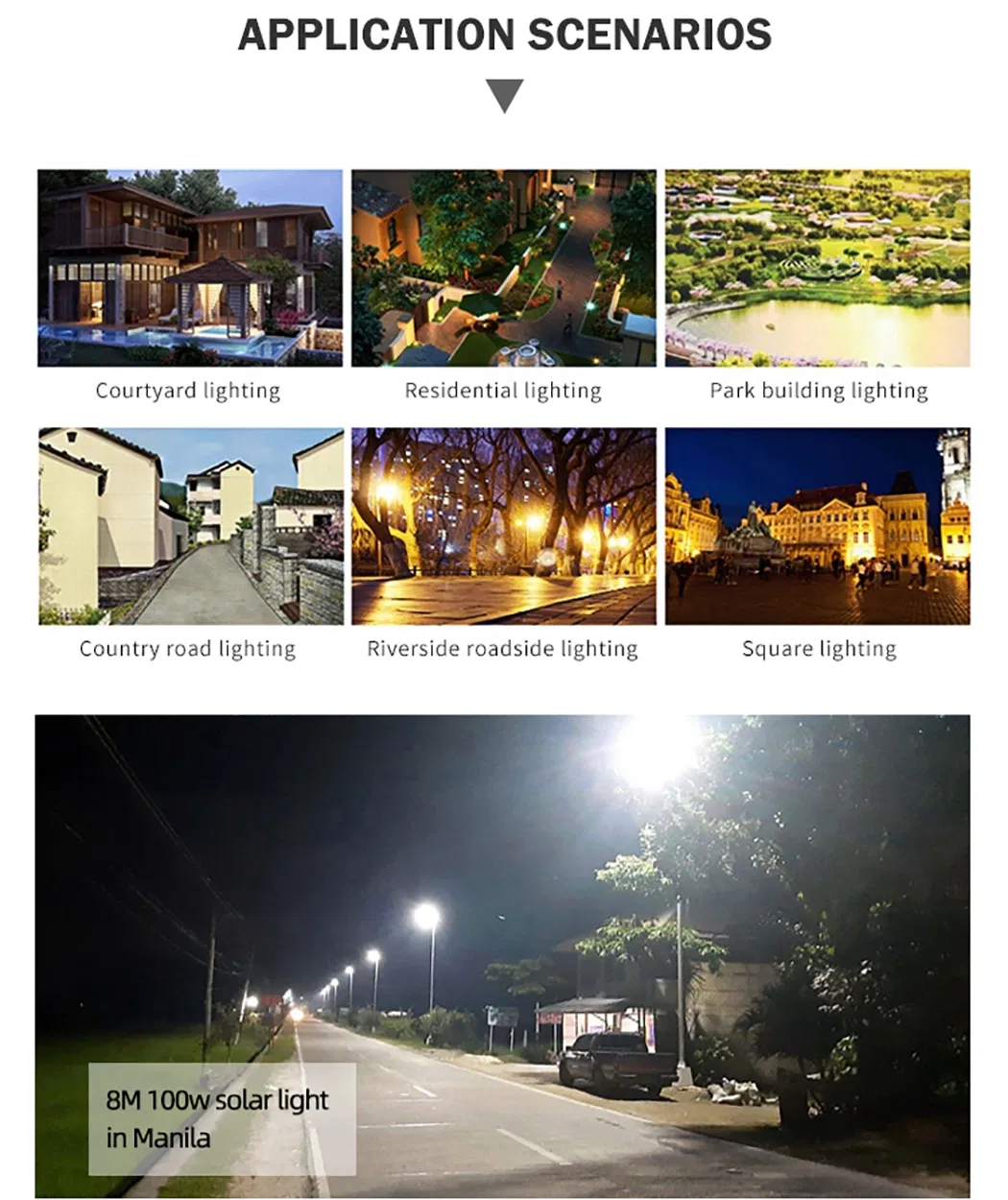

Our Projects & Factory
✈
Certifications & Shipping
?
Frequently Asked Questions
What type of battery is used in the solar street light?
We use high-performance LiFePO4 (Lithium Iron Phosphate) batteries, which offer a longer lifespan and better safety compared to traditional batteries.
How long does it take to fully charge the light?
Under standard sunlight conditions, it takes approximately 5-6 hours to reach a full charge.
Is the solar street light waterproof?
Yes, the product has an IP65 rating, ensuring it is fully protected against dust and low-pressure water jets from any direction.
Can the light work during consecutive cloudy days?
Yes, the intelligent controller and motion sensor allow the light to support 3-5 nights of operation after a full charge.
What is the recommended installation height?
The recommended height varies by power: 4-5M for 30W, and up to 9-12M for 120W-150W models.
What are the available lighting modes?
The light supports motion sensor mode, timer settings, and manual remote control for flexible operation.
