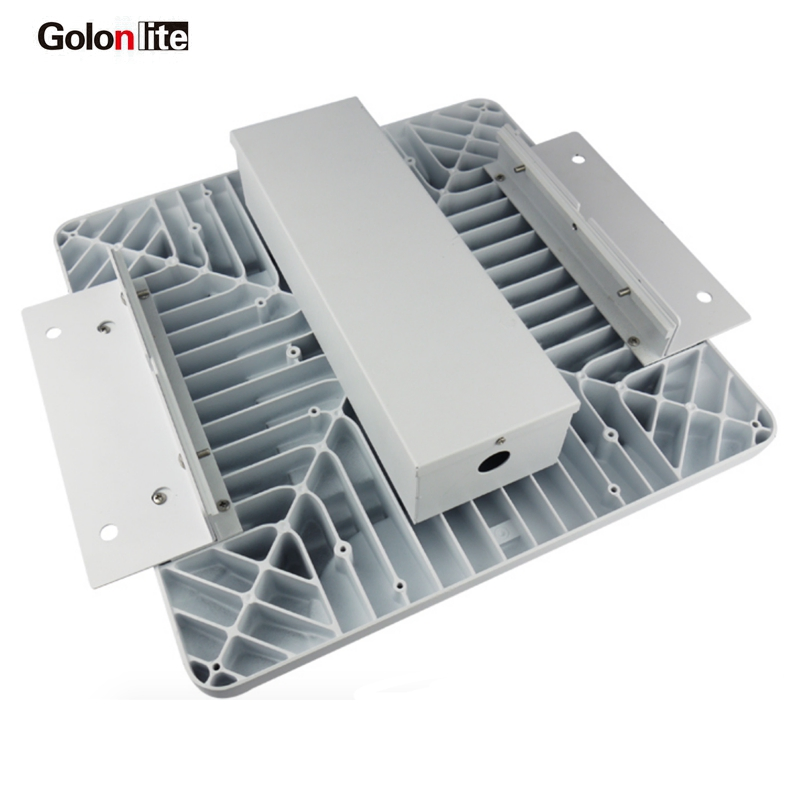

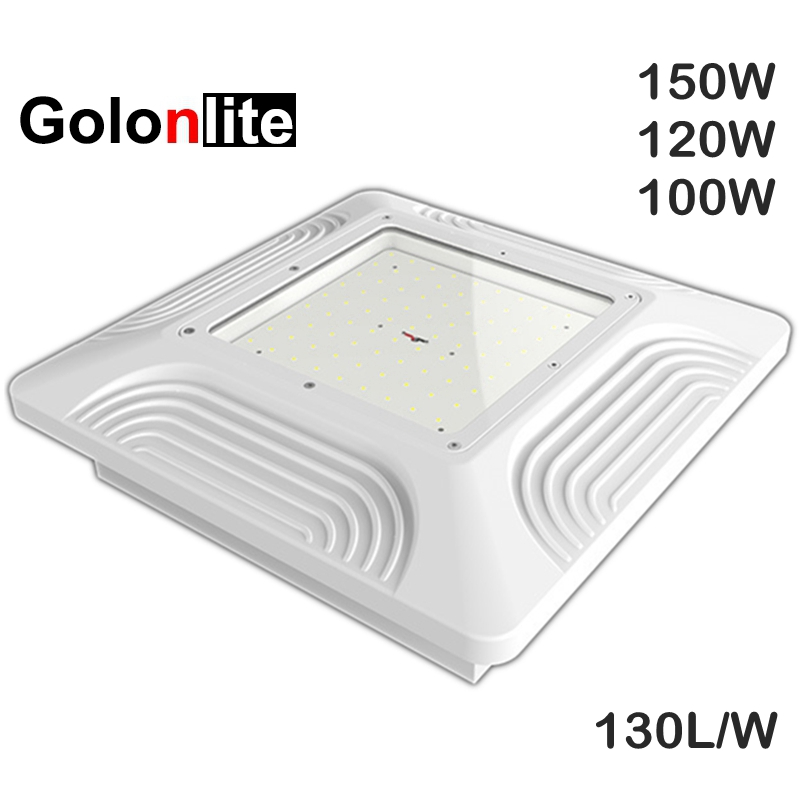

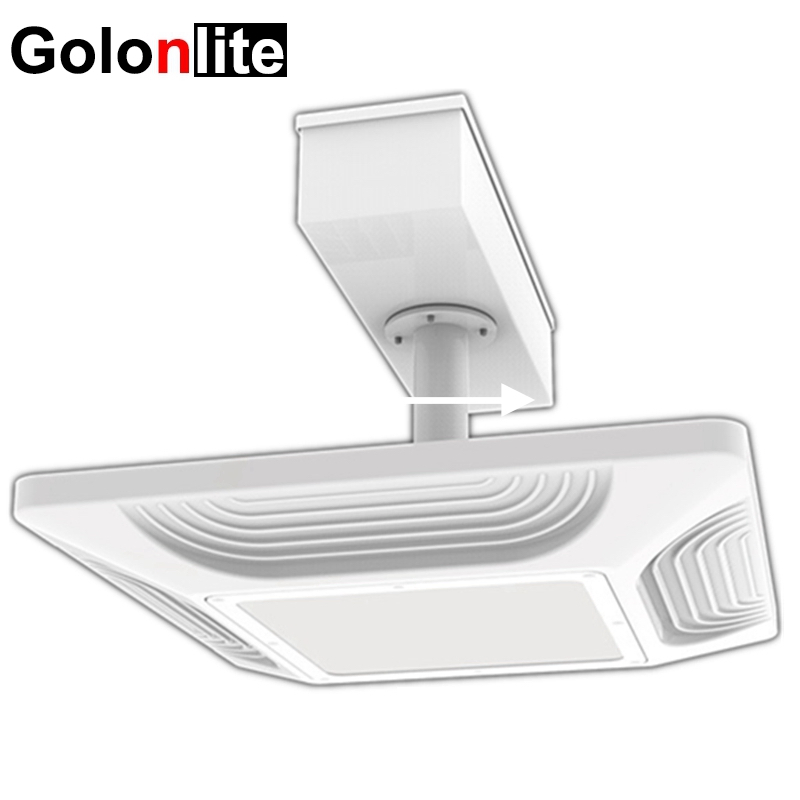

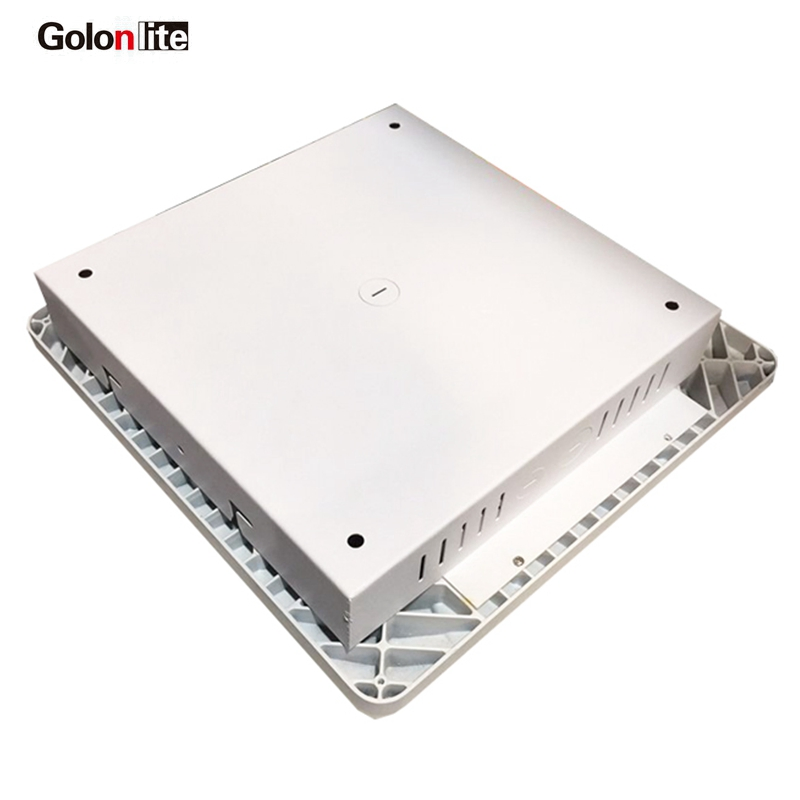

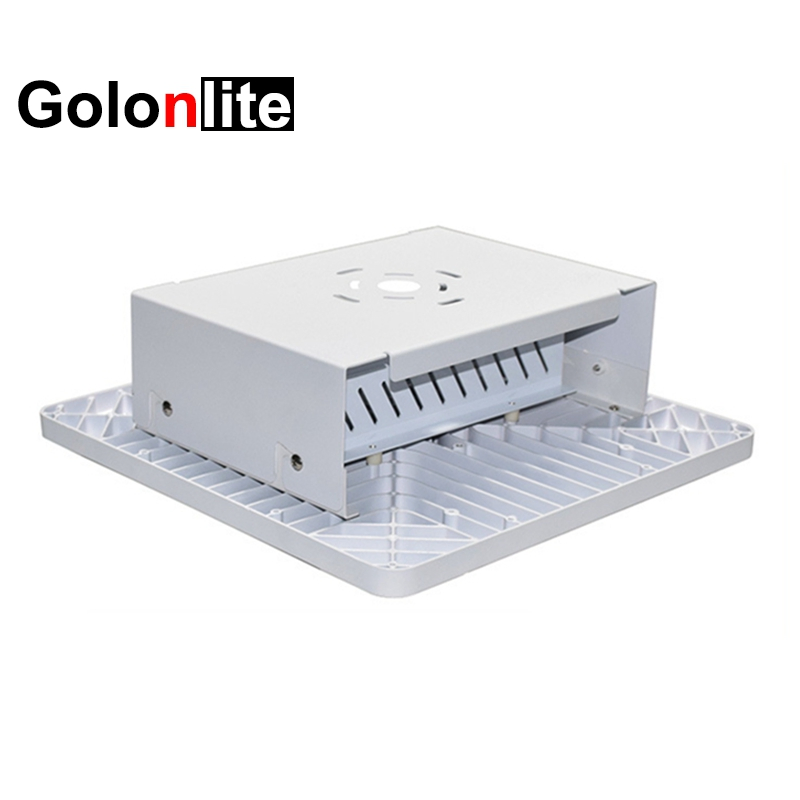

Gas Station Surface Ceiling Recessed Mounting LED Canopy Light
Product Description
ⓘ
Technical Specifications
Model NO.
GL-GS-01
Irradiated Area
15-30m²
Input Voltage
100-277VAC 50/60Hz
Power Options
150W / 120W / 100W / 80W / 60W / 40W
Color Temperature
2700K - 6500K
Luminous Efficiency
130lm/W Super Bright
LED Chips
Lumileds SMD 3030
Driver Brand
Meanwell / Sosen Driver
Certification
CE, EMC, LVD, RoHS
Material
Die Casting Aluminum Body + PC Lens
Warranty
5 Years Warranty
Installation
Recessed, Surface, Flush Ceiling Mount
★
Key Product Features
Premium Build: White die casting aluminum housing, elegant style, saving freight cost and providing easier installation with zero maintenance.
High Efficiency: Delivers 130Lm/W high lumens efficiency for maximum energy savings compared to traditional lamps.
Long Reliability: Long lifespan up to 50,000 hours with a 5-year warranty and top-quality components.
Versatile Mount: Supports three installation methods: Recessed, Surface, and Flush mount to fit various gas station canopy designs.
📷

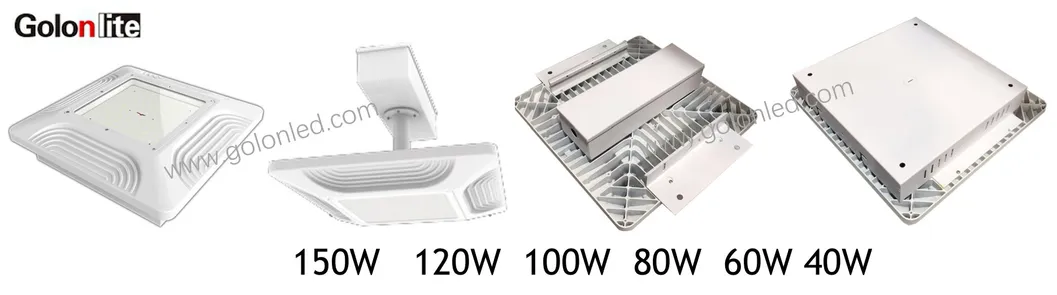

Product Display
⚙

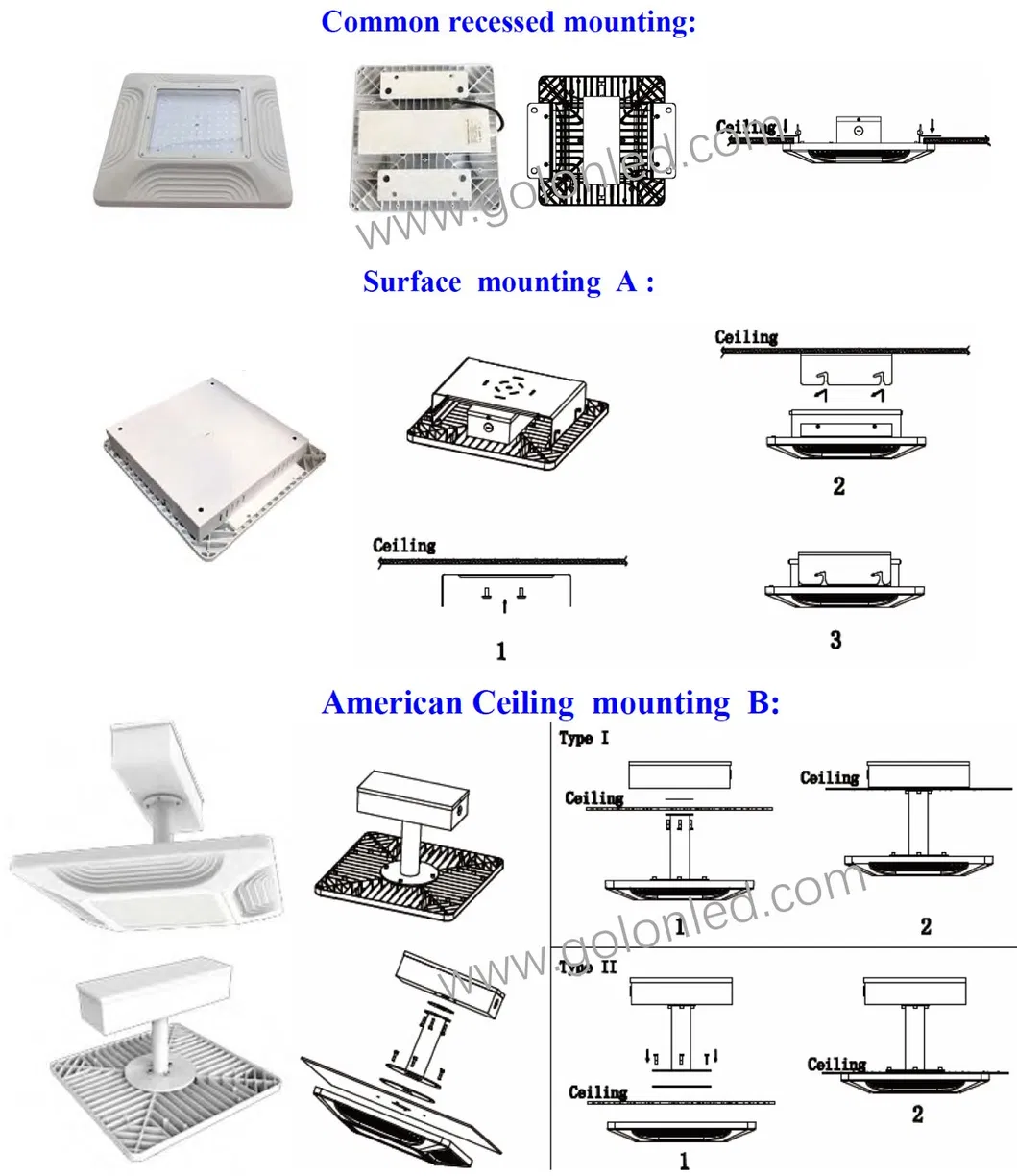

Installation Options
📋

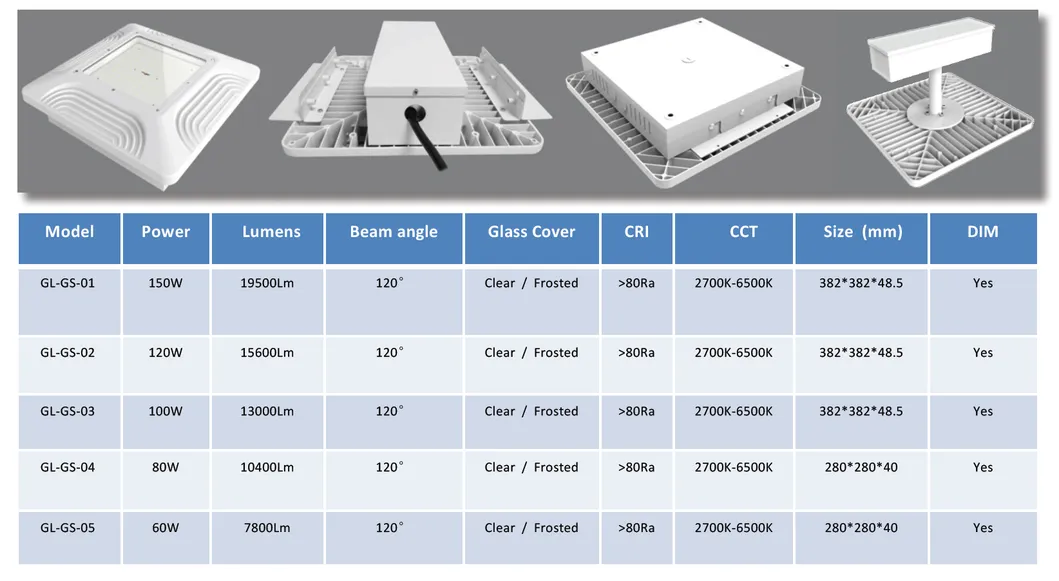

Model Parameters
| Model | Power | Lumens | Replacement | Lamp Size | G.W (Kg) | CTN Size (cm) |
|---|---|---|---|---|---|---|
| GL-GS-01 | 150W | 19500Lm | 400-500W Halogen | Φ382*48.5mm | 7.8 | 46*46*21 |
| GL-GS-02 | 120W | 15600Lm | 400-500W Halogen | Φ382*48.5mm | 7.6 | 46*46*21 |
| GL-GS-03 | 100W | 13000Lm | 350-400W Halogen | Φ382*48.5mm | 7.4 | 46*46*21 |
| GL-GS-04 | 80W | 10400Lm | 350-400W Halogen | Φ280*40mm | 4.6 | 36*36*21 |
| GL-GS-05 | 60W | 7800Lm | 250-300W Halogen | Φ280*40mm | 4.45 | 36*36*21 |
📦

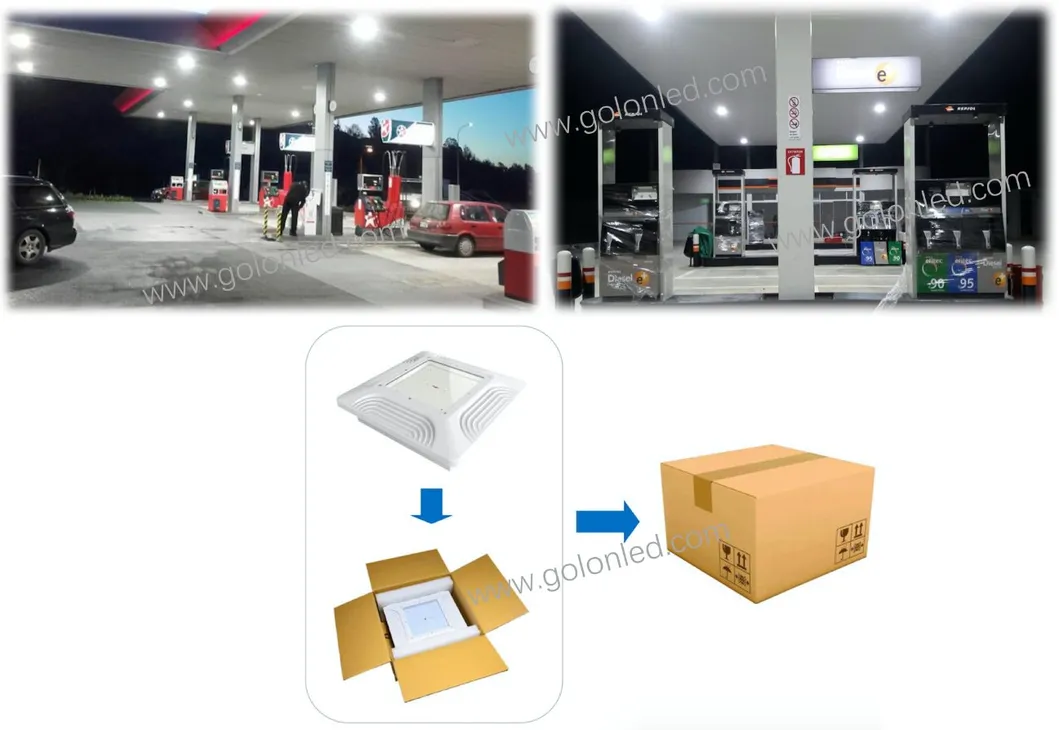

Packaging & Application
?
Frequently Asked Questions
What is the light efficiency of these LED canopy lights?
These lights feature high-efficiency Lumileds SMD 3030 chips, delivering up to 130Lm/W for superior brightness and energy efficiency.
What installation methods are supported?
The lights are designed for versatility and support Recessed, Surface, and Flush Ceiling mounting options.
How long is the warranty period?
We provide a comprehensive 5-year warranty on our gas station LED canopy lights, ensuring long-term reliability and performance.
Can these lights replace traditional halogen or metal halide bulbs?
Yes, for example, the 150W LED model is designed to replace traditional 400W-500W halogen or metal halide lamps, significantly reducing power consumption.
Are different color temperatures available?
Yes, we offer a wide range of CCT options including 3000K, 4000K, 5000K, 5700K, and 6500K to suit various lighting requirements.
What drivers are used in these fixtures?
We use high-quality industry-standard drivers such as Meanwell or Sosen to ensure stable performance and a long lifespan of over 50,000 hours.
