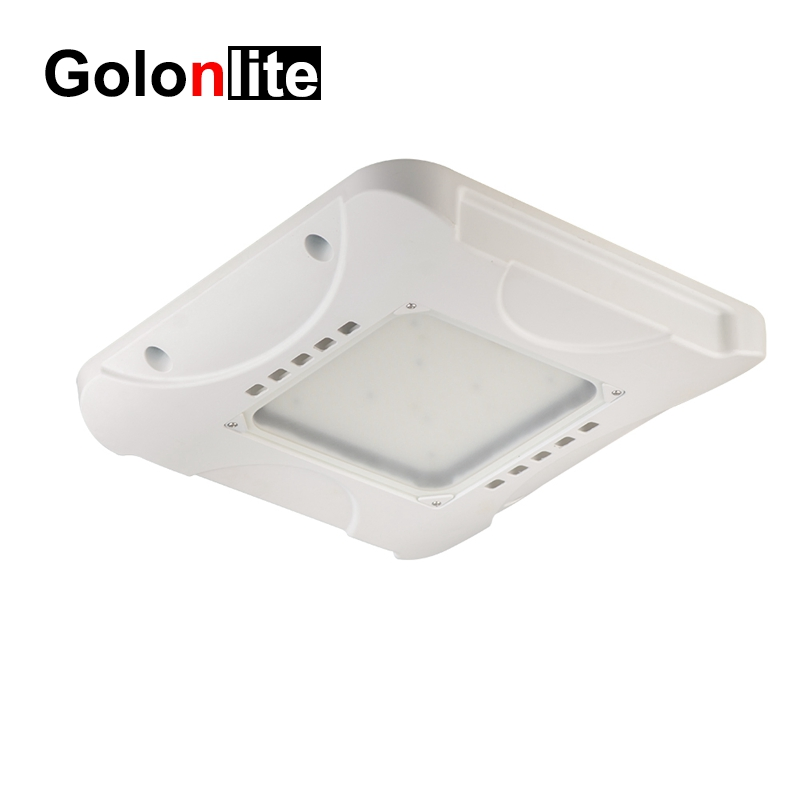

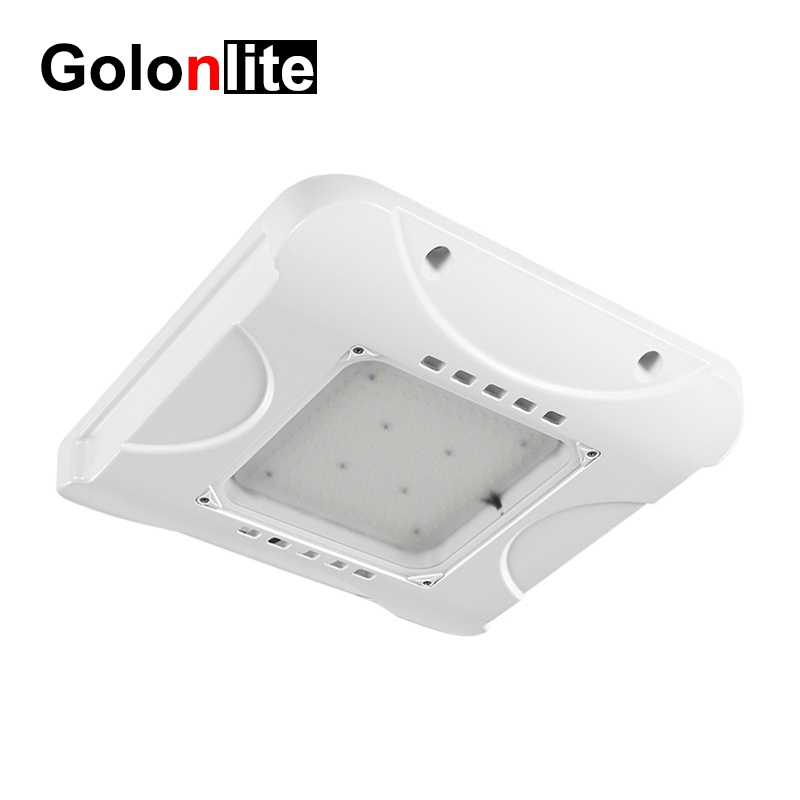

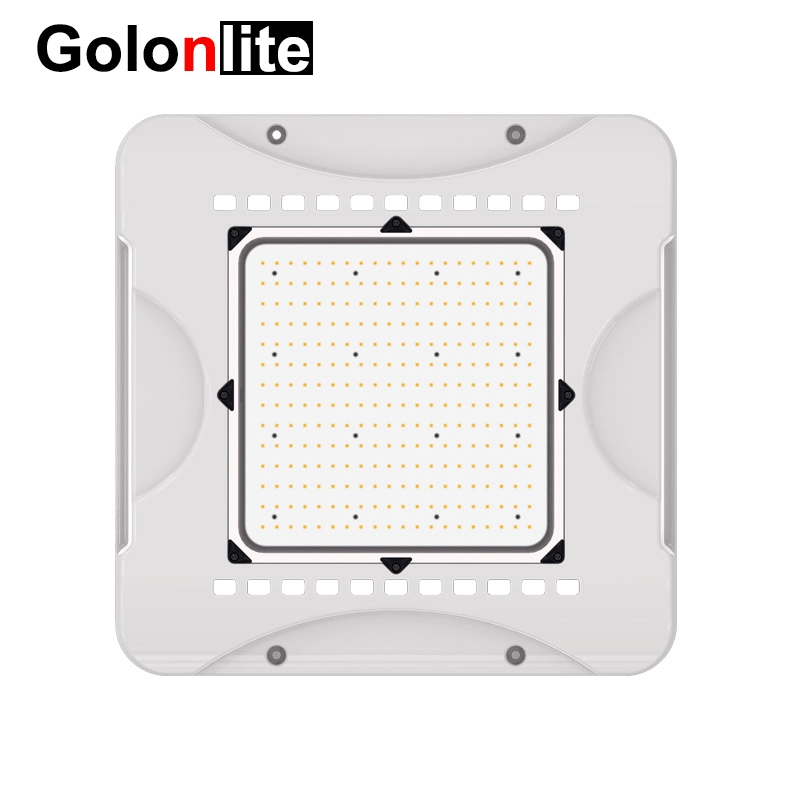

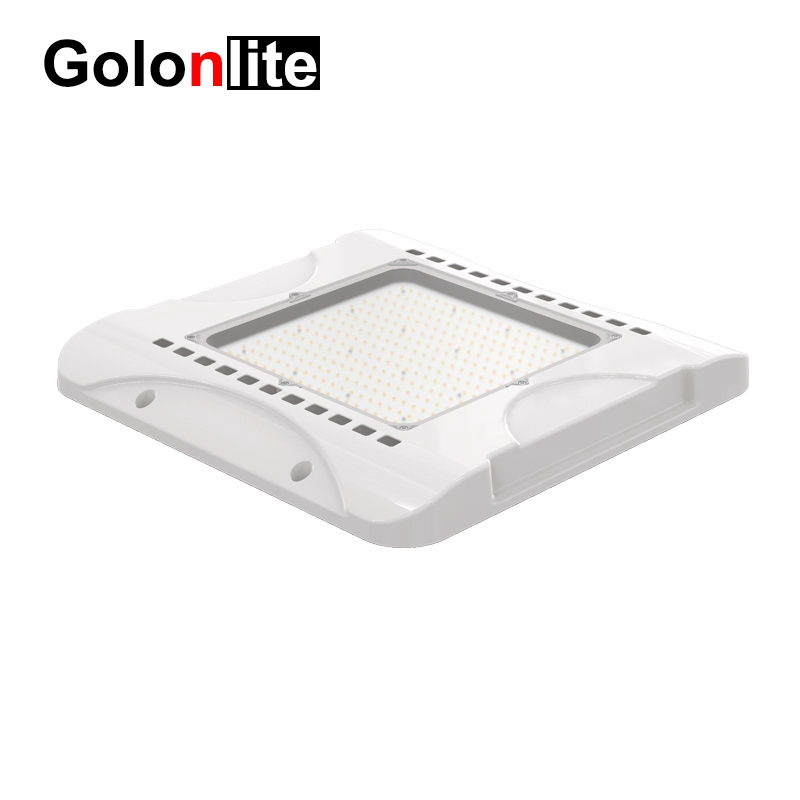

100W 120W 150W 200W 250W LED Canopy Light Factory
Product Description
Basic Specifications
Model NO.
GL-GS-01A1
Power
240W 200W 150W 100W
Lifespan
≥50000H
IP Rating
IP65 Waterproof
Certification
CE, EMC, LVD, RoHS
Beam Angle
120° Anti-glare
LED Chips
SMD3030
Warranty
5 Years
Material
Die Casting Aluminum
Driver
Meanwell / Sosen Driver
Installation
Ceiling + Pendent Mounting
Efficiency
130Lm/W
Product Description
Professional LED canopy light factory since 2010, providing 100W 120W 150W 200W 250W high-quality lighting solutions.
Quality LED Canopy Light Specifications
| Feature | Details |
|---|---|
| Luminous Efficiency | 130Lm/W |
| CCT(K) | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | > Ra80 |
| Input Voltage | 100-277VAC 50/60Hz |
| Sensor Options | Microwave sensor / Dimmable |
| Power Factor | >0.95 |
| Replacement | 250W - 1500W Metal Halide / HPS / HID / Halogen |
Key Features
✔Full white high purity die casting aluminum housing, simple style.
✔Super bright: 130Lm/W high lumens efficiency for energy saving.
✔High performance Meanwell / Sosen UL TUV CE Driver.

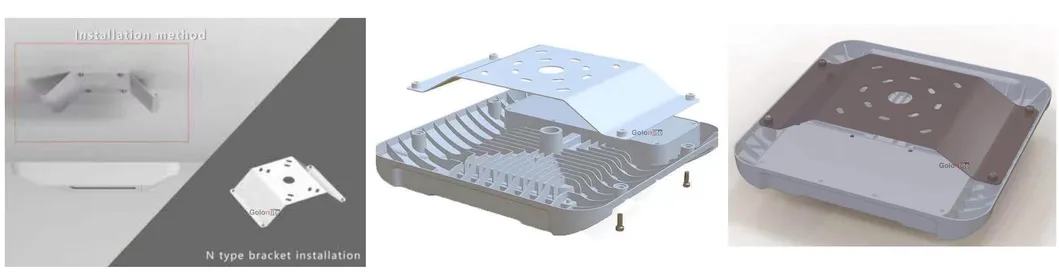

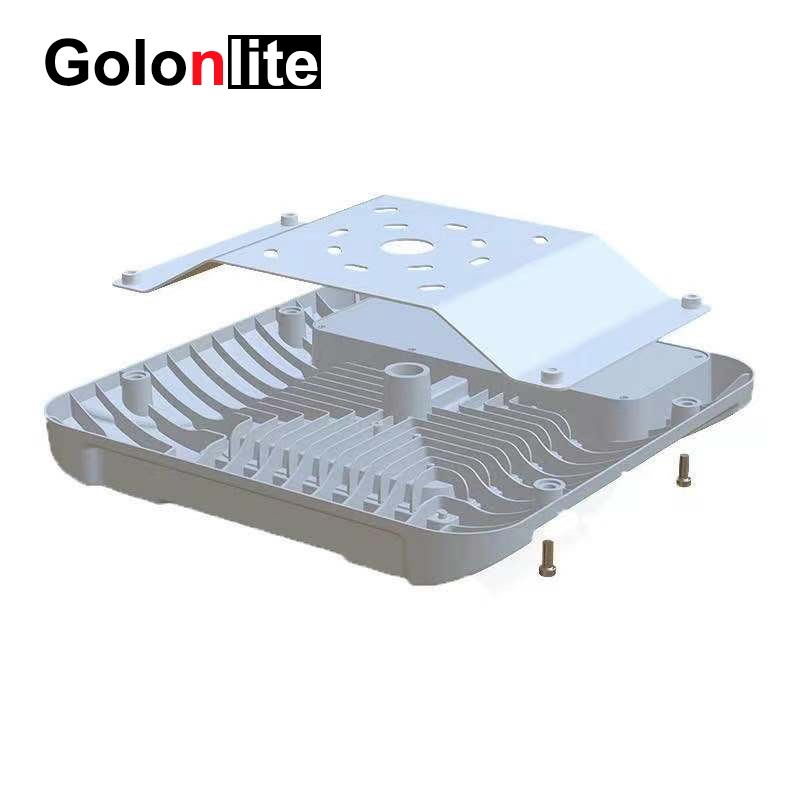

✔Two installation ways: Surface ceiling mounting (HC mount) + Pendent mounting.
✔Free Dialux Lighting Study and IES files provided.
✔Fast delivery and fair factory pricing.

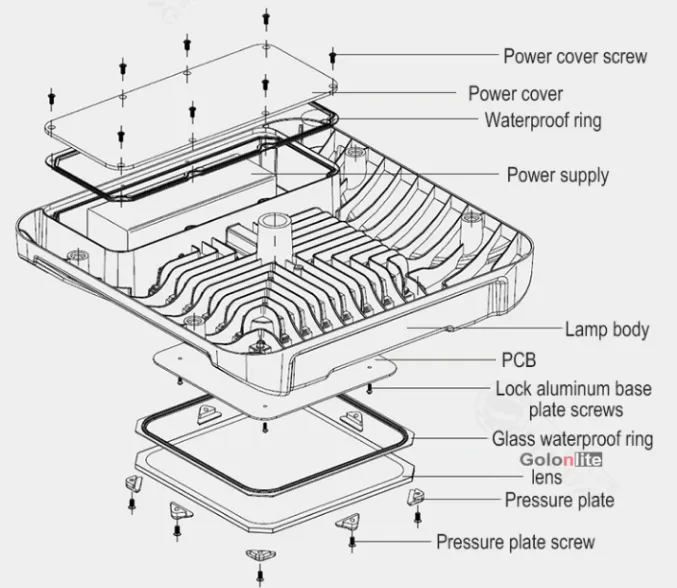

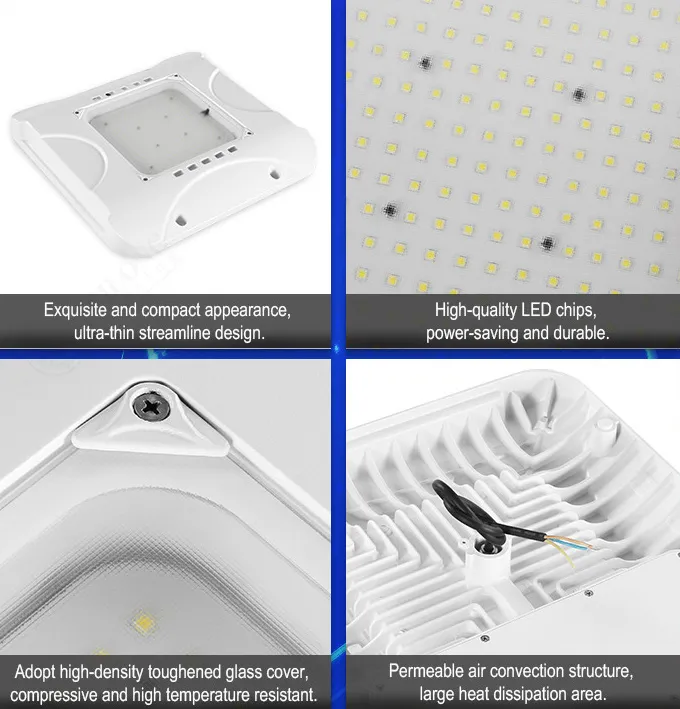

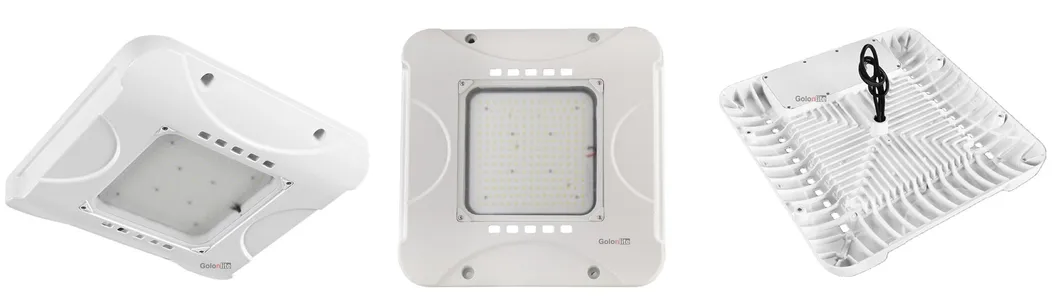

Product Visuals

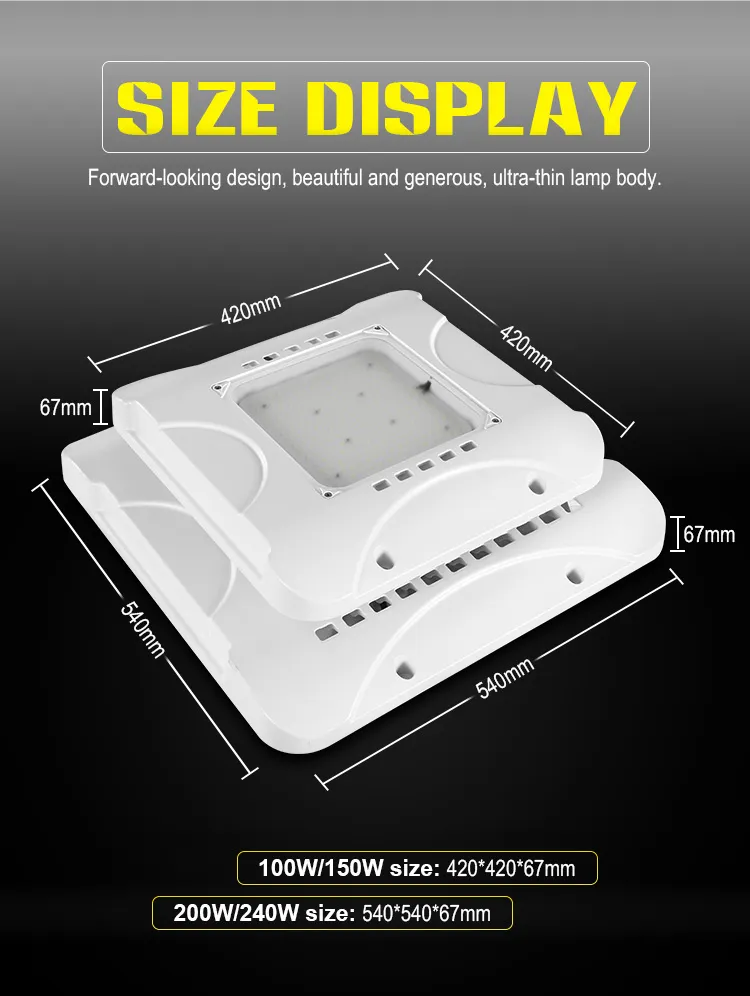

Dimensions & Size Info

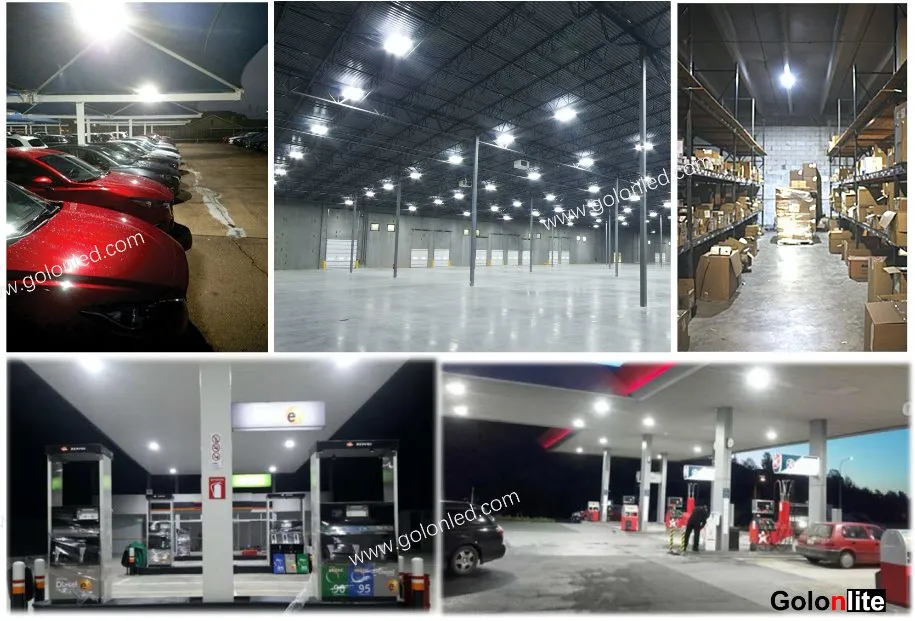

Applications & Installations
📍Gas / Petrol Stations
📍Parking Garages
📍Warehouses & Workshops
📍Toll Stations & Service Stations
📍Factories & Corridors
Model Comparison
| Model | Power | Lumens | Replacement | Lamp Size |
|---|---|---|---|---|
| GL-GS-01A1 | 240W | 31200Lm | 1500W | 540*540*67mm |
| GL-GS-01A2 | 200W | 26000Lm | 1000W | 540*540*67mm |
| GL-GS-01A3 | 150W | 19500Lm | 400-500W | 420*420*70mm |
| GL-GS-03A4 | 100W | 13000Lm | 250-500W | 420*420*70mm |

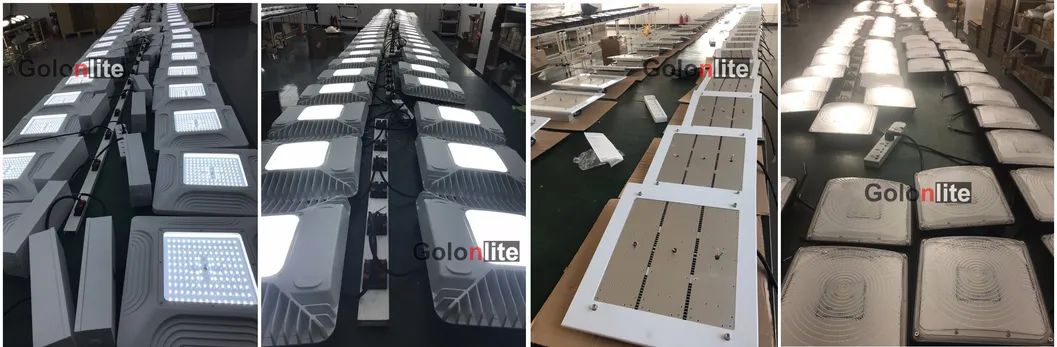

Professional Manufacturing
We are a technology-oriented enterprise integrating research, development, design, and production of industrial and commercial LED light fixtures. With years of experience in production, engineering, and world trade, we understand the importance of price, quality, and design.
Our Services
24-hour inquiry response and after-sales support.
OEM & ODM services welcomed.
Free Lighting Design (IES files & Dialux solutions).
5-year comprehensive warranty.
Frequently Asked Questions
What is the warranty period for the LED canopy lights?
We provide a full 5-year warranty for all our LED canopy light models, ensuring long-term reliability and performance.
Are these lights suitable for outdoor gas station use?
Yes, they are IP65 waterproof rated, making them perfect for gas stations, petrol stations, and other outdoor or semi-outdoor environments.
What kind of LED chips and drivers are used?
We use high-quality SMD3030 LED chips and high-performance Meanwell or Sosen drivers to ensure maximum efficiency and lifespan.
Can I get a lighting simulation for my project?
Absolutely. We offer free Dialux lighting studies and can provide IES files to help you plan your lighting solution effectively.

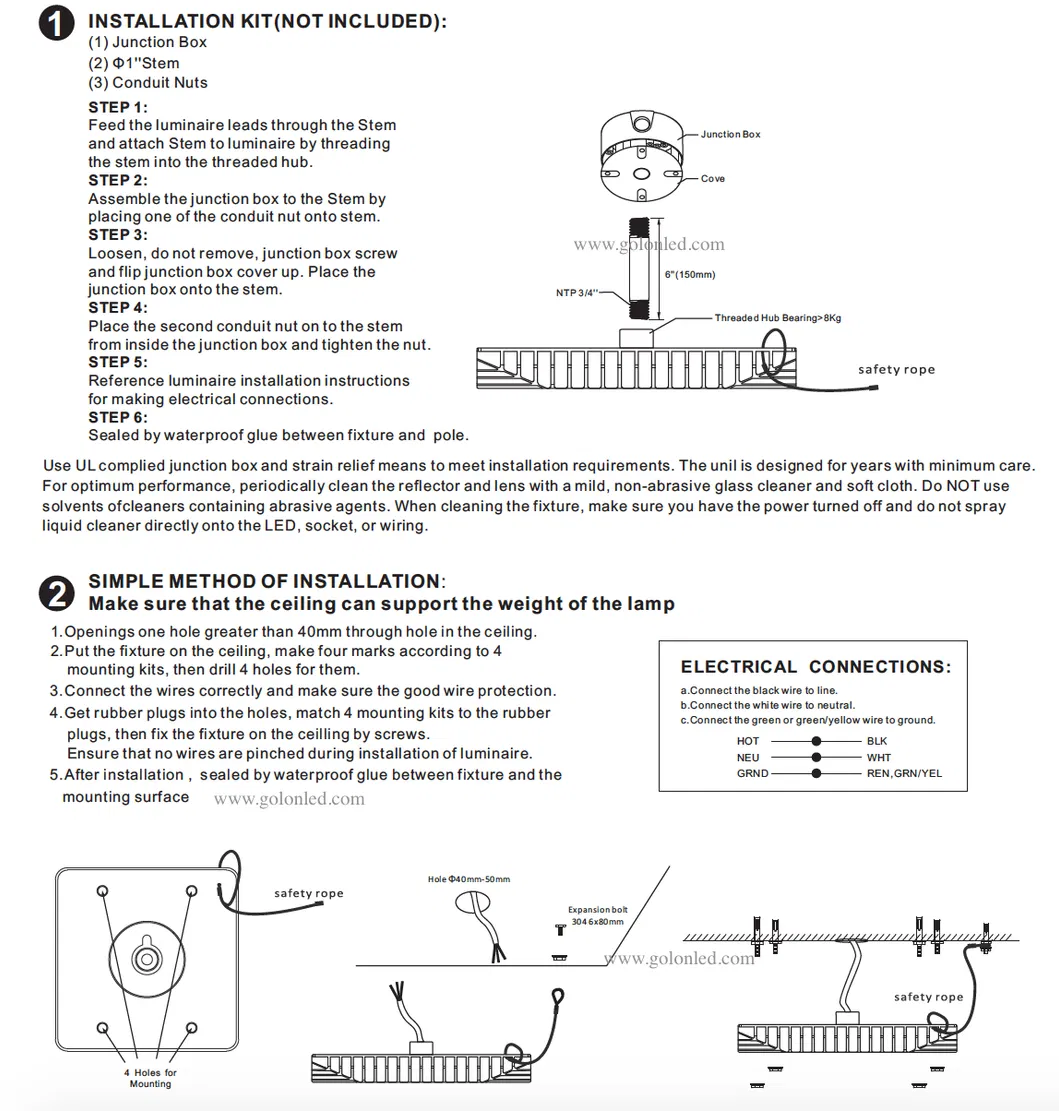

What are the available installation methods?
The lights support both surface ceiling mounting (HC mount) and pendent mounting, providing flexibility for different structure types.
What is the expected lifespan of these fixtures?
Our LED canopy lights are designed for a lifespan of over 50,000 hours, significantly reducing maintenance costs compared to traditional lamps.
