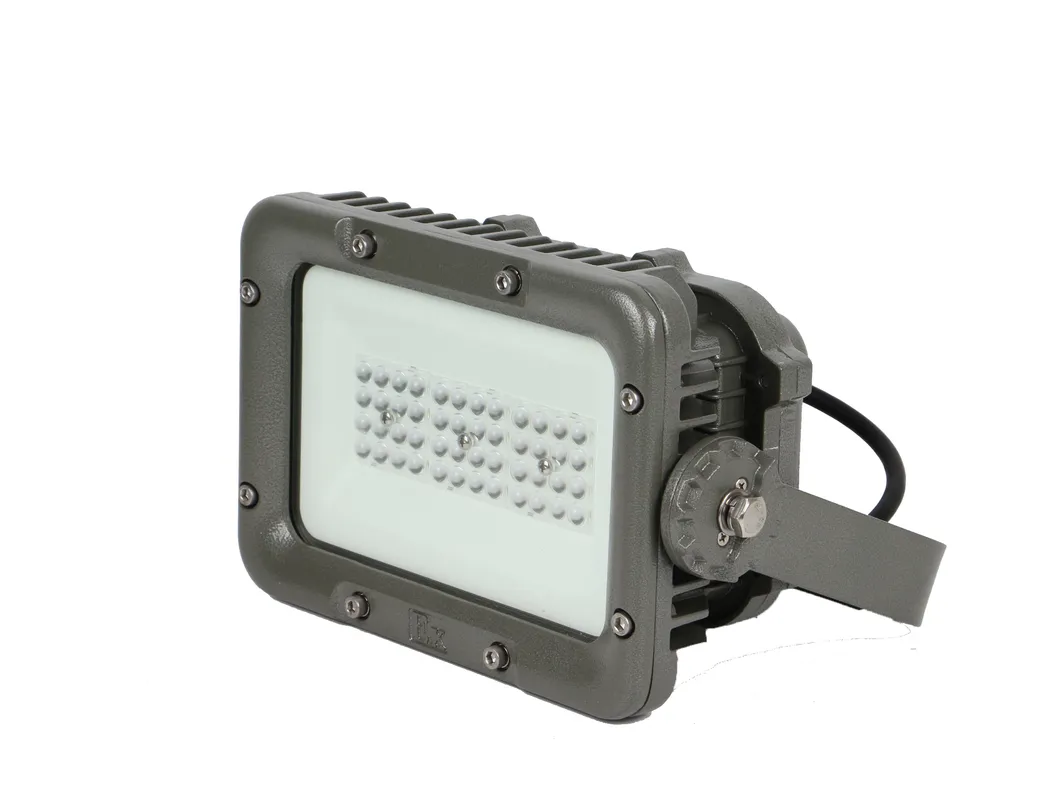

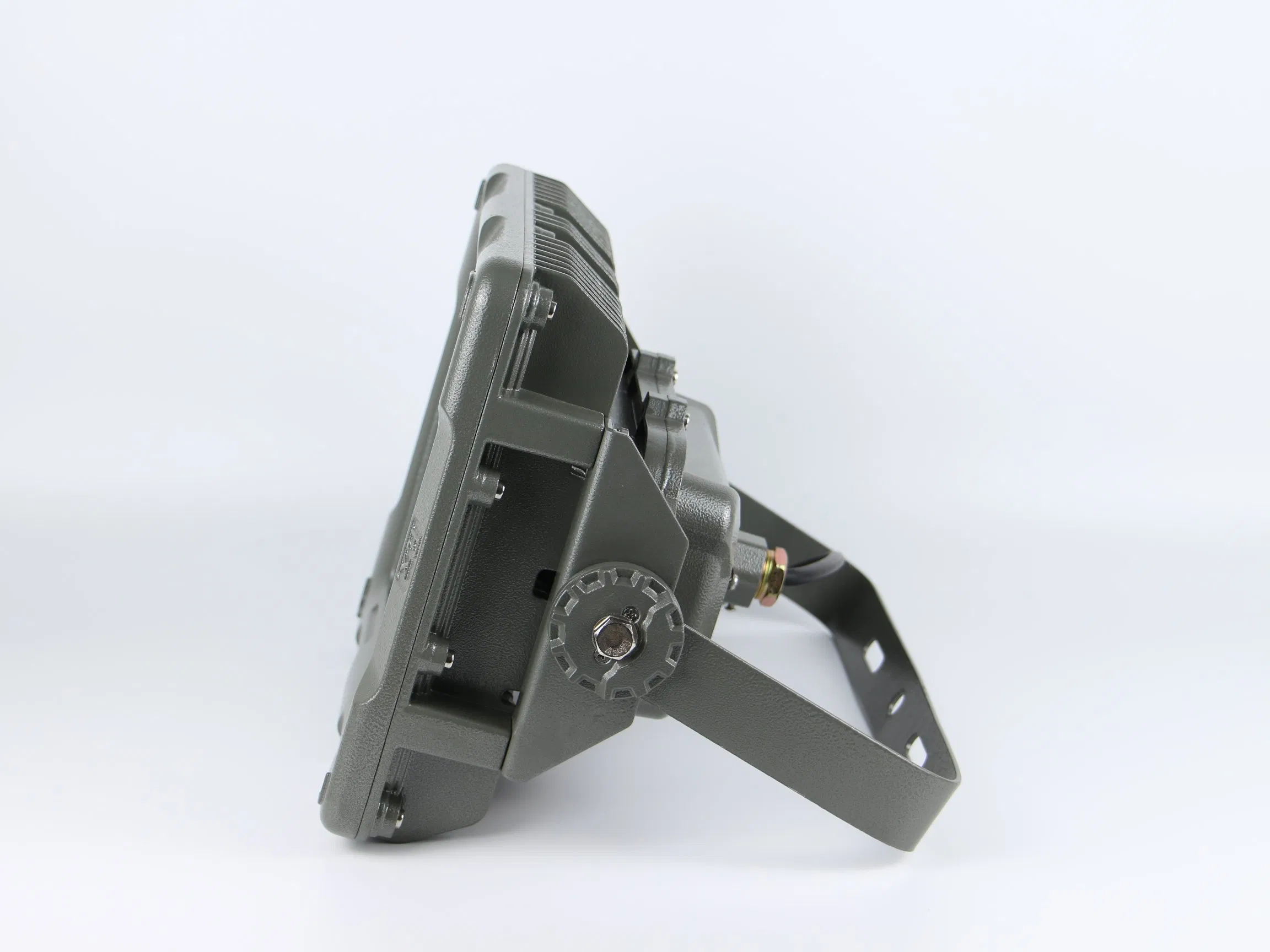

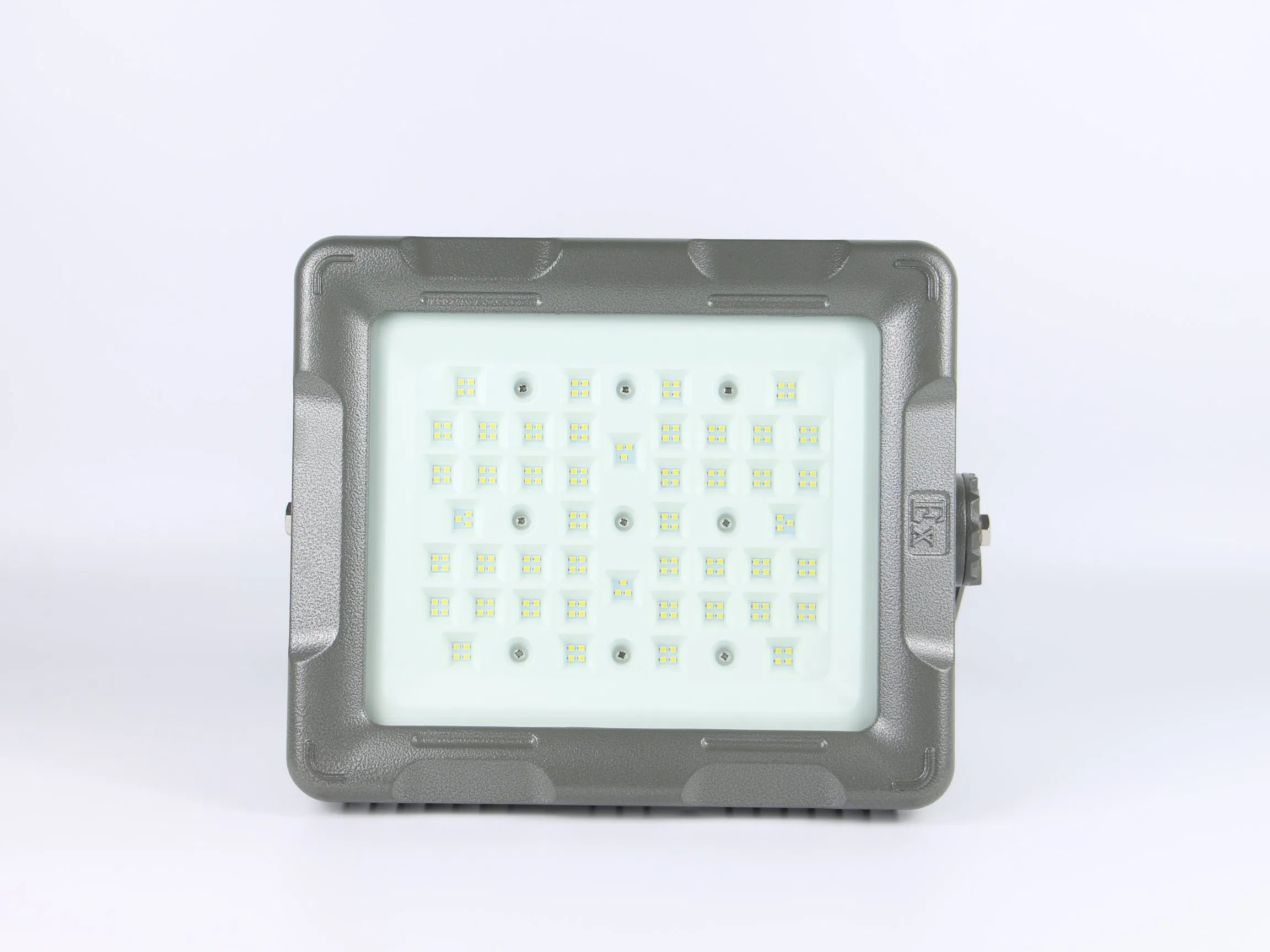

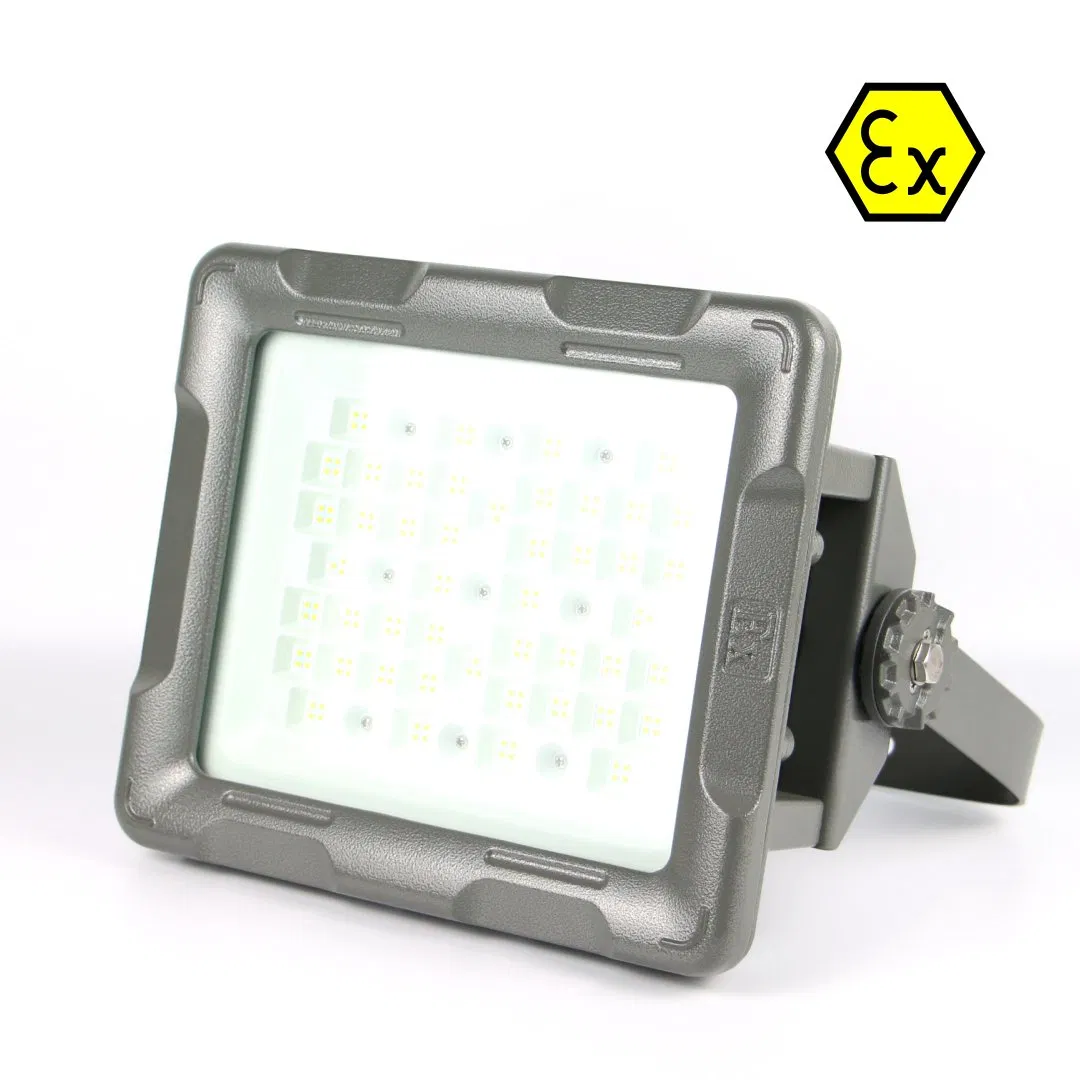

LED 80W 100W 120W 200W 240W Canopy Oil and Gas Explosion Proof Flood Light

Basic Specifications

Model NO.	8260	Irradiated Area	≥30m²
Input Voltage	220v / AC 100~277V	Power	60-100w (Up to 300W Custom)
Color Temperature	Warm White / 3500-6500K	Emitting Color	White
LED Chips Brand	CREE	Certification	CCC, CE, ATEX
IP Grade	IP66 / Type 4X	IK Grade	IK10
Beam Angle	120° / 60° / 45° / 30°	Lifespan	50,000 hours

Product Description

The explosion proof led flood light is applied to all kinds of ships, docks, storage areas, oil platforms, and stadiums requiring illumination, especially in environments with high explosion-proof requirements. The shell is constructed from high-tensile aluminum alloy, providing exceptional corrosion and shock resistance. The lampshade features toughened glass for superior mechanical and chemical durability. Utilizing high-purity aluminum reflectors, it ensures exact light distribution, while the energy-efficient LED source can be adjusted 45 degrees for flexible positioning.

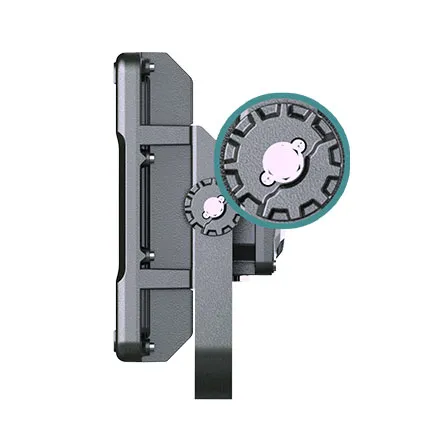

📍 Adjustable Angle: Features a flexible lighting angle allowing users to direct illumination precisely where needed for tailored settings.

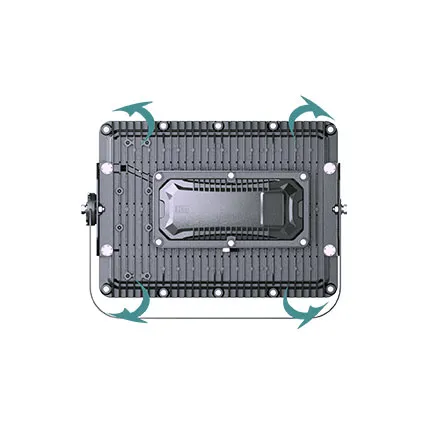

🔥 Thermal Management: An expansive heat dissipation structure ensures stable operation and longevity through large-area thermal control.

Key Features

💡

Configuration: Imported LED light source with up to 100,000 hours life. Constant current output with over-voltage protection.
Double Cavity Design: Explosion-proof electrical box and lamp holder separate cavity design for optimal cooling.
Protection: IP66 waterproof rating and WF2 anti-corrosion level; housing is designed to never rust.

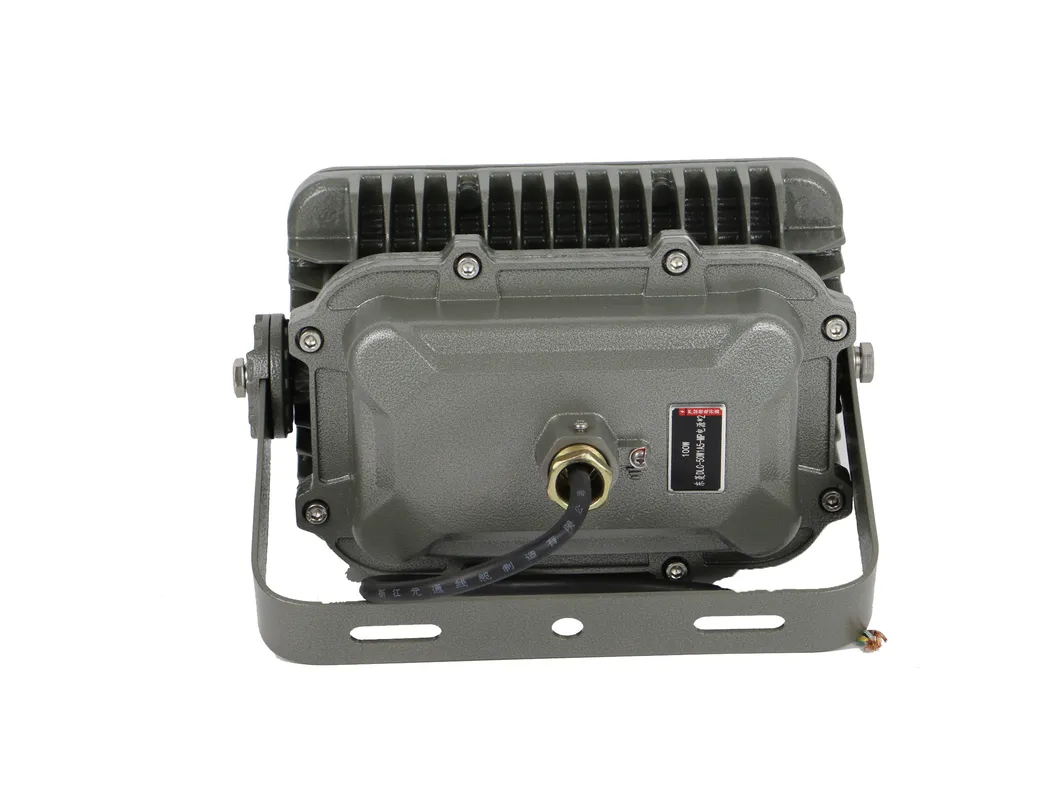

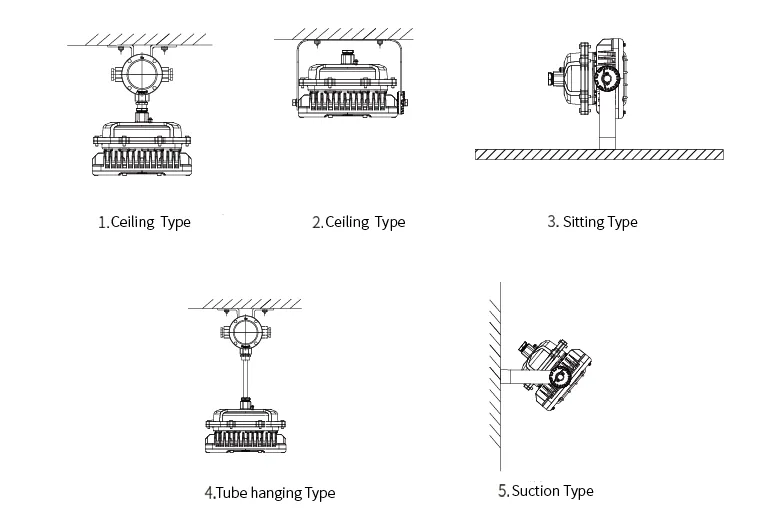

Installation: Supports ceiling, suction wall, and U-shaped anti-vibration bracket mounting.

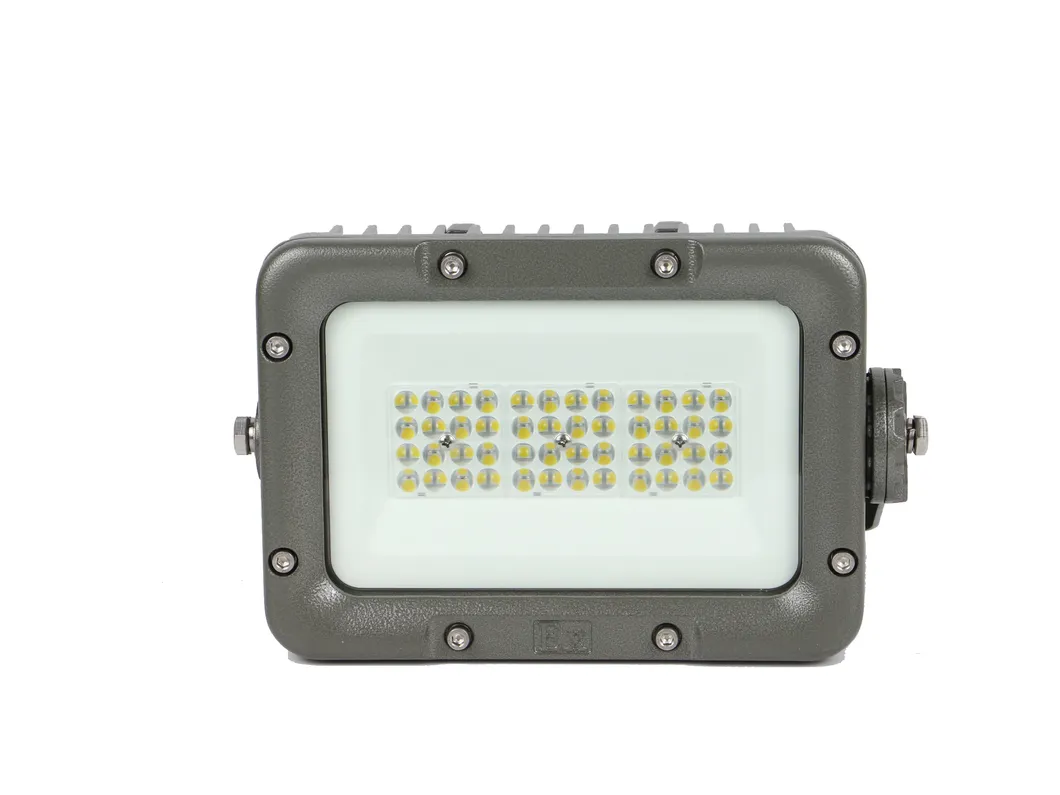

Detailed Gallery

Technical Parameters

Wattage	30W	60W	100W	150W	200W	300W
Lumens	3600	7200	12000	18000	24000	36000
Efficiency	120 Lm/W
CCT	3000K / 4000K / 5000K / 6500K
Voltage	AC 100-277V / 200-480V (50/60Hz)

Application & Installation

🏗️

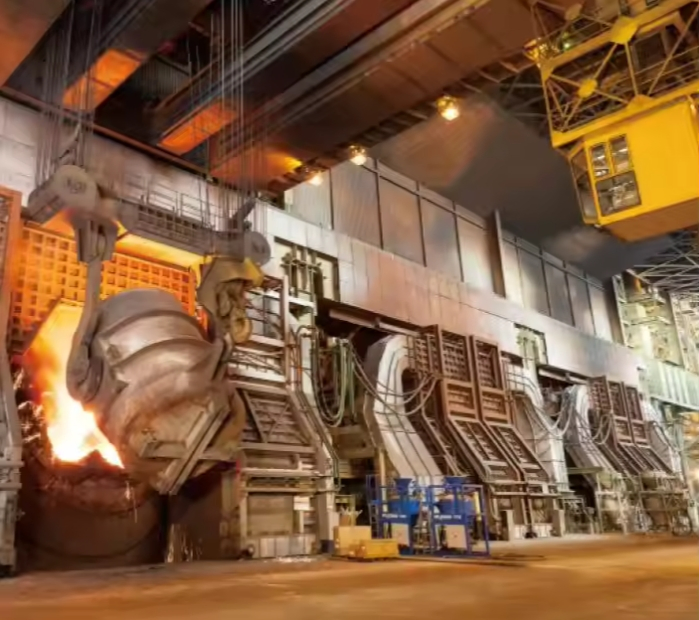

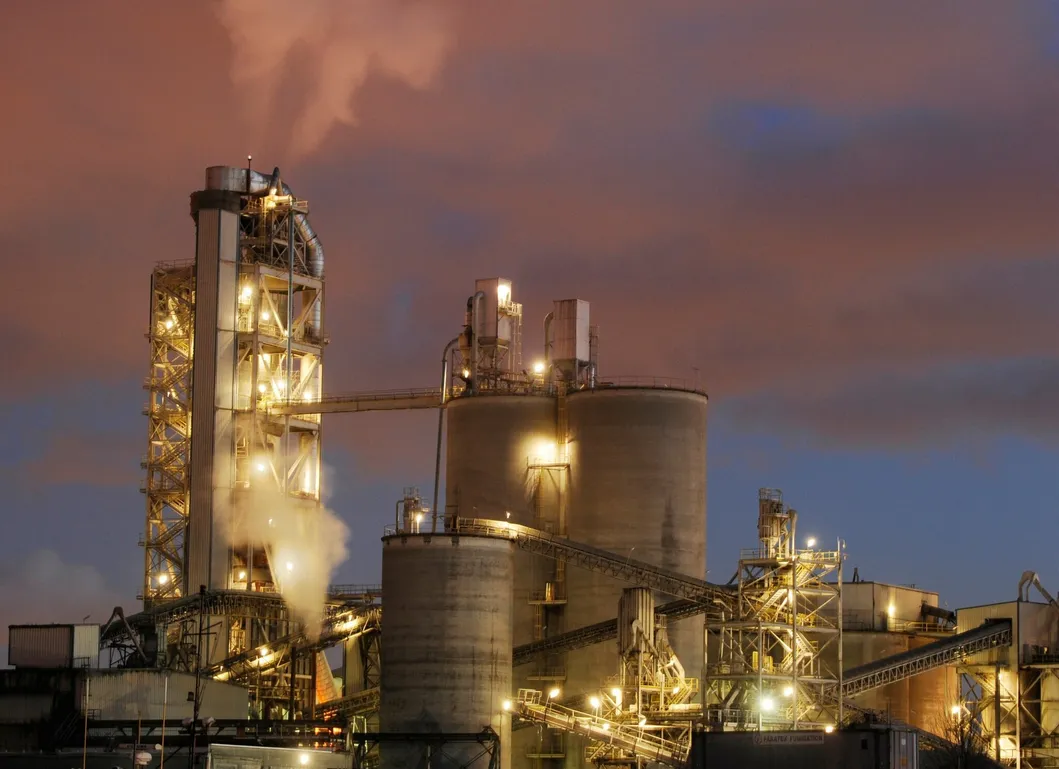

Wide Application: Gas stations, factories, heavy industries, dust explosion areas, petroleum pipelines, chemical plants, oil platforms, tunnels, and explosive workshops.

Frequently Asked Questions

1. What is the typical lifespan of these explosion-proof lights?

The LED source is designed for an average service life of up to 100,000 hours, while the system is rated for at least 50,000 hours of stable operation depending on environment.

2. Can I get custom wattage or beam angles for my specific project?

Yes, we support bespoke services including custom wattage, specific LED chips (like CREE), various optics (30°/45°/60°/120°), and specialized sensors (motion, light, or voice).

3. What certifications do these lights hold for hazardous areas?

Our lights are approved and certified according to ATEX, CE, and meet IP66/IP67 waterproof and IK10 impact standards for Zone 1 and Division 1 environments.

4. Is there a warranty provided for bulk orders?

We offer a 3 to 5-year warranty on our products. If the lighting fails due to quality issues within this period, we provide an exchange service for the same item.

5. How do the lights handle extreme temperatures?

These fixtures are engineered to operate in ambient temperatures ranging from -40ºC to +55ºC (-40°F to +131°F), making them suitable for both cold storage and high-heat industrial sites.

6. What is the typical lead time for delivery?

For items in stock, shipping can be arranged within 5 days. For non-stock or custom orders, the delivery time typically falls within 20 days depending on the quantity.
