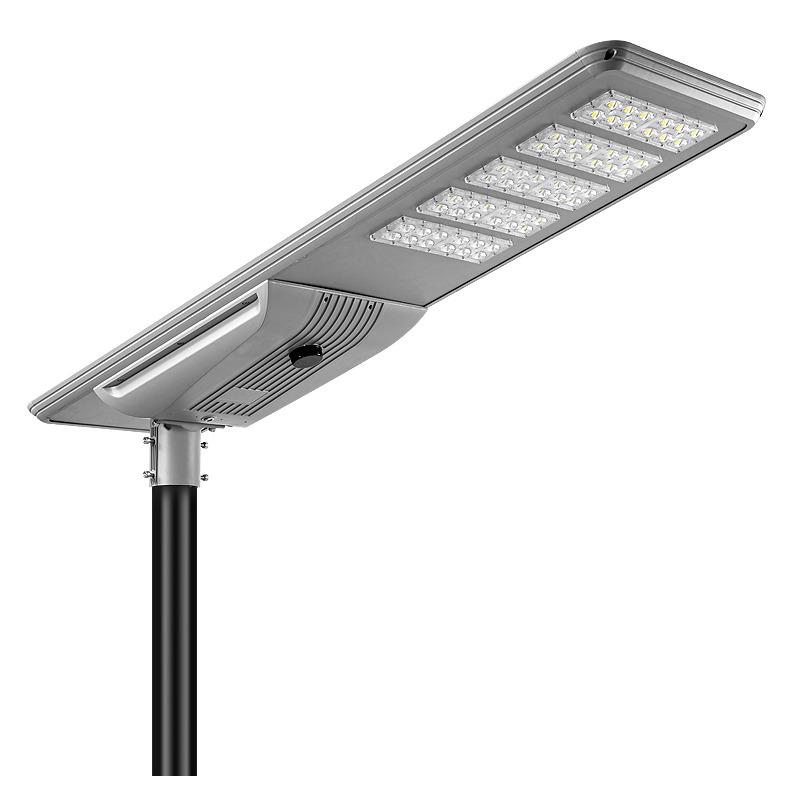

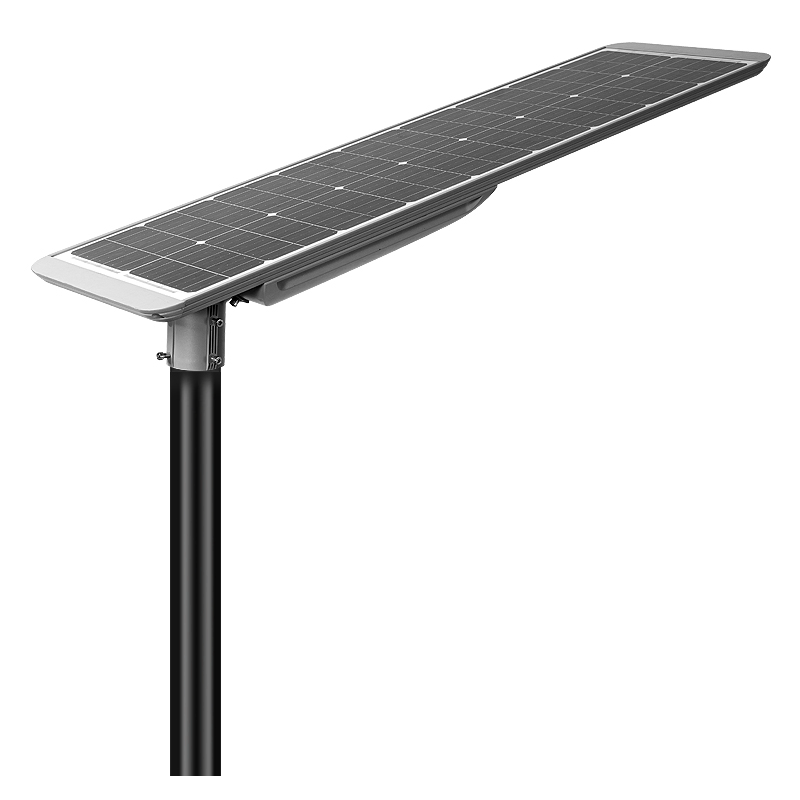

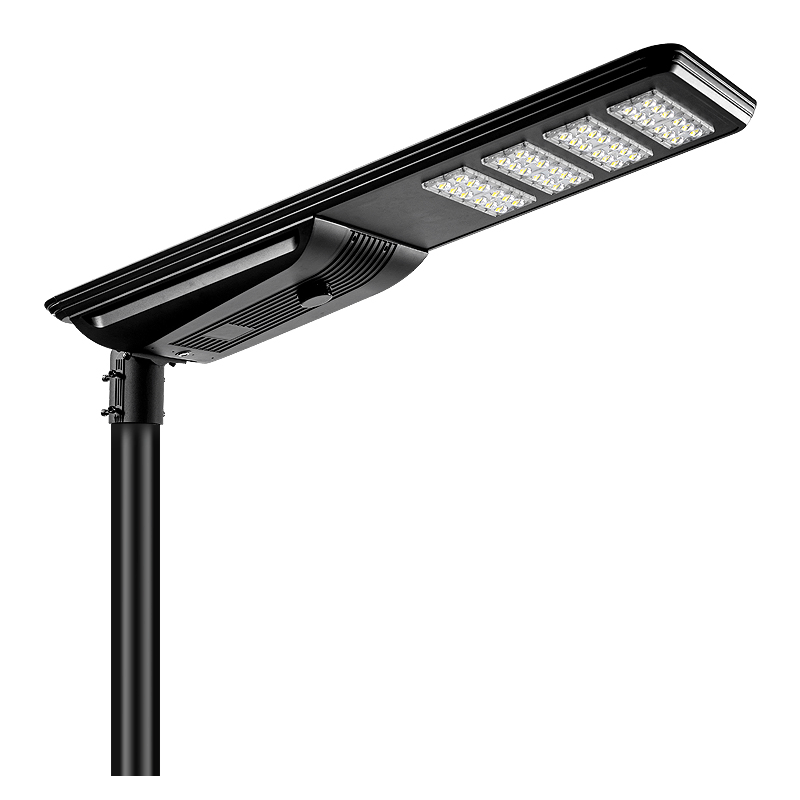

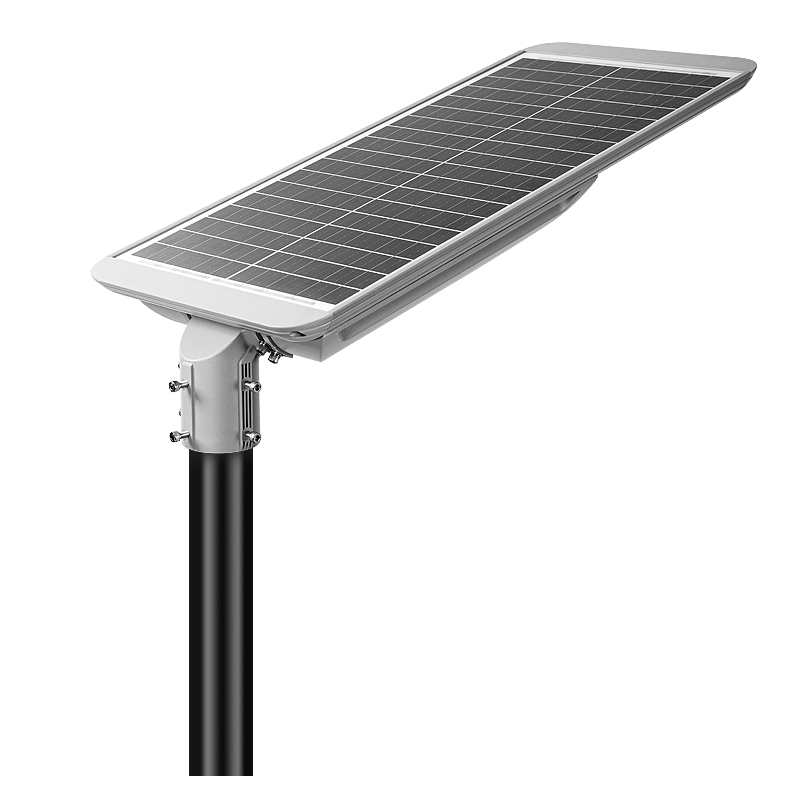

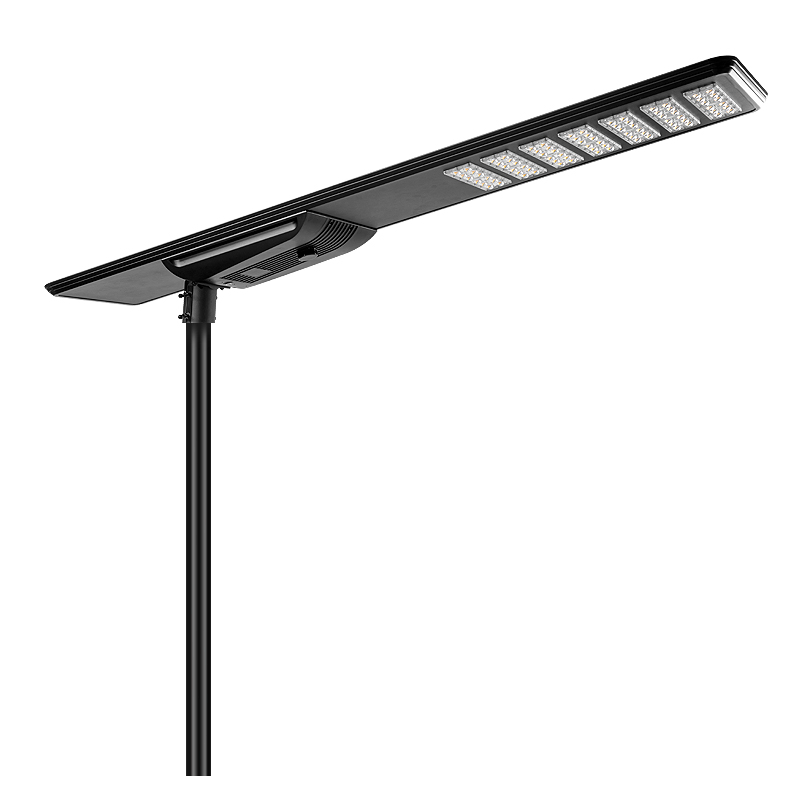

Factory Manufacturer Outdoor Waterproof IP66 60W/80W/100W/150W/200W/300W All in One Integrated Solar LED Street Light
Product Description

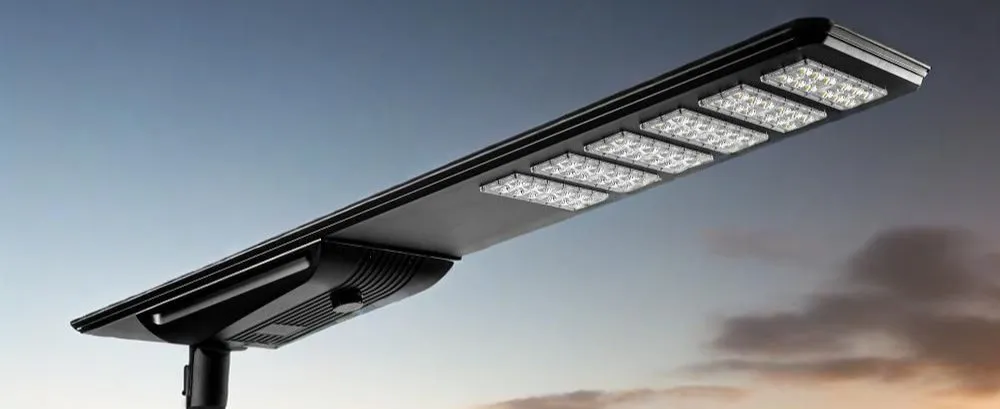

This model solar street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP66 and has passed CE certification. Suitable for urban and suburban lighting, roads, parks, roadsides, factories, and squares.

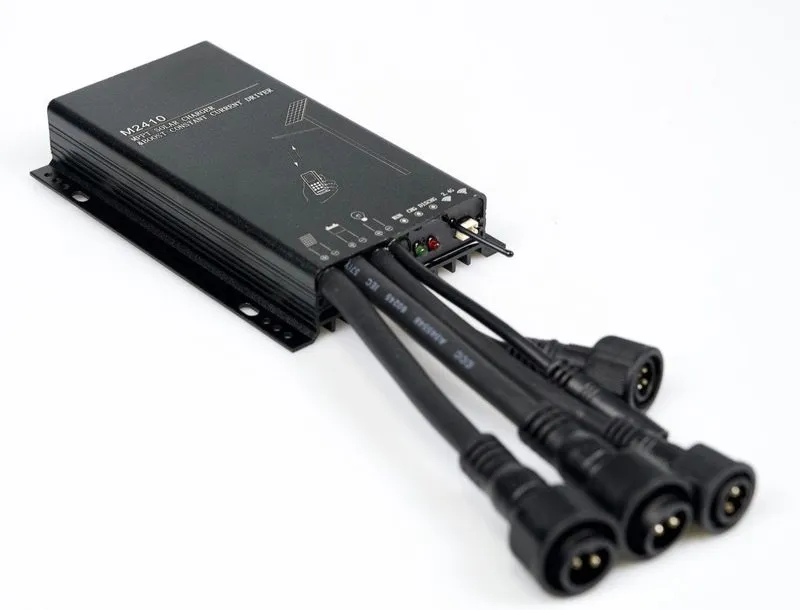

MPPT technology with tracking efficiency over 99%. Compatible with 12V and 24V batteries. Features infrared and microwave sensing with adjustable delay times.

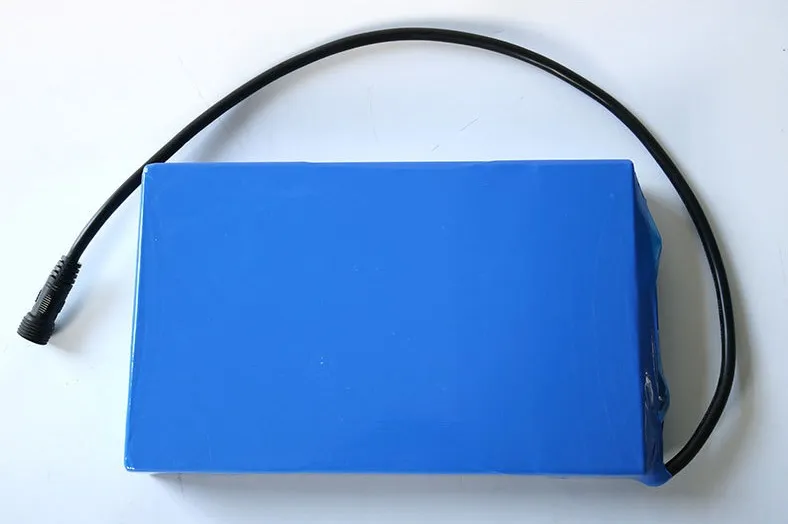

New LiFePo4 technology. DOD cycles more than 2500 times with a 10-year lifespan. IP67 waterproof with multi-function PCB protection.

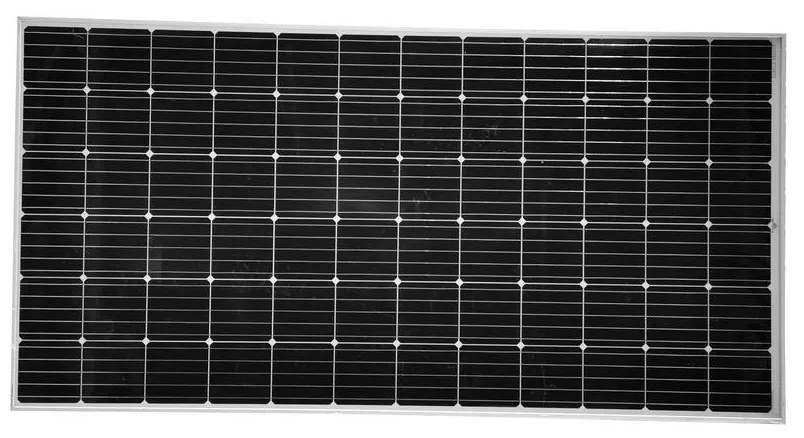

Mono crystalline PV panel reaching 25% conversion efficiency. Half-cell 182mm technology. Working life more than 25 years.

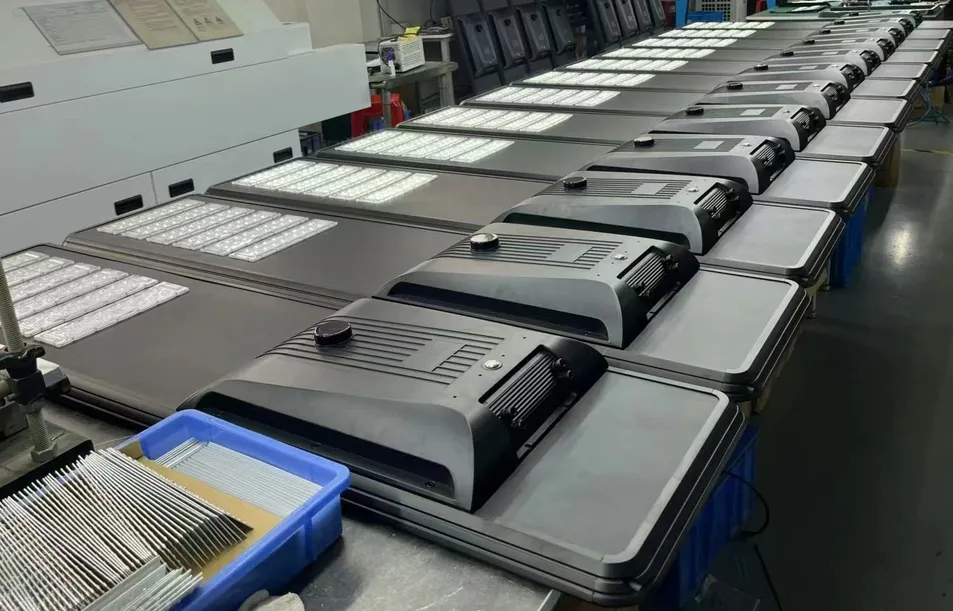

BLACK COLOR RAL 9004: Adjustable mounting angle, suitable for poles of different colors. Power from 30W to 120W.

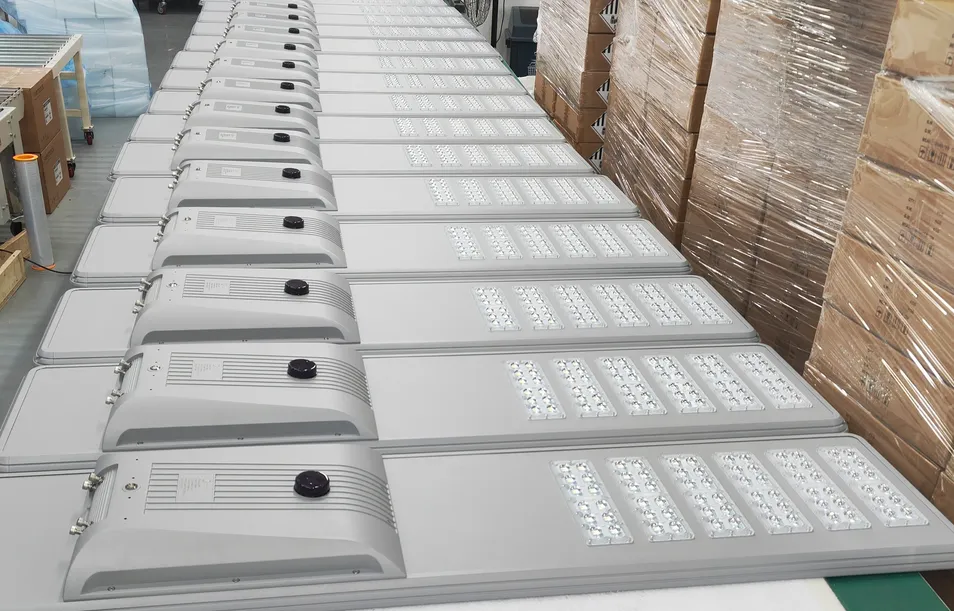

GREY COLOR RAL 9022: Simplified design for area lighting. Includes motion sensor to save energy at night.

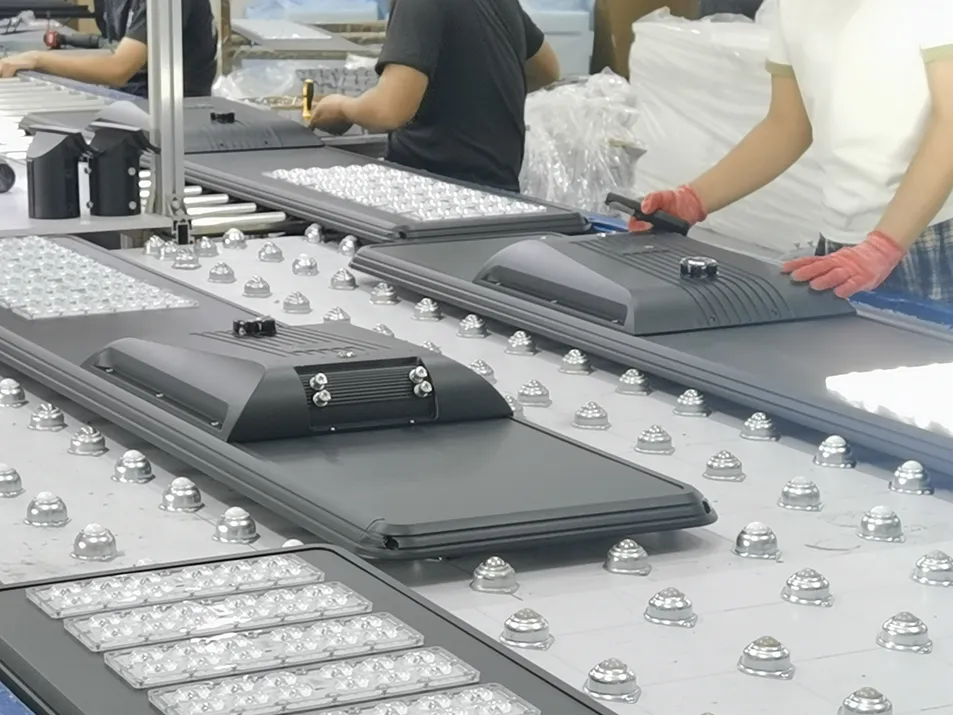

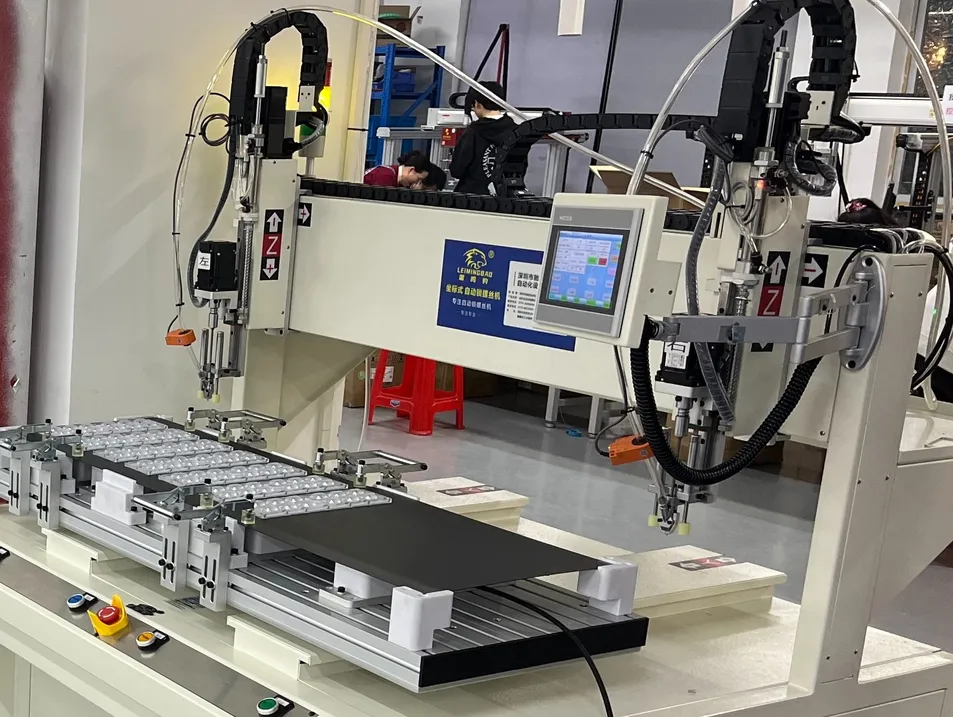

100% qualification inspection one by one. Automated machinery improves efficiency and ensures accurate delivery times.

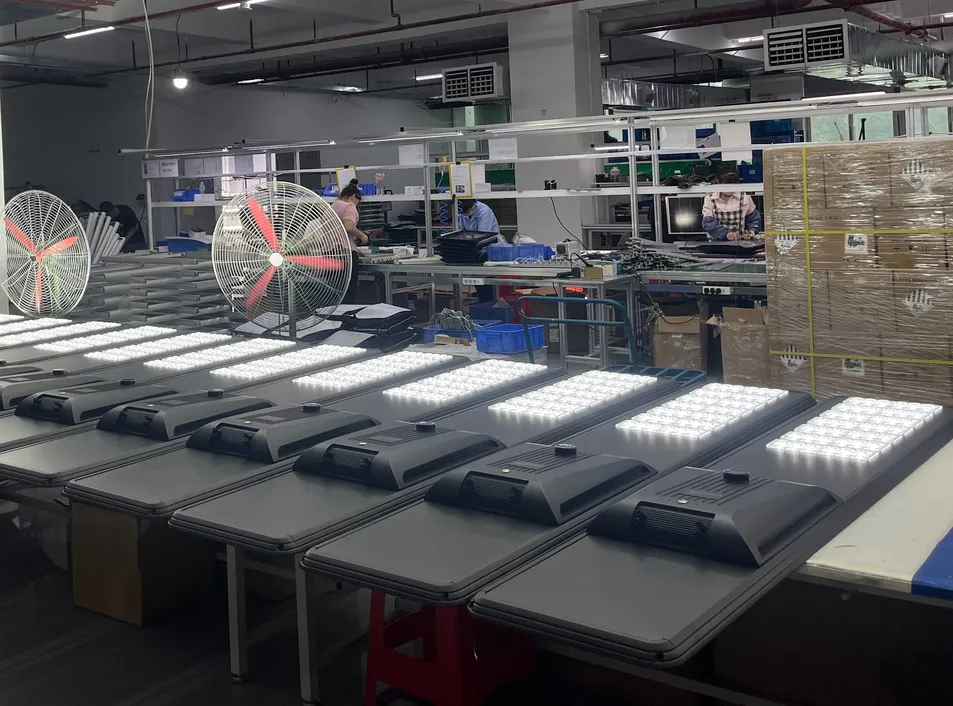

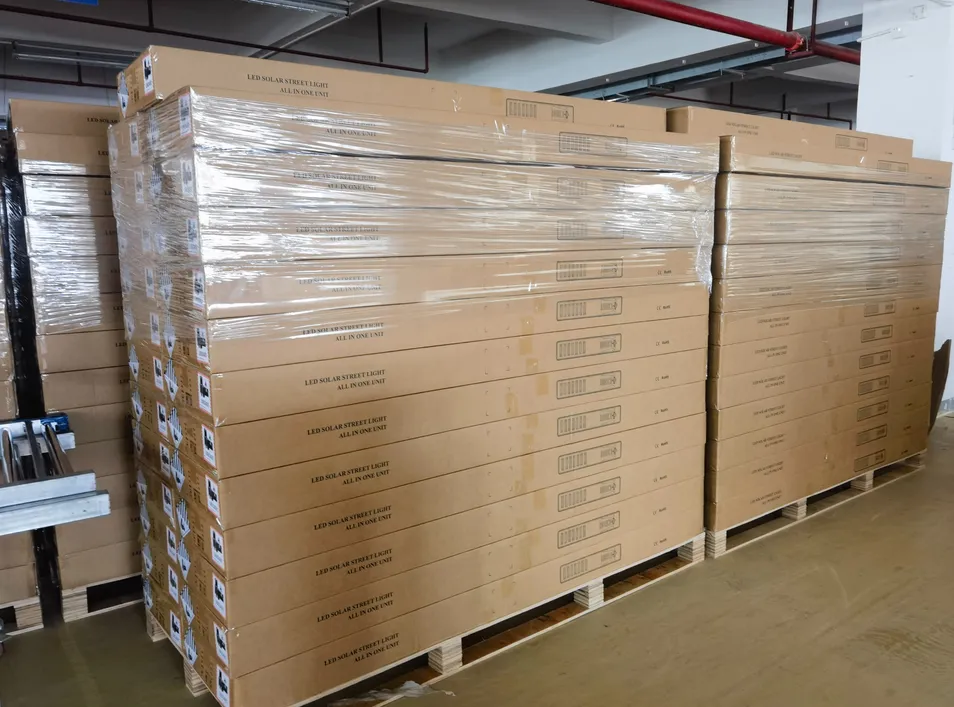

Standard ageing procedures involve several charge and discharge cycles. Products are packed in tailored EPE frames to avoid scratches during transport.

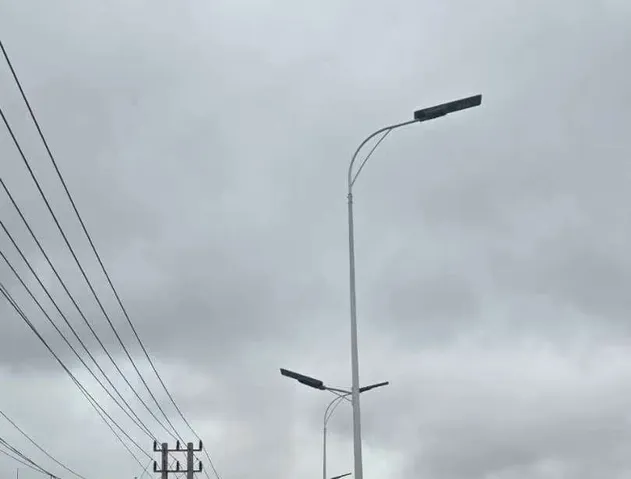

Asia: Replacing traditional lights with solar LED to save electricity costs.

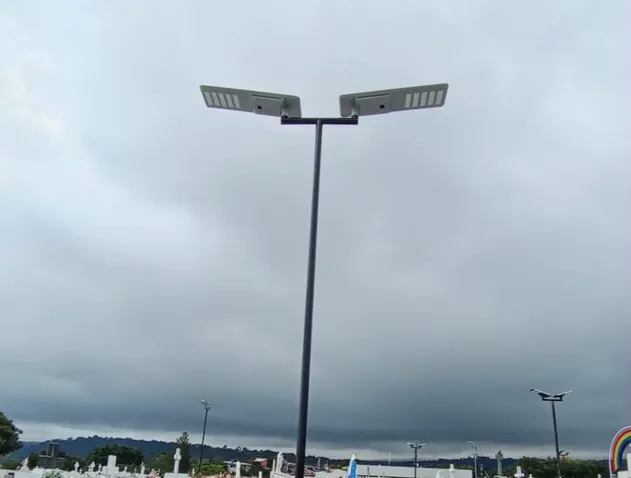

Central America: Excellent performance in diverse weather conditions.

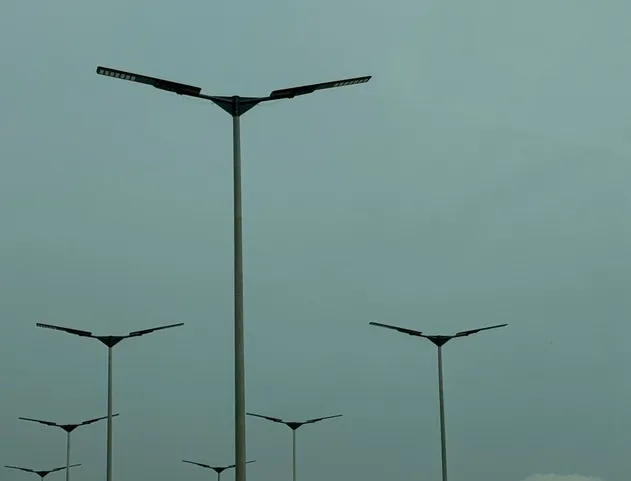

Africa: High endurance and strong lumens suitable for high solar radiation areas.
Customization of technical specifications is accepted based on local solar radiation levels. Below is the general tech spec for reference:
| MODEL | M25-30-AIO | M25-60-AIO | M25-80-AIO | M25-100-AIO | M25-120-AIO |
|---|---|---|---|---|---|
| POWER | 30W | 60W | 80W | 100W | 120W |
| LUMINOUS FLUX | 5400LM | 10800LM | 14400LM | 18000LM | 21600LM |
| PV PANEL | 60WP/MONO | 90WP/MONO | 110WP/MONO | 140WP/MONO | 160WP MONO |
| LFP BATTERY | 320WH 3.2V | 384WH 12.8V | 576WH 12.8V | 768WH 12.8V | 960WH 12.8V |
| CONTROLLER | MPPT | MPPT | MPPT | MPPT | MPPT |
| CHARGE TIME | 5 HRS | 5 HRS | 5 HRS | 6 HRS | 6 HRS |
| DISCHARGE TIME | 12 HRS | 12 HRS | 12 HRS | 12 HRS | 12 HRS |
