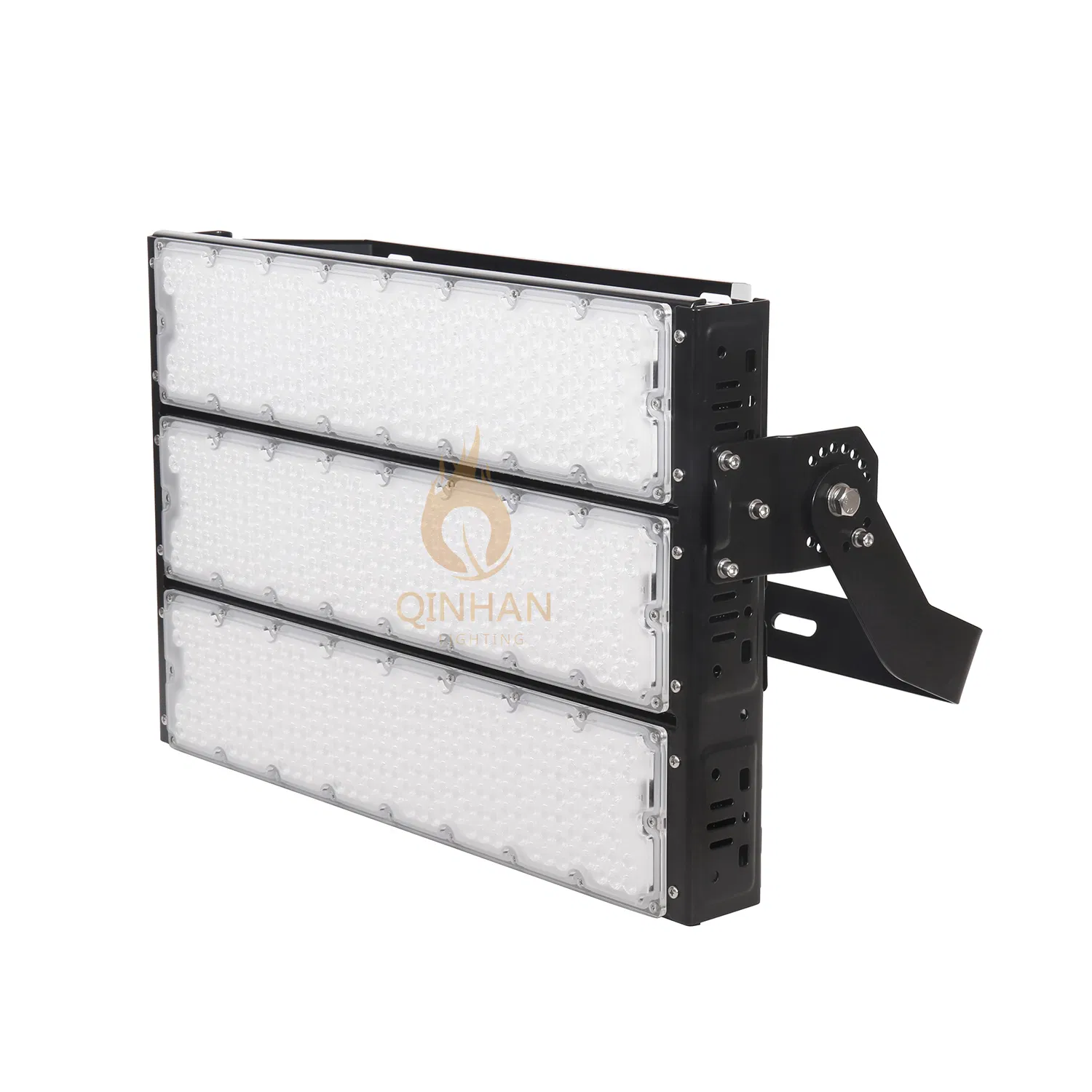

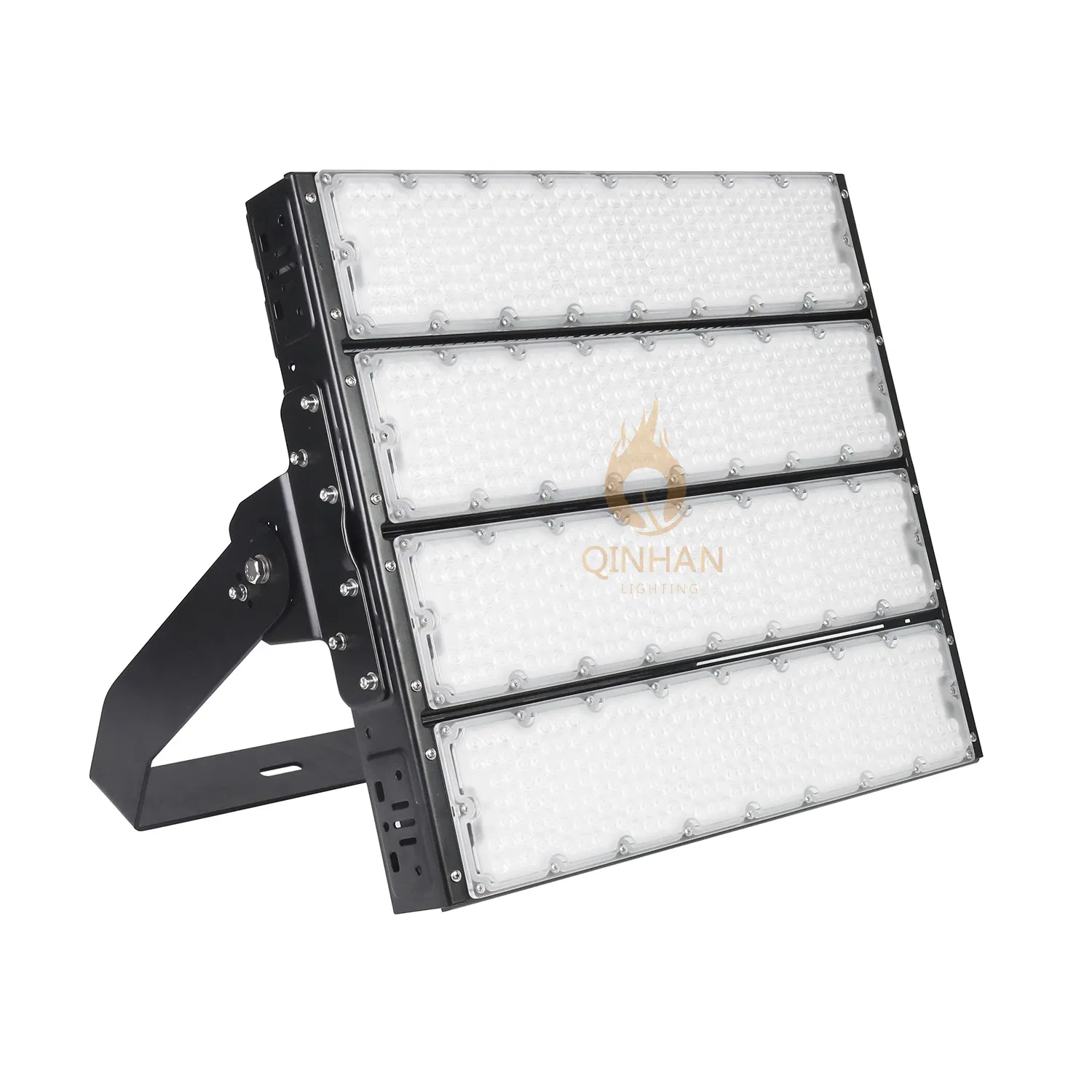

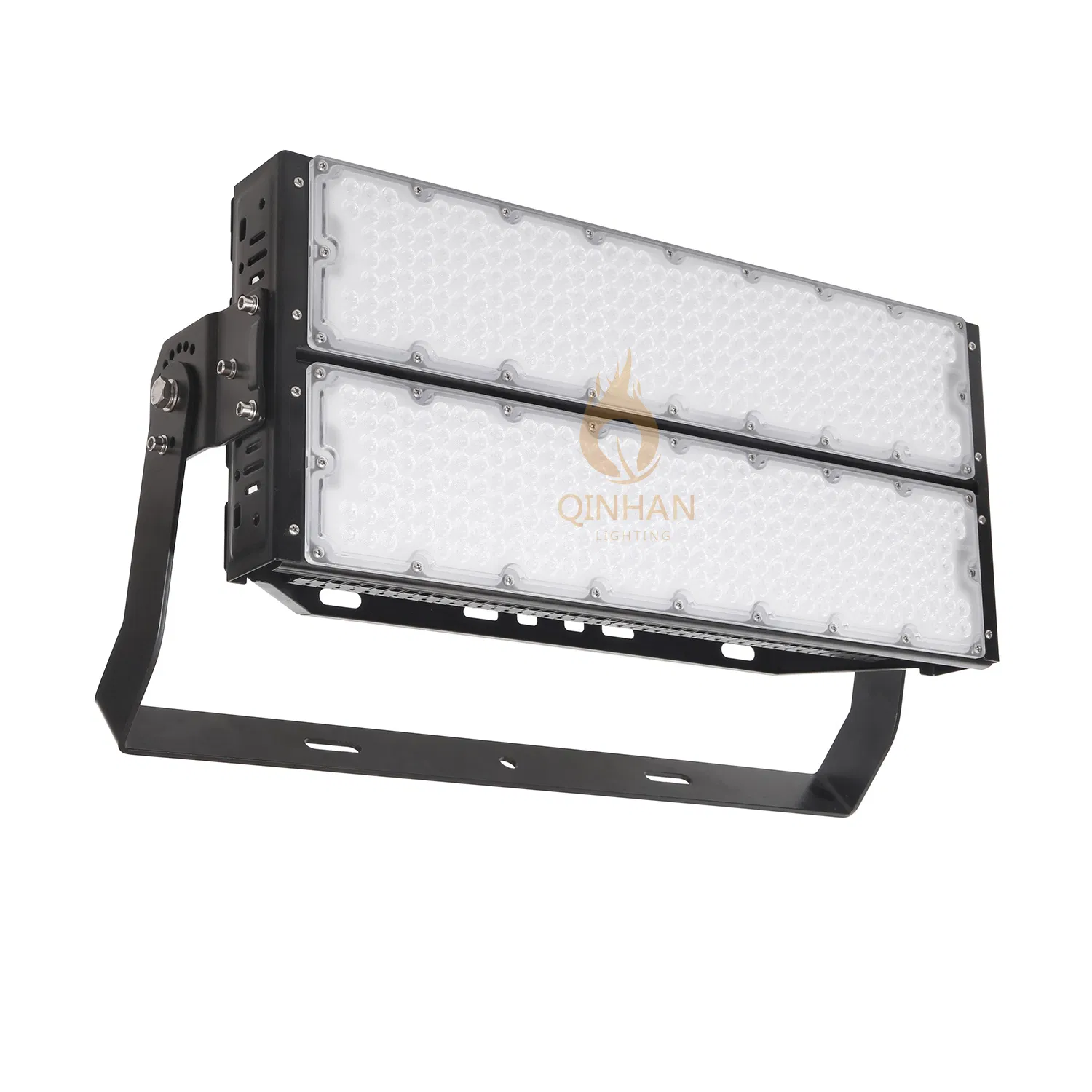

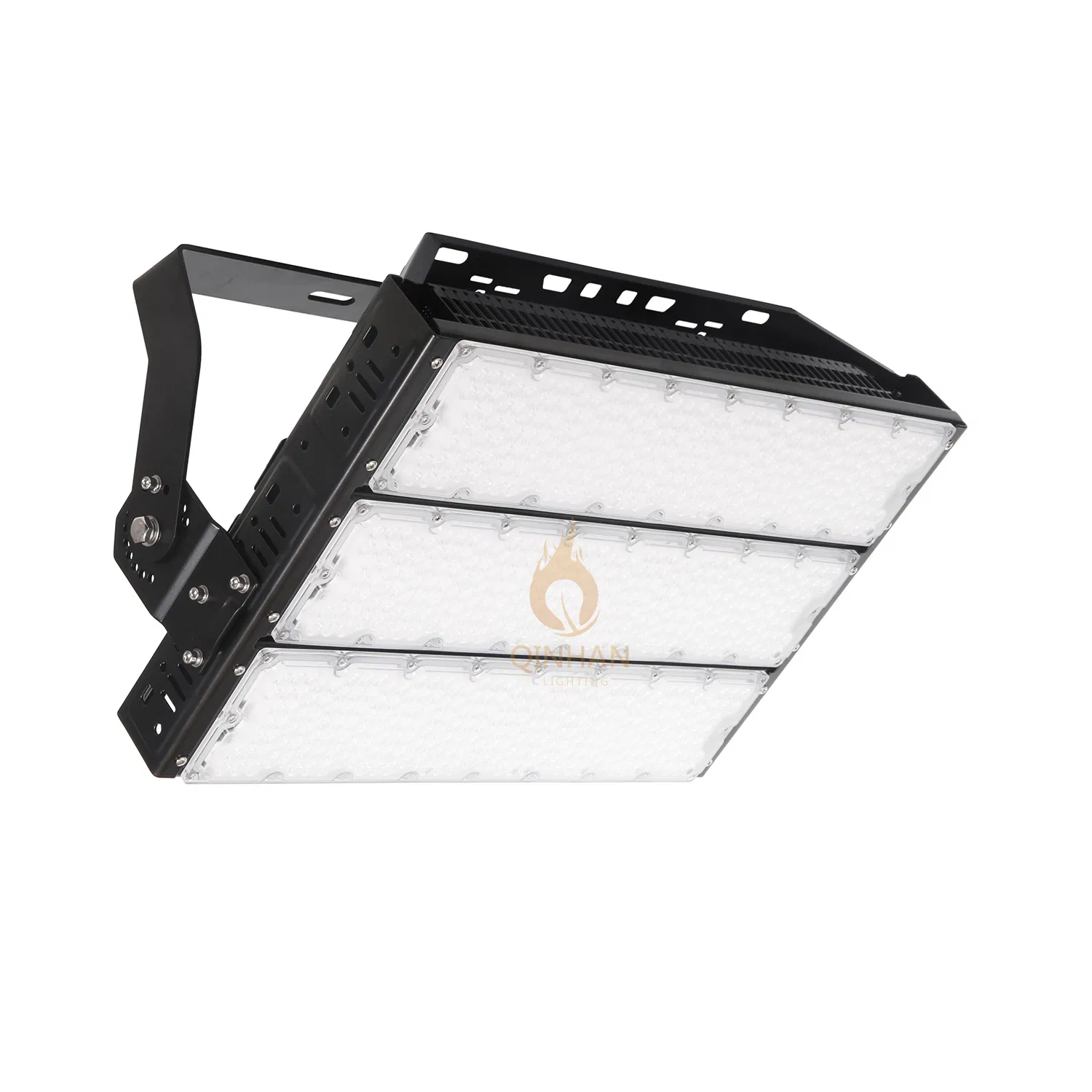

20° 40° 60° 90° Beam Angle 1000W IP66 SMD LED Flood Light for Outdoor Tennis Court Stadium Lighting
Product Description
Basic Specifications
Model NO.

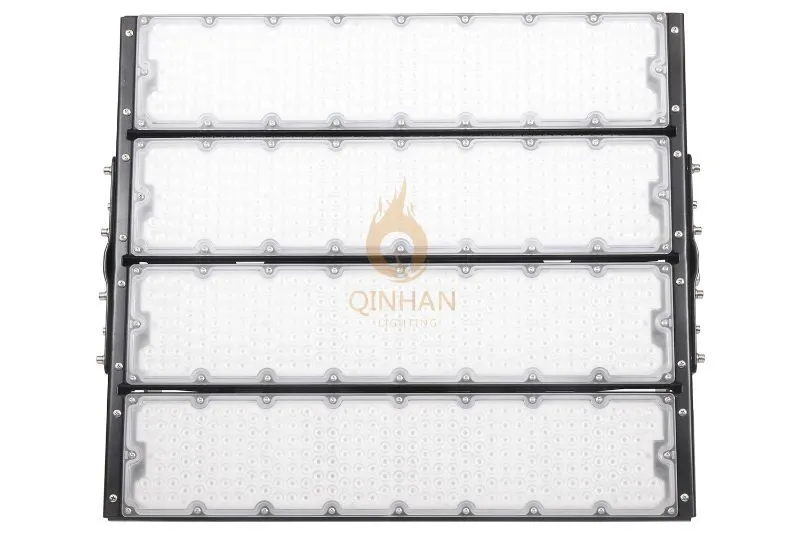

QH-FLMS-1000W
Power
1000W
Projection Distance
>35m
IP Rating
IP66
LED Chips
CREE 5050 SMD
Luminous Flux
150-160LM/Watt
Voltage
AC 100V-480V
Warranty
5 Years
Body Material
Die-Casting Aluminum
Working Life
>100,000 hours
Product Description
Introducing the IP66 High Power LED Flood Light for Tennis Court Stadium Lighting, boasting an impressive 150lm/W and available in wattages ranging from 500W to 1500W. This LED light is specifically designed for outdoor sport venues, providing exceptional illumination for optimal visibility. With its durable and weather-resistant construction, this flood light is an ideal choice for high mast search lighting.
Key Features
- IP66 rated waterproof protection for harsh environments.
- Rotatable modules offering maximum customization.
- Multiple optics available: 20°/40°/60°/49*21°/30*70°.
- Instant-on, flicker-free cold start with industry-leading 150Lm/W.
- Unique heat extraction design prolongs fixture life.
- Lightweight design for easy retrofitting of existing HID installations.
Technical Data Sheet

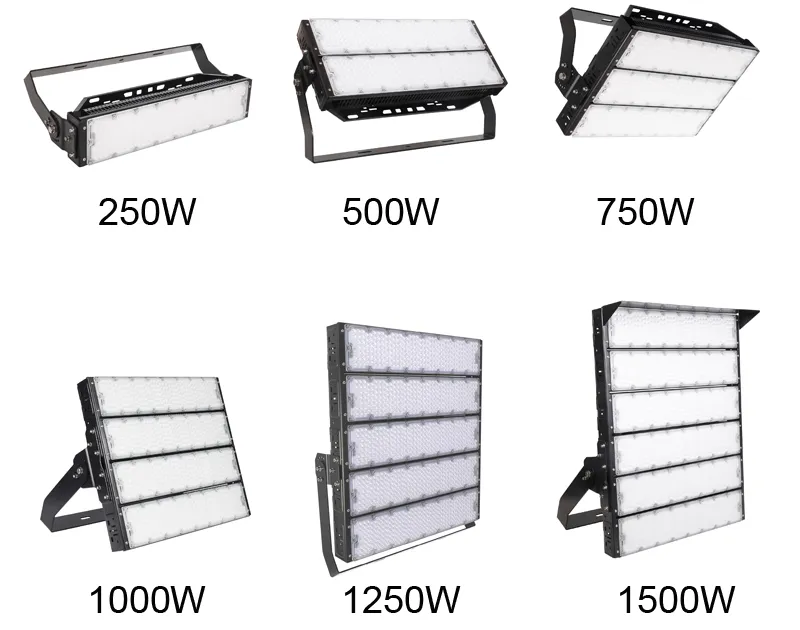

| Model | QH-FLMS-500W | QH-FLMS-750W | QH-FLMS-1000W | QH-FLMS-1500W |
| Power | 500W | 750W | 1000W | 1500W |
| LED Qty | 192pcs | 288pcs | 384pcs | 576pcs |
| Gross Weight | 6.5Kg | 14Kg | 18.4Kg | 22Kg |
| Packing Size | 65*26*25cm | 65*40*30cm | 65*56*30cm | 65*72*30cm |
Electrical Information
| Electrical Class | Class I |
| Nominal Voltage | 100-240VAC / 100-277VAC / 180-528VAC |
| Power Factor | ≥0.97 (at full load) |
| Surge Protection | 6KV - 10KV (up to 20KV optional) |
| Control Systems | DALI / 1-10V / 0-10V / DMX512 Dimming |
Broad Applications
This high-power flood light is perfectly suited for various large-scale outdoor and industrial venues:
Square, Park, Port, Airport, Shipyard, Container Wharf, Golf Course, Football Field, Tennis Court, and more.
Frequently Asked Questions
Q: Can we customize the branding and logo?
A: Yes! We can print or emboss your logo on the fixtures and provide custom branded packaging boxes to suit your needs.
Q: How do you ensure product quality control?
A: Quality is our priority. We maintain strict quality control from the beginning to the end. Our products have gained CE, RoHS, FCC, and ISO9001 certifications.
Q: What components are used in your high-quality flood lights?
A: We only use the best components to build our lights, including CREE/Nichia chips and top-tier drivers like Meanwell, Moso, or Inventronics.
Q: What happens if I receive non-functional lights?
A: Don't worry. We stand behind our products. If any lights are non-functional upon receipt, we will provide the same quantity of good lights as compensation in your next order.
Q: What are your accepted payment terms?
A: We accept multiple payment methods including T/T, L/C at sight, and Western Union.
Q: What is the typical lifespan and warranty of these fixtures?
A: Our LED flood lights are designed for a working life of over 100,000 hours and come with a comprehensive 5-year warranty.
