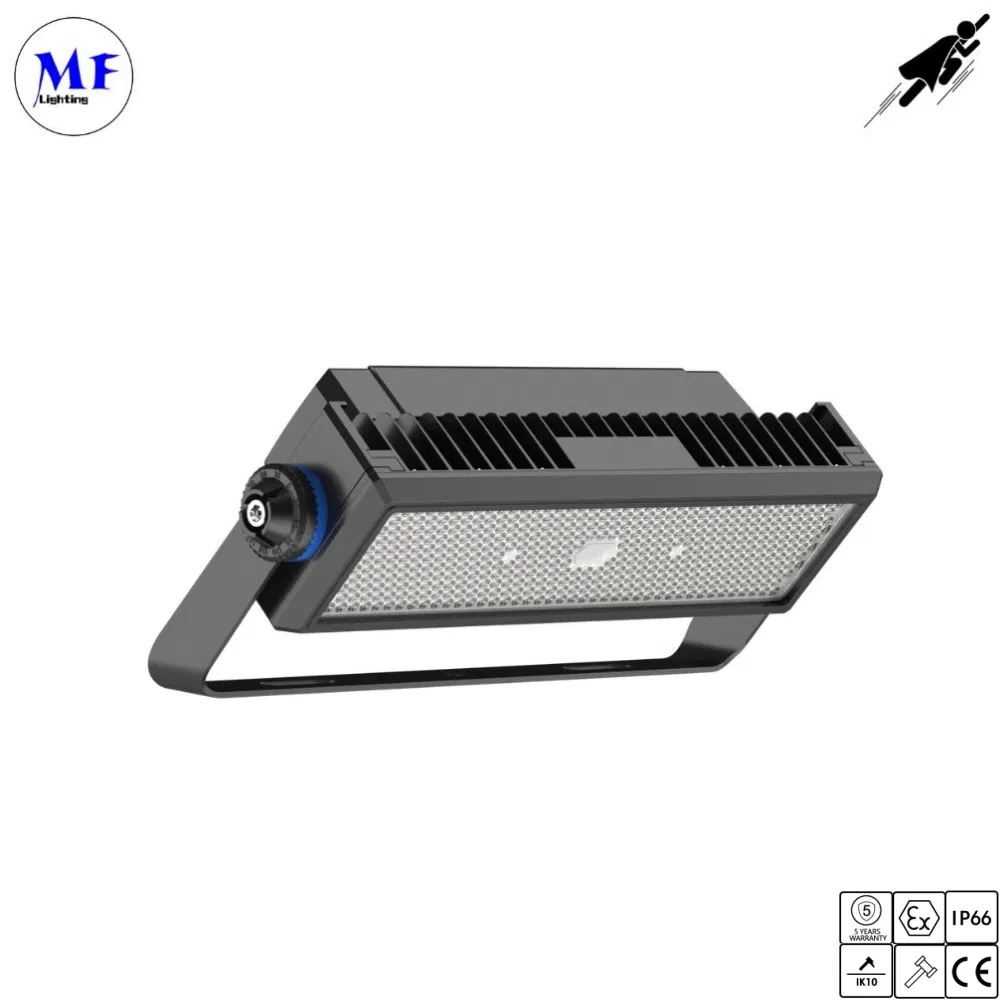

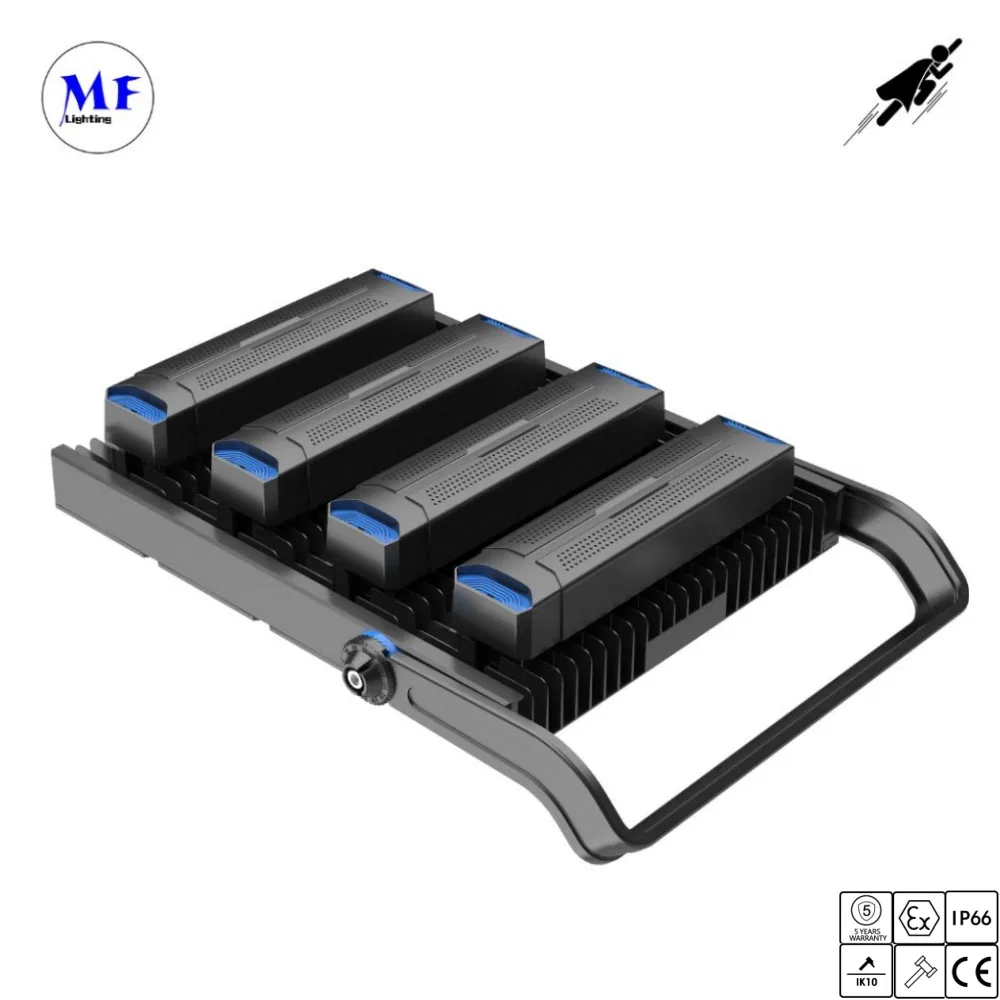

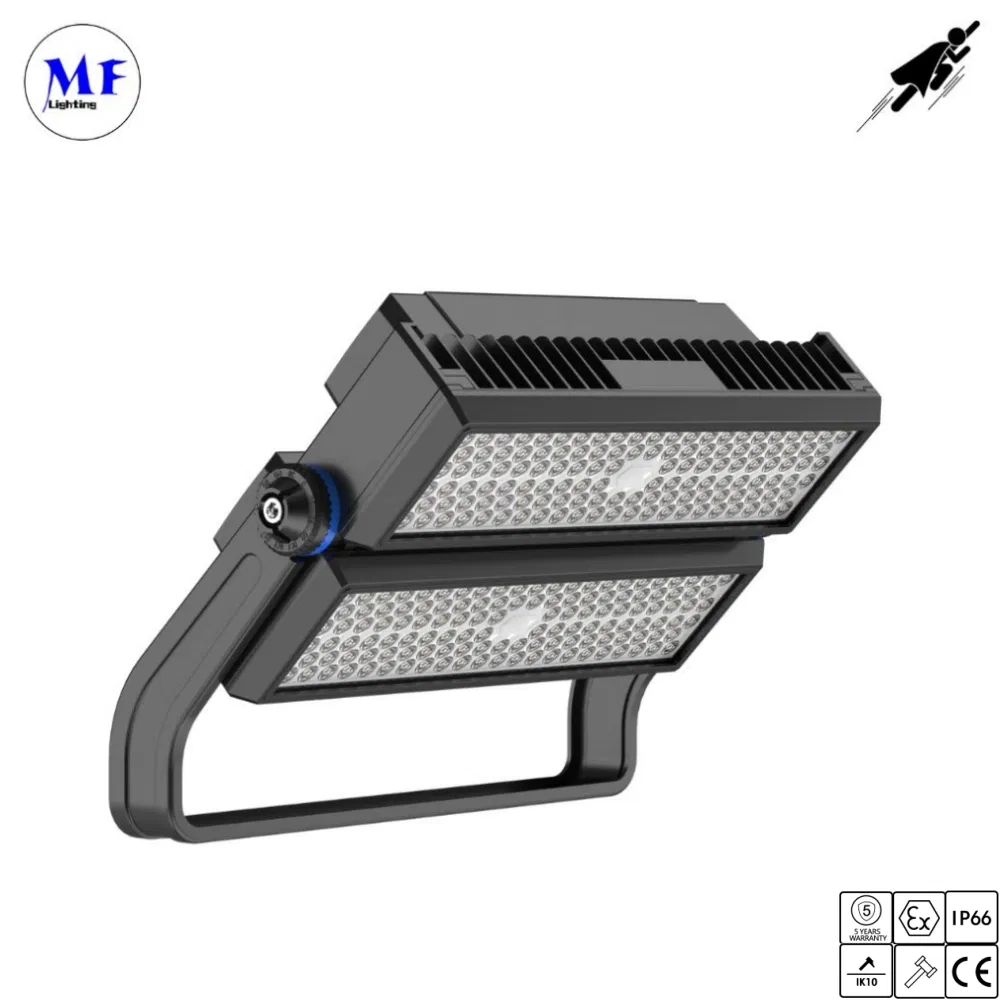

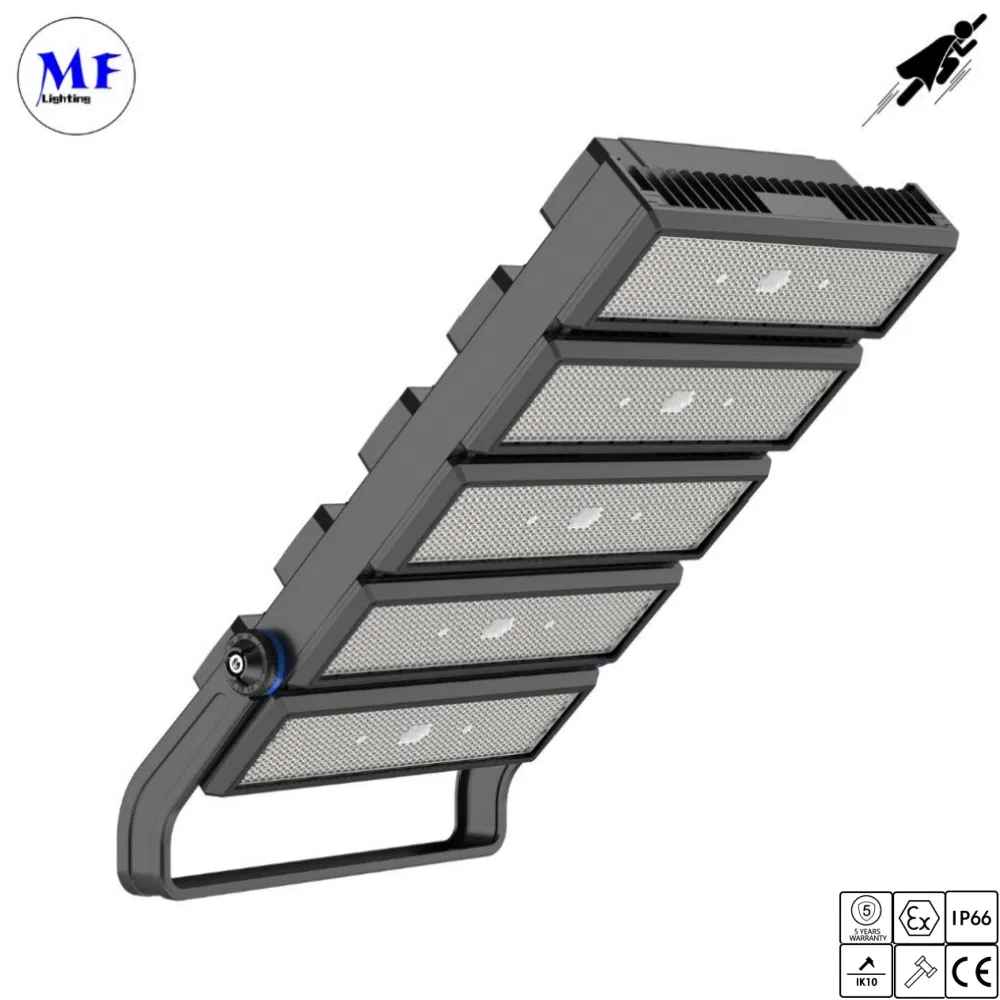

High Power Module 250W 500W 1000W 1250W 1500W Ik10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court

Still deciding? Get samples of $ !
Request Sample

Product Description

High Power Module Outdoor Waterproof LED Stadium Flood Light

Professional Lighting Solution for Sports Courts, Airports, and Industrial Sites

Basic Specifications
Model
Superman II
Power Range
250W - 1500W
IP Rating
IP66
IK Class
IK10 / IK08
Input Voltage
100-305VAC 50/60Hz
LED Brand
Osram / Lumileds
Driver Brand
Meanwell / Sosen
Beam Angle
10°/25°/45°/60°/90°/65°*25°
Certification
CE, RoHS, VDE
Color Rendering
CRI >70 / >80 / >90
Key Features
All-In-One Design
Combines world-class performance, energy saving, and cutting-edge optical technology in one sleek package.
🎥 Flicker-Free for Slow Motion
Supports 4K camera technology up to 2000fps, ensuring perfect slow-motion replay without flickering.
🧩 Modular Concept
250-300W per module, scalable up to 1500W. Racked angles allow flexible light control with laser aimer precision.
🛡️ High Protection & Low Resistance
IP66 and IK10 rated. Built-in 10KV/20KV surge protection and ball-proof wire guards for safety.
❄️ Advanced Thermal Management
Fin-design increases heat dissipation area using conduction, radiation, and convection for extended lifespan.
🎯 Spill Light & Glare Control
Asymmetrical optical lenses focus light on the field, preventing spill light into residential areas and reducing glare for players.
Stadium Light Performance
Technical Specification (Plan A 150lm/w)
Model No. QCD-H250W QCD-H500W QCD-H750W QCD-H1000W QCD-H1250W
Rated Power 240W 480W 720W 960W 1200W
Luminous Flux 36,000 lm 72,000 lm 108,000 lm 144,000 lm 180,000 lm
Net Weight (kg) 7 14 20 26 32
Carton Size (mm) 630*330*230 630*520*230 630*680*230 630*840*230 630*1000*230
Premium Performance (Plan B 170lm/w)
Efficiency 240W 480W 720W 960W 1200W
Luminous Flux 40,800 lm 81,600 lm 122,400 lm 163,200 lm 204,000 lm
CCT 3000K / 4000K / 5000K / 5700K
Power Module Plan
Dimensions & Accessories

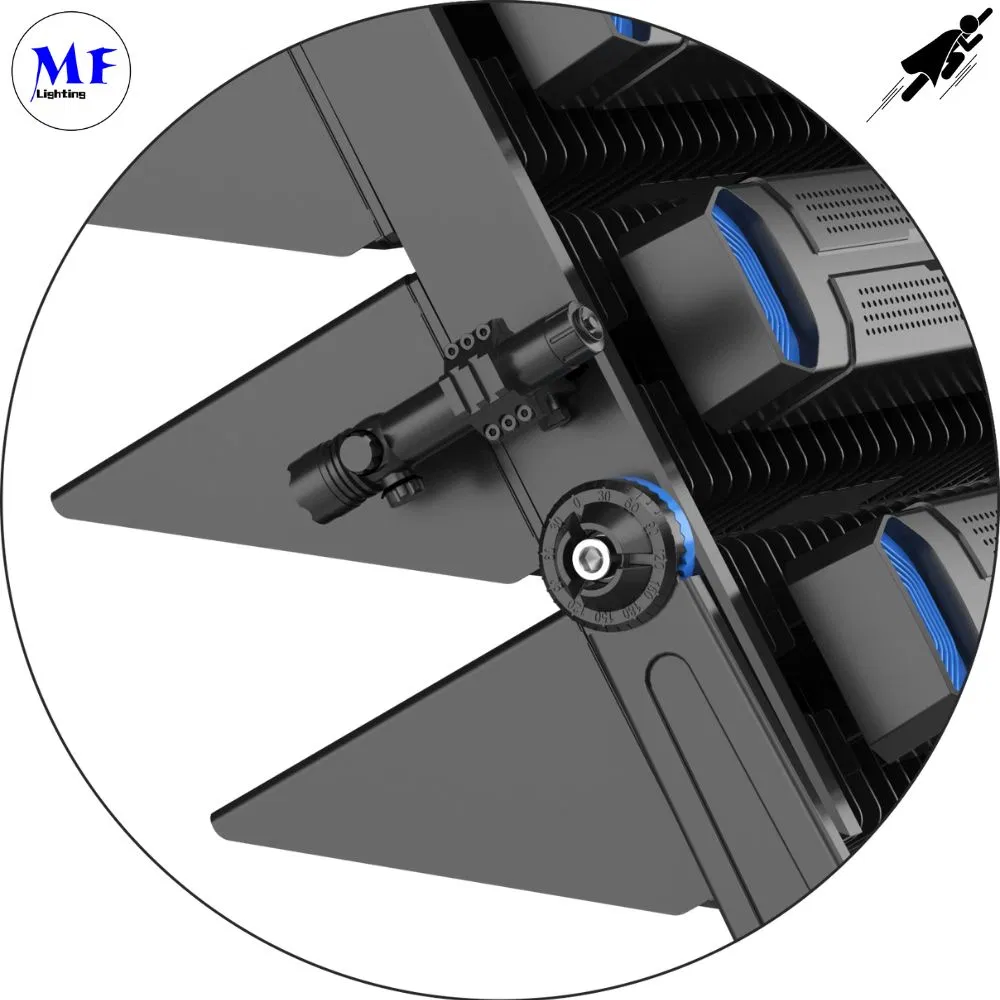

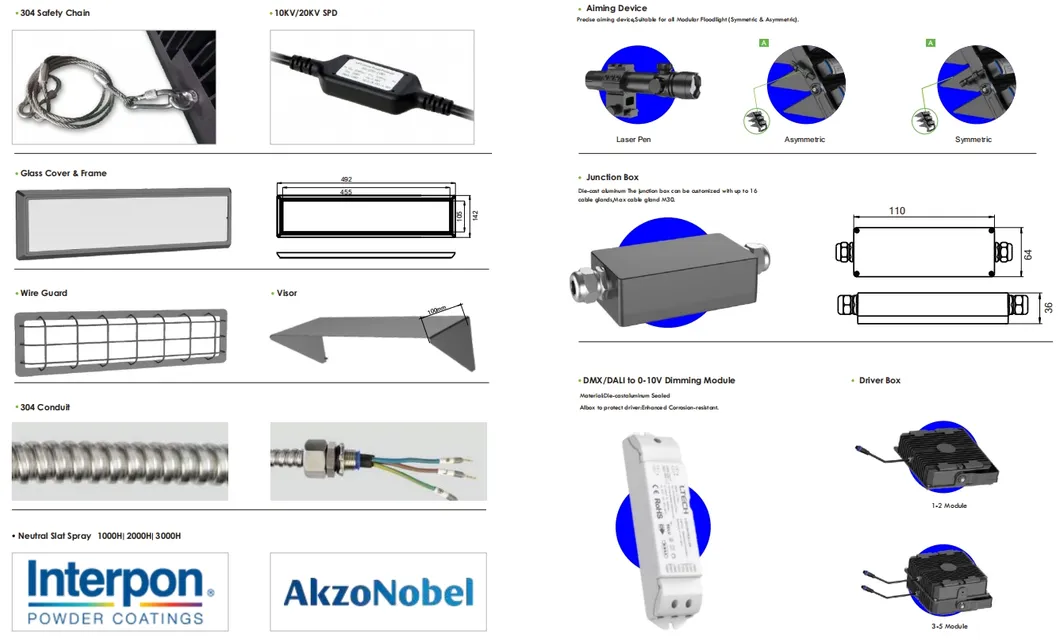

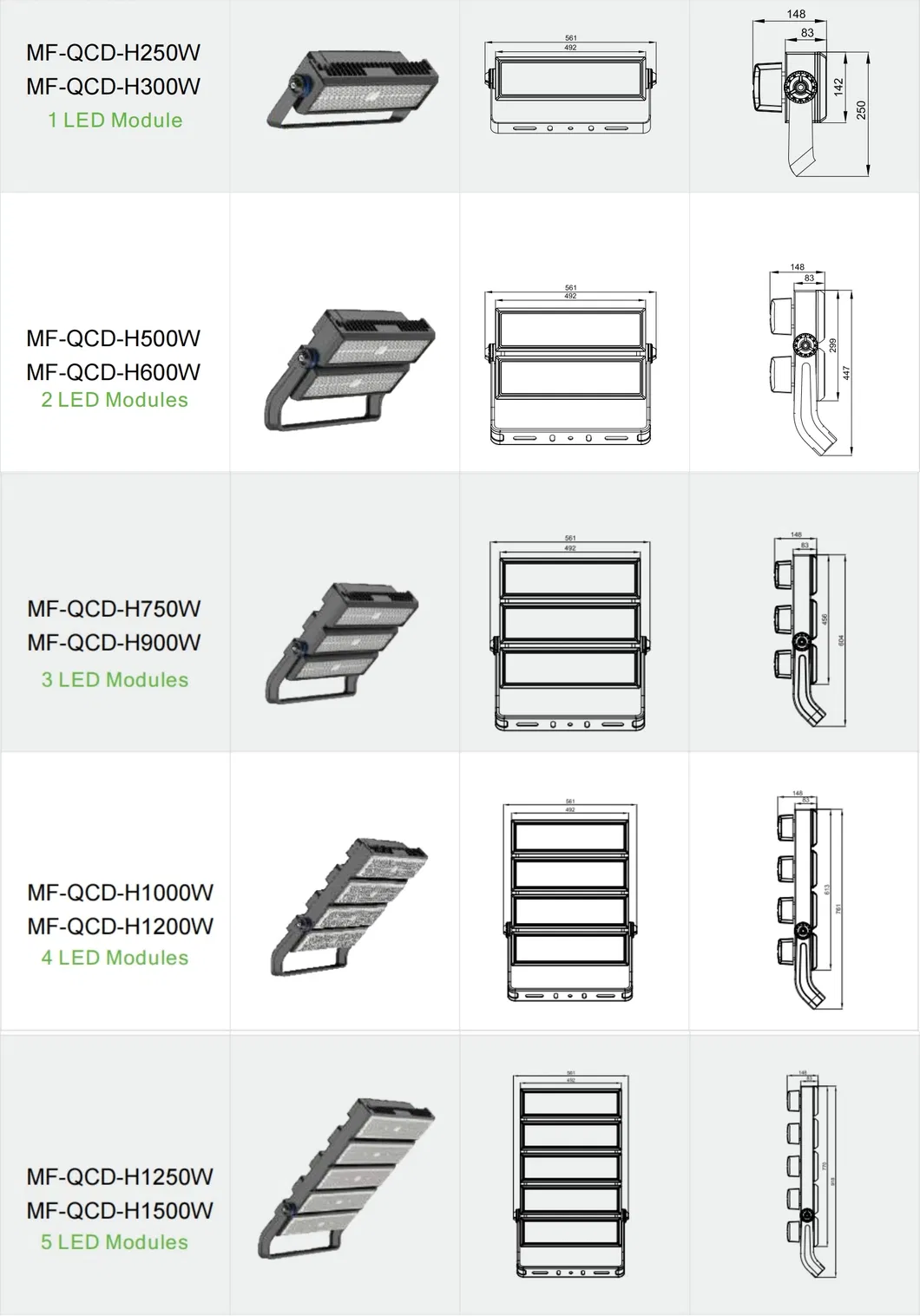

Product Dimensions Accessories and Aiming Tool
Photometry & Thermal Management

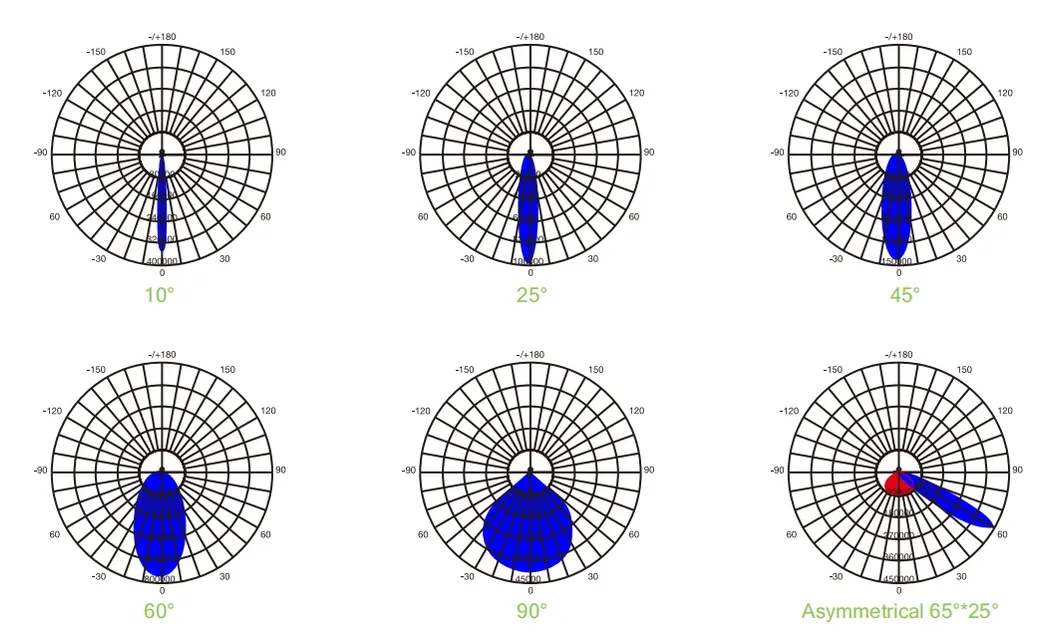

Photometry Distribution

🔥 Excellent Heat Dissipation

Lifespan is assured through three passive cooling methods. The die-casting module design maximizes heat conduction areas, protecting node temperatures and ensuring long-term reliability.

Simulation Solution

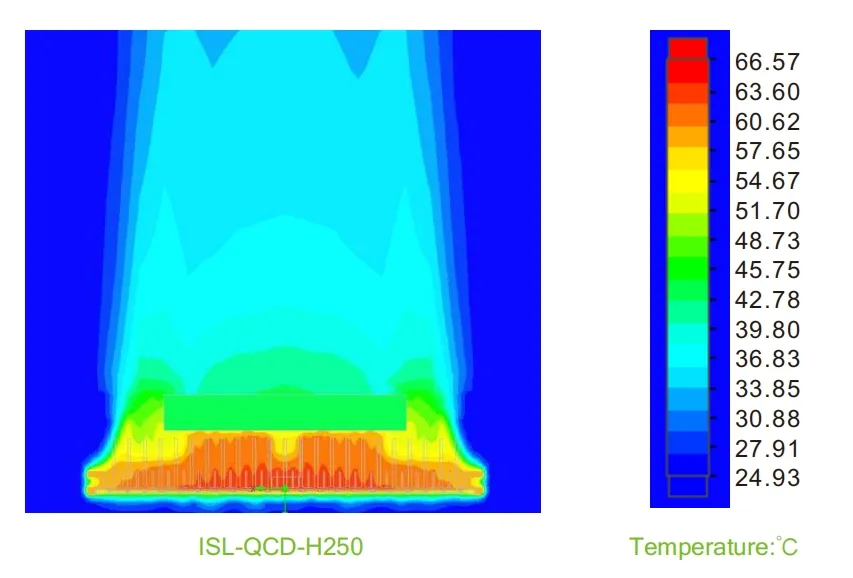

Heat Dissipation Structure
Professional Applications

LED High Mast Flood Lights are essential for high-intensity lighting over large outdoor areas. They provide uniform illumination for safe and clear visibility in demanding environments.

  • Sports Stadiums & Arenas
  • Football & Soccer Fields
  • Airports & Seaports
  • Wharfs & Docks
  • Industrial Complexes
  • Golf Courses
  • Parking Lots
  • Construction Sites

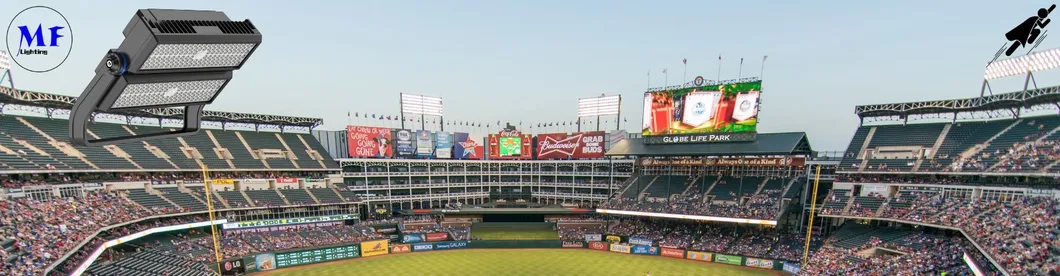

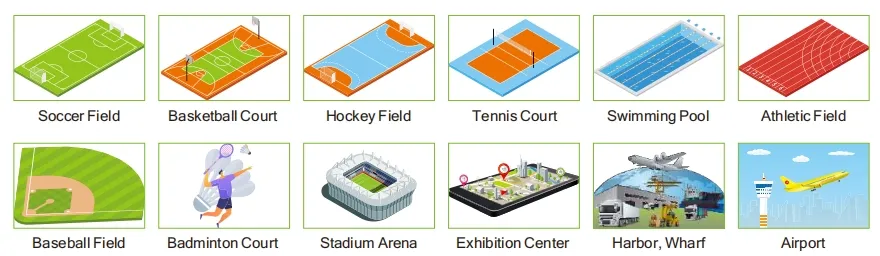

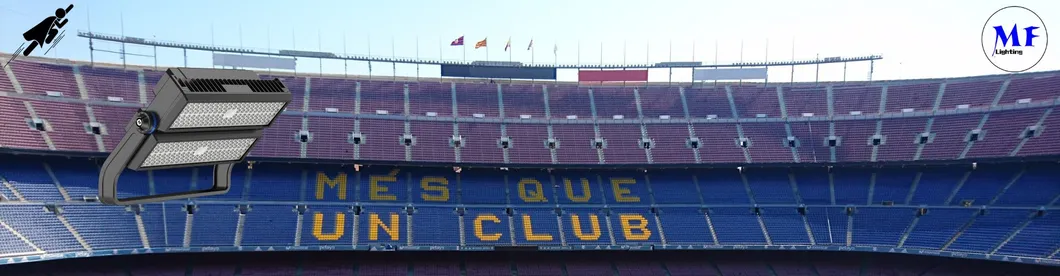

Application 1 Application 2 Application 3
Installation & Maintenance
  1. Read instruction manual carefully before installation.
  2. Installation must be performed by a certified electrician.
  3. Check local voltage requirements before connecting power.
  4. Always turn off power and let the lamp cool before maintenance.
  5. Clean with a soft cloth and PH neutral detergent.
  6. Do not cover fixtures with flammable materials.
Installation Note

Frequently Asked Questions

What is the maximum power available for the Superman II series?
The series is modular and supports configurations from a single 250W module up to a massive 1500W assembly.
Can these lights be used for professional televised sports?
Yes, they are designed to be flicker-free and compatible with 4K high-definition cameras for slow-motion replay.
How does the light protect against coastal corrosion?
The fixtures undergo multi-stage anti-corrosion treatments including electrophoresis and triple powder coating to withstand salt spray environments.
Does the light help in reducing light pollution?
Absolutely. Our asymmetrical optical lenses focus the beam precisely on the target area, minimizing spill light into residential surroundings.
What is the impact resistance rating?
The lights carry an IK10 rating, which is the highest level of protection against mechanical impacts, making them ball-proof for sports.
Is lighting simulation available?
Yes, professional lighting simulations can be provided to ensure the perfect illumination solution for your specific venue or project.
