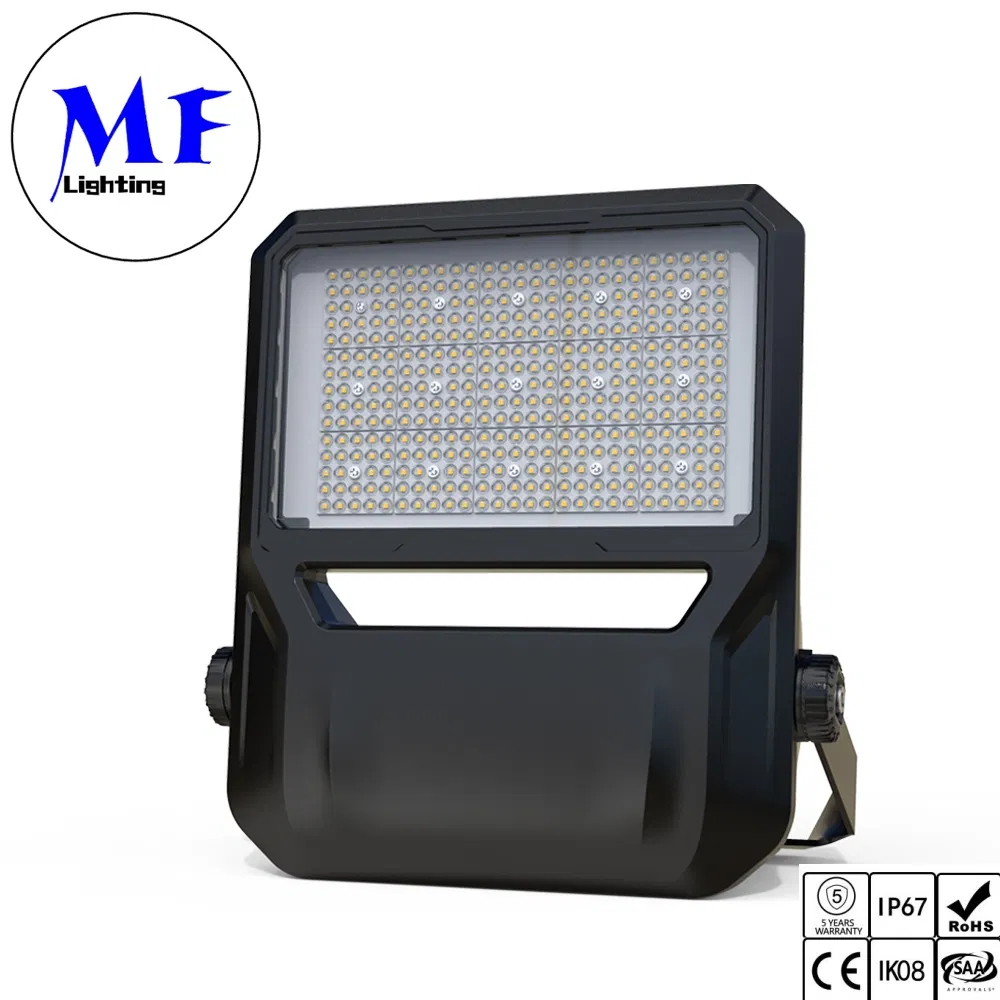

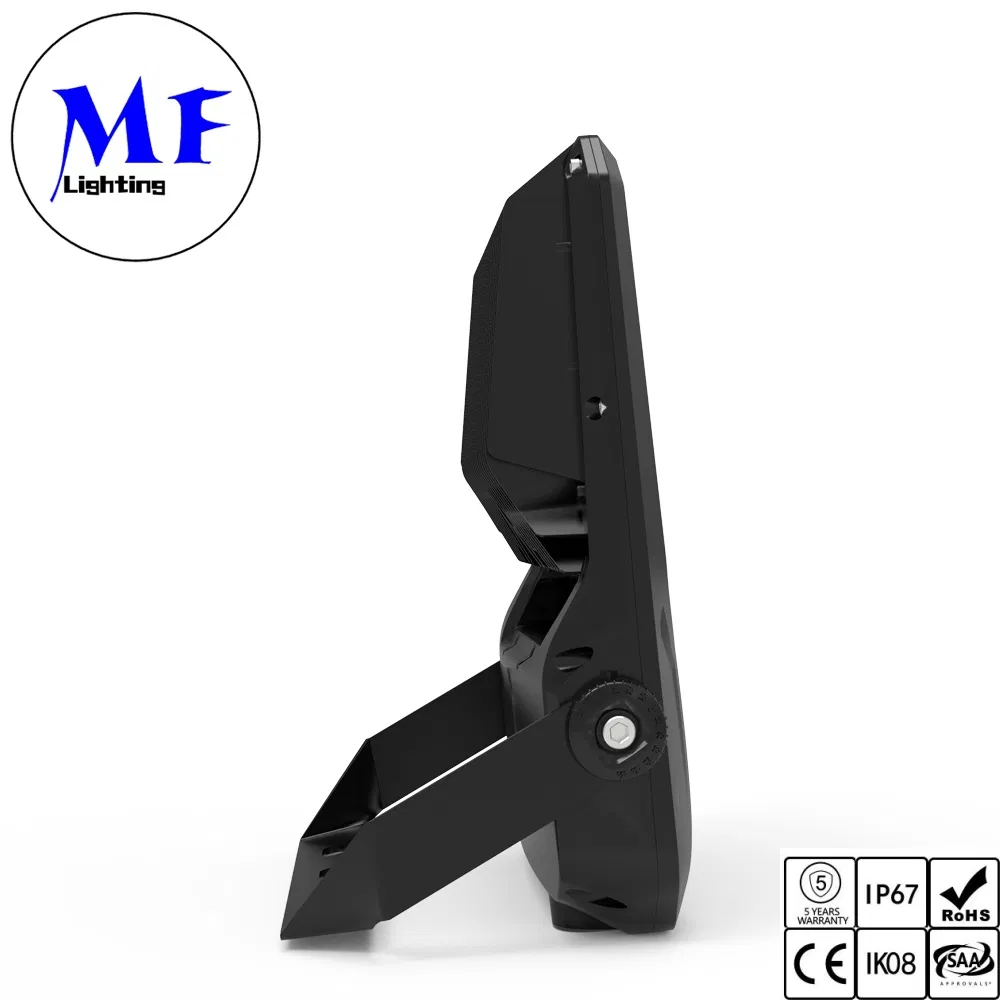

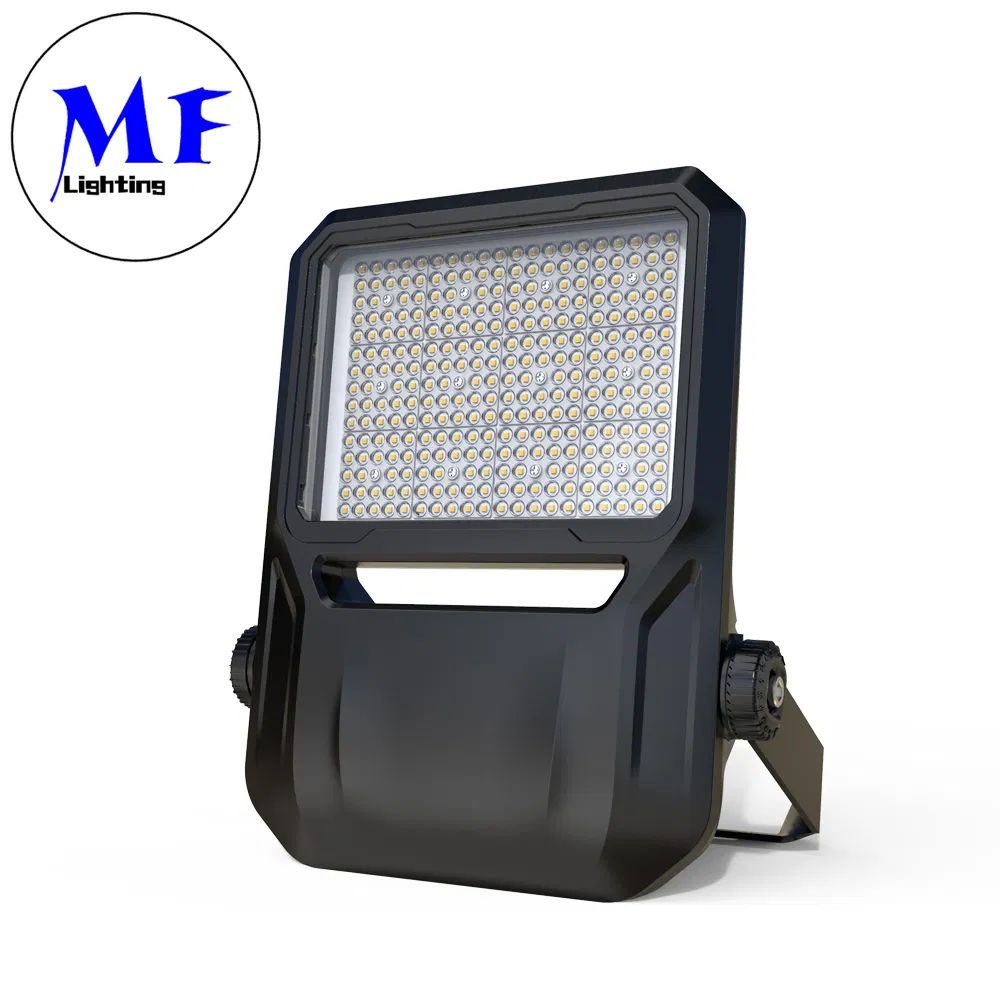

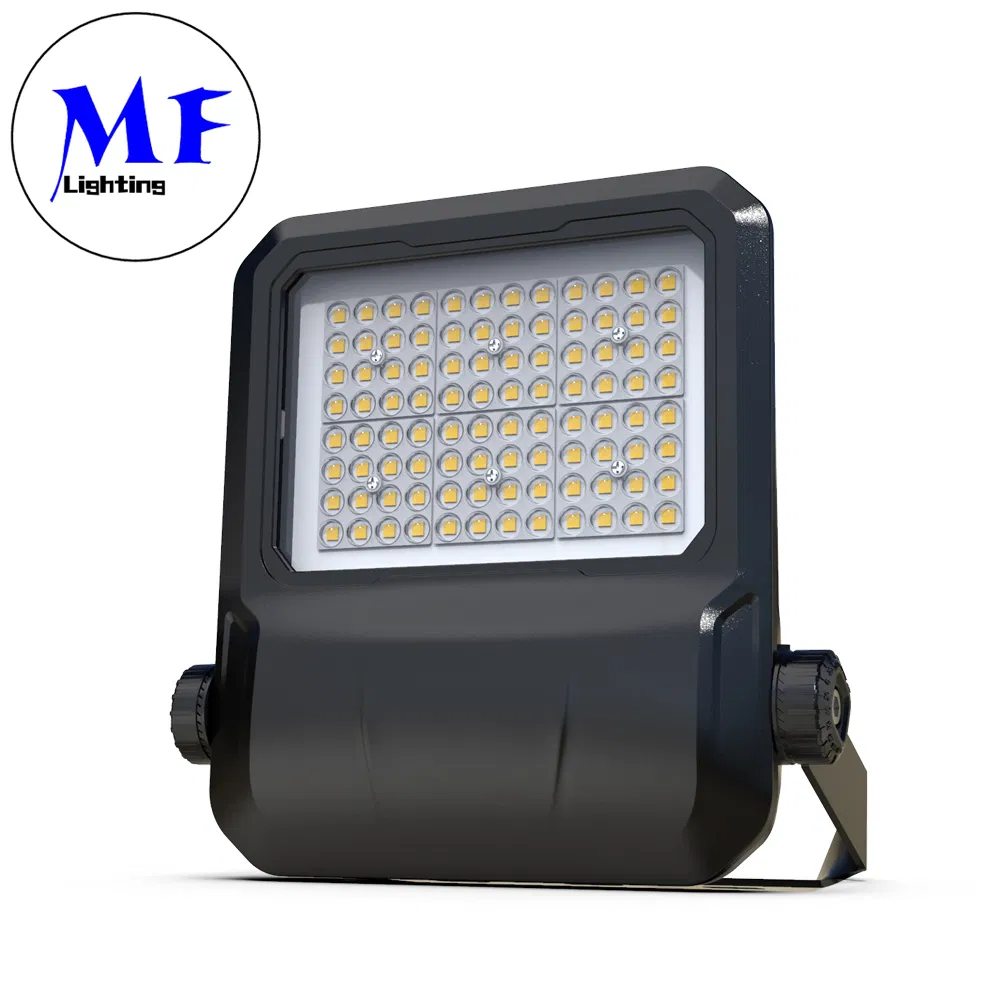

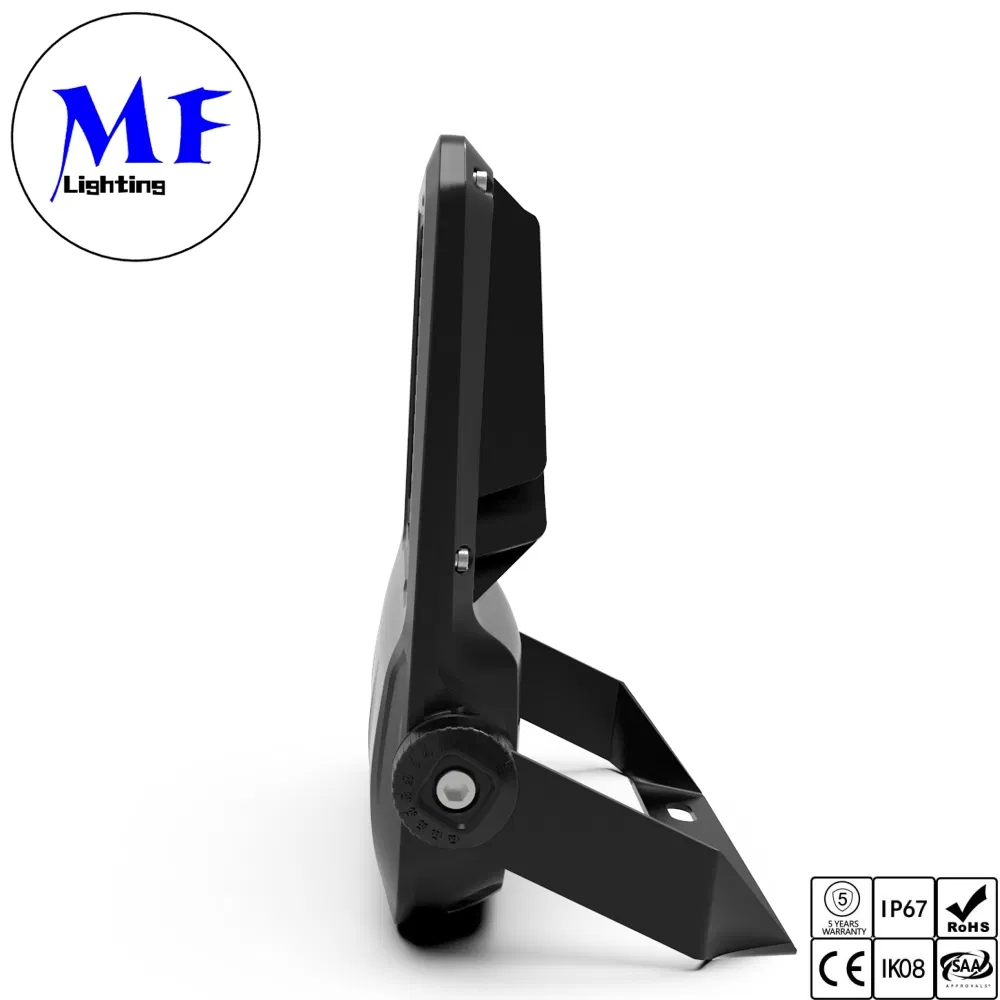

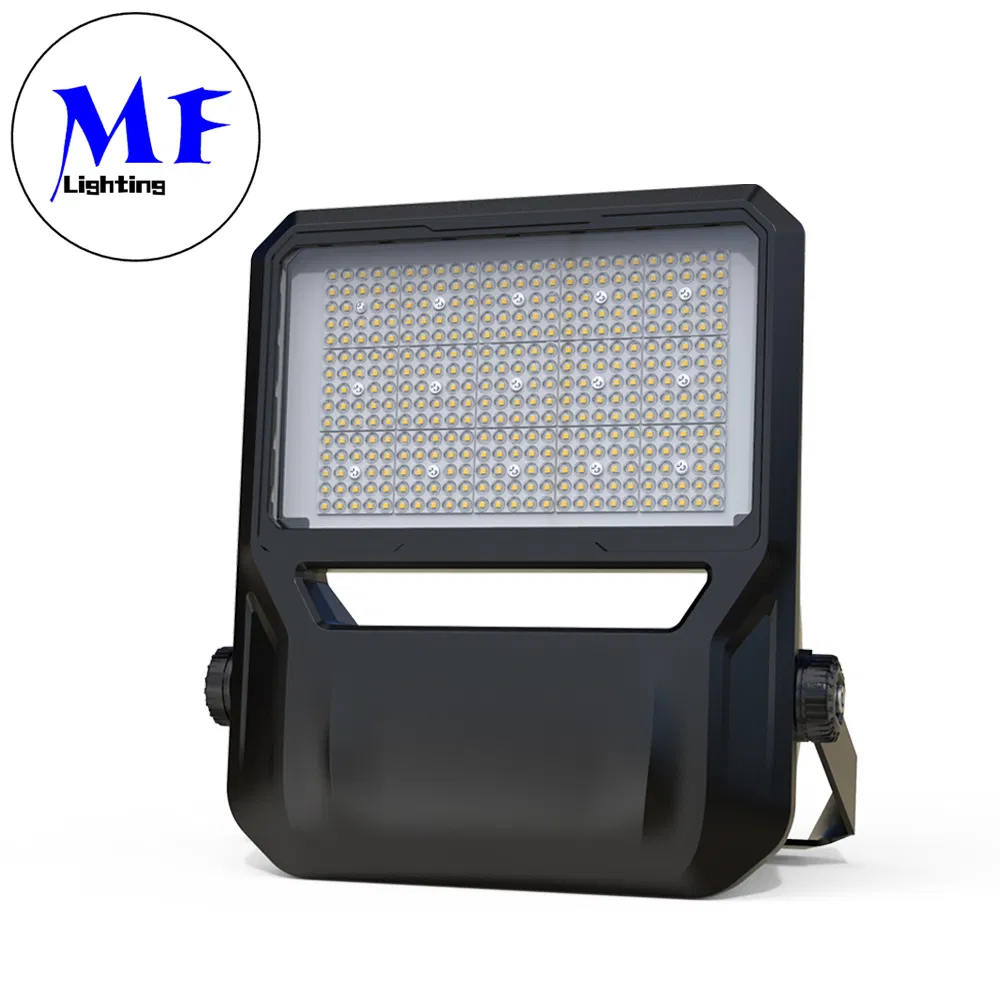

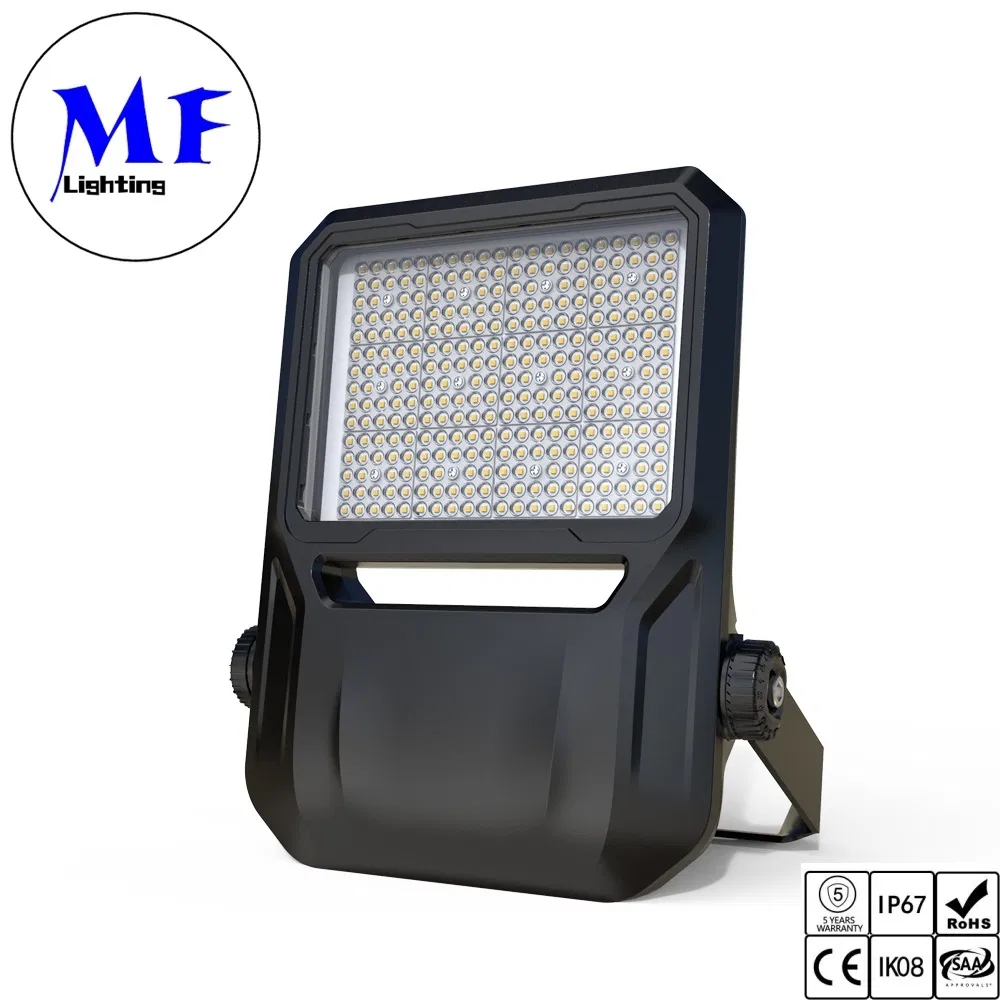

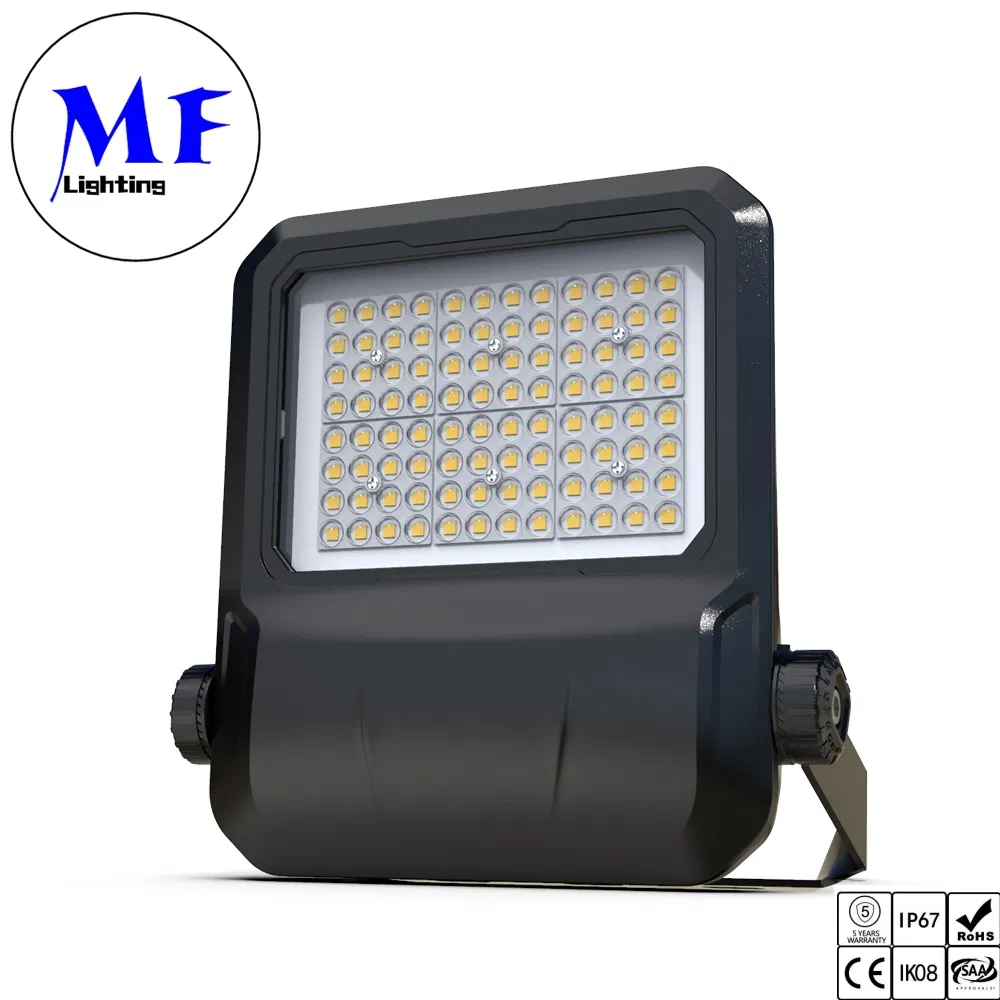

Factory Price 100W 150W 200W 300W 400W Sport Filed Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light
Product Description
Overview & Basic Info
Model NO.
SKY series Flood light
Power
20W-400W
IP Rating
IP67 / IP66
Certification
CCC, CE, RoHS, SAA
Voltage
AC 100-277V, 50-60Hz
Luminous Flux
130lm/W-150lm/W
Material
Aluminum
Warranty
5 Years
IK Rate
IK08 / IK09
CRI
>80ra
Product Description
High-Performance Outdoor LED Flood Light for Sports Fields, Stadiums, and Landscapes
Key Features
- Massive light output of up to 39,200lm
- Ultra-high system efficiency of up to 140lm/W
- High quality LED Chip and Industrial Grade Driver
- Long lifespan: >102,000 hours (L70)
- Professionally Designed True Asymmetric Flat Optics
- Tough IP67 and IK09 construction
- Suitable for coastal areas (with optional 304 stainless steel bracket)
- IP67 Waterproof and dustproof

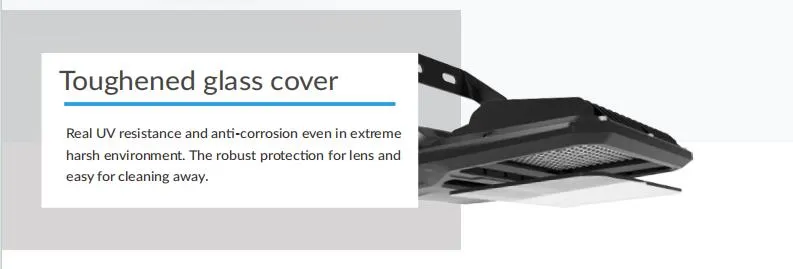

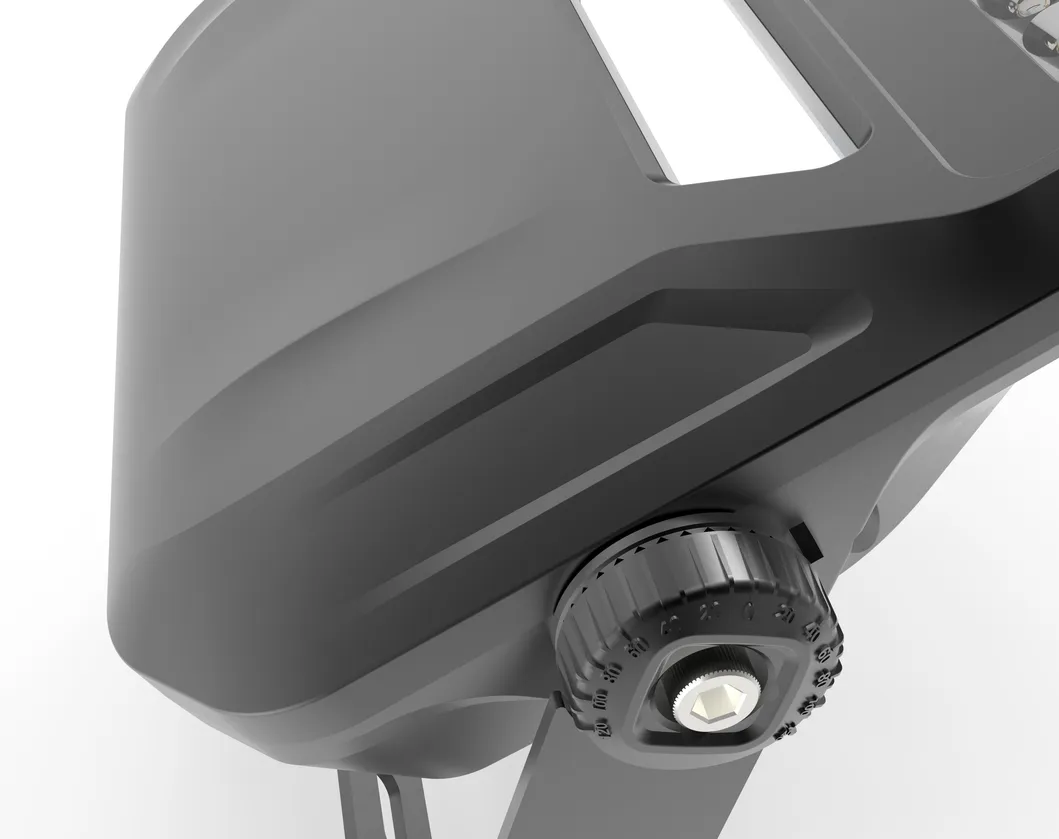

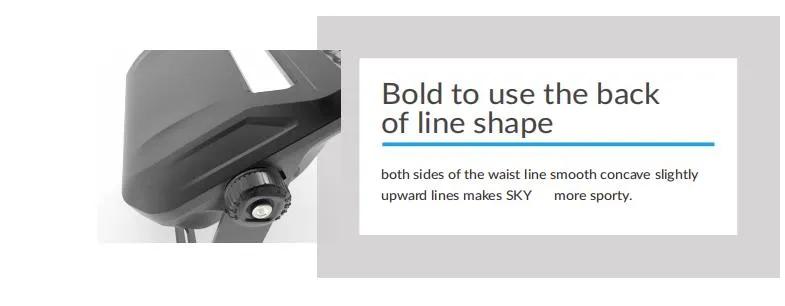

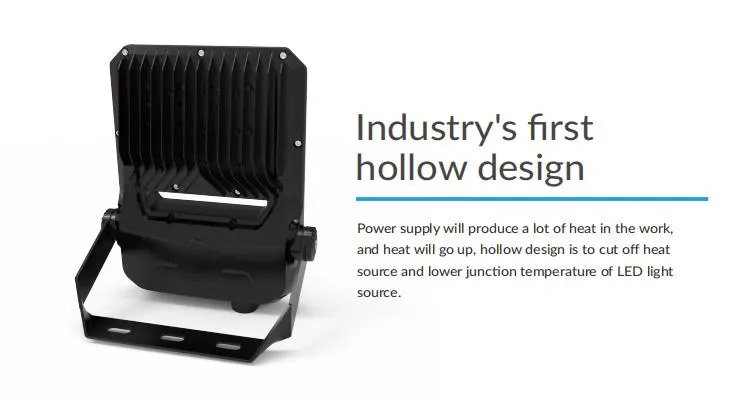

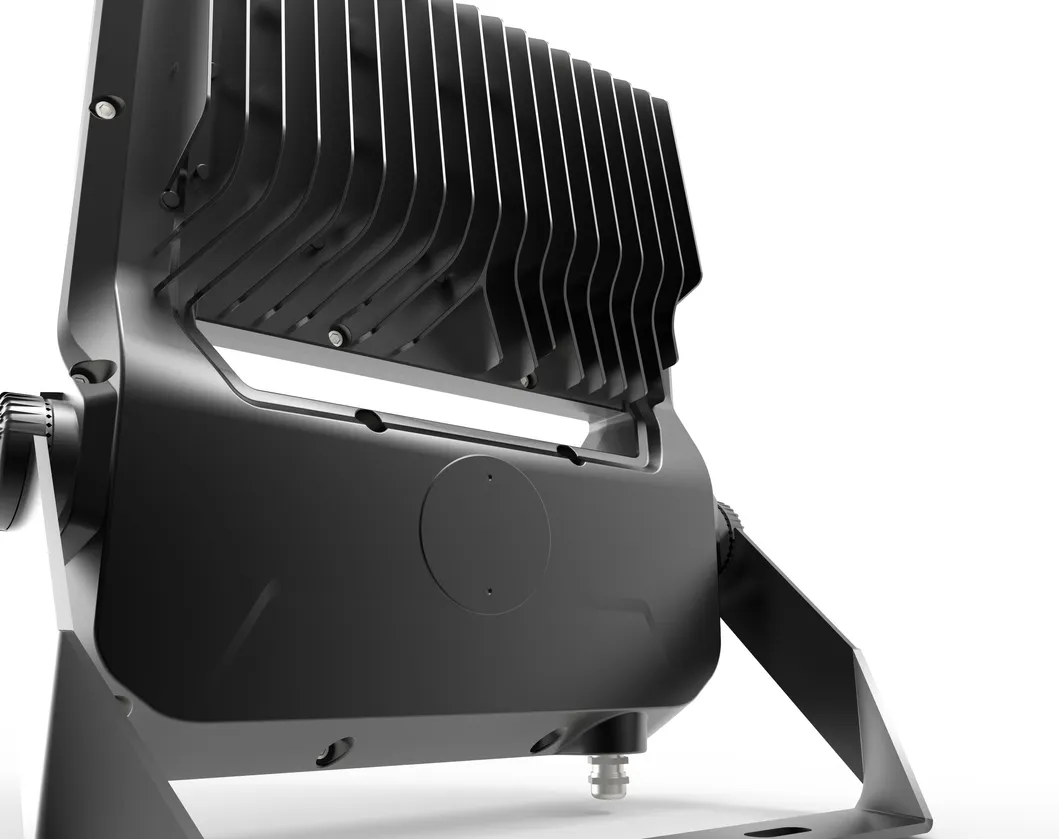

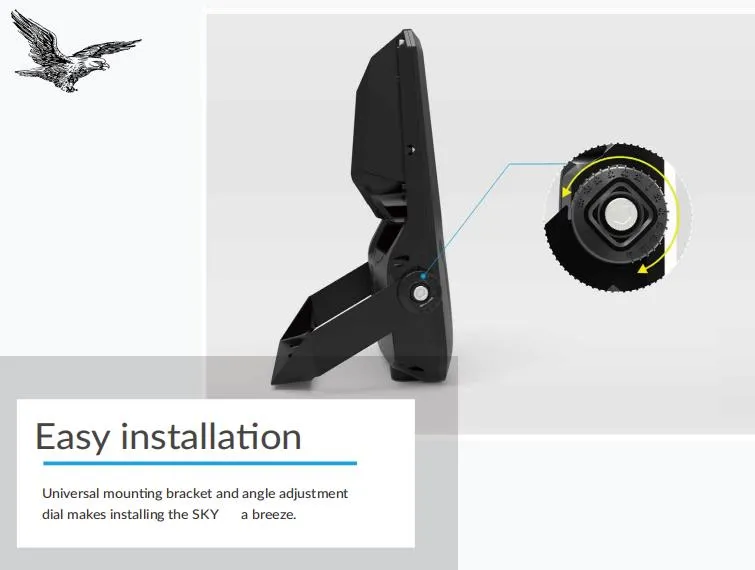

Product Characteristics
Technical Specifications
| CODE | POWER | LUMEN OUTPUT | EFFICACY |
|---|---|---|---|
| MF-SKY-50 | 50W | 7,000lm | 140lm/W |
| MF-SKY-100 | 100W | 14,000lm | 140lm/W |
| MF-SKY-150 | 150W | 21,000lm | 140lm/W |
| MF-SKY-200 | 200W | 28,000lm | 140lm/W |
| MF-SKY-280 | 280W | 39,200lm | 140lm/W |
| LIGHTING DATA | ELECTRICAL DATA | ||
|---|---|---|---|
| Light Source | SMD 5050 | Input Voltage | 100-277V/AC |
| Lifetime | >102,000hrs | Surge Protection | 6kV |
| CCT | 3000K-6500K | IP Rating | IP 67 |

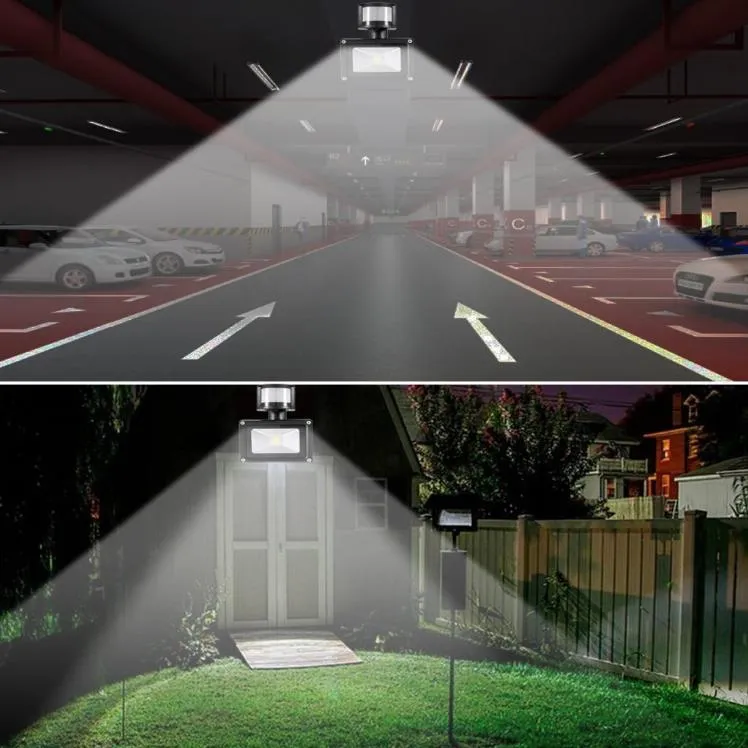

Applications
| Commercial Lighting | Public Lighting | Industrial Lighting |
|---|---|---|
| Supermarkets | Airports | Warehouses |
| Large Retailers | Stadiums | Parking Lots |
| Billboards | Train Stations | Exhibition Centers |
| Buildings | Tunnels | Manufacturing |
Installation & Maintenance
- Fixtures should be installed by a certified electrician based on local regulations.
- Lamps should always be installed or replaced carefully.
- Check local voltage requirements before installation.
- Only perform maintenance when the power is off and the lamp is cooled.
- Clean with a soft cloth and PH neutral detergent; maintain stainless steel regularly.
- Do not cover fixtures with flammable materials.
Frequently Asked Questions
Q1: What is the maximum luminous flux for the SKY series?
The SKY series offers a massive light output of up to 39,200 lumens with a high efficacy of 140lm/W.
Q2: Is this flood light suitable for wet or dusty environments?
Yes, the fixture is rated IP67, making it completely waterproof and dustproof, ideal for all outdoor applications.
Q3: How long is the warranty and expected lifespan?
The product comes with a 5-year warranty and a long lifespan of over 102,000 hours (L70).
Q4: Can these lights be installed near the ocean?
Yes, they are suitable for coastal areas, especially when ordered with the optional 304 stainless steel bracket for extra corrosion resistance.
Q5: What mounting and control options are available?
We provide various dimmable options including 0-10V, Dali, Sensors, LoRa, and Zhaga to meet different project needs.
Q6: What is the impact resistance rating of the light?
The fixture features a tough IK09 construction, ensuring high resistance against mechanical impacts.
