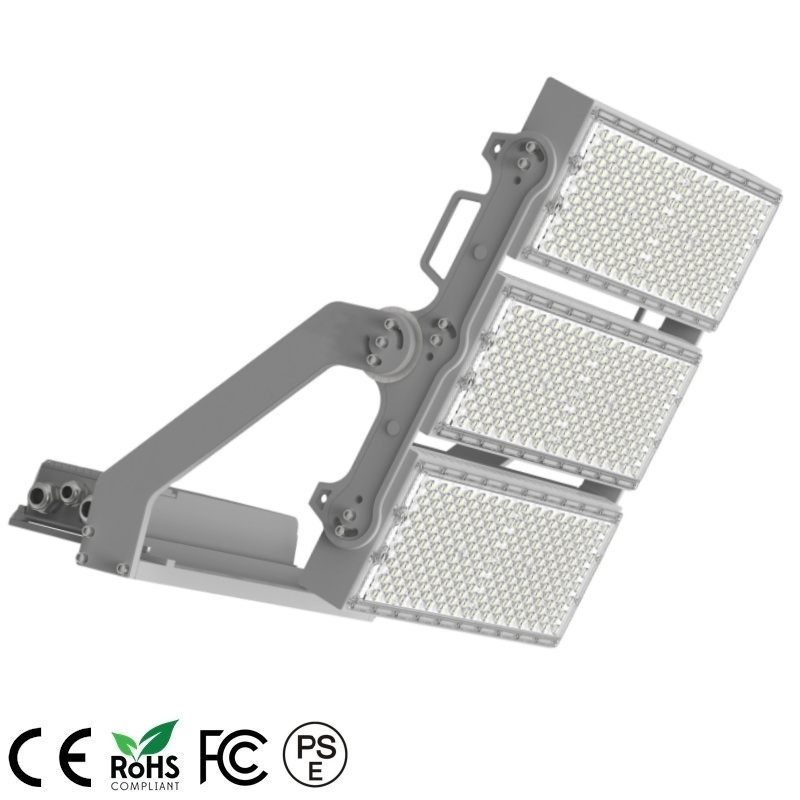

1070 Cold Forging Pure Aluminum IP66 Ik10 Sports Field Stadium 1500W LED Flood Light
Product Description
💡
Product Overview

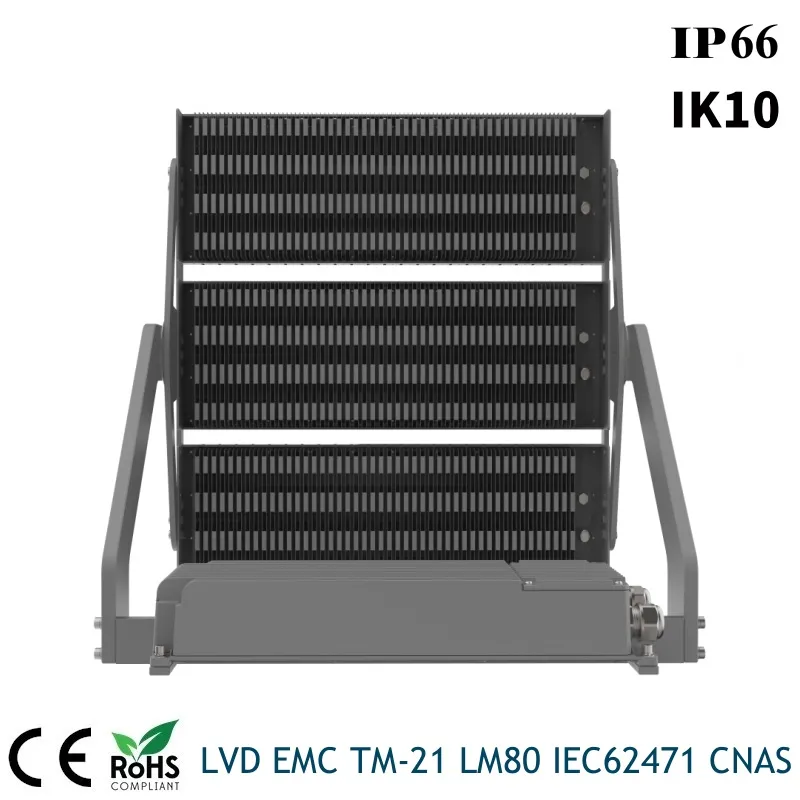

165LM/W 5050SMD IP66 1500W LED Stadium Flood Light
High-performance lighting solution featuring IP66 IK10 ratings, LVD EMC CE RoHS LM80 ST21 certificates, and a 5-year warranty.
📊
Basic Specifications
| Model NO. | HL-SP20-1500W | Body Material | Aluminum |
| IP Rating | IP66 / IK10 | Lighting Bulbs | LED (5050SMD) |
| Average Life | 100,000 Hours | Operating Voltage | AC90-305V |
| Efficiency | 165lm/W | CRI | Ra70 / Ra80 / Ra90 |
| CCT | 4000K, 5000K, 5700K, 6000K | HS Code | 9405429000 |
🛠️
Innovative Design & Materials

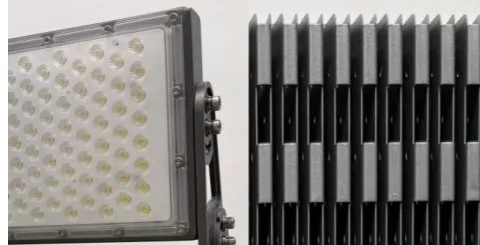

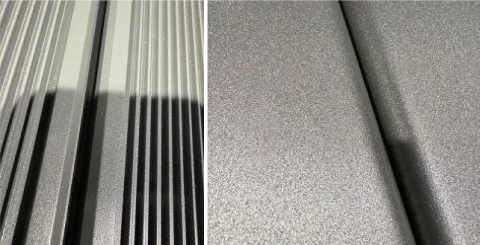

- Aluminum Housing: 1070 cold forging pure aluminum radiator for excellent heat management.
- PC Optical Lens: Multiple beam angles (10°/20°/40°/60°/90°/asy.60°) for various applications.
- Durable Bracket: Patterned aluminum bracket (steel options available).

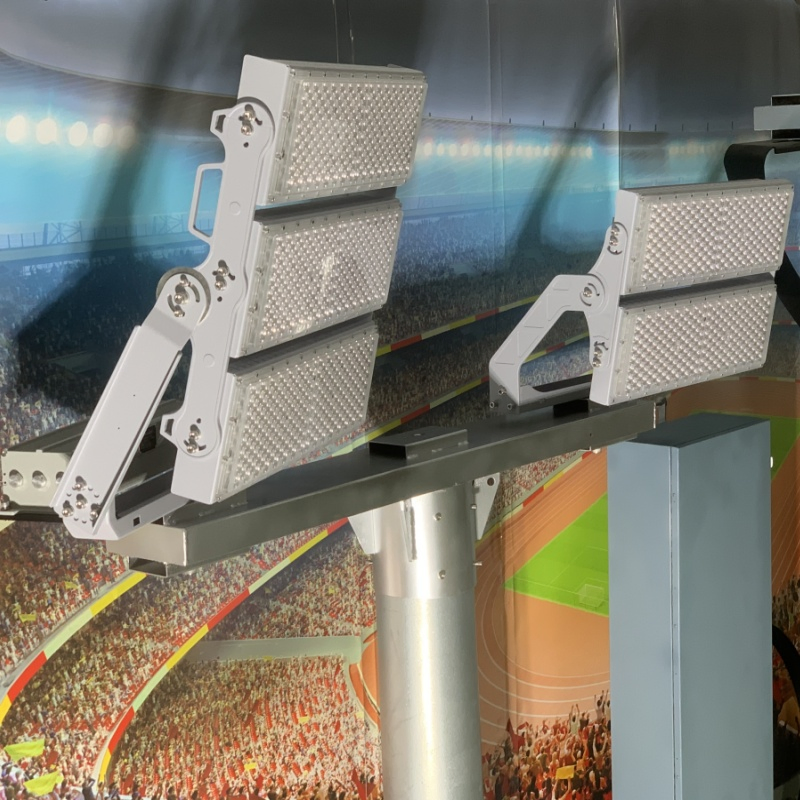

Ideal for: Outdoor stadiums, sports fields, ski resorts, construction sites, and large public squares.
⚡
Technical Highlights
| Feature | Specification |
|---|---|
| Output Lumens | >240,000LM at Ra70 |
| Beam Angle | 10° / 20° / 40° / 60° / 90° / asy.60° |
| Driver Brand | INVENTRONICS, SOSEN, MOSO, MW |
| Power Factor | >0.95 |
| Dimmable | 0-10V default, DALI optional |
| Dimensions | 680 x 442 x 672 MM |
| Net Weight | 24.5 KG |
📦

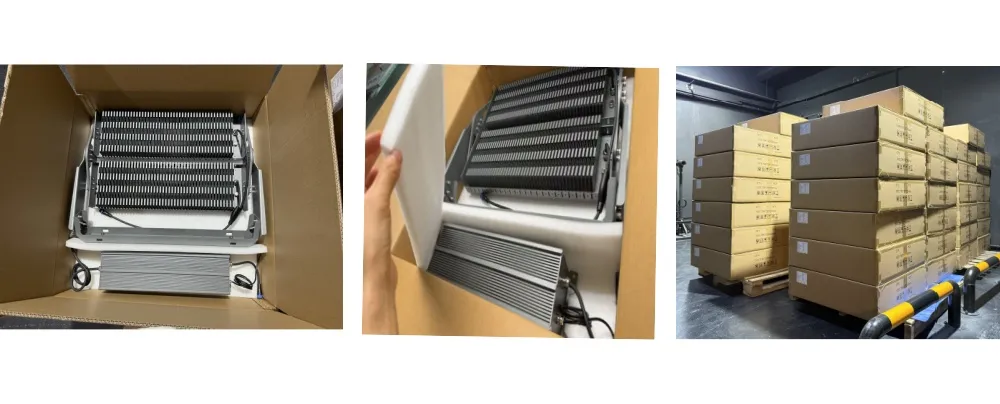

Packing & Delivery
Standard Export Pack:
- 1× Lamp
- 1× Gear box
- 1× Bracket
- 1× Manual
OEM Services:
- Custom finish color (MOQ 100pcs)
- Custom new design (MOQ 200pcs)
- Custom logo & shipping marks
🛡️
After Sales Service
5-Year Warranty
Against manufacturing defects
Against manufacturing defects
CNAS Approval
IK10, IP66, ST21, IEC certified
IK10, IP66, ST21, IEC certified
Quality Agreement
Full conformance guarantee
Full conformance guarantee
🏢

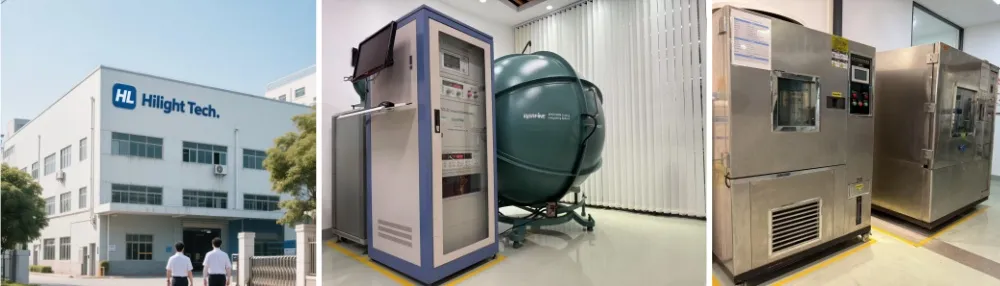

Manufacturing Excellence
Factory Advantages:
- 12-24 hours aging test for every lamp before packing.
- Focus on unique features, robust quality, and competitive pricing.
- Dialux simulation support for lighting projects.
- Fast delivery and small order support.
📜

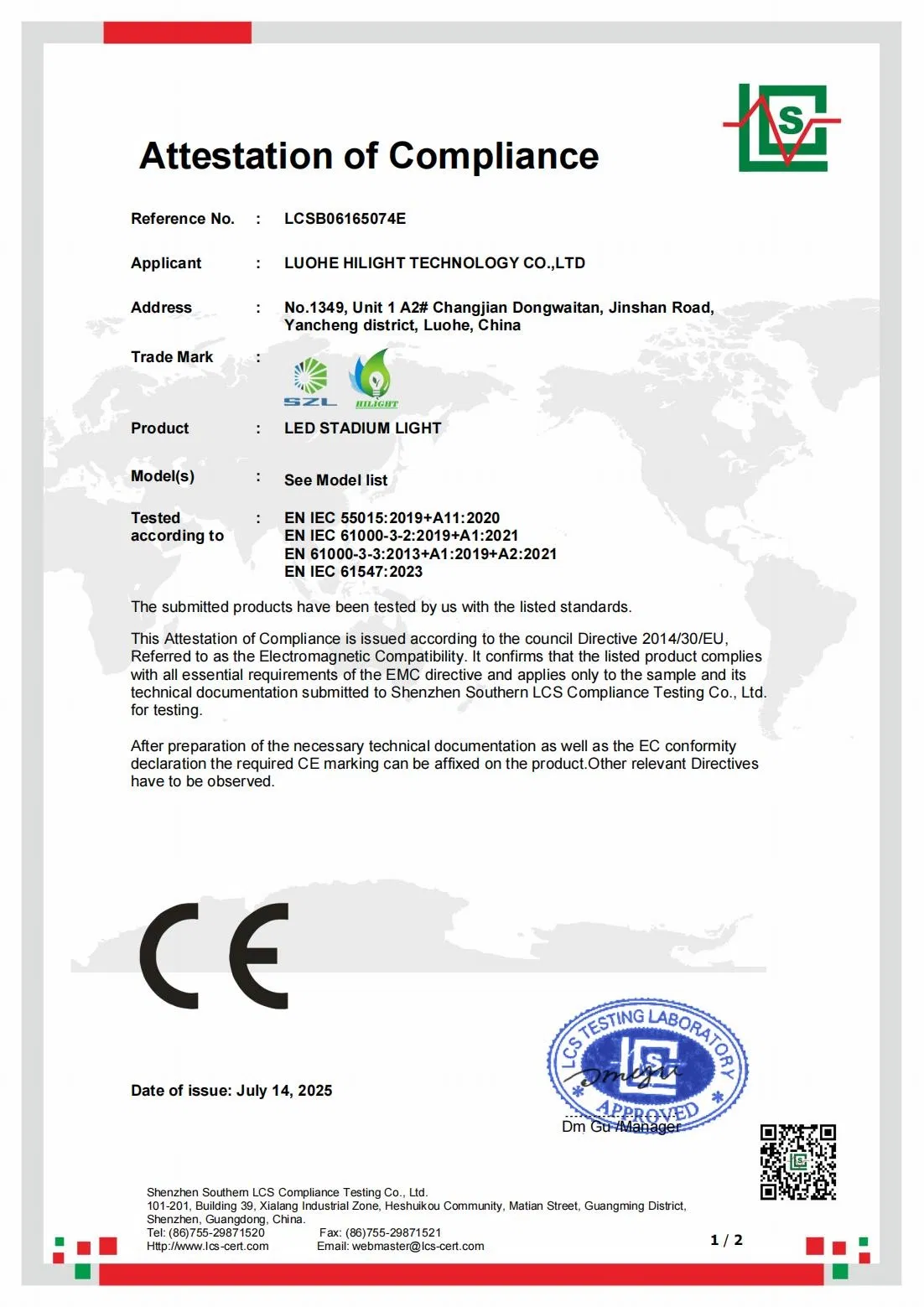

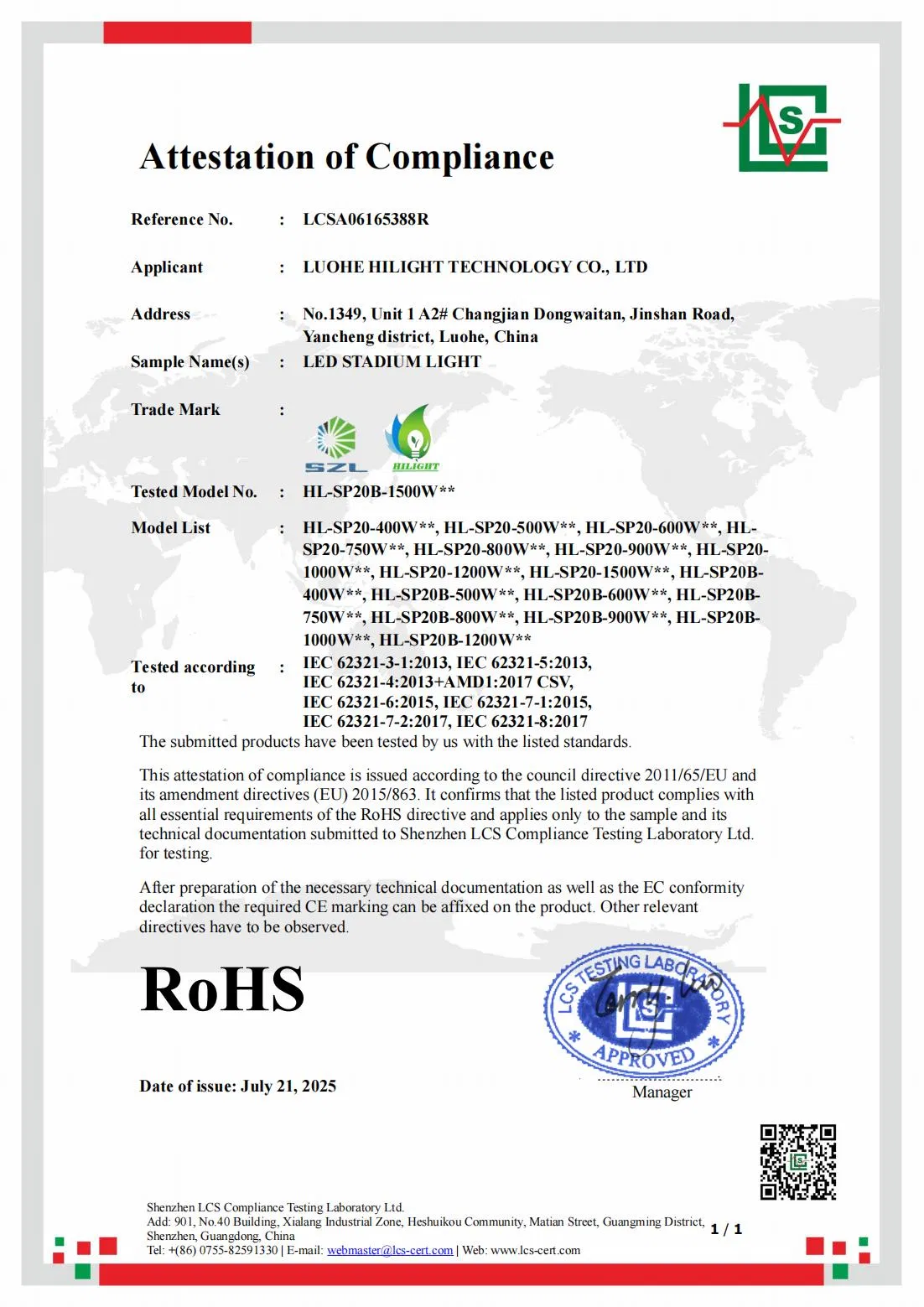

Certifications
CE EMC LVD EN IEC55015 / EN 60598
RoHS EN IEC62321

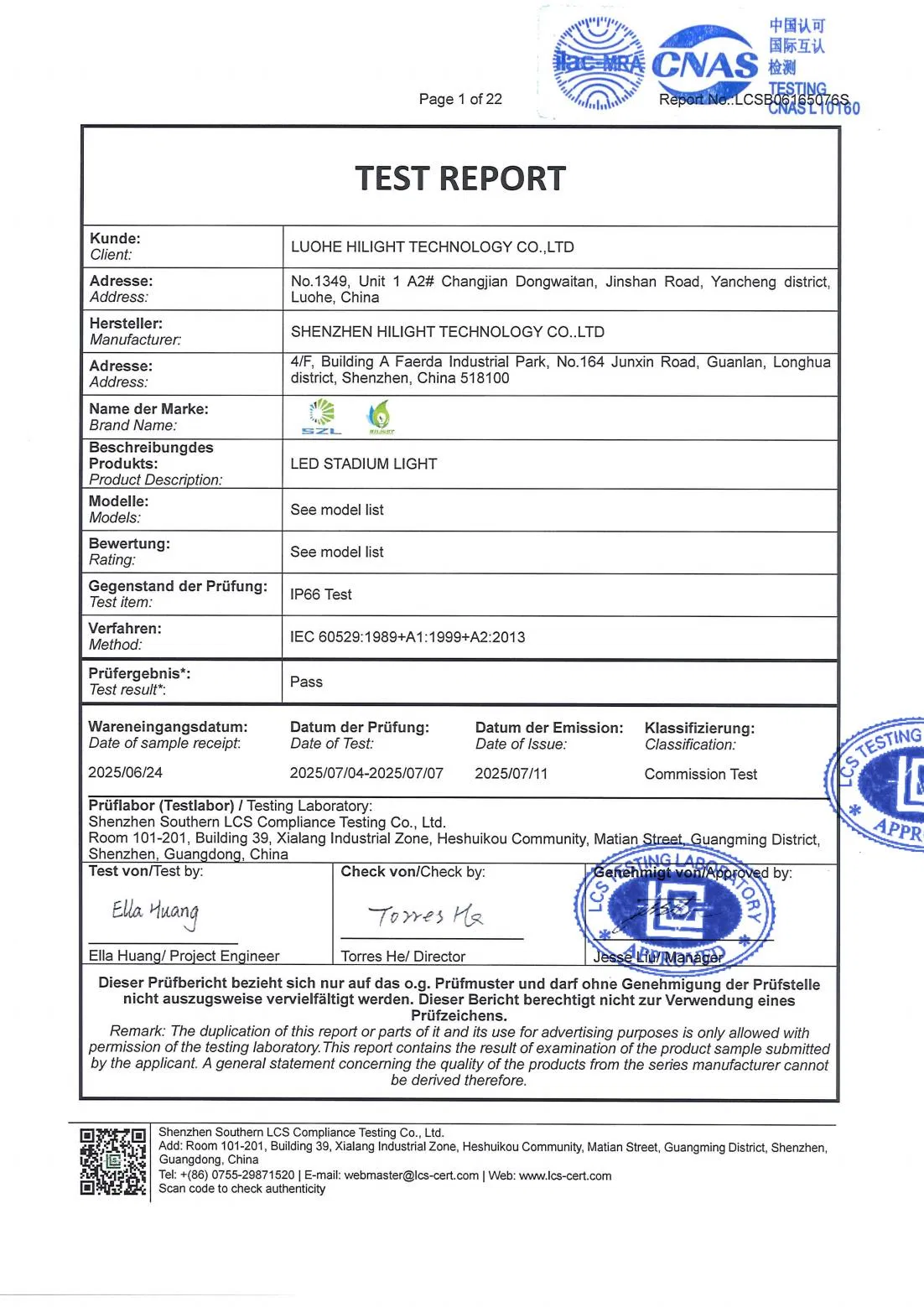

IP66 & IK10 IEC 60529 / IEC 62262
❓
Frequently Asked Questions
Q: Is a sample trial available for the 1500W stadium light?
A: Yes, sample testing is available and highly recommended before placing bulk orders to ensure the product meets your specific requirements.
Q: What information is required to receive a formal quote?
A: Please provide the required wattage, beam angle, color temperature (CCT), and whether dimming is needed. Providing the delivery destination helps us calculate shipping costs.
Q: What is the minimum order quantity (MOQ) for custom colors?
A: The MOQ for custom finish colors is 100 pieces per colorway, with Pantone matching available.
Q: How do you ensure the quality of the LED lights?
A: Our products are certified by CE, LVD, EMC, RoHS, IK10, IP66, and ST21. Every lamp undergoes a strict 12-24 hour aging test before delivery.
Q: What are the main materials used in the housing?
A: We use 1070 cold forging pure aluminum for the radiator, which offers superior heat dissipation compared to standard die-casting aluminum.
Q: Do you provide lighting design services?
A: Yes, we offer free professional lighting solutions, including Dialux simulations, to help you plan your stadium or sports field projects.
