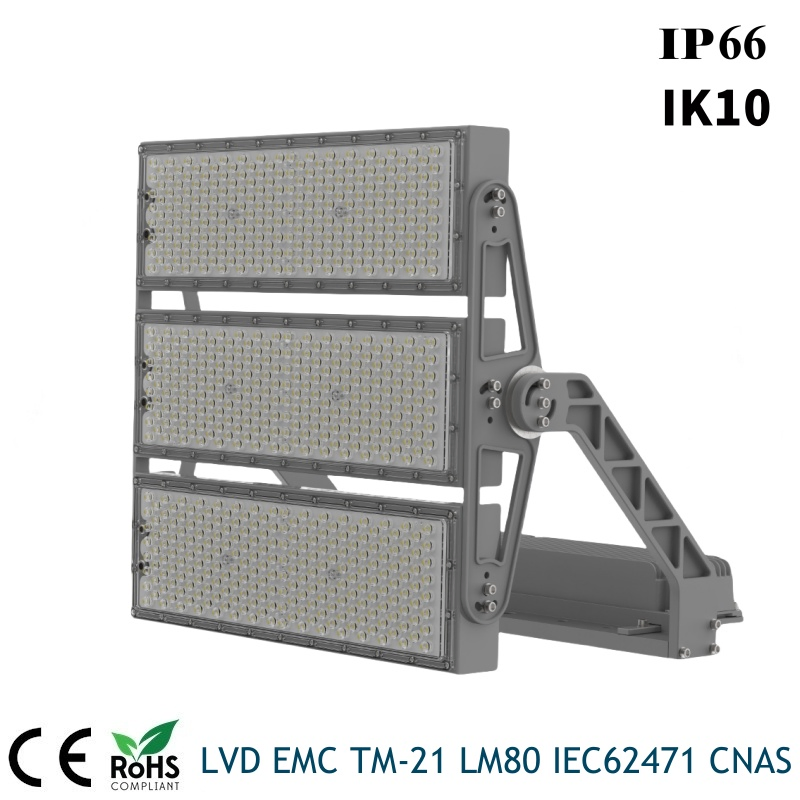

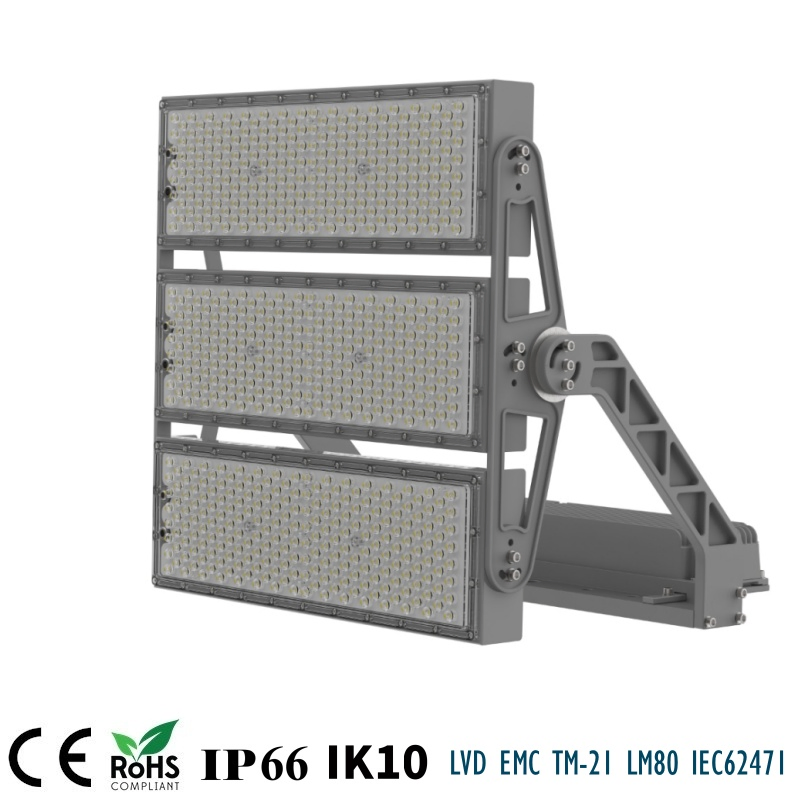

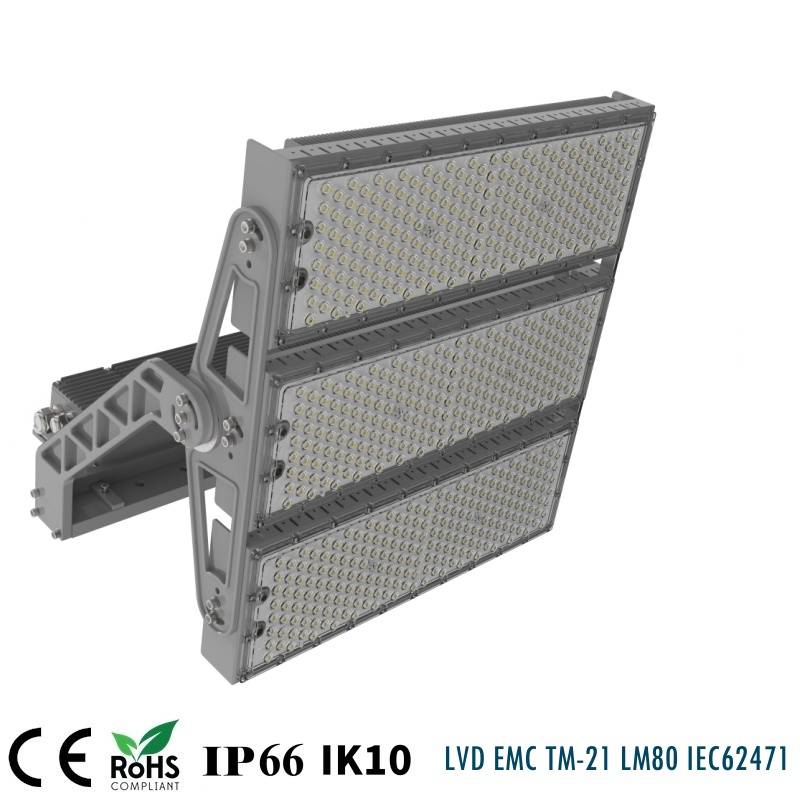

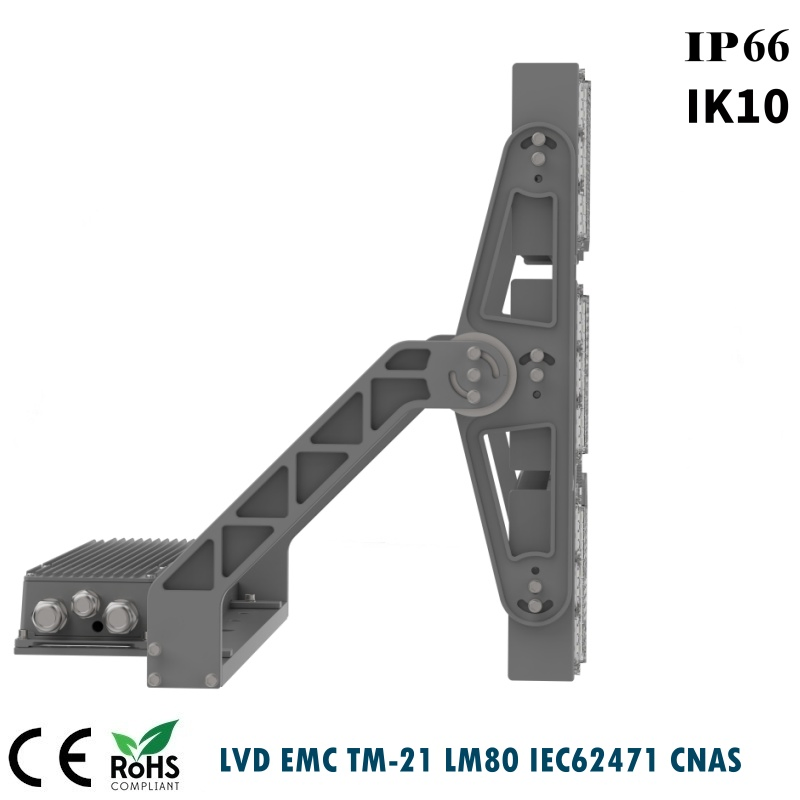

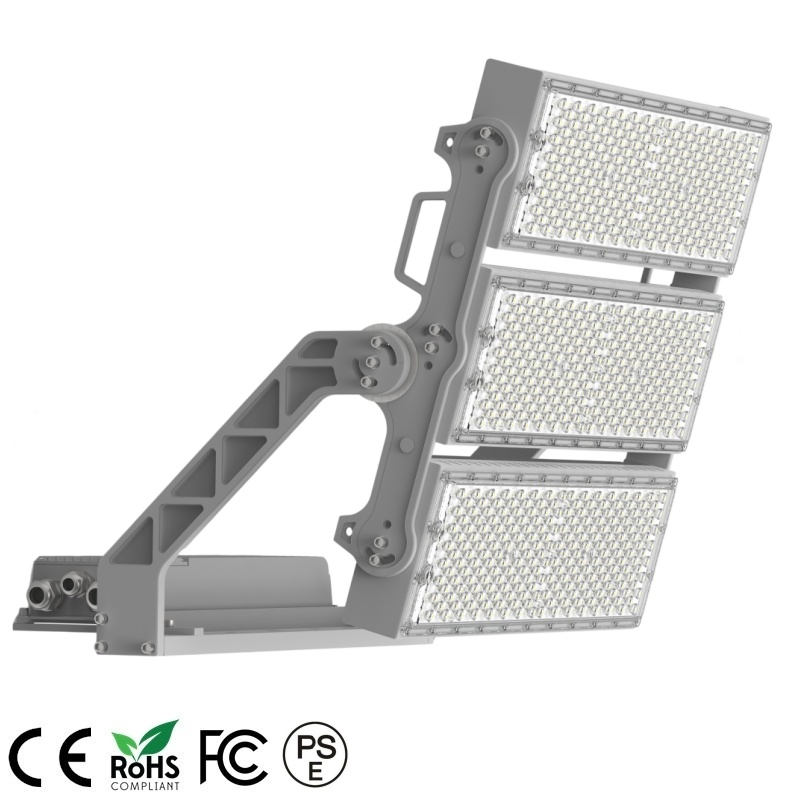

165lm/W 5050SMD IP66 Ik10 5 Years Warranty 1500W LED Stadium Flood Light
Product Description
165LM/W 5050SMD IP66 1500W LED Stadium Flood Light
High-performance lighting solution with IP66 IK10 ratings, featuring LVD EMC CE RoHS LM80 ST21 certifications and a 5-year warranty.
Model NO.
HL-SP20-1500W
Body Material
Aluminum
IP Rating
IP66
Lighting Bulbs
LED
Efficiency
165lm/W
CRI
Ra70 / Ra80 / Ra90
Operating Voltage
AC90-305V
Lifetime
100,000 Hours
Innovative Design Features
🛡️
Main Materials

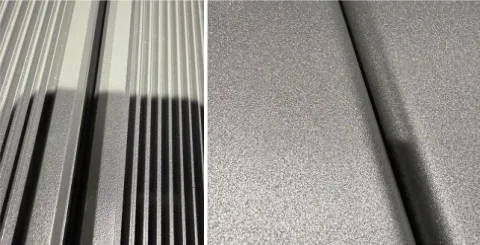

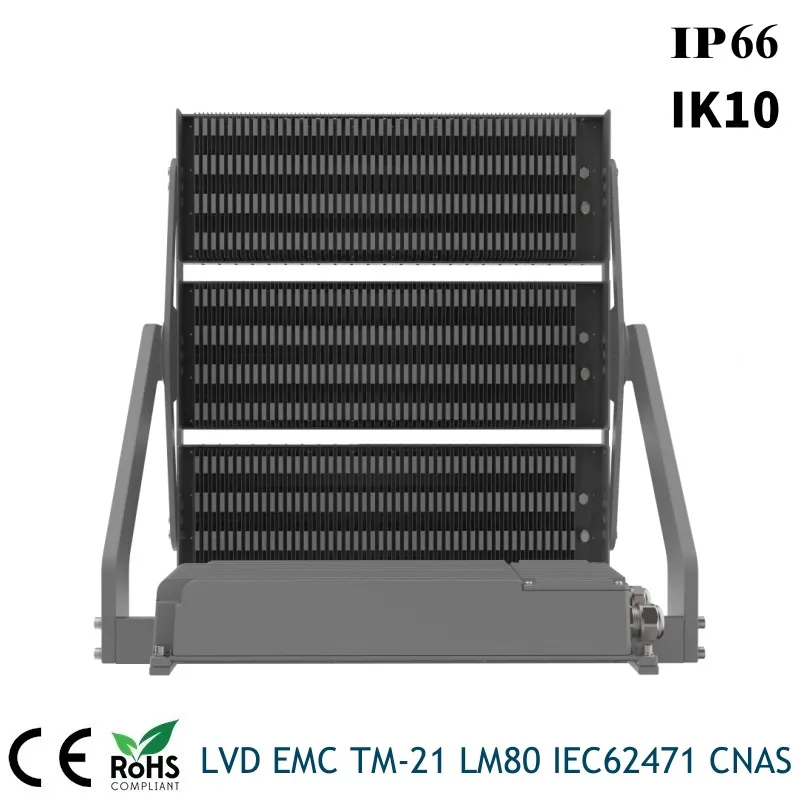

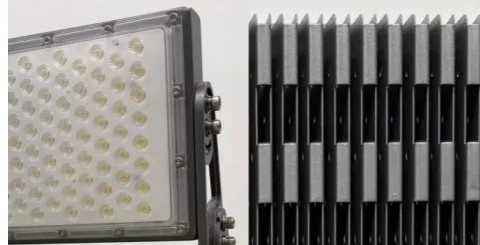

Aluminum bracket for durability. 1070 cold forging pure aluminum radiator for heat management. PC optical lens with various beam angles (10° to 90°).
🏟️
Ideal Applications
Outdoor stadiums, sports fields, high altitude ski resorts, construction sites, and large public squares.
Technical Specifications
| Feature | Specification |
|---|---|
| Power | 1500W LED Sports Light |
| Output Lumens | >240,000LM at Ra70 |
| CCT | 4000K, 5000K, 5700K, 6000K |
| LED Type | 5050SMD |
| Beam Angle | 10° / 20° / 40° / 60° / 90° / asy.60° |
| Driver Brand | INVENTRONICS, SOSEN, MOSO, MW |
| Defend Grade | IP66 / IK10 |
| Dimensions | 680 x 442 x 672 MM |
| Warranty | 5 Years |

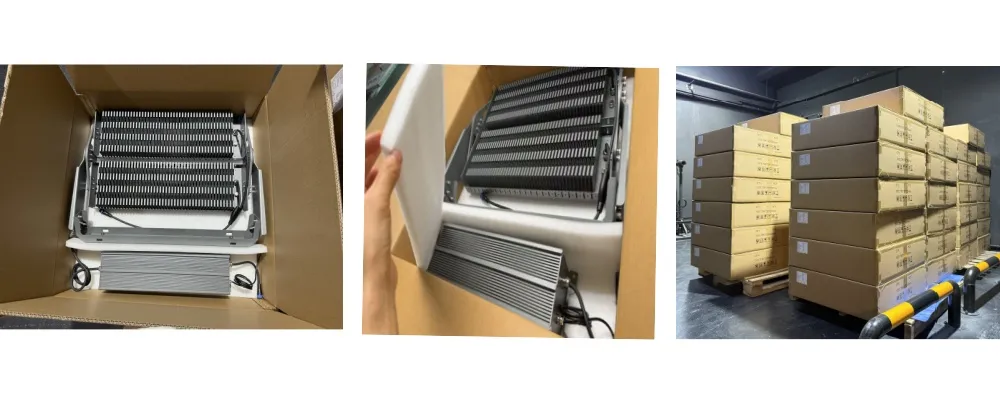

Standard Export Pack
- 1× Lamp
- 1× Gear box
- 1× Bracket
- 1× Manual
OEM Services
- Custom finish color (MOQ 100pcs)
- Custom new design (MOQ 200pcs)
- Custom logo & shipping marks

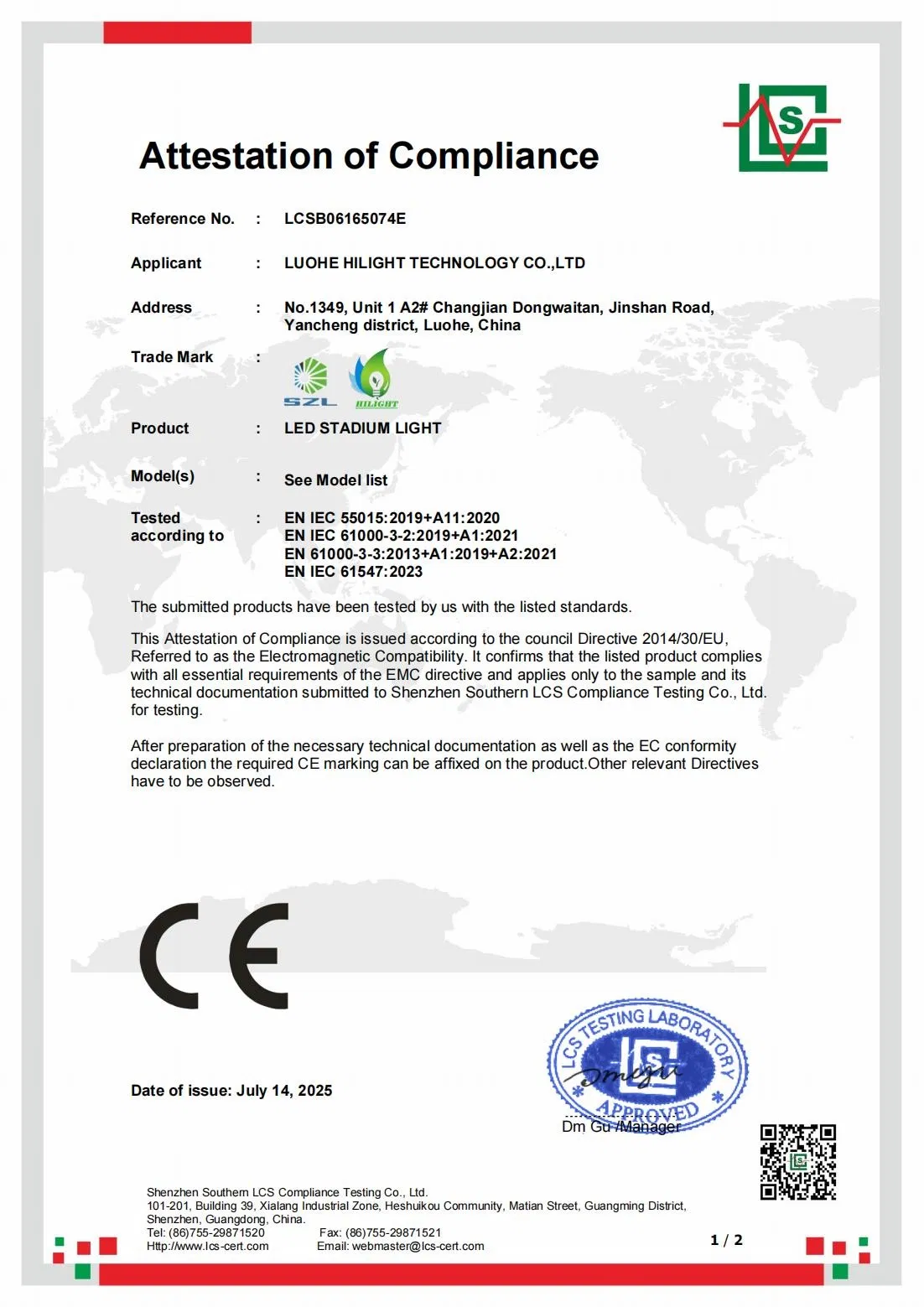

CE EMC LVD
EN IEC55015 / 61000
EN IEC55015 / 61000

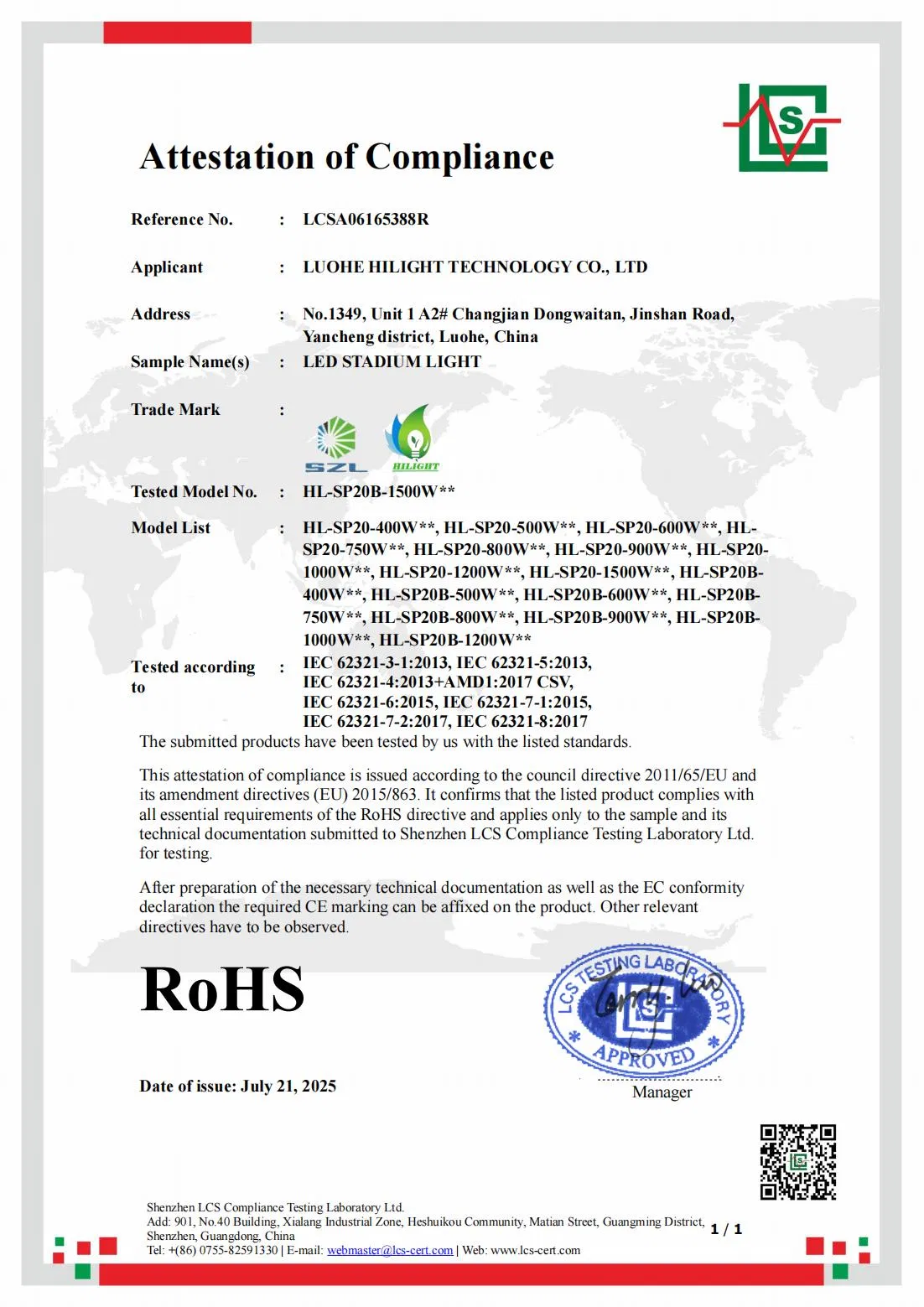

RoHS
EN IEC62321
EN IEC62321

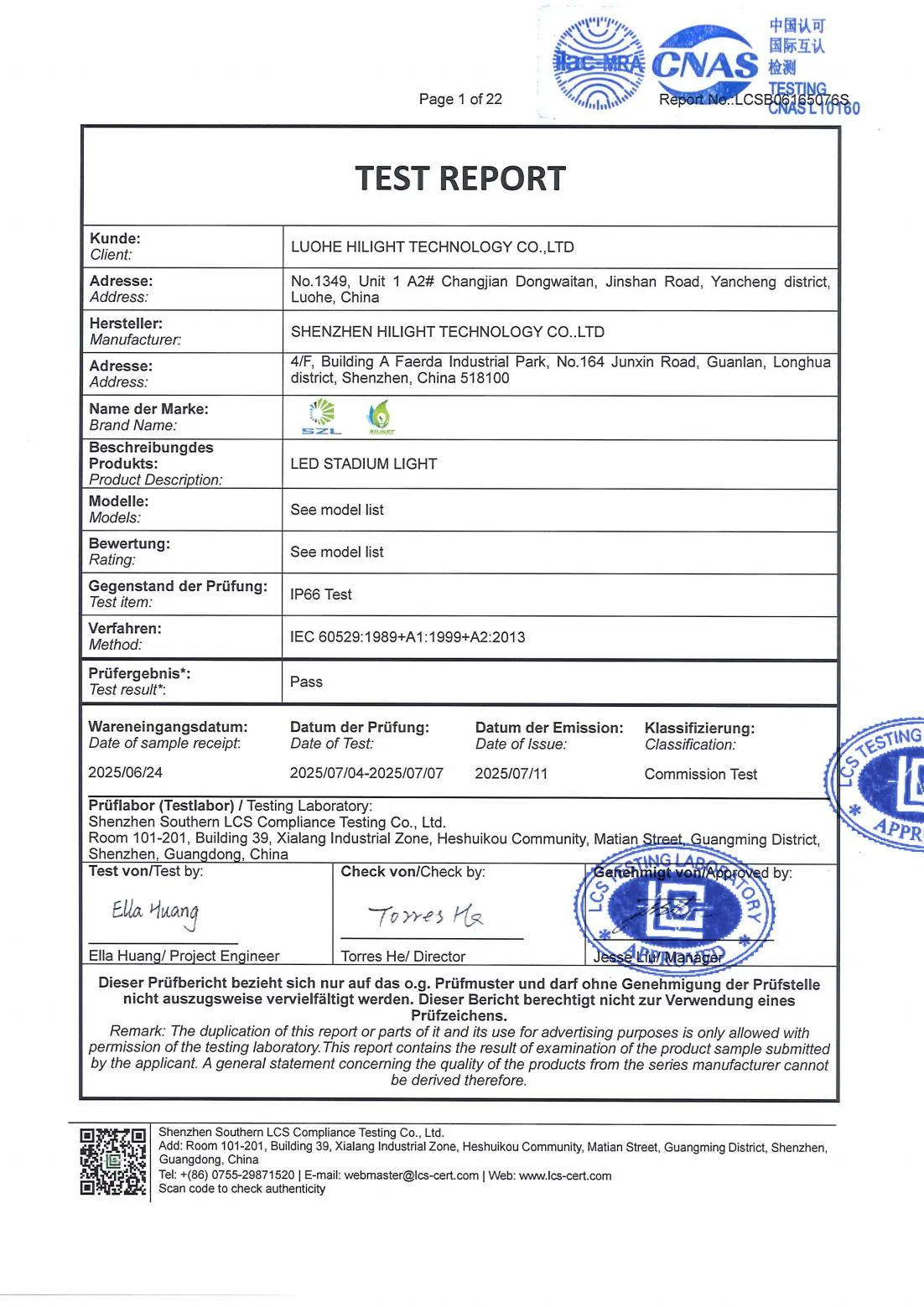

IP66 & IK10
IEC 60529 / 62262
IEC 60529 / 62262
Frequently Asked Questions
Q: Can the sample trial be available?
A: Yes, sample testing is available. We recommend sample testing before you commit to a larger purchase.
Q: What information do you need before making an offer?
A: We need to know the required wattage, beam angle, color temperature, and whether dimming is required. Providing the destination will also allow us to quote shipping costs.
Q: Is there a MOQ for custom colors?
A: Yes, the minimum order quantity for custom finish colors is 100pcs per colorway (Pantone matching available).
Q: How do you ensure product quality?
A: Our products are CE, LVD, EMC, RoHS, IK10, IP66, and ST21 approved. Each lamp undergoes a 12-24 hour aging test before delivery. We also sign quality guarantee agreements.
Q: What is the warranty period for the 1500W Stadium Light?
A: We provide a 5-year warranty against manufacturing defects to ensure long-term reliability for your projects.
Q: What are the primary materials used in the housing?
A: The housing is made of 1070 cold forging pure aluminum, which offers superior heat management compared to standard die-casting.
