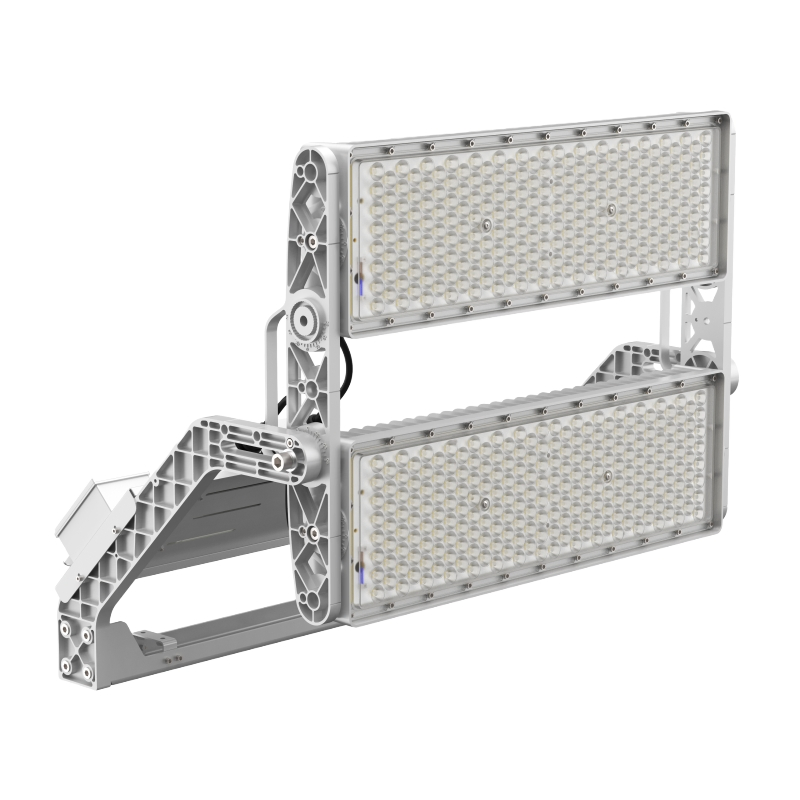

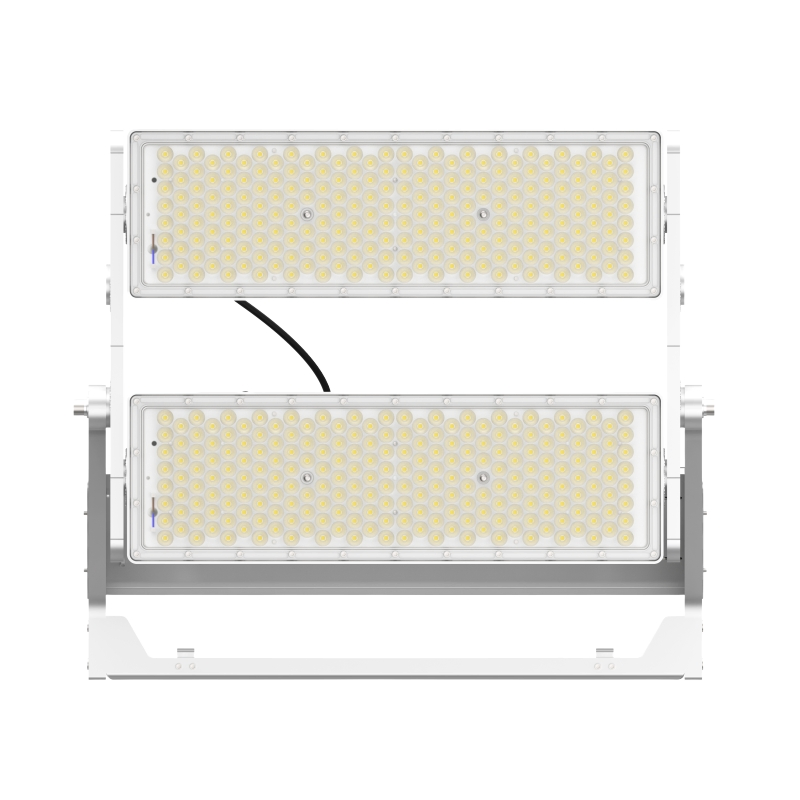

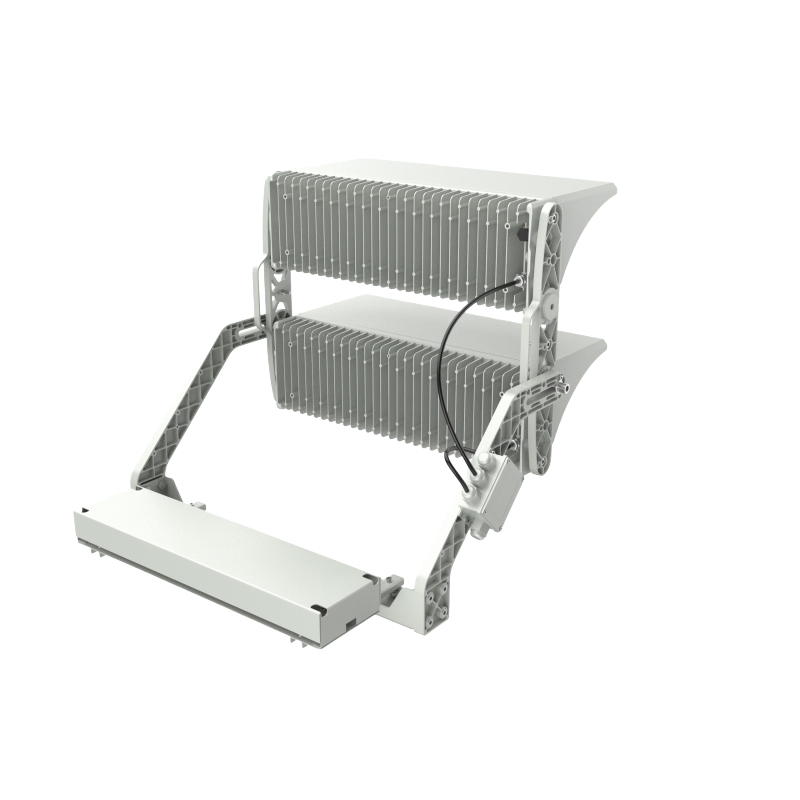

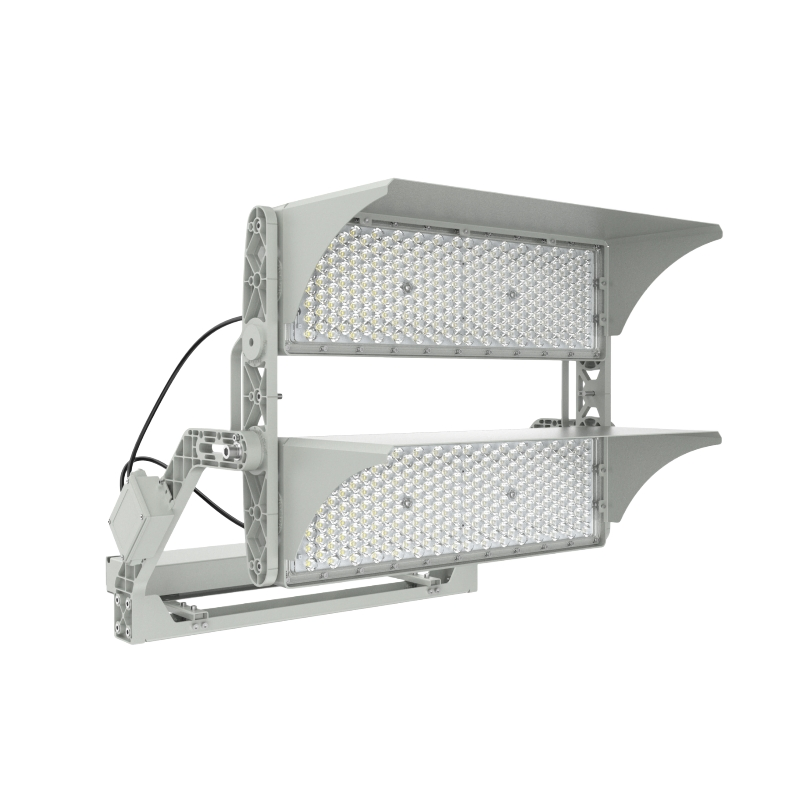

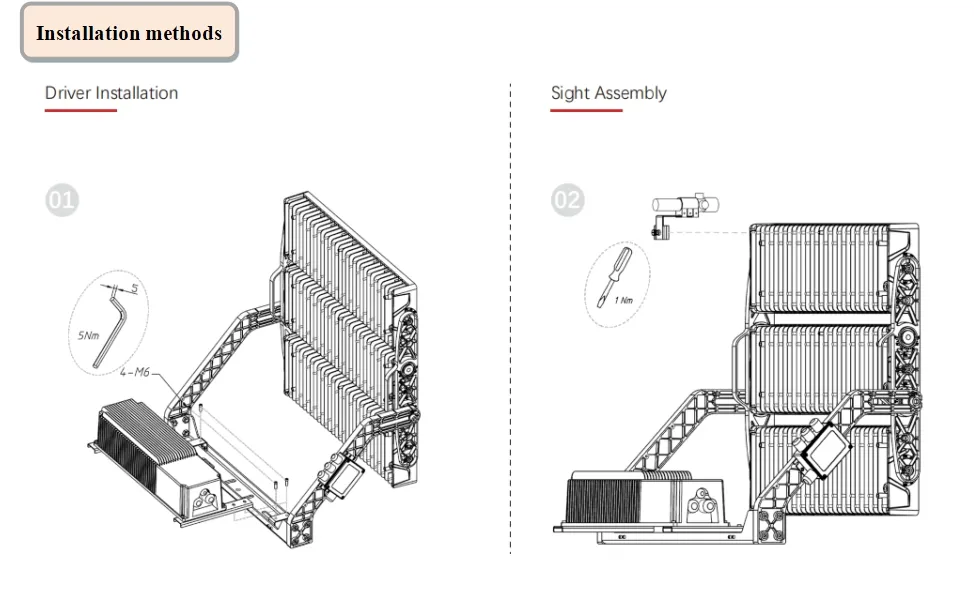

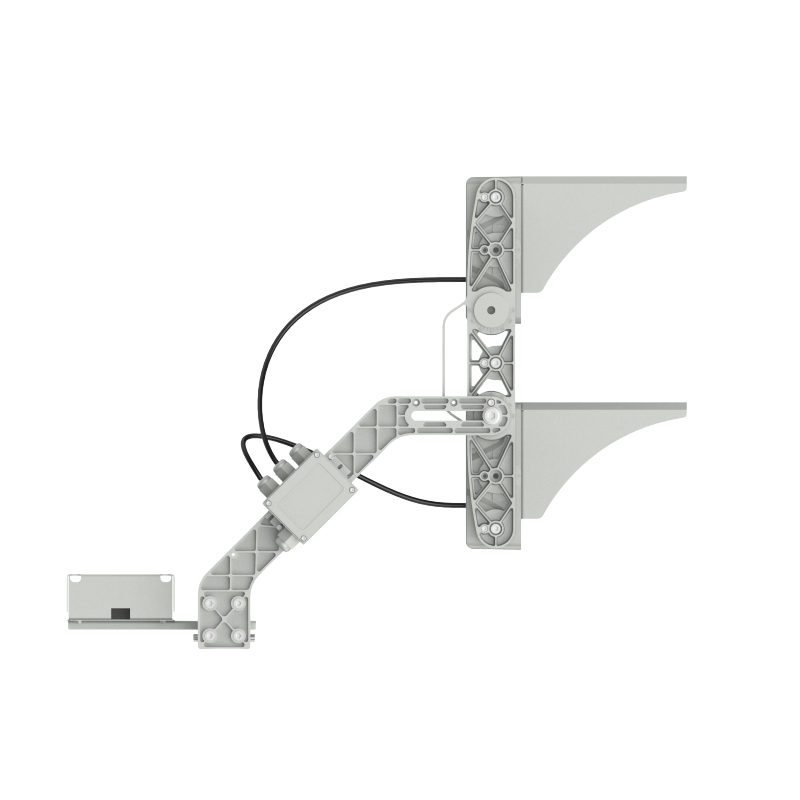

Convenient Installation 800W-1200W LED Stadium Flood Light
Product Description
i
Basic Information
Model NO.
PL-SD-097
Power
800W 1000W 1200W
Projection Distance
10°/15°/20°/40°/60°/90°
Application

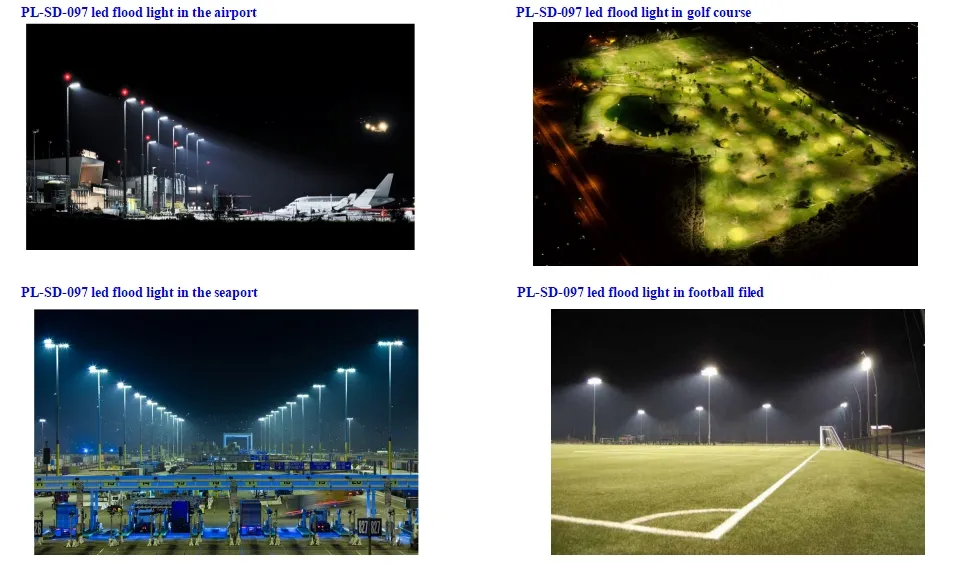

Park, Square, Factory, Garden, Sports Stadium
IP Rating
IP66
Operating Voltage
AC100-277V
LED Chips Brand
72PCS Lumileds 5050SMD
Certification
CCC, CE, CQC, EMC, Energy Star, ETL, FCC, RoHS, SAA, CB ENEC
Specification
596.9*369x137.6mm
Origin
China
P
Product Description

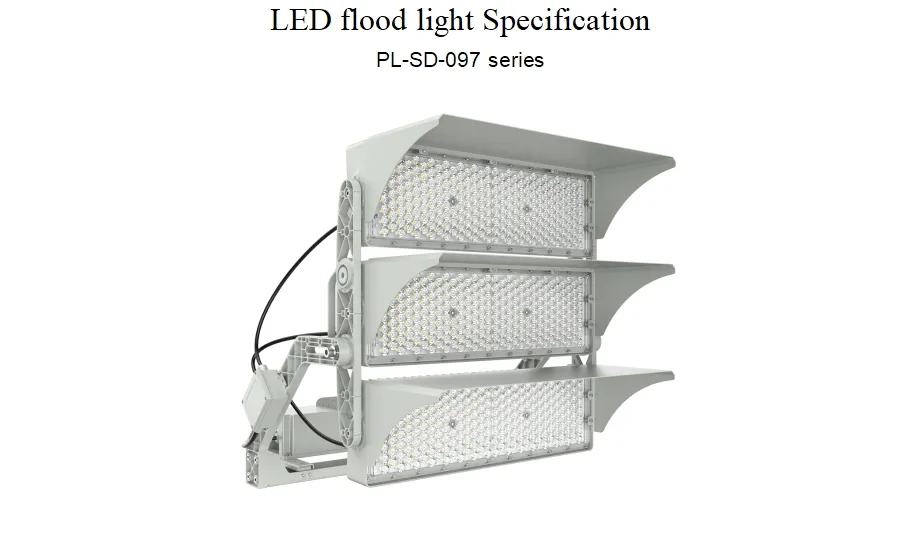

| Model | PL-SD-097 | ||

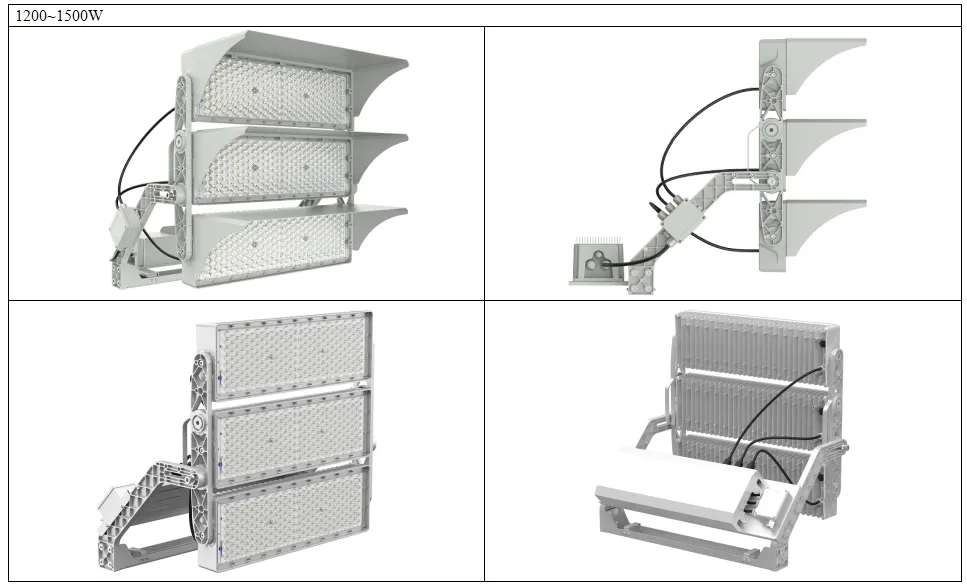

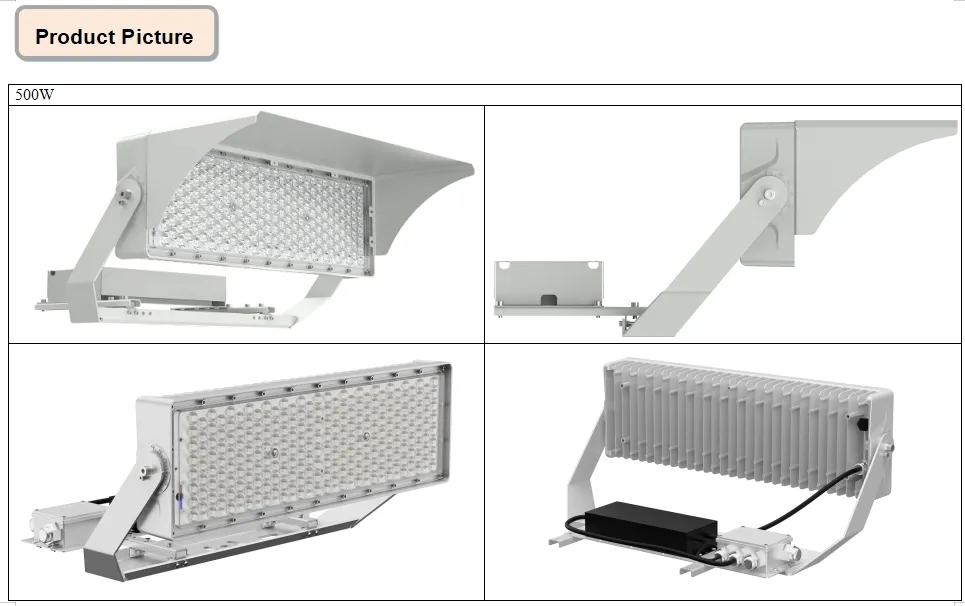

| Power | 500W | 800~1200W | 1200~1500W |

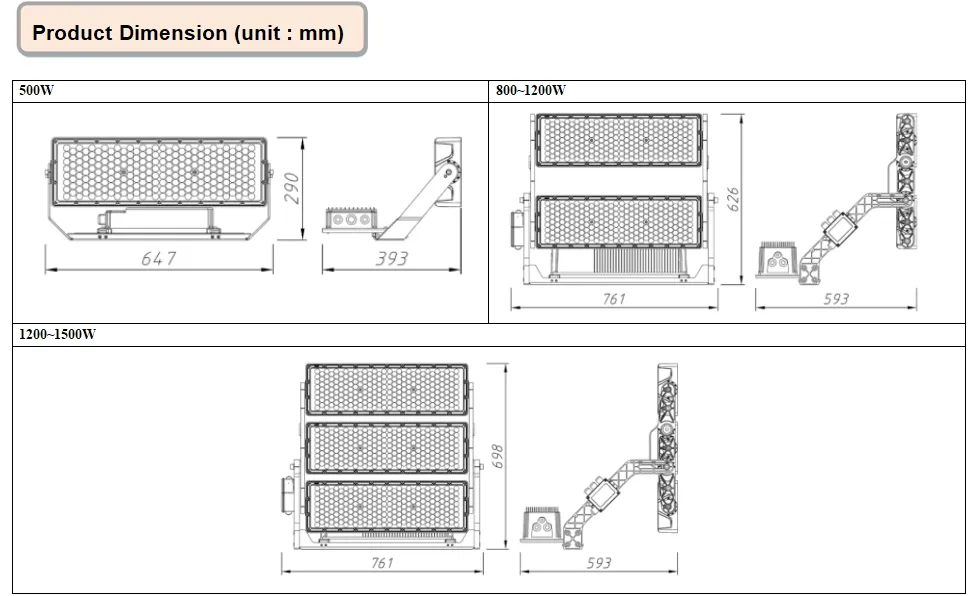

| Dimension (mm) | 647X393X290 | 761X593X626 | 761X593X698 |
| Lumen Efficiency | 160 lm/w (±5%) | ||
| LED Source | 224 PCS Lumileds 5050 | 448 PCS Lumileds 5050 | 672 PCS Lumileds 5050 |
| Input Voltage | AC 90-305V / 180-528V 50~60Hz | ||
| Color Temp | 2700-6500K | ||
| IP & IK Rating | IP67 & IK10 | ||

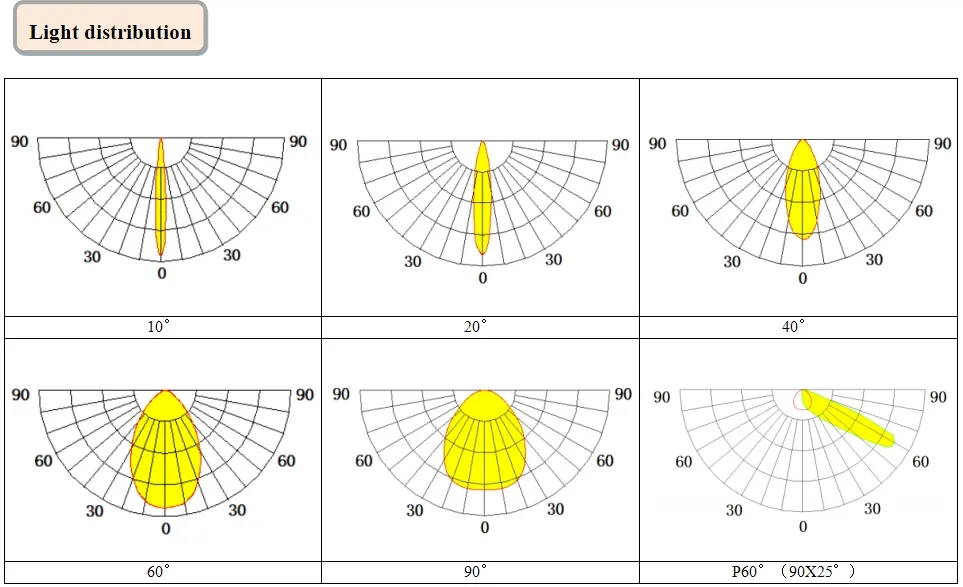

| Beam Angle | 10°/15°/20°/40°/60°/90° | ||
| Working Life | > 100,000 hours (L80B10) | ||
| Control Mode | 0-10V, DMX, DALI | ||
?
Frequently Asked Questions
Q: Do LED lights really have a 50,000-hour lifespan?
A: A 50,000-hour or longer lifespan is theoretical based on lab tests. Actual lifespan in varied working environments is typically around 30,000 hours, though it can reach 50,000 hours with high-quality materials.
Q: Why do different suppliers offer different brightness for the same power?
A: Brightness varies due to different chip brands or different brightness versions of the same chip. It is also important to distinguish between the brightness of individual LEDs and the total output of the lamp fixture.
Q: What is color temperature?
A: Color temperature is measured in Kelvin (K). Lower temperatures (warmer light) are often used in public areas for relaxation, while higher temperatures (cooler light) enhance concentration in office or sports environments.
Q: What is CRI?
A: CRI (Color Rendering Index) represents how accurately a light source reveals the true colors of objects. A higher CRI generally involves higher production costs but provides better visual quality.
Q: What is PF and efficiency?
A: PF (Power Factor) and efficiency indicate the electrical performance of the LED driver. Higher PF and efficiency values signify better energy utilization and higher quality components.
Q: How does the working environment affect the light?
A: The operating environment (temperature and humidity) significantly impacts the actual lifespan and performance. Our lights are designed to operate between -40ºC and +80ºC.
