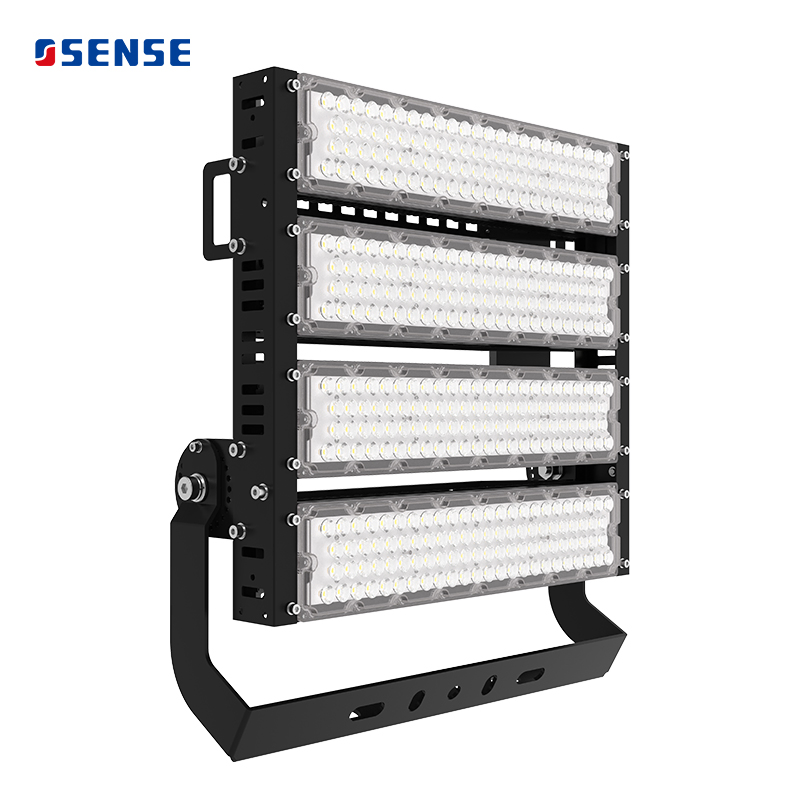

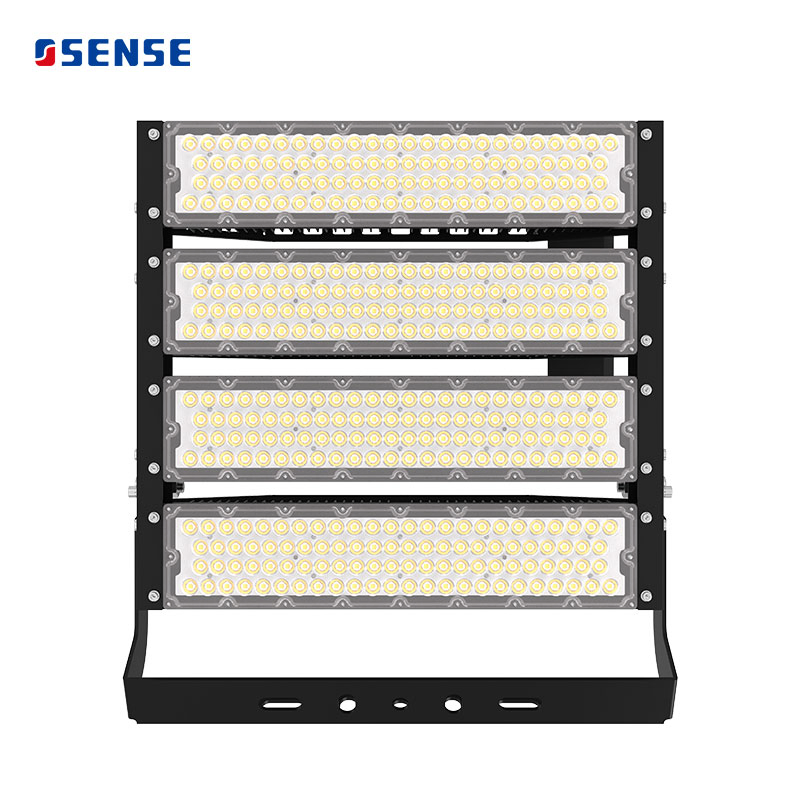

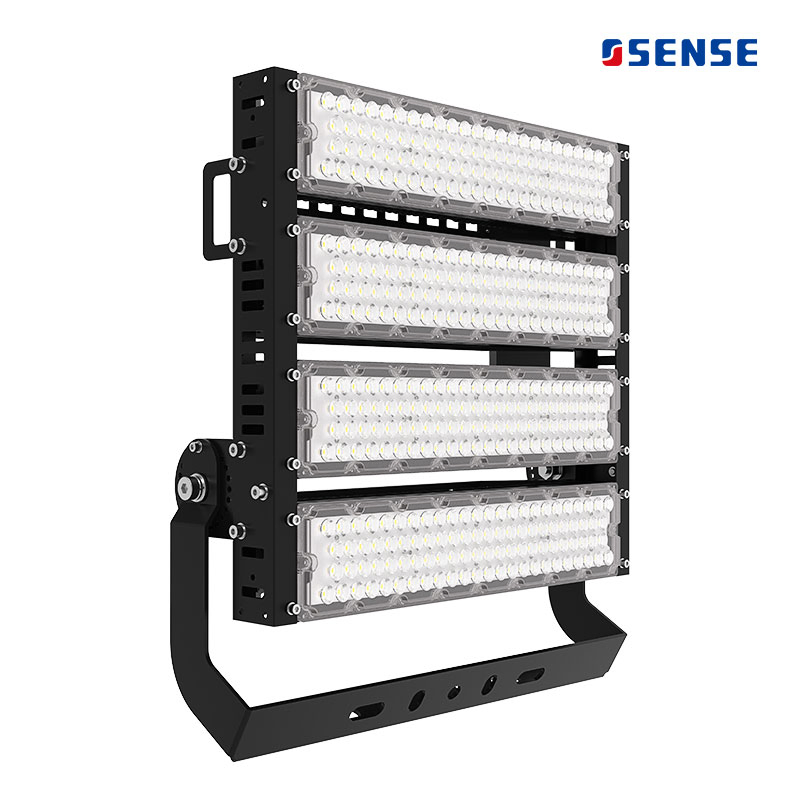

500W-1500W Cricket Stadium LED Lamps Easy Installation Sport Court Flood Light LED
Product Description
Technical Specifications
Model NO.
SWT-MS 1000W
Power
≥100W
Projection Distance
>35m
IP Rating
IP65
Certification
CCC, CE, EMC, RoHS
Input Voltage
100-277V
LED Chips Brand
CREE
LED Type
SMD 5050 / SMD 7070
CCT
4000K/5000K/5700K
CRI
>70
Beam Angle

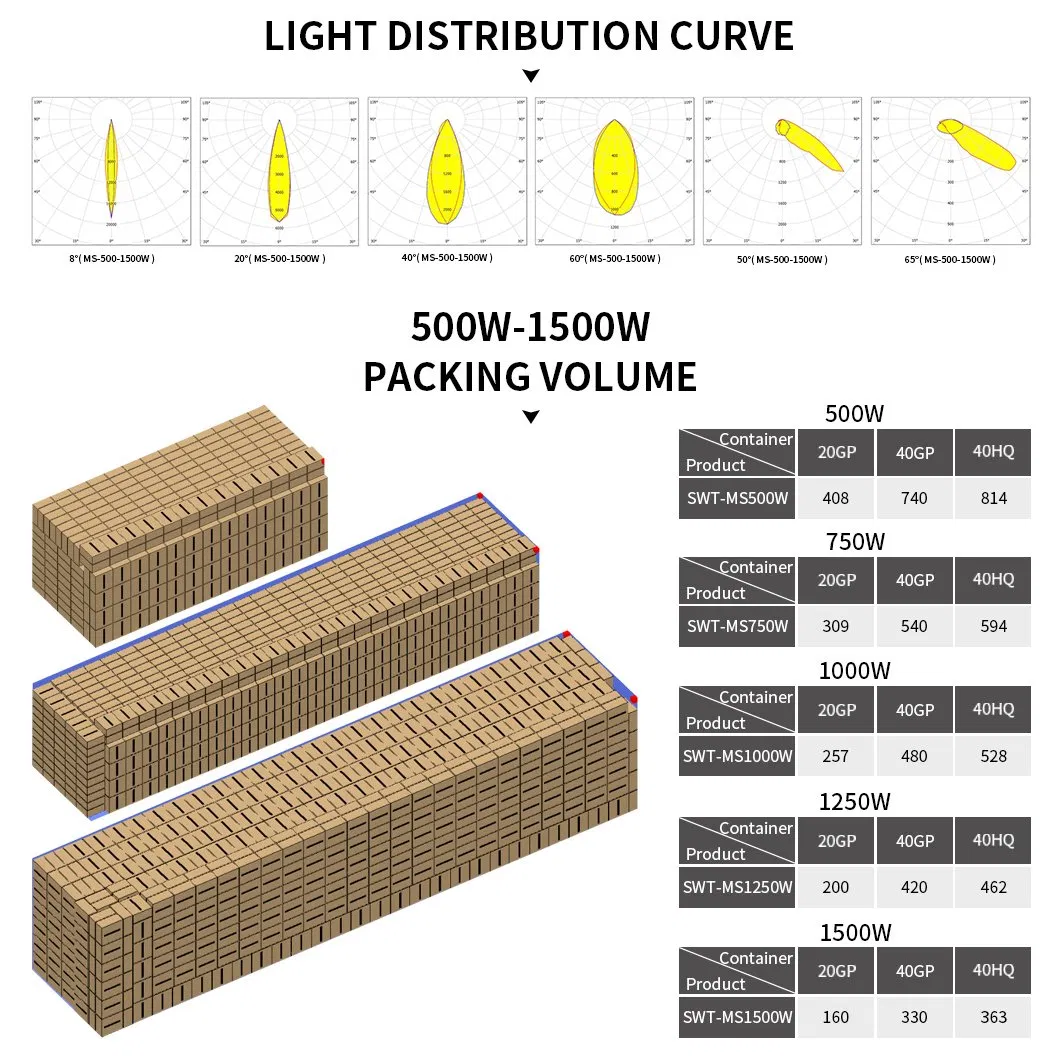

8°/20°/40°/60°/P50/P65
Luminous Efficiency
140lm/W(5050) & 150lm/W(7070)
Key Features
96pcs 5050 lens design, high light efficiency up to 150lm/W.

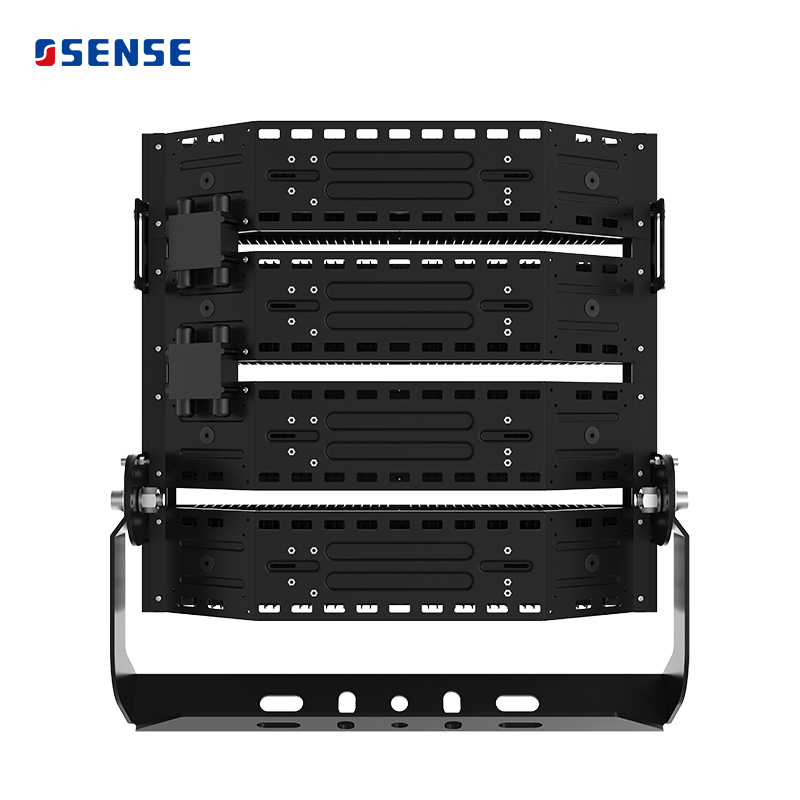

Die-casting + fin designed housing, 20%-30% lighter than standard models.
Multiple optical angles for TV broadcast grade sports venues, airports, and docks.
High efficiency LED driver with power factor optimization.
Dimming options: 0-10V / DALI / Time control available.
Long lifespan: Tq = 45°, >50,000h (L70B50).
Polarized 50/65° optical design meets 0° elevation installation and reduces glare.
Product Parameters
| General Information | Electric Information | ||
| Mounting Module | Bracket system | Electrical Class | Class I |
| Operating Temp | -30ºC/+45ºC | Nominal Voltage | 100-240VAC / 100-277VAC / 180-528VAC |
| Lens Options | 8°; 20°; 40°; 60°; 90°; P50; P65 | LED Lamp Power | 500W - 1500W (Up to 210,000 Lm) |
| Standard Finish | ADC12 die-casting + Powder spraying | Power Factor | ≥0.95 |
| Control System | DALI/1-10v/0-10v/DMX512 | Surge Protection | 6KV - 20KV (Optional) |
| Housing and Materials | Optical Information | ||
| Housing Material | ADC 12 die-casting + AL 1070 Aluminum | LED Temperature | 4000K, 5000K, 5700K |
| Optic/Refractor | PC UV0 | CRI | ≥70 (80/90 Optional) |
| Impact Resistance | IK08 (IK09/IK10 Optional) | LED Brand | CREE, OSRAM, Nichia, Bridgelux |
| Vibration Test | IEC 68-2-6 (0.5G), ANSI C136.31 (3G) | Standard Testing | LM 79-19, EN 13032-1 |

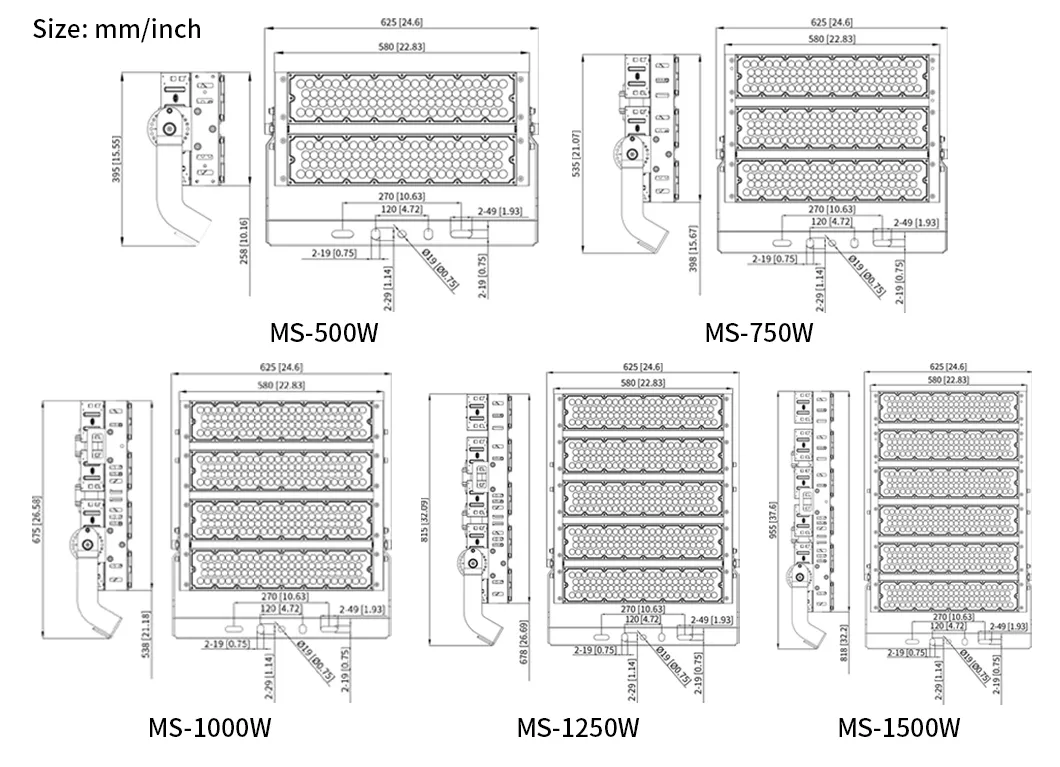

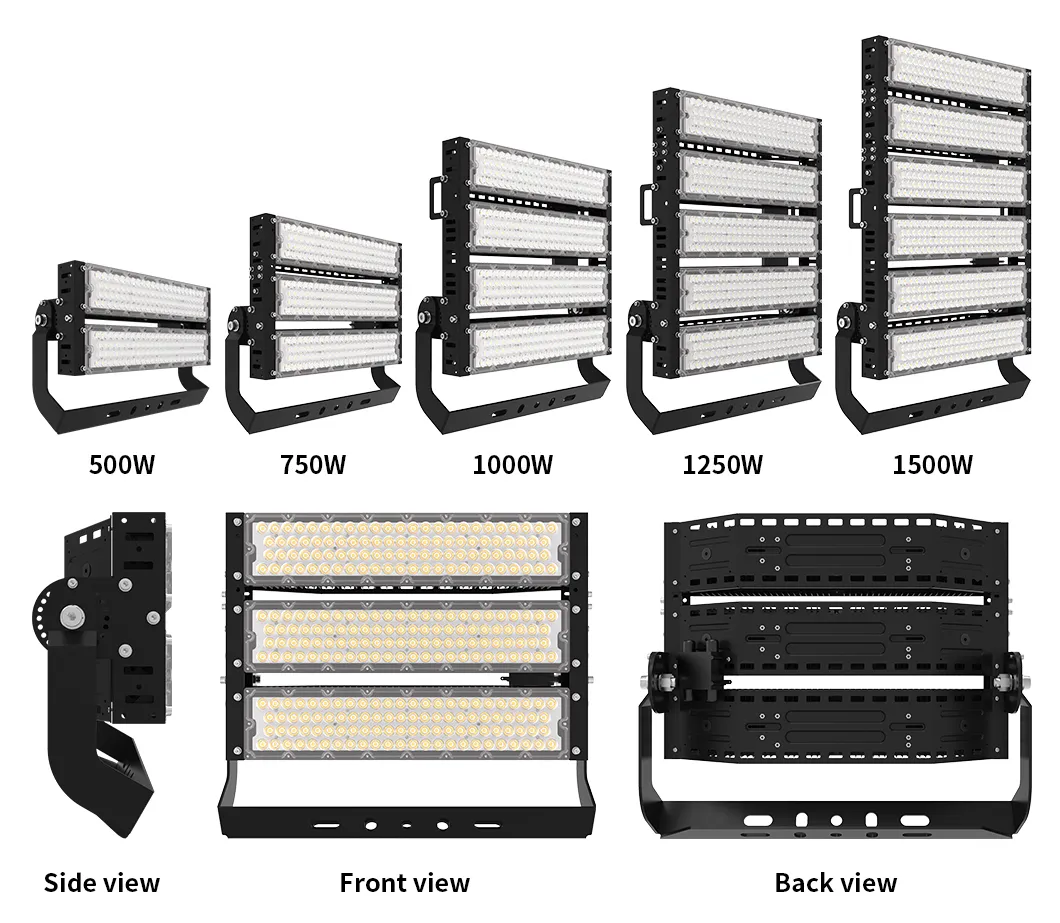

Product Details Display
Frequently Asked Questions
What certifications do these stadium lights have?
The products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. They also have IP65/IP66/IP67, IK08-IK10, and LM79/LM80/IES reports.
Is OEM or ODM service available?
Yes, we provide full OEM/ODM support, including placing your LOGO on products and packages to meet different application requirements.
What is the standard warranty period?
The standard warranty ranges from 5 to 7 years, depending on specific customer requests and project requirements.
What is the typical lead time for orders?
Samples usually take 3-7 days, while mass production typically requires 10-20 days based on the order quantities.
How is product quality and faulty handling managed?
Our products maintain a defective rate of less than 0.1%. During the warranty period, we provide new lights for small replacements or discuss repair/recall solutions for batch issues.
What dimming and control options are supported?
We support DALI, 1-10V, 0-10V, and DMX512 dimming, with optional microwave induction functions for intelligent control.
