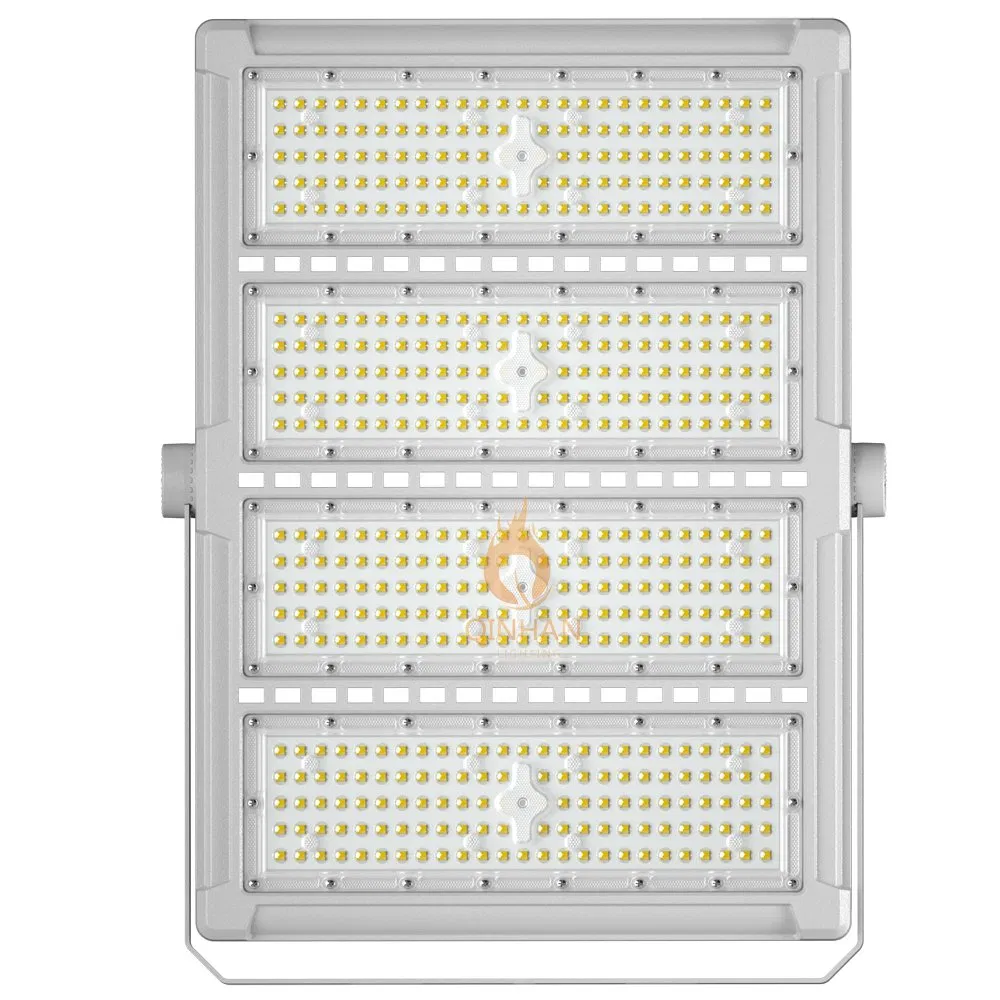

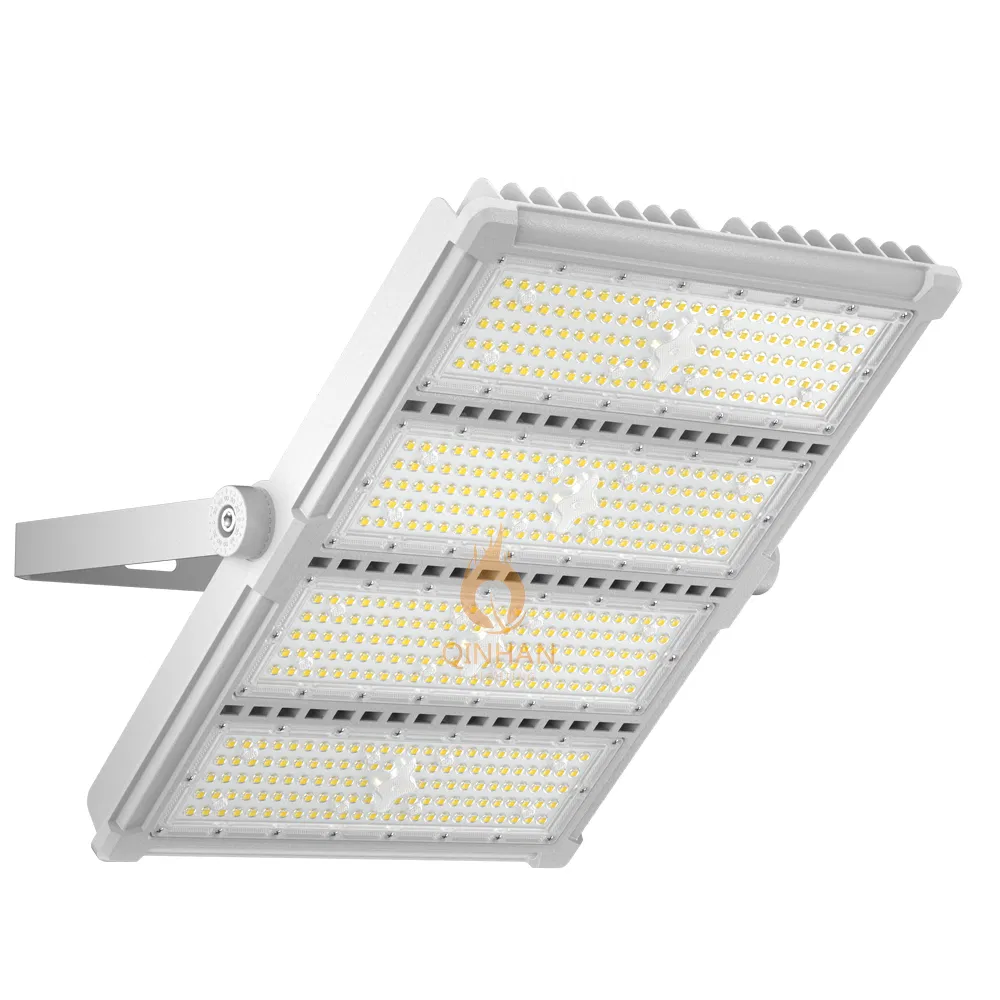

Wide Voltage AC100V 230V 277V 305V 0-10V Dimmable IP65 Outdoor Energy Saving Luminaire 400W Stadium LED Flood Light with Inventronics Driver 7 Years Warranty
Product Description

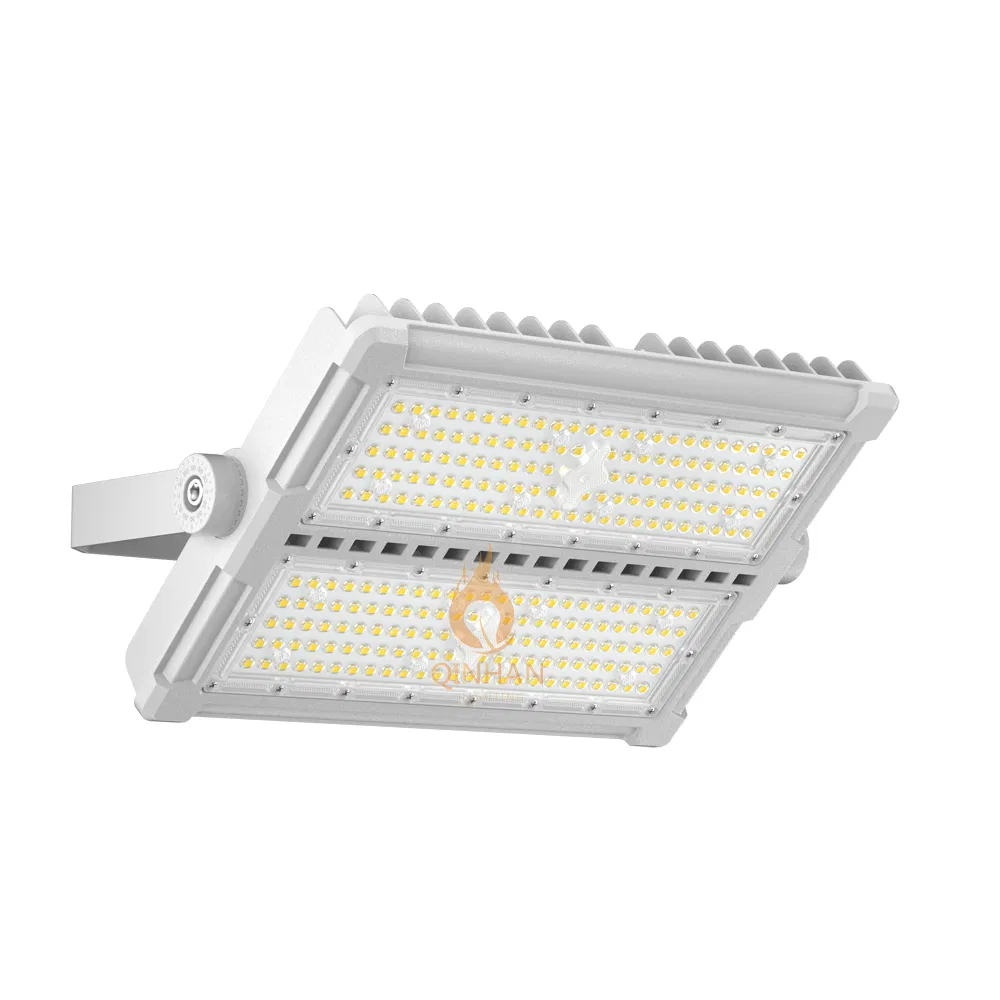

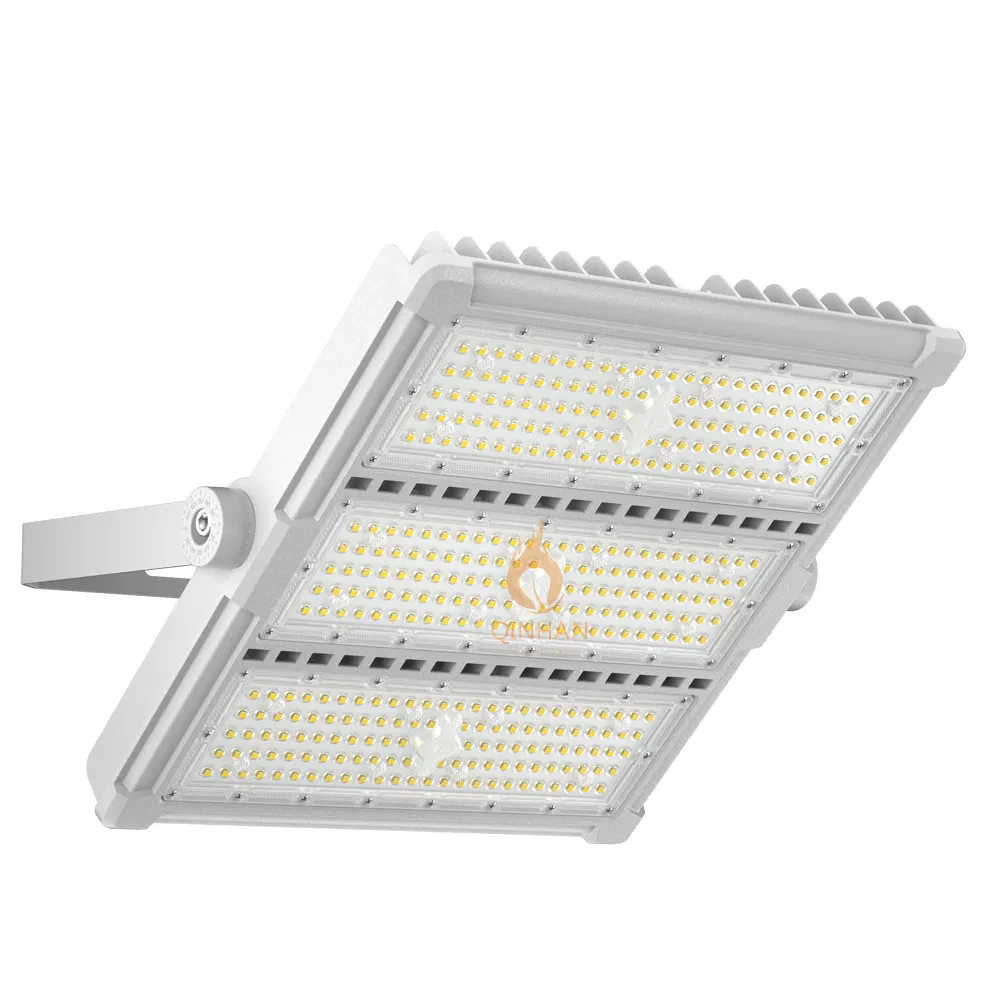

Wide Voltage 400W Stadium LED Flood Light
IP65 Outdoor Energy Saving Luminaire with Inventronics Driver - 7 Years Warranty Option
Basic Specifications
Model NO.
QH-FLXH04-400W
Power
400W
Projection Distance
25-35m
Application
Park, Square, Factory, Garden
IP Rating
IP65
Certification
CE, EMC, FCC, LVD, RoHS, VDE
Input Voltage
90-305V AC / DC48V
LED Chips
CREE 3030 SMD
Warranty
5-7 Years
Lumens
130lm/W - 150lm/W
Dimmable
1-10V / PWM / Dali
CCT
3000K-6500K (Max 20000K)
CRI
Typical 80, Max 95
Temperature
-40℃ ~ +70℃
HS Code
9405409000
Capacity
20000PCS/Month

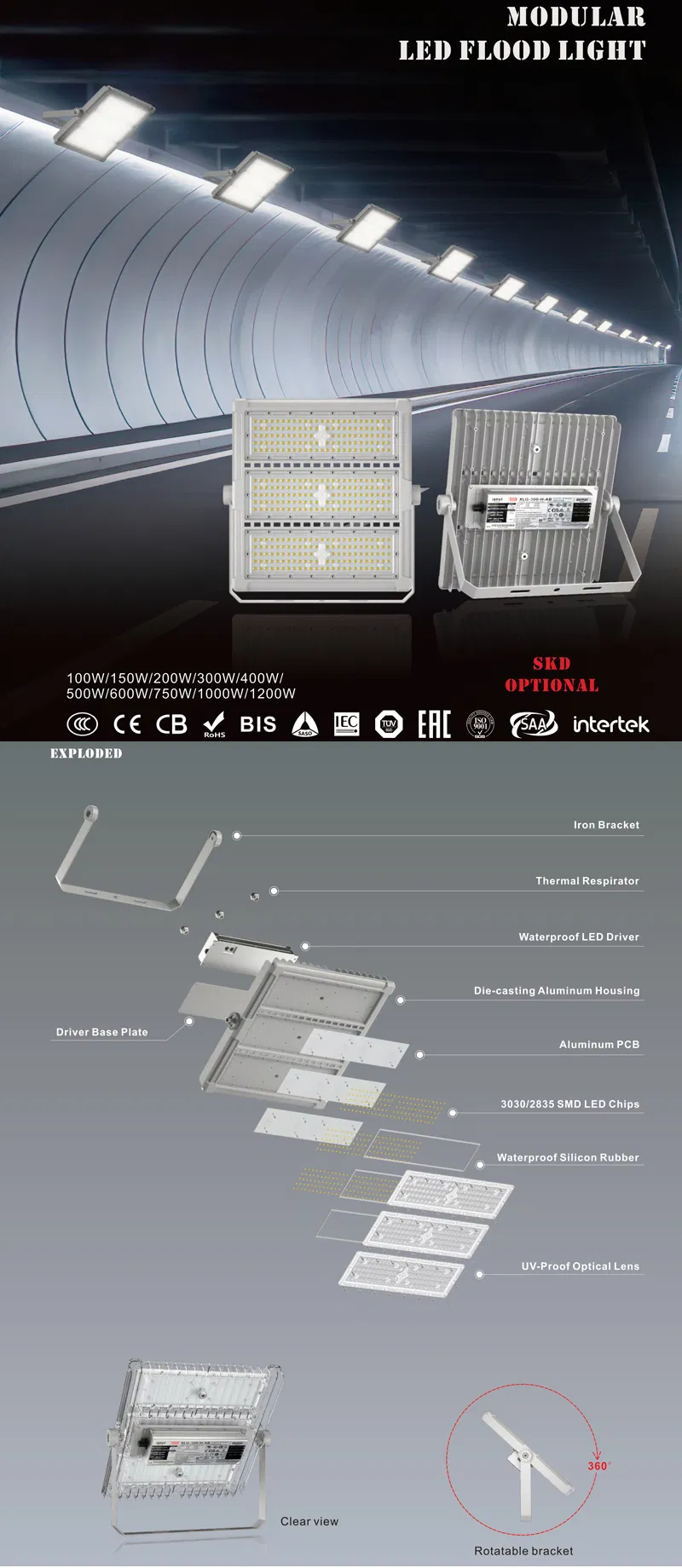

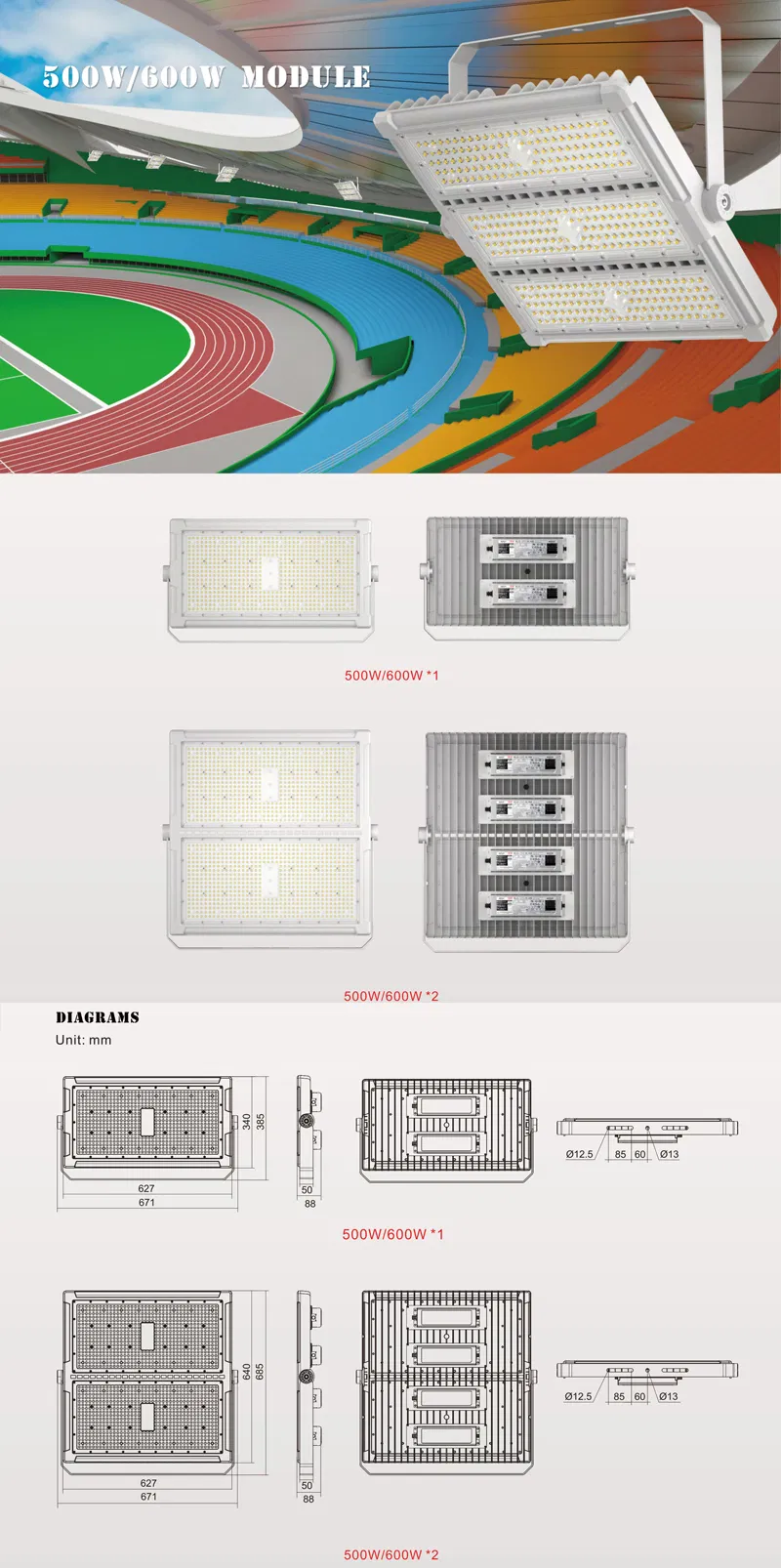

Product Gallery
Key Features
✦

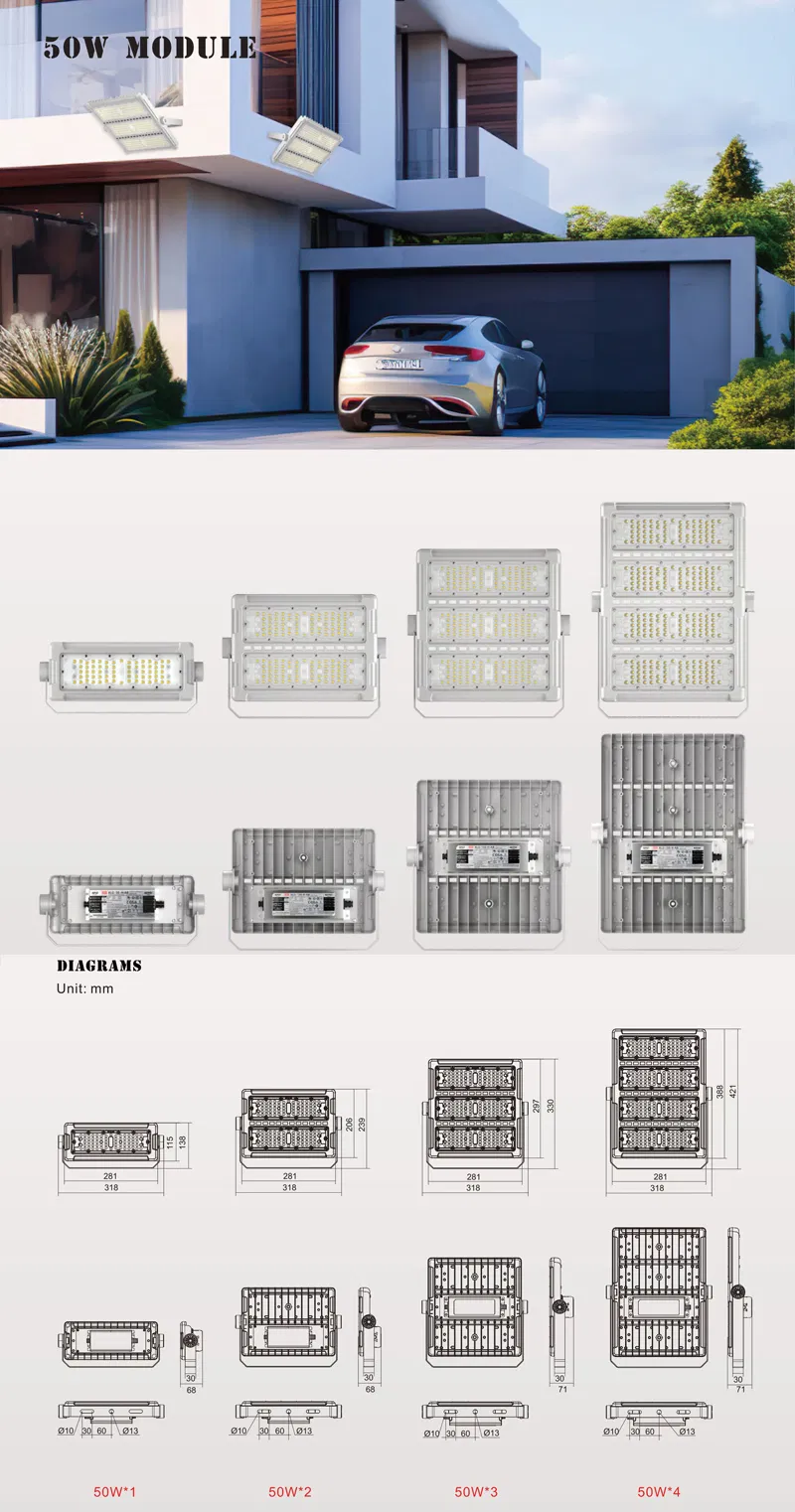

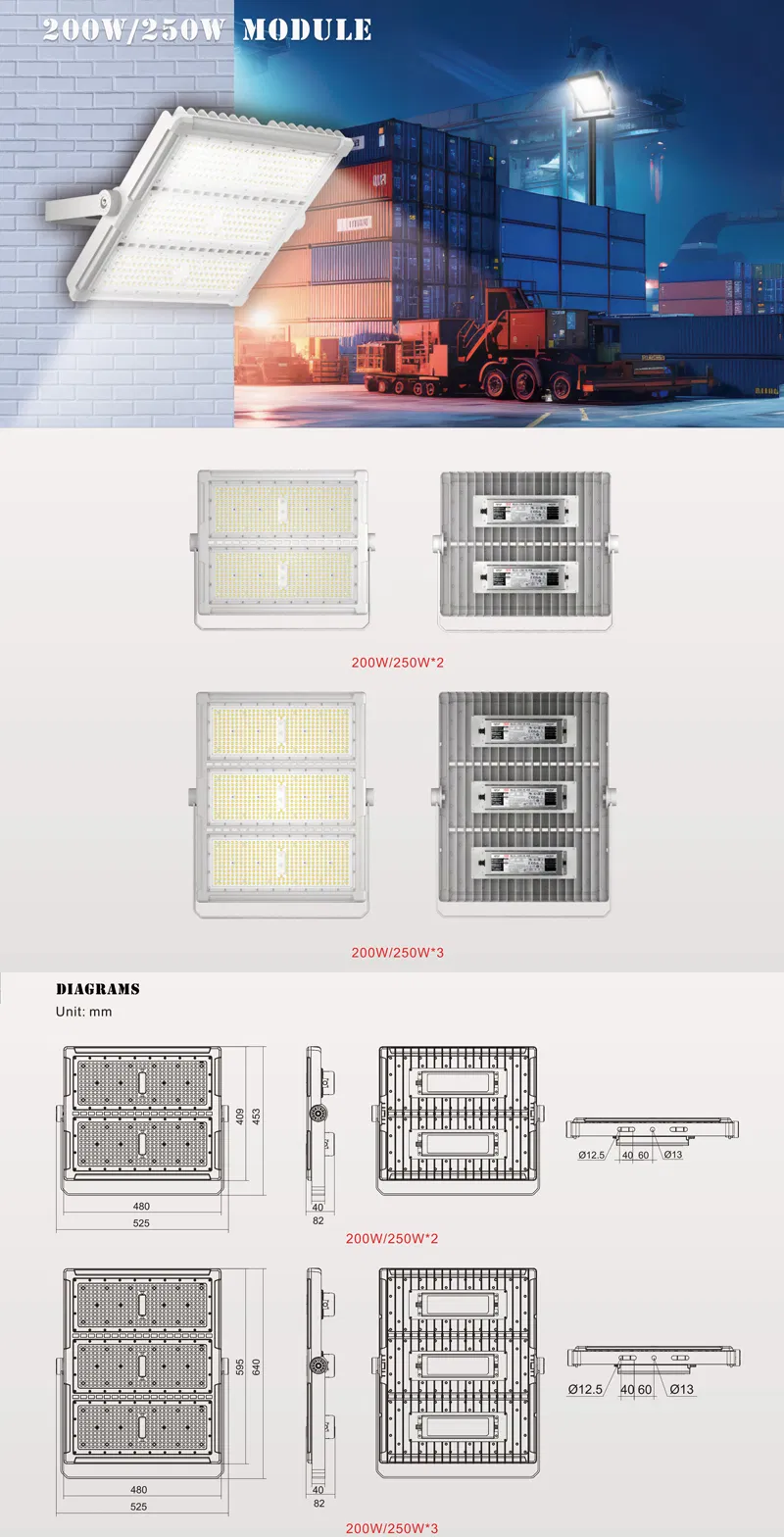

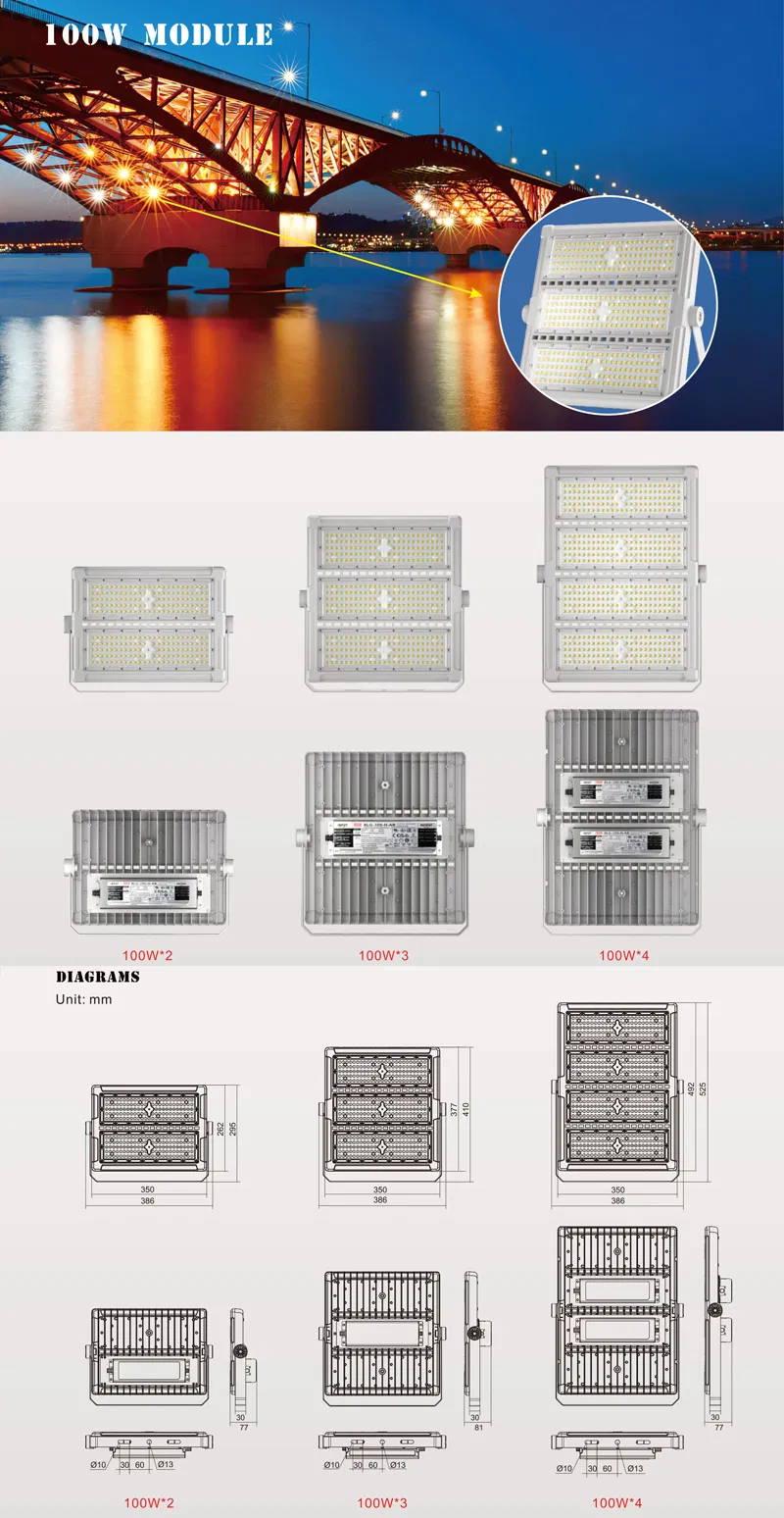

Smart Modular Design: Scalable power from 50W to 600W with high-efficiency cooling technology.
✦

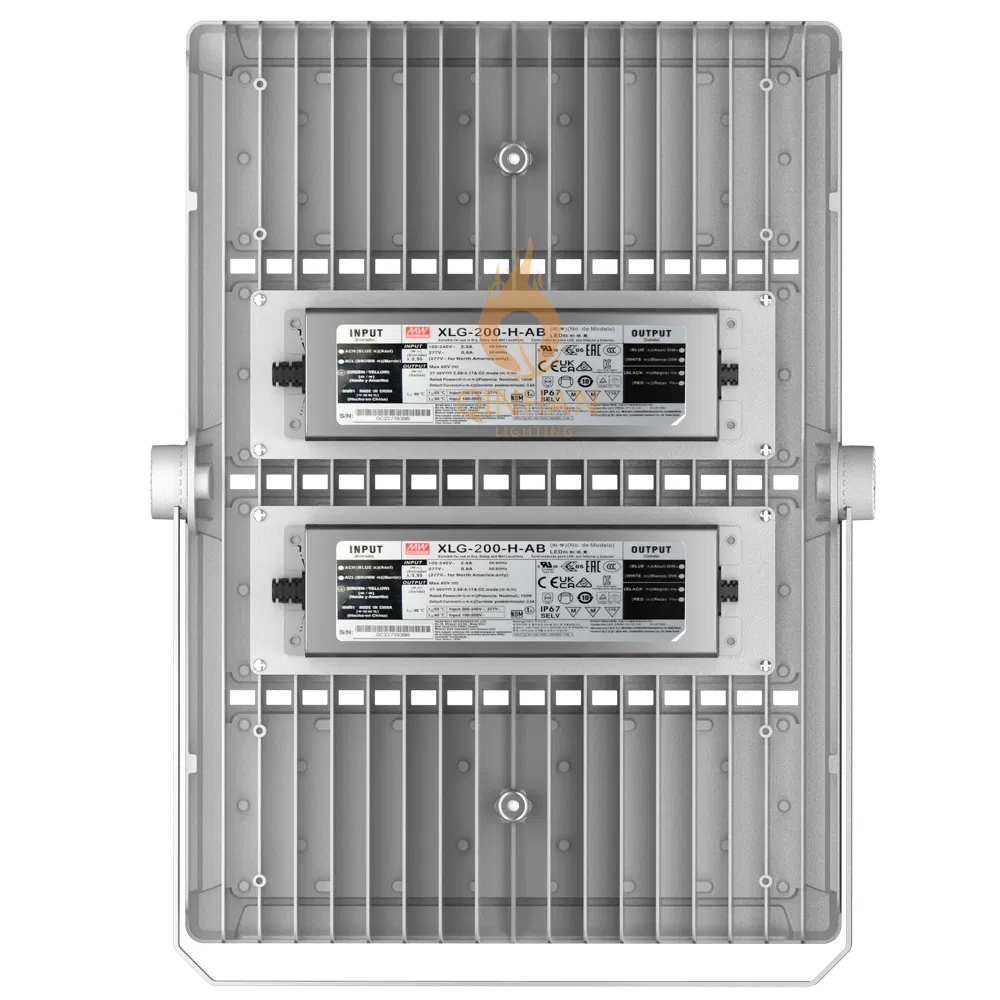

Premium Components: Equipped with 3030 SMD LEDs and Meanwell/Inventronics drivers for maximum reliability.
✦
Versatile Optics: Optional beam angles of 60*60°, 90*90°, or 60*150° with a 216° adjustable bracket.
✦
Energy Efficient: Saves more than 70% energy compared to traditional sodium lamps.
✦
Smart Control: Compatible with smart systems for single group or area-based lighting management.
✦
Extreme Durability: IP65 waterproof rating and 50,000+ hours lifetime for outdoor environments.
Technical Datasheet
| Model | QH-FLXH01-100W | QH-FLXH02-200W | QH-FLXH03-300W | QH-FLXH04-400W |
|---|---|---|---|---|
| Power | 100W | 200W | 300W | 400W |
| Luminous Flux | 130-150LM/Watt | |||
| LED Source | 3030 SMD | |||
| LED Qty | 120pcs | 240pcs | 360pcs | 480pcs |
| Input Voltage | 90-305V AC 50/60Hz | |||
| IP Rating | IP65 | |||
| Beam Angle | 90° | |||
| Working Life | >50,000 hours | |||
| Gross Weight | 4.8Kg | 6.2Kg | 7.7Kg | 10.8Kg |
| Packing Size | 48*23*16cm | 48*23*16cm | 46*30*16cm | 57*40*16cm |

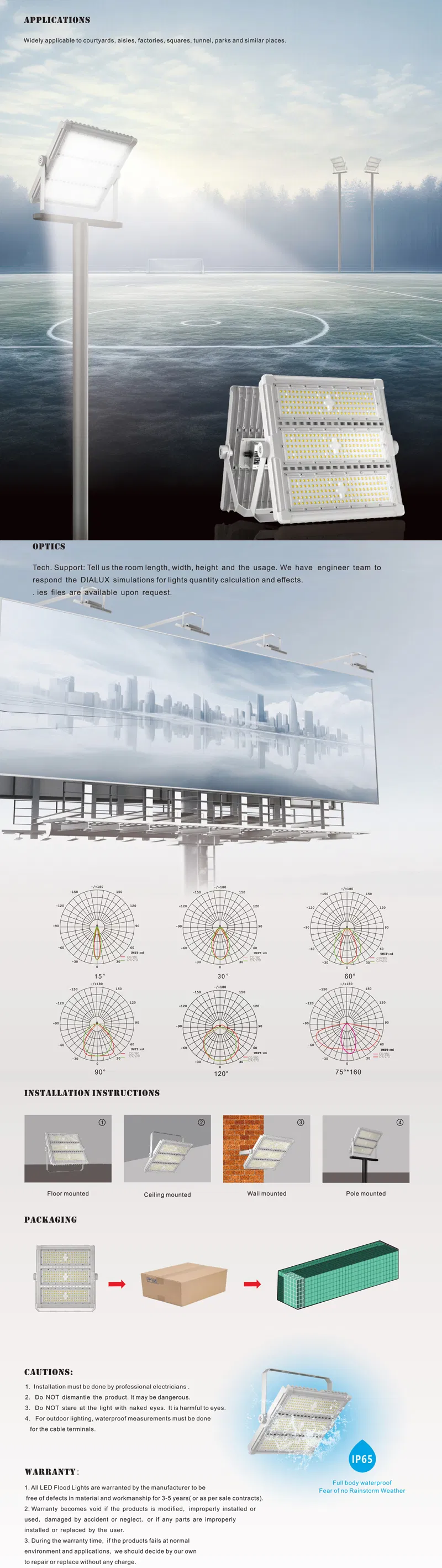

Applications
Ideal for large-scale outdoor lighting: Squares, Parks, Ports, Airports, Shipyards, Container Wharfs, Golf Courses, and Football Fields.
Frequently Asked Questions
What is the warranty period for this LED flood light?
We offer a standard 5-year warranty, with options for up to 7 years depending on the specific driver and configuration chosen.
Is this light suitable for high-mast stadium lighting?
Yes, with a projection distance of 25-35m and high lumen efficiency (up to 150lm/W), it is specifically designed for stadiums, golf courses, and large squares.
Can these lights be used in extreme weather conditions?
Absolutely. The luminaire is IP65 rated and tested to operate in temperatures ranging from -40℃ to +70℃.
What dimming options are available?
The light supports 1-10V, PWM, and Dali dimming protocols, allowing for integration with various smart lighting control systems.
How much energy can I save by switching to these LEDs?
Our high-power LED flood lights can save more than 70% in energy costs compared to traditional high-pressure sodium or metal halide lamps.
What certifications does the product hold?
The product is fully certified with CE, RoHS, FCC, LVD, and EMC, ensuring it meets international safety and quality standards.
