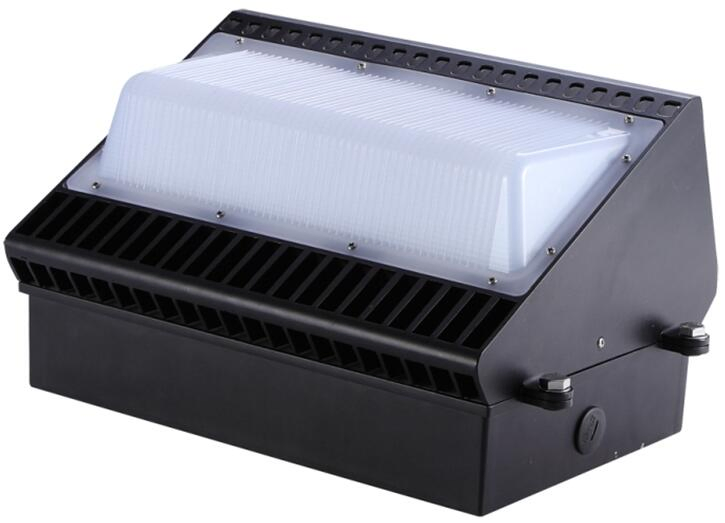

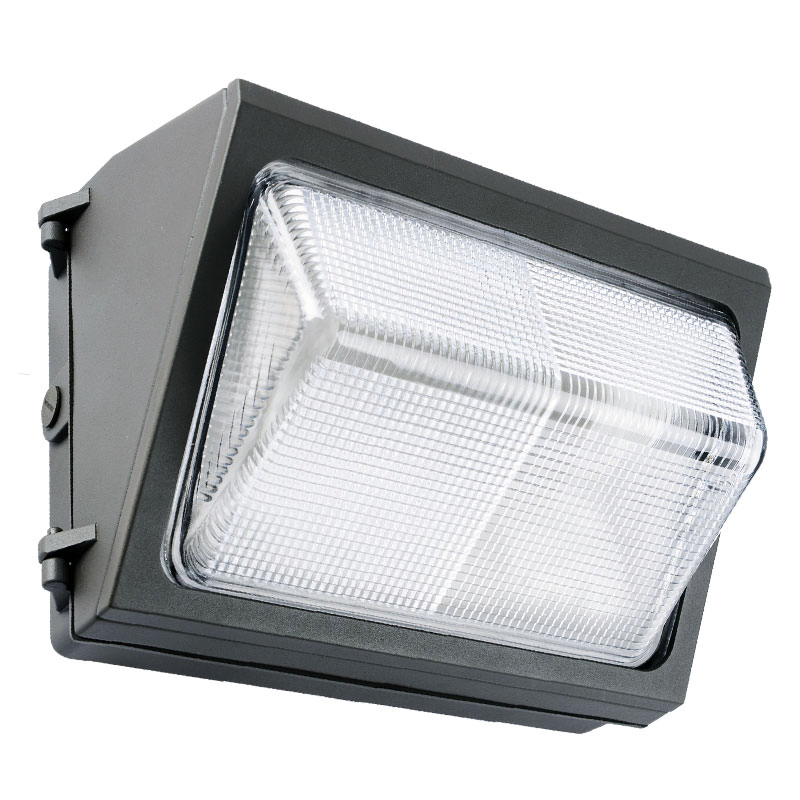

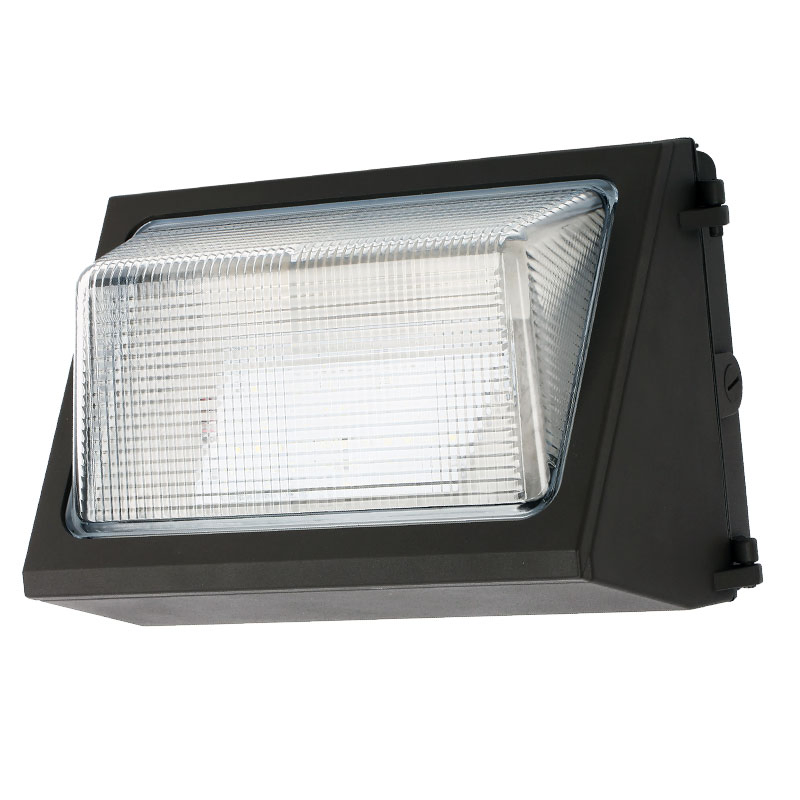

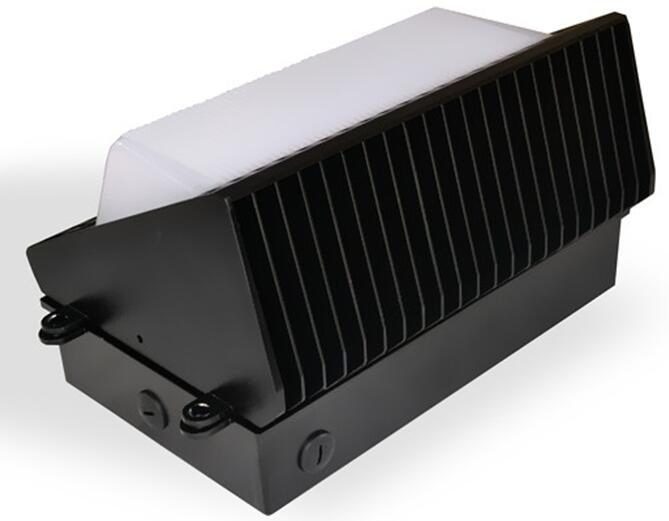

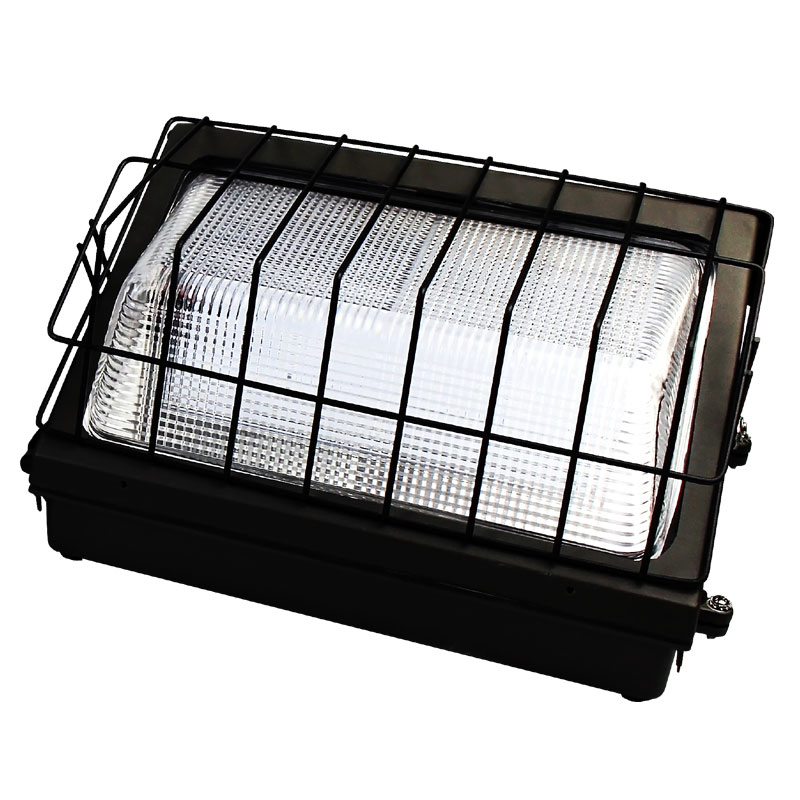

Aluminum 60W LED Outdoor Down Wall Pack Light with ETL

📋

Basic Specifications

Model NO.	RB-WL226-60W
Lamp Body Material	Aluminum
IP Rating	IP66 / IP65
LED Power	60W (Available up to 150W)
Input Voltage	AC100-277V, AC277-480V
Luminous Flux	110-120lm/W (Total 7100LM - 7300LM)
Color Temp	3000K / 4000K / 5000K
Working Life-Span	50,000 Hours
Certification	CE, EMC, LVD, RoHS, ETL, DLC

💡

Product Overview

Aluminum 60W LED Outdoor Down Wall Pack Light

✨

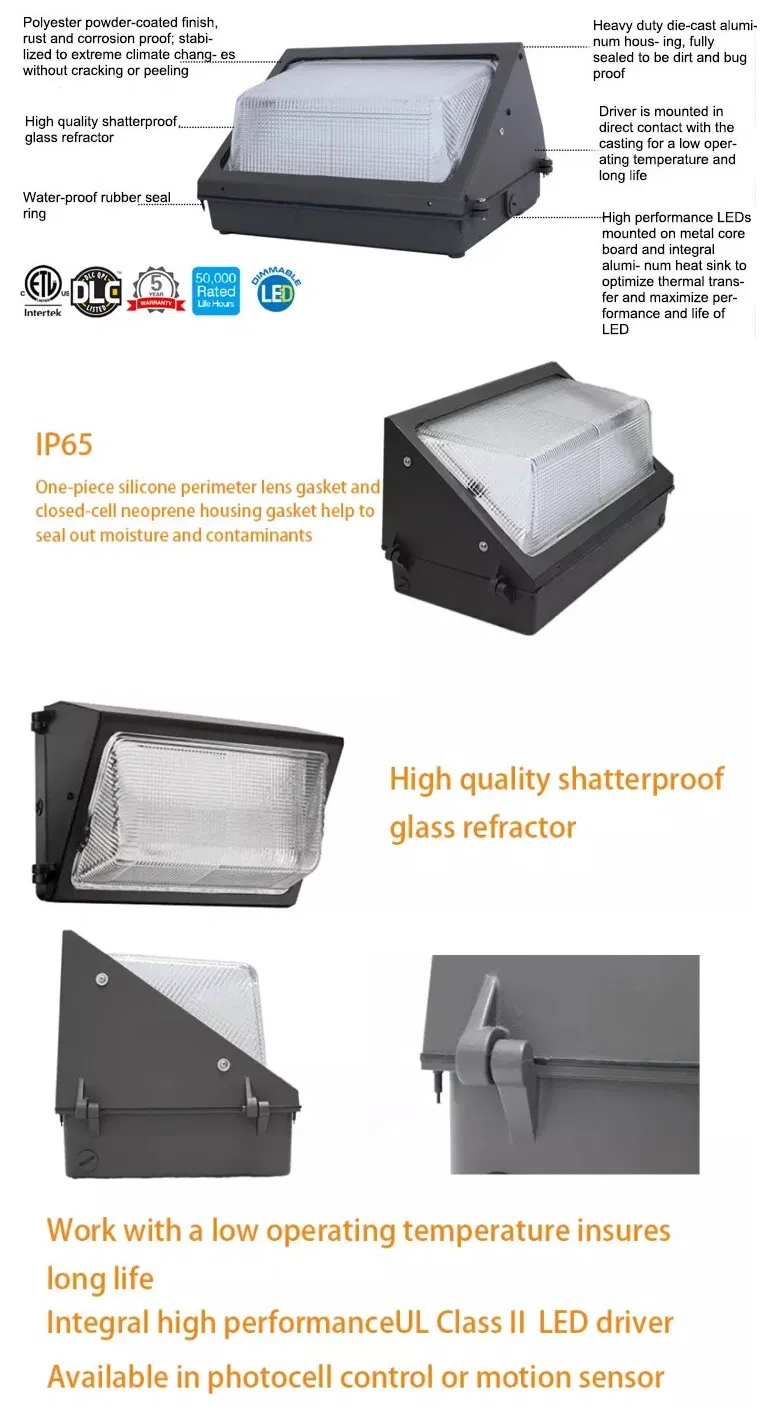

Key Features

✔ Sealed die-casting profile designed for rugged outdoor applications.

✔ High Efficiency: Replaces traditional 175W MH lamps with only 60W consumption.

✔ Optical Precision: Polycarbonate lens with UV stabilizers for clear light distribution.

✔ Versatile Voltage: Supports AC100-277V and high-voltage AC277-480V configurations.

✔ Smart Design: Built-in class 2 driver, compatible with optional photocells.

✔ Certified Quality: ETL & DLC qualified for safety and rebate eligibility.

🛠

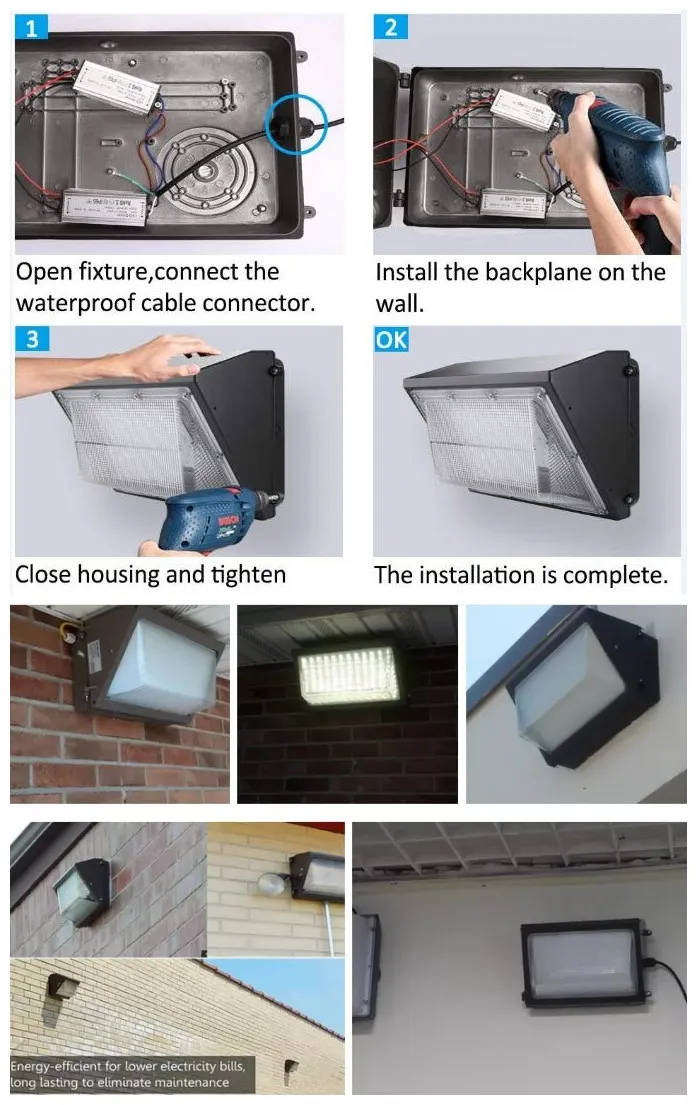

Installation Guide

1. Verify all parts and accessories before starting.
2. Must cut off power supply before installation.
3. Ensure the fixture is fixed tightly to the mounting surface.
4. Connect power lines (Brown-L, Blue-N, Yellow/Green-G).
5. Fixture must be kept vertical downward during operation.

🏢

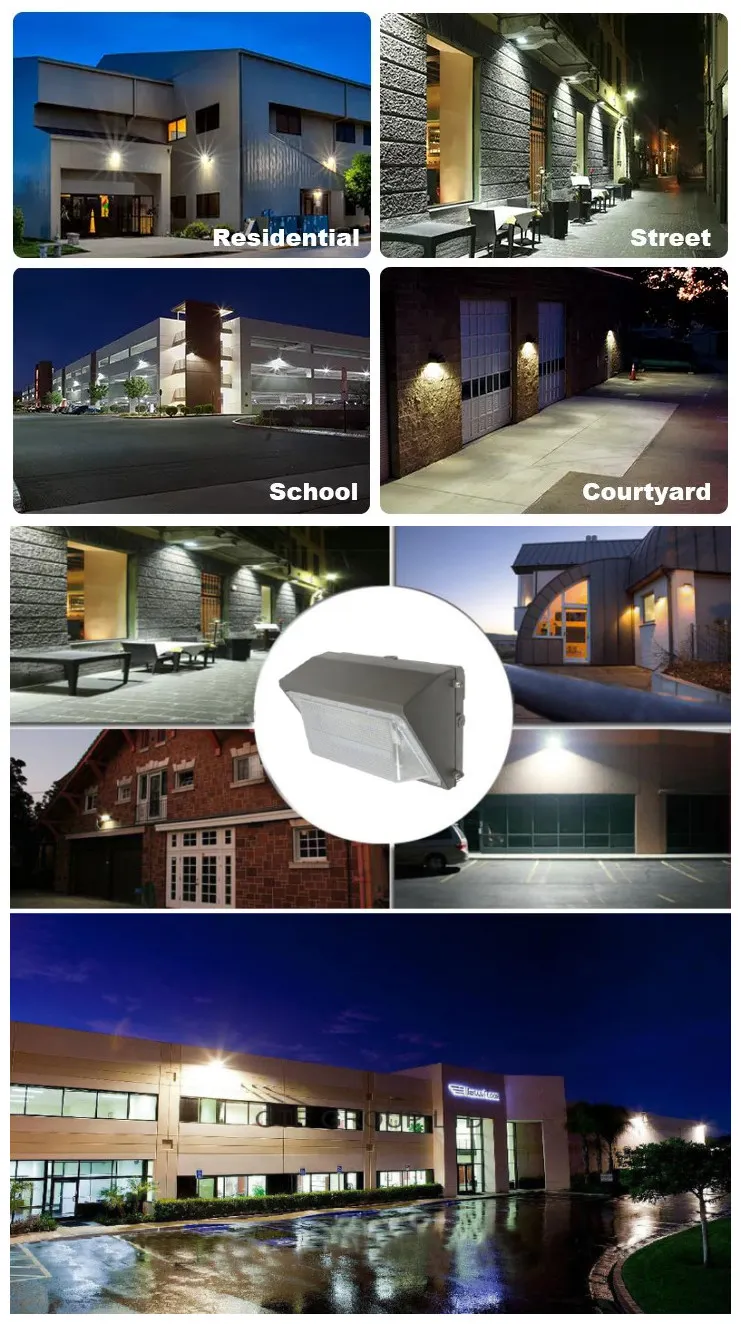

Wide Applications

Ideal for security, pathway, and perimeter lighting in various environments:

Building entryways and walkways

Parking lots and airport terminals

Industrial factories and gymnasiums

Gas stations and stadium perimeters

Railway tunnels and culverts

Courtyards, gardens, and hotels

🛡

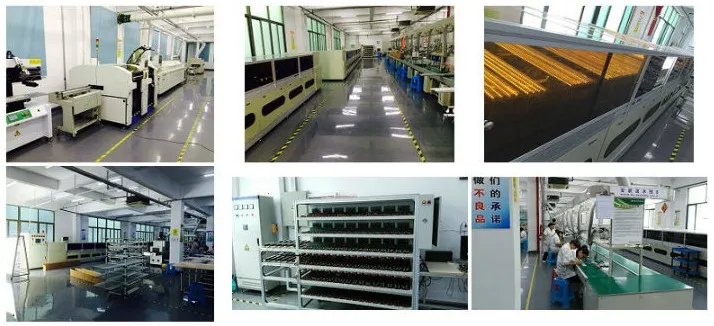

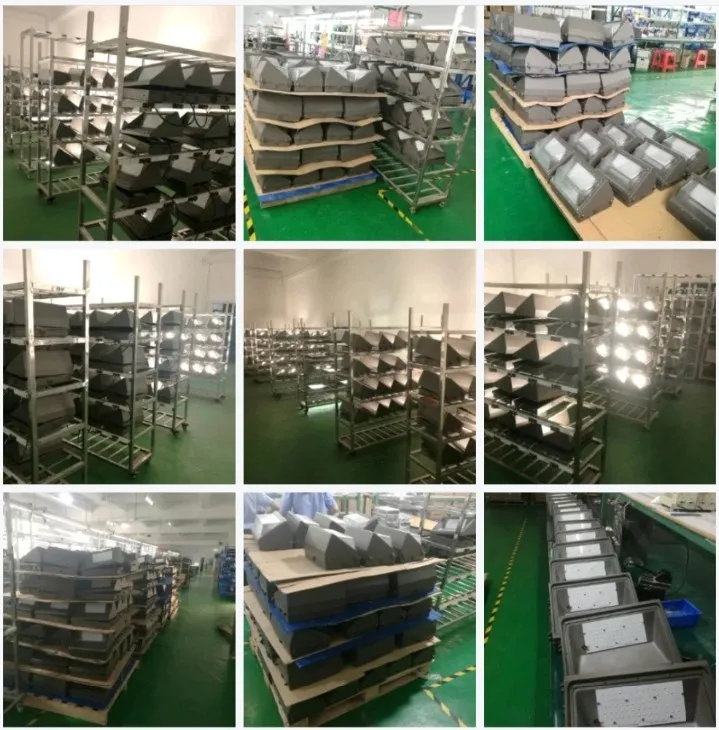

Strict Quality Testing

Every unit undergoes a rigorous 12-hour aging test. Our inspection department performs 100% product testing, including light-up, wattage, high-voltage, waterproof, and ground connection tests. The defective rate is strictly controlled under 0.1%.
