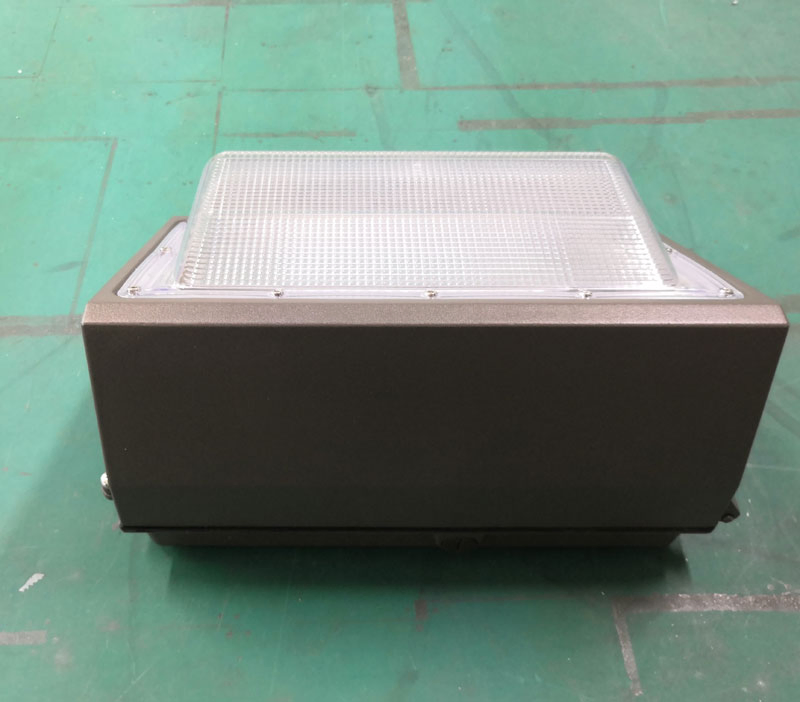

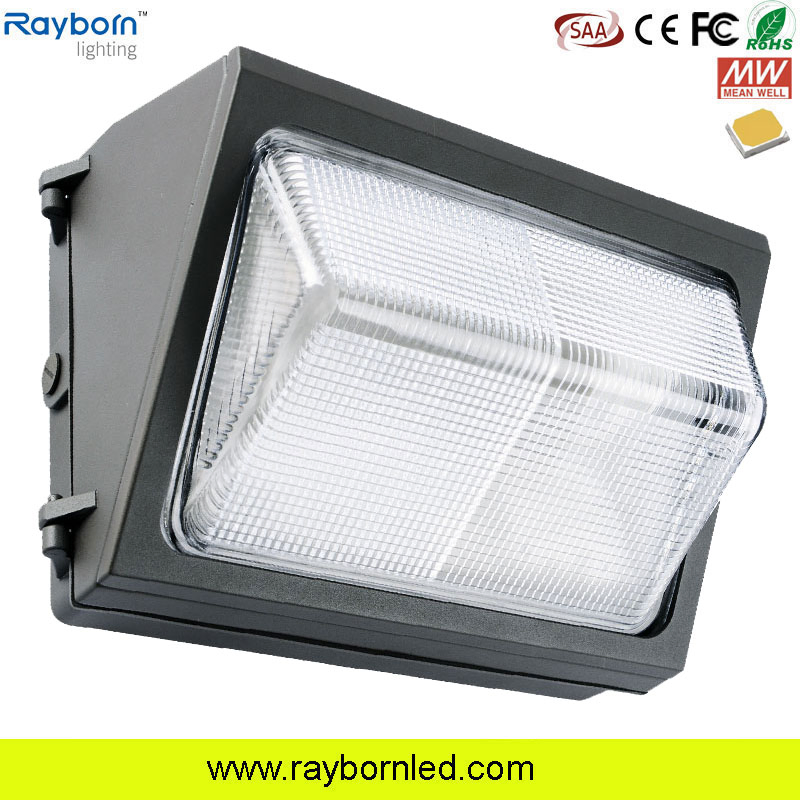

60W 80W 100W 120W Waterproof IP66 LED Wall Pack Light
Product Description

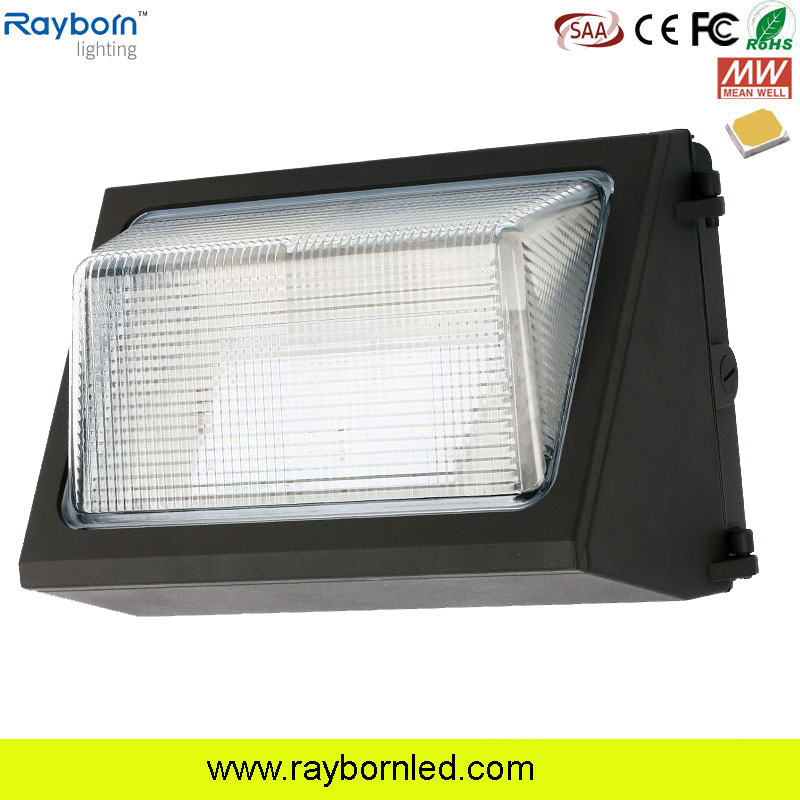

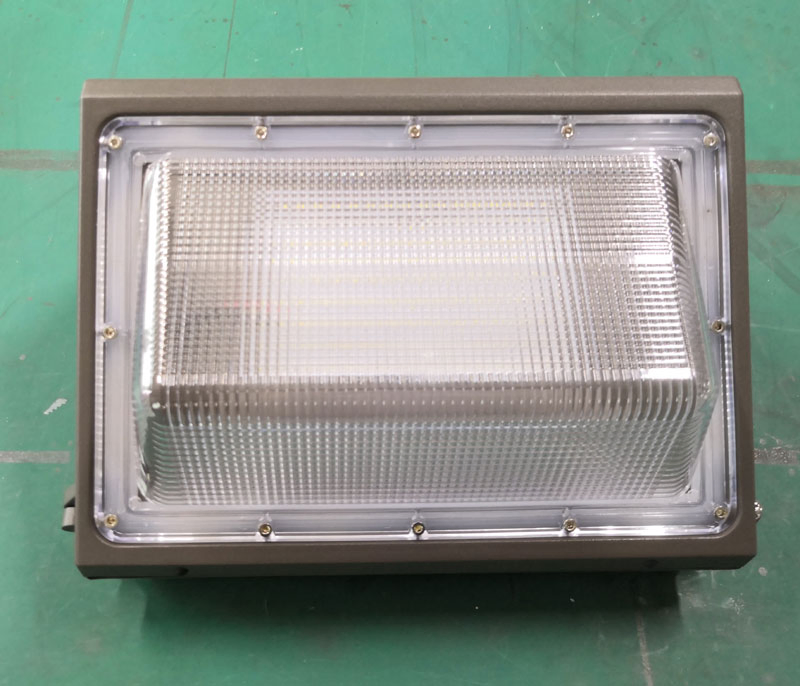

60W 80W 100W 120W Waterproof IP66 LED Wall Pack Light
Basic Info.
Model NO.
RB-WL226-60W
Lamp Body Material
Aluminum
Shape
Transparent
Irradiated Area
15-30m²
Switch Type
Touch Switch
IP Rating
IP66
Shade Type
Clear Glass
Certification
CE, EMC, LVD, RoHS
Voltage
110V
Input Voltage
AC100-277V, AC277-480V
LED Power
60W 80W 100W 120W 150W
Luminous Flux
110-120lm/W
Working Life-Span
50000 H
Body Size
365*190*235 mm
Origin
China (Mainland)
Production Capacity
50000 PCS/Month
Technical Parameters
| 60W LED Wall Pack Light Main Technical Parameters | |||
| Item No.: | RB-WL226-60W | ||
| LED Chip: | SMD3030 | ||
| Power Driver: | Meanwell | ||
| Power Factor: | >0.98 | ||
| System Consumption: | 61W | ||
| LED Luminous Flux | Warm White | 7100LM | |
| Pure White | 7200LM | ||
| Cool White | 7300LM | ||
| Color Temperature | 3000K - 5500K | ||
| Working Temperature: | -40ºC~50ºC | ||
| IP Grade: | IP65 | ||
| Net Weight: | 2.5KG | ||

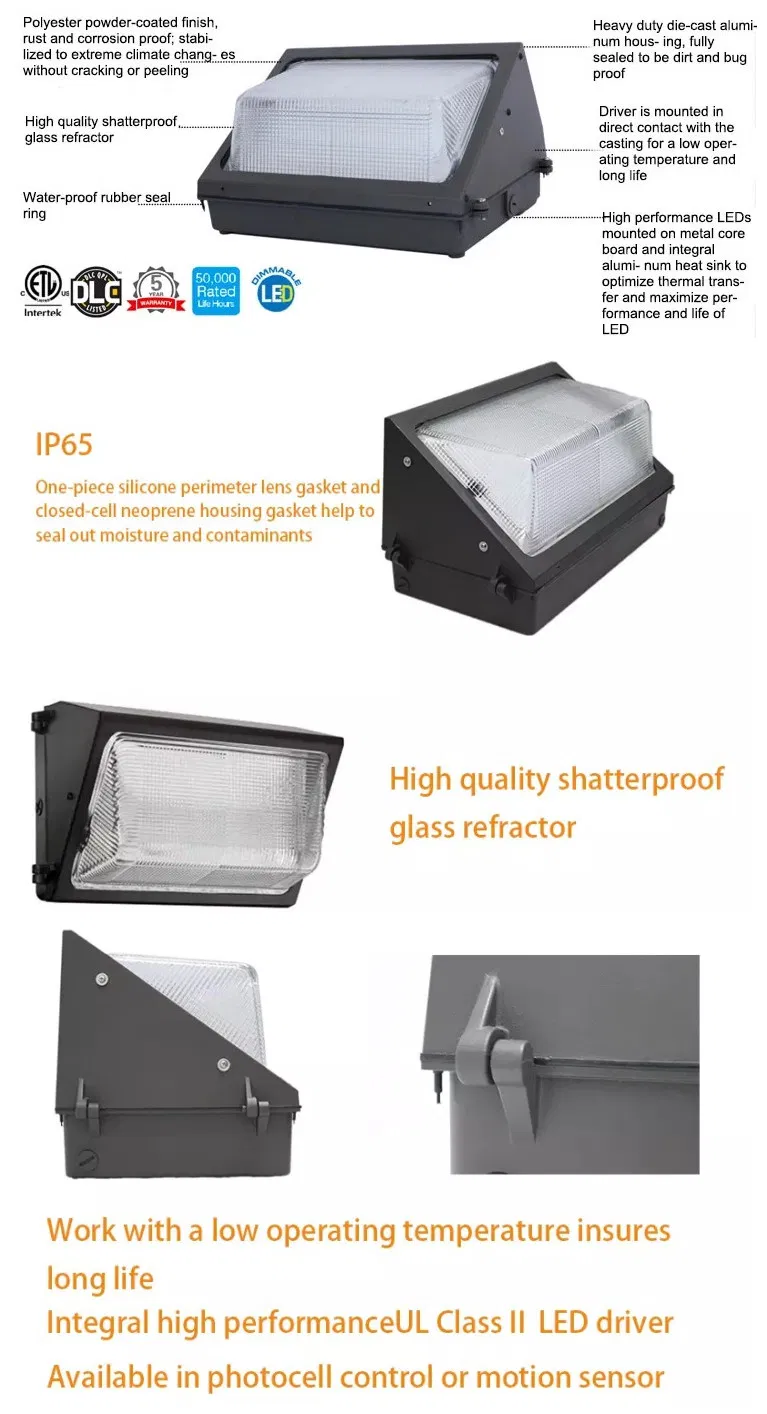

Product Features
- Sealed die-casting profile for outdoor applications
- Replacing 175W MH with 7200lm output
- Multitude of voltage configurations: AC100-277V, AC277-480V
- Polycarbonate optical lens with UV stabilizers
- Built-in class 2 driver, optional for photocell
- Easy installation, contractor-friendly design
- ETL & DLC qualified

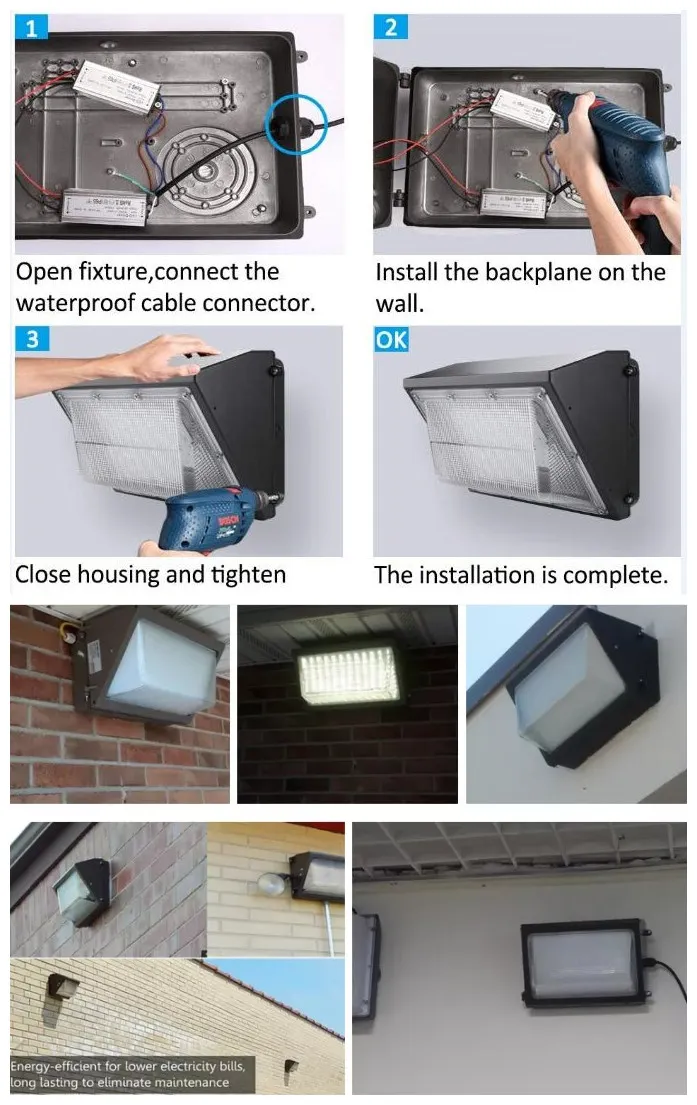

Installation Information
- Check all the parts and accessories of LED Wall Pack lights.
- Must cut off the power supply before installation.
- Make sure the LED Wall Pack light is fixed tightly to the surface.
- Connect the power line with power supply, then switch on the power.
- When the lamp is working, it must be kept vertical downward.

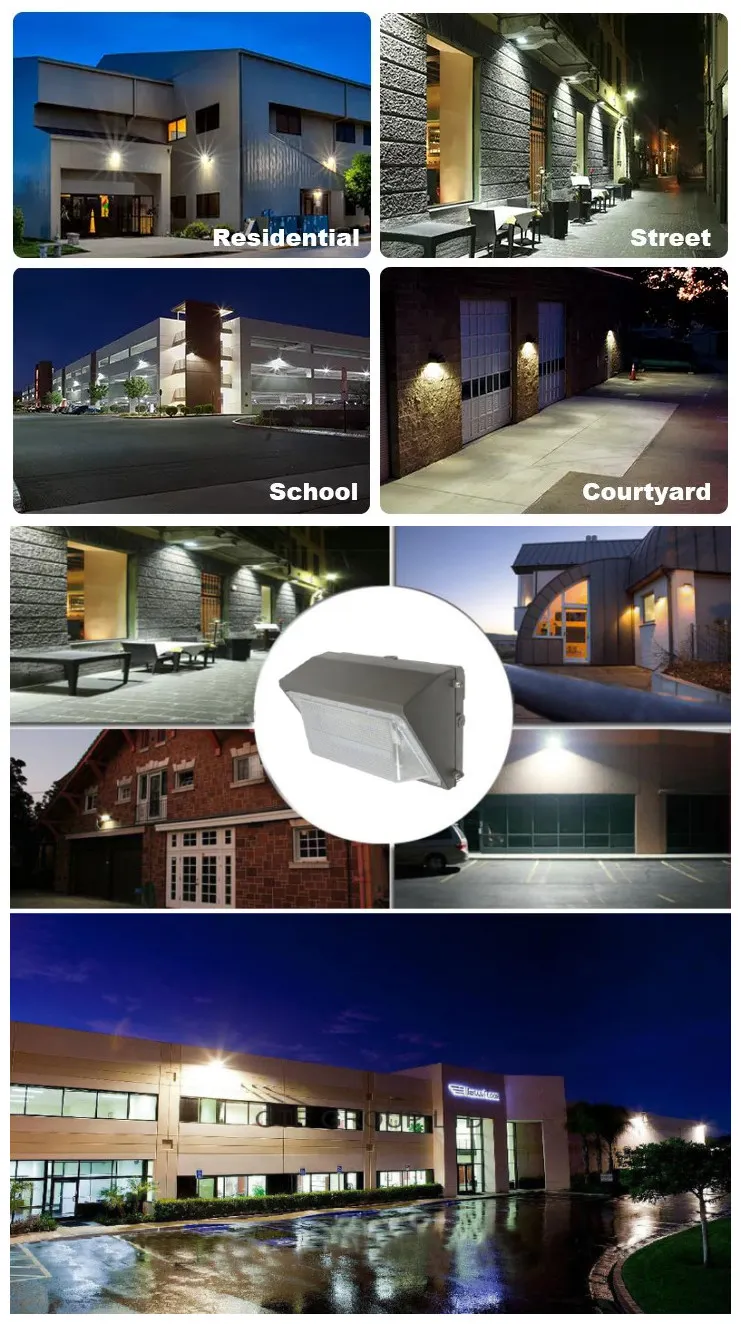

Wide Applications
- Security, pathway and perimeter lighting
- Building entryways and walkways lighting
- Residential, street, school, courtyard lighting
- Gas station, petrol station, playground and stadium lighting
- Parking lot, airport, highway and railway tunnel lighting
- Square, garden, and hotel lighting

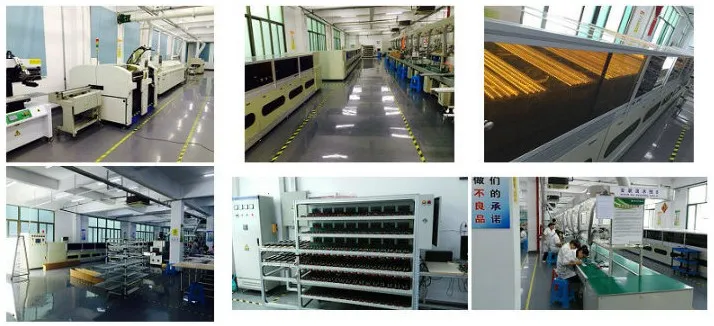

Quality Control & Testing

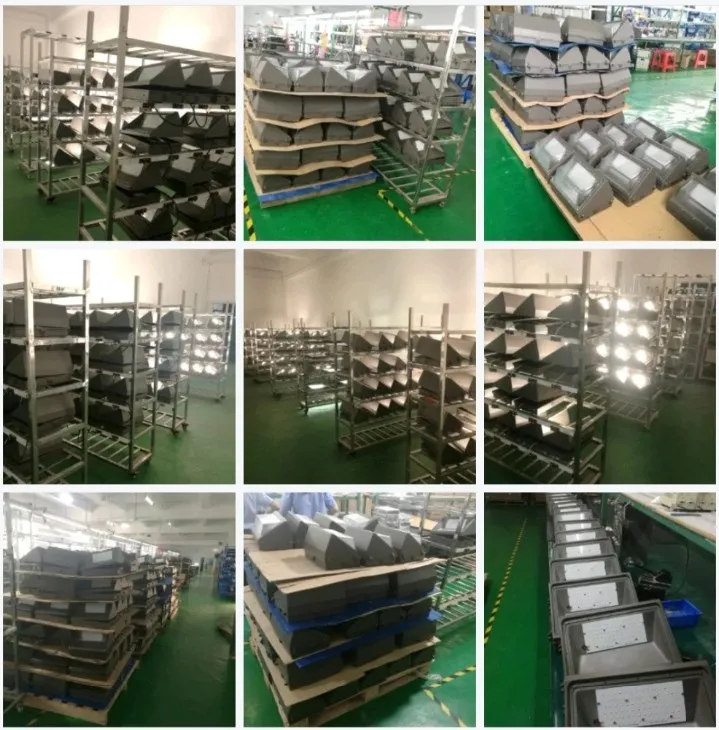

Before shipping, all LED Wall Pack lights undergo over 12 hours of aging tests. Our inspection department performs 100% product testing, including light-up tests, power wattage tests, high-voltage tests, waterproof tests, and ground connection tests. The defective rate is strictly controlled to less than 0.1%.

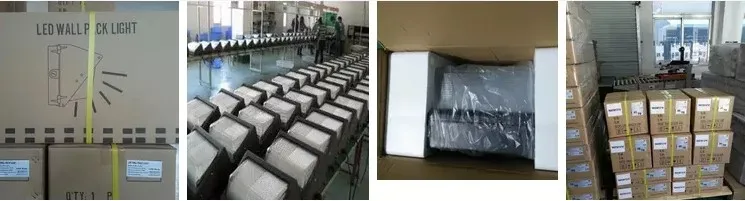

Shipping & Service
Shipping: Available by sea, air, or express (DHL, FedEx, UPS, TNT). Large quantities are advised for sea shipment, while samples are best suited for express delivery.
- Inquiries replied within 24 hours
- Experienced staff for all technical explanations
- OEM & ODM customized services available
- Confidentiality for customer design and sales area
Frequently Asked Questions
Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
How to proceed an order for led light?
Firstly let us know your requirements. Secondly we quote accordingly. Thirdly customer confirms the samples and places deposit. Fourthly we arrange production.
Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
