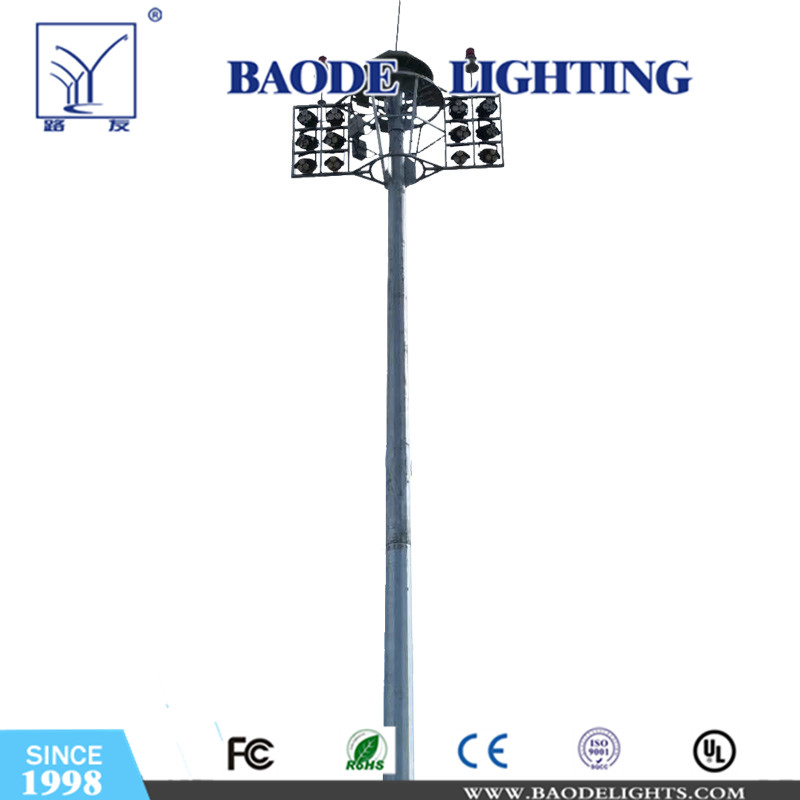

Suppler of China Flood Light 30m 800W LED High Mast Lighting Tower
Product Description
Model NO.
bdhml-020
Pole Height
15m-50m
Power Options
400W - 2000W
Projection Distance
40m-90m
Usage

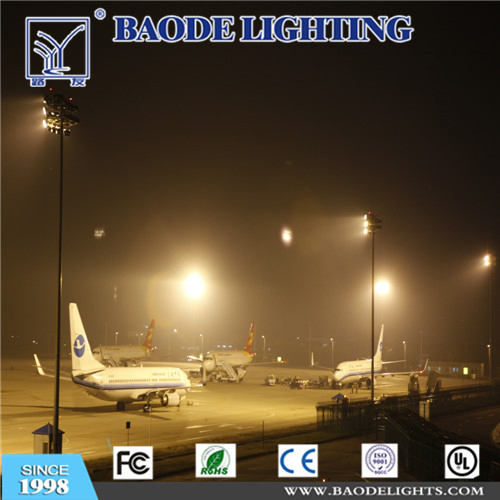

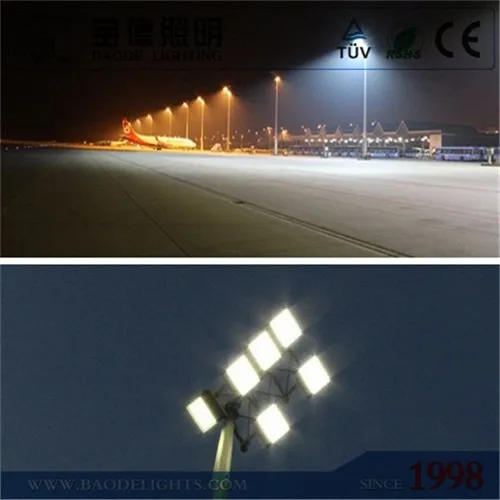

Dock, Stadium, Airport, Football Pitch
IP Rating
IP65
Input Voltage
220V
LED Chips Brand
Bridgelux
Style Type

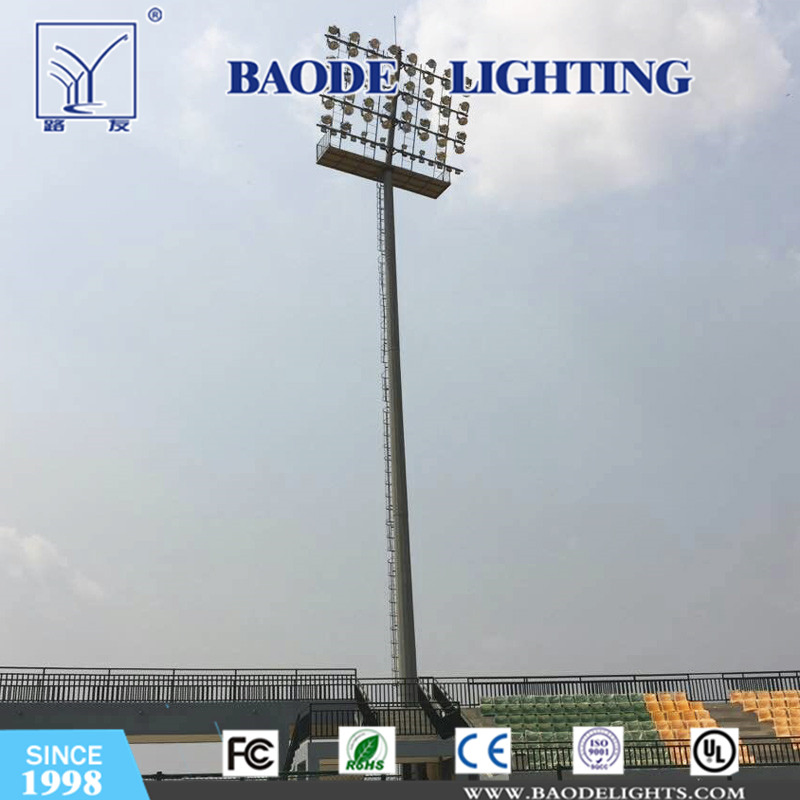

Lifting System or Climbing Platform
Light Source
LED, High Pressure Sodium, Metal Halide
Shape
Round or Polygon
Surface Treatment
Hot Dip Galvanized or Powder Coating
Expert manufacturer since 1998 with extensive experience in high mast lighting poles. Specializing in high-quality lighting solutions for large-scale infrastructure, including major international airports, seaports, and stadiums.
✓

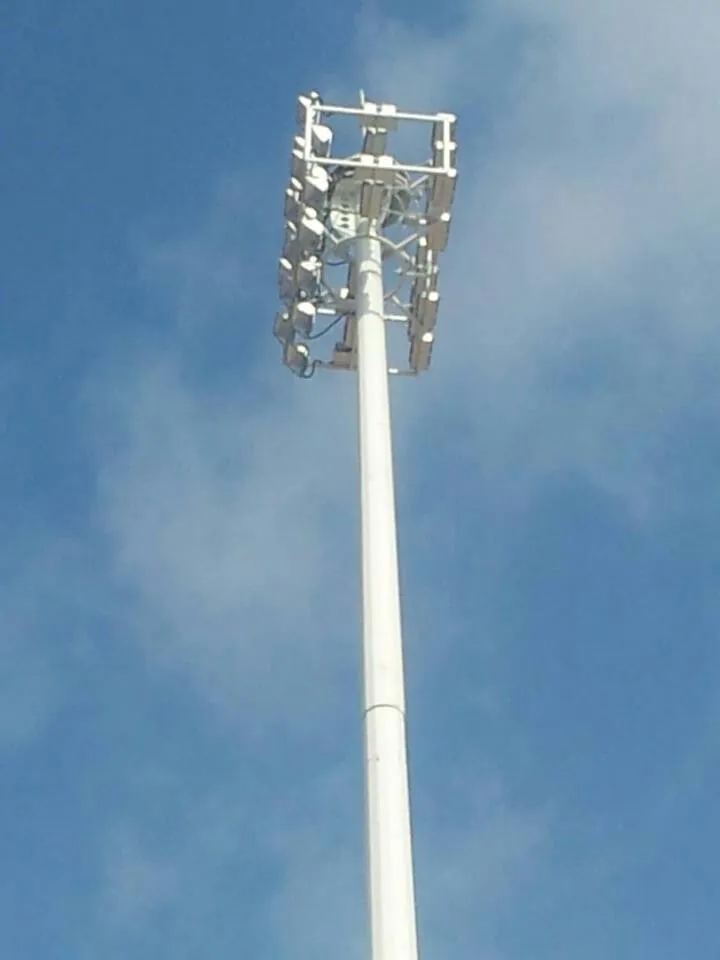

Professional Engineering: Poles range from 18M to 50M, designed to withstand Grade 8 earthquakes and wind speeds up to 80 Km/Hour.
★
Advanced Lifting System: Features a latching mechanism to release strain on steel cables, ensuring stable operation without vibration. Includes manual operation capabilities for power cuts.
| Material | Q345B/A572 (Yield Strength ≥ 345n/mm²), Q235B/A36 |
| Dimension Tolerance | ± 2% |
| Lighting Source | 400W - 5000W; Coverage up to 30,000 m² |
| Control Device | Time and light control for full-load or part-lighting modes |
| Welding | Internal and external double welding with flaw testing |
| Pole Thickness | 6 mm to 20 mm |

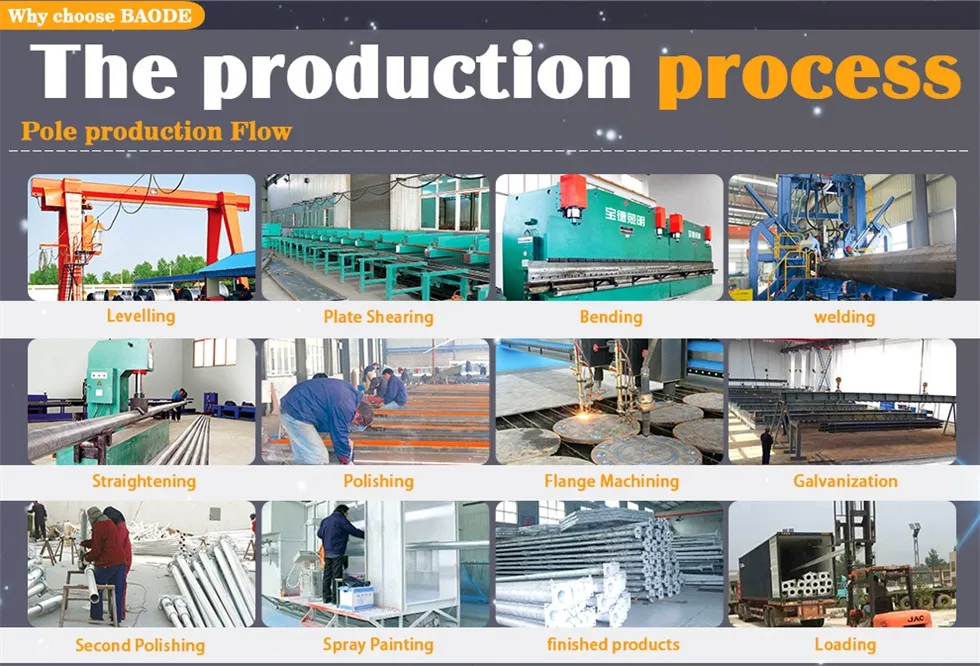

Raw Material Test →
Cutting →
Molding/Bending →
Welding →
Dimension Verify →
Flange Welding →
Hole Drilling →
Galvanization →
Powder Coating →
Packaging
1
One-stop Service: Comprehensive solutions for outdoor, square, landscape, and commercial lighting.
2
Vertically Integrated: We manufacture main components including LED sources, fixtures, and poles to ensure cost-efficiency and quality control.
3
Advanced Facilities: Equipped with steel pole rolling machines, pressure machines, and weather-ability testing equipment across 6000 m² production space.
What is the height range available for these lighting poles?

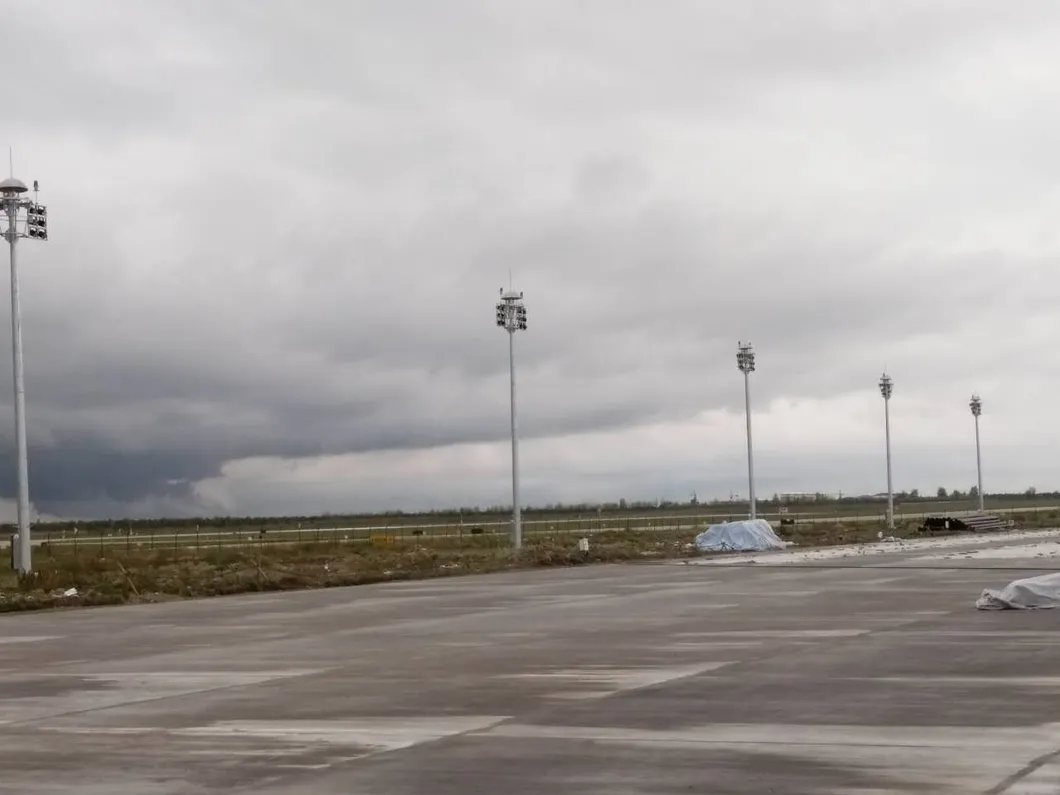

Our high mast lighting poles range from 15 meters to 50 meters, catering to various requirements for airports, seaports, and stadiums.
How are the poles protected against extreme weather and corrosion?
The poles undergo a hot-dip galvanization process following ASTM A 123 standards. Additionally, we offer color polyester powder coating for enhanced durability and aesthetics.
What types of light sources can be used with these masts?
The system is compatible with High Pressure Sodium (HPS), Metal Halide, and high-efficiency LED floodlights ranging from 400W to 5000W.
Can the lighting be adjusted if there is a power failure?
Yes, the lifting system is equipped with an anti-ferromagnetism brake and break-proof device, allowing for manual operation during power outages.
What wind speeds can the high mast towers withstand?
Our high mast poles are engineered to be stable against wind speeds of up to 80 Km/Hour and are designed to resist Grade 8 earthquakes.
What is the typical production lead time?
The standard lead time is approximately 20 days upon receipt of payment for a batch of 10 high mast light poles.
