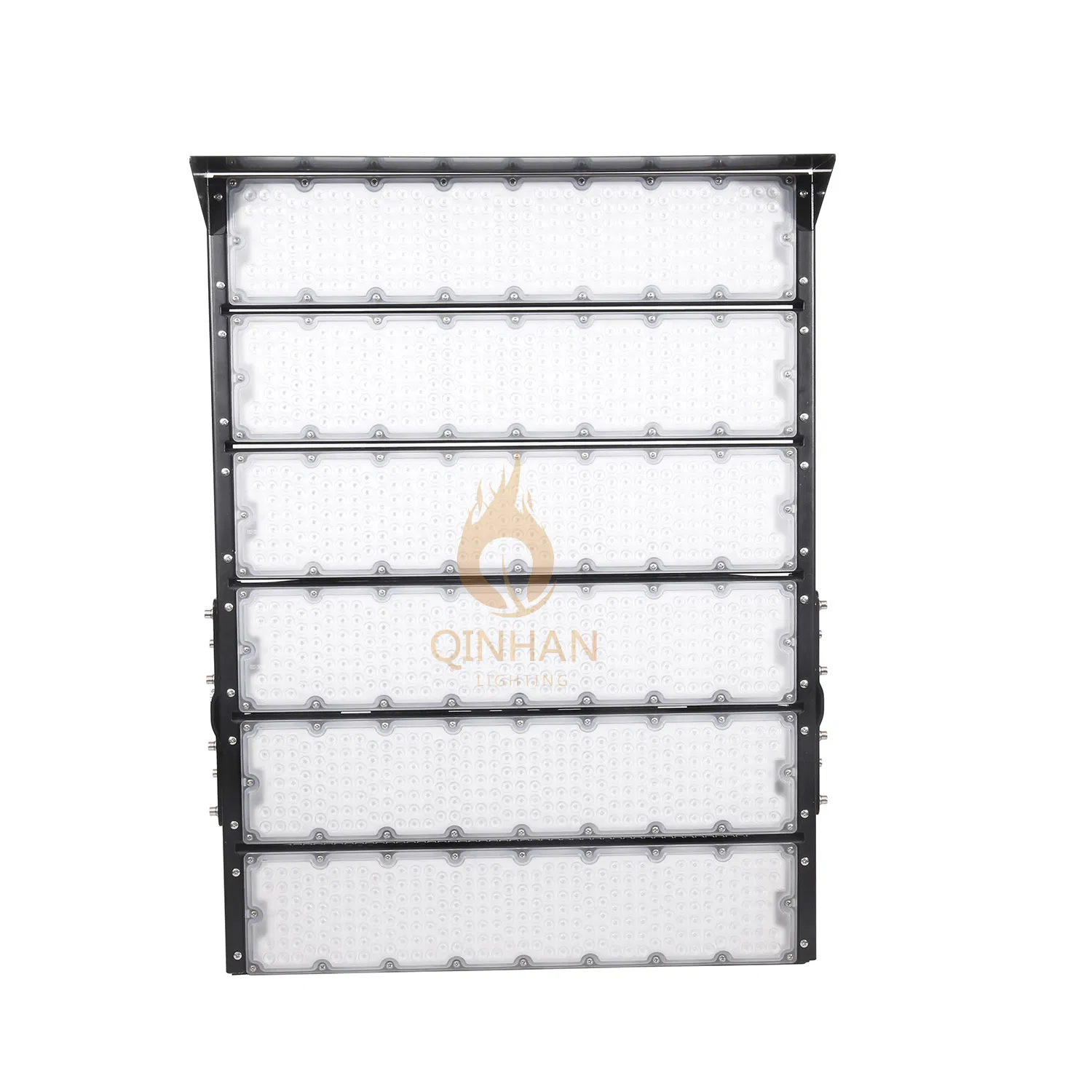

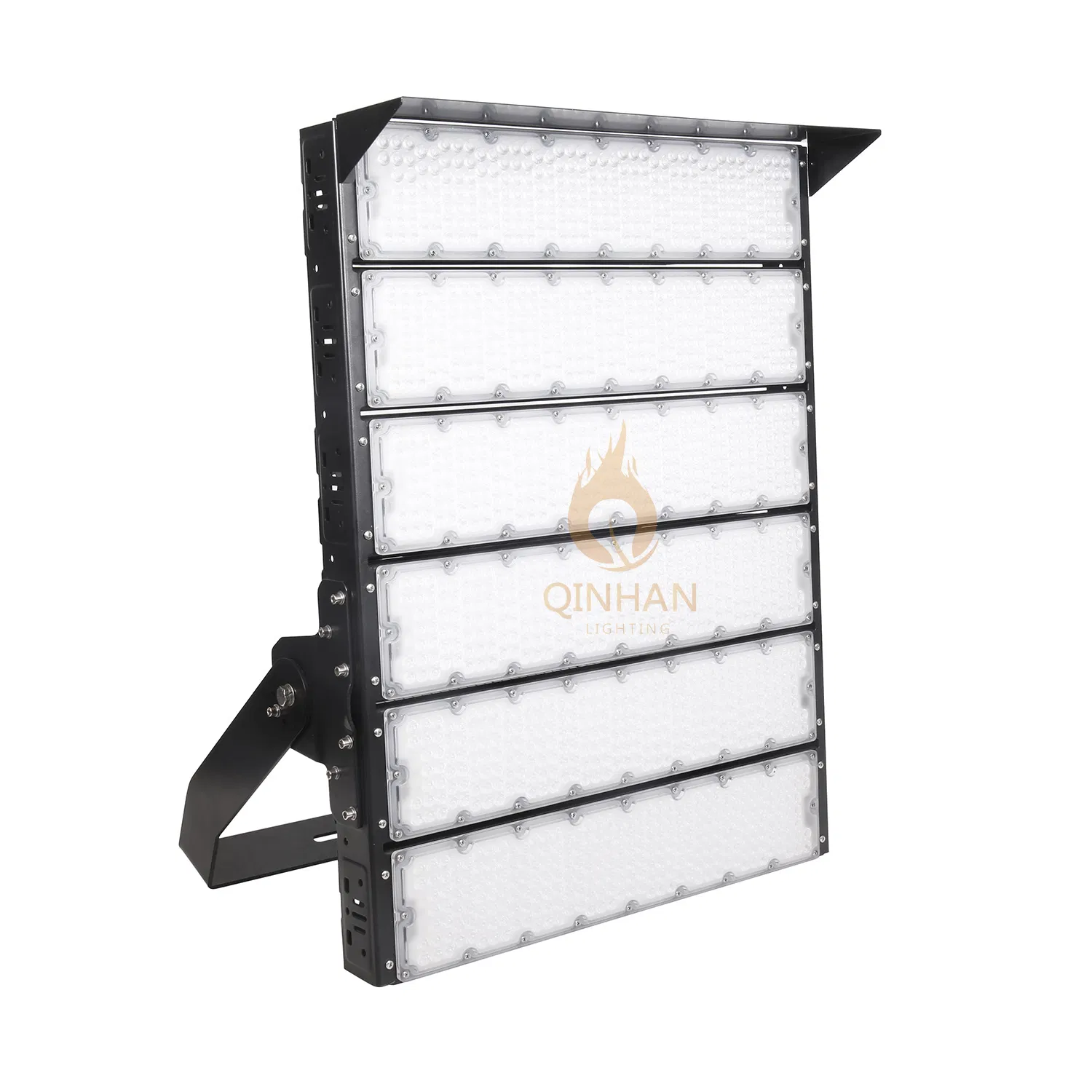

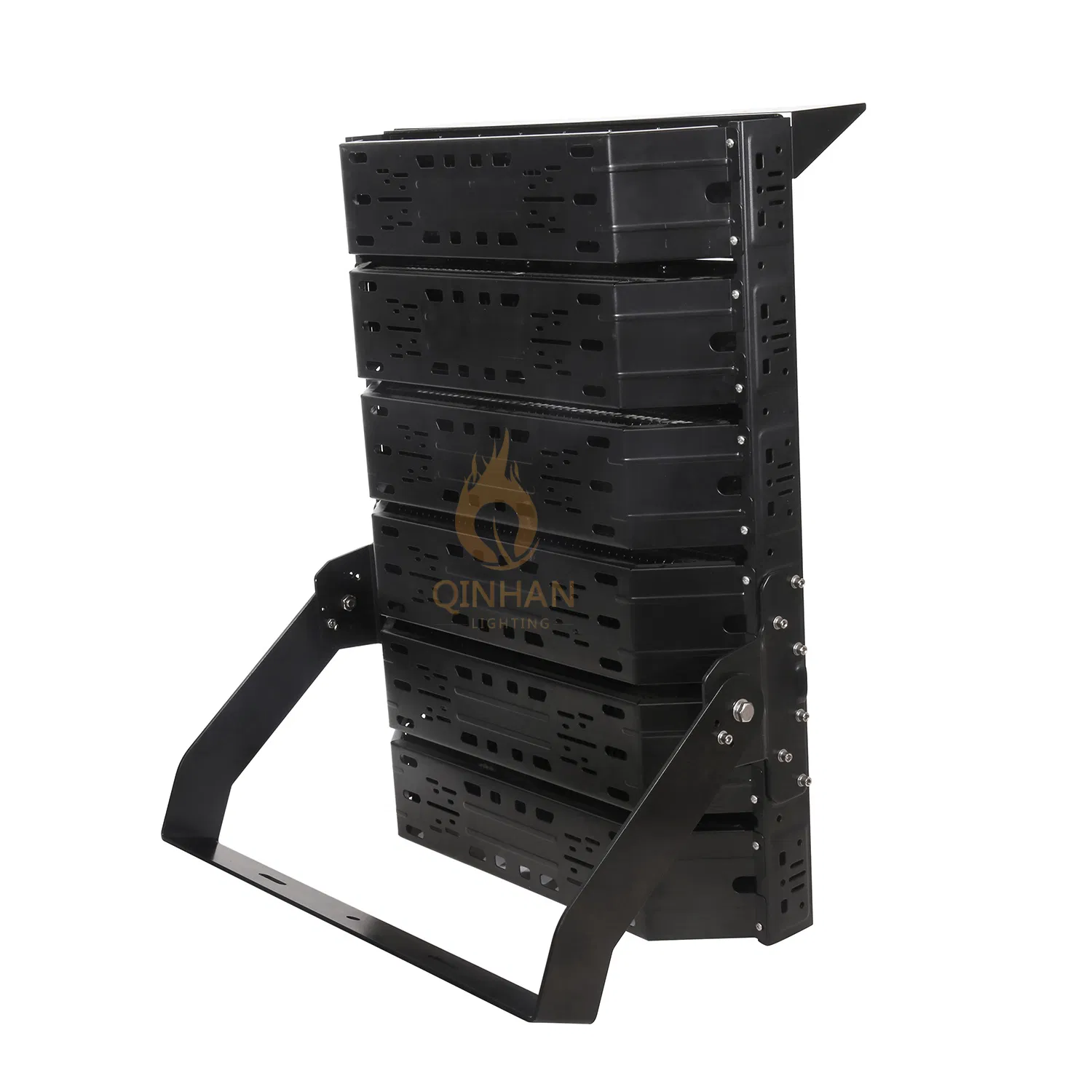

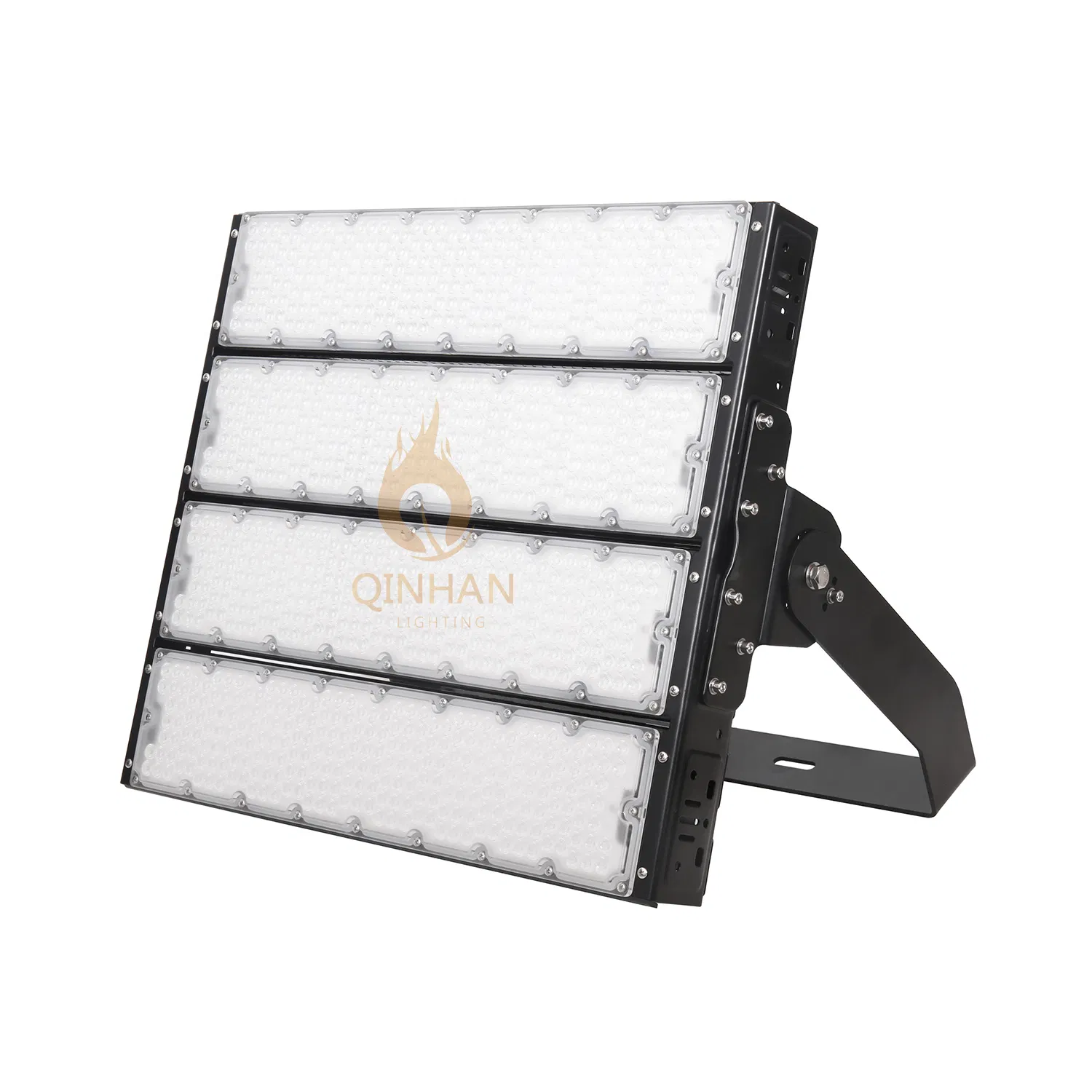

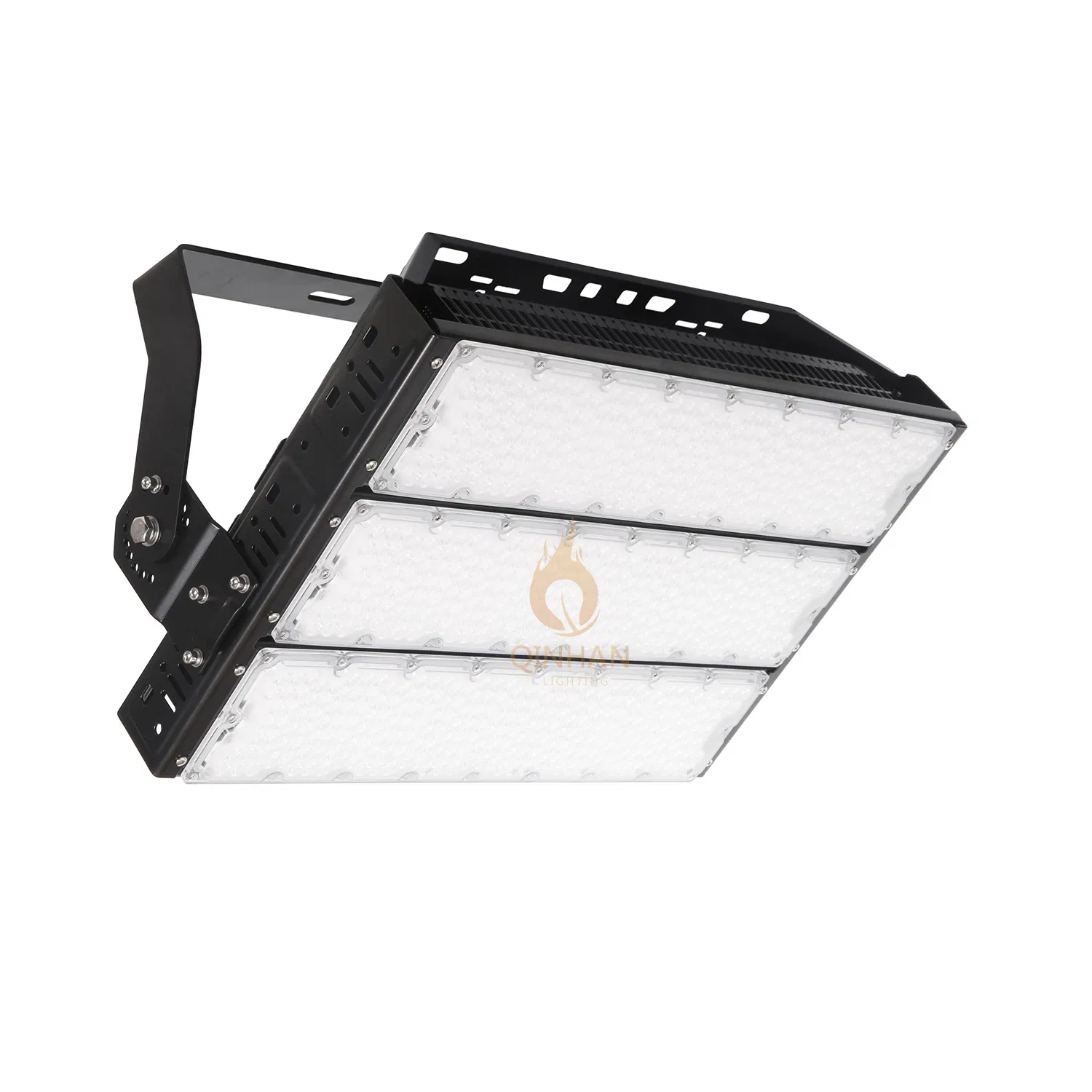

250W 500W 750W 1000W1500W IP66 High Mast LED Flood Projector Search Light for Outdoor Stadium Sport Court Lighting
Product Description
i
Basic Specifications
Model NO.
QH-FLMS-1500W
Power
1500W
Projection Distance
>35m
IP Rating
IP66
LED Chips
CREE
Luminous Flux
150-160LM/W
Warranty
5 Years
Material
Die-Casting Aluminum
★
Product Description
DALI DMX 0-10V Dimmable High Power 1500W Outdoor IP66 Stadium Flood Light
Rotatable Modules: Offering maximum customisation for various lighting angles.
High Efficiency: Industry-leading 150Lm/W with instant-on, flicker-free start.
Multiple Optics: Available in 20°/40°/60°/49*21°/30*70° beam angles.
Durability: 50,000-hour operating life with unique heat extraction design.

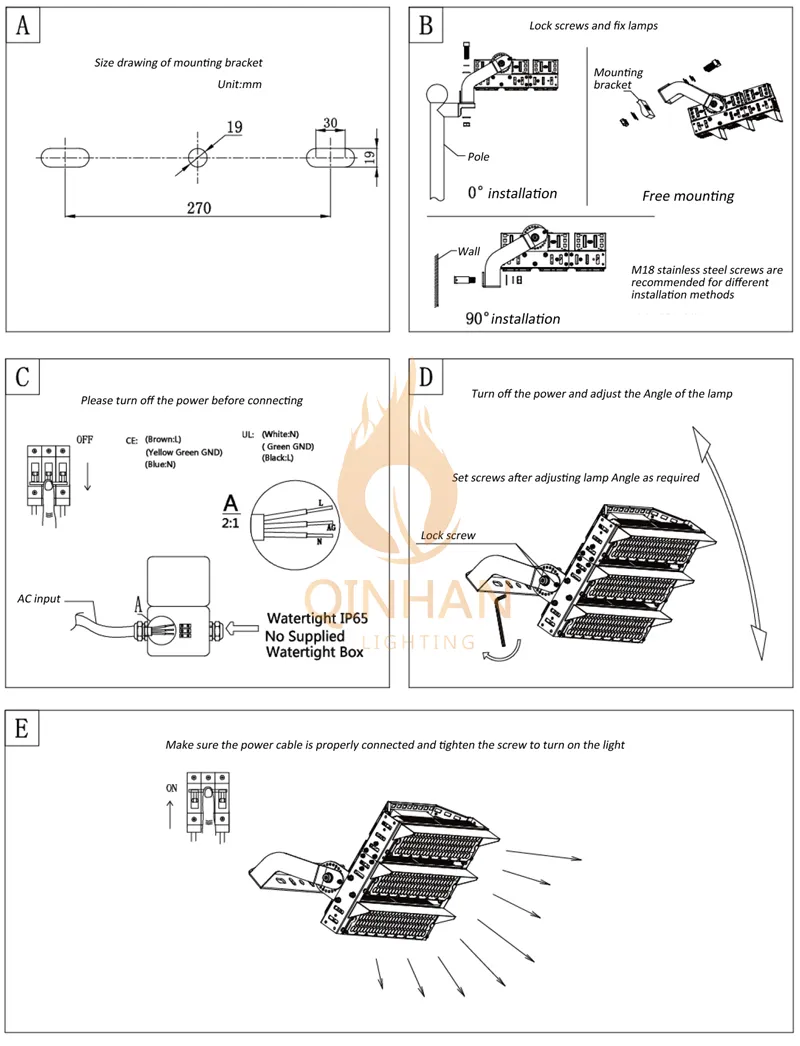

Heavy Duty: Stirrup mounting bracket with protractor scale for easy aiming.
Replacement: Equivalent to 250W-5000W metal halide fixtures.
📋
Technical Datasheet

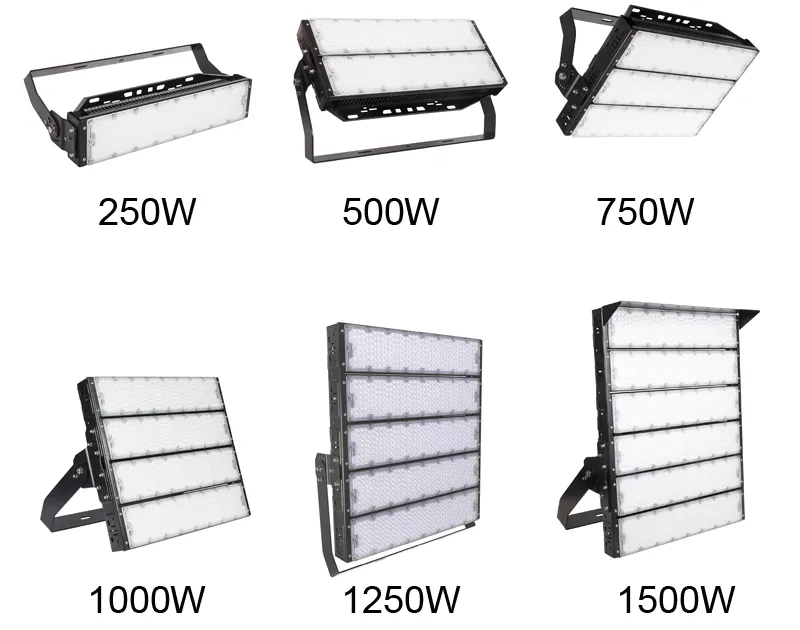

| Adjustable 500-1500W LED Stadium Lamp | ||||
|---|---|---|---|---|
| Model | QH-FLMS-500W | QH-FLMS-750W | QH-FLMS-1000W | QH-FLMS-1500W |
| Power | 500W | 750W | 1000W | 1500W |
| LED Qty | 192pcs | 288pcs | 384pcs | 576pcs |
| Gross Weight | 6.5Kg/pcs | 14Kg/pcs | 18.4Kg/pcs | 25Kg/pcs |
| Input Voltage | 90-305V AC 50/60Hz (Optional 480V) | |||
| Color Temp | 3000K, 4000K, 5000K, 6500K (Max 20000K) | |||
⚙
Electrical & Material Info
| ELECTRIC INFORMATION | |
| Electrical Class | Class I |
| Power Factor | ≥0.97 (at full load) |
| Driver Brand | Meanwell / Moso / Sosen / Inventronics |
| Control System | DALI / 1-10V / 0-10V / DMX512 Dimming |
| HOUSING AND MATERIALS | |
| Housing | ADC 12 Die-casting + AL 1070 Pure Aluminum |
| Impact Resistance | IK08 (Standard), IK10 (Optional) |
| Vibration Test | Compliant with ANSI C136.31 (3G) |
✔
Applications
Square
Park
Port & Airport
Shipyard
Container Wharf
Golf Course
Football Field
High Mast Lighting
?
Frequently Asked Questions
Can we customize the branding and packaging?
Yes, we support logo printing or embossing on the fixtures and offer custom branded packaging boxes.
What is the warranty period for these high power flood lights?
These LED flood lights come with a standard 5-year to 10-year warranty depending on the configuration.
How is the quality control managed?
Quality is our priority. We attach great importance to quality control from the beginning to the end, and our products have gained CE, DLC, ROHS, FCC, and ISO9001 certifications.
What components are used in your high-quality LED lights?
We only use premium components, including CREE or Nichia LED chips and world-class drivers like Meanwell or Inventronics.
What are the available payment terms?
We accept various payment methods including T/T, L/C at sight, and Western Union.
What happens if a light is defective upon arrival?
We provide compensation by sending the same quantity of functional lights in your next order to ensure your project remains on track.
