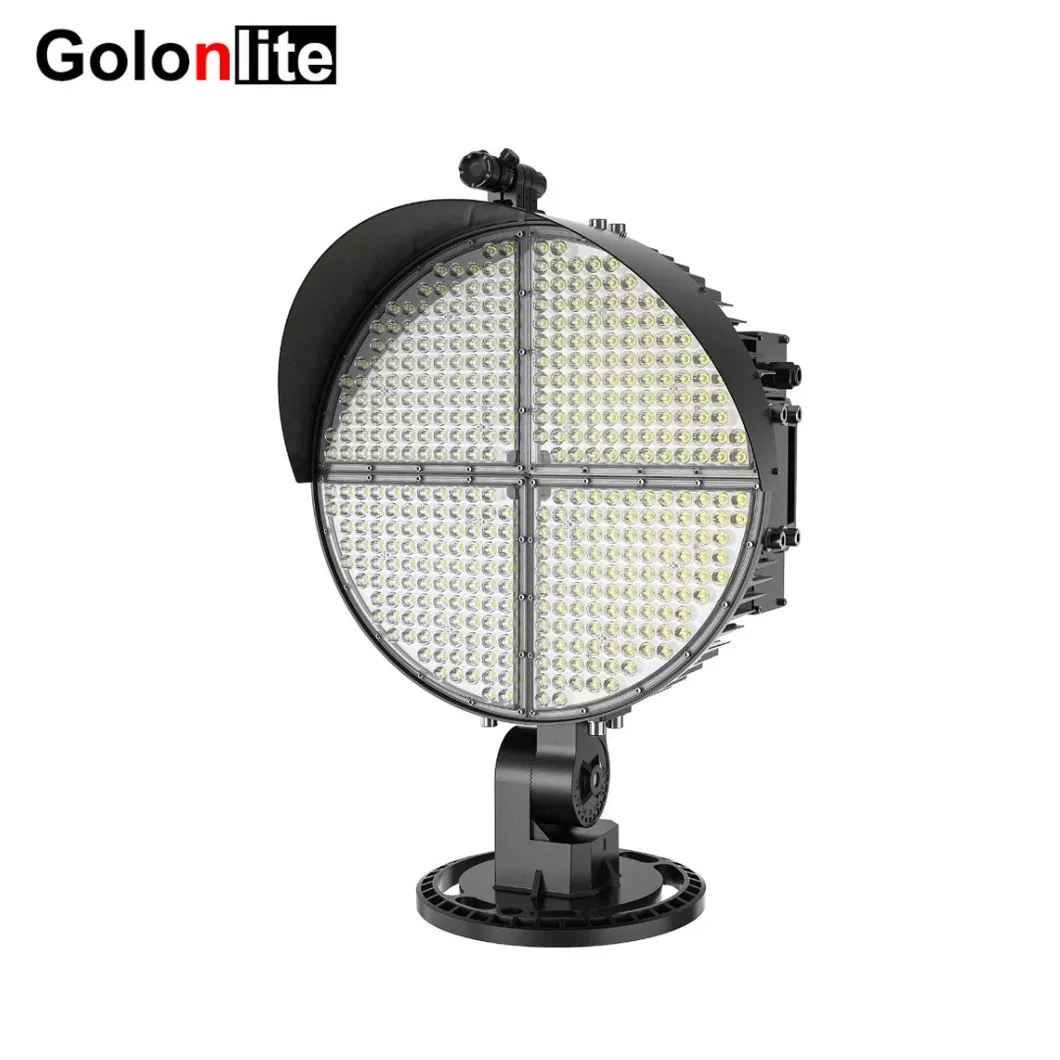

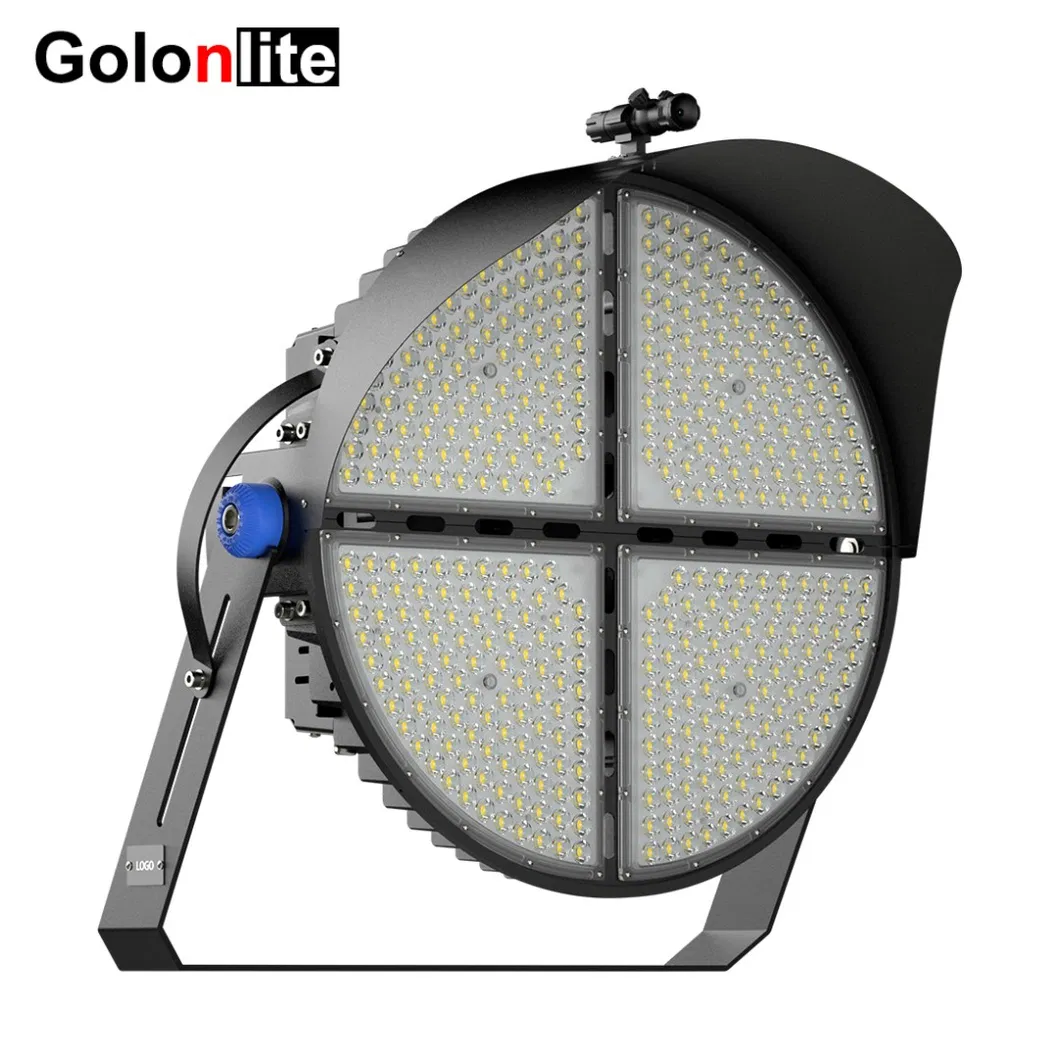

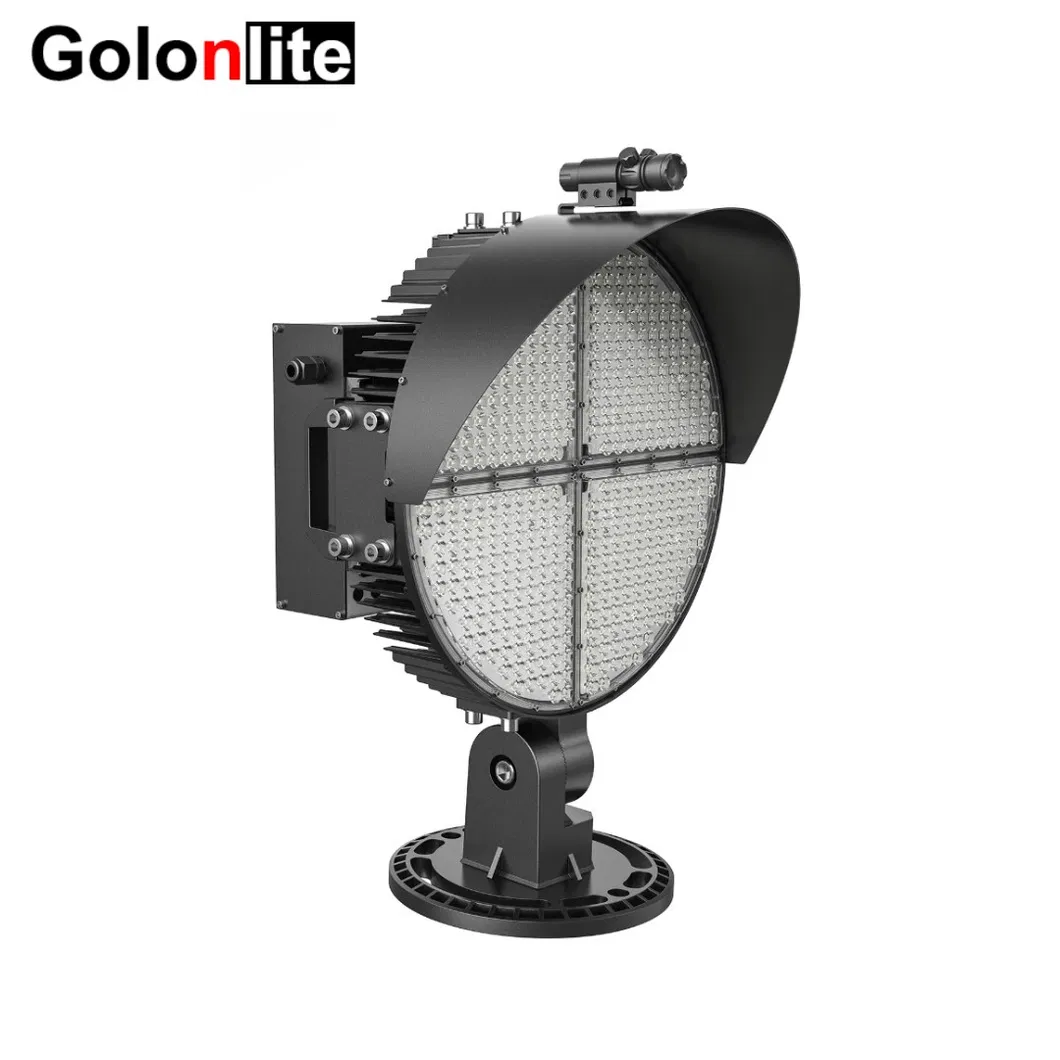

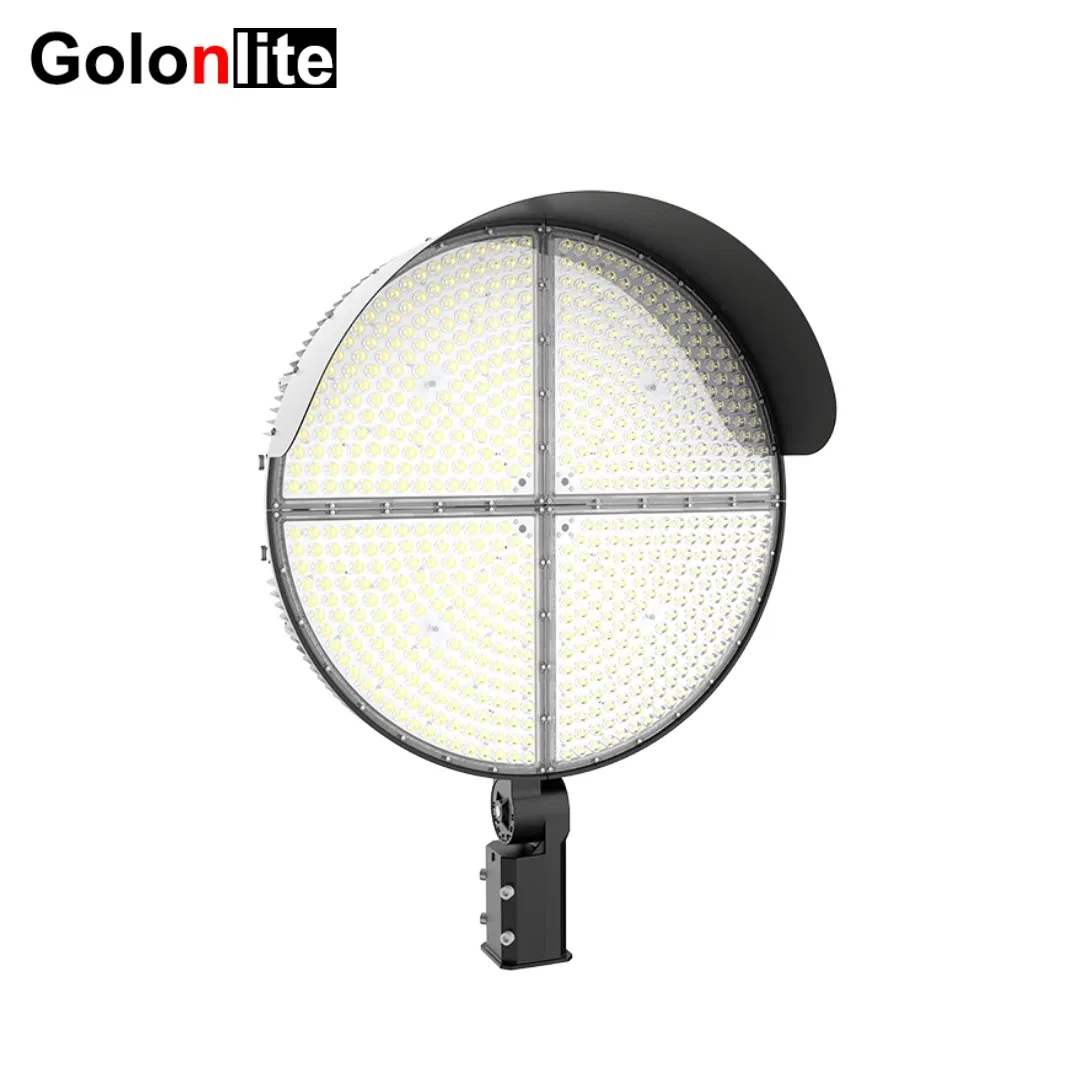

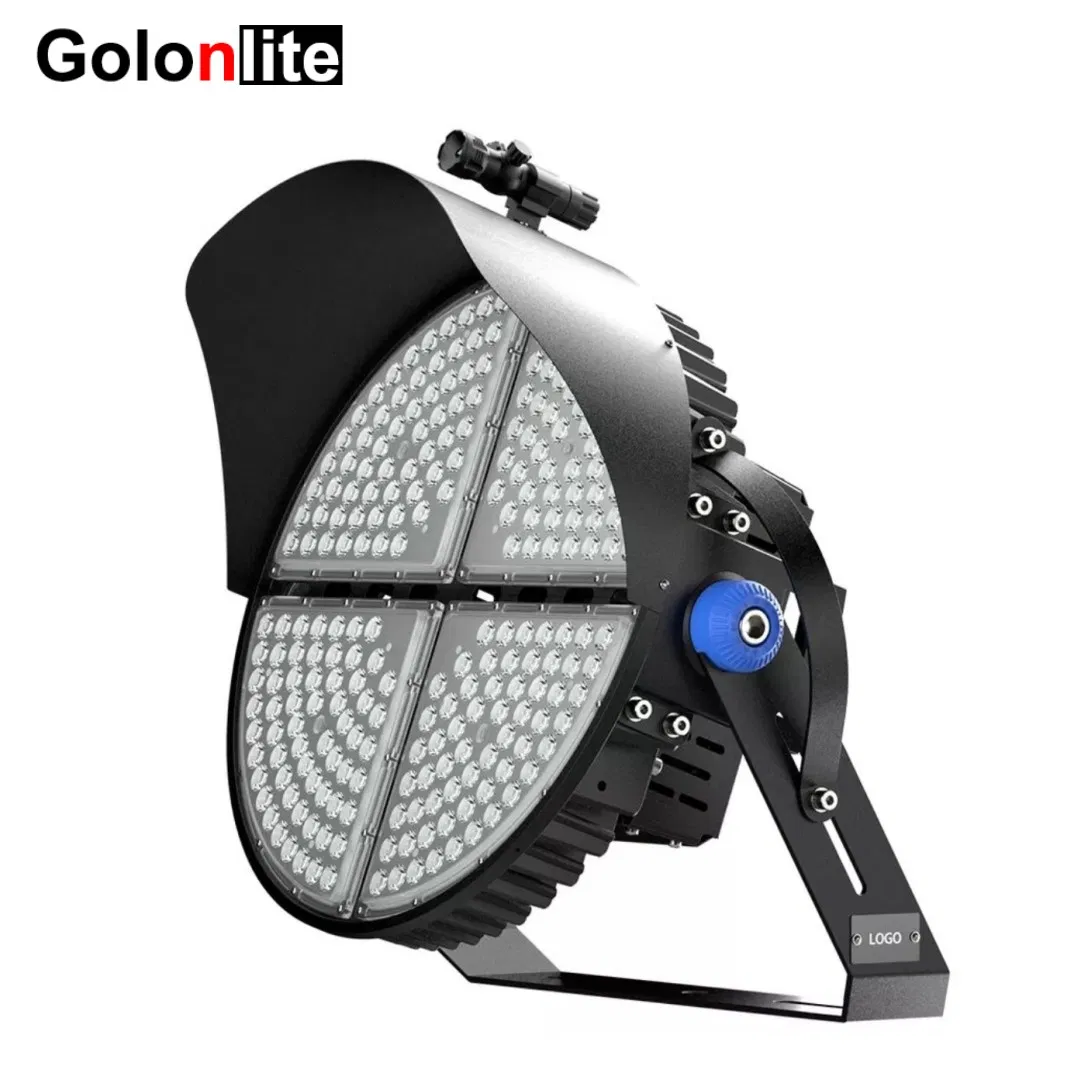

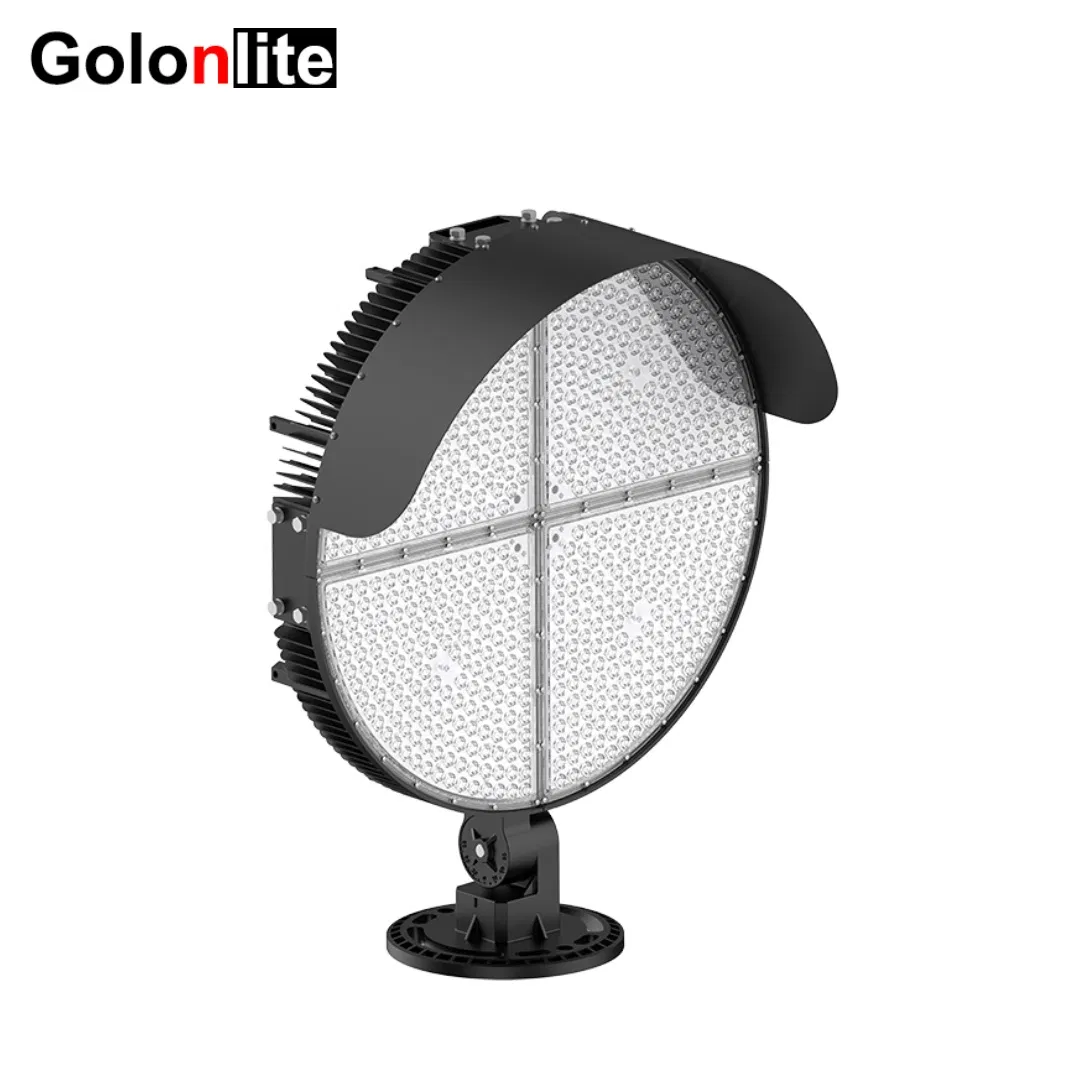

300W 400W 500W 600W 800W 1000W 1200W 1500W 1600W Outdoor Reflector Spotlight Projector Football Sport Field Stadium Lighting High Mast Round LED Flood Light
Product Description
300W - 1600W Outdoor Reflector Spotlight Projector - High Power LED Stadium & Sport Field Lighting
Basic Parameters
Model No.GL-FR-600W Series
Power Range300W to 1600W Options
IP RatingIP66 / IP67 Waterproof
Input Voltage100-277VAC / 200-480VAC
Efficiency150-170lm/W (Custom 190lm/W)
LED BrandSMD5050 Chips
CertificationCE, EMC, LVD, RoHS
MaterialDie Casting Aluminum + Optical Lens
Key Features & Advantages

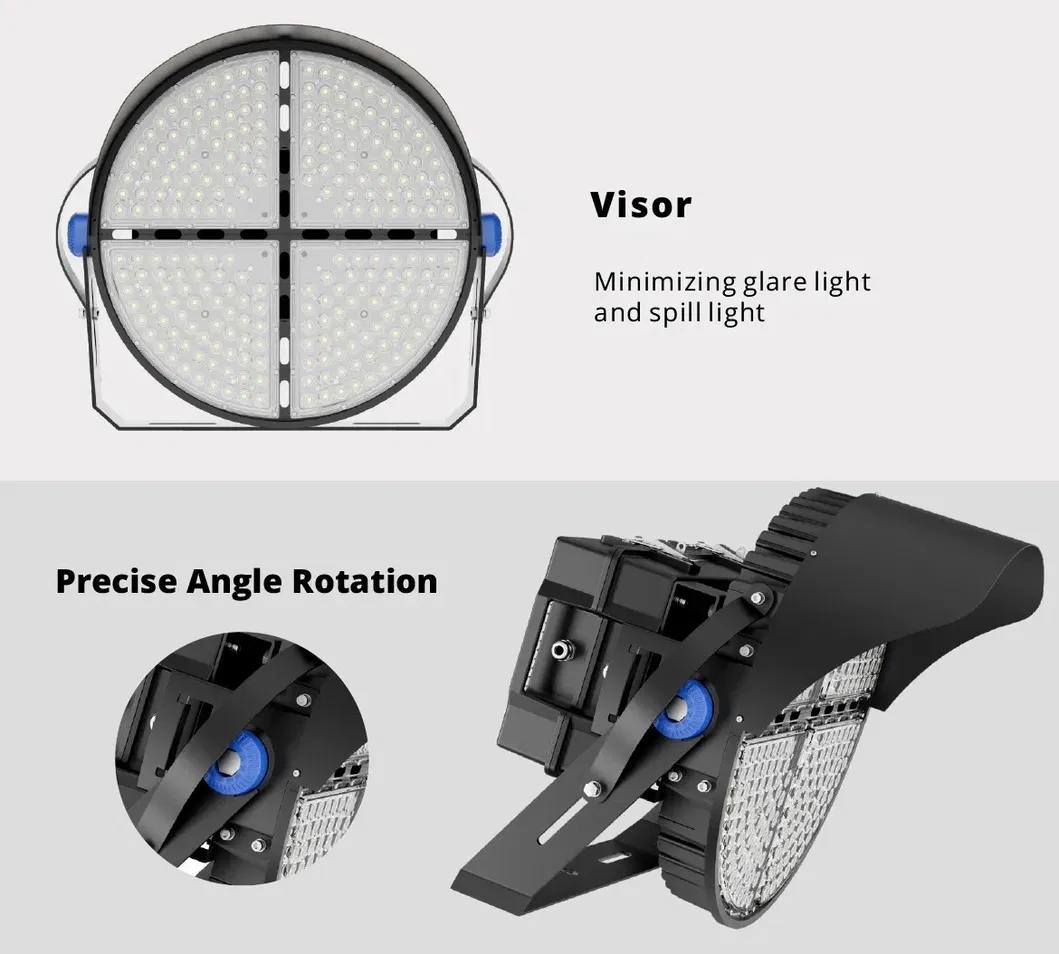

Anti-Glare Design: Equipped with a specialized visor to control light spill and reduce glare in sports environments.

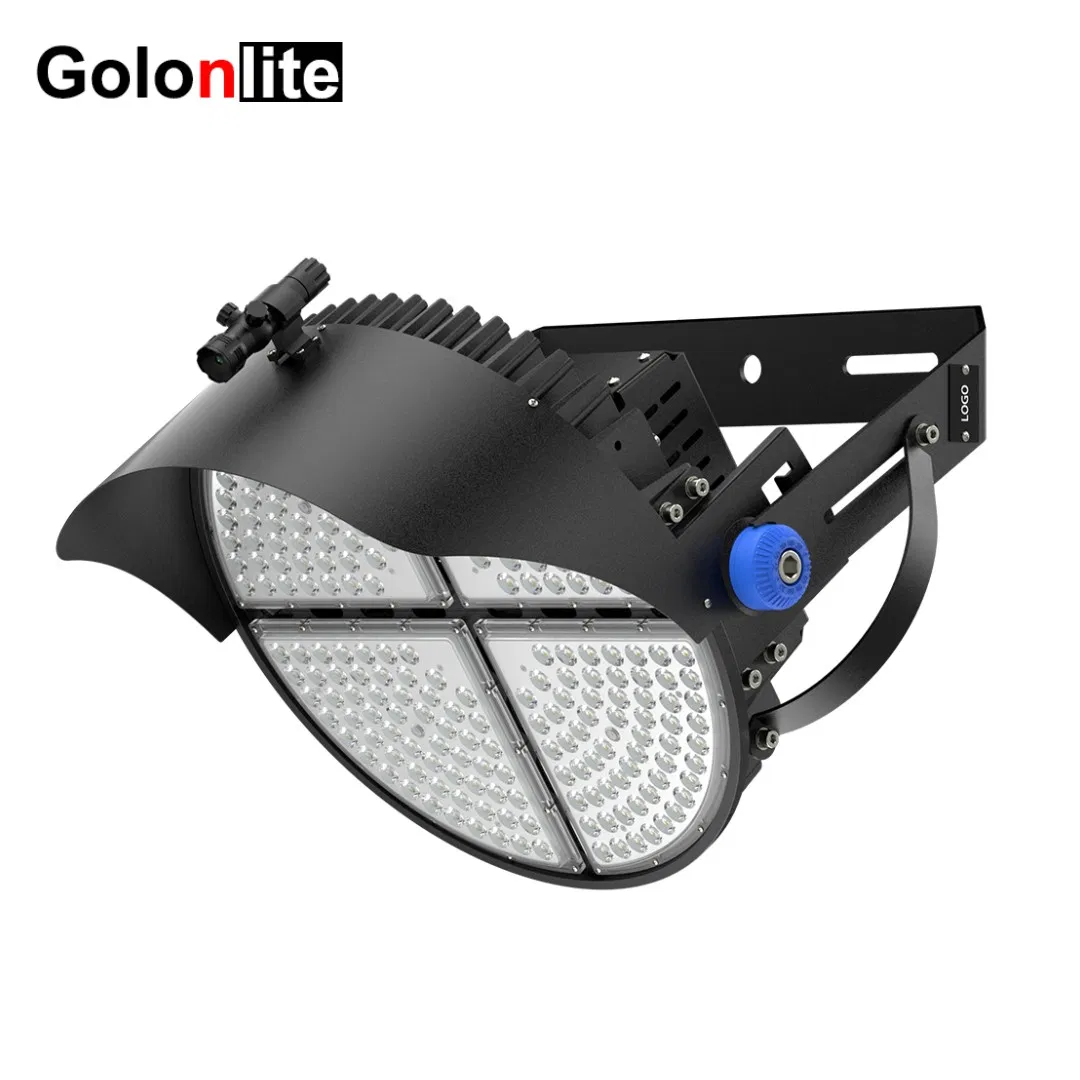

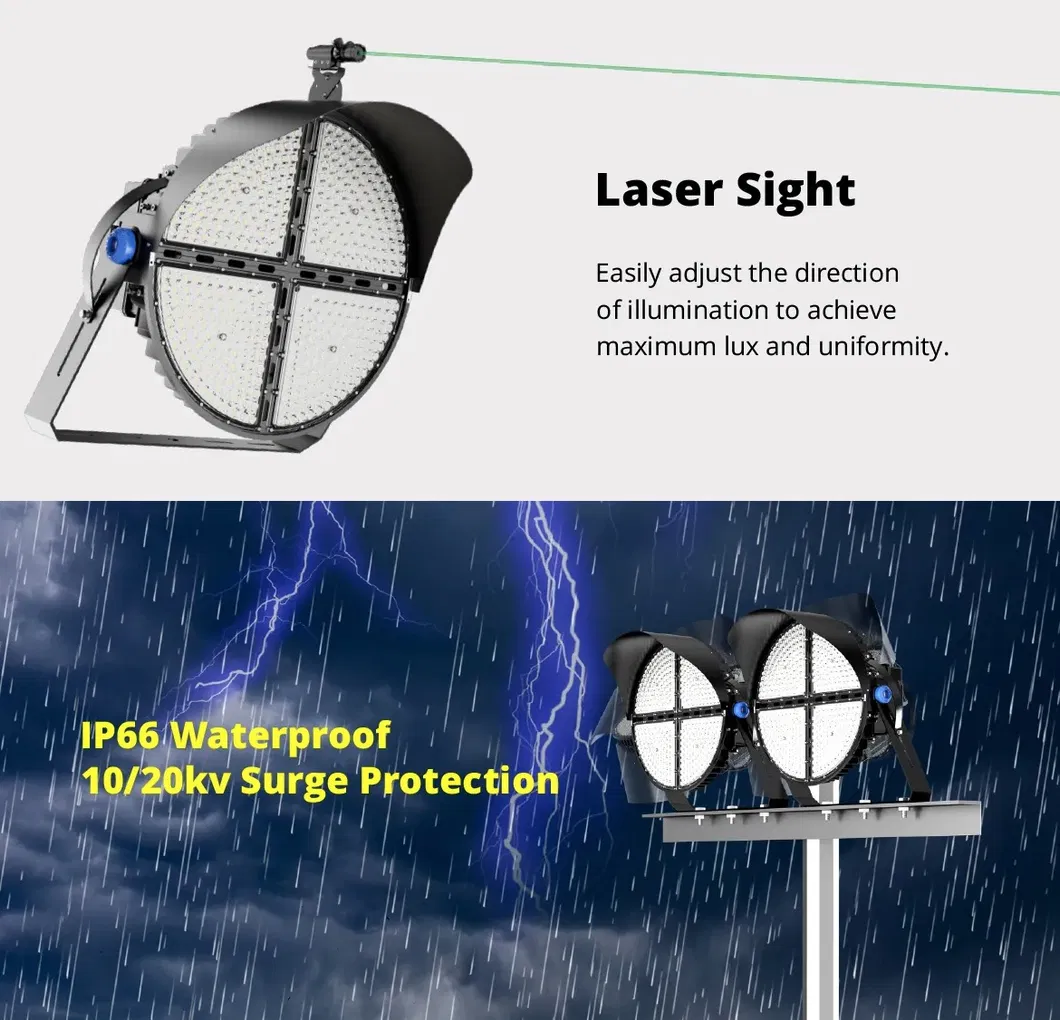

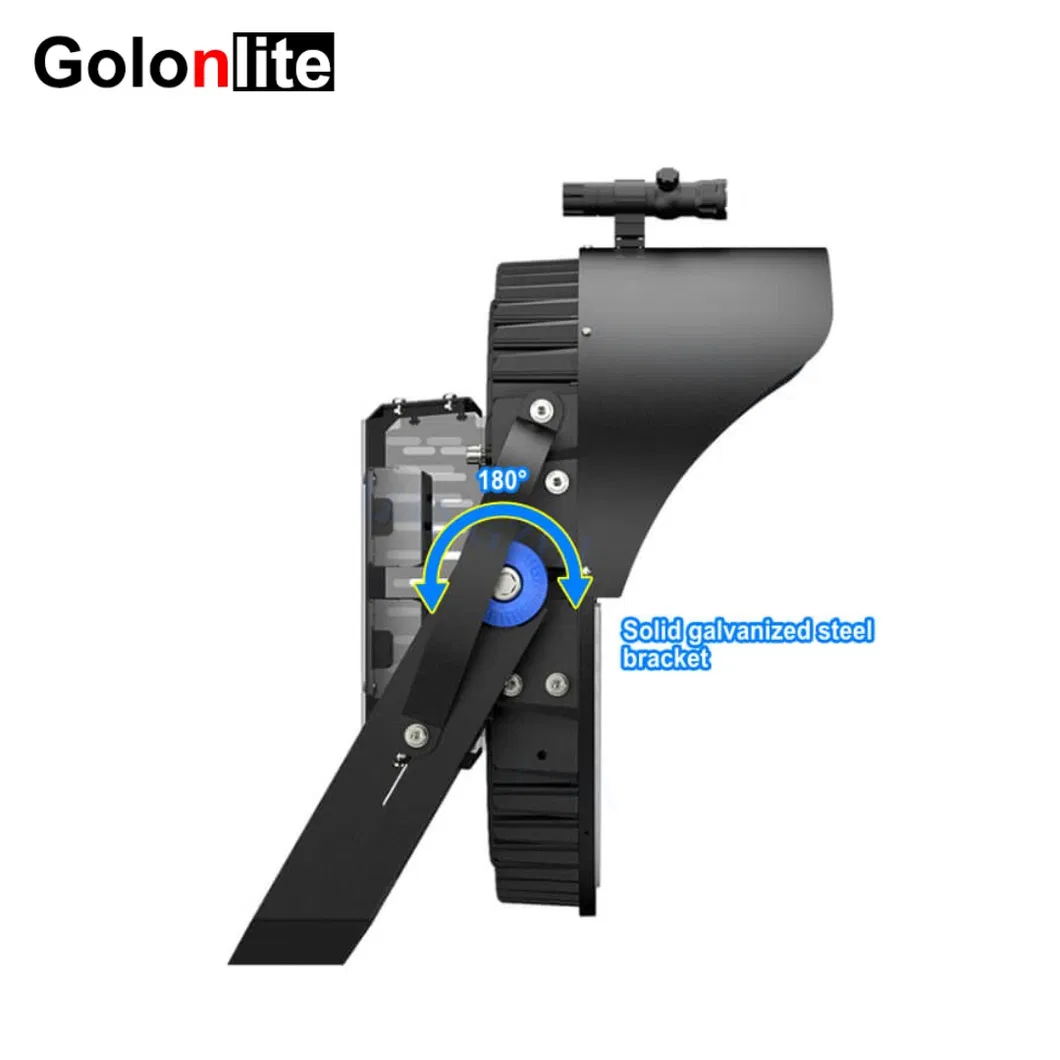

Precision Aiming: Optional laser pen integration for easy and accurate light positioning during installation.

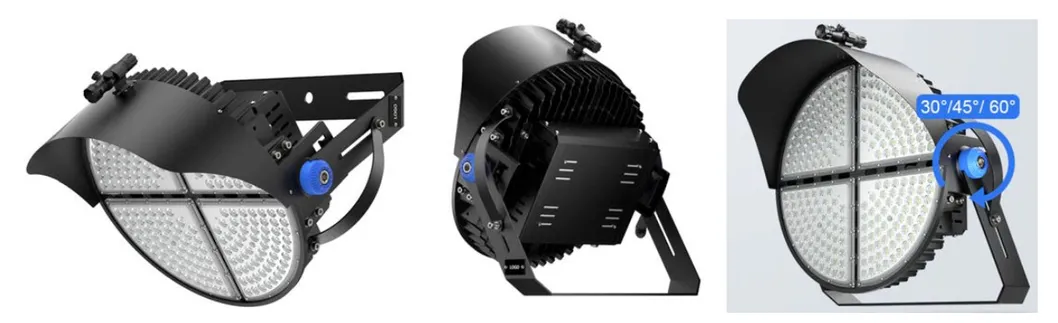

Multiple Beam Angles: Choose from 10°, 30°, 45°, 60°, or 90° to suit different mounting heights and field sizes.
Advanced Control: Supports 0/1-10V, Dali, DMX, and Zigbee dimmable systems for smart stadium management.
Extreme Durability: IK08 impact resistance and high-grade aluminum housing ensuring >50,000hrs lifespan.

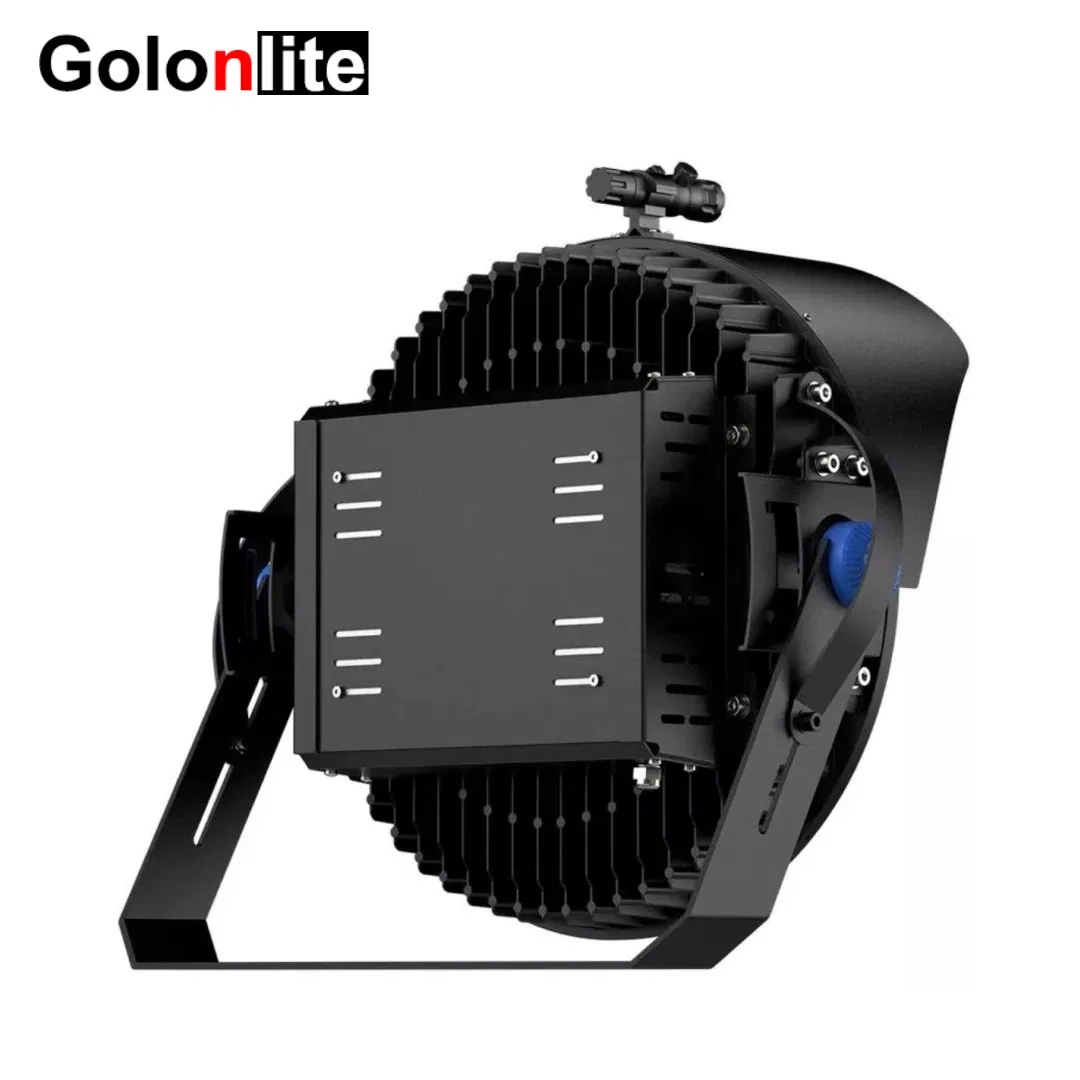

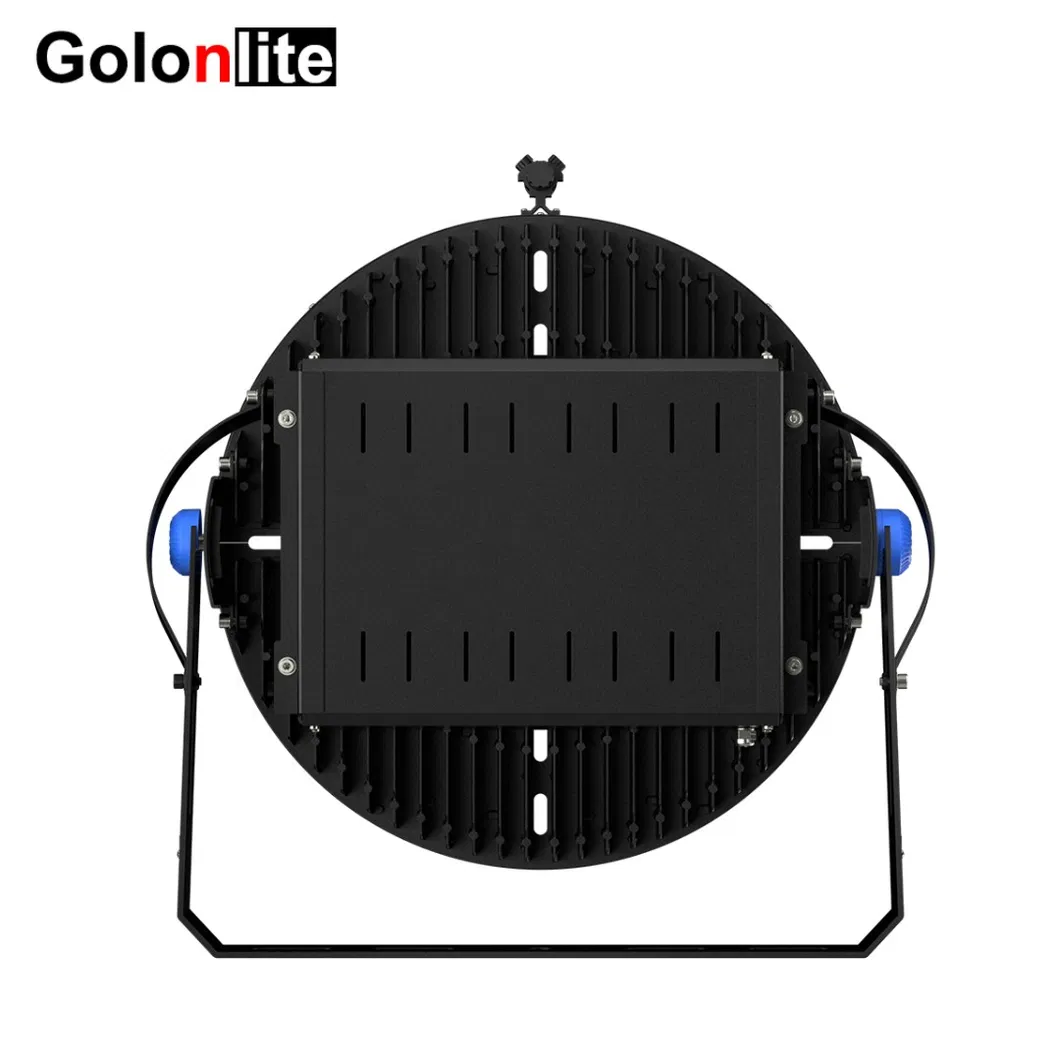

Thermal Management: Superior heat dissipation design to ensure stable performance at high power.
Detailed Technical Specifications
| Luminous Efficiency | 150Lm/W - 170LM/W (High Efficacy 180-190Lm/W available) |
| Color Temperature (CCT) | 3000K / 4000K / 5000K / 5700K / 6500K |
| CRI | Ra70 / Ra80 / Ra90 options |
| Power Supply | Meanwell / Sosen / Inventronics Options |
| Projection Distance | >35 Meters |
| Warranty | 5 / 7 / 10 Years Warranty Options |
Applications & Simulations

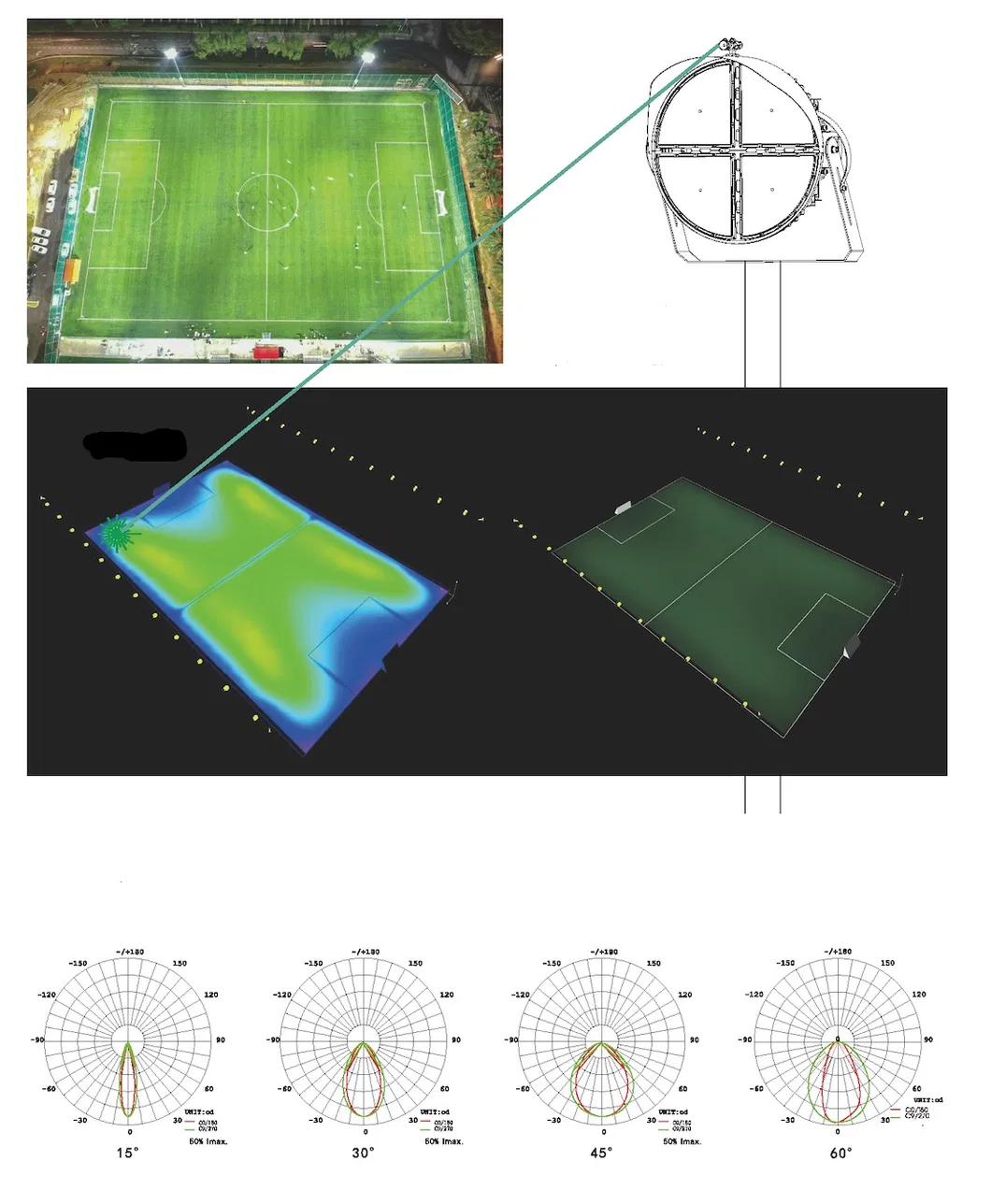

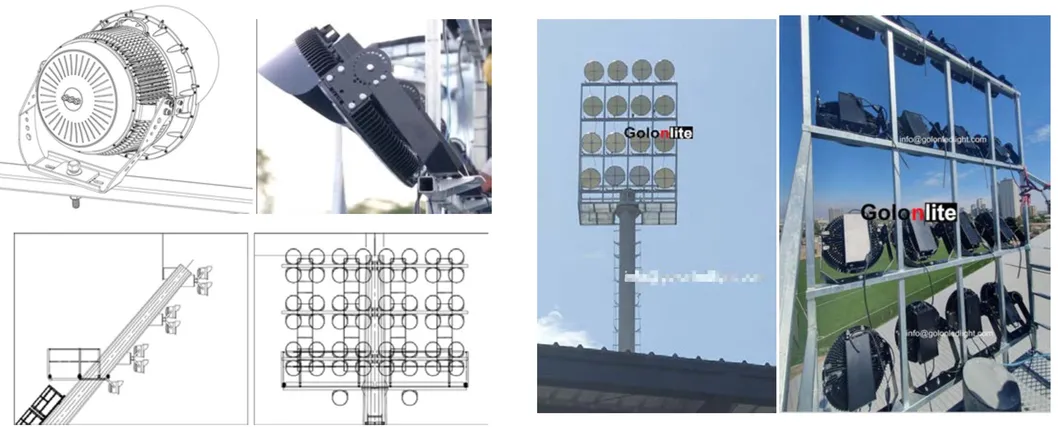

Free Dialux Lighting Simulation: We provide professional IES file analysis and lighting solutions for football courts, seaports, airports, and high mast projects.
Frequently Asked Questions
What is the expected lifespan of these stadium lights?
The lights are designed for long-term industrial use with a lifespan exceeding 50,000 hours, supported by high-quality drivers like Meanwell or Sosen.
Are these lights suitable for coastal areas or seaports?
Yes, with an IP66/IP67 waterproof rating and a durable die-casting aluminum body, these lights are highly resistant to outdoor elements and corrosion.
Can I choose different beam angles for my project?
Absolutely. We offer 10°, 30°, 45°, 60°, and 90° beam angles to ensure optimal light distribution based on your specific mounting height.
What dimming and control options are available?
Our stadium lights support various smart controls including 1-10V, DMX, Dali, and Zigbee dimming to help save energy and manage lighting scenes.
Do you provide technical support for lighting design?
Yes, we offer free Dialux lighting simulations and IES files to help engineers and designers plan the perfect lighting layout for any sports field.
What is the standard warranty period?
We offer flexible warranty options of 5, 7, or 10 years depending on the project requirements and components selected.
