High Mast LED Flood Light by Eastar, Jiangsu Province Origin
Product Description
Model NO.
YSD-GGD-006
Power
1000~3000W
Projection Distance
50m
Usage
Square, Stadium, Airport
IP Rating
IP67
Input Voltage
220V
LED Chips Brand
Bridgelux
Material
Hot DIP Galvanised Steel
Production Capacity
1000 Sets/Month
Certification
CE, RoHS, Energy Star, CCC

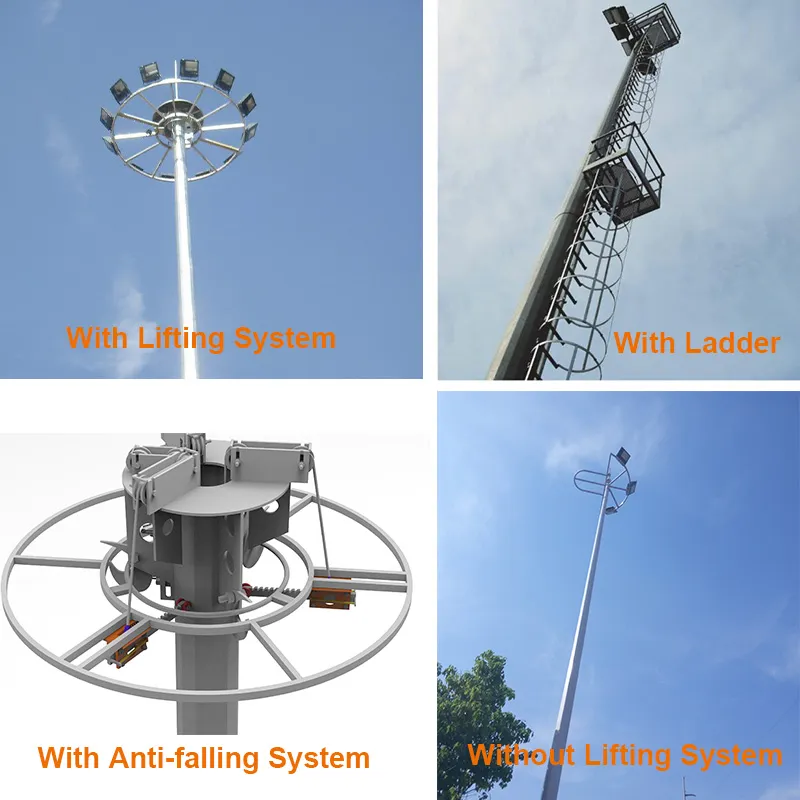

Types of High Mast Light Pole: Discover an expansive selection of High Mast Light Poles, each ingeniously crafted to cater to diverse outdoor lighting requirements. Our collection showcases pioneering designs and sturdy constructions, ensuring superior illumination in any setting.
Technical Data: Explore the exhaustive technical specifications that underscore the superior performance of our High Mast Light Poles. Crafted with meticulous precision, these details guarantee unmatched reliability and strength.
| Height | From 15m to 45m |
| Application | Street, highway, freeway, airport, seaport, plaza, stadium, etc |
| Shape | Round or polygon |
| Material | Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, SS400, ST52 |
| Thickness | 6mm / 8mm / 10mm / 12mm |
| Lighting source | 400W~2000W LED flood light, High pressure sodium, Metal halide |
| Lifting system | Internal lifter (3~5 m/min) with antiferromagnetism brake and break-proof device |
| Surface Treatment | Hot-dip galvanized and powder coating |
| Wind Resistance | Designed against wind speed of 160km/h |

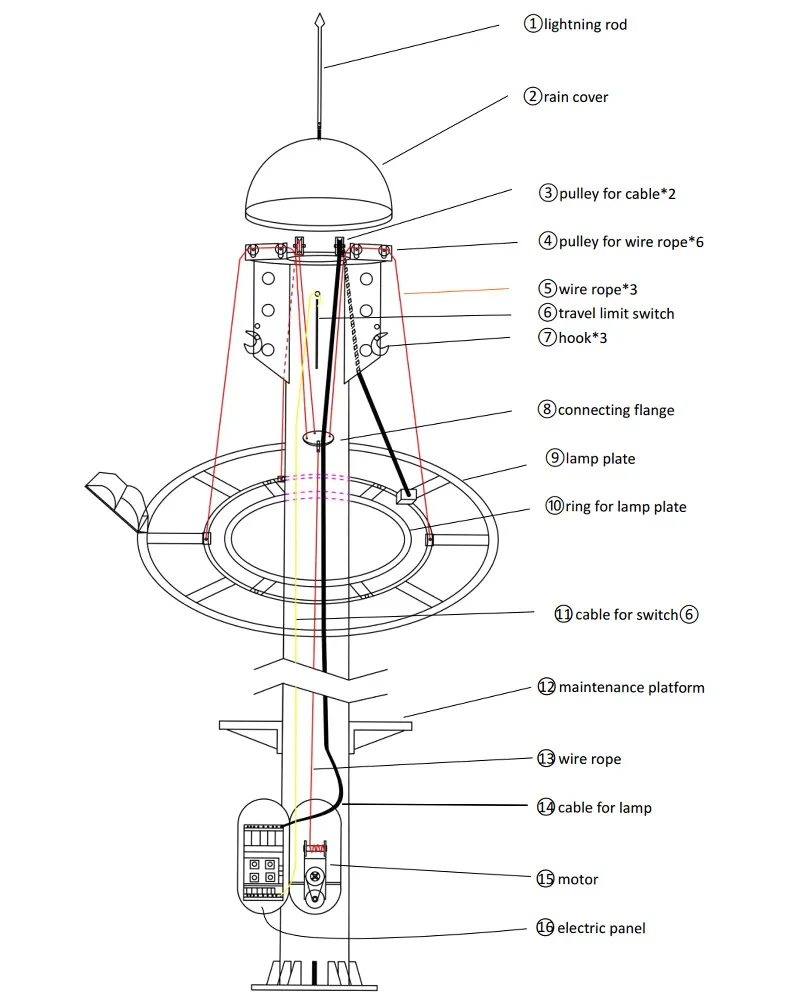

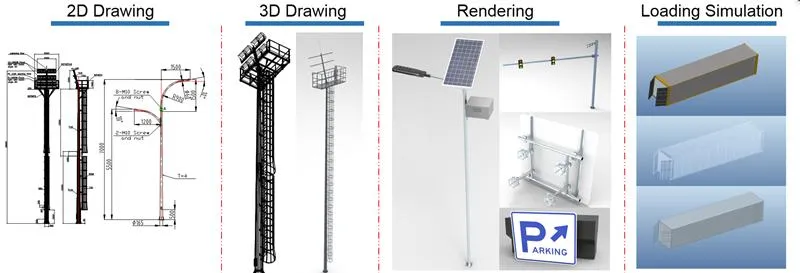

Product Structure: Advanced engineering ensures unparalleled stability and sustainability. Every element is expertly designed for flawless operation and durability.

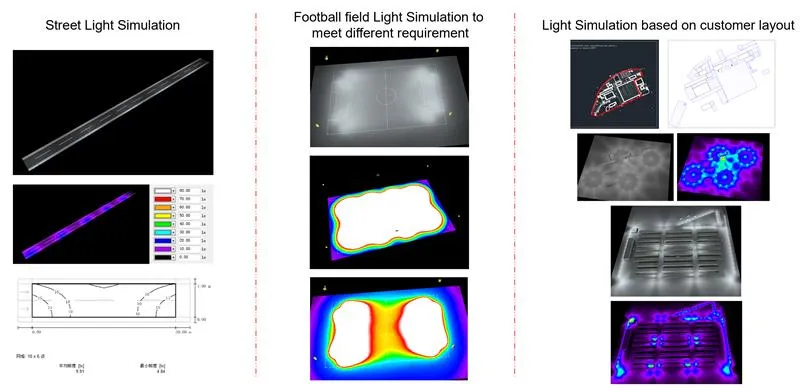

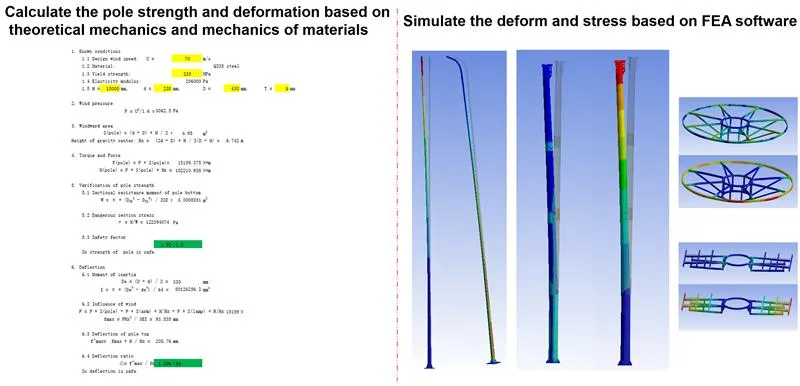

Calculation and Analysis: Each High Mast Pole is fine-tuned for peak efficiency and safety using sophisticated methodologies. Our light simulation technology ensures precise light distribution and heightened visibility.
1. What is the height range available for these high mast poles?
Our high mast poles are available in heights ranging from 15 meters up to 45 meters, suitable for various large-scale lighting needs.
2. What kind of wind speeds can the poles withstand?
The poles are standardly designed to withstand wind speeds of up to 160km/h, ensuring stability in harsh weather conditions.
3. How does the lifting system operate for maintenance?
The system features an internal lifter with a speed of 3-5 meters per minute. It includes an anti-ferromagnetism brake and break-proof device, with manual operation capability during power outages.
4. What materials are used in the construction?
We use high-quality steel such as Q345B/A572 and Q235B/A36. All poles undergo hot-dip galvanization and optional powder coating for maximum corrosion resistance.
5. Can the lighting be controlled automatically?
Yes, the electric control device can be equipped with time and light sensors to realize full-load or partial lighting modes automatically.
6. What certifications do your products hold?
Our products are certified by CCC, CE, CQC, EMC, Energy Star, and RoHS, meeting international safety and quality standards.
