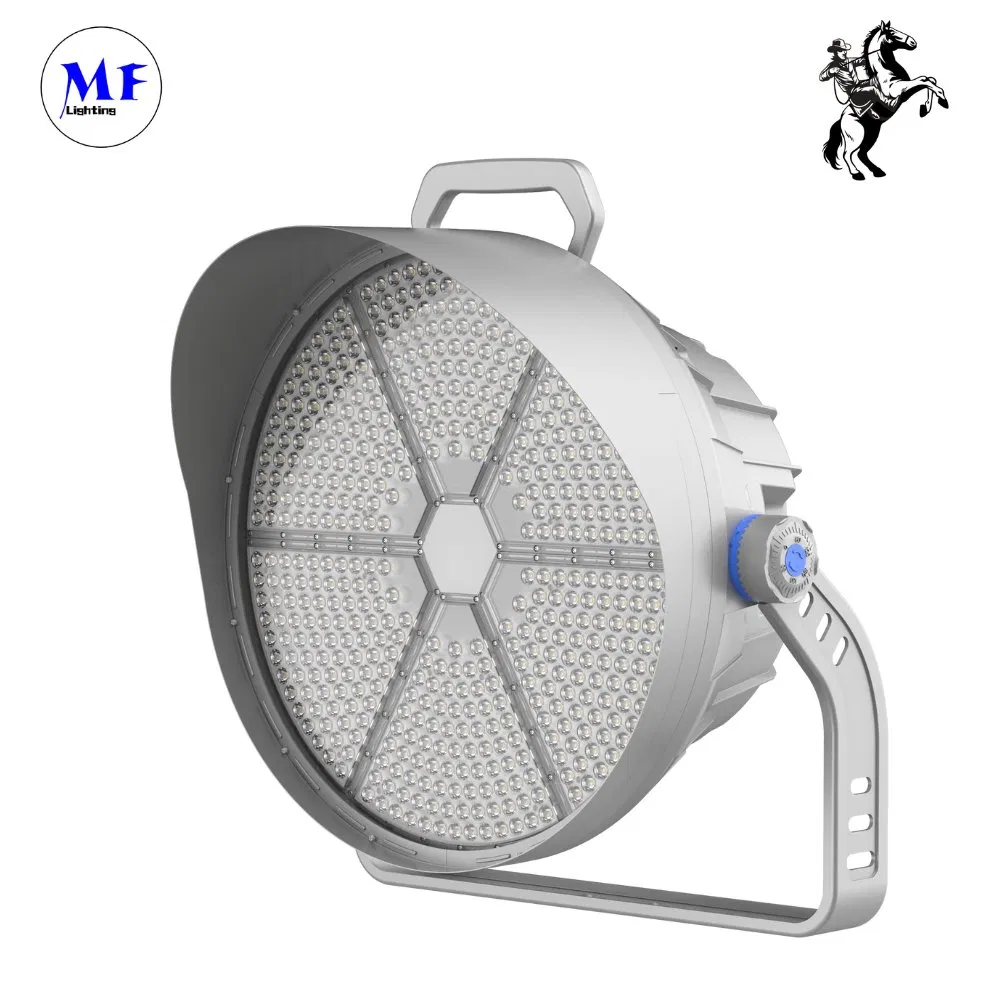

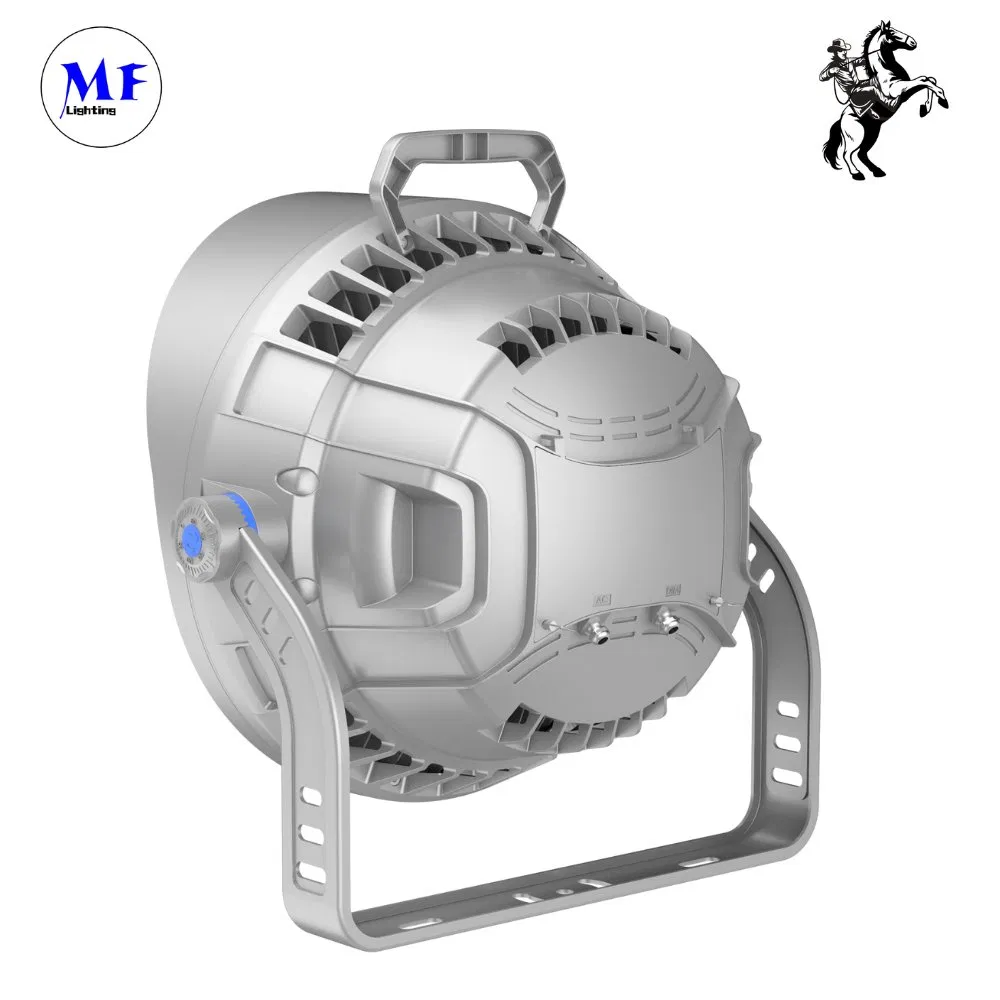

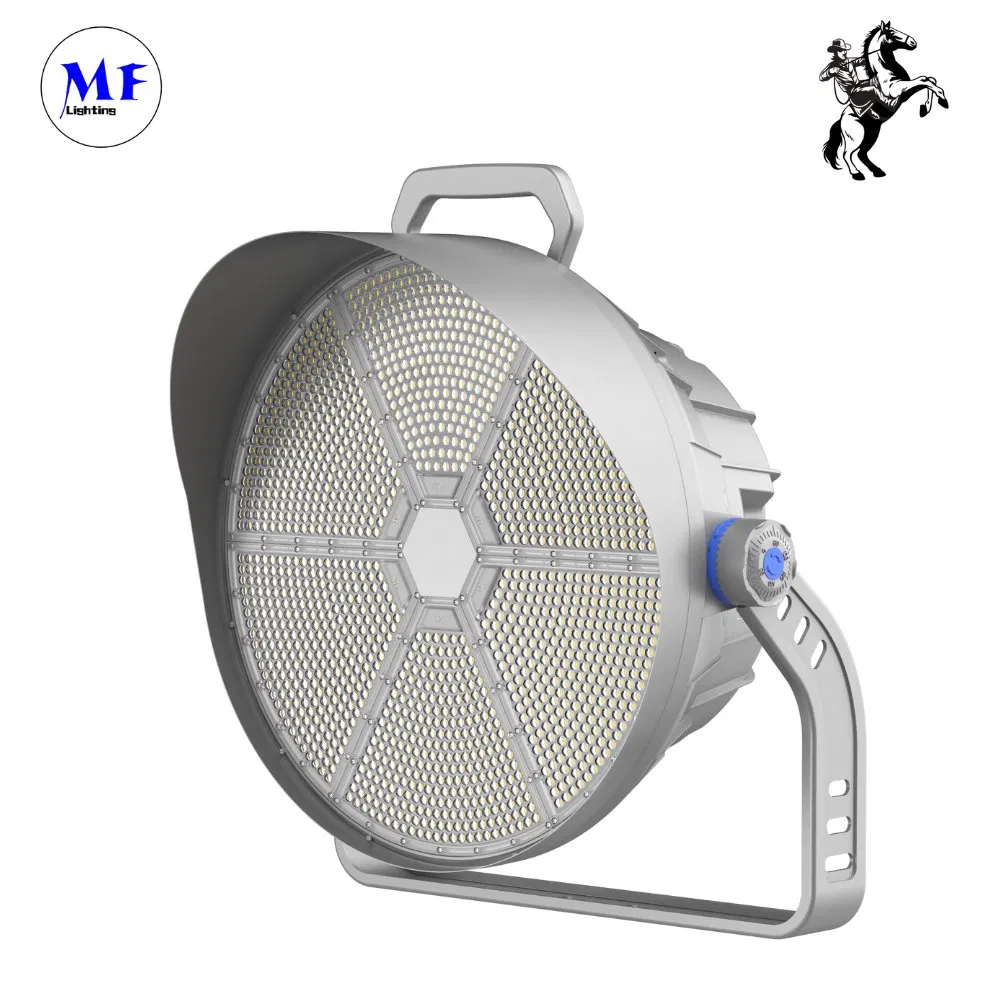

Factory Price High Power Projector Lights 1200W 1000W 800W 600W 400W IP66 LED Flood Light LED High Mast for Footbal Pitches Tennies Court Sport Field
Product Description
📊 Basic Information
Model NO.
MF-QCD-C400W
Power
400W - 1200W
IP Rating
IP66
Certification
CCC, CE, EMC, ETL, LVD, RoHS, SAA, VDE
Input Voltage
AC100-305V, 50-60Hz
LED Chips
Lmls/Osr
Luminous Efficacy
150lm/W
Warranty
5 Years
Lifespan
60,000hrs
Beam Angle
8°/25°/45°/60°/90°
💡 Product Overview
High Power Projector Lights 1200W 1000W 800W 600W 400W IP66 LED Flood Light LED High Mast for Football Pitches Tennis Court Sport Field
📋 Technical Specifications
| Model No. | MF-QCD-C400w | MF-QCD-C500w | MF-QCD-C600w | MF-QCD-C800w | MF-QCD-C1000w | MF-QCD-C1200W |
|---|---|---|---|---|---|---|
| Input Voltage | AC100-277 50/60Hz | |||||
| Power | 400w | 500w | 600w | 800w | 1000w | 1200w |
| Qty of LED | 864PCS | 864PCS | 864PCS | 1632PCS | 1632PCS | 1632PCS |
| Luminous Flux | 60000lm | 75000lm | 90000lm | 120000lm | 150000lm | 180000lm |
| CCT | 3000-6500K | |||||
| IP Rating | IP66 | |||||
| Size (mm) | 522*509*389 | 522*509*389 | 522*509*389 | 681*660*497 | 681*660*497 | 681*660*497 |

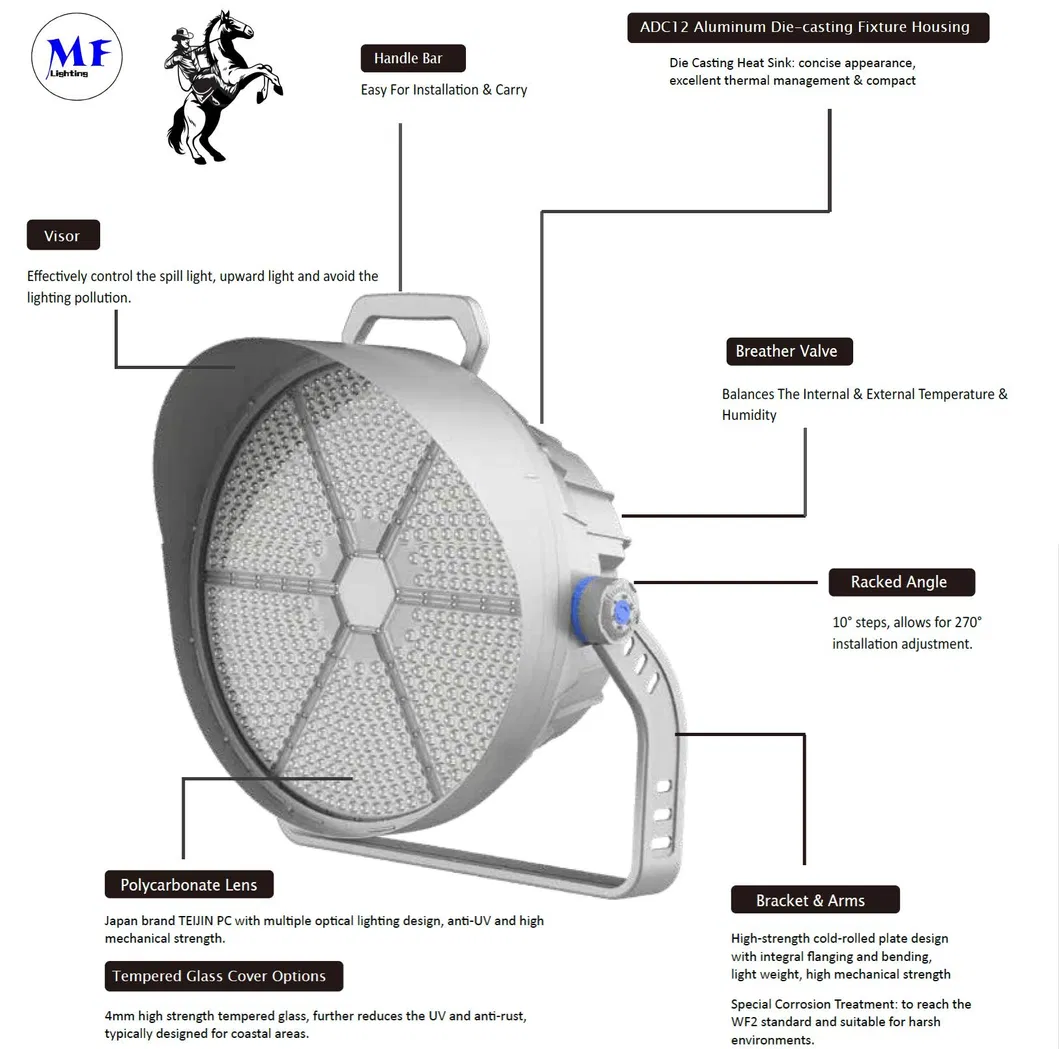

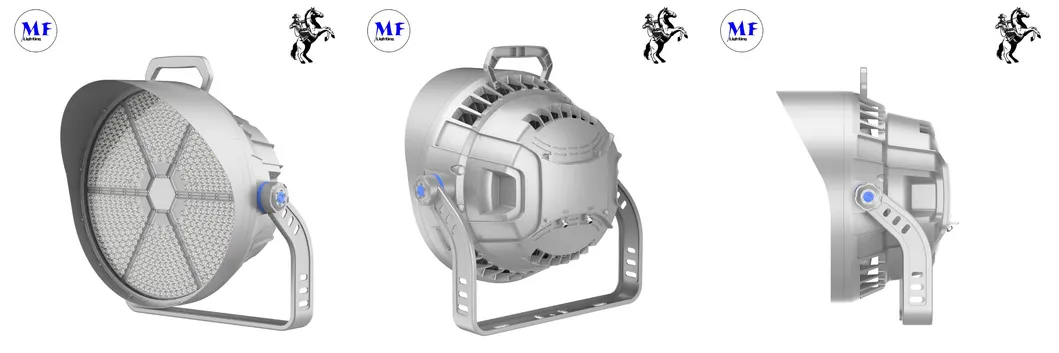

📸 Detailed Features
- Handle Bar: Easy for Installation & Carry
- ADC12 Aluminum Die-casting Housing
- Visor: Control spill light & avoid pollution
- Breather Valve: Balance temperature & humidity
- Racked Angle: 10° steps, 270° adjustment
- Polycarbonate Lens: Anti-UV & high strength
- Tempered Glass Cover: Optional 4mm glass
- Special Corrosion Treatment: WF2 standard

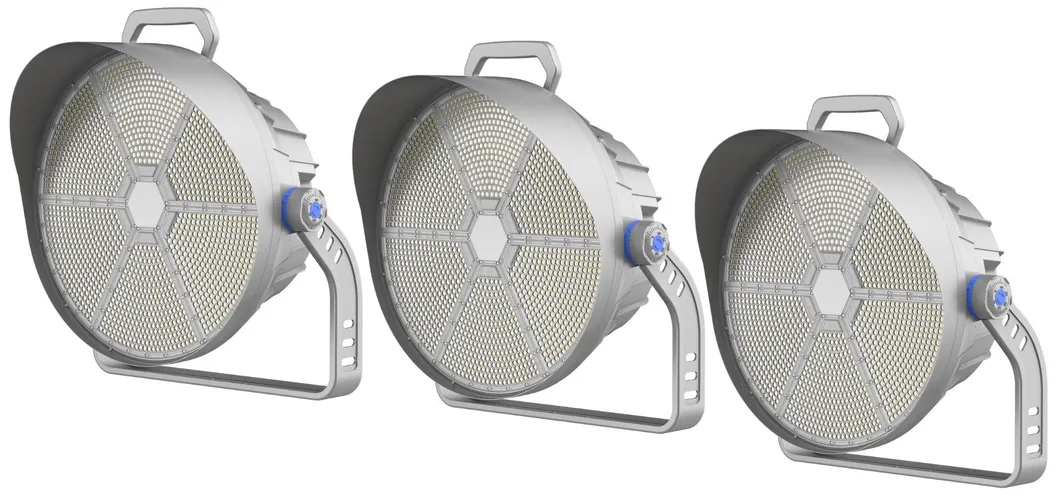

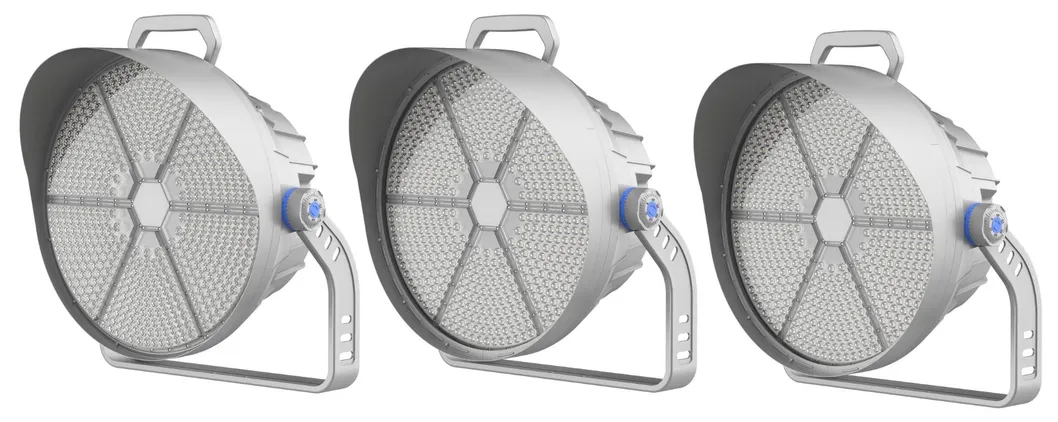

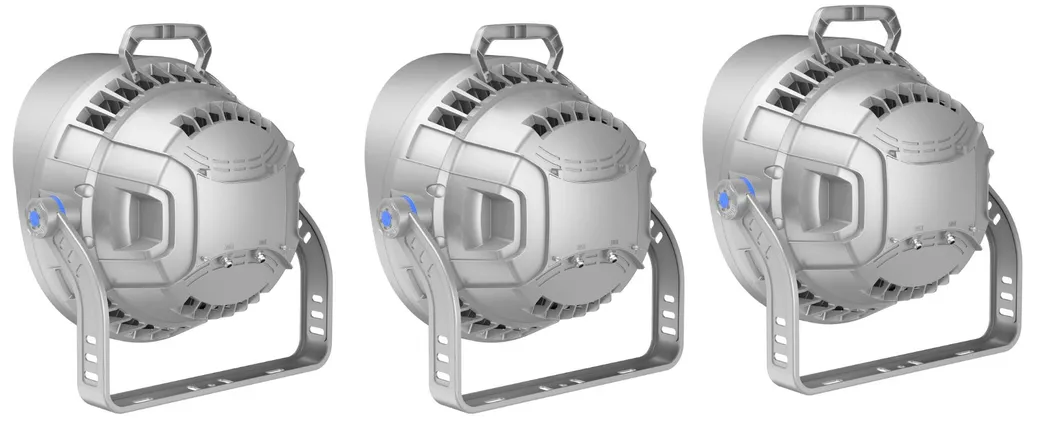

🚀 Competitive Advantages
• Lmls chips: High brightness, low light decay & long life time.
• International driver: Overheat protection, high convert efficiency, high PF & surge protection (1-10V, DALI2.0).
• Thermal Management: Die-casting ADC12 technology reduces chip Tj.
• Optical Lens: 94% light transmittance, IK08 rated.

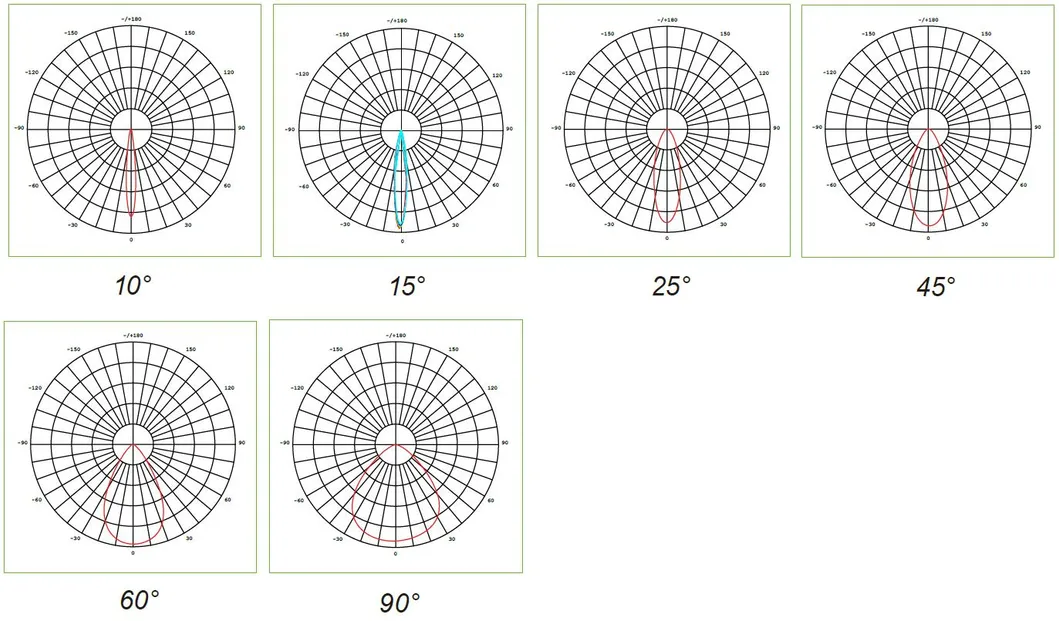

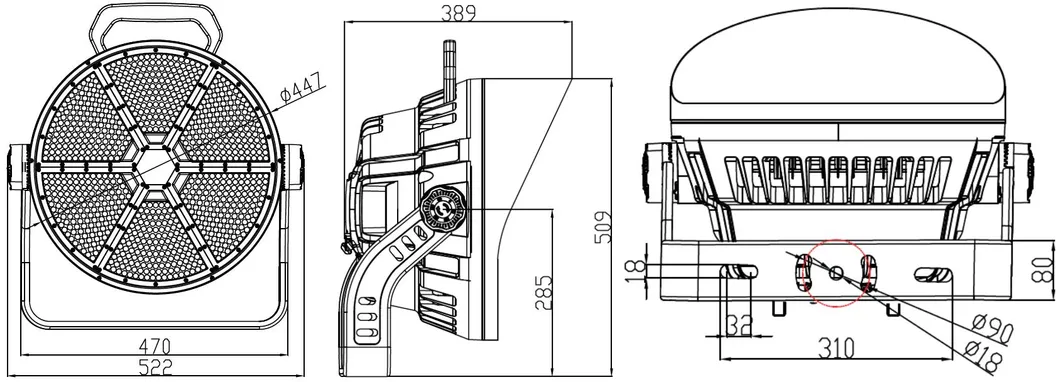

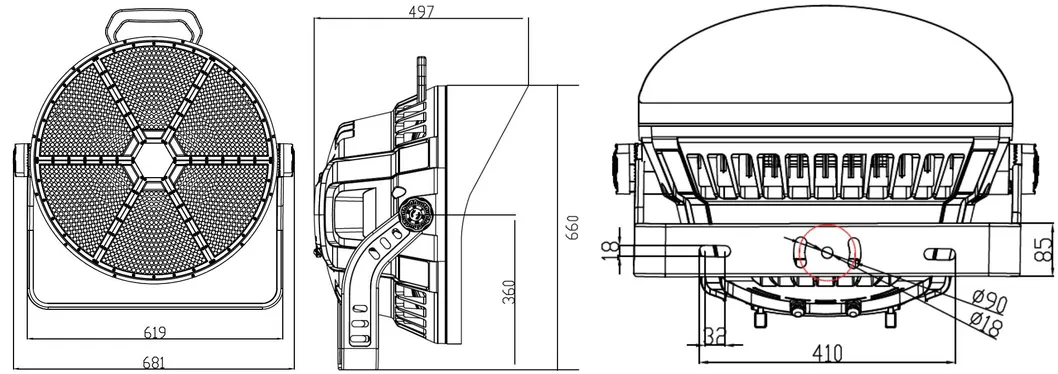

📐 Photometry & Dimensions

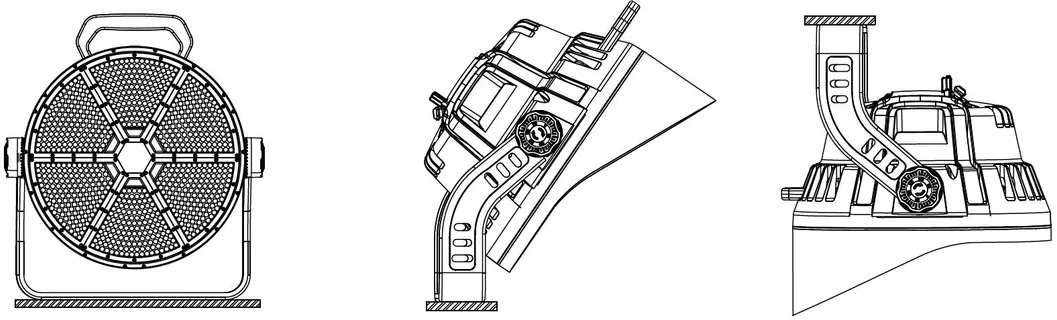

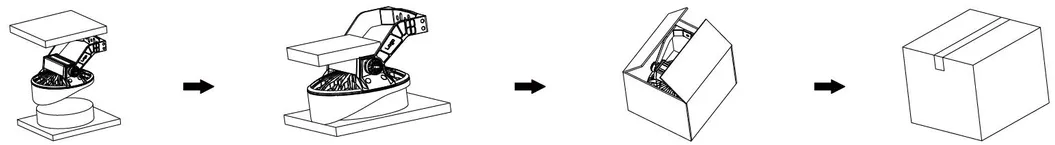

🔧 Installation & Packaging

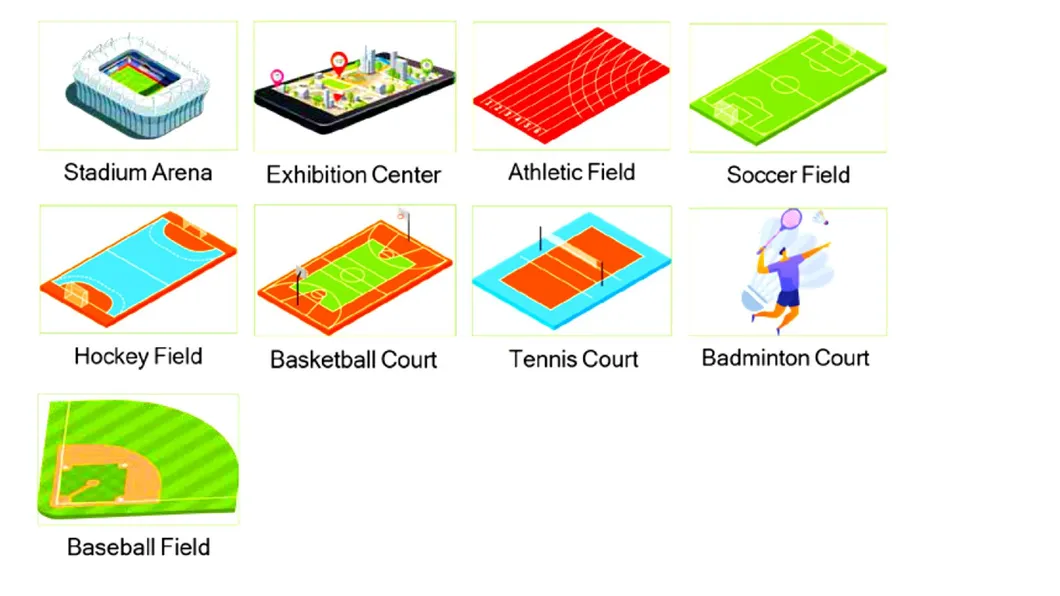

🌍 Applications
- Roads and Highways

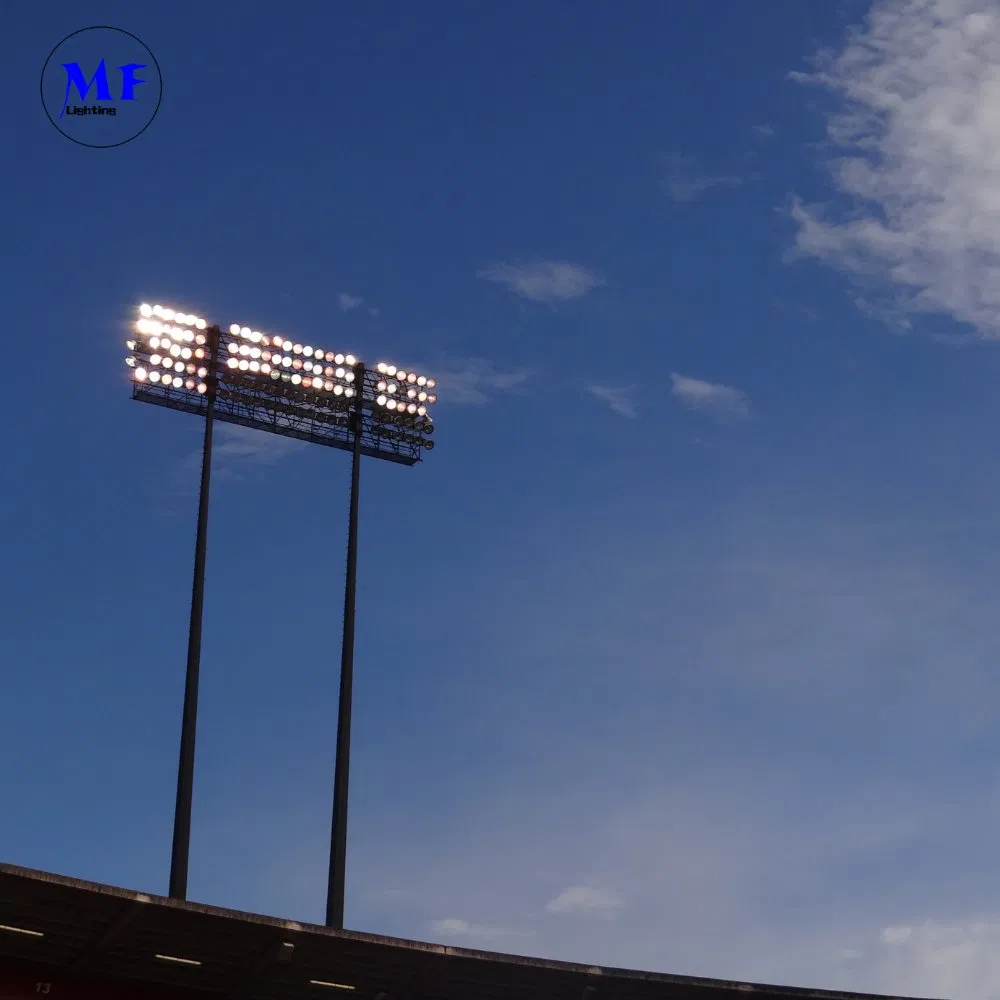

- Sports Stadiums & Arenas
- Airports & Shipyards
- Parking Lots & Railroad Yards
- Warehouses & Industrial Plants
- Outdoor Parks & Playgrounds
❓ Frequently Asked Questions
What is the IP rating of these high mast lights?
The lights are rated IP66, making them completely dust-tight and protected against powerful water jets, ideal for outdoor and harsh environments.
What is the warranty period for the 1200W LED flood light?
We provide a 5-year warranty for this product series, ensuring long-term reliability and performance.
Which beam angles are available for sports lighting?
Available beam angles include 10°, 15°, 25°, 45°, 60°, and 90°, allowing for precise light distribution in stadiums and large fields.
Can these lights be used in coastal areas?
Yes, with the optional 4mm high-strength tempered glass cover and special corrosion treatment (WF2 standard), they are specifically designed for coastal and harsh environments.
What is the expected lifespan of the LED chips?
The LED chips have a lifespan of approximately 60,000 hours, providing years of maintenance-free operation.
Are these lights compatible with dimming systems?
Yes, the international brand drivers used support 1-10V and DALI 2.0 dimming protocols for advanced lighting control.
