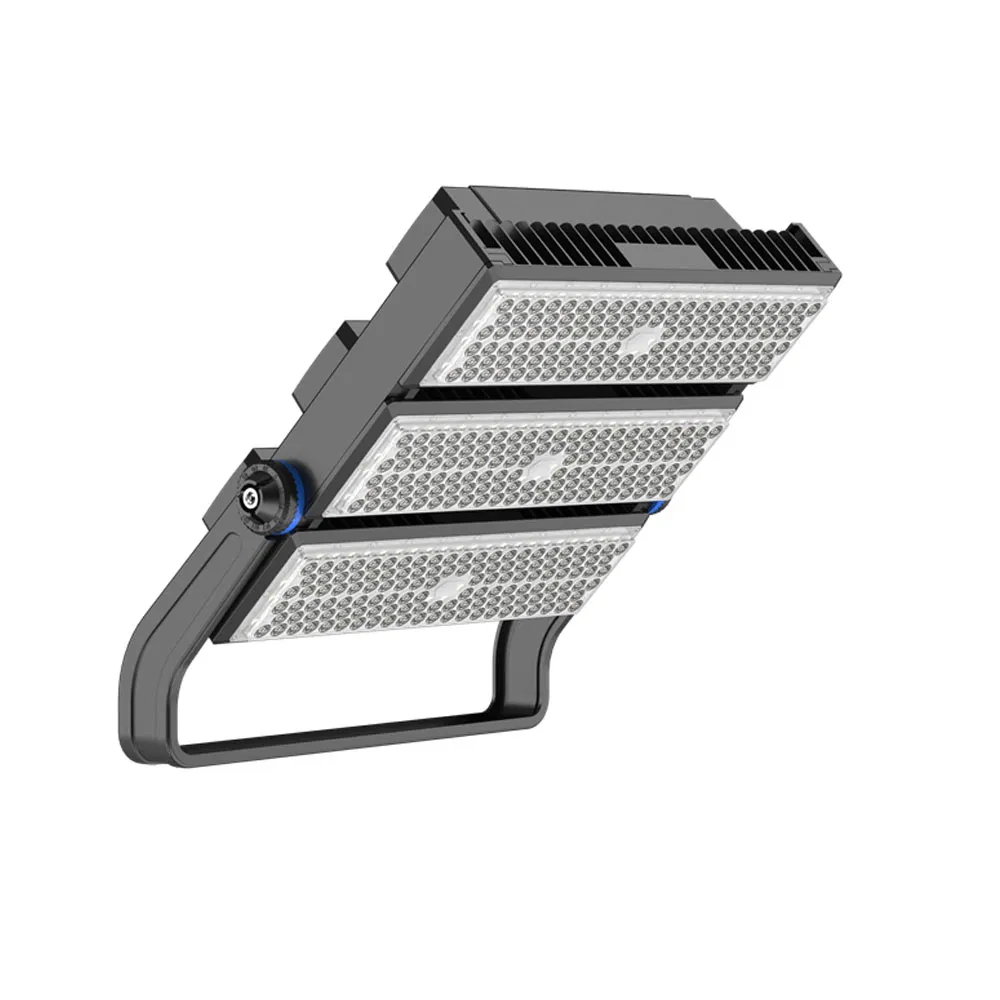

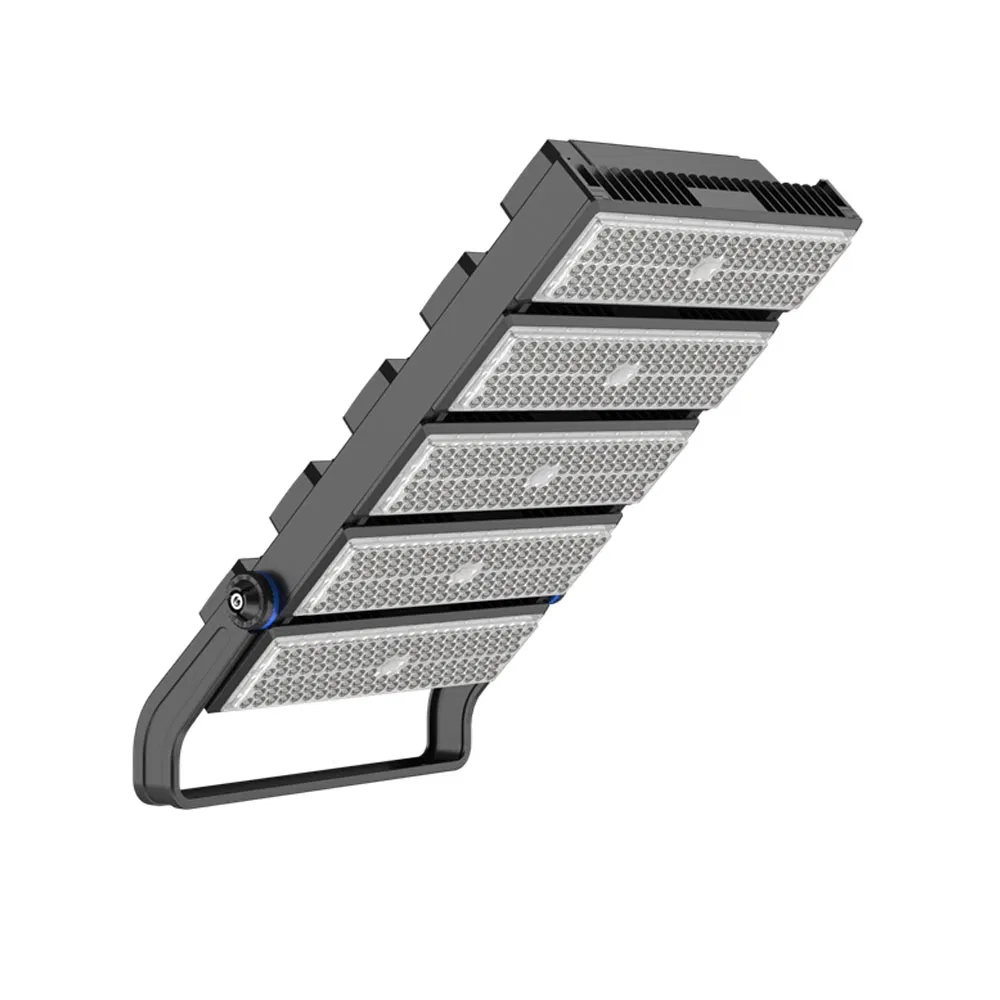

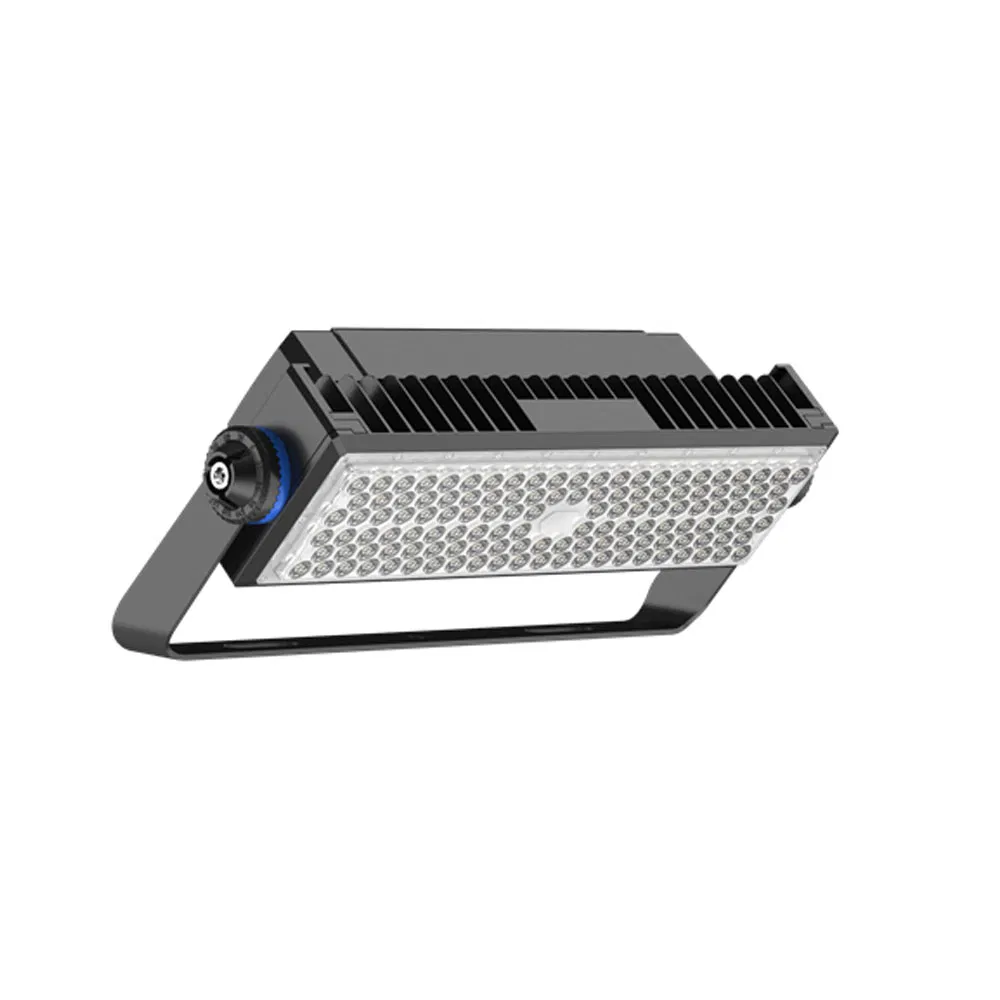

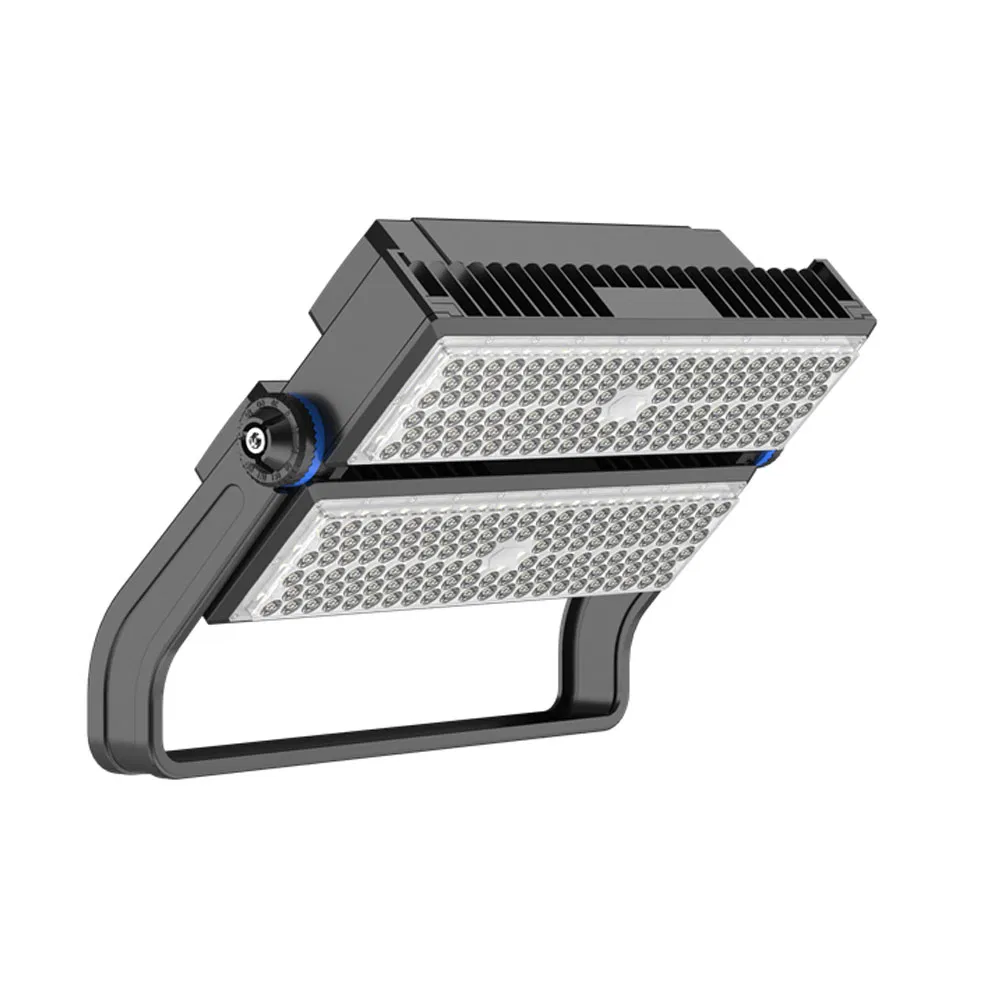

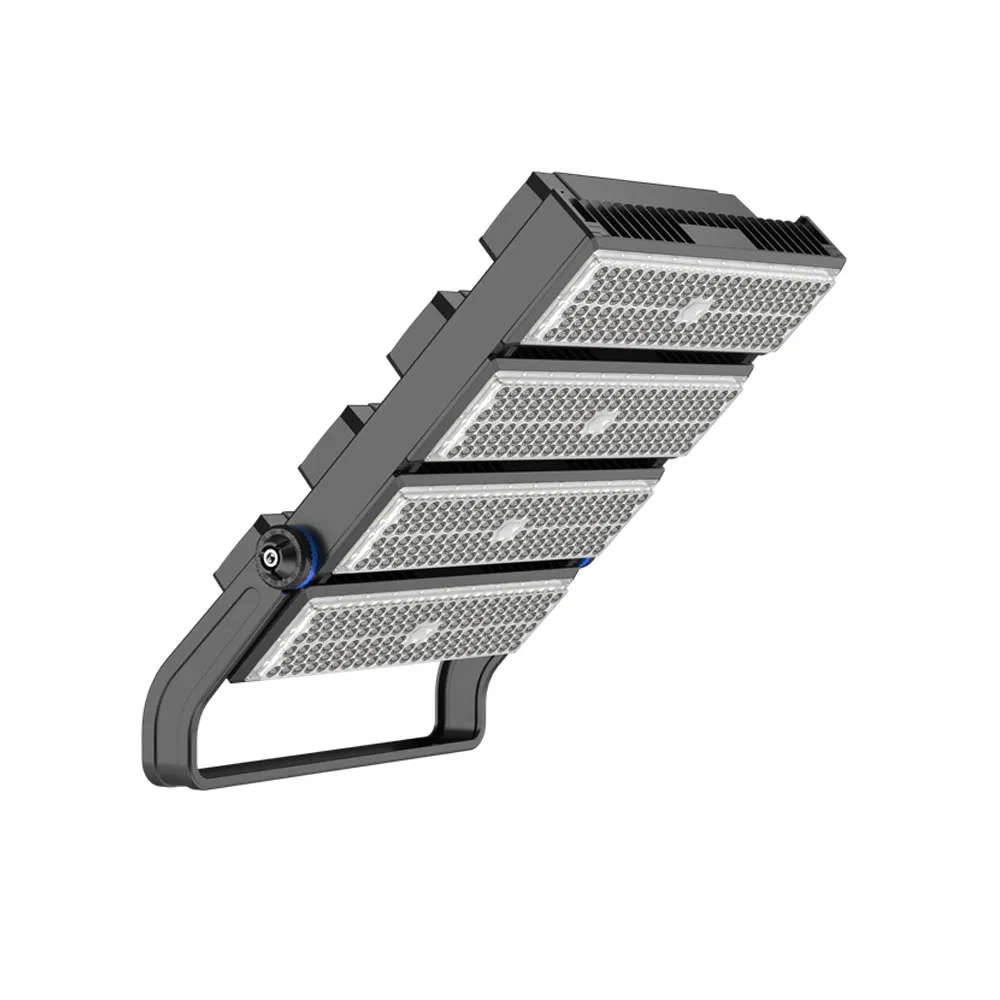

Outdoor IP67 300W/500W/600W/900W/1000W/1200W/1500W LED Sports Stadium Floodlight High Mast LED Flood Light for Football Field Tennis Court
Product Description
📋
Basic Info.
Model NO.ATA-FL1000WG
Power400W 500W 800W 1000W 1200W 1500W
Projection Distance>35m
IP RatingIP65 / IP66
Operating Voltage85-265V / 100-277V
LED Chips BrandNichia
Luminous Efficiency150-180lm/W
Colour(CCT)3000K, 4000K, 5000K, 6000K, RGB
Beam Angle10° 15° 25° 45° 60° 90°
MaterialPure Aluminum, Toughened Glass
HS Code9405409000
Capacity30,000 pieces/Month
💡
Product Description
Outdoor IP67 LED Sports Stadium Floodlight High Mast LED Flood Light for Football Field Tennis Court (300W - 1500W)

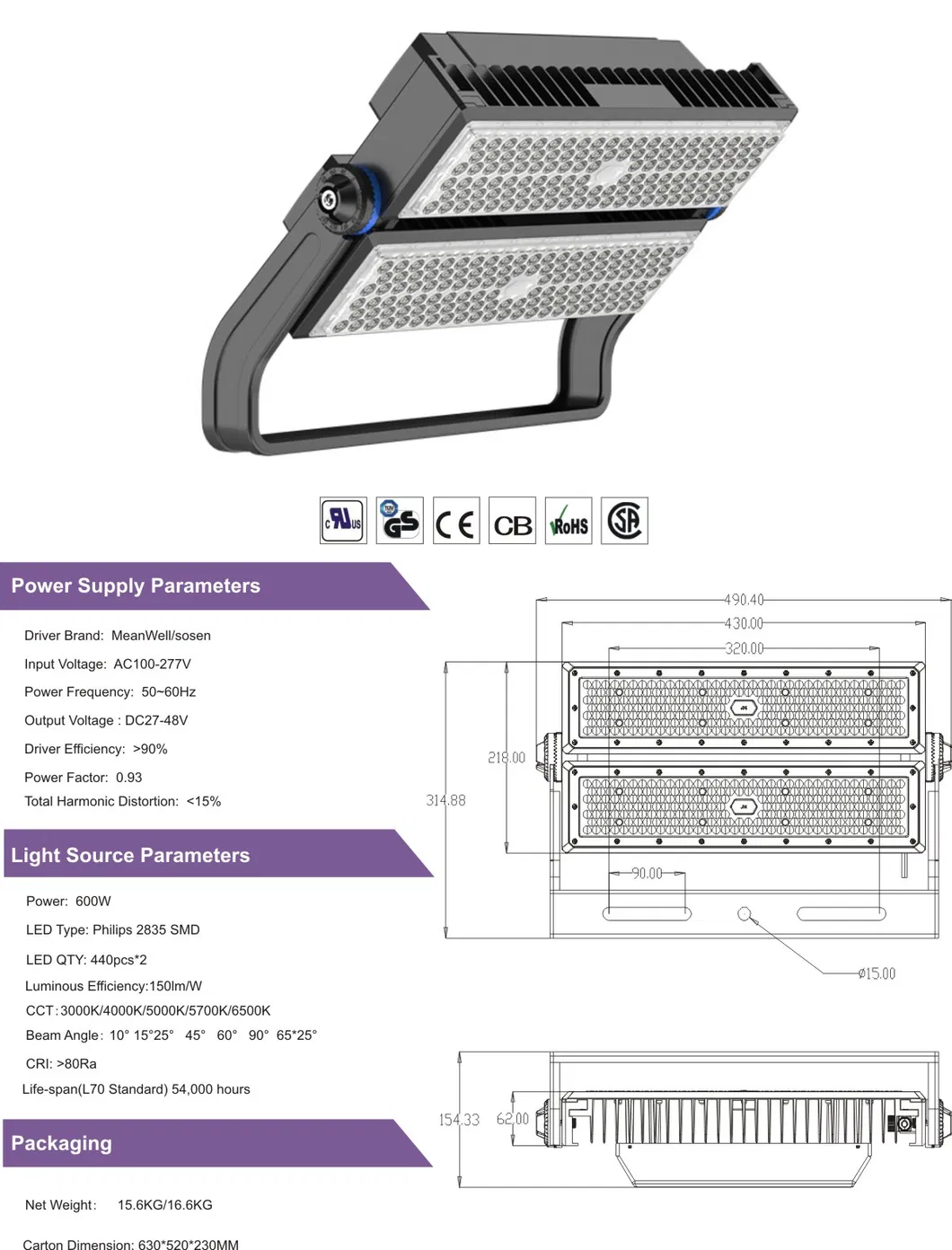

⚙️ Technical Specifications
- LED Type: SMD3030/SMD2835 with LM80 report
- Luminous Efficiency: 150LM/W - 180lm/W
- Color Temperature: 3000k, 4000k, 5000k, 6000k, 6500K
- Driver Brand: Meanwell HLG / Meanwell ELG / Sosen
- Surge Protection: 10KV / 20KV available
- Lifespan: 50,000 hours with 5 years warranty
- Working Temp: -40ºC ~ +50ºC
- Anti-wind Level: 17 Hurricane resistance
| Model Parameter | 300W Series | 600W Series | 900W Series | 1200W Series | 1500W Series |
|---|---|---|---|---|---|
| Input Voltage | 100-277V / 277-480V AC 50/60Hz | ||||
| Power Factor | >0.98 | ||||
| Lumen Efficiency | 150-180lm/W | ||||
| CCT Options | 3000K/4000K/5000K/5700K/6500K | ||||
| Protection | IP66 / IK10 | ||||
🏟️
Applications
This high-performance lighting solution is widely used in:

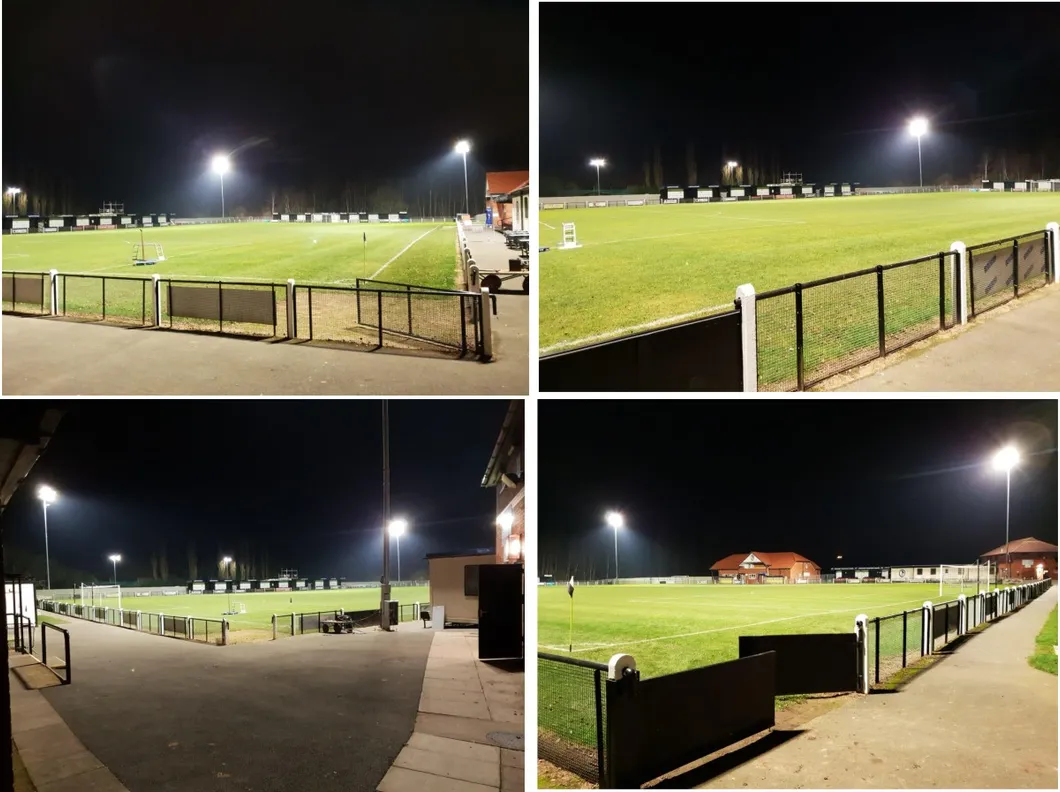

- Sports Stadiums: Football fields, Tennis courts, Gymnasiums.
- Public Spaces: Parks, Squares, Plazas, Museums, and Art Galleries.
- Industrial: Factories, Warehouses, Parking lots, and Building facades.
- Commercial: Billboards, Exhibition halls, Shopping malls, and Hotels.
- Specialty: Mosques, Historical buildings, and National green lighting projects.
🛠️
Operation & Quality
User Manual Highlights
Switch off power before installation. Ensure mounting on a stable, tilt-fixed background. Installation should be performed by an electrical expert familiar with valid directives.
Quality Control Protocols
- Stability Test: 100% of lamps undergo at least 48 hours aging test.
- Lighting Test: 100% of lamps are verified before packing.
- Drop Test: Box protection verified for every single unit.
❓
Frequently Asked Questions
1. What is the power range available for these stadium floodlights?
We offer a wide range of power options including 300W, 400W, 500W, 600W, 800W, 900W, 1000W, 1200W, and 1500W to suit different lighting requirements.
2. Are these lights suitable for high-corrosion outdoor environments?
Yes, the lights feature a corrosion-proof grade of Wf2 and are built with pure aluminum and toughened glass, making them ideal for various outdoor and industrial settings.
3. What kind of surge protection do these LED floodlights offer?
The standard surge protection is 10KV, and we also provide 20KV options according to specific customer needs to protect against lightning and voltage spikes.
4. Can I choose different beam angles for specific lighting needs?
Absolutely. We offer multiple beam angle options: 10°, 15°, 25°, 45°, 60°, and 90° to ensure precise light distribution for stadiums or billboards.
5. What is the expected lifespan and warranty for this product?
These floodlights have a rated lifespan of 50,000 hours and come with a 5-year warranty, supported by high-quality drivers like Meanwell or Sosen.
6. Are the lights waterproof?
Yes, the lights are rated IP65/IP66, ensuring full protection against dust and high-pressure water jets, suitable for heavy rain and outdoor sports facilities.
