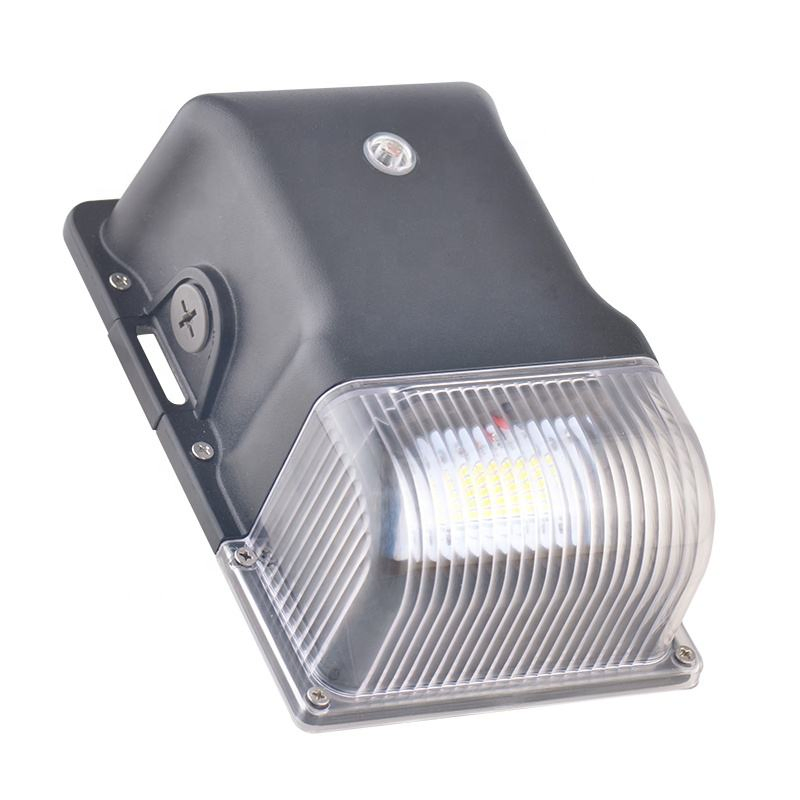

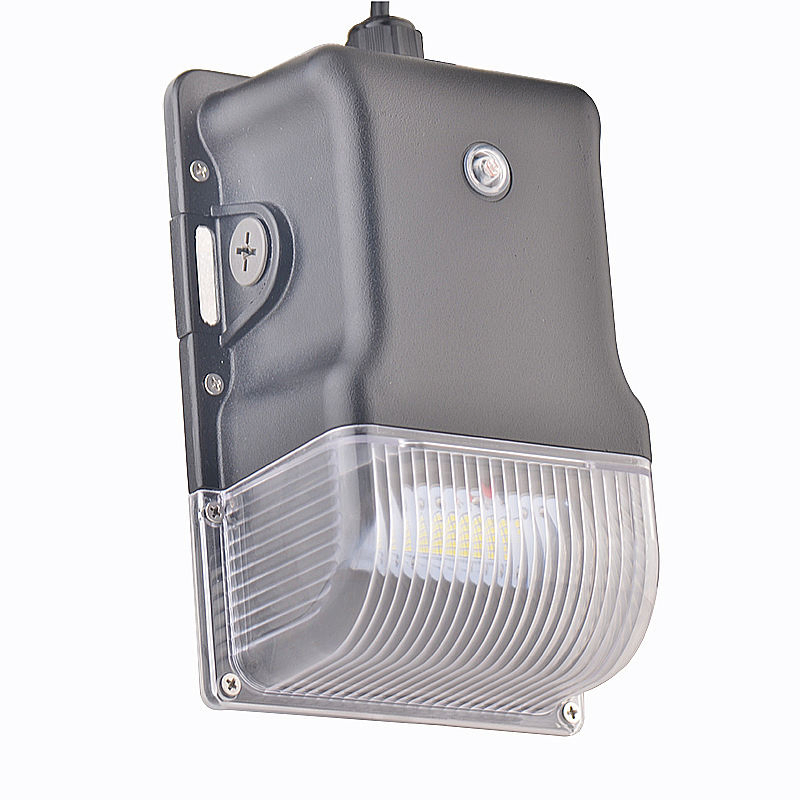

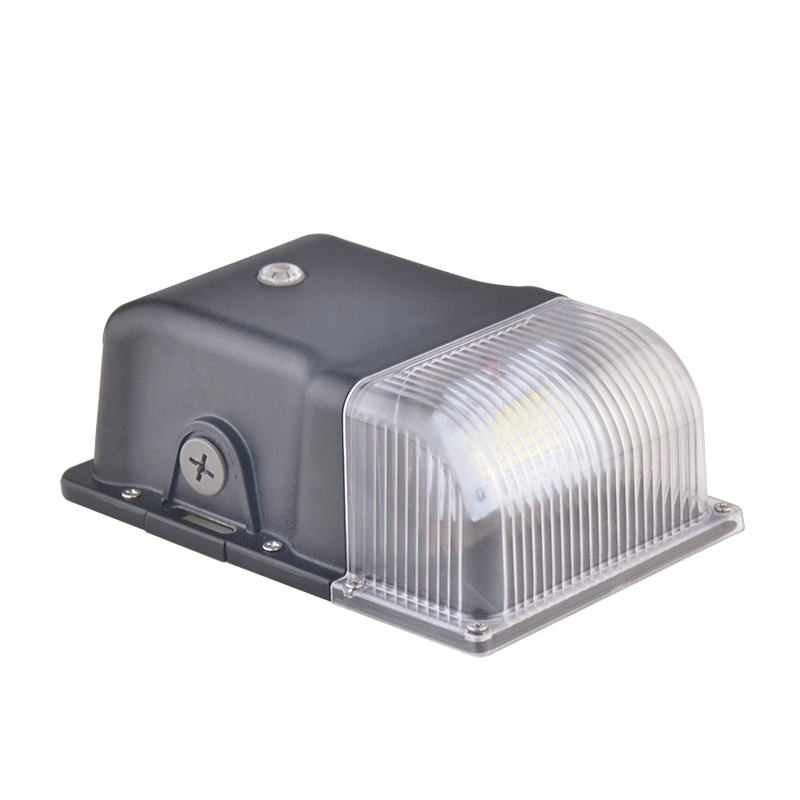

Factory Direct Selling Outdoor Wallpack Light 20W 30W IP65 Mini LED Wall Pack Lights for Supermarket
Product Description
Basic Information
Model NO.
BB-RSD-30W-C2
Lamp Body Material
Aluminum
IP Rating
IP65
Certification
CE, ETL, RoHS, Dlc
Voltage
100-277VAC
Power
30W
Luminous Flux
2700lm
Luminous Efficacy
90lm/W
Color Temp (CCT)
3000K/4000K/5000K
Lifespan
50,000 Hours
CRI (Ra)
85
Warranty
5-Year
Product Description & Benefits
✦
Superior Replacement: Designed to replace conventional wallpack lights with high efficiency.
✦
Durable Construction: Precision die-cast aluminum housing with a fade-resistant powder coat finish.
✦
Easy Installation: Streamlined design for quick and secure mounting.
✦
Smart Options: Available with optional photocell or PIR sensors for automated control.

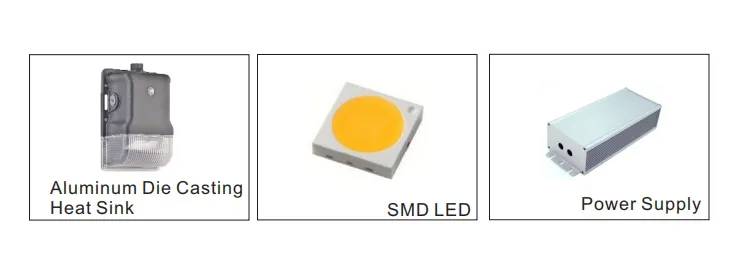

Key Features
✔
Excellent heat dissipation via aluminum die-casting heat sinks.
✔
Green energy saving: Reduces consumption by 70%~80% compared to traditional fixtures.
✔
No RF interference, IR/UV radiation, or mercury pollution.
✔
Special circuit design: Each LED works separately to ensure reliability.
✔

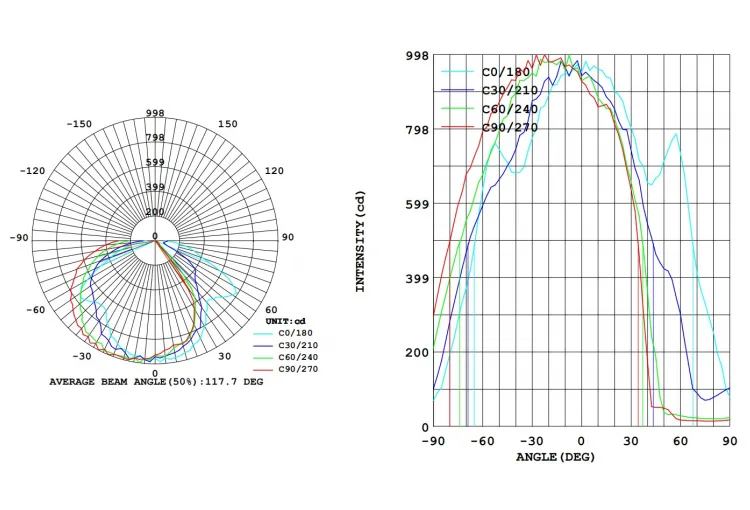

Wide beam angle of 120 degrees for broad coverage.
Wide Applications
📍
Parking lot and perimeter lighting.
📍
Garden and yard security lighting.
📍
Outdoor building facades and commercial exteriors.
📍
Indoor industrial wall pack lighting.
Product Specifications
| Feature | 20W Model | 30W Model |
|---|---|---|

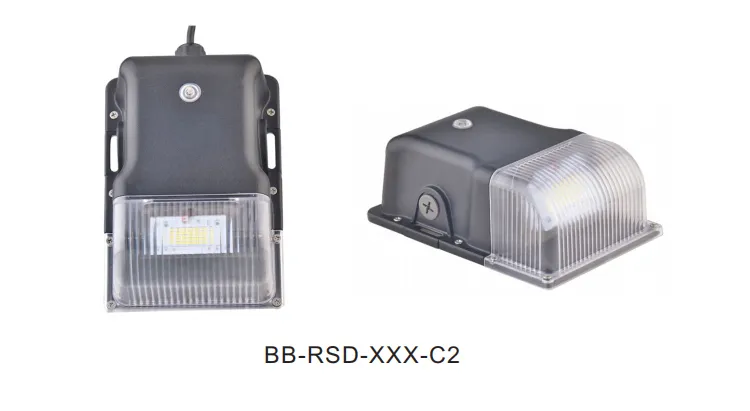

| Model | BB-RSD-20W-C2 | BB-RSD-30W-C2 |
| Replacement | HPS 75W | HPS 100W |
| Luminous Flux | 1800lm | 2700lm |
| Light Source | SMD LED | |
| Luminous Efficacy | 90lm/w | |
| Voltage | 100-277VAC / 50-60HZ | |
| CRI | 85 | |
| CCT | 2700K - 5700K Optional | |
| Beam Angle | 120° | |
| IP Rating | IP65 | |
| Warranty | 5 Years | |

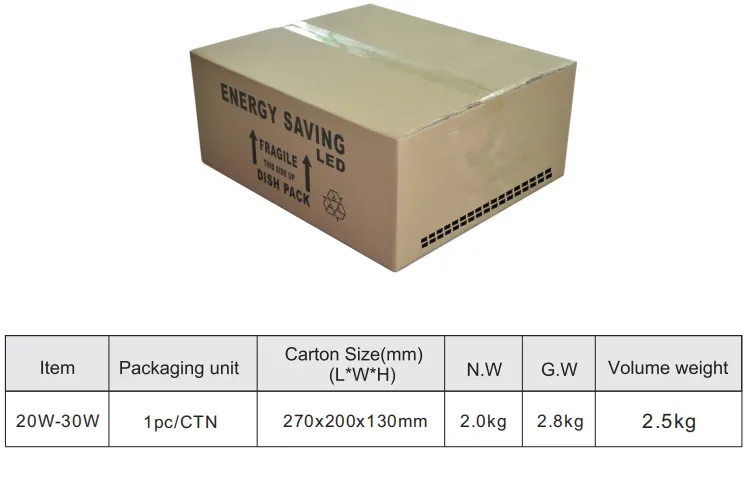

Packing & Delivery
Frequently Asked Questions

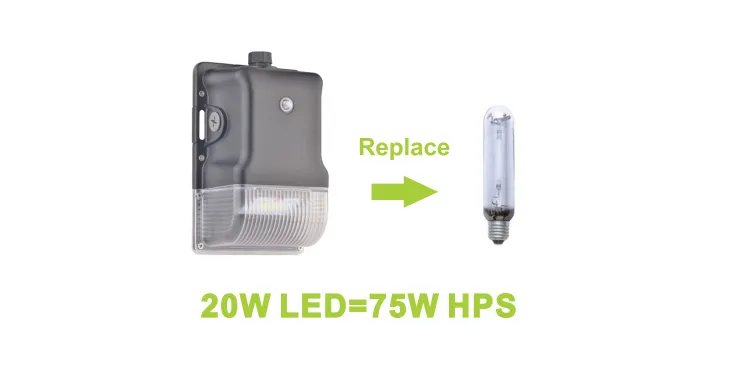

Q1: What can this LED wall pack replace?
The 20W and 30W models are designed to replace traditional 75W to 100W HPS/MH/HID fixtures, offering significant energy savings.
Q2: Is the fixture suitable for outdoor use?
Yes, it features an IP65 rating, making it completely dust-tight and protected against water jets, ideal for any outdoor environment.
Q3: What is the expected lifespan of the LEDs?
The product is rated for a long life of 50,000 hours at 25°C, ensuring years of maintenance-free operation.
Q4: Does it support motion or light sensors?
Yes, we offer optional photocell sensors for dusk-to-dawn operation and PIR sensors for motion detection.
Q5: What color temperatures are available?
We provide a wide range of CCT options including 3000K (Warm White), 4000K (Natural White), and 5000K (Daylight).
Q6: What kind of warranty is provided?
This product comes with a comprehensive 5-year warranty covering manufacturing defects and performance.
