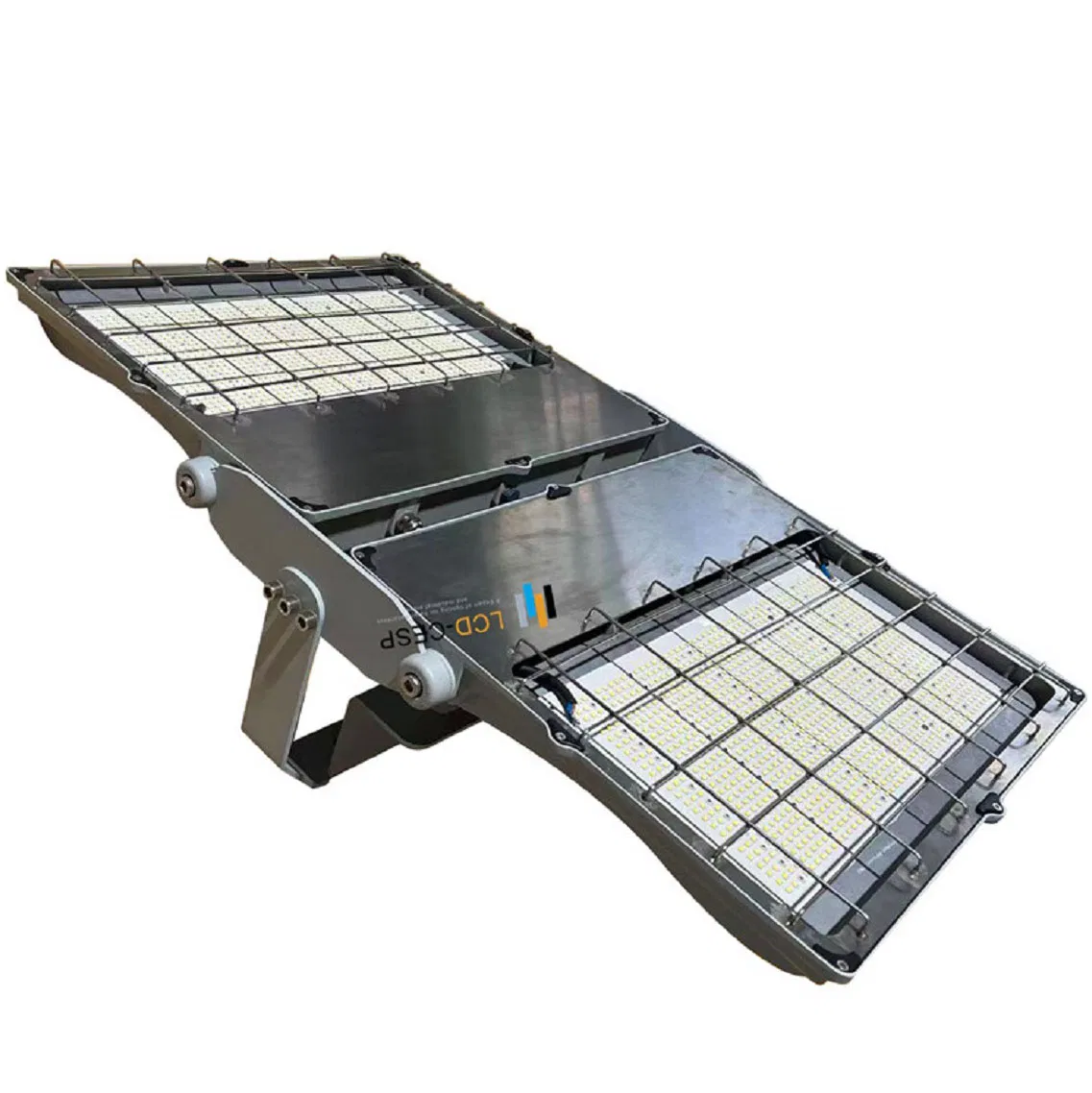

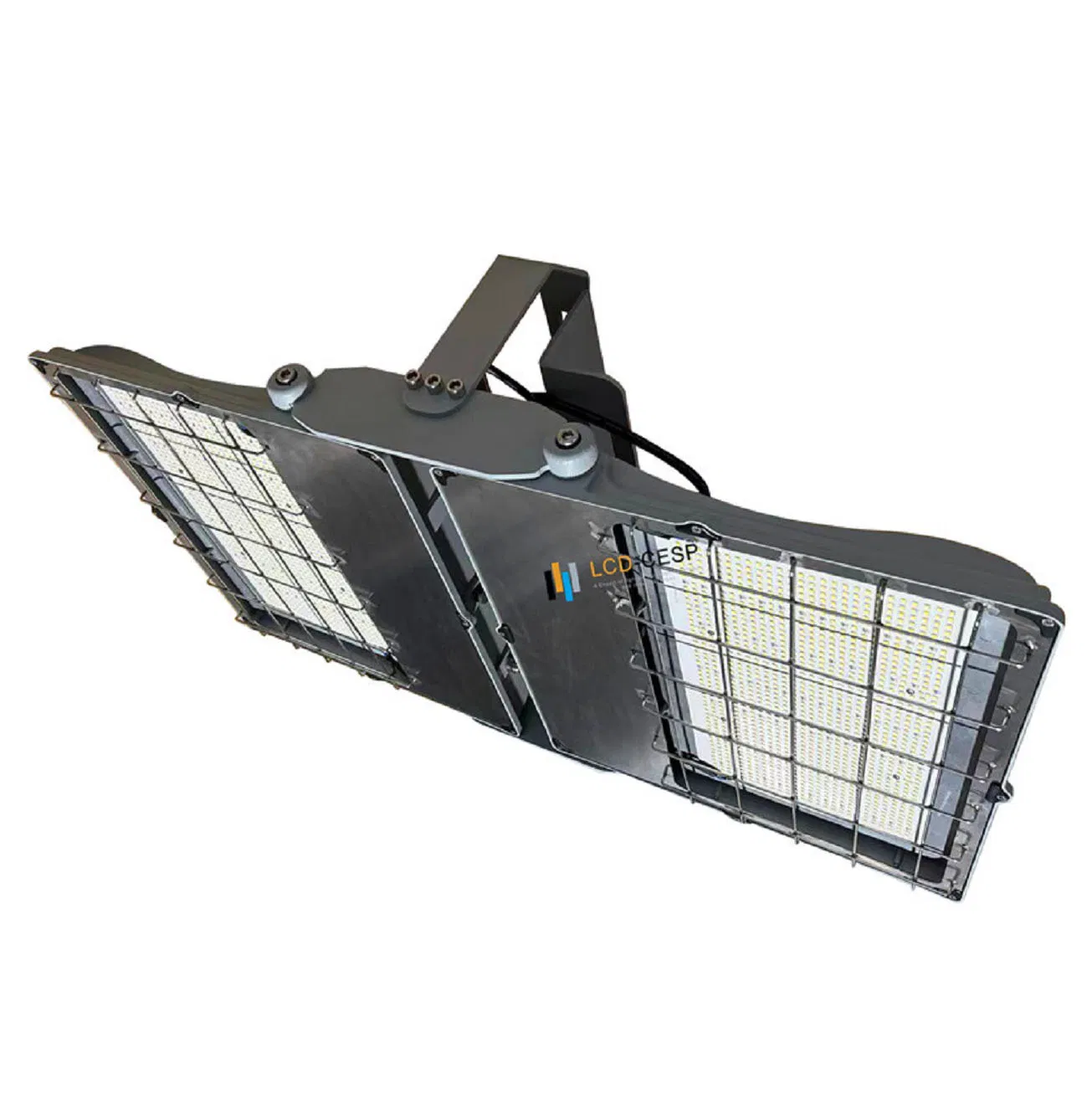

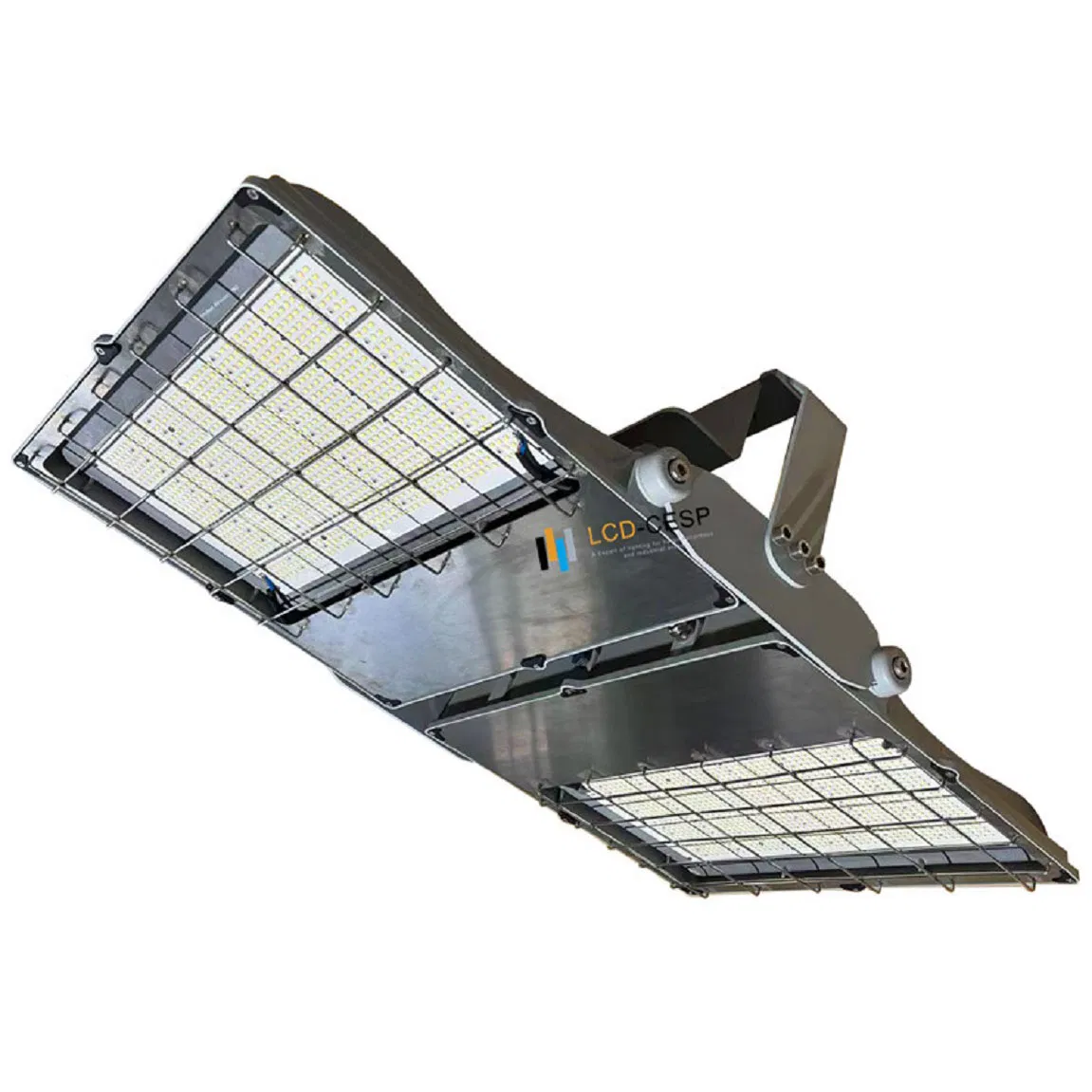

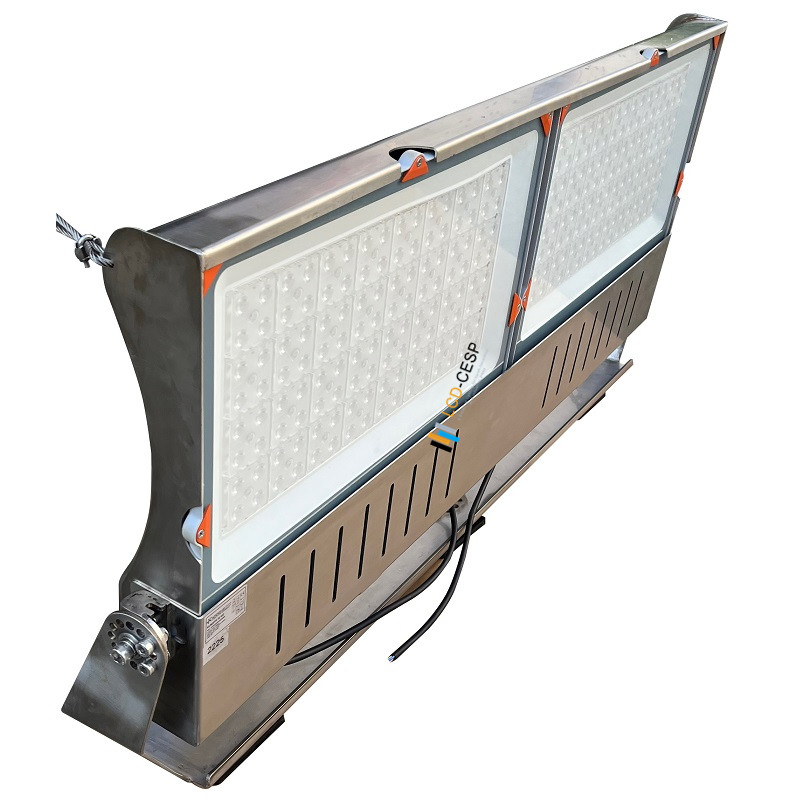

Superior Performance LED Floodlight 300W 400W 500W 600W 800W 1000W IP66/IP67 for High Mast Pole, Sports Field, and General Outdoor/Indoor Area Lighting
Product Description
Basic Specifications
High Lumen LED Flood Light Performance
This series of LED area and floodlight luminaires offers high output lighting with exceptional energy efficiency. Designed for large-scale outdoor areas, these units ensure bright, uniform illumination while significantly reducing maintenance costs compared to traditional HID solutions.
Key Performance Advantages
- Thermal Management: Utilizes copper-free pure Aluminum AL1060 heat-sink with high conductivity (210W/m.K) for superior heat dissipation.
- Optical Flexibility: Multiple beam angles and modular construction allow for precise light distribution and reduced glare.
- Long Lifespan: Maintenance-free 100,000-hour lifetime (L80/B10) ensures long-term reliability in harsh environments.
- Extreme Durability: IP66/IP67 rated for waterproof performance and IK09/IK10 for mechanical impact resistance.
Technical Specification Tables
| Feature | Details | Standard |
|---|---|---|
| Luminous Efficacy | Up to 170LM/W | High Efficiency |
| CCT | 3000K / 4000K / 6500K | Adjustable |
| CRI | 70 / 80 / 90 | True Color |
| Operating Temp. | -30°C to +55°C | Wide Range |
| Surge Protection | 4KV (up to 10KV optional) | Safety First |
Power & Dimension Mapping
| Model Variant | Power (W) | Lumens (lm) | Dimensions (mm) |
|---|---|---|---|
| High Mast 720 | 720W | 108,000 | 694*723*268 |
| High Mast 960 | 960W | 144,000 | 694*855*268 |
| High Mast 1200 | 1200W | 180,000 | 694*987*268 |
| High Mast 1500 | 1500W | 225,000 | 694*1119*268 |
Versatile Applications
Installation & Maintenance

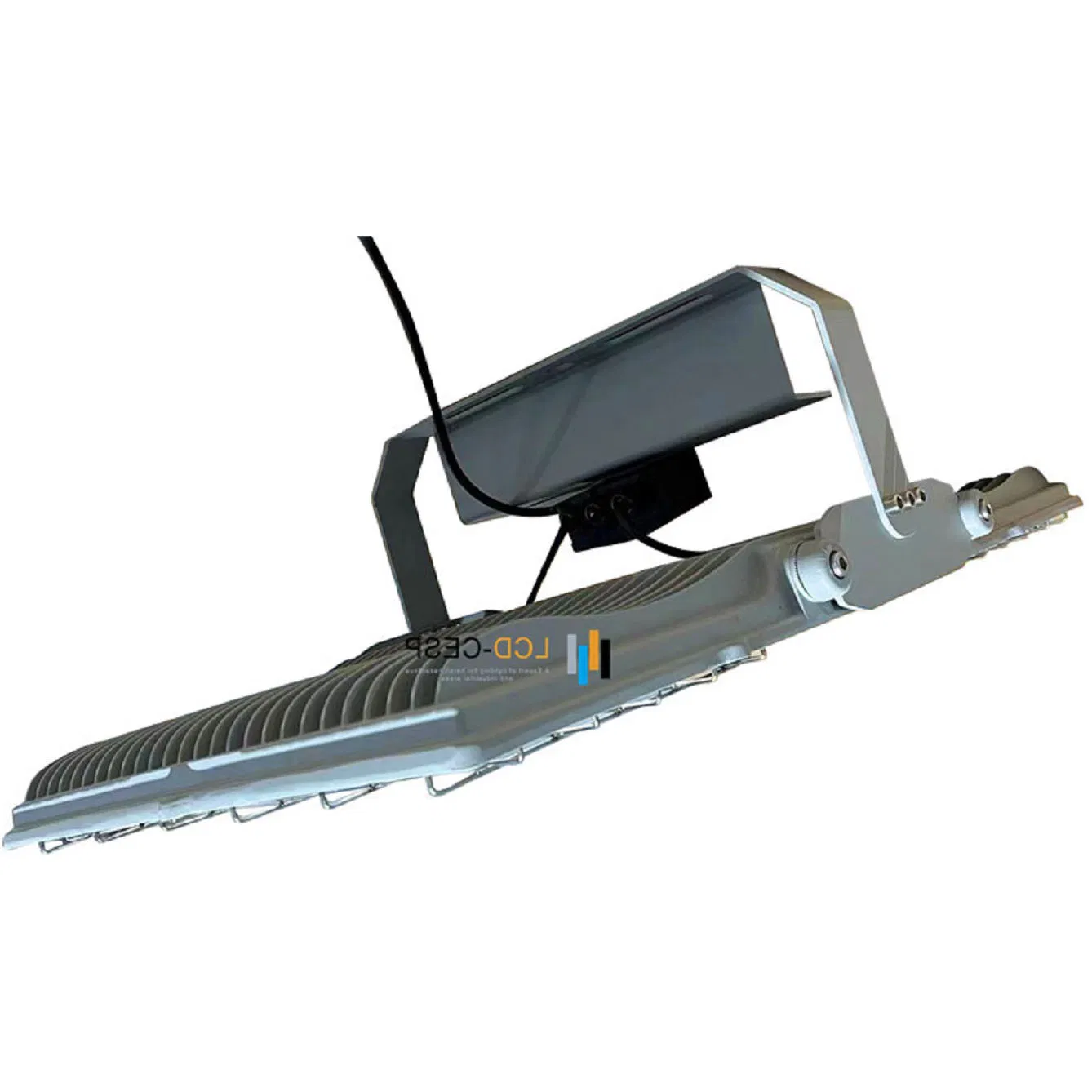

- Mounting: Coupler bracket for wall, ceiling, surface, or post-top installation.
- Adjustability: Bracket rotates between -125° and 125° for precise aiming.
- Height: Recommended mounting height from 8m to 200m depending on wattage.
- Easy Access: Tool-less driver maintenance with removable aluminum door.
Frequently Asked Questions
Our high-power LED floodlights offer an efficacy of up to 170lm/W, ensuring maximum light output with minimal energy consumption.
Yes, the housing is made of copper-free pure Aluminum with an anodized finish and marine coating, providing high resistance to corrosion and an IP66/IP67 waterproof rating.
Both the LEDs and the high-quality drivers are designed for a maintenance-free 100,000-hour lifetime (L80/B10 at 25°C).
Absolutely. We offer various beam angles including 10°, 25°, 40°, 60°, and 90° to meet different lighting distribution needs for sports fields and arenas.
Yes, standard 0-10V dimming is supported, allowing for programmable power reduction and integration with motion response sensors.
The standard warranty is 5 years, with an optional 7-year extended warranty available upon request.
