CB/CE/Ukca Certified Triangle LED Wall Pack Light, LED Outdoor Wall Path Stair Light
Product Description
📊 Basic Information
Model NO.
TW-302
Lamp Body Material
Plastic
Shape
Triangle
Irradiated Area
15-30m²
IP Rating
IP65
Certification
CCC, CE, EMC, LVD, RoHS
Warranty
2 Years
Transport Package
Box
Origin
China
HS Code
9405429000
Production Capacity
5000PCS/Day
✨ Product Features
- Polycarbonate housing & cover + Aluminum LED PCB
- Body color options: Grey, Black, White
- CCT: 3000K, 4000K, 6000K, or 3CCT switchable
- 650ºC Glow-wire Test passed
- Class II Protection
- DOB (Driver on Board) version
- CB/CE/UKCA Certified
- IP65 Waterproof Rating
- 2 Years Warranty

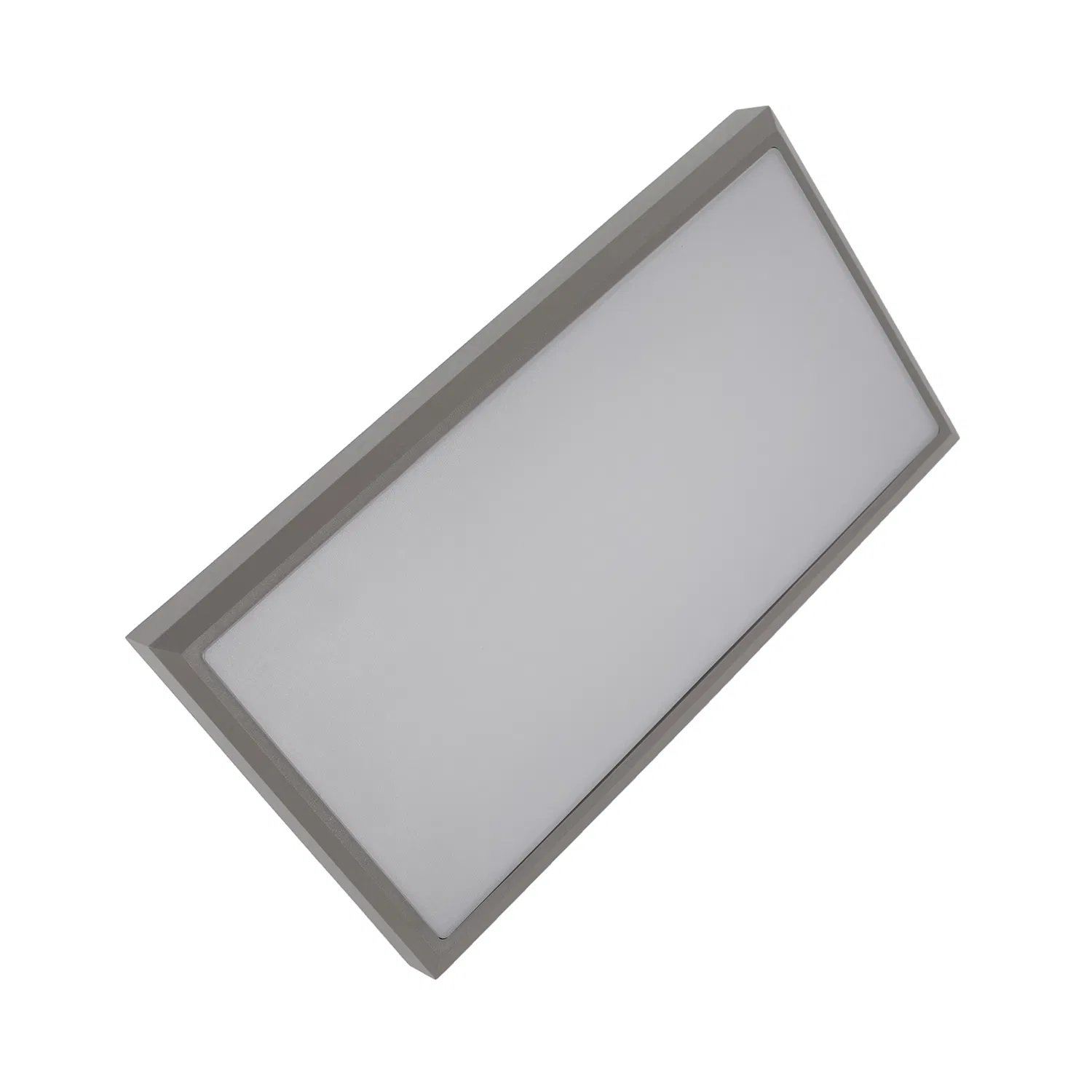

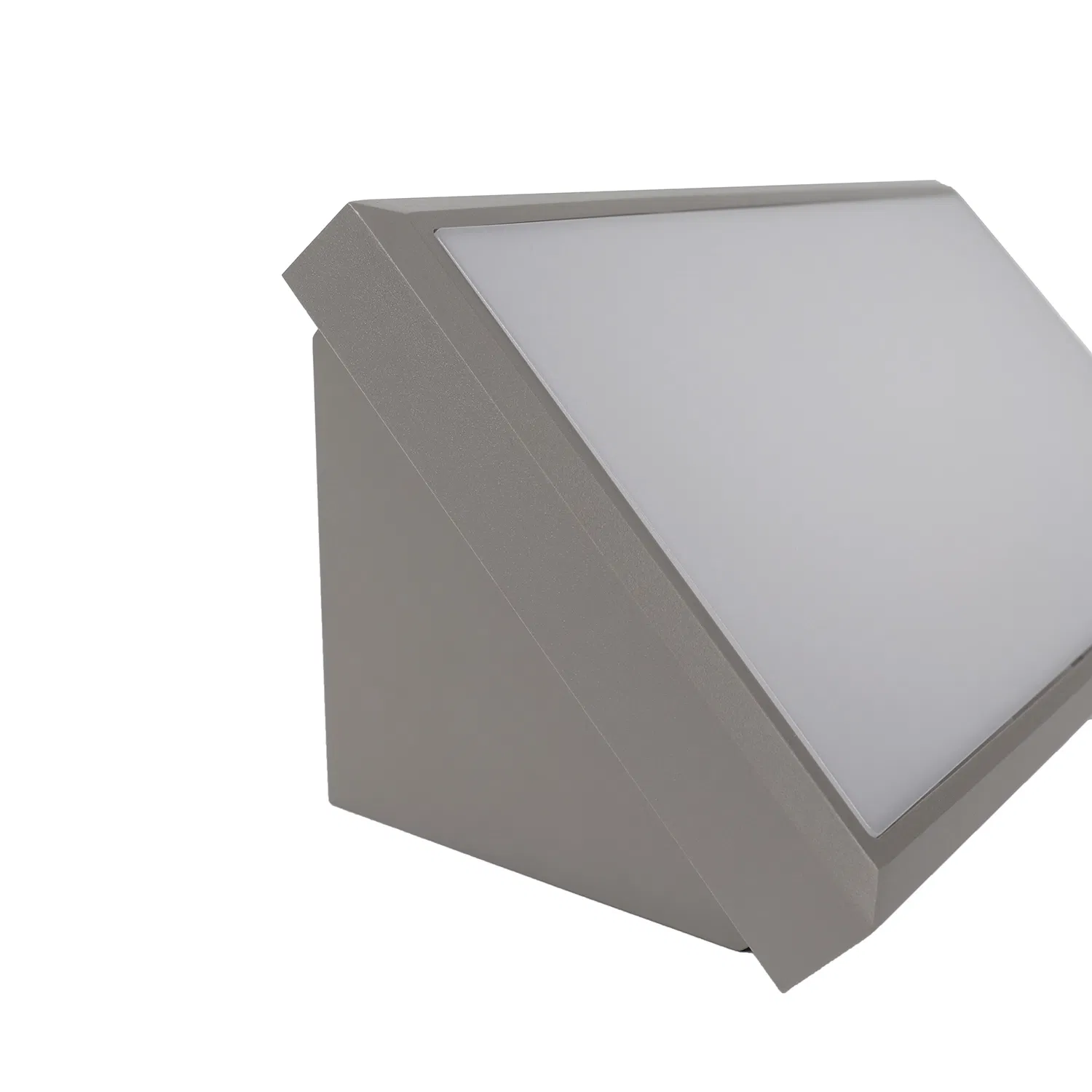

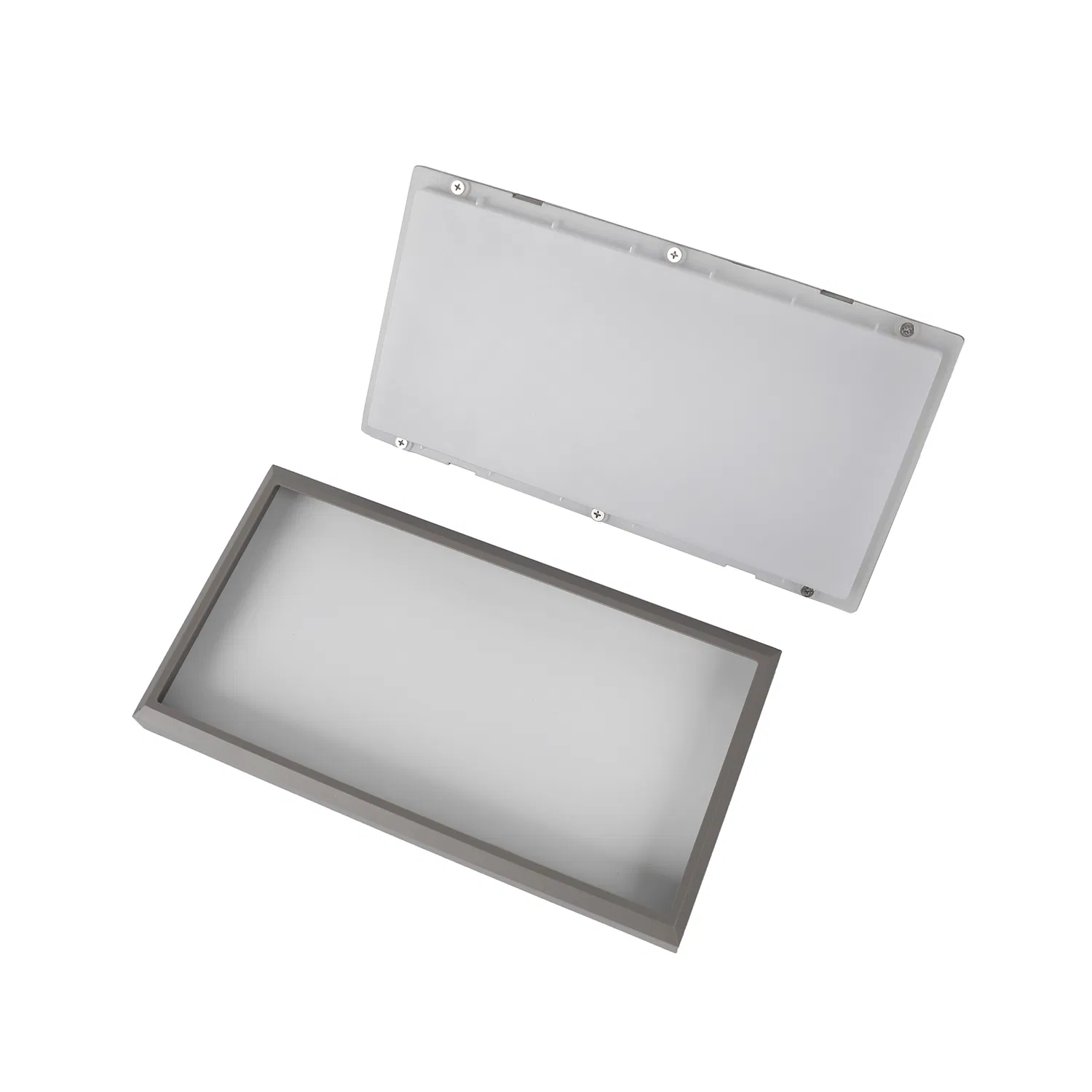

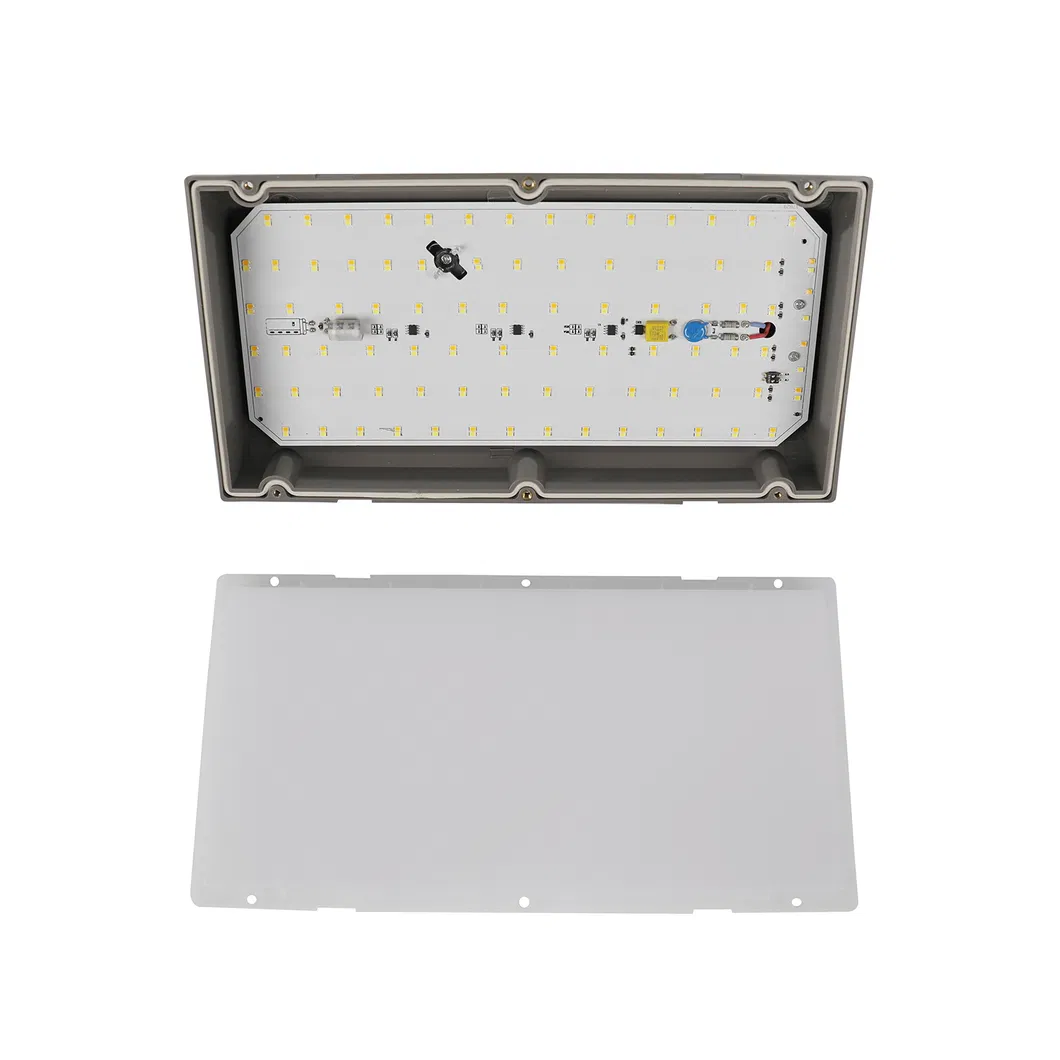

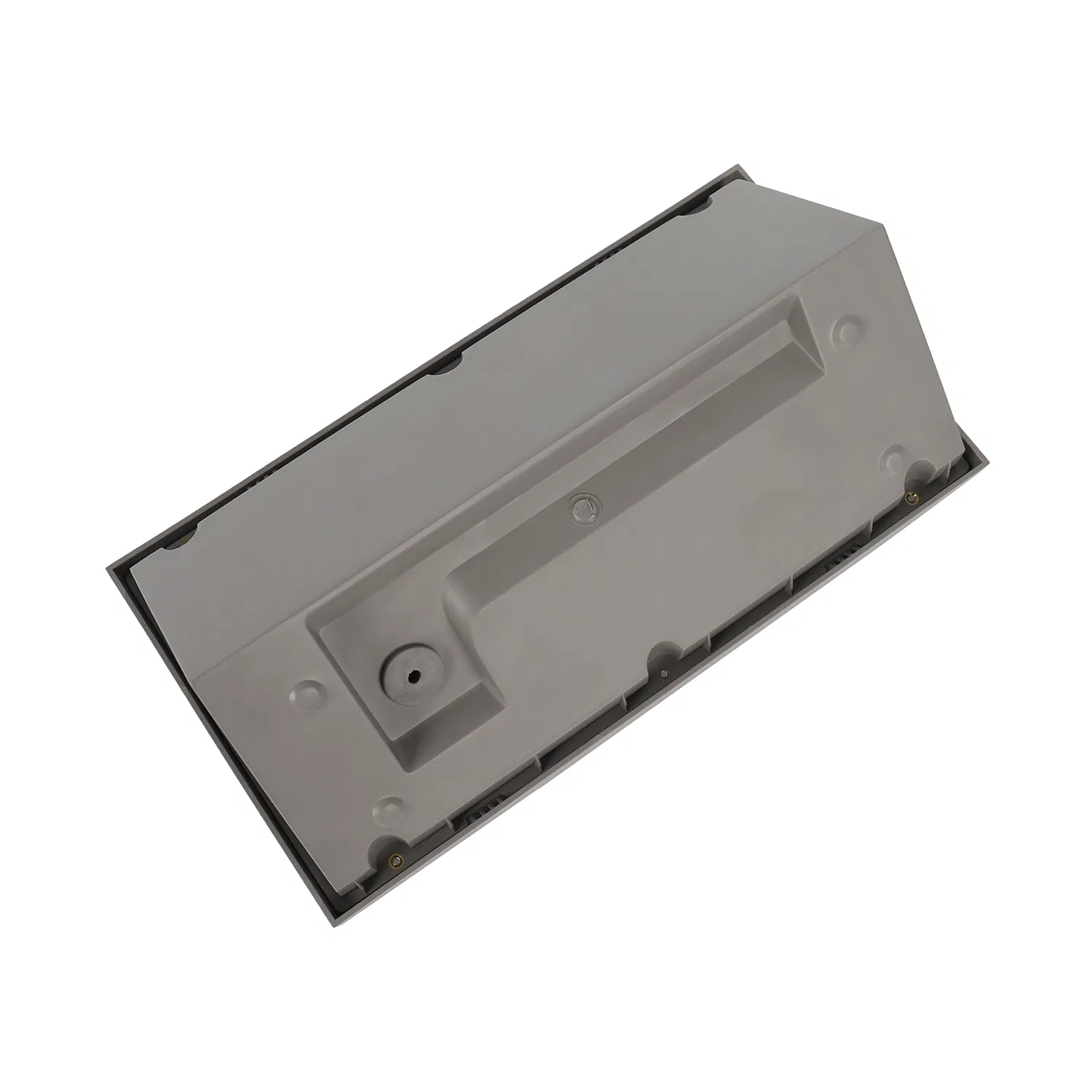

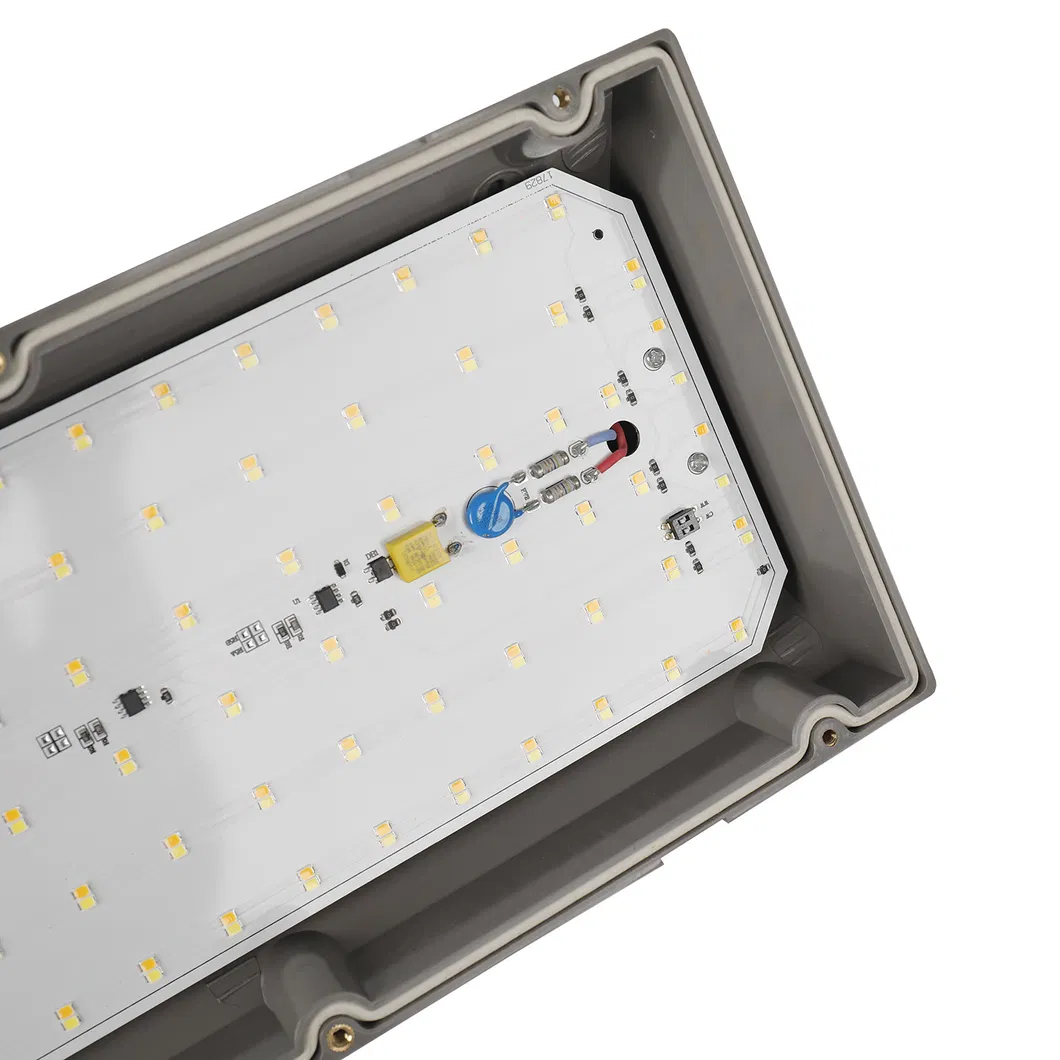

📸 Product Photos
📋 Technical Specifications
| Model | Power | Input Voltage | Product Size | Lumen | Ra | PF | Beam Angle |
|---|---|---|---|---|---|---|---|
| TW-302-24 | 24W | AC220-240V | 320*138*139mm | >1920 | >80 | >0.95 | 120° |
📦 Packaging Information
| Model | Power | Packaging Details | |||||
|---|---|---|---|---|---|---|---|
| Q'ty/CTN | L (cm) | W (cm) | H (cm) | G.W. (kg) | N.W. (kg) | ||
| TW-302-24 | 24W | 10 | 72.5 | 31.5 | 34.5 | 8.0 | 6.4 |
🔍 Exploded & Dimensions

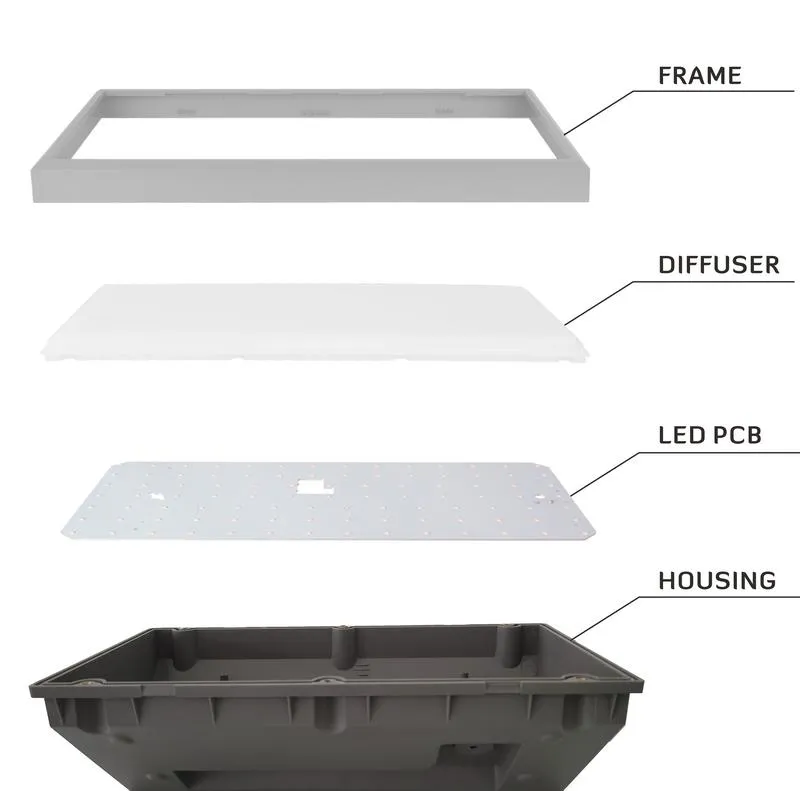

Exploded View:

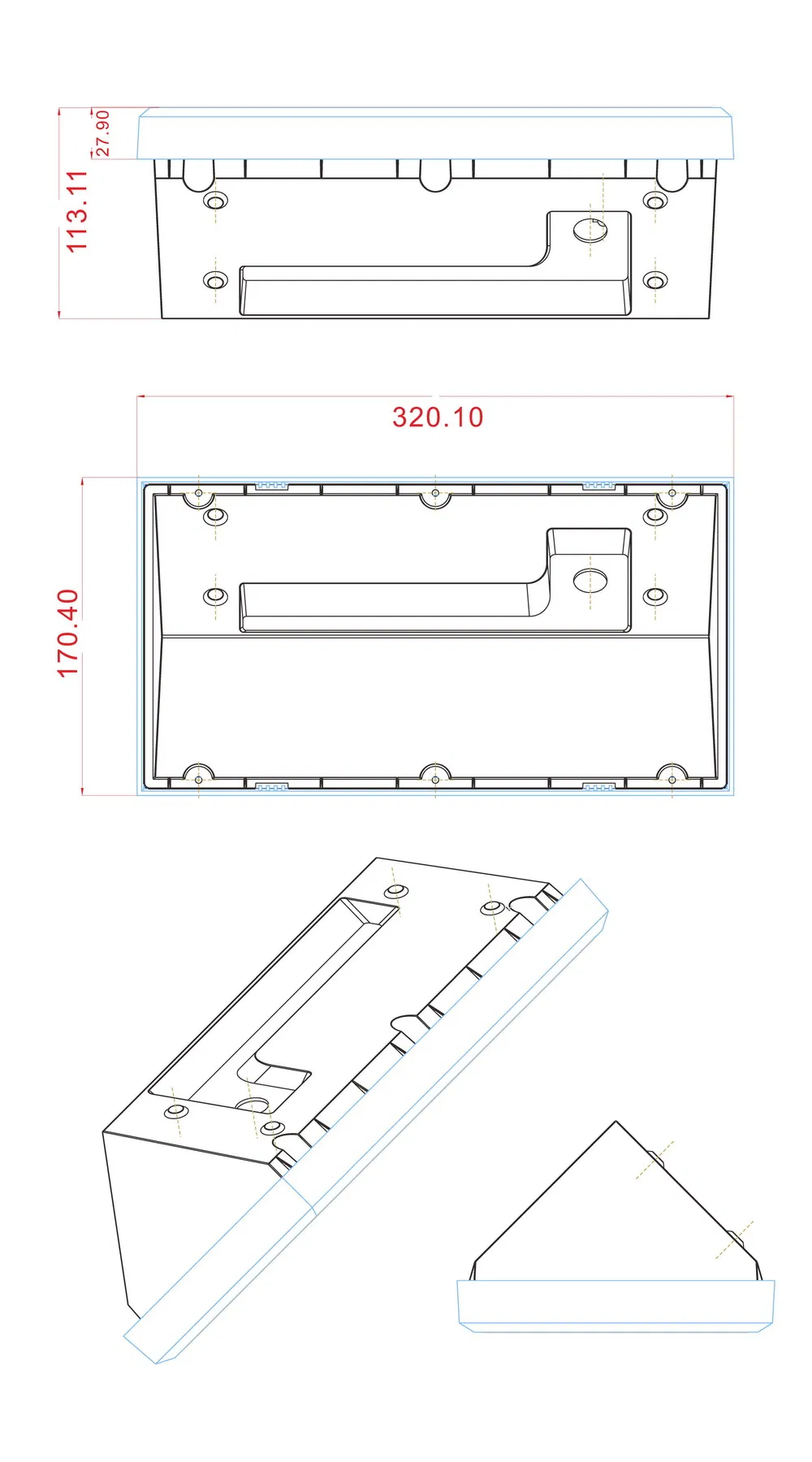

Dimensions:
🏠 Applications
❓ Frequently Asked Questions
What is the waterproof rating of this wall light?
This light features an IP65 rating, making it fully protected against dust and low-pressure water jets from any direction, ideal for outdoor use.
What materials are used in the construction?
The housing and cover are made of high-quality Polycarbonate, while the LED PCB is constructed from Aluminum for efficient heat dissipation.
Does it support different color temperatures?
Yes, it is available in single color temperatures (3000K, 4000K, 6000K) or a 3CCT switchable version that allows you to adjust the color temperature.
What certifications does this product hold?
The product is fully certified with CB, CE, UKCA, CCC, EMC, LVD, and RoHS, ensuring compliance with international safety and quality standards.
How long is the warranty period?
We provide a 2-year warranty for this LED wall pack light, covering manufacturing defects and performance reliability.
Is the light suitable for coastal areas?
Yes, the polycarbonate housing is highly resistant to corrosion, making it a durable choice for outdoor environments including stairs and paths.
