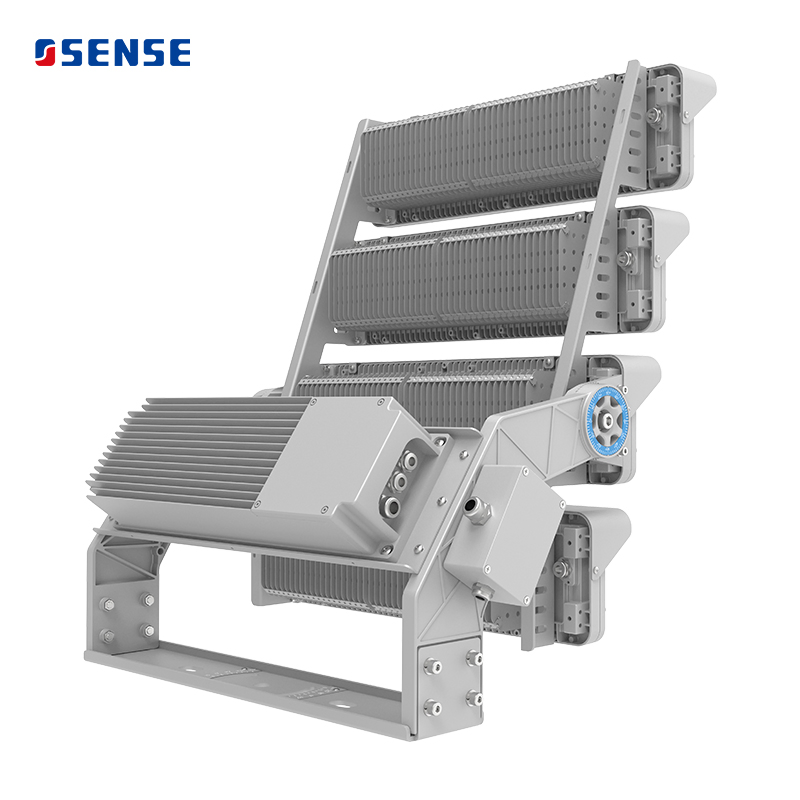

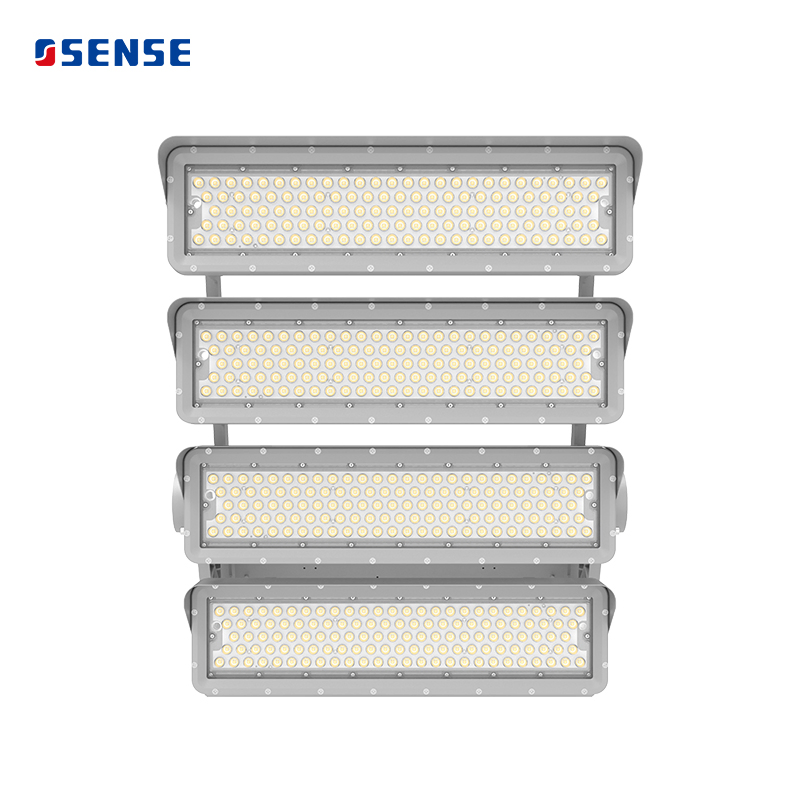

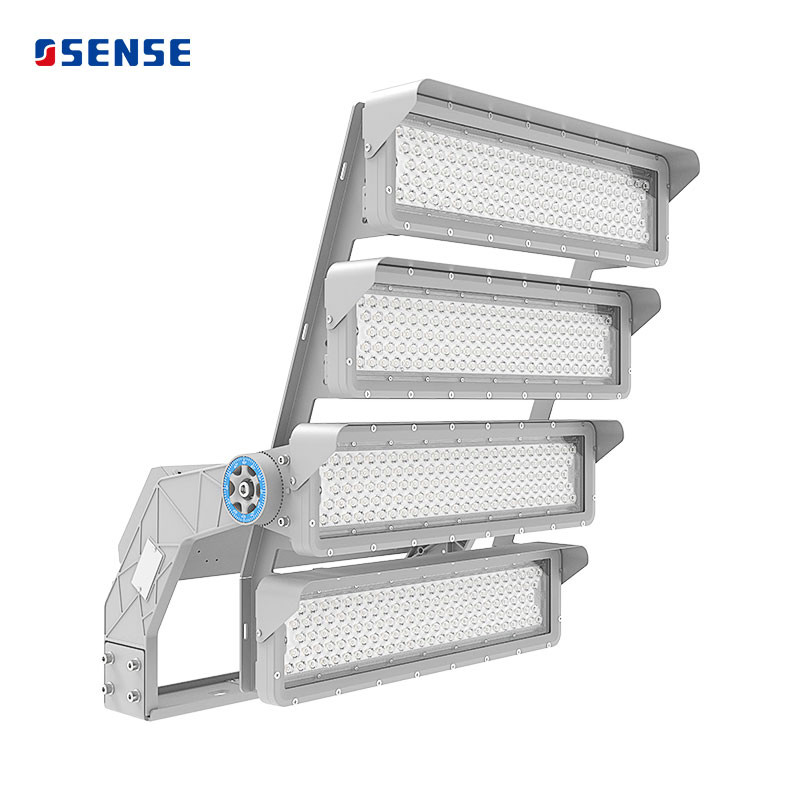

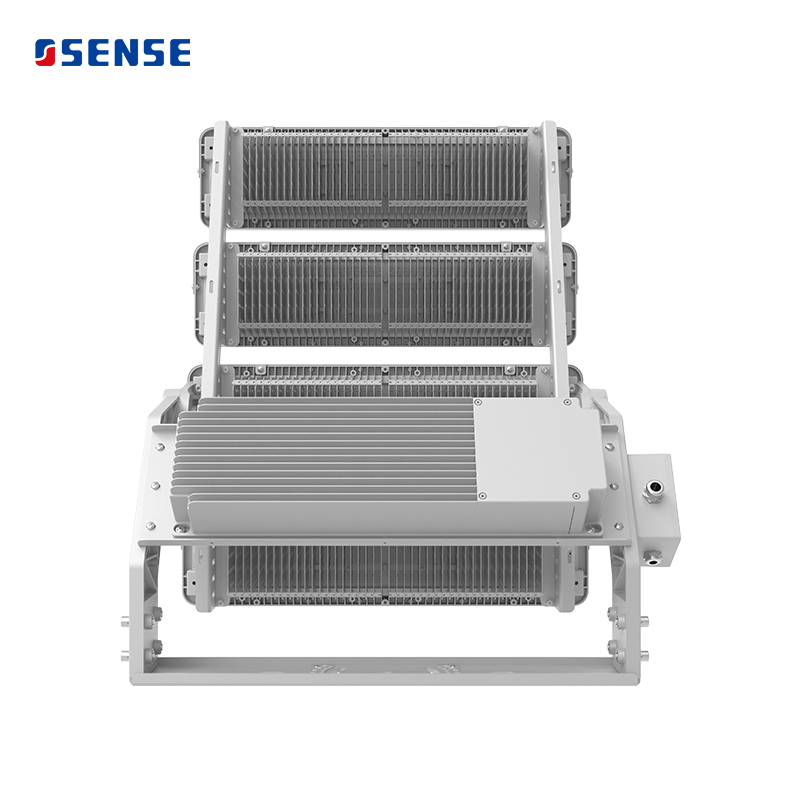

Ultra Bright 400W-1600W LED High Mast Lights for Stadiums
Product Description
Basic Specifications
Model NO.
SWT-F01-1600W
Pole Height
25-30m
Power Range
400W - 1600W
IP Rating
IP66
IK Grade
IK08
Input Voltage
100-277V / 50-60Hz
LED Chips
CREE/Lumileds/Nichia/Samsung
Efficiency
150 - 160lm/W
CCT
4000K/5000K/5700K
CRI
>90
Housing Material
ADC12 die-casting
Beam Angle
10°/20°/40°/60°
LED F01 Stadium Light Features
✓Premium ADC12 die-casting + fin forming with multi-module splicing for superior heat dissipation.
✓Electrostatically sprayed surface for robust anti-corrosion protection.
✓Air convection active cooling ensures optimal light source working temperatures.
✓Modular design meets diverse lighting needs across different sports venues and sites.
✓Advanced 10KV/20KV SPD lightning and surge protection for all-weather reliability.

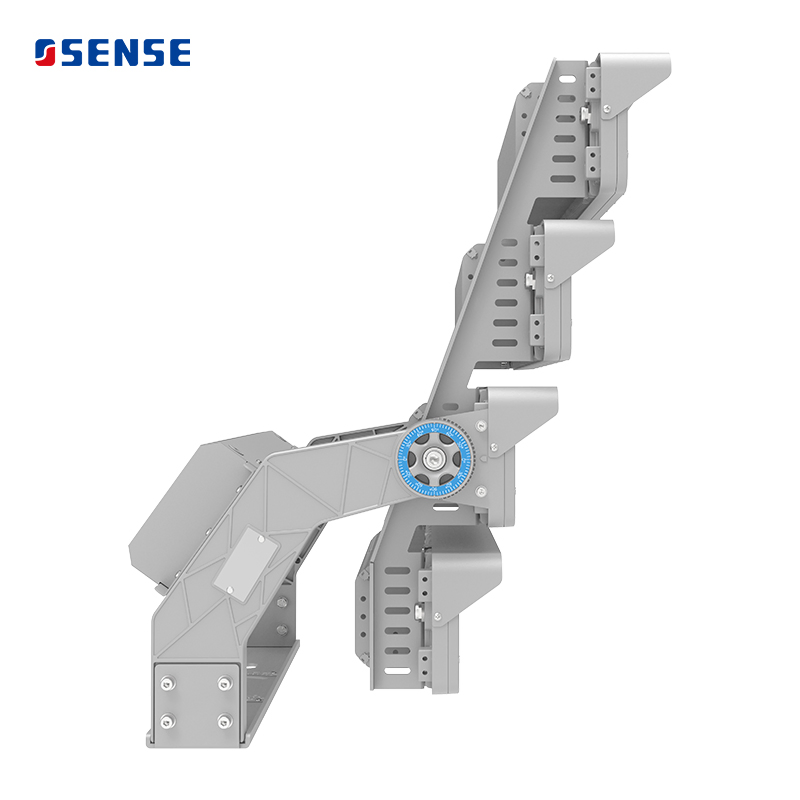

✓360° adjustable contour dial design allows for precision installation without blind spots.
✓Built-in anti-suspended chain structure for enhanced safety and security.
Technical Information
| ELECTRICAL DATA | OPTICAL DATA | ||
|---|---|---|---|
| Nominal Voltage | 100-277VAC / 180-528VAC | LED Color Temp | 4000K, 5000K, 5700K |
| Power Factor | ≥0.95 (at full load) | CRI | ≥70 / ≥80 / ≥90 Optional |
| Surge Protection | 10kV / 20kV Optional | LED Brand | CREE / Nichia / Lumileds |
| Driver Brand | Meanwell / Moso / Sosen / Inventronics | Lifetime | >50,000h (L70B50) |
| Control System | DALI / 1-10V / DMX512 Dimming | Testing Standard | LM 79-19, EN 13032-1 |

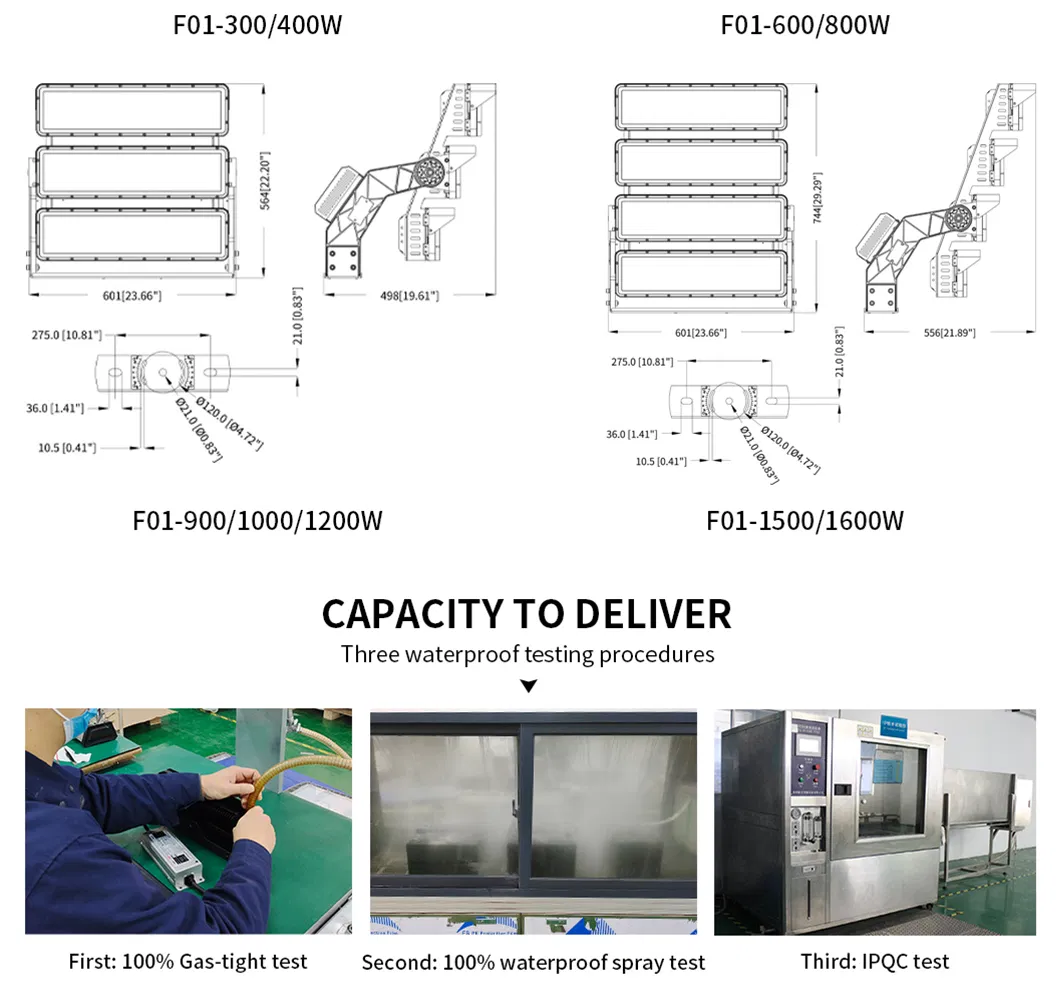

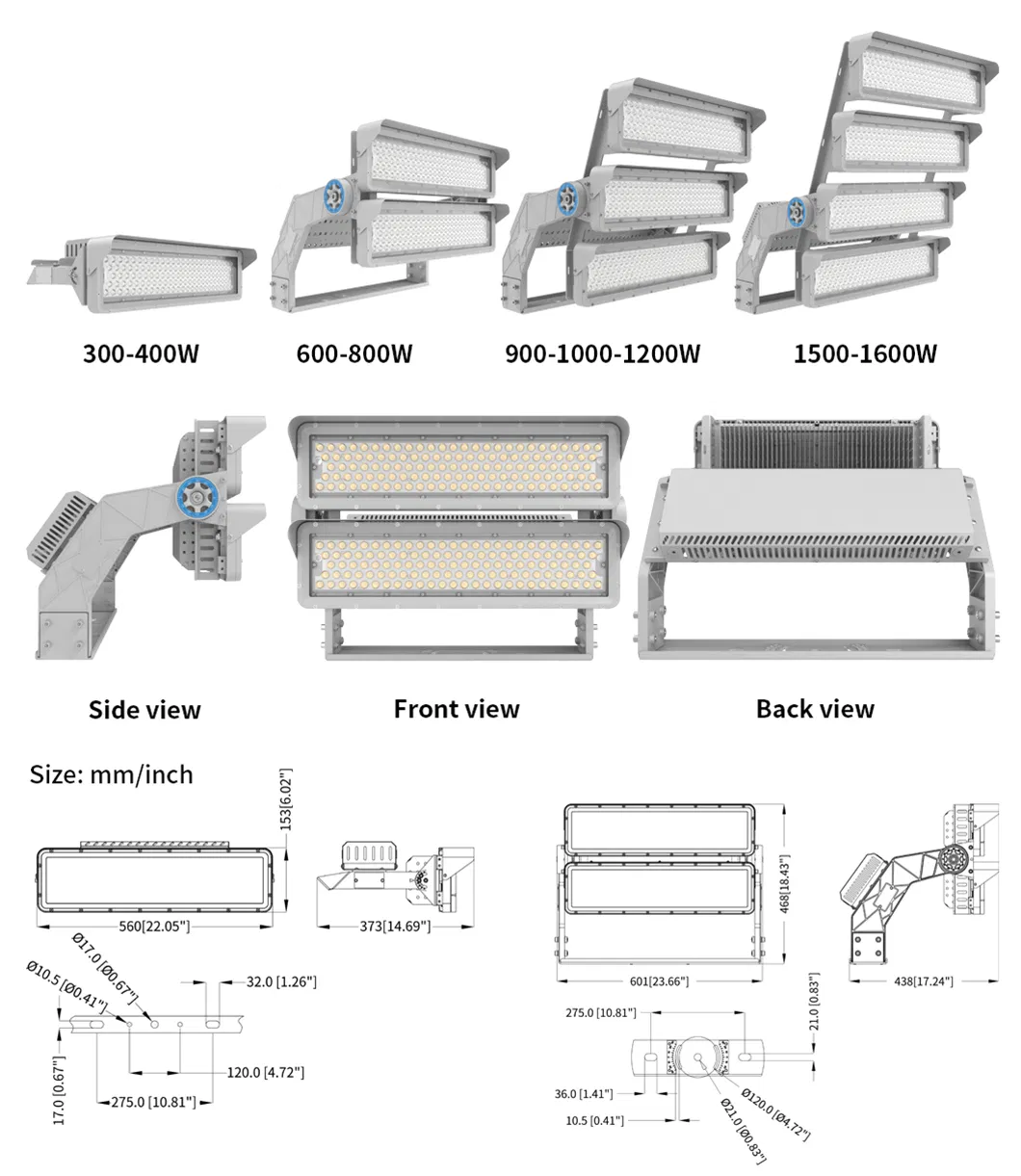

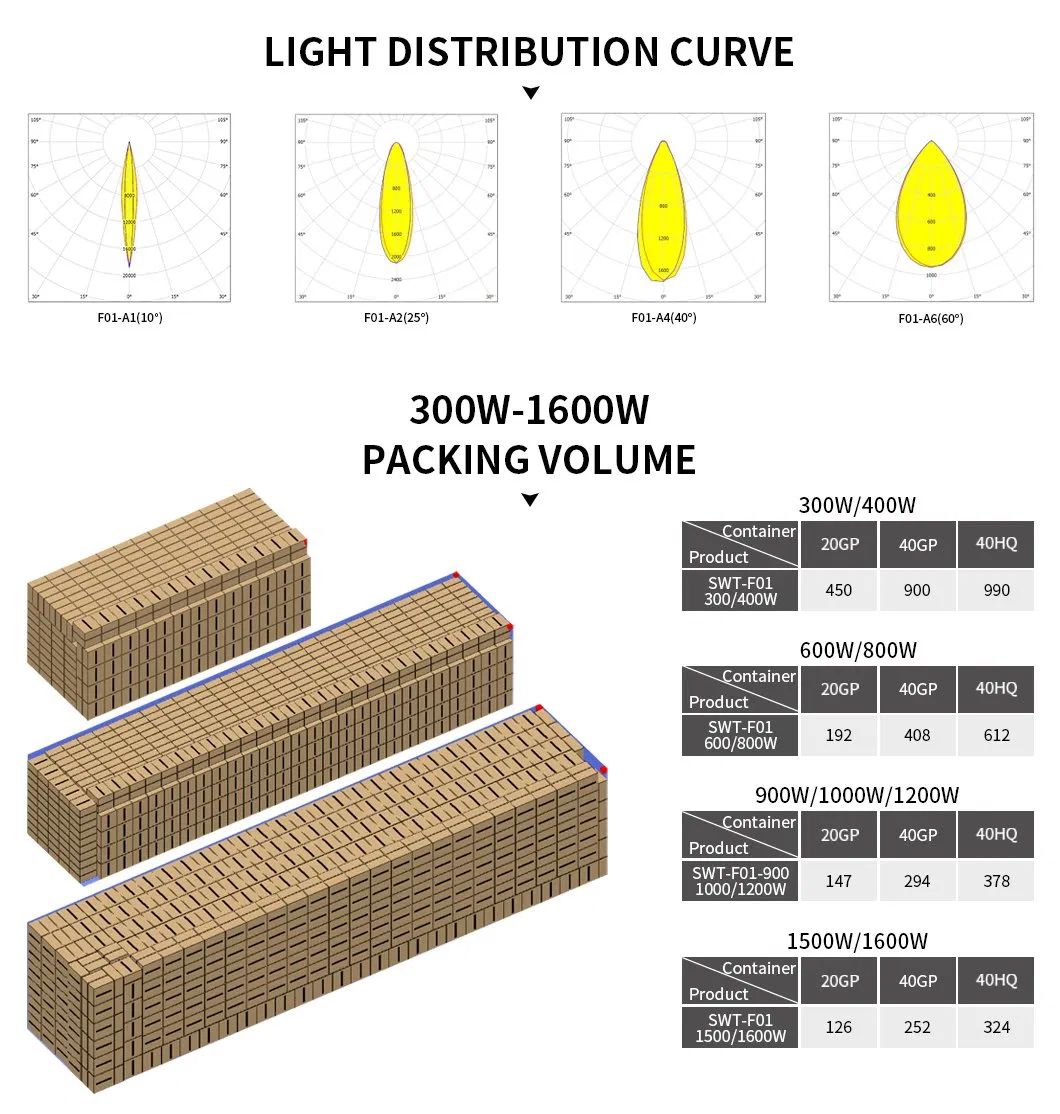

Product Gallery
Frequently Asked Questions
What certifications do these stadium lights have?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. They also hold IP66, IK08-IK10, and LM79/LM80/IES reports.
Do you offer OEM/ODM services?
Yes, we provide full OEM and ODM support, including custom logos on products and packages to meet different application requirements.
What is the standard warranty period?
We offer a 5 to 7-year warranty depending on specific customer requests and project requirements.
What is the typical lead time for orders?
Samples typically take 3-7 days, while mass production orders are completed within 10-20 days based on the quantity.
How do you handle quality control and faulty products?
Our products are manufactured under a strict quality control system with a defective rate of less than 0.1%. For any defects within the warranty period, we provide replacements or repairs according to the situation.
Are the lights protected against lightning?
Yes, the lights include 10KV/20KV surge protection (SPD) to ensure safety and durability during lightning strikes and power surges.
