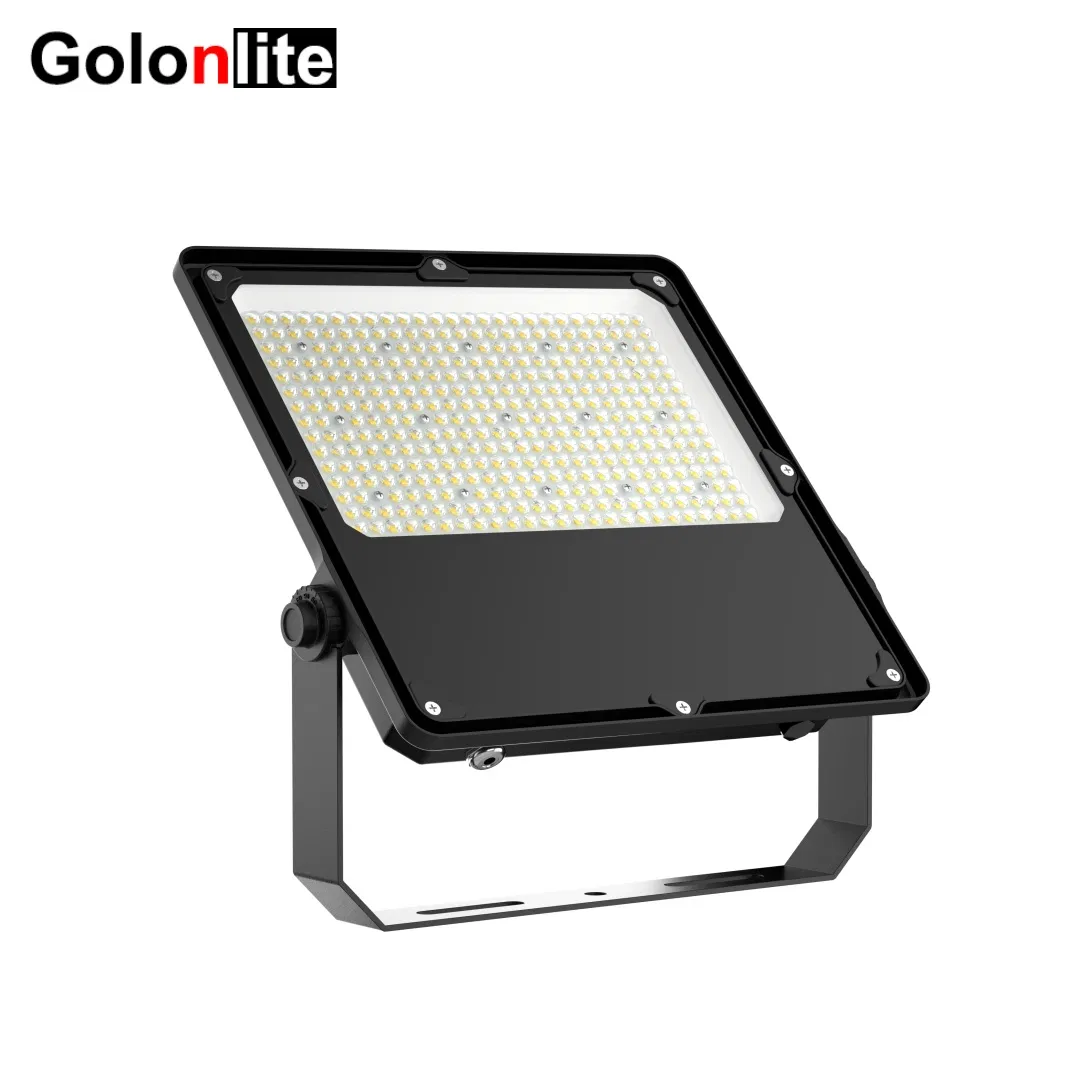

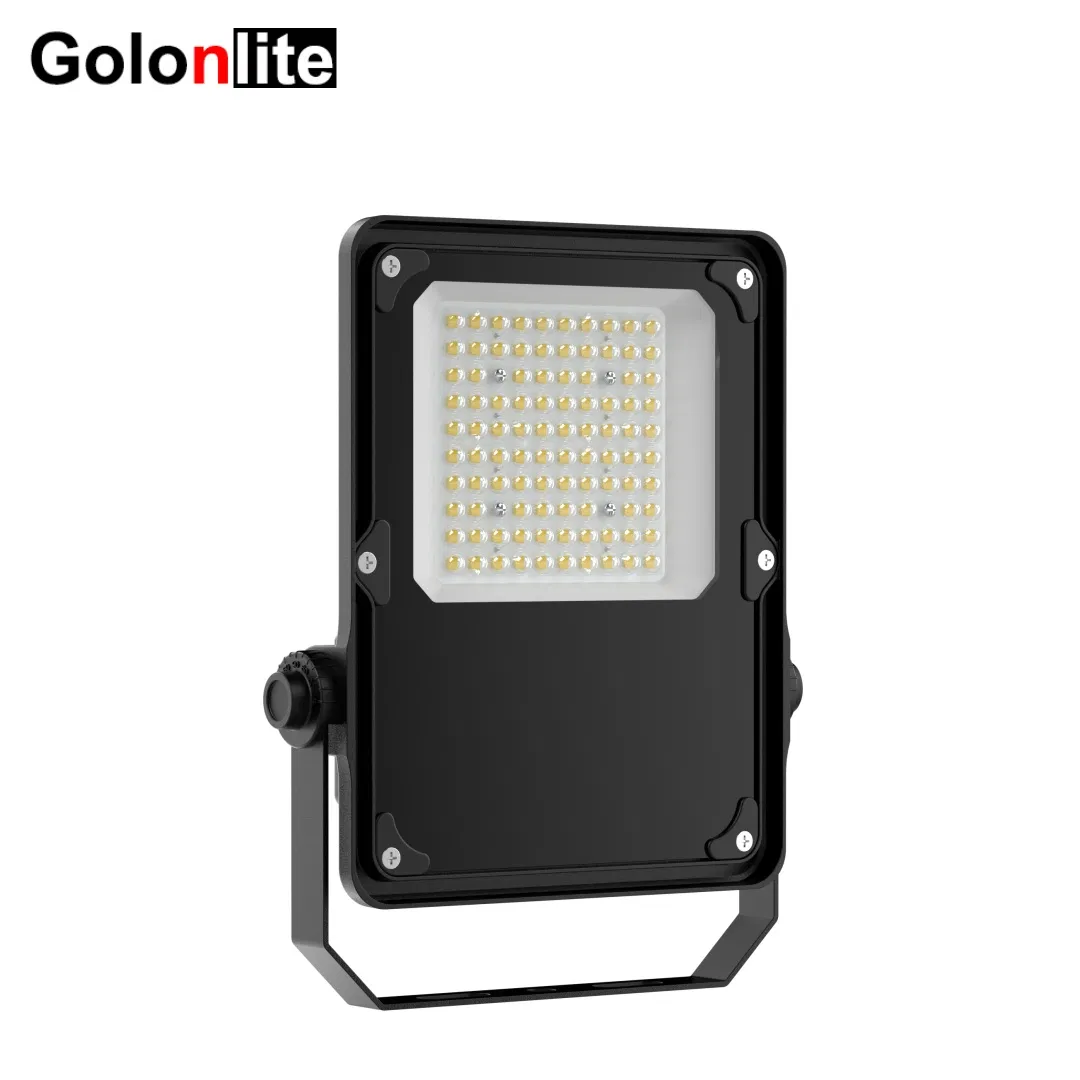

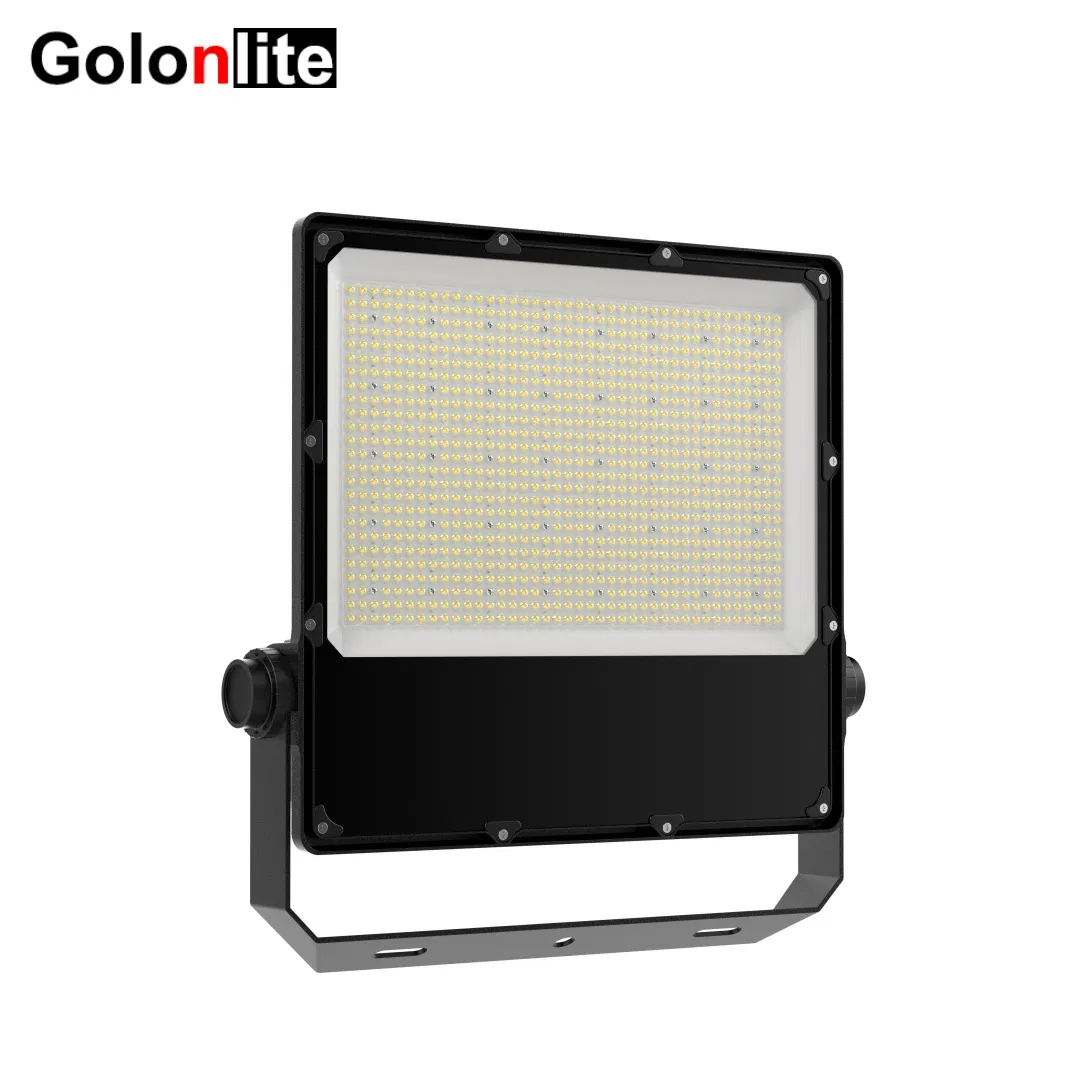

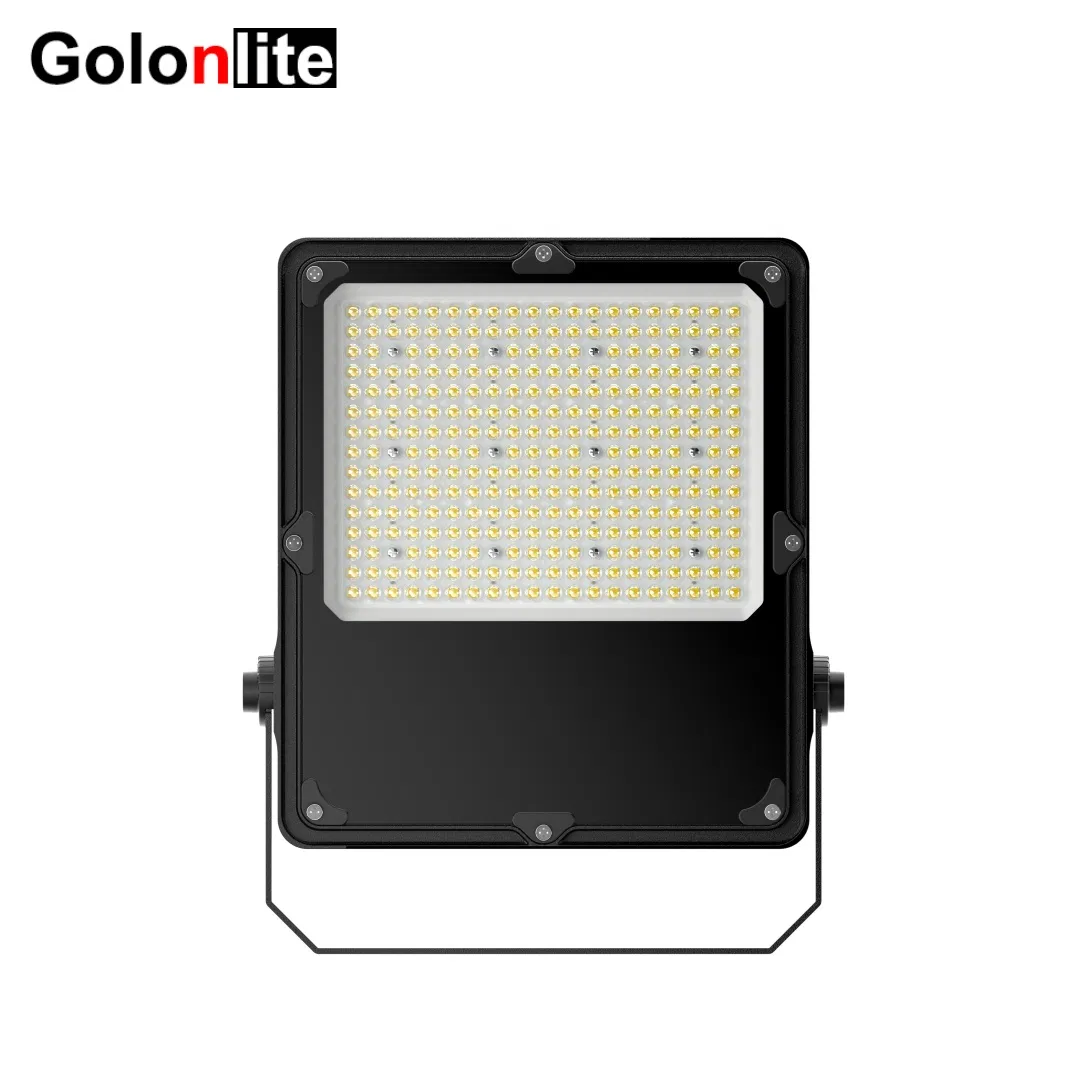

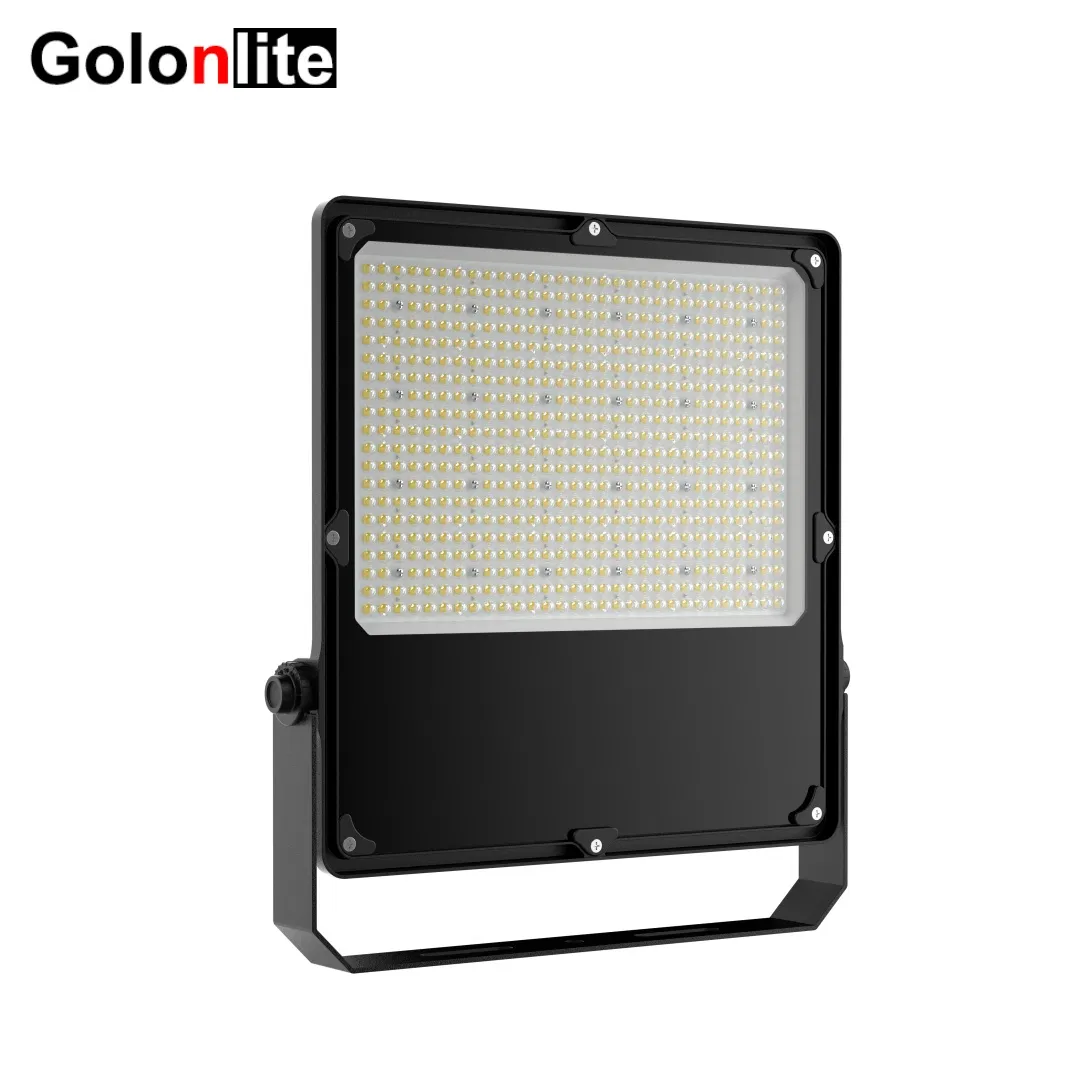

CE Outdoor Spotlight Football Field Tennis Basketball Court Tunnel Projector Reflector LED Lamp 30W 50W 100W 150W 200W 250W 300W 400W 500W 600W LED Flood Light
Product Description
Basic Information
Item Name
30-600W LED Flood Light
Power
400W 300W 240W 200W 150W 100W 80W 60W 50W
IP Rating
IP66
Application
Park, Square, Factory, Garden, Billboard, Security, High Mast, Sport Court
Certification
CE, EMC, LVD, RoHS
Operating Voltage
100-277VAC 50/60Hz
LED Chips Brand
SMD3030
Material
Die Casting Aluminum Body
Lumens Efficiency
150 - 170lm/W
Lifespan
>50,000hrs
Projection Distance
>35m
Dimmable
1-10V / PWM / Dali Dimmable
Product Description

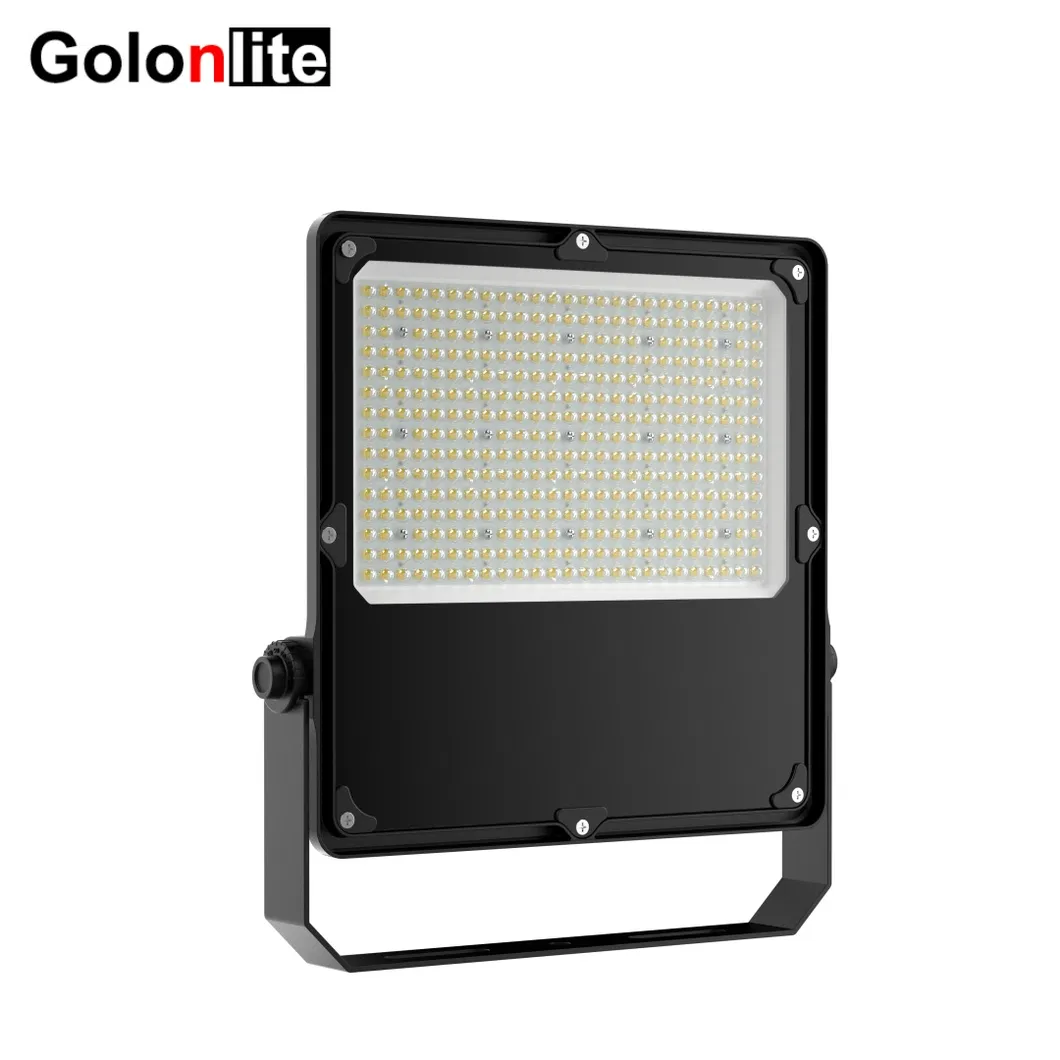

Outdoor Spotlight Projector Reflector LED Lamp

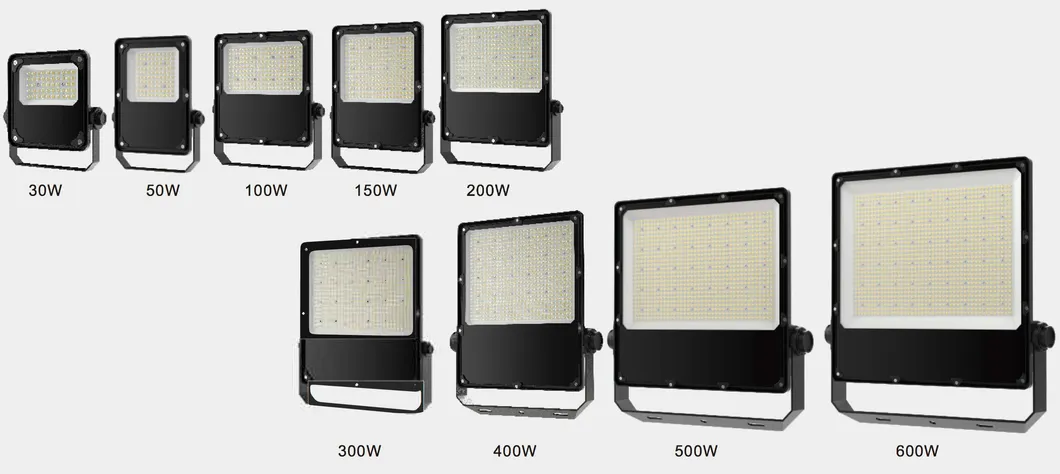

High-efficiency lighting solution for Football Fields, Tennis Courts, Basketball Courts, Tunnels, and Stadiums. Available in 30W to 600W configurations.
| Technical Specifications | ||
| Light Source | LED Type | SMD3030 / SMD2835 |
| Luminous Efficiency | 150-170Lm/W | |
| CCT(K) | 3000K / 4000K / 5000K / 5700K / 6500K | |
| CRI | > Ra80/Ra70 | |
| Electricity | Input Voltage | 100-277VAC / 347V / 480V 50/60Hz |
| Power Factor | >PF0.95 | |
| Dimming | 1-10V, PWM, Resistance, Dali, Photocell, PIR/Motion sensor | |
| Beam Angle | 15° / 30° / 60° / 90° / 120° / P50 / T2 / T3 / T4 | |
| Structure | Materials | Die casting Aluminum housing + optical lens + tempered glass |
| Protection | IP66 waterproof / IK08 | |

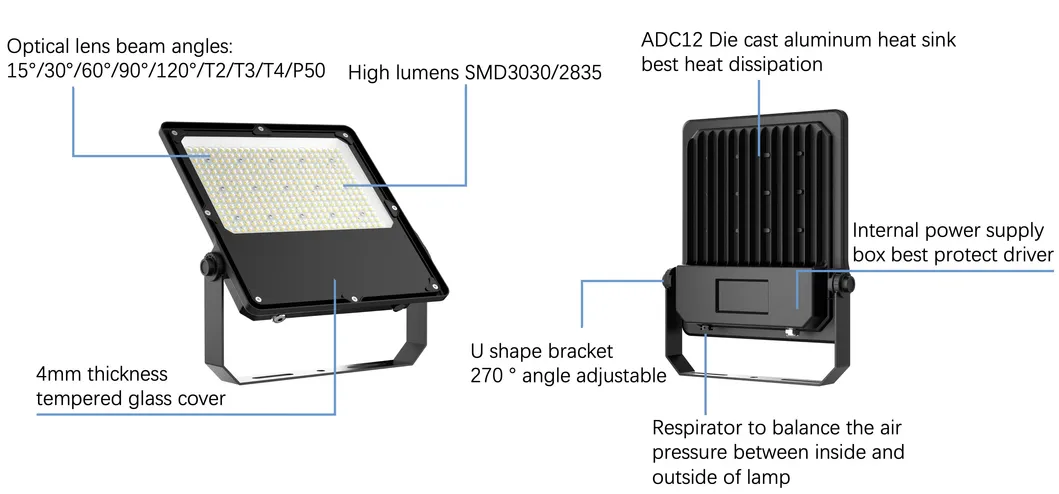

Key Features
- Adopted with world-famous drivers (Meanwell / Inventronics / Sosen / Moso).
- Super bright performance reaching up to 180Lm/W.
- Advanced die-casting housing design for optimal heat dissipation.
- Anti-dust design, compatible with flushable cleaning.
- PMMA optical lens with multiple symmetric & asymmetric beam angle options.
- Anti-UV lens with 4mm tempered glass for durability.
- Slim design to save on freight costs while maintaining industrial strength.
- Free Dialux lighting simulation and study available for projects.

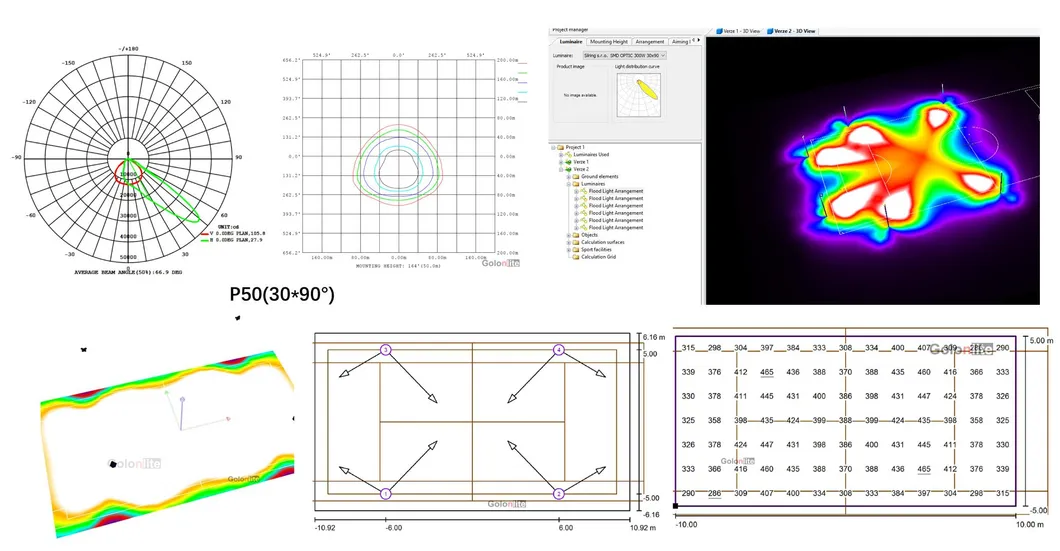

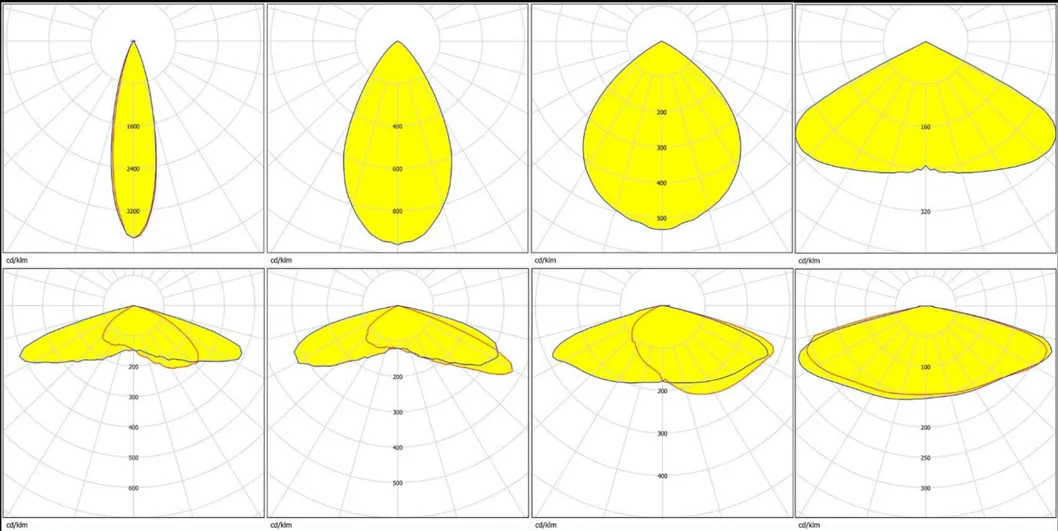

Lighting Simulation & Beam Angles

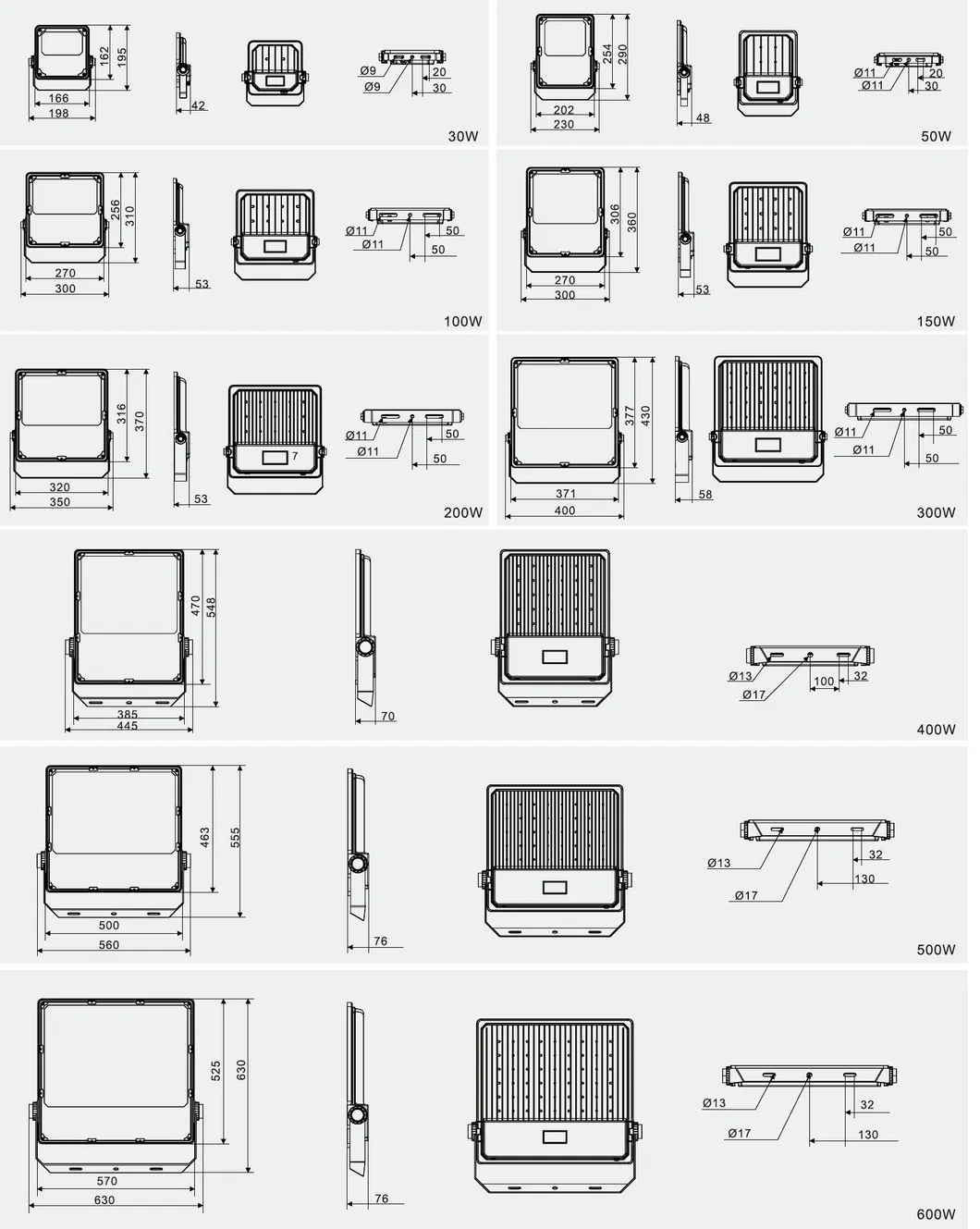

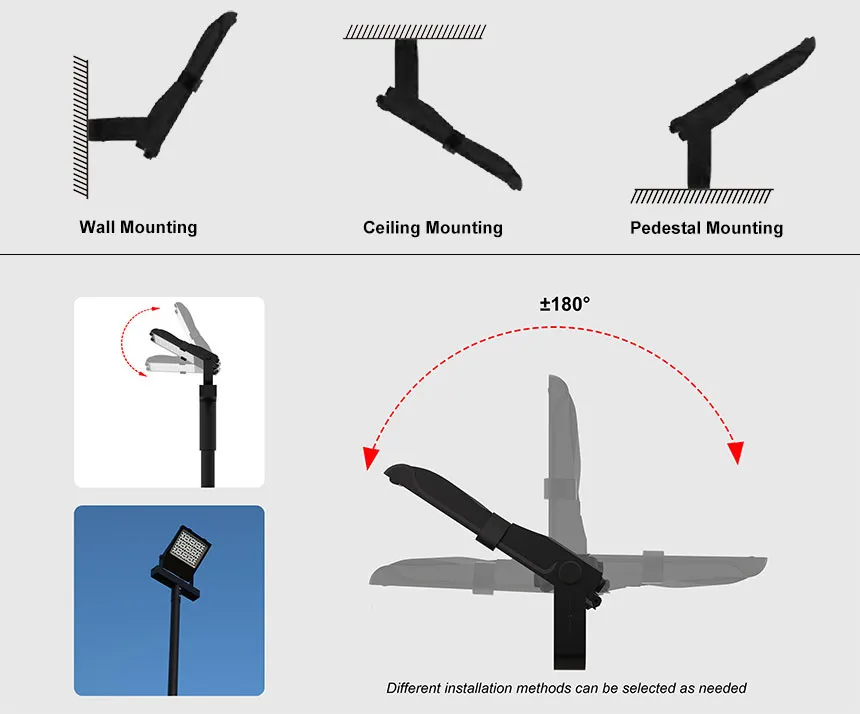

Installation & Dimensions

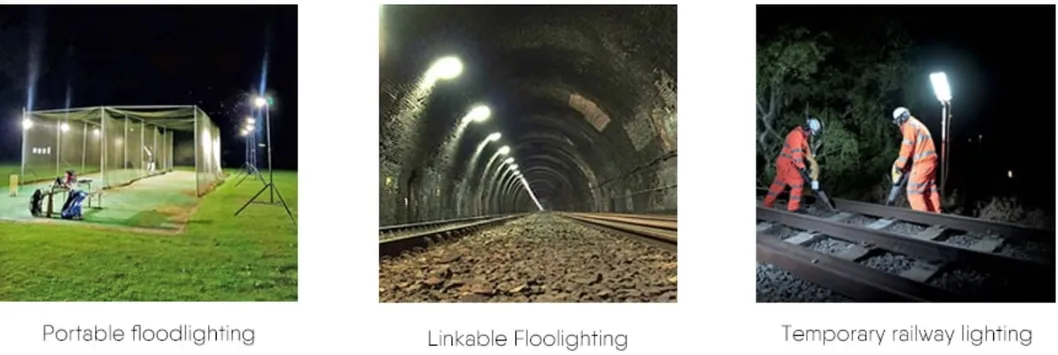

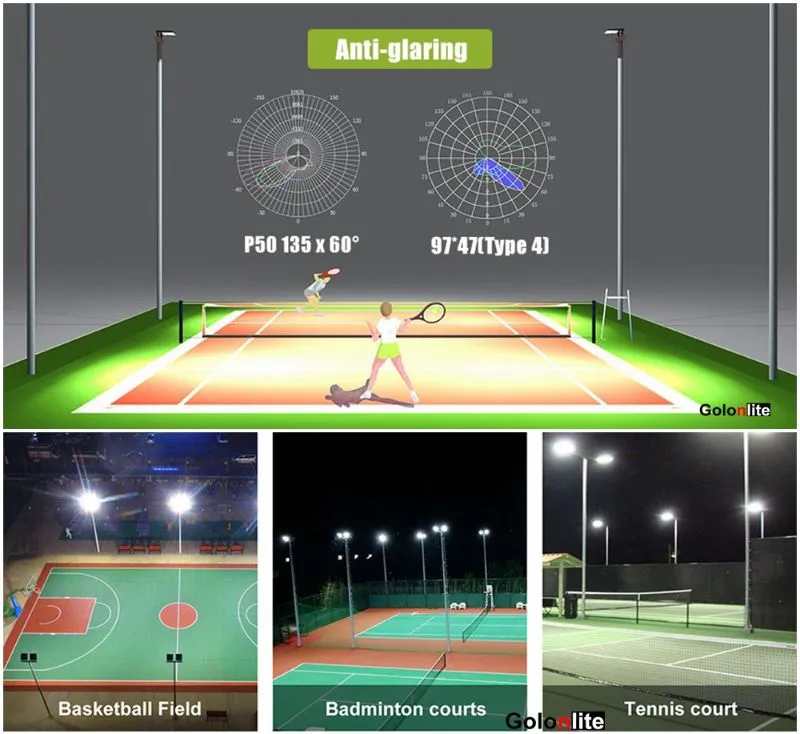

Applications
Frequently Asked Questions
1. What is the lifespan of these LED flood lights?
These lights are designed for long-term durability with a lifespan exceeding 50,000 hours.
2. Are these lights suitable for extreme outdoor weather?
Yes, they feature an IP66 waterproof rating and IK08 impact protection, making them ideal for various outdoor environments.
3. Can I get a lighting simulation for my specific project?
Absolutely. We provide free Dialux lighting simulations and IES files to help you plan your lighting layout effectively.
4. What kind of warranty is provided?
We offer a comprehensive 5-year warranty on our LED flood light series, covering both the driver and the LED components.
5. What are the available dimming options?
Our lights support multiple dimming protocols including 1-10V, PWM, and Dali, as well as photocell and motion sensor integrations.
6. Can these replace traditional metal halide lamps?
Yes, our high-power models (up to 600W) are designed to efficiently replace 1000W to 2500W Metal Halide or HID lamps.
