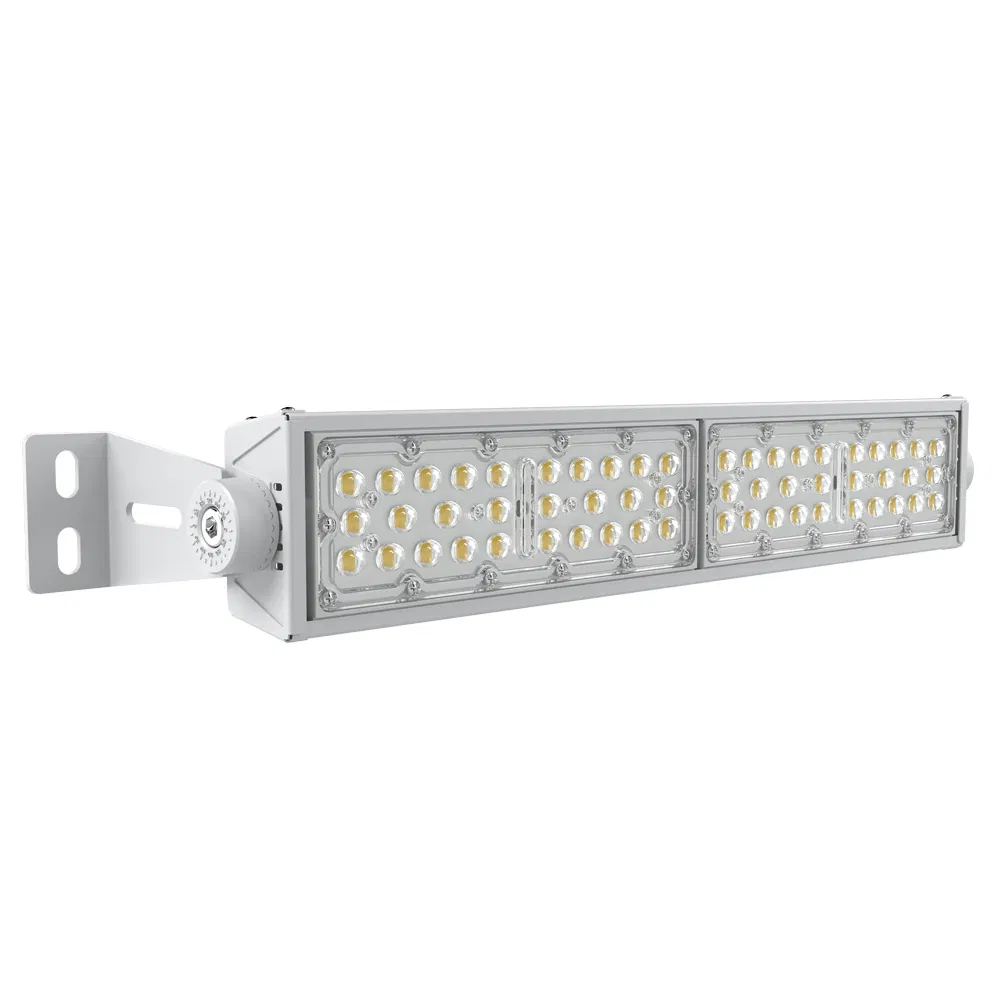

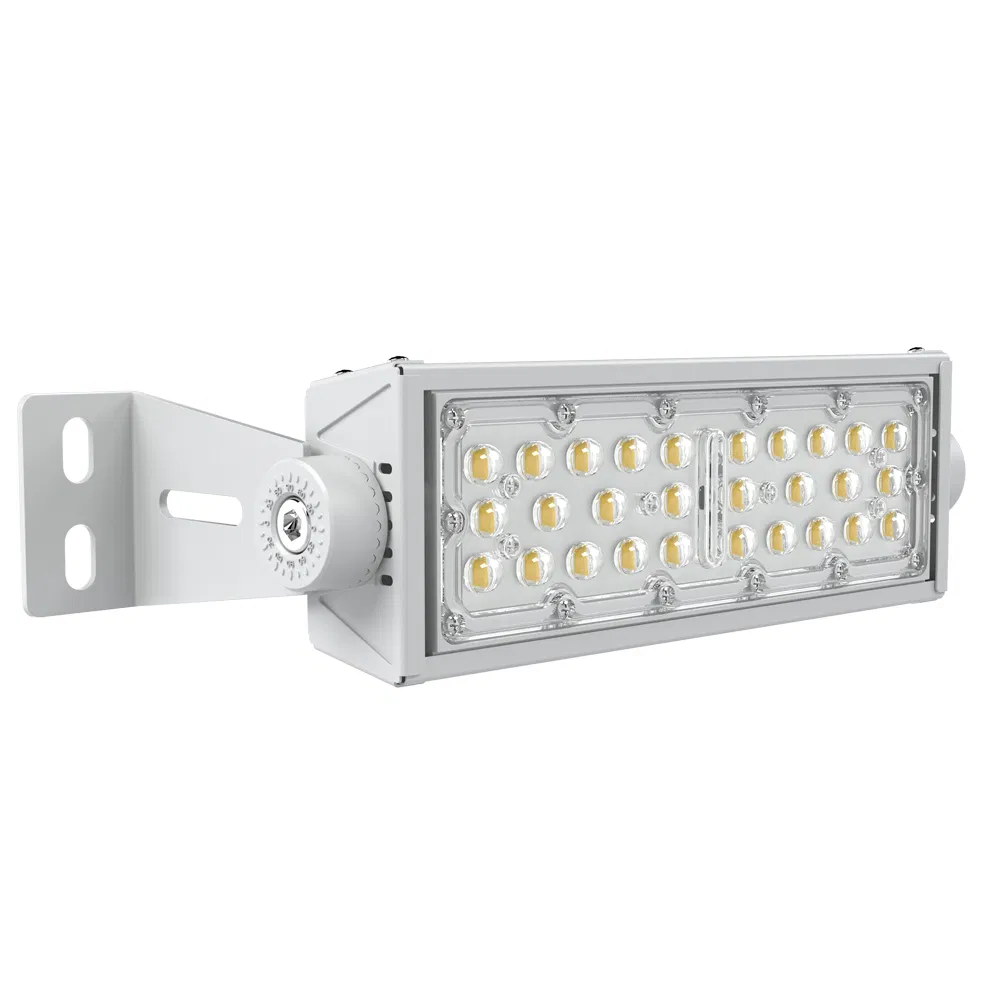

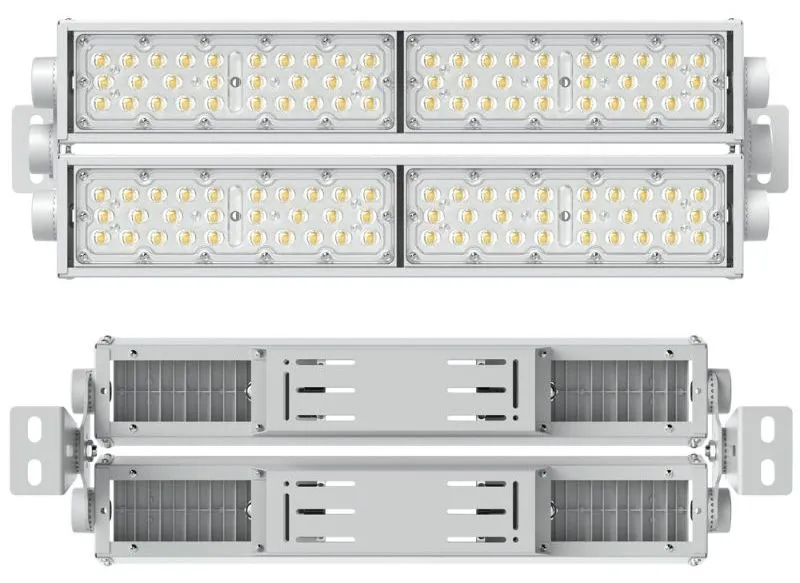

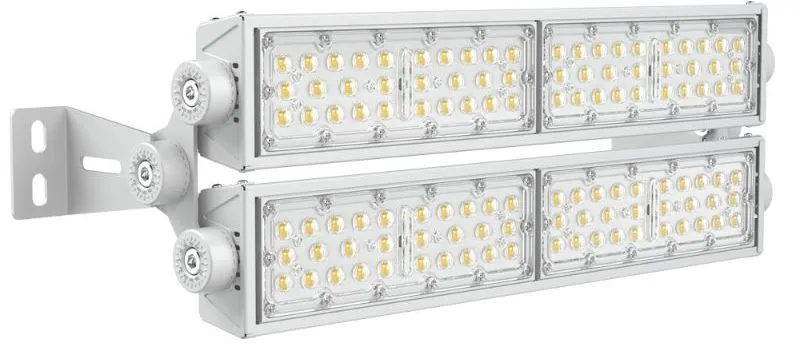

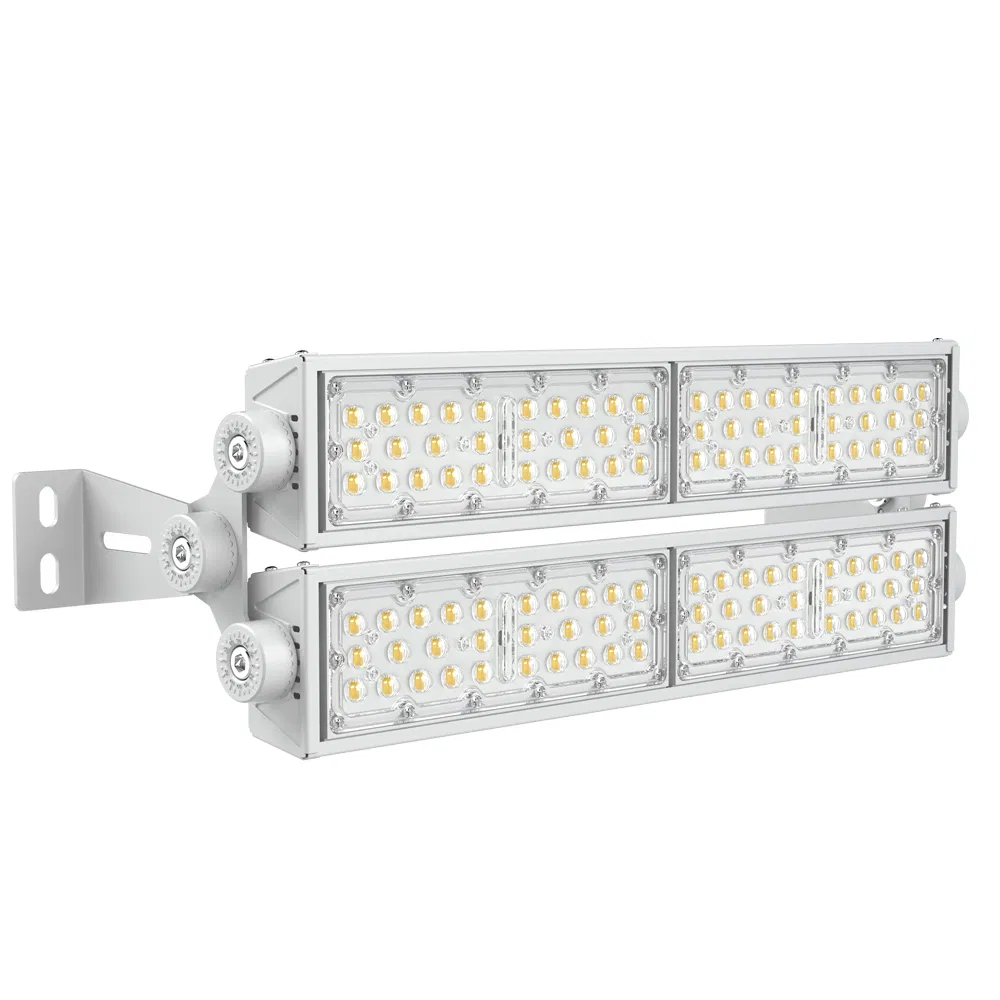

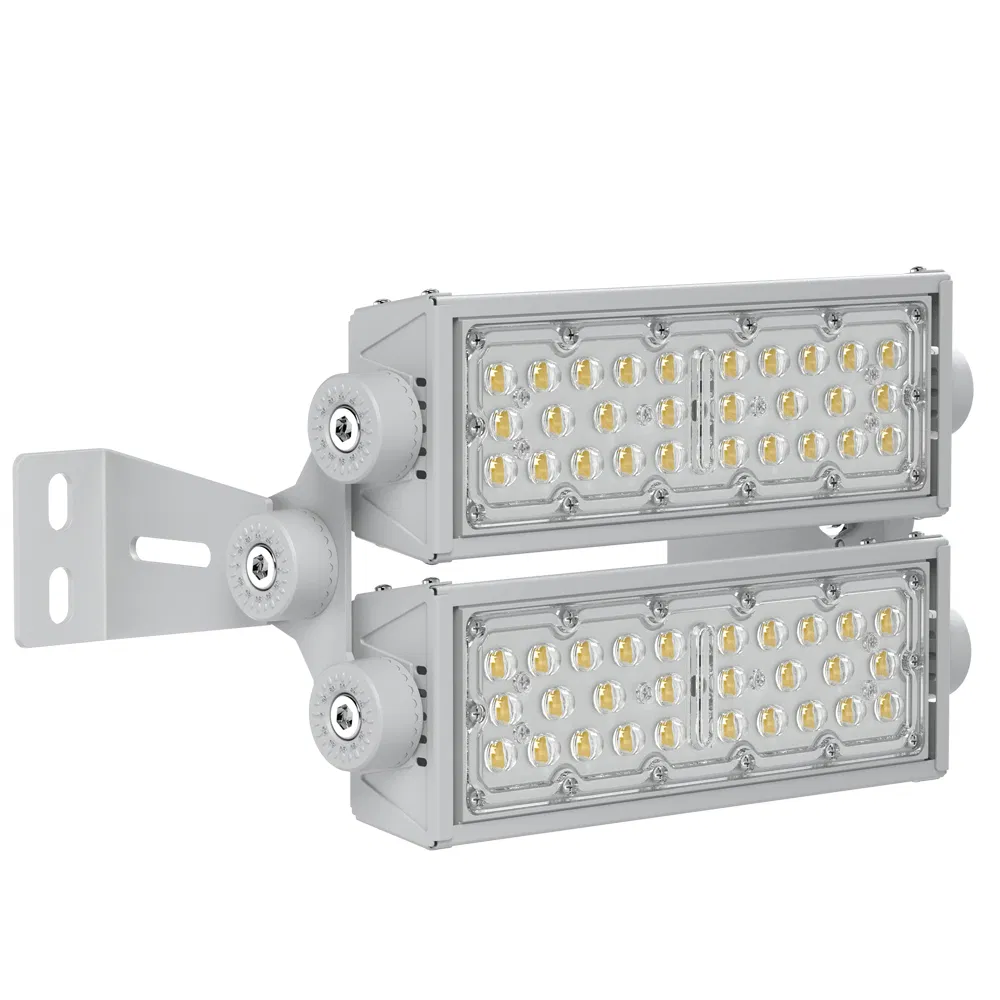

IP65 Dali Dimmable PLC Intelligent Control 200W LED Tunnel Flood Light
Product Description
📊 Basic Specifications
Model NO.
QH-FTLB-200W
IP Rating
IP65
Beam Angle
60° / 90° / 70*140°
Housing Color
Black / Grey
Lifespan
>50,000 hours
Warranty
5 Years
Voltage
AC90-305V / 480V
Luminous Flux
28000-30000lm
Efficiency
140-150lm/W
CCT
3000K-6500K (Max 20000K)
CRI
Typical 80, Max 95
Material
Die-Casting Aluminum
IP65 DALI DMX PLC 0-10V Dimmable LED Tunnel Light
High-efficiency 150lm/W professional lighting solution for tunnels and large areas.
🌟 Key Features
Smart Modular Design

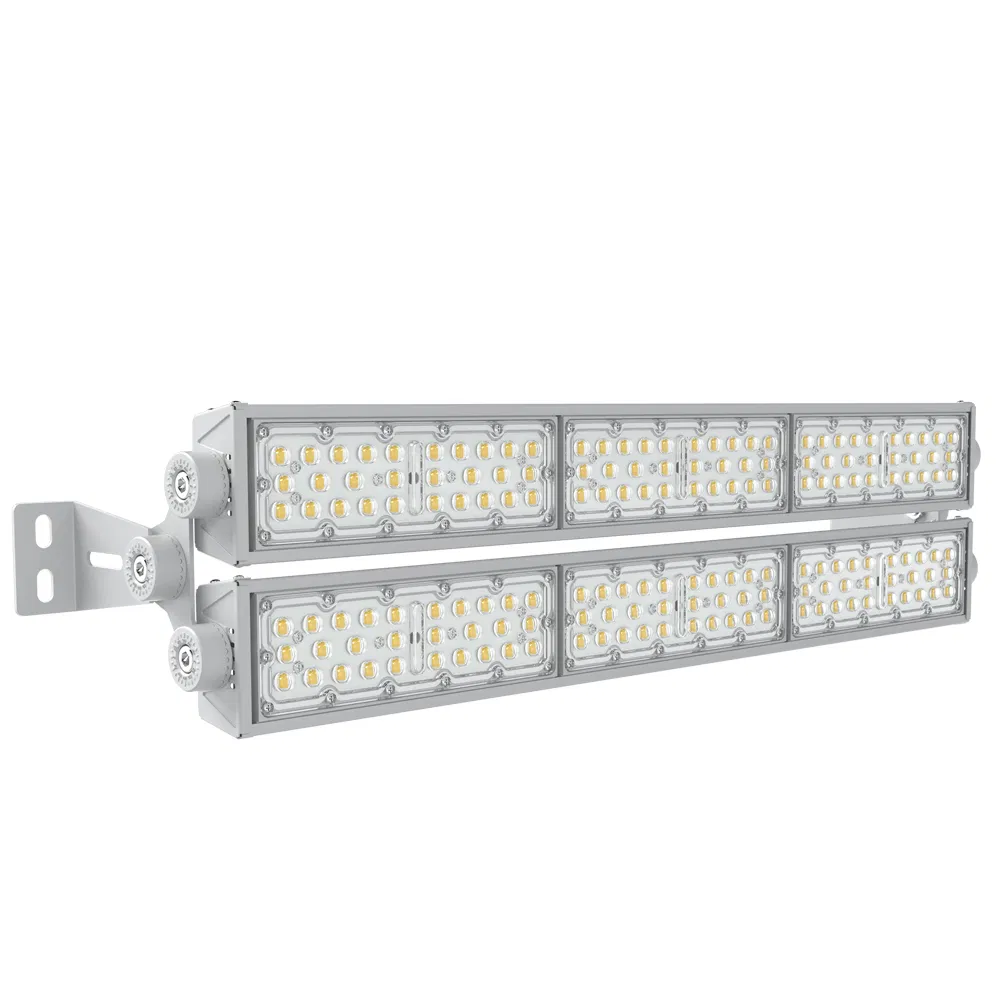

Scalable power from 50W to 400W with high-efficiency cooling systems.
Premium Components
Equipped with high-brightness 3030 SMD LEDs and Meanwell or Inventronics drivers.
Flexible Installation

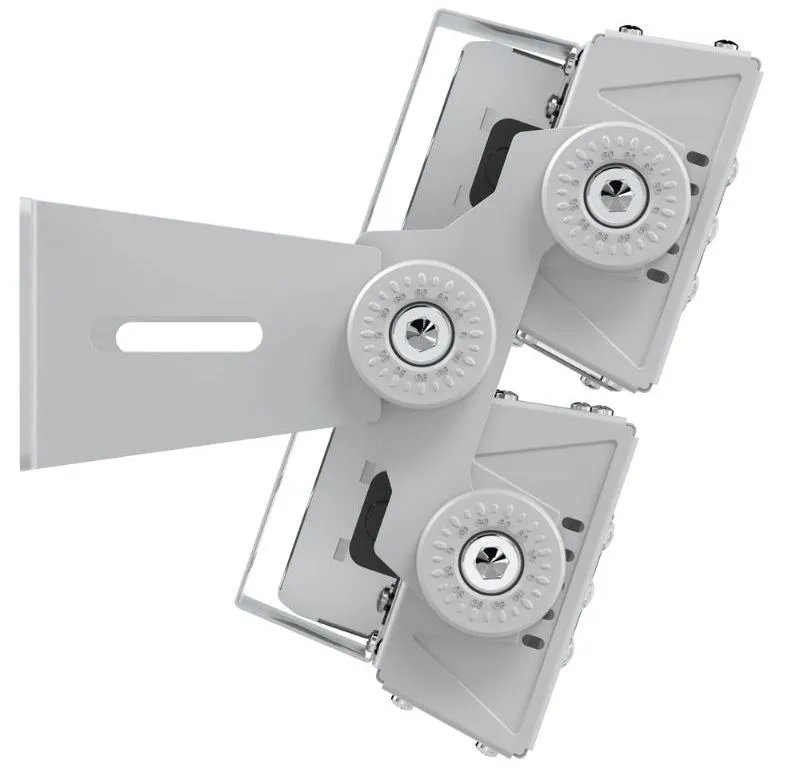

216° adjustable bracket suitable for various industrial applications.
Intelligent Control
Supports DALI, DMX, PLC, and 0-10V dimming for single group or area management.
Energy Efficiency
Saves more than 70% energy compared to traditional sodium lamps.
Durability
IP65 rated with a 50,000-hour lifetime and 5-year comprehensive warranty.
📋 Technical Datasheet
| Model | QH-FTL-50W | QH-FTL-100W | QH-FTL-150W | QH-FTL-200W |
|---|---|---|---|---|
| Power | 50W | 100W | 150W | 200W |
| Luminous Flux | 140-150 LM/Watt | |||
| LED Source | 3030 SMD | |||
| LED Qty | 64pcs | 128pcs | 192pcs | 256pcs |
| Input Voltage | 90-305V AC 50/60Hz | |||
| IP Rating | IP65 | |||
| Working Life | >50,000 hours | |||
🛣️ Applications

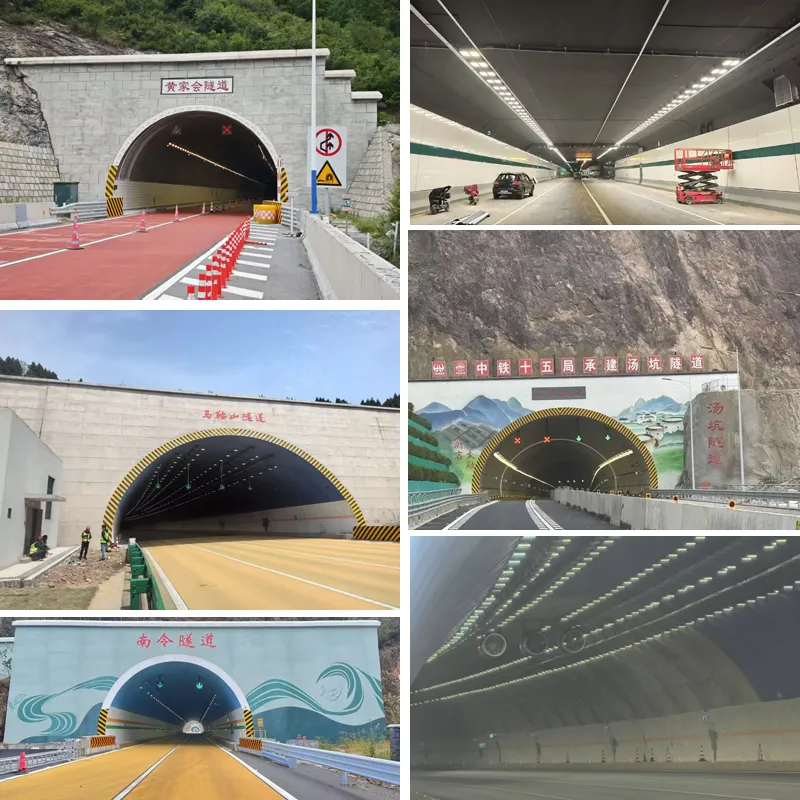

Professional lighting solution designed for all kinds of tunnels, highways, and industrial outdoor areas.
❓ Frequently Asked Questions
Can we customize the branding and packaging?
Yes, we support OEM services including logo printing, embossing on the fixture, and customized brand boxes.
What is the warranty and manufacturing background?

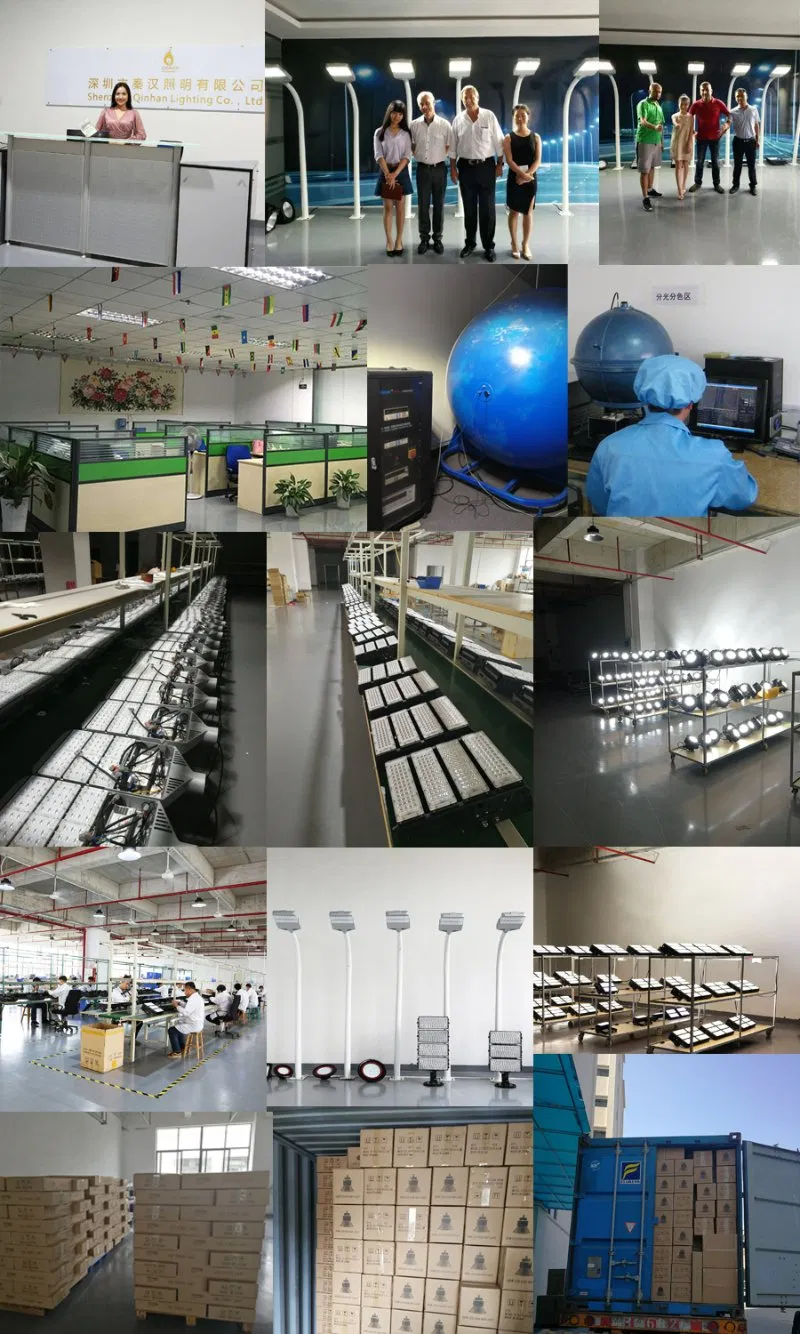

We are a professional factory with over 10 years of experience, providing a 5-year to 10-year warranty on our LED lighting products.
How is product quality controlled?

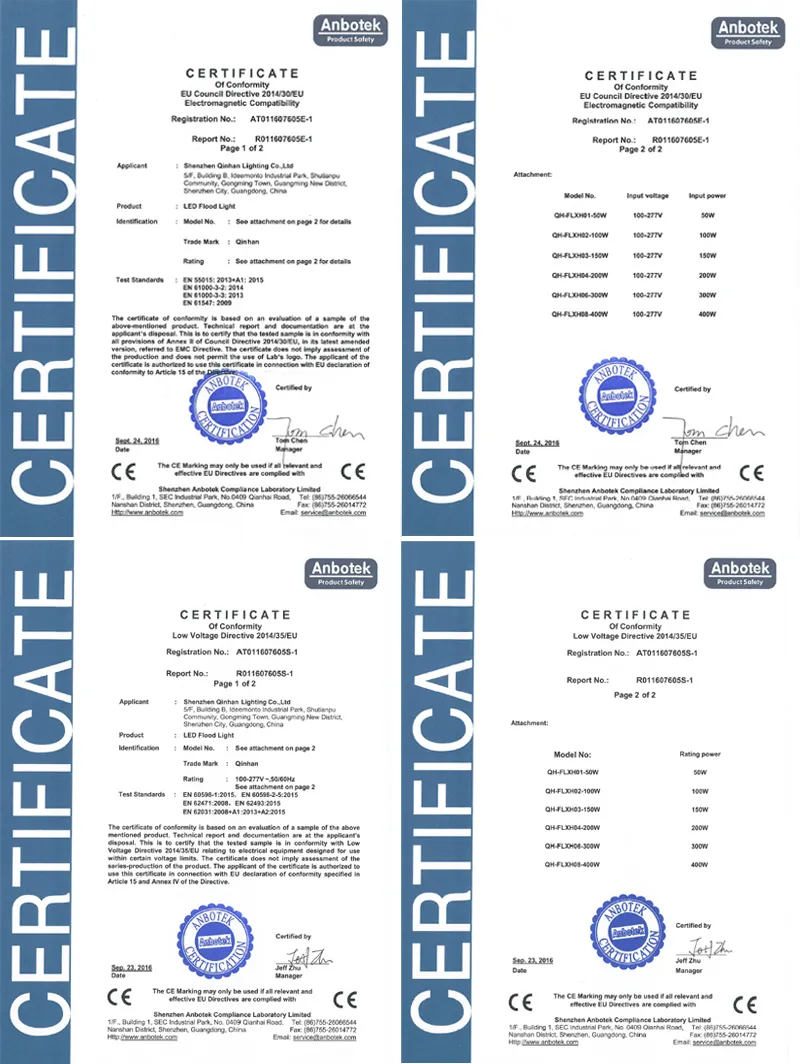

Quality is our priority. We maintain strict quality control from start to finish, and our products have gained CE, DLC, ROHS, FCC, and ISO9001 certifications.
What happens if I receive a defective light?
We stand behind our products. If any lights are non-functional upon arrival, we provide the same quantity of replacement lights as compensation in your next order.
What are the accepted payment terms?
We accept various payment methods including T/T, L/C at sight, and Western Union.
Do you use high-quality components for these flood lights?
Absolutely. We only use top-tier components, such as Meanwell or Inventronics drivers and high-efficiency SMD chips, to ensure long-term reliability.
