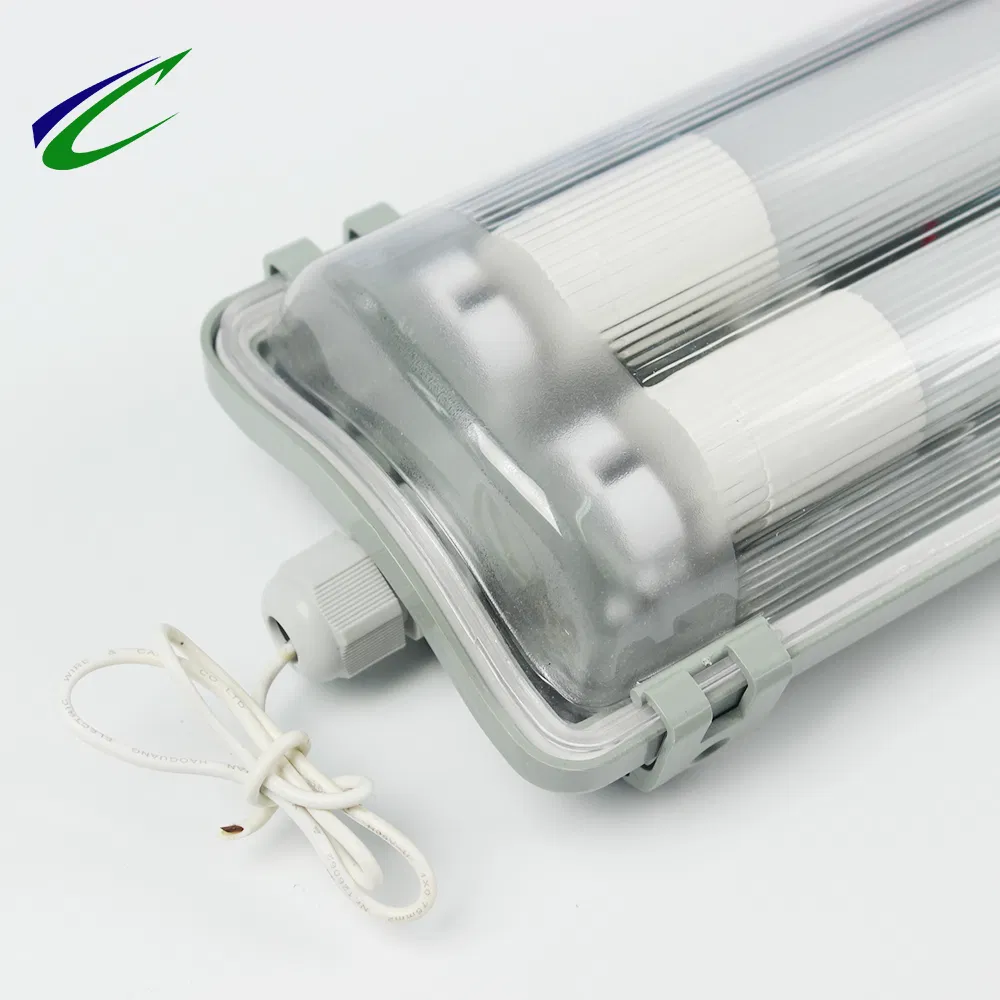

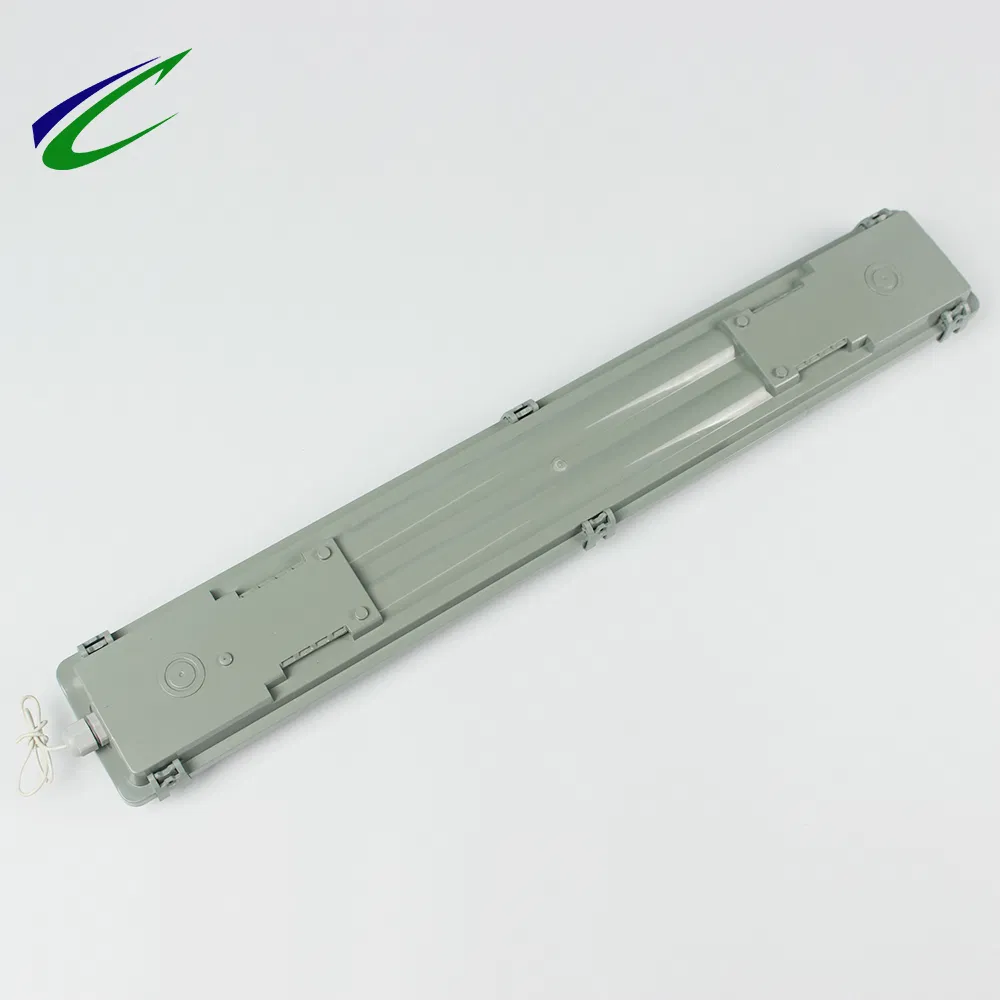

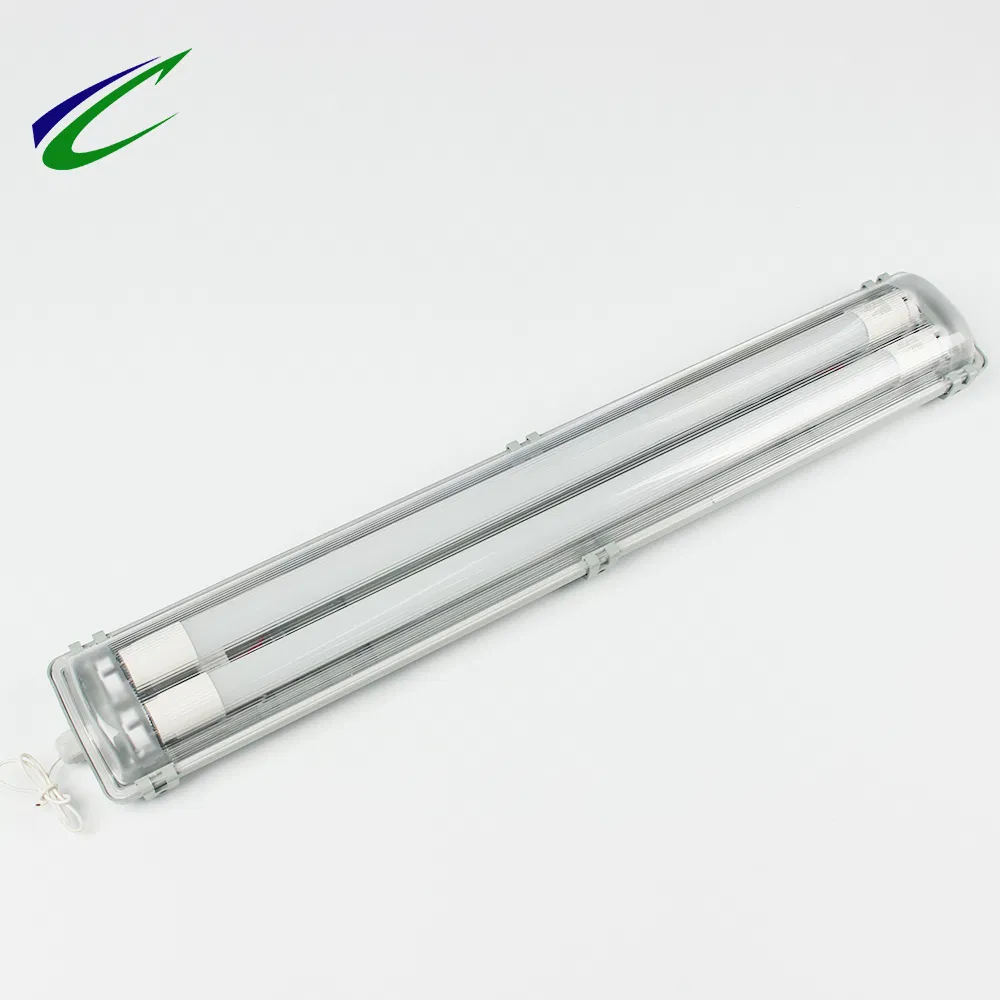

T5 T8 LED Water-Proof Light Fluorescent Tube Double Tube or Single Tube Tunnel Light
Product Description
📋
Basic Information
Product Name
LED Tri-Proof Light
Feature
Anti-corrosion, Dust-Proof, Waterproof
Material
PC / ABS
Power
36W
Color Temp
2700-6500K
IP Rating
IP65
CRI
Ra > 80
PF
0.9
Specification
126*11*8cm
HS Code
9405409000
💡
Product Description
- Outer Casing: High-quality ABS or PC Materials
- Cover: Clear PS or PC Materials for optimal light diffusion
- Metal Plate: Chemical treated and powder coated for durability

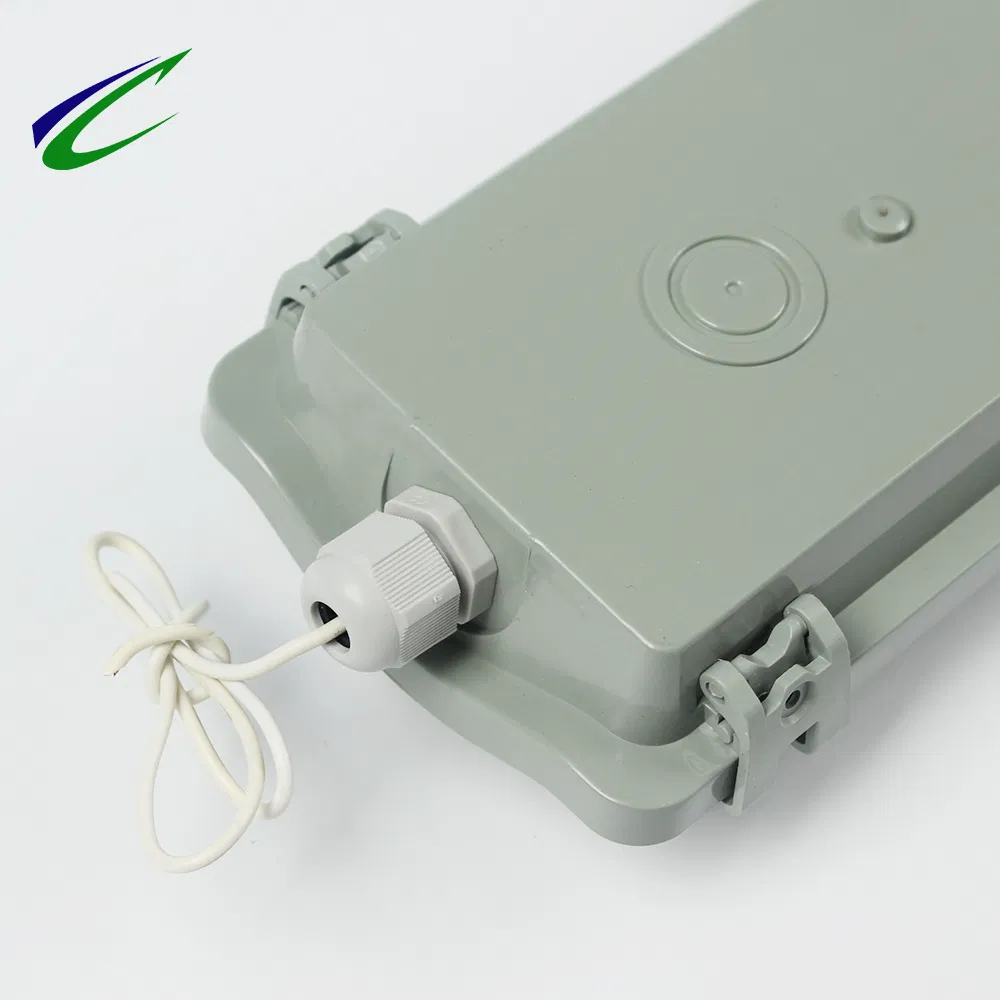

- Locks: Secure ABS, PC or Stainless Steel Clips
- Housing: White Iron fixing board with copper wire and CE lamp holders
- Protection: IP65 Waterproof rating, Class I Safety Class
- Voltage: 220-240V compatible
⭐
Key Features
- Smart Design: Specifically engineered for LED tubes to maximize efficiency.
- Convenient Installation: The diffuser can hang during tube replacement, reducing maintenance time.
- Security: Clips feature anti-theft screw holes to ensure the fixture remains secure in public areas.
- Versatile Selection: Diffusers available in transparent or striated finishes to suit different lighting needs.
🏢
Applications
Ideal for demanding environments including: Car parks, Industrial areas, Offices, Corridors, Supermarkets, Shops, Bakeries, and Storage areas.
📊

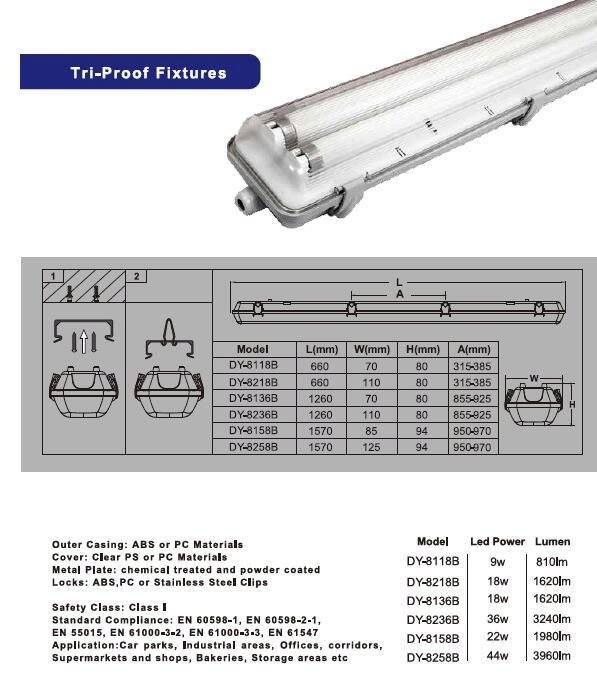

Technical Specifications
| Model | Power | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
|---|---|---|---|---|---|---|
| DY-8118B | 9W | 810lm | 660 | 70 | 80 | 315-385 |
| DY-8218B | 18W | 1620lm | 660 | 110 | 80 | 315-385 |
| DY-8136B | 18W | 1620lm | 1260 | 70 | 80 | 855-925 |
| DY-8236B | 36W | 3240lm | 1260 | 110 | 80 | 855-925 |
| DY-8158B | 24W | 1980lm | 1570 | 85 | 94 | 950-970 |
| DY-8258B | 48W | 3960lm | 1570 | 125 | 94 | 950-970 |
| Model (BS) | Power | Lumen | L(mm) | W(mm) | H(mm) | A(mm) |
|---|---|---|---|---|---|---|
| DY-8118BS | 9W | 810lm | 660 | 70 | 78 | 340-415 |
| DY-8218BS | 18W | 1620lm | 660 | 100 | 78 | 340-415 |
| DY-8136BS | 18W | 1620lm | 1260 | 70 | 78 | 790-865 |
| DY-8236BS | 36W | 3240lm | 1260 | 100 | 78 | 790-865 |
| DY-8158BS | 22W | 1980lm | 1560 | 70 | 78 | 975-1050 |
| DY-8258BS | 44W | 3960lm | 1560 | 100 | 78 | 975-1050 |
❓
Frequently Asked Questions
What is the IP rating of this LED Tri-Proof light?
This fixture has an IP65 rating, meaning it is completely dust-tight and protected against water jets from any angle, making it ideal for wet or dusty environments.
What materials are used for the housing and cover?
The outer casing is made of durable ABS or PC materials, and the cover is available in clear PS or PC. These materials provide excellent impact resistance and light transmission.
Can this light be used in public parking lots?
Yes, it is specifically designed for car parks. It features anti-theft screw holes on the clips to prevent tampering in public or industrial areas.
Does the light come with an electronic ballast?
No, this fixture is supplied fully wired for LED tubes and does not require an electronic ballast or starter, simplifying the setup for modern LED technology.
What is the voltage range for these fixtures?
The standard operating voltage is 220-240V, suitable for most industrial and commercial electrical systems.
Is maintenance difficult for these lights?
Not at all. The smart design allows the diffuser to hang while you replace the LED tube, making maintenance quick and convenient for one person.
