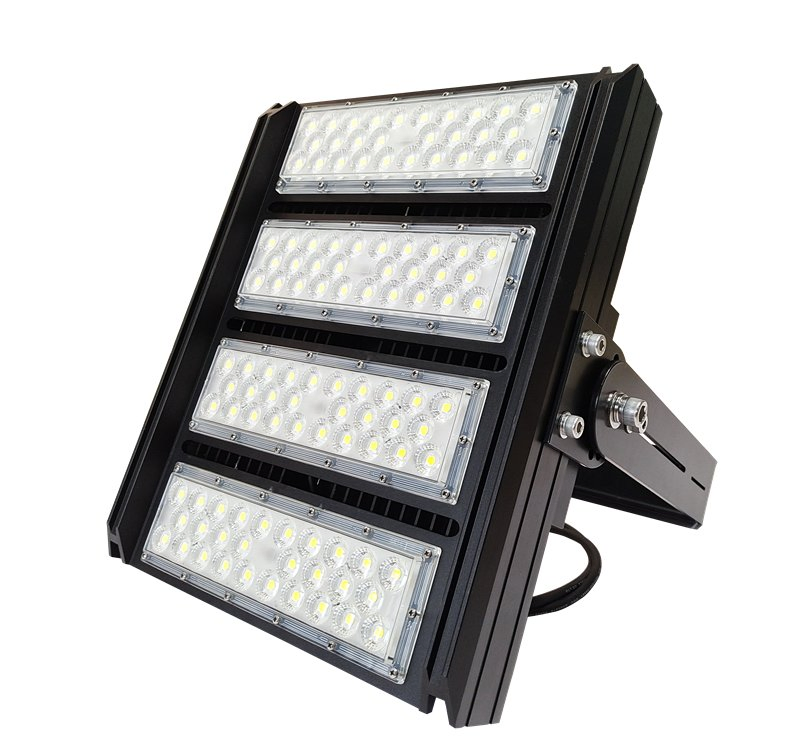

IP66, CE, CB, ENEC, High Power LED Flood Light 400W LED Floodlight for Tunnel, Square
Product Description
Basic Info.
Model NO.
JYT11-400
Power
≥100W
Application
Park, Square, Factory, Garden, Port, Station
IP Rating
IP66
Certification
CCC, CE, CQC, RoHS
Operating Voltage
85-265V
Input Voltage
90-305V
LED Chips Brand
Bridgelux
Efficiency
>140 Lm/W
Luminous Flux
580000
Warranty
3 Years
Life
100000 H
Production Capacity
5000 PCS/Month

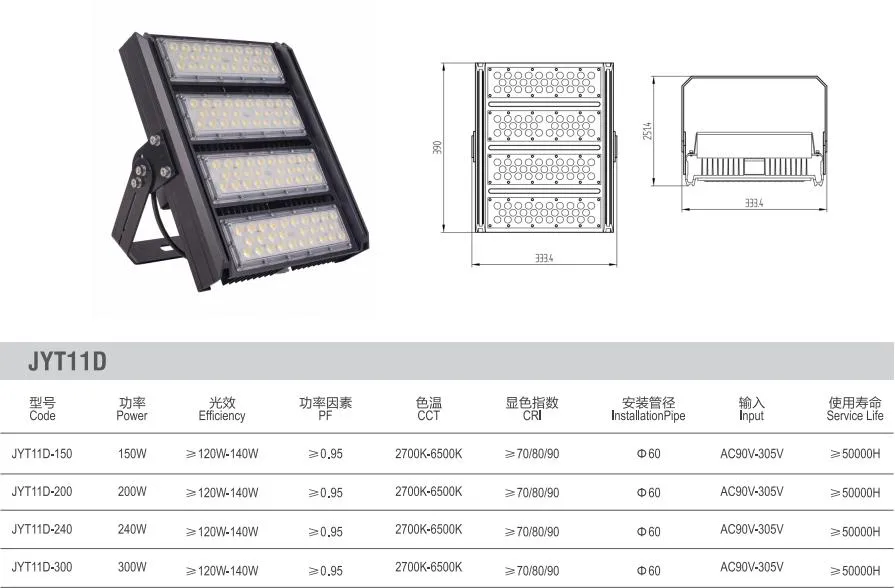

Product Parameters
| No. | Parameters | Unit | Standard |
|---|---|---|---|
| Optical Parameters | |||
| 1 | Color temperature | K | 5700 (optional) |
| 2 | CRI | / | ≥70 |
| 3 | Luminous flux | Lm | 58000 |
| 4 | Luminous efficiency | Lm/W | 145 |
| 5 | Beam angle | º | 40 (optional) |
| 6 | Life | Hrs | 50000 |
| Electrical Parameters | |||
| 7 | Power | W | 300 / 350 / 400 |
| 8 | Input voltage | Vac | 100-305 |
| 9 | Max input current | A | 4.0 |
| 10 | Frequency | Hz | 50/60 |
| 11 | Output current | A | 8.5 |
| 12 | Power factor | / | ≥0.95 |
| 13 | Driver efficiency | % | >90 |
| Structural Parameters | |||
| 15 | Dimensions(L*W*H) | mm | 335*474*123 |
| 16 | Weight | Kg | 10 |
| 17 | IP | / | 66 |
| 18 | Color | / | Black |
| Comprehensive Parameters | |||
| 19 | Operating temperature | ºC | -40~+50 |
| 20 | Storage temperature | ºC | -40~+70 |
| 22 | Environmental directives | / | RoHs |
Product Description
Replace 700W metal halide lamp
Good junction temperature & insulation
High output and excellent thermal
Light weight and attractive appearance
Universal voltage 100~305Vac
50,000 hours rated average life

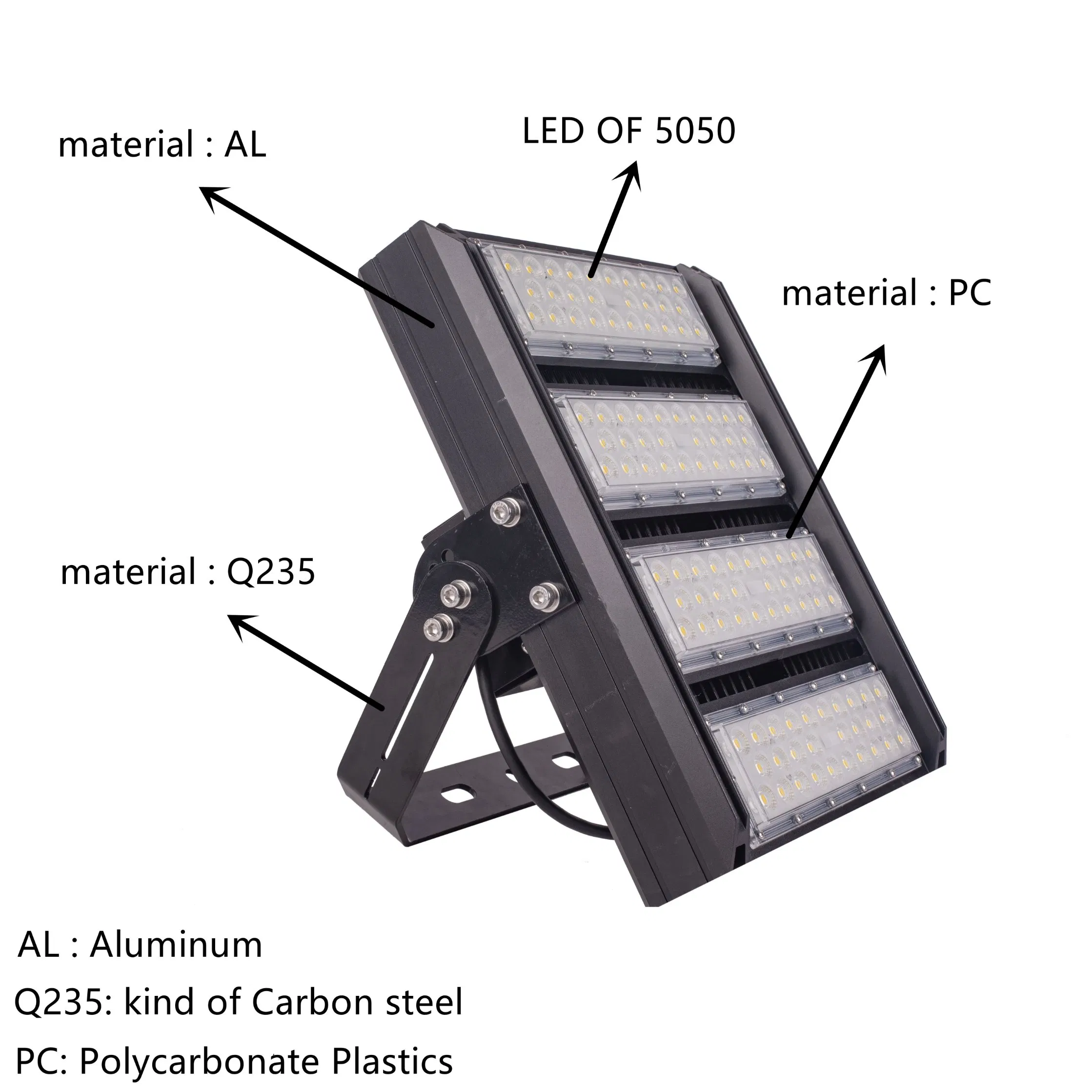

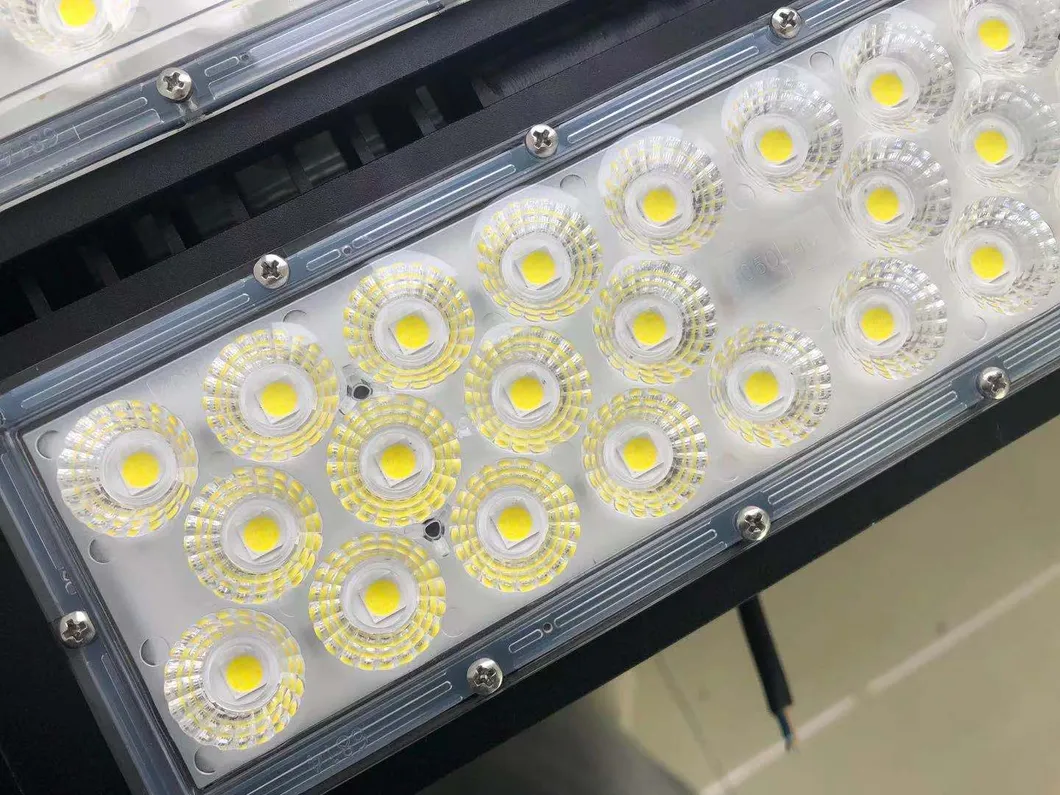

SMD led 5050, 145-160 lm/w

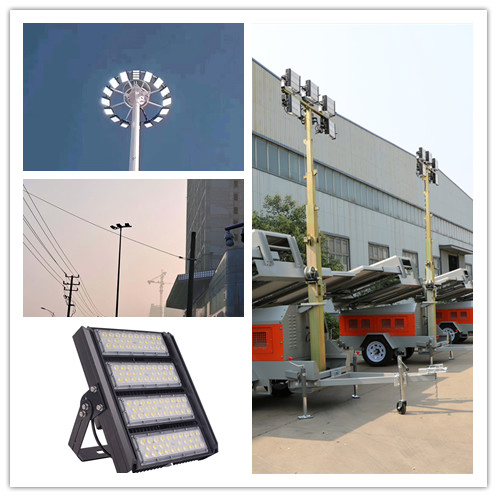

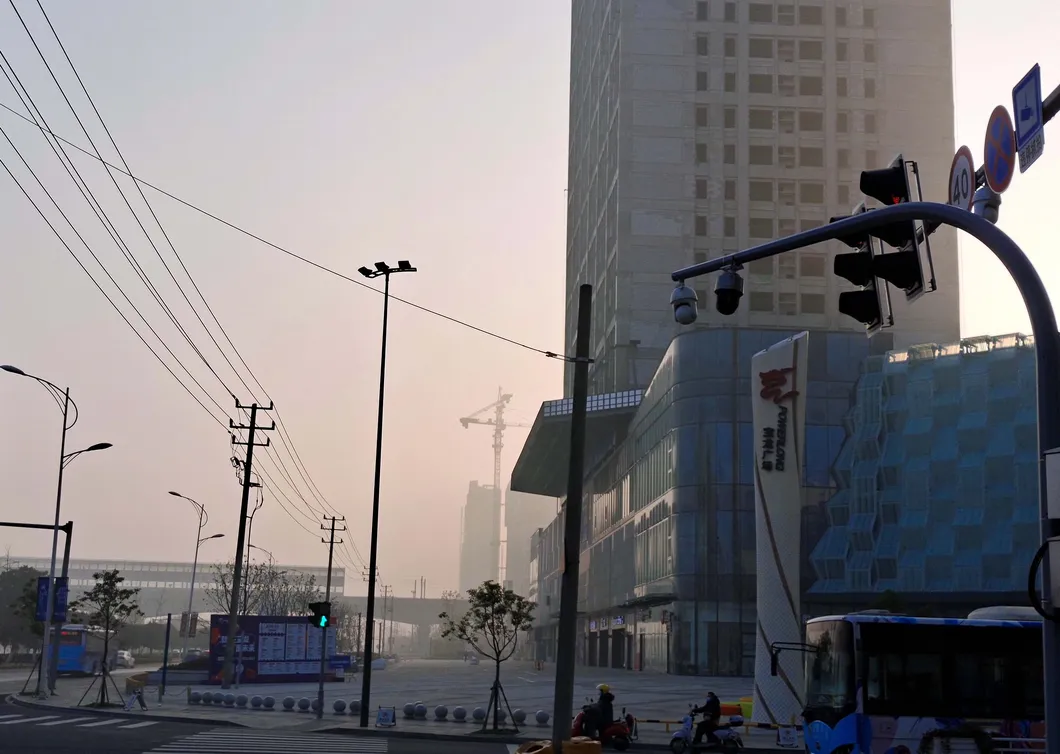

APPLICATIONS
Area Lighting
Architecture Lighting
Stadium Lighting

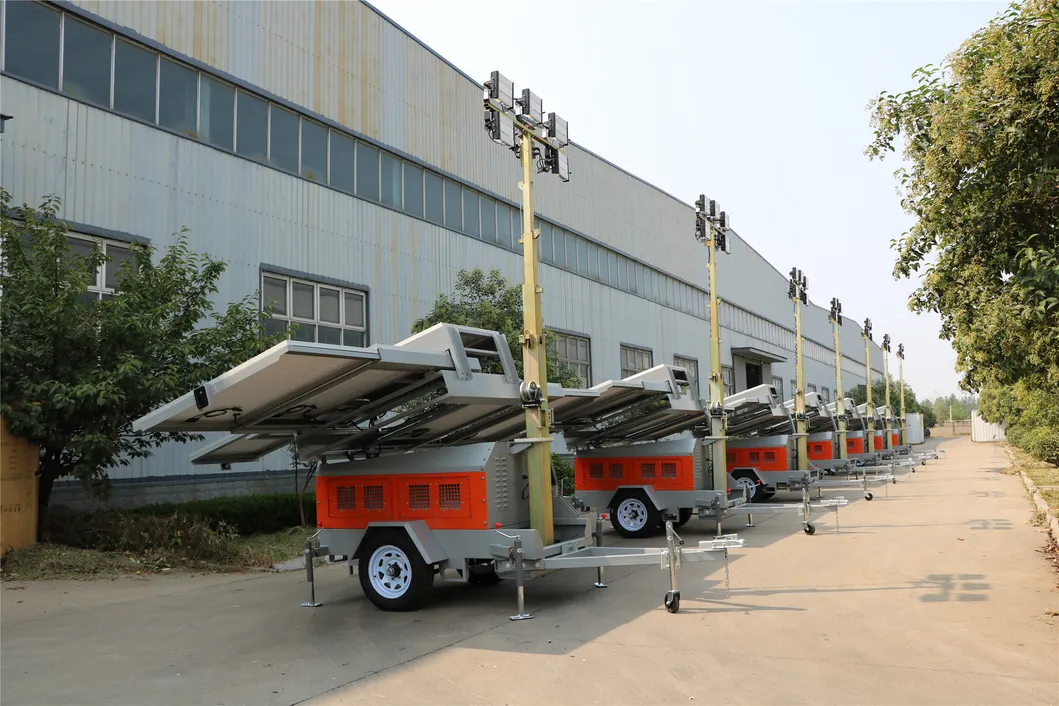

Light Tower
Frequently Asked Questions
Q1: What is the protection rating for this flood light?
A1: This product has an IP66 rating, making it completely dust-tight and protected against powerful water jets, suitable for harsh outdoor environments.
Q2: What is the lifespan of the JYT11-400 model?
A2: The light is designed for a long service life of up to 100,000 hours, significantly reducing maintenance costs.
Q3: Can this LED floodlight replace traditional metal halide lamps?
A3: Yes, this 400W LED floodlight is an ideal energy-efficient replacement for 700W metal halide lamps.
Q4: Does it support universal voltage input?
A4: Yes, it supports a wide input voltage range of 90-305Vac, making it compatible with various global power standards.
Q5: What certifications does the product hold?
A5: The product is certified by CCC, CE, CQC, and RoHS, ensuring high quality and safety standards.
Q6: What is the warranty period offered?
A6: We provide a 3-year warranty for this high-power LED floodlight.
