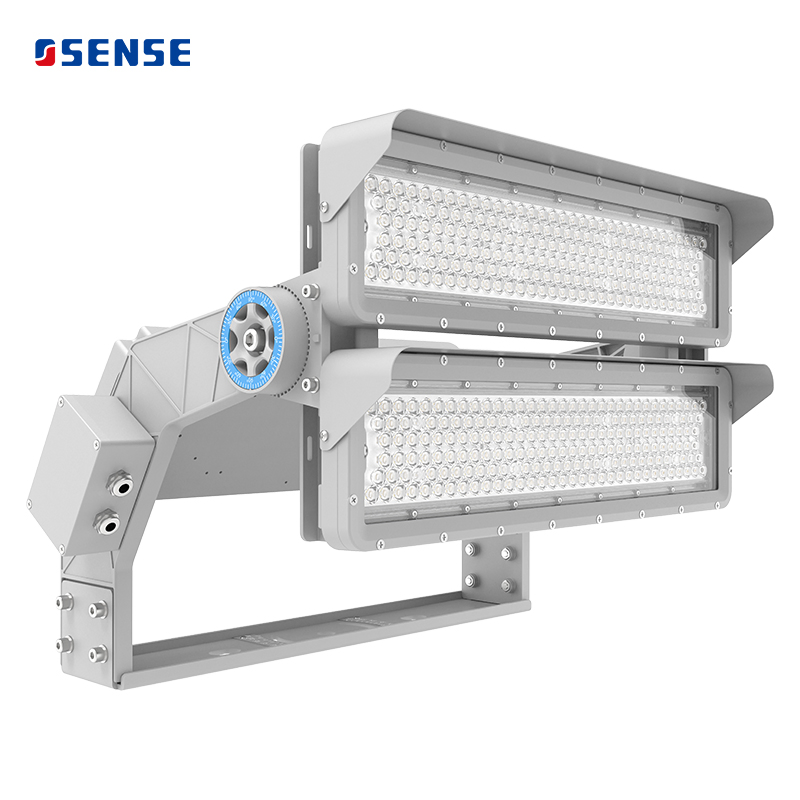

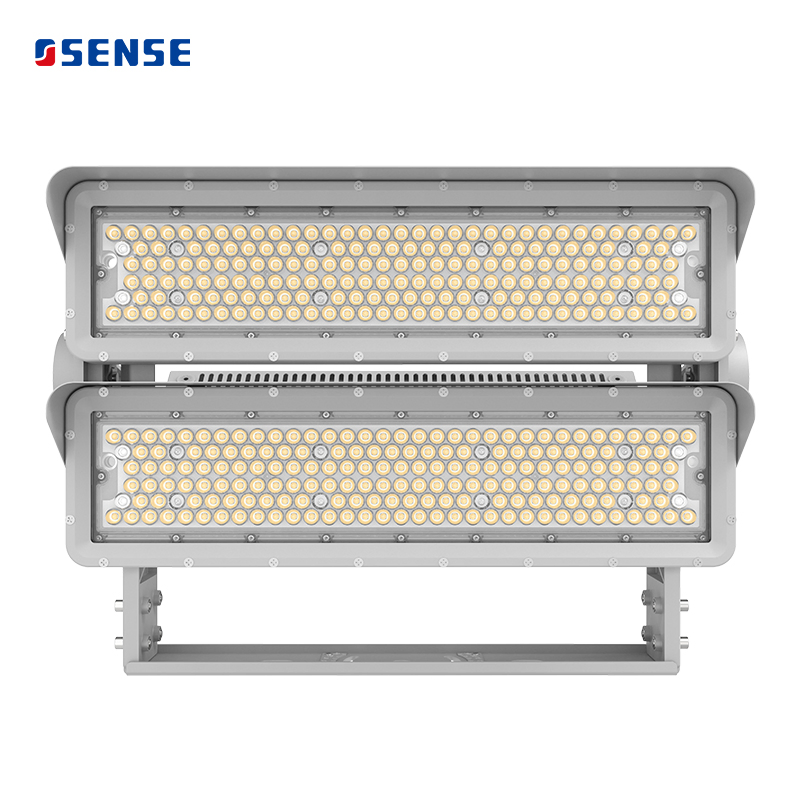

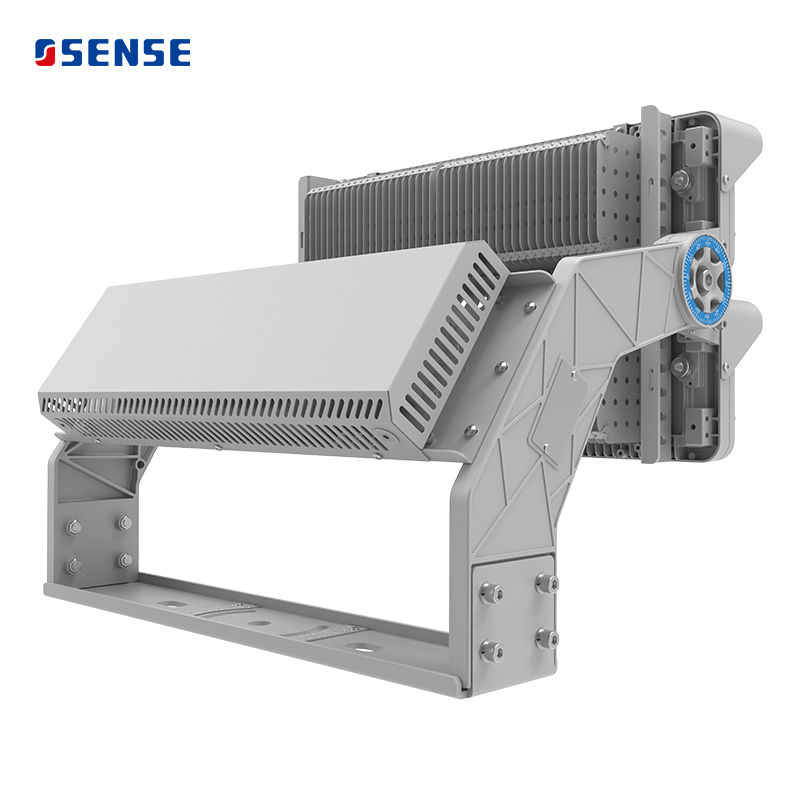

Module Design LED Flood Light IP66 Water-Proof 400W 500W 150lm/W LED Tunnel Light/Football/Tennis /Sports Court Lighting Stadium Light
Product Description
📋 Basic Information
Model NO.
SWT-F01-800W
Power
400W/500W/600W/800W/1000W/1200W
Projection Distance
>35m
Application

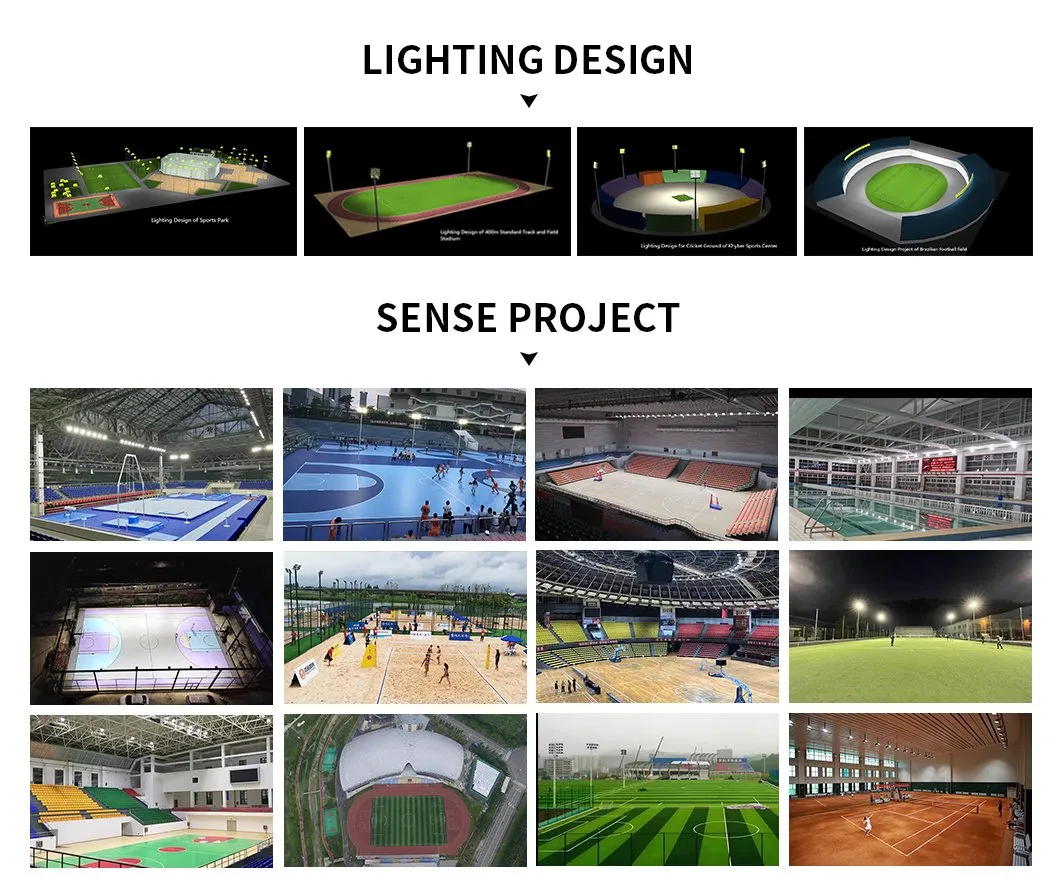

Park, Square, Ports, Docks, Airport, Large Sport Stadium, Fields, etc
IP Rating
IP66
Certification
CCC, CE, EMC, LVD, RoHS
Operating Voltage
110-240V
Input Voltage
100-277V
LED Chips Brand
CREE
LED Type
SMD 5050r@24V
CCT
4000K/5000K/5700K
CRI
>70
IK Grade
IK08
Beam Angle
A1/A2/A4/A6
Luminous Efficiency
150lm/W & 160lm/W±10%
Production Capacity
20000PCS/Month

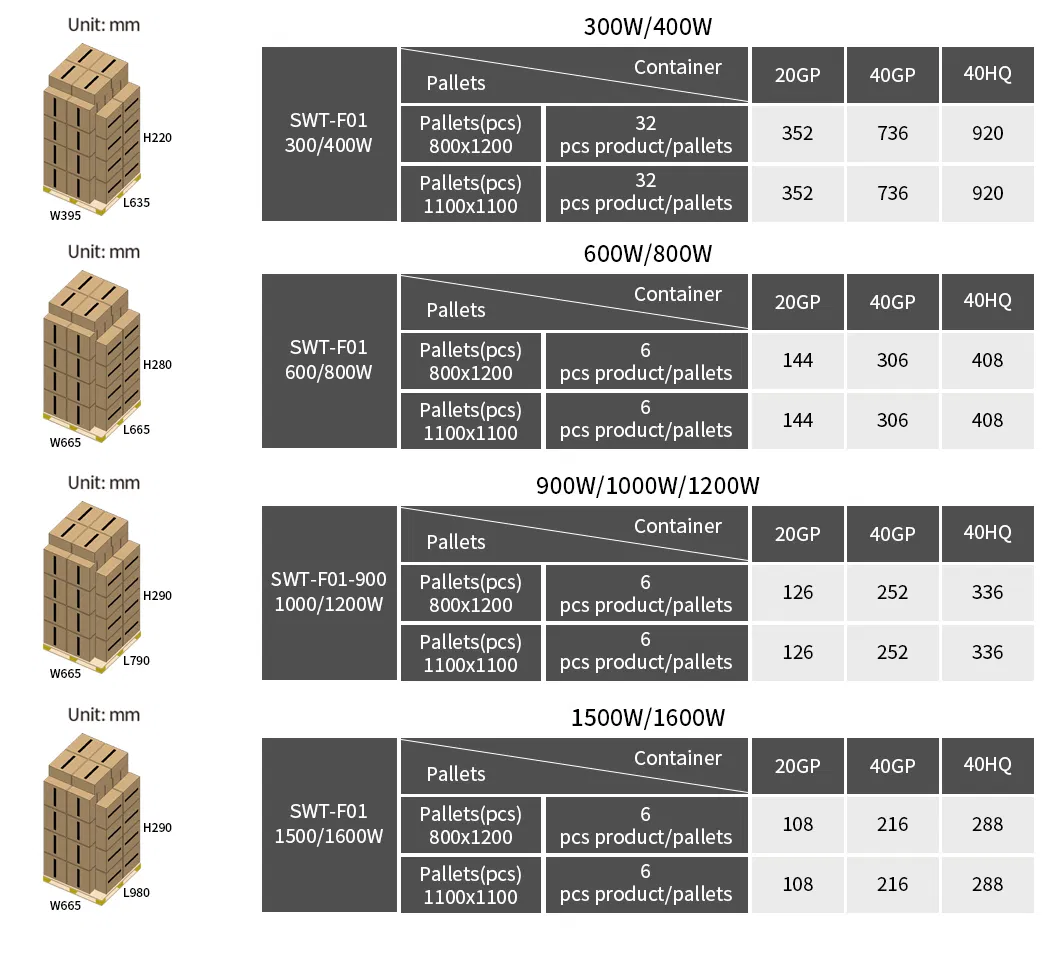

📦 Packaging & Delivery
Package Size
65.50cm * 42.00cm * 23.00cm
Package Gross Weight
14.700kg
Transport Package
Cartons
🌟 LED F01 Stadium Light Features

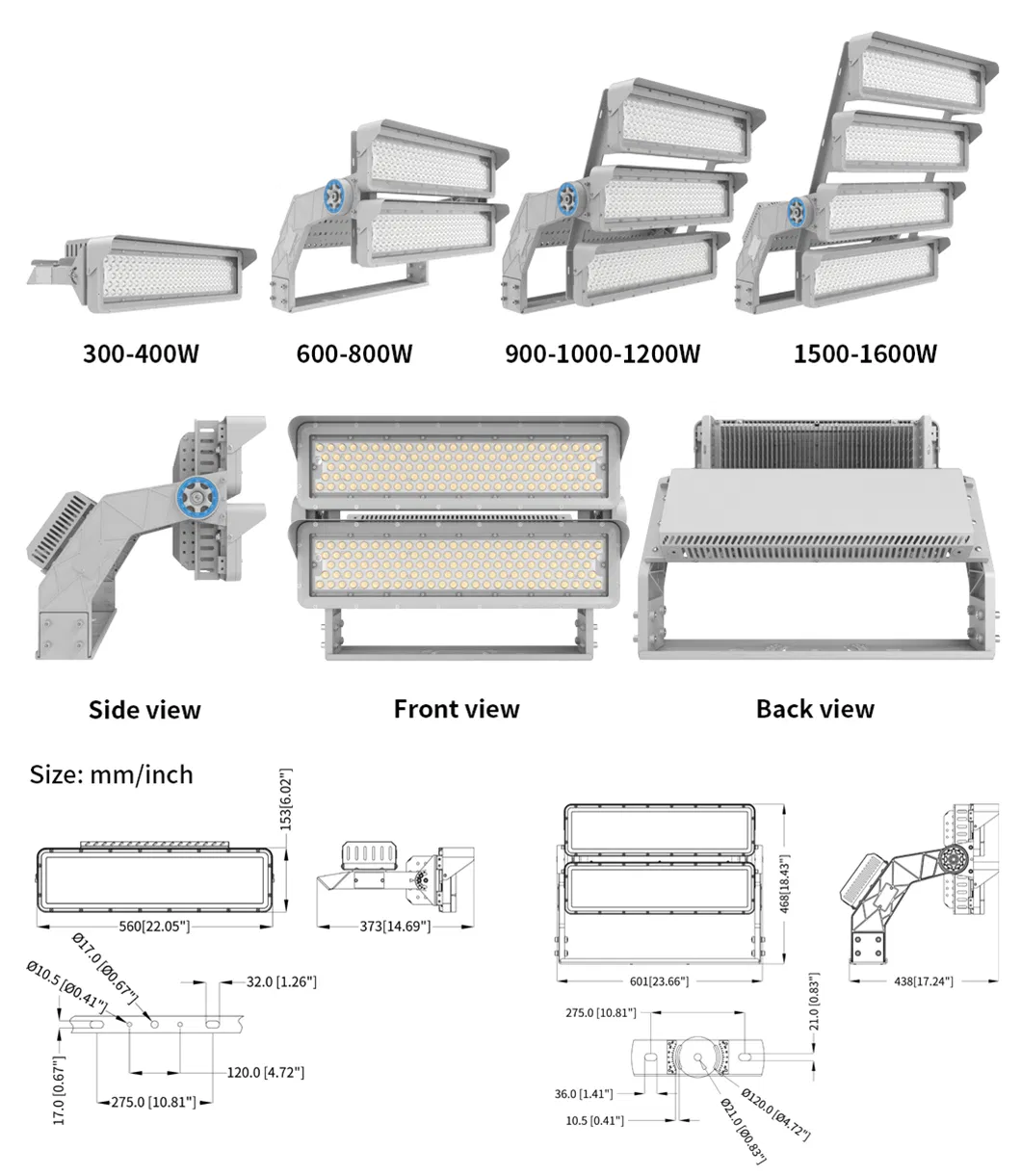

✓ 300W to 1600W multiple power options.
✓ ADC12 die-casting + fin forming with independent heat dissipation.
✓ Electrostatically sprayed surface for strong anti-corrosion.
✓ Air convection active heat dissipation technology.

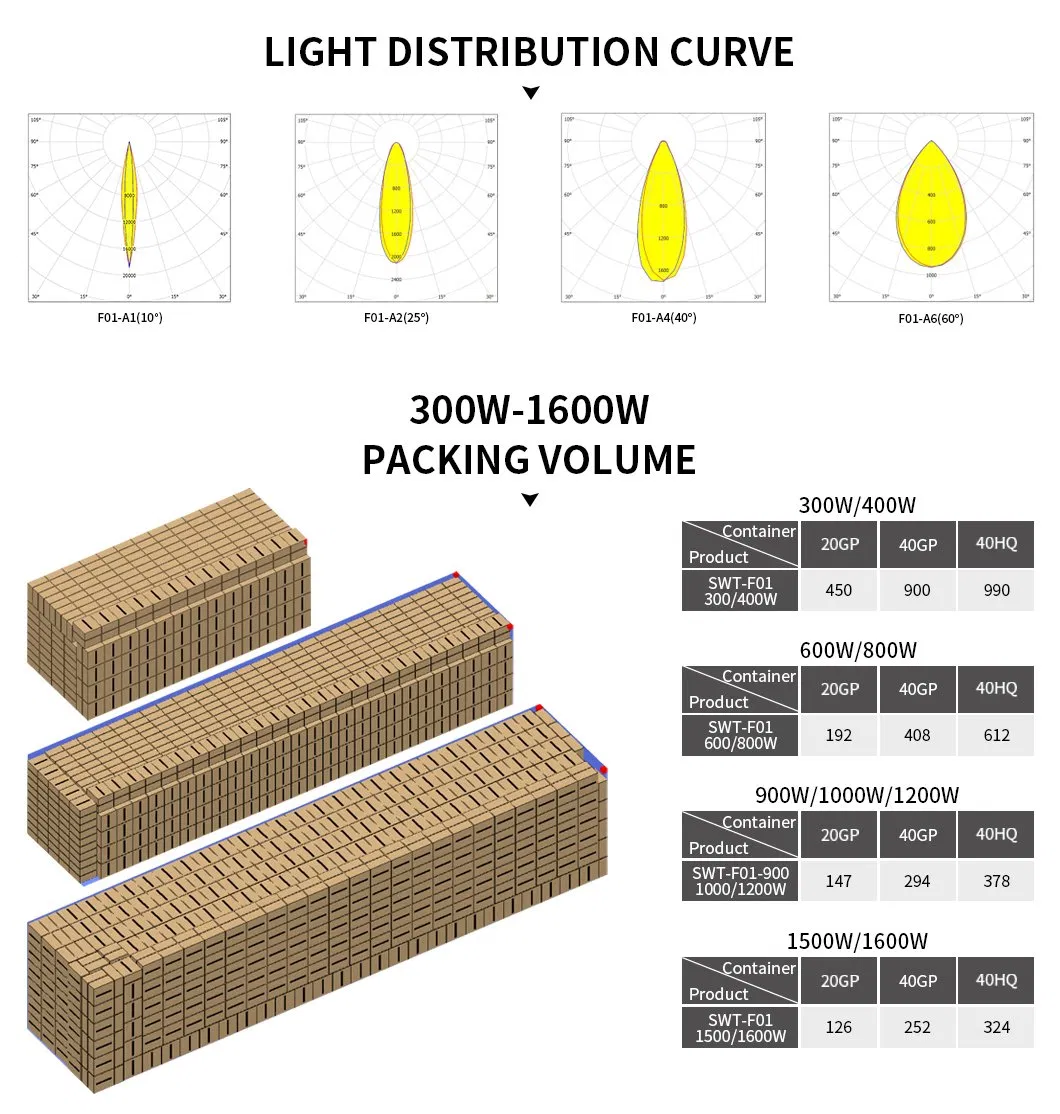

✓ Multiple optical angles: 10°/25°/40°/60°.
✓ Modular design for customizable lighting needs.

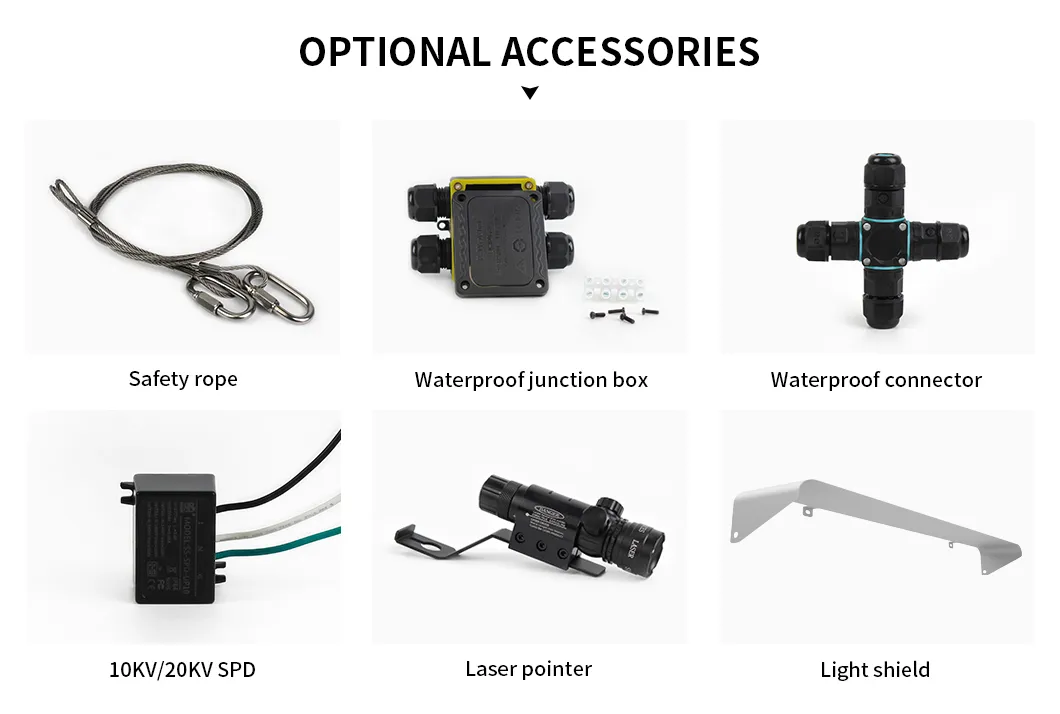

✓ 10KV/20KV SPD lightning and surge protection.

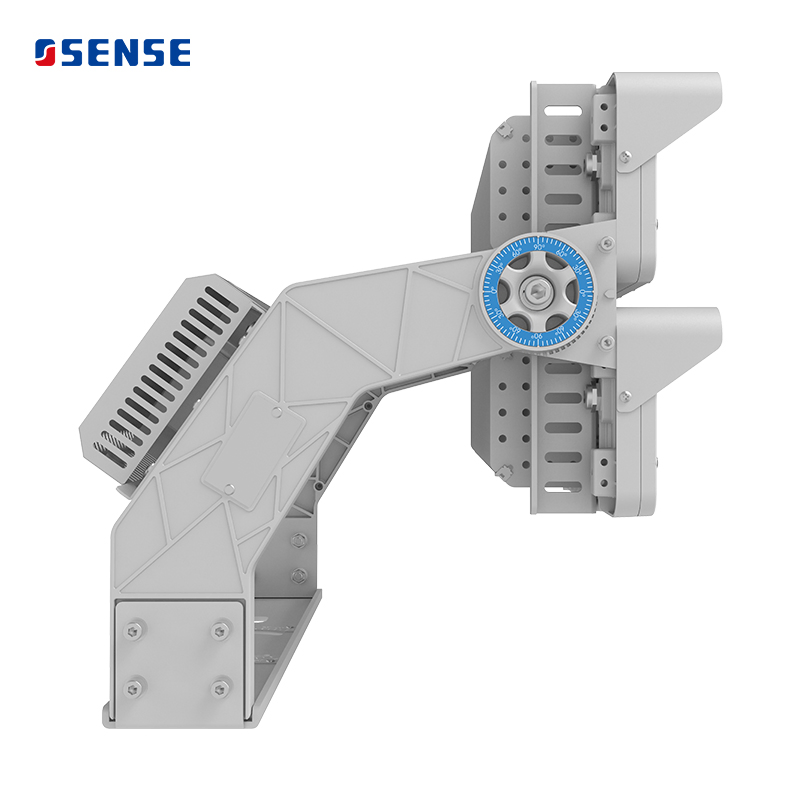

✓ 360° adjustable angle installation with contour dial design.
✓ IP66/IK08 protection grade for outdoor durability.
⚙️ Technical Specifications
| GENERAL & ELECTRIC INFORMATION | HOUSING & OPTICAL INFORMATION | ||
|---|---|---|---|
| Mounting Module | Bracket system | Housing Material | ADC 12 die-casting + AL 1070 Aluminum |
| Nominal Voltage | 100-277VAC 50/60Hz | Color Temperature | 4000K / 5000K / 5700K |
| Power Factor | ≥0.95 (at full load) | CRI | ≥70 (80/90 optional) |
| Driver Brand | Meanwell/Moso/Sosen/Inventronics | LED Brand | CREE/Nichia/Lumiled/Samsung |
| Surge Protection | Up to 20kV (optional) | Impact Resistance | IK08 (Standard) / IK10 (Optional) |
| Control System | DALI/1-10v/DMX512 dimming | Lifetime | >50,000h - L70B50 |
📸 Product Details
❓ Frequently Asked Questions
Q1. Are you an experienced manufacturer in this field?
Yes, we operate our own factory with over 20 years of R&D and manufacturing experience, strictly following ISO quality management standards since 2003.
Q2. What product certifications do you provide?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. We also provide IP66, IK10, LM79, LM80, and IES testing reports.
Q3. Do you offer OEM/ODM services for branding?
Yes, we provide full OEM and ODM support, allowing customers to have their logo on products and packages to meet specific application requirements.
Q4. What is the standard warranty and lead time?
We offer a 5-7 year warranty. Lead times are generally 3-7 days for samples and 10-20 days for mass production based on order quantity.
Q5. How do you handle potential product faults?
Our defect rate is under 0.1%. During the warranty period, we replace small quantities with new orders or repair/recall batch products depending on the situation.
